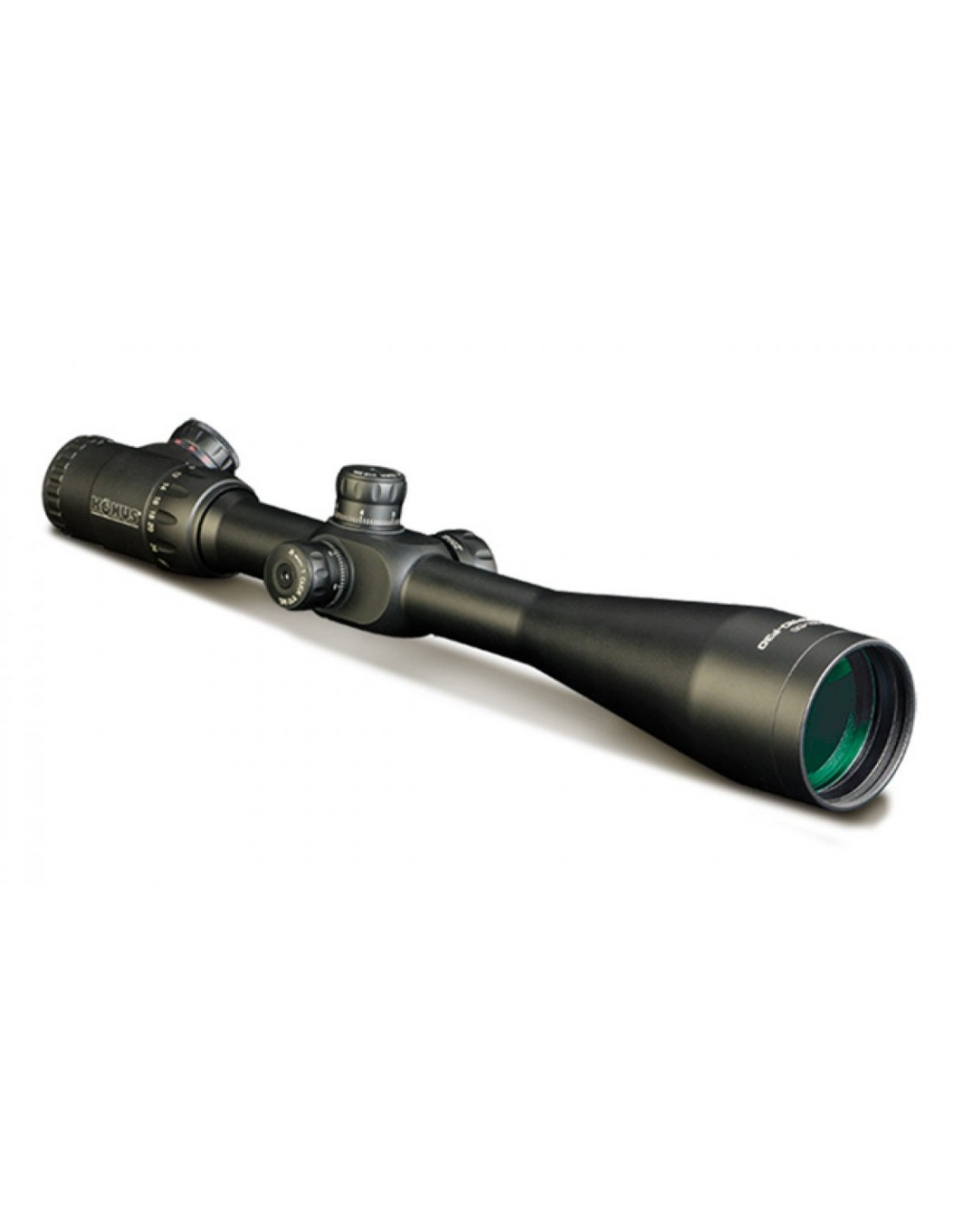

F30 6-24X52 Optic - KONUS

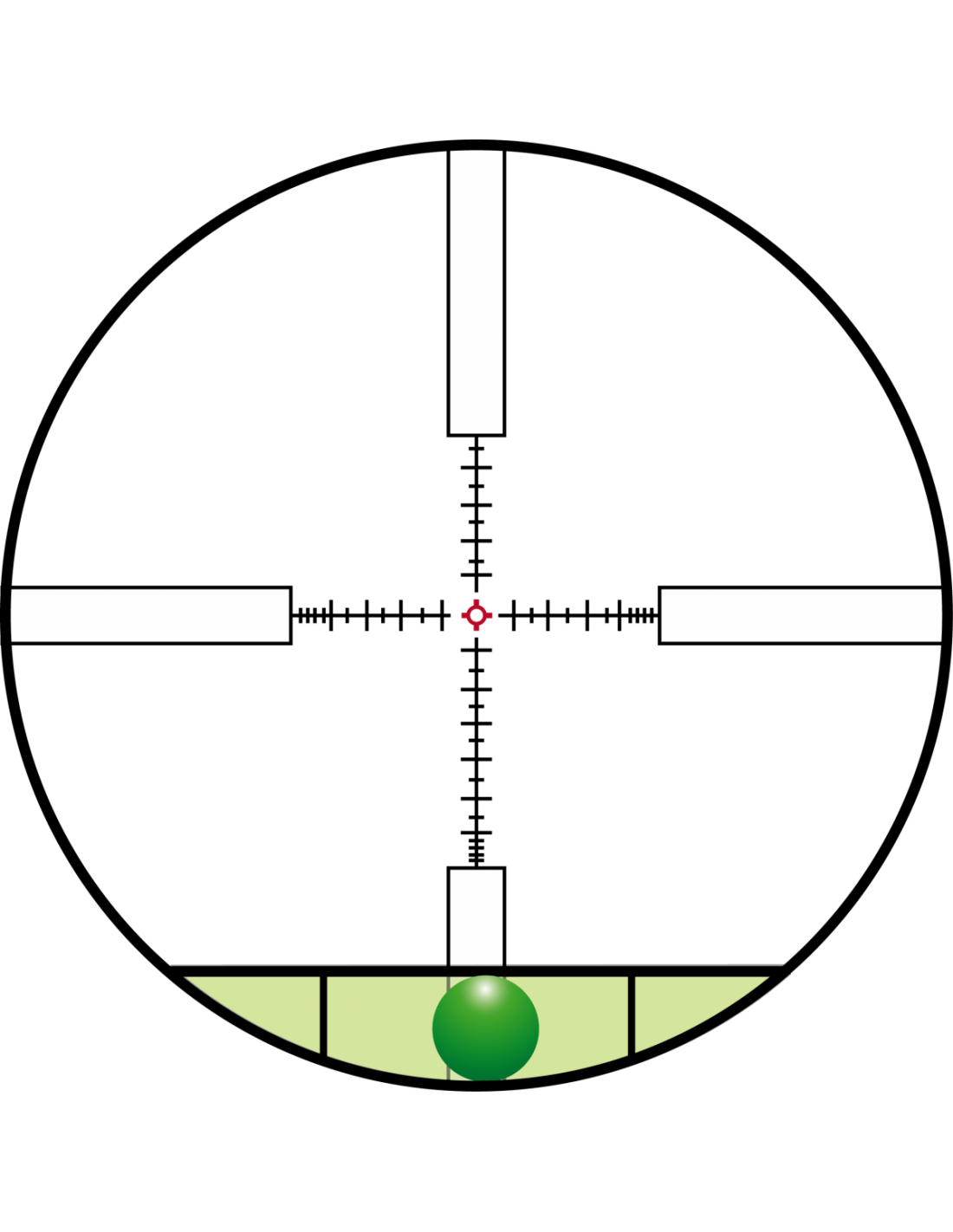

The main feature of the F-30 series is the positioning of the reticle which is on the first focal plane, in particular a modified version of the MIL-DOT, thus guaranteeing maximum precision. The lighting is in two colors, red and blue, the internal level bubble is present, the turrets are lockable and the parallax correction wheel is present.

These optics are the ideal solutions for long-range shooting practitioners who don't want to leave anything to chance while facing the most prohibitive challenges.


SPECIFICATIONS
- MODIFIED MIL DOT ENGRAVED RETICLE- FLIP-UP LIDS INCLUDED- LIGHTS INCLUDED- LEVEL BUBBLE- WATERPROOF, FOGPROOF, SHOCKPROOF- FILLED WITH NITROGEN- FULLY MULTI COATED TREATMENT OPTICS- FOCUS ON 45 ° GLASS COLOR ADJUSTMENTS - PARALLAX RING WITH INCREASED WHEEL - 1/10 MILITARY ADJUSTMENT TURRETS - INTERNAL LEVEL BUBBLE, FLUORESCENT - TUBE DIAMETER 30MM. TECHNICAL DATA:
Magnification per lens: 6-24x52 Grid: Modified Mil-Dot Illuminated Field of View at 100m: 4.51m at 6x • 1.3mt at 24x Weight: 810 gr Length mm: 417mm Eye Relief mm: 88.9 mm Exit pupil mm: 8.3mm at 6x - 2.2mm at 24x Trigger value at 100m: 1/10 MIL (10mm) Adjustment range at 100m: 1.47m Mounting distance mm: 161mm
