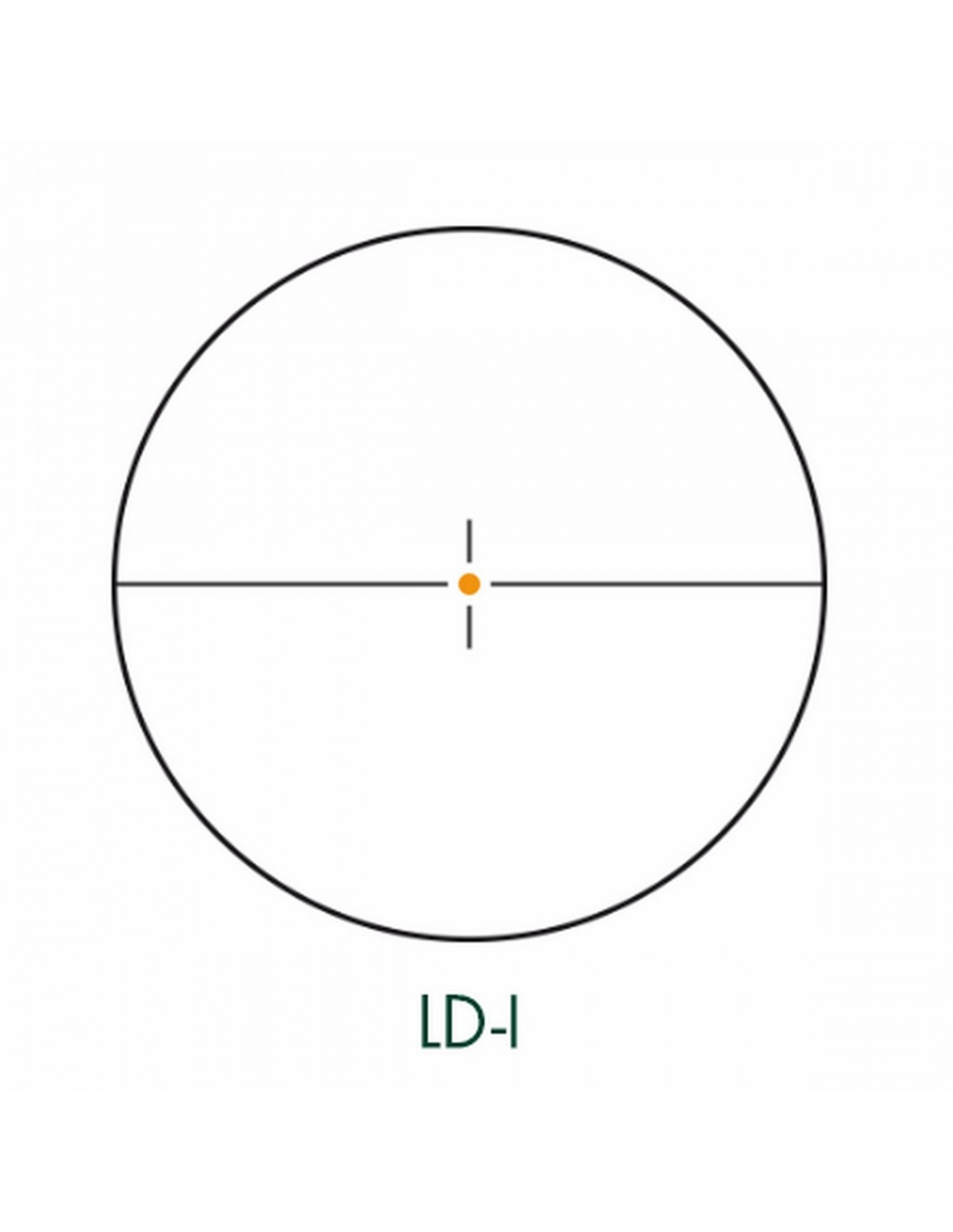

Rifle scope Z6i 1-6x24 SR Reticle LD-I - SWAROVSKI OPTIK

FOR THE PERFECT OVERVIEW

The outstanding field of view offered by the Z6i 1-6x24 gives you the edge over others and especially helps in target acquisition. For instance, in narrow forest pathways, you can identify your target quickly and accurately. The 6x magnification means that you are also perfectly equipped for medium distances.

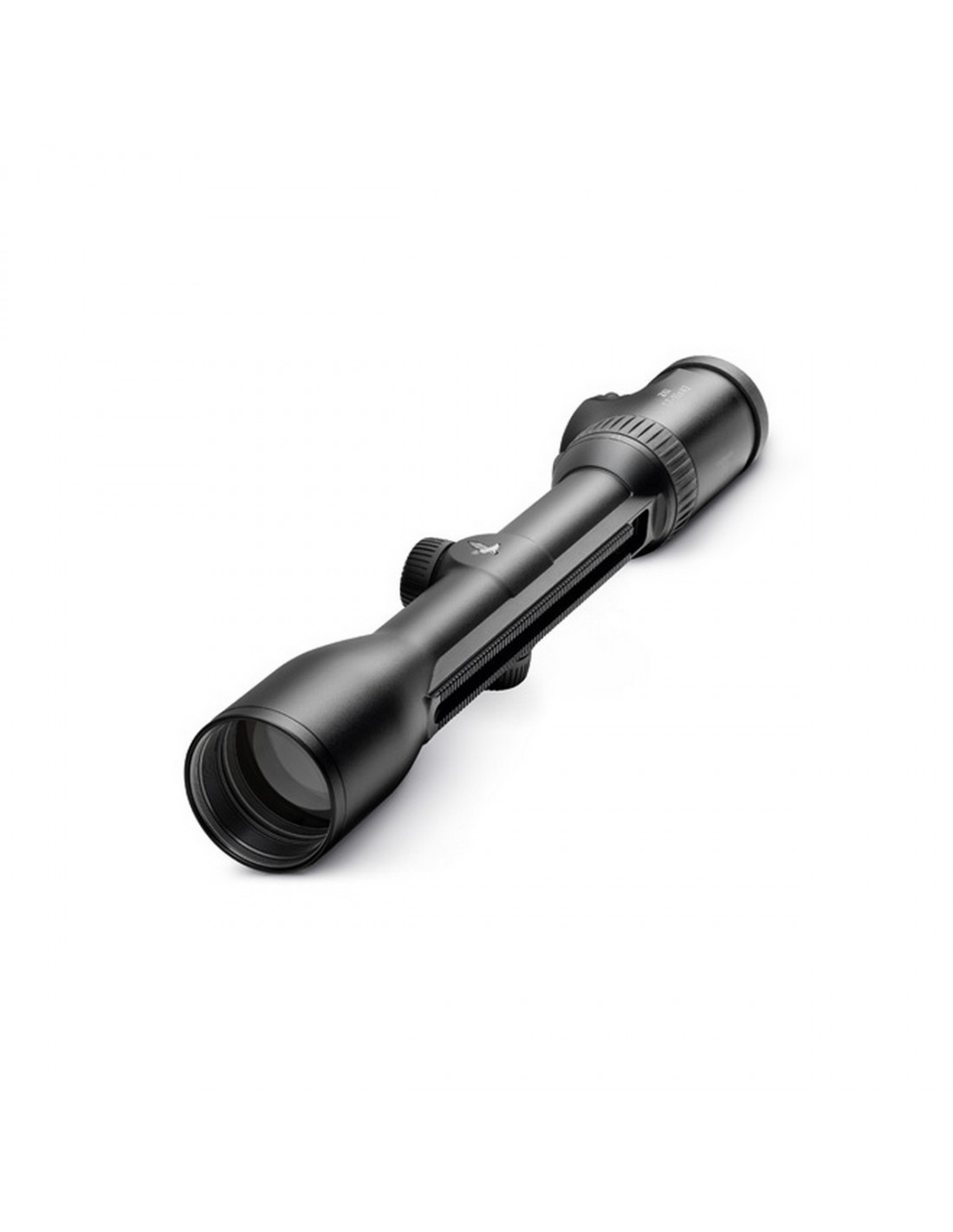

Z6i 1-6x24 SR

The illuminated Z6i 1-6x24 SR stands out thanks to its 127.5 ft / 42.5 m field of view with a 1x magnification, which provides a larger overview when hunting. The 6x magnification means that you can sight your quarry reliably and take an accurate shot over a medium-range distance. The sturdy SR mounting rail enables you to fit the rifle scope easily and securely at a low level.

TECHNICAL DATA

Magnification
1-6x
Effective objective lens diameter (mm)
9.6-24
Exit pupil diameter (mm)
9.6-4.0
Exit pupil distance (mm) (Eye relief)
95
Field of view (ft/100 yds / m/100 m)
127.5-20.4 / 42.5-6.8
Field of view (degrees)
23.8-3.9
Field of view, apparent (degrees)
23.4
Dioptric compensation (dpt)
-3 to +2
Light transmission (%)
90
Twilight factor acc. to ISO 14132-1
2.8-12
Impact point corr. per click (in/100 yds / mm/100 m)
0.54 / 15
Max. elevation / windage adjustment range (in/100 yds / m/100 m)
72 / 2
Objective filter thread
M 27x0.75
Technical Data
Length (in / mm)
11.65 / 296
Weight (oz / g)
16.2 / 460
Central tube diameter (in / mm)
1.18 / 30
Functional temperature
-4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature
-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness
13 ft / 4 m water depth (inert gas filling)
Illumination unit
Brightness levels
Twilight: 0 - 32 / Day: 33 - 64
Operating time (h)
Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
