ALWAYS ON THE MOVE
The challenge posed by driven and big game hunting requires a powerful experts’ rifle scope like the Z8i 1-8x24. Its exceptional field of view enables you to maintain an overview all the time. The perfect optical system offers excellent viewing comfort and ensures rapid target acquisition.

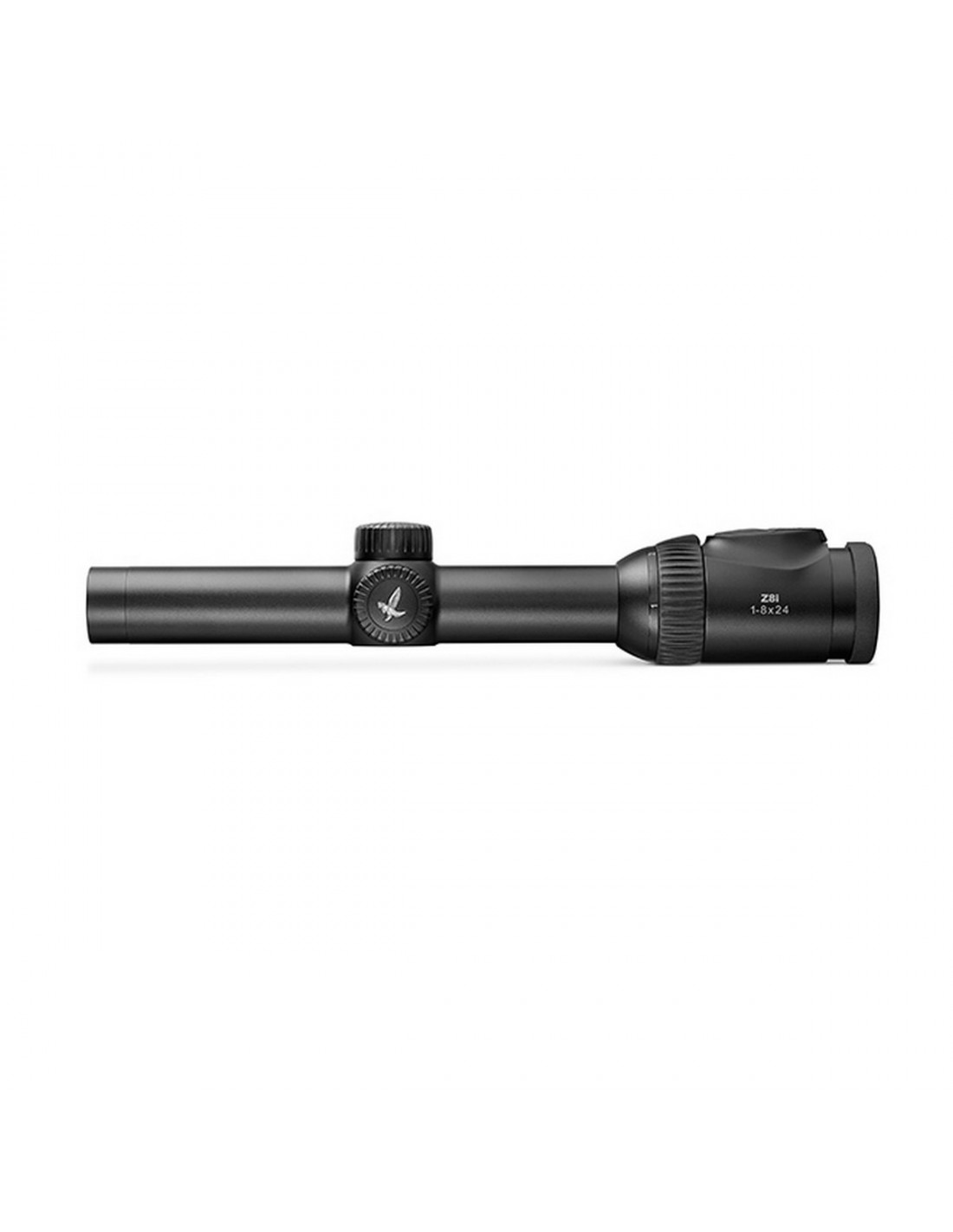

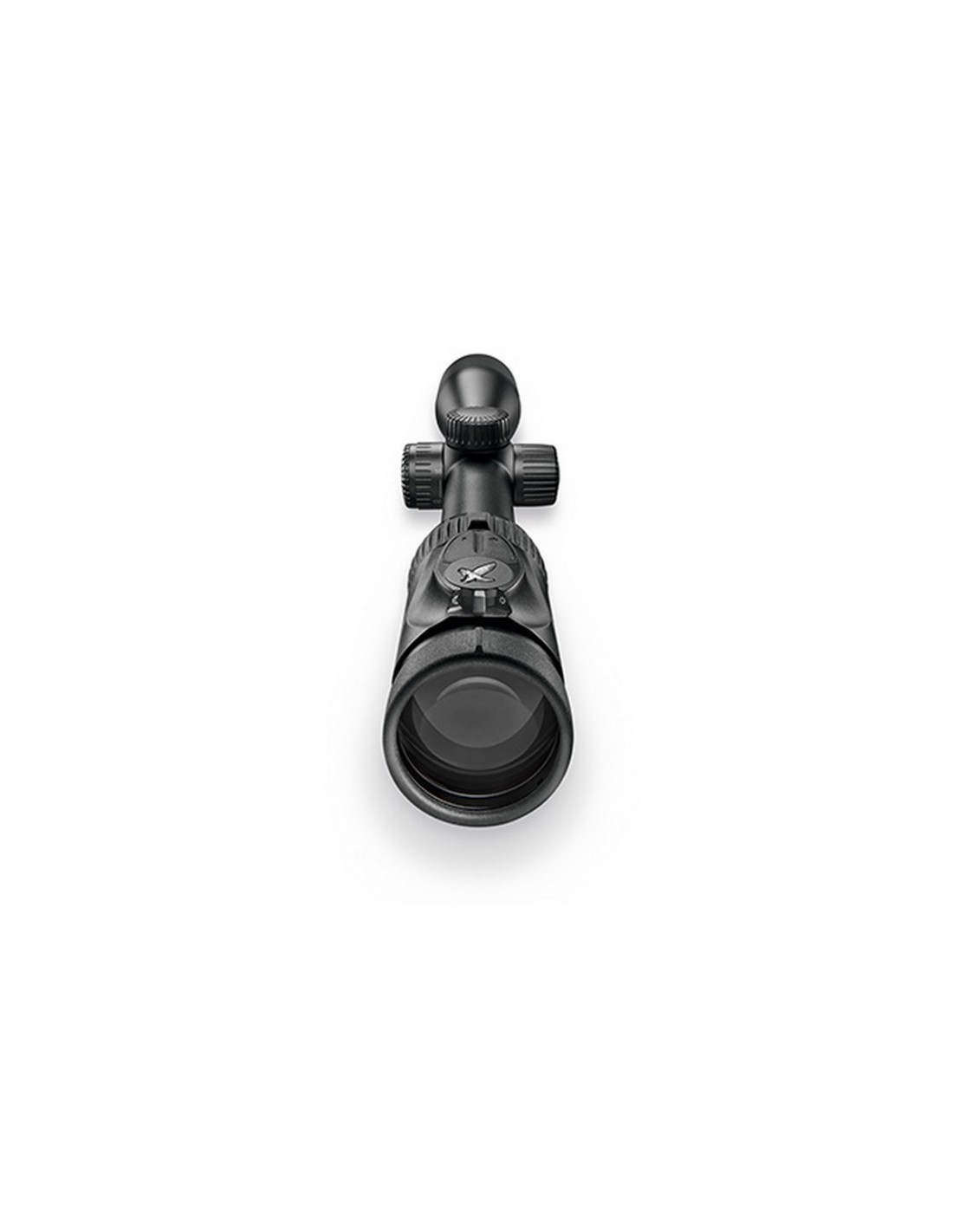

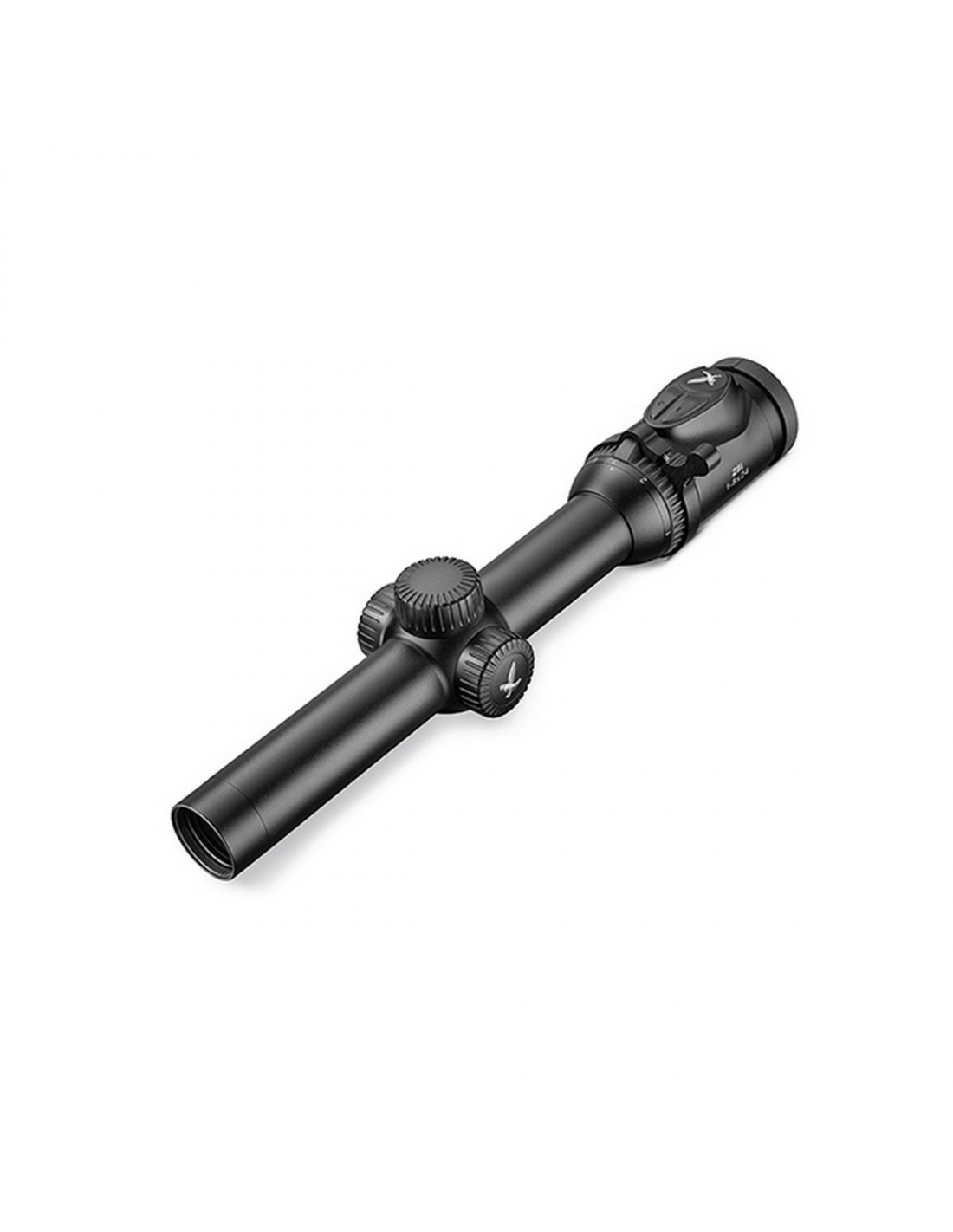

Z8i 1-8x24 L

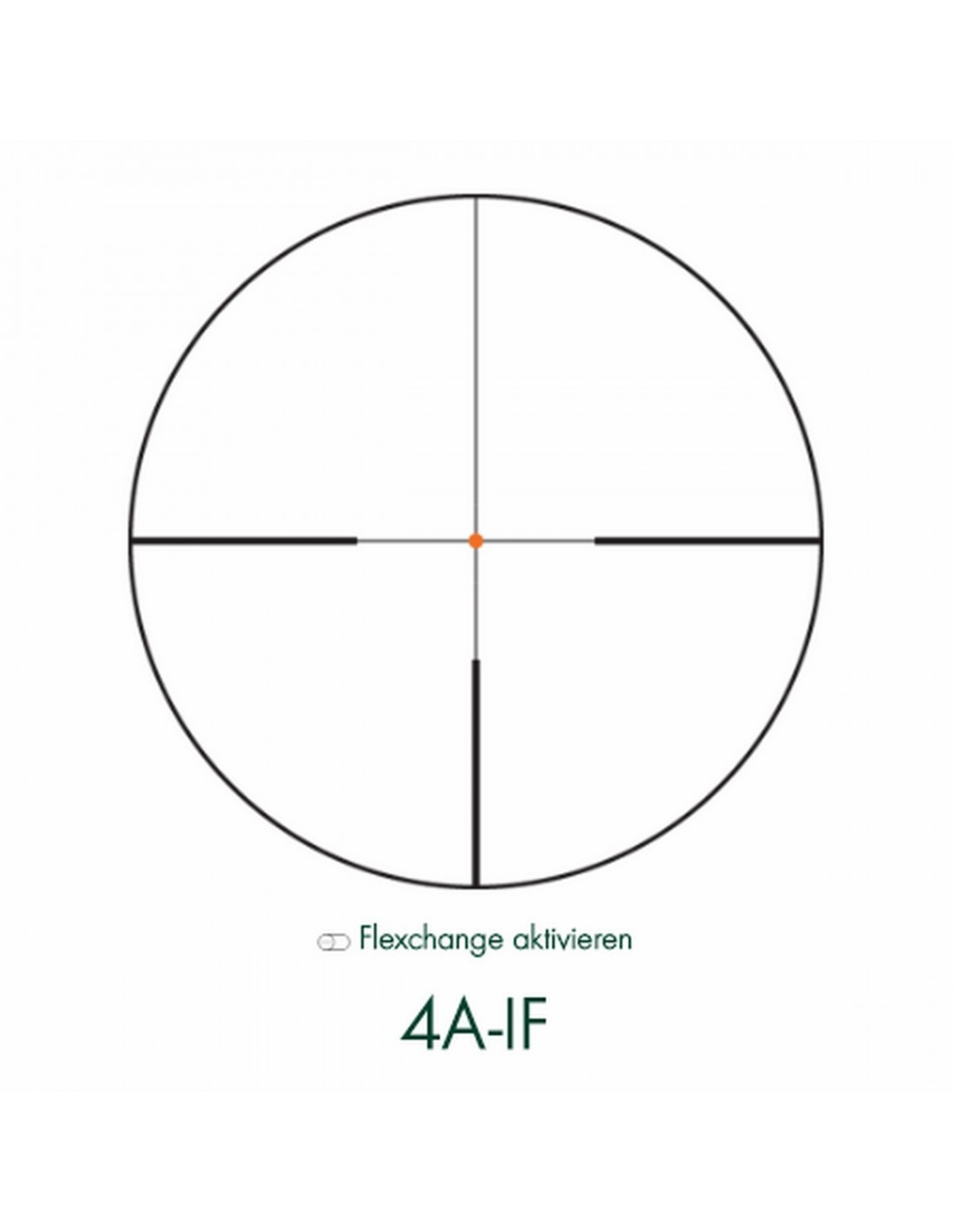

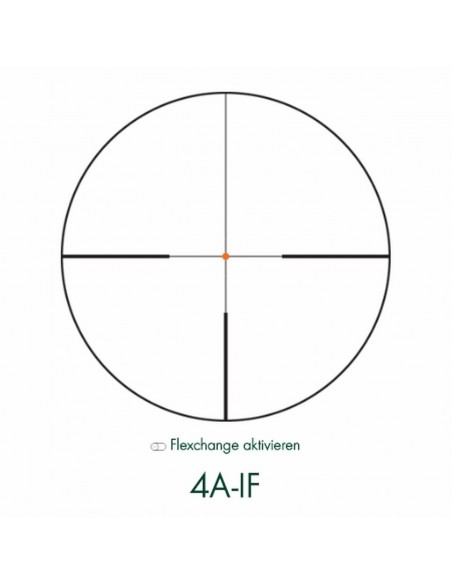

The illuminated Z8i 1-8x24 L rifle scope provides a remarkable field of view of 42.5 m (127.5 ft) with a 1x magnification, offering the best possible overview of the hunting action to ensure the right decision is made even in rapidly changing situations. The Z8i 1-8x24 is also equipped with FLEXCHANGE, the switchable 4A-IF reticle.
TECHNICAL DATA
Magnification
1-8x
Effective objective lens diameter (mm)
8.2-24
Exit pupil diameter (mm)
8.1-3.0
Exit pupil distance (mm) (Eye relief)
95
Field of view (ft/100 yds / m/100 m)
127.5-15.9 / 42.5-5.3
Field of view (degrees)
24.0-3.0
Field of view, apparent (degrees)
24
Dioptric compensation (dpt)
-3 to +2
Light transmission (%)
93
Twilight factor acc. to ISO 14132-1
2.8-13.9
Impact point corr. per click (in/100 yds / mm/100 m)
0.36 / 10
Max. elevation / windage adjustment range (in/100 yds / m/100 m)
72 / 2
Objective filter thread
M 27x0.75
Technical Data
Length (in / mm)
11.9 / 301
Weight (oz / g)
18.2 / 515
Central tube diameter (in / mm)
1.18 / 30
Functional temperature
-4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature
-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness
13 ft / 4 m water depth (inert gas filling)
Illumination unit
Brightness levels
Twilight: 0 - 32 / Day: 33 - 64
Operating time (h)
Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
