Rifle scope Z8i 0,75-6x20 SR Reticle D-I - SWAROVSKI OPTIK

Z8i 0.75-6x20 SR

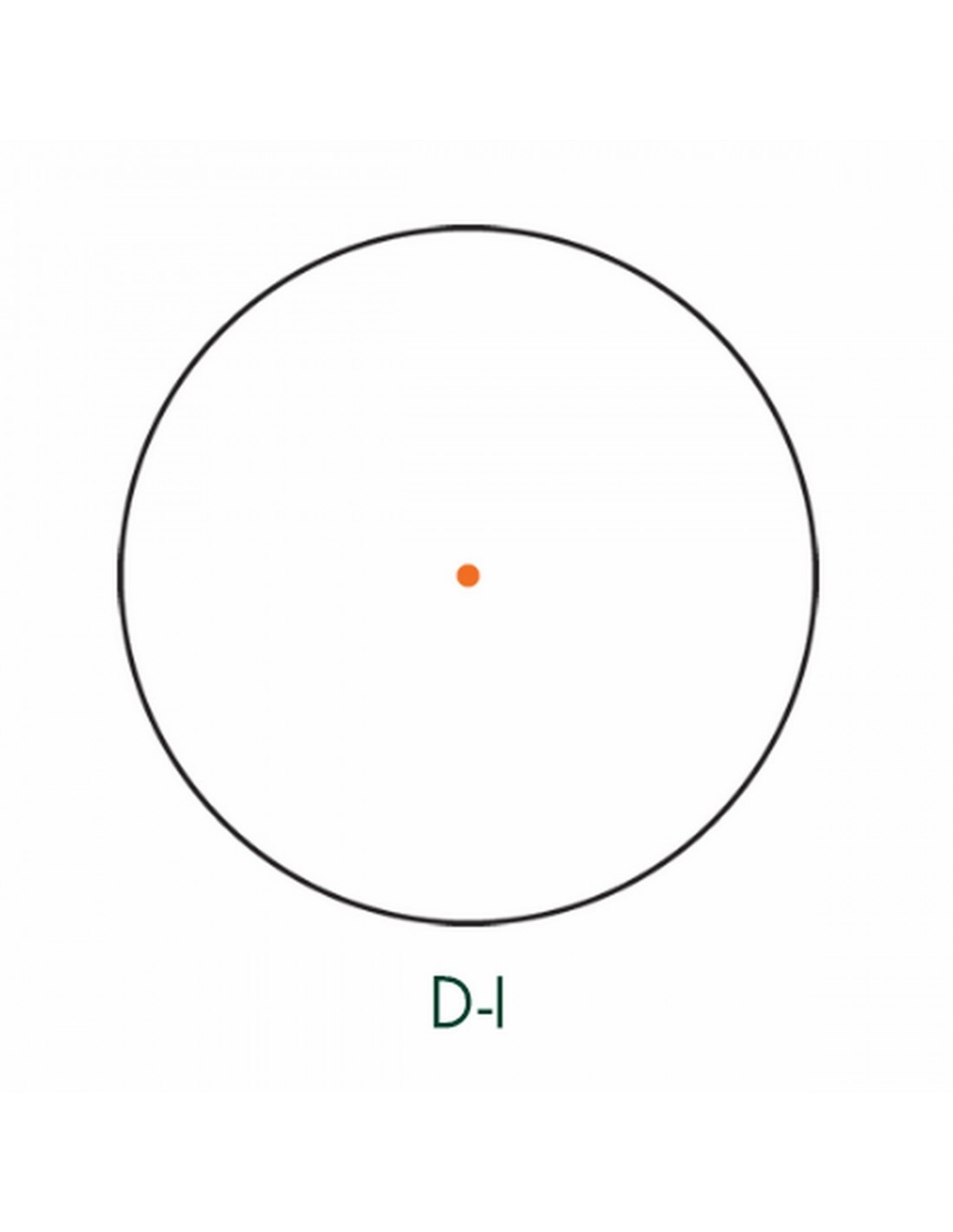

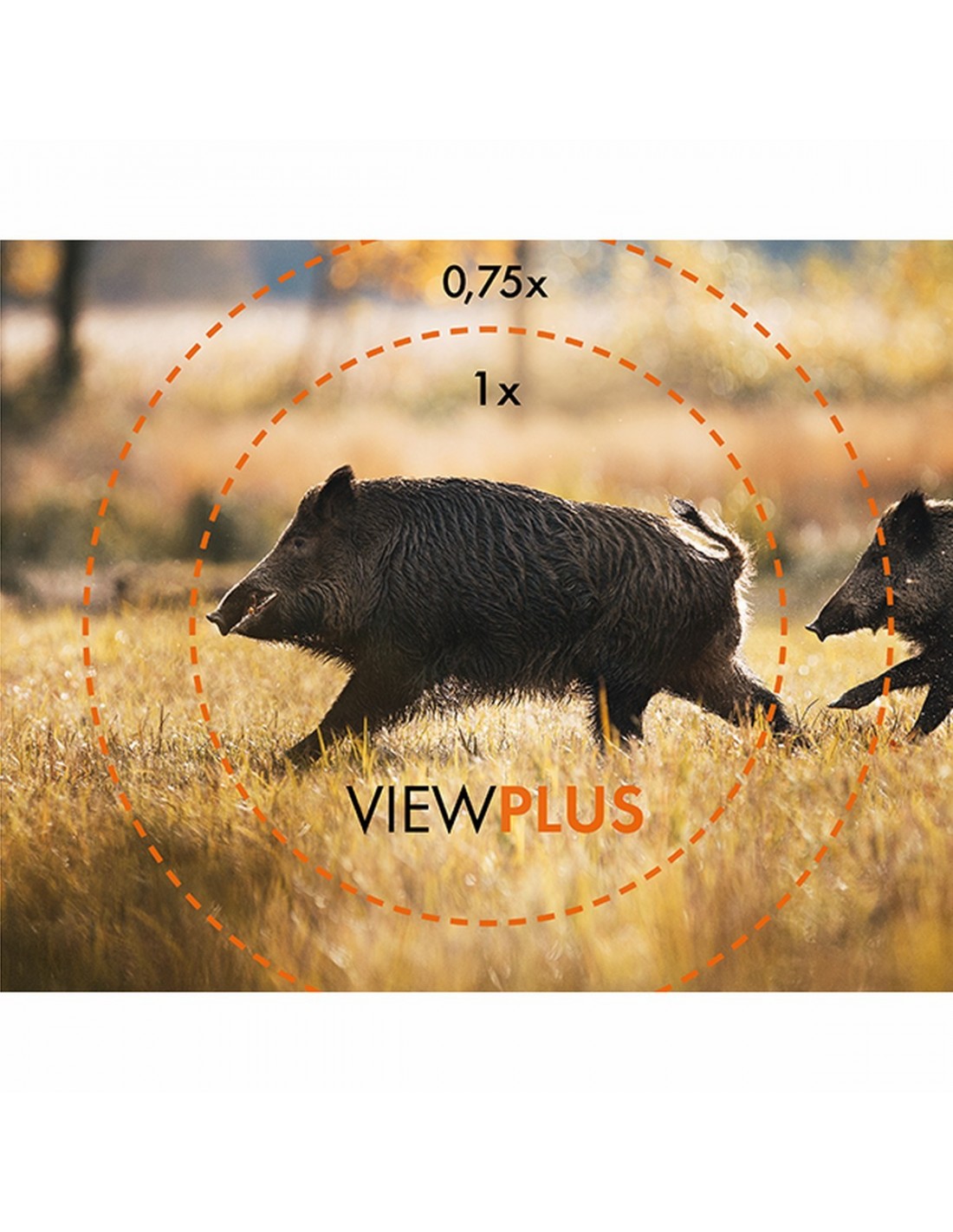

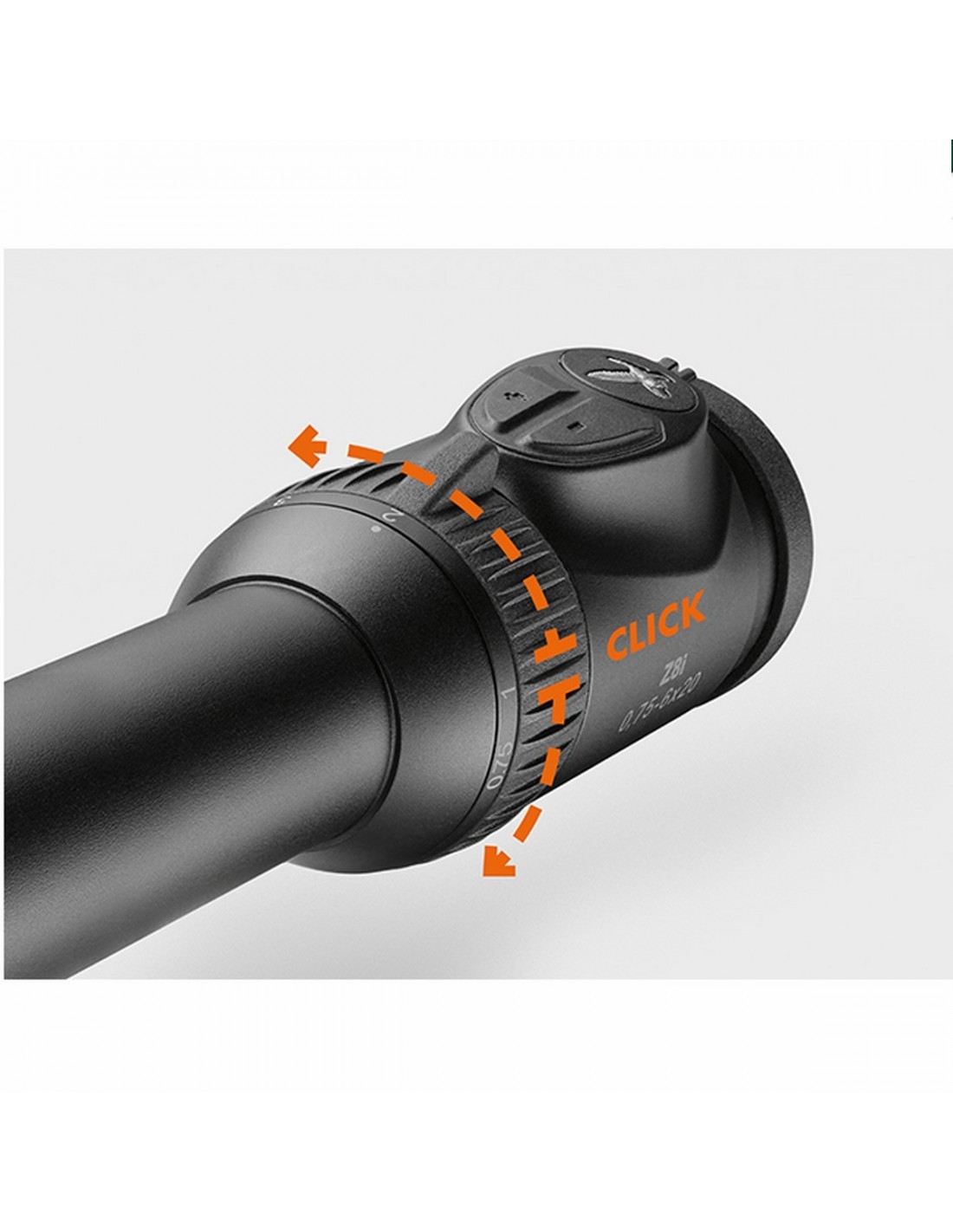

Designed by SWAROVSKI OPTIK for driven hunts, the Z8i 0.75-6x20 SR with 8x zoom means you never miss any of the action. Thanks to VIEWPLUS 0.75x magnification, this rifle scope offers 30% more field of view, while the D-I reticle has been reduced to a single point of focus to enable an unobscured view of the target. The CLICKONE function has a tangible click so that you know when you have reached 1x magnification. You can also customize the light, compact Z8i 0.75-6x20 SR to suit your particular hunting needs with our range of top-quality accessories. This rifle scope has a rugged SR SWAROVSKI OPTIK Rail mounting rail so that it can be fitted securely and quickly.

TECHNICAL DATA

Magnification
0.75-6x
Effective objective lens diameter (mm)
6.3-20
Exit pupil diameter (mm)
8.1-3.2
Exit pupil distance (mm) (Eye relief)
95
Field of view (ft/100 yds / m/100 m)
168.0-21.0 / 56.0-7.0
Field of view (degrees)
31.0-4.0
Field of view, apparent (degrees)
24
Dioptric compensation (dpt)
-3 to +2
Light transmission (%)
93
Twilight factor acc. to ISO 14132-1
2.1-11.0
Impact point corr. per click (in/100 yds / mm/100 m)
0.36 / 10
Max. elevation / windage adjustment range (in/100 yds / m/100 m)
72 / 2
Objective filter thread
M 27x0.75
Technical Data
Length (in / mm)
10.9 / 277
Weight (oz / g)
18.3 / 520
Central tube diameter (in / mm)
1.18 / 30
Functional temperature
-4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature
-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness
13 ft / 4 m water depth (inert gas filling)
Illumination unit
Brightness levels
Twilight: 0 - 32 / Day: 33 - 64
Operating time (h)
Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
