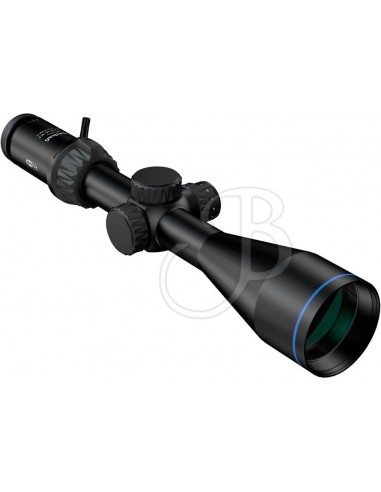

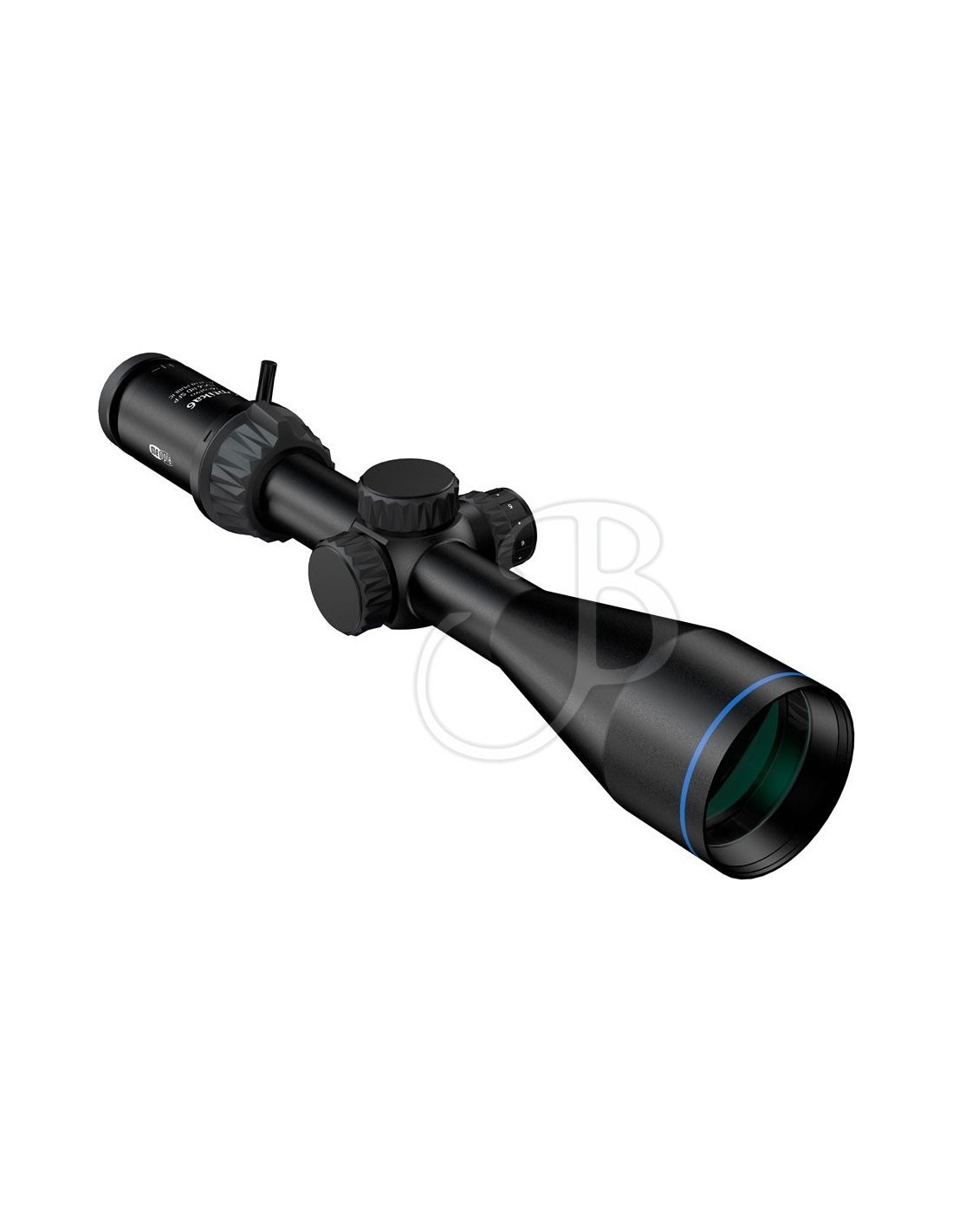

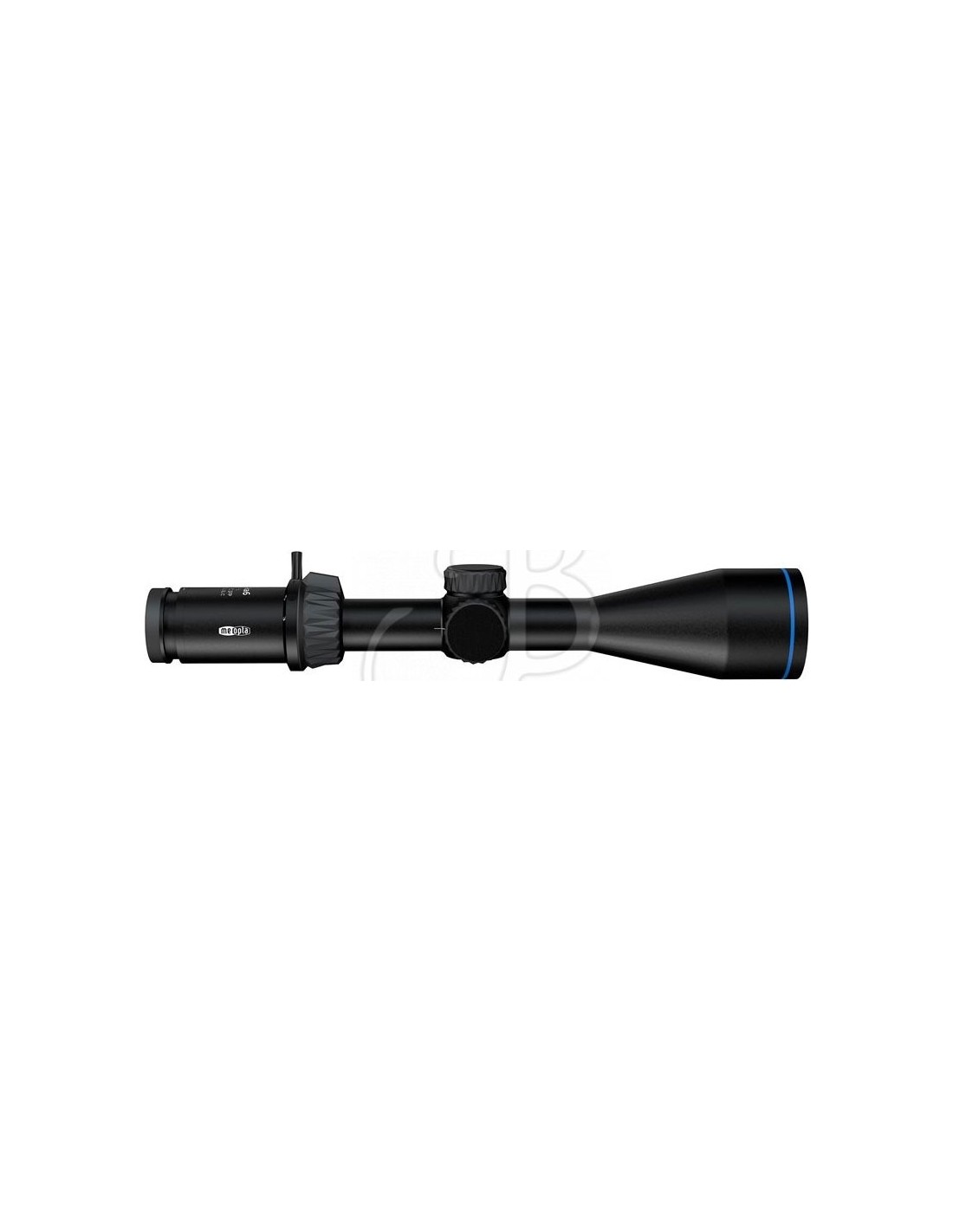

Meopro Optik 6 3-18x56 - MEOPTA

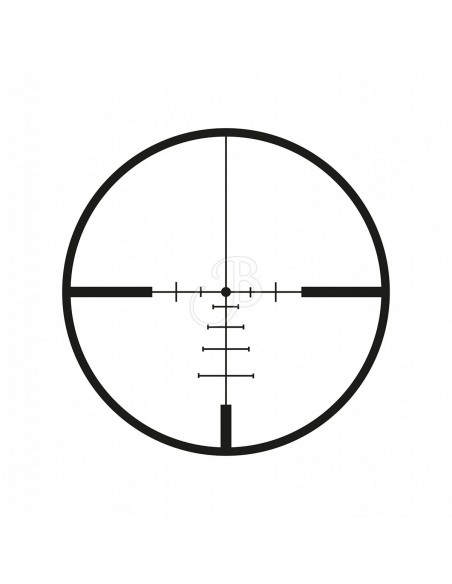

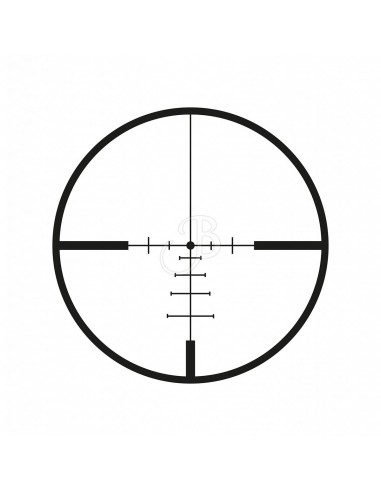

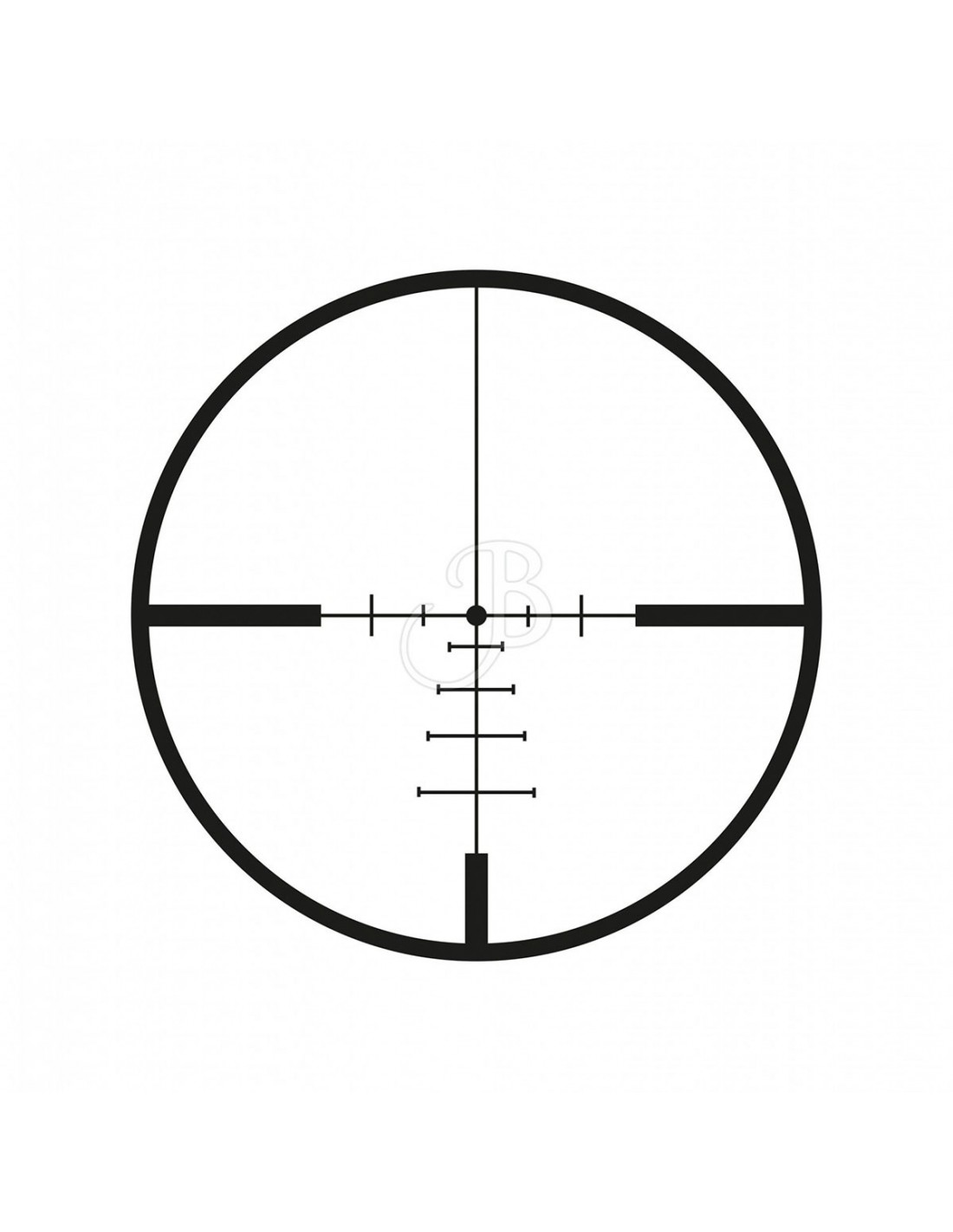

The optika6 3-18x56 riflescope is available with reticles in the first or second focal plane (ffp / sfp). The first focal plane (FFP) version has exposed adjustment turrets, with zero stop adjustment that allows the shooter to have a precise return to zero point. standard click values for non-mil reticles are 0.25 moa, while mil-based reticles feature adjustments of 0.1 milradian per click. available in different reticle configurations.

technical data:

magnification: 3 - 18 x
objective lens: 56 mm
objective filter thread: m61x0.75
main tube size: 30 mm
exit pupil diameter: 9.5 - 3.1 mm
eye relief (mm / in): 100 // 3.94
field of view (m/100m // ft/100yds): 11.1- 1.9 // 33.3-5.7
field of view: 6.34 - 1.1 °
focal plane position: 2
dioptric compensation: -2 / 2 d
daylight transmission: 91 %
twilight transmission: 88 %
twilight factor: 13 - 31.7
impact per click (cm/100m // in/100yds): 0.7 // 0.26
windage and elevation adjustment range (cm/100m // in/100yds) : 262 // 94.3

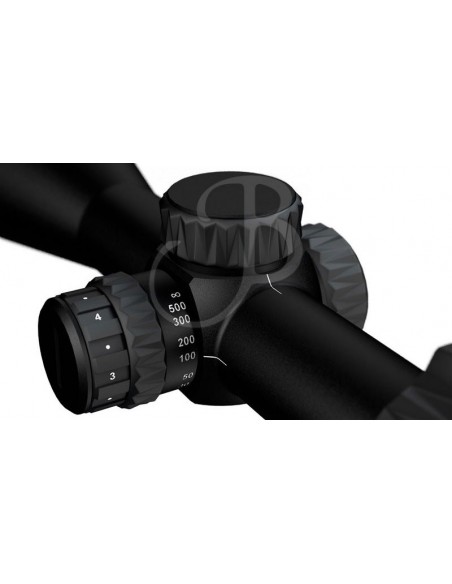

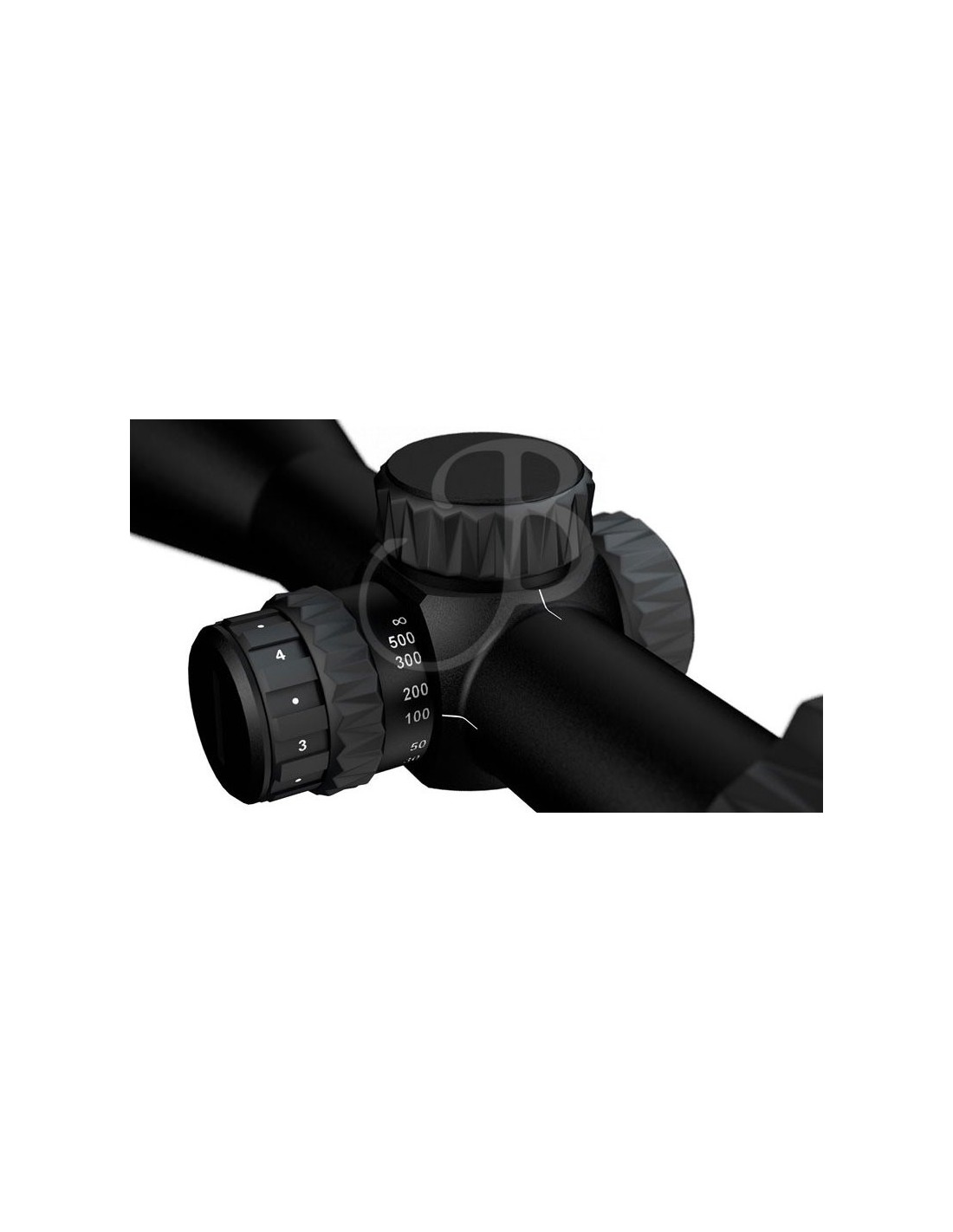

paralax correction: 10 yd - infinity y/n
length (mm / in): 368 // 14.5
weight (g / oz): 865 // 30.5

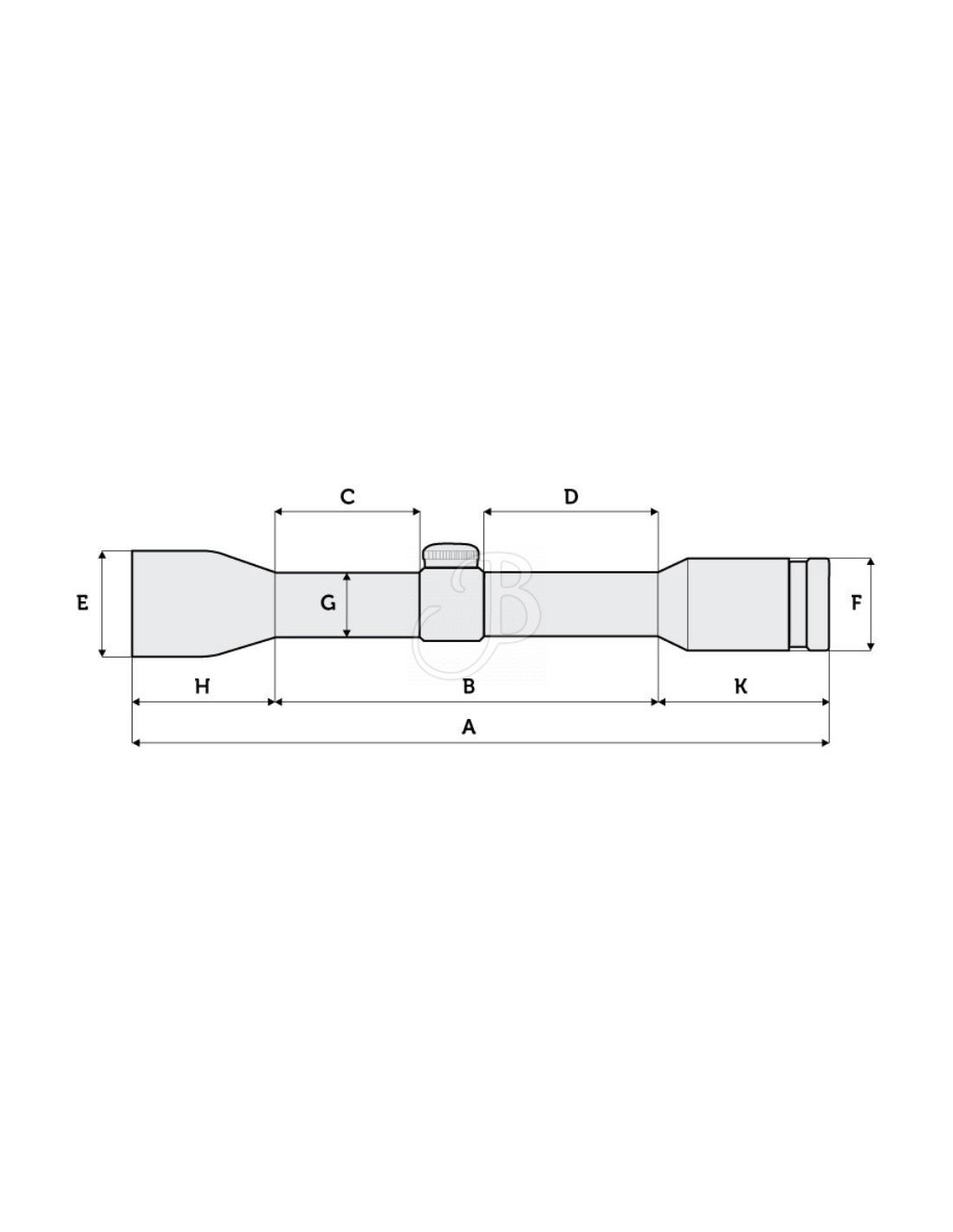

a (mm / in): 368 / 14.5
b (mm / in): 138 / 5.43
c (mm / in): 45 / 1.77
d (mm / in): 56 / 2.21
>e (mm / in): 64 / 2.5
f (mm / in): 44 / 1.71
g (mm / in): 30 / 1.18
h (mm / in): 120 / 4.74
k (mm / in): 110 / 4.34
