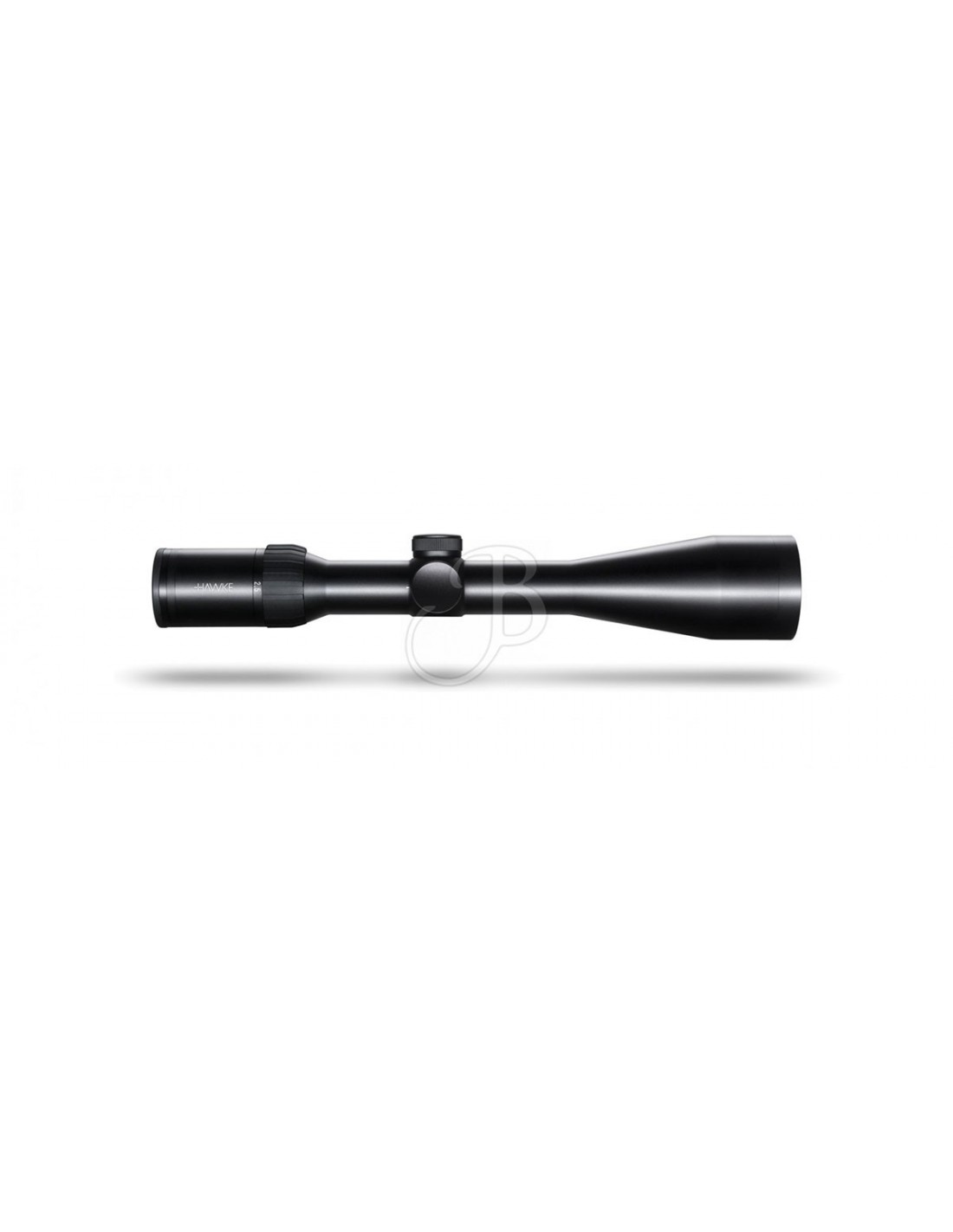

Frontier Sf Ir 5-30x50 Tmx riflescope - HAWKE

Optical system with 6× multiplication factor and complete 21-layer multi-coating Parallax with side adjustment ring up to infinity 30mm one-piece tube for superior resistance High focal distance for magnum or high recoil calibers Reticle engraved on the lens with in-line illumination red 6 reticle illumination levels, with intermediate off positions Tall, lockable turrets with 1⁄10 MRAD adjustment Fast focusing eyepiece with high-friction zoom ring TMX Reticles The Tmx reticle was developed for the Long range shooting with centerfire calibers, around the principles of Mil-dot spacing. As with Mil dot spacing, the series of stadia lines represents an angular unit called a milliradian (Mrad), or Mil. This is equivalent to a gap of 3.6 inches at 100 yards, or 3 feet at 1,000 yards, which corresponds to 10 cm at 100 m, or 1 m at 1,000 m. When the magnification is set to 10x, the Tmx reticle features 16 Mil spacing for drop compensation to the far edge of the field of view and 6 Mil spacing for lateral compensation, in every direction. When used at 20x magnification, it allows for 8 Mil spacing for drop compensation and 3 Mil for lateral compensation. The Tmx is a versatile reticle that provides aiming points in the most extreme conditions. Chassis: 30mm One-Piece Tube Optical System: 5-30× Lens: 50mm Reticle: TMX Illumination: Red — 11 Levels Parallax/ Focus: Side Focus — 27m / 30yds to Infinity Field of View: m @100m / ft @100yds 7.6 — 1.3m / 22.8 — 3.9ft Focal Distance: 102mm / 4″ Length: 354mm / 13.9″ Weight: 694g / 24.5oz Nitrogen filled, water- and condensation-proof and shock-proof. All calibers expected.
