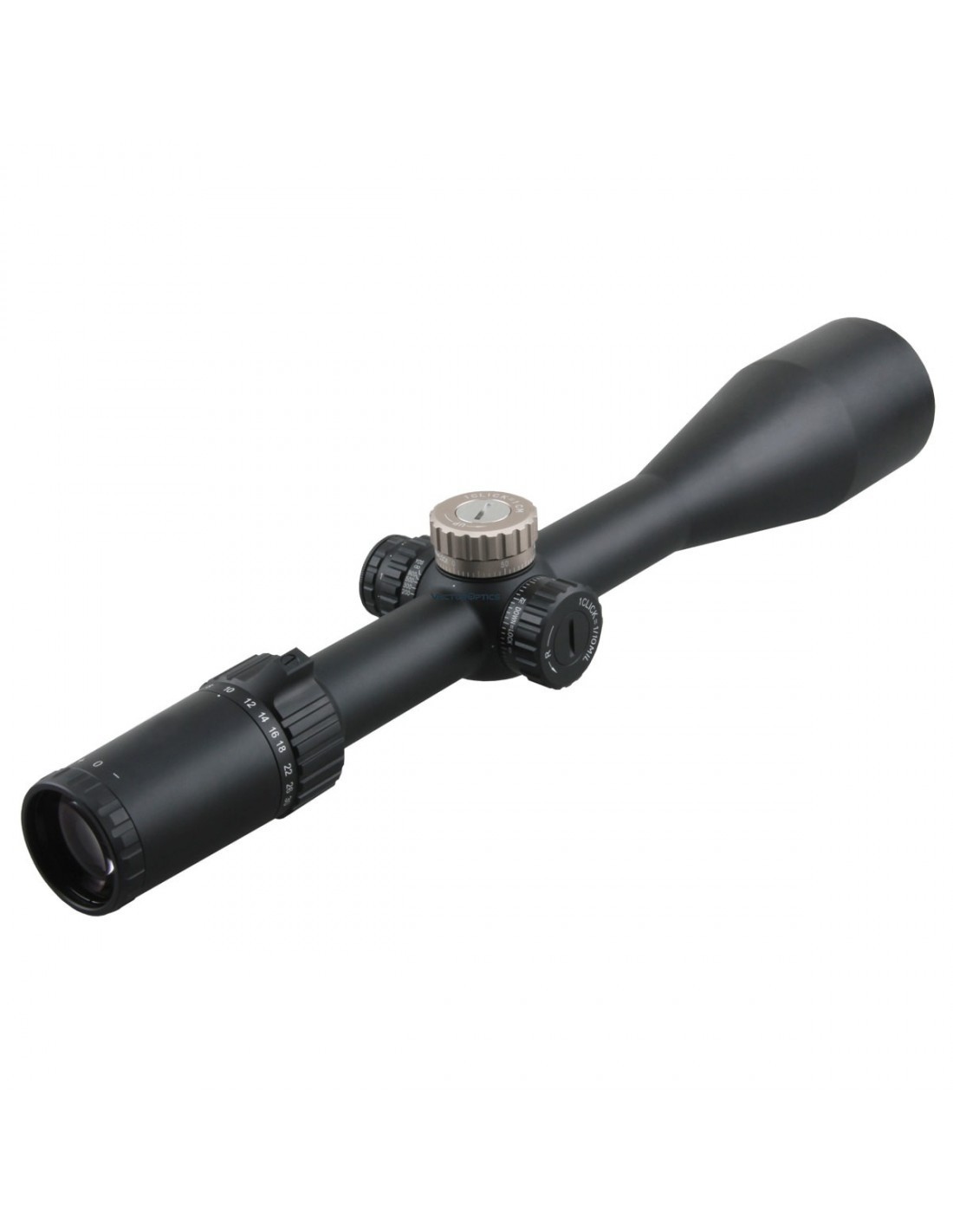

Diamond Clear Image, Long Eye Relief, First Focal Plane Etched MPX1 Glass Reticle with German Tech, Turret Lock 1/10 MIL Adjust, 30mm Monotube, Illumination, Side Focus, w/ Lens Cap, Honeycomb Sunshade, Tactical Rings.
FFP Brief Introduction: Most scopes have the reticle fitted in the second focal plane (near the eyepiece). While, presently it has always been the practice to fit the reticle in the first focal plane (the reticle increases its size when change the magnification from low to high). Each system has its advantages. The advantage with telemetric reticles (like rangefinder & Mil-dot etc) is that the target image and distance between dots remains constant even when changing magnification. It is the system that is widely used by the TOP military suppliers now.
SPECIFICATION:
Magnification: 5-30x
Objective Lens Dia: 56mm
Ocular Lens Dia: 36mm
Ocular Lens Length: 60mm
Exit Pupil: 11.0-1.8mm
Length: 398mm / 15.6 inch
Weight (net): 813g / 28.7OZ
Eye Relief: 100mm / 4.0 inch
Field of view: 20.43-3.51 feet@100yds
Optics Coating: Diamond fully-Multi
Reticle: Etched glass MPX1
Tube: 30mm harmmer-forged
Elevation Range:≥12MIL (40MOA)
Windage Range:≥12MIL (40MOA)
Click Value: 1/10 MIL, 1cm, 0.1 MRAD
Parallax Adjustment:20 yds to ∞
Illumination: 6 levels red
Battery Type: CR2032
30mm hammer-forged aluminum monotube design
Side focus mark: 20, 25, 30, 40, 50, 75, 100, 200, 300, 500, 900 and infinite
Shock tested to 1000g, water proof and fully nitrogen purged

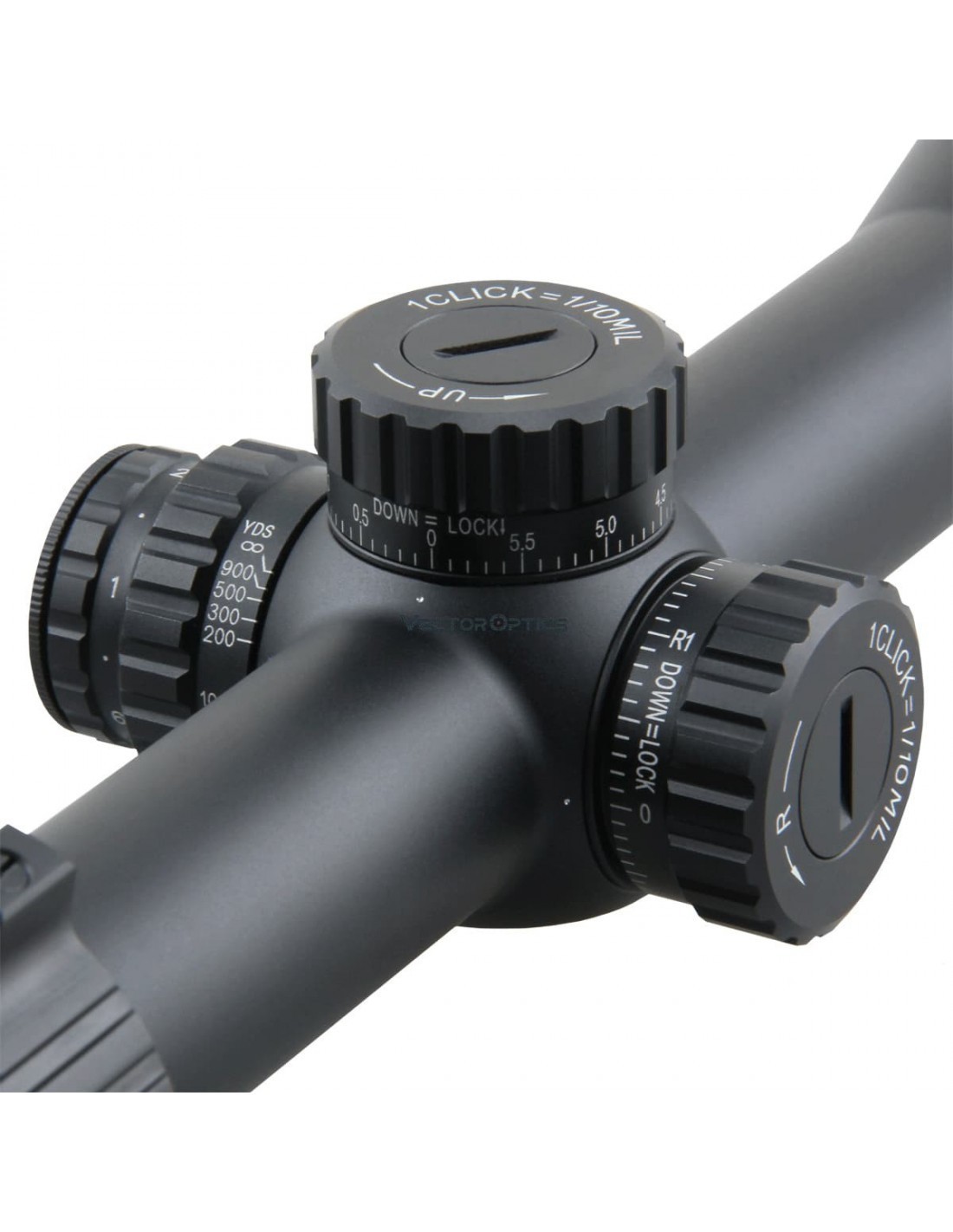

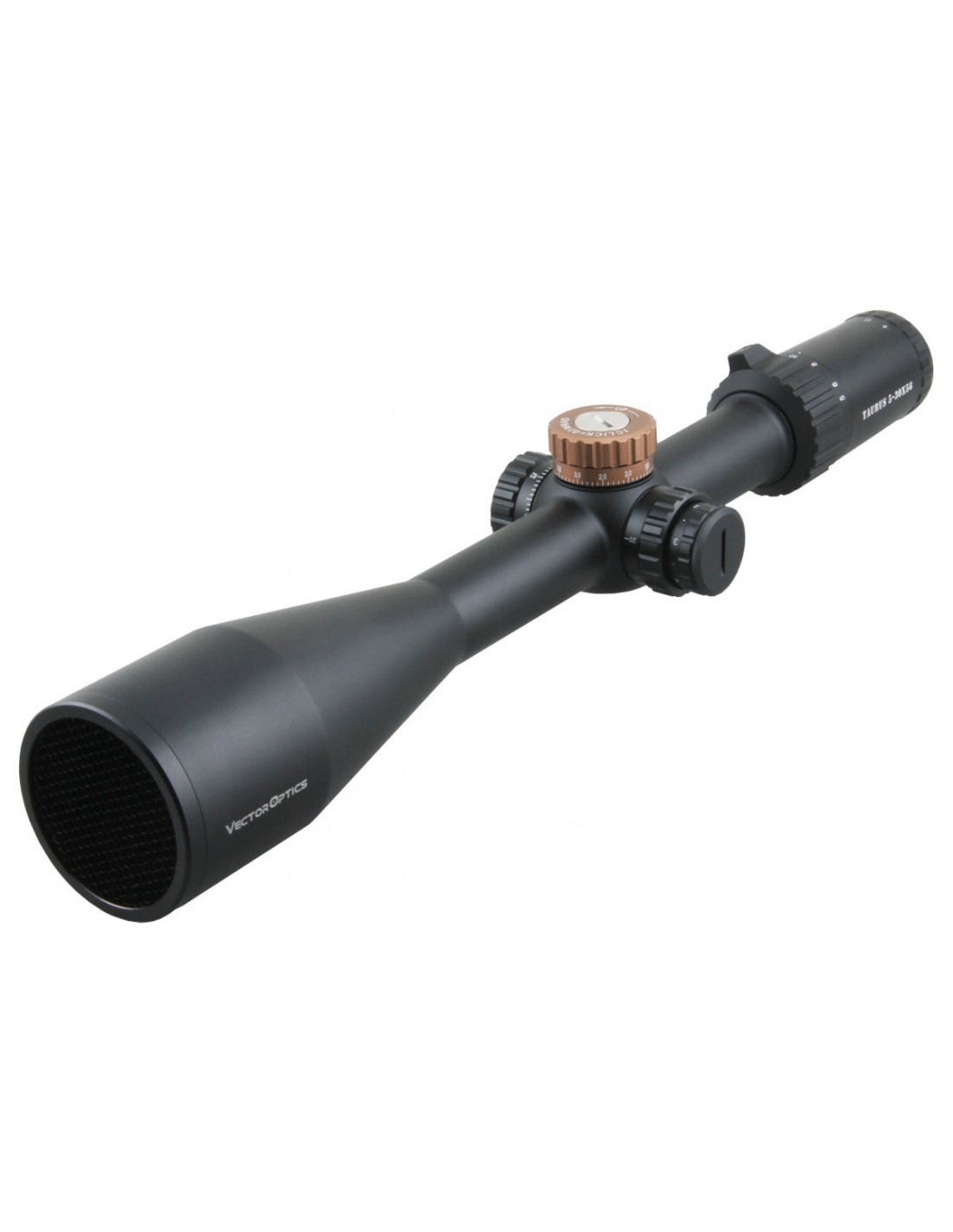

Turret lock system. Pull to adjust, press to lock. Two extra elevation turrets marked 1cm and 0.1 MRAD
High quality 6061 T6 aircraft grade aluminum
Diopter compensation from fast-focus eyepiece -2 to +1.5
Including items: 30mm tactical picatinny rings (default) or dovetail mount ring (on request only), cleaning cloth, instruction,
lens cap, honeycomb filter sunshade, packed in nice retail box
