HIGH MASTER 10X-60X56 Rifle Scope with Tactical Turret. CH reticle - MARCH

Tactical model (unlit)

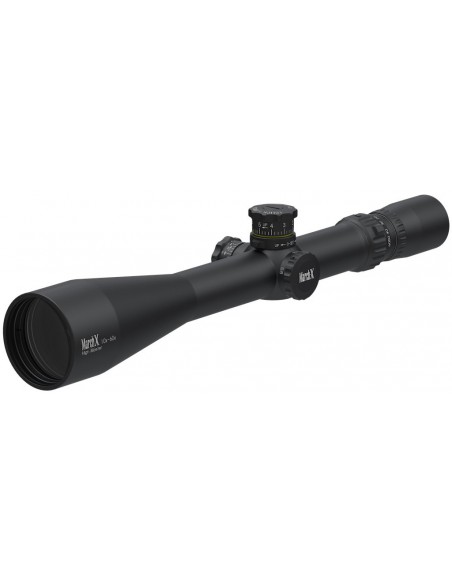

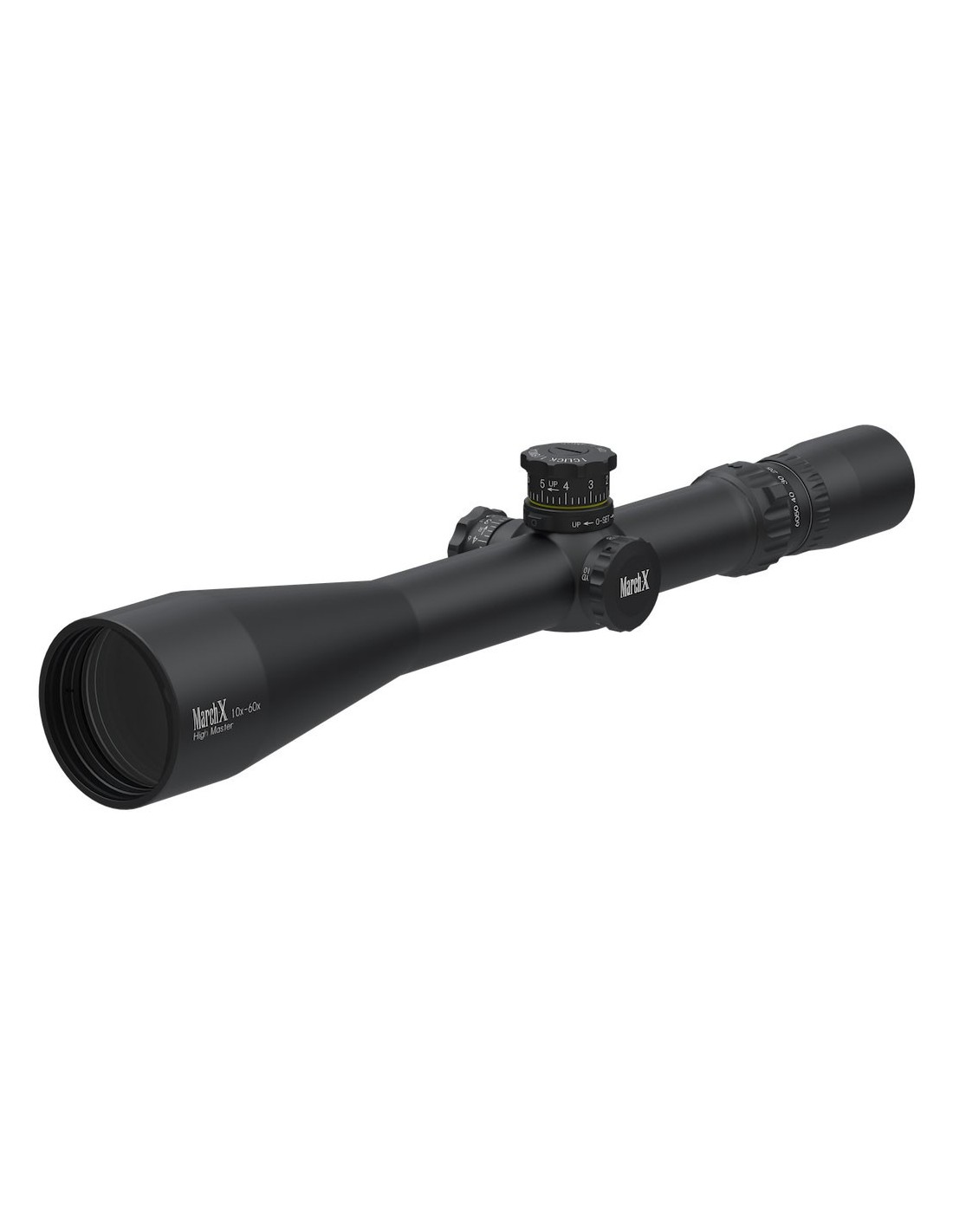

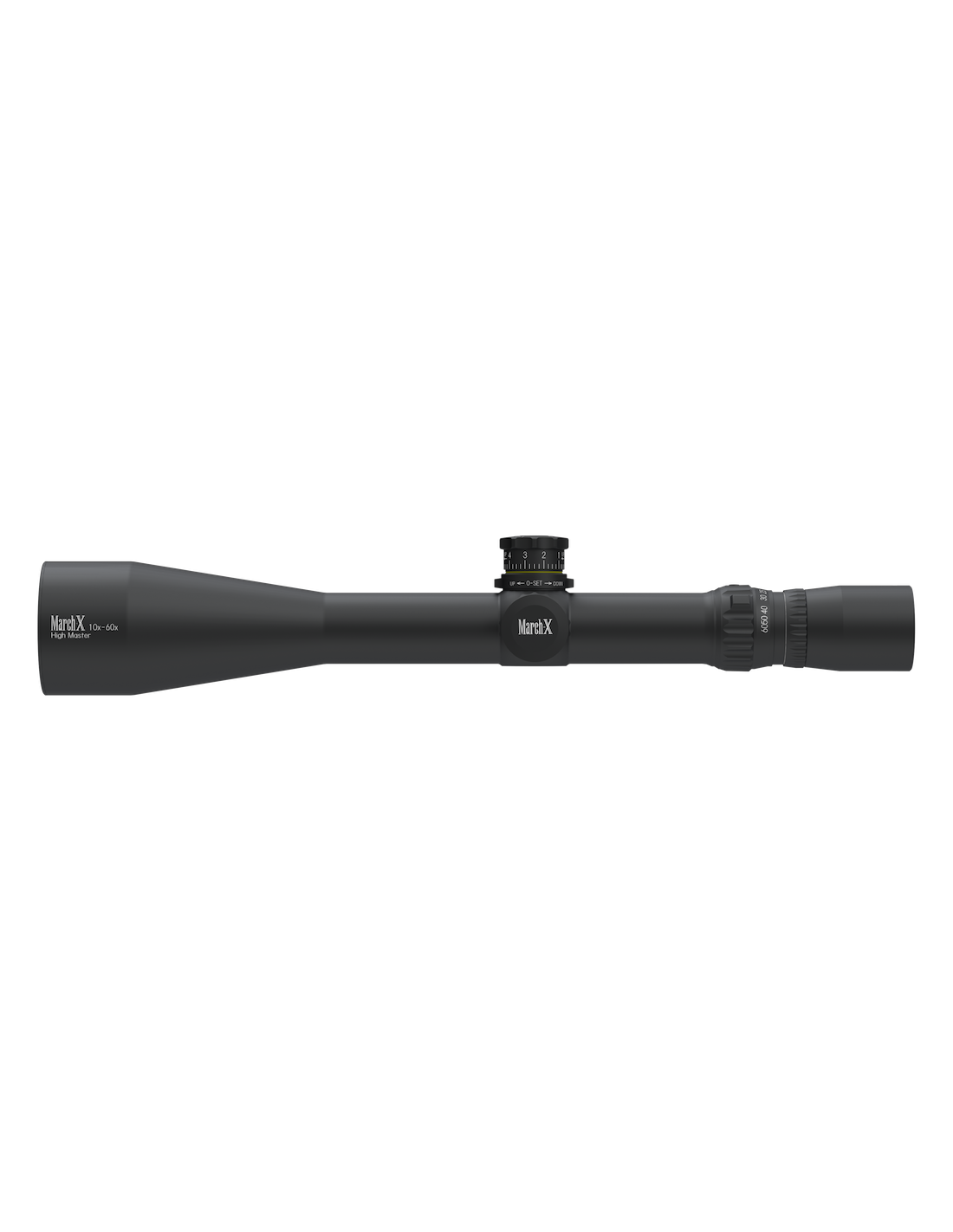

March-X "High Master" 10x-60x56mm
The High Master has a Super ED lens that offers maximum clarity and natural colors right to the edge of the image. The 56mm objective lens and 34mm tube provide high resolution with excellent reliability and ruggedness. The March-X High Master 10x-60x56mm is suitable for short range competition such as Field target and also long range competition such as F-class. The focus range adjustment goes from 10 yards to infinity, offering reliable adjustment for any situation.
・Magnify 6X in SFP
・34mm diameter body
・56mm lens
・Anti-temperature drift lens system
・High Master Lens System (Super ED Lenses)
・Side Focus 10 yards - infinity
・Scope body completely machined from an aluminum ingot
・All Japanese metal parts with no plastic parts except the minimal essentials such as an insulator
・Argon gas filled for internal stability
・Rapid focus eyepiece

10x-60x56mm employs "High Master Lens System" and "Temperature Anti-Drift Lens System"
"High Master Lens System"
The High Master lens system has 2 Super ED lens elements within its lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with higher contrast, while having a long range.
"Anti-Temperature Drift Lens System"
In the latest optical systems, a new lens material has been developed to adapt to changes in ambient temperature by altering the refractive index of the lenses. This new lens material has been adopted for the new High Master optics to create a more stable lens system that naturally adjusts to changes in temperature to maintain focus and clarity over a wide range of conditions. 1/8 MOA type

1-Click Adjustment: 1/8 MOA (0.13 inch at 100yds)
10 MOA (10.47 inches at 100yds) turret revolution
0-Set to Turret Elevation. Technical data
Low High
Magnification 10x 60x
Effective diameter of the lens 56mm
Body tube diameter 34mm
Exit pupil -- 0.94mm
(0.04 inch)
Field of view (real) degree 1.9° 0.32°
ft/100yds 10.2ft 1.7ft
m/100m 3.40m 0.57m
Eye Relief 80-107mm
(3.15-4.21inch) 92-102mm
(3.62-4.02 inch)

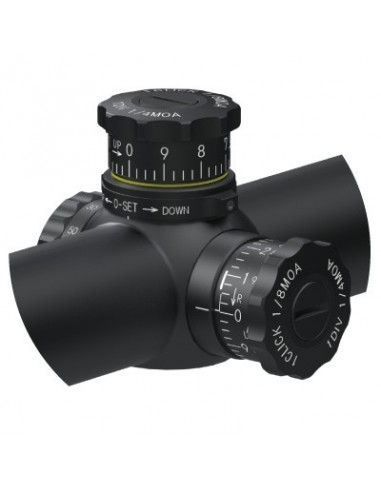

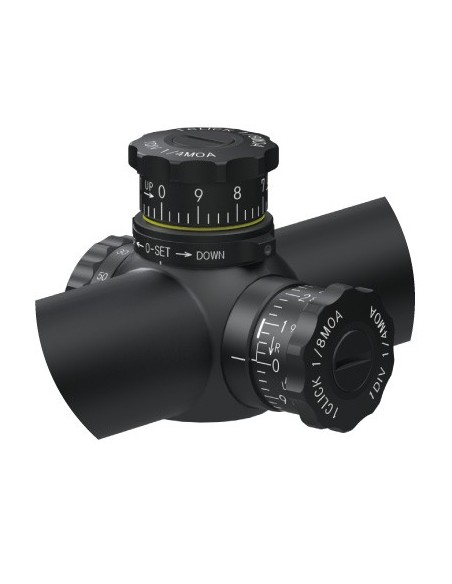

1 Click 1 / 8 MOA Adjustment
Elevation travel 60 MOA
Travel to the wind 40 MOA
Focus distance 10yd - infinity

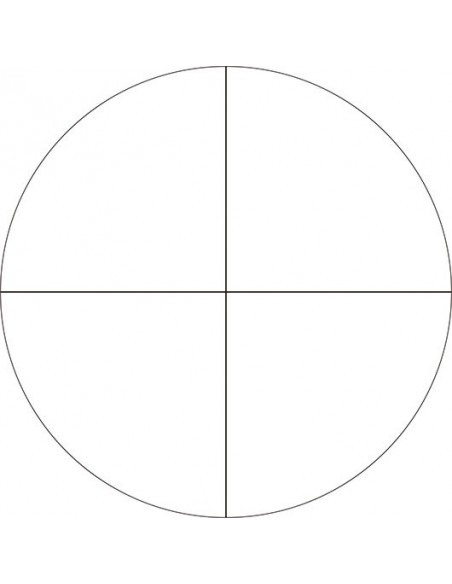

CH reticle
1/8 point
3/32 point
1/16 point
Diplex
