HIGH MASTER 40X-60X52BR EP ZOOM (HM) Rifle Scope with Fixed Magnification. Reticle 1/16 - MARCH

Normal model (unlit)

March EP 40x-60x52mm "High Master" fixed power zoom
The EP March 40x-60x52mm zoom is based on the well-regarded and award-winning EPZ 36x-55x52mm viewfinder. It has higher magnification and the same Super ED lens and high refractive glass as the 48x52mm fixed scope, with the added benefit of external zoom adjustment to ensure absolutely zero POA shift, essential for bench and competition shooting. The High Master lens system has 2 Super ED lens elements within its lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with higher contrast, while having a long range.

This EP 40-60x52 Zoom Spotting Scope has a zoom eyepiece lens with a magnification ratio of 1.5. Basically a 55x fixed focus telescope is magnified with an eyepiece in the 40-60x range. You are looking at the same image through a fixed viewfinder. This is essentially a fixed scope and we guarantee zero POA shifts. Please note that the eyepiece extends as you change magnification. The weight is 680 g (23.9 oz).
・30mm diameter body
・52mm lens
・High Master Lens System (Super ED Lenses)
・Side Focus 10 yards - infinity
・Scope body completely machined from an aluminum ingot
・All Japanese metal parts with no plastic parts except the minimal essentials such as an insulator
・Argon gas filled for internal stability

D60EV52
D60EV52
D60EV52
D60EV52
Dials
D60EV52
1/8 MOA type

1-Click Adjustment: 1/8 MOA (0.13 inch at 100yds)
10 MOA (10.47 in at 100 yd) turret revolution

The 1/4 MOA adjustment turret is also available.

lattices



Technical data
Low high
40x 60x magnification
Effective diameter of the lens 52 mm
Body tube diameter 30 mm
Exit pupil 1.24mm
(0.05 inch) 0.89mm
(0.04 inch)
Field of view (real) degrees 0.49° 0.44°
ft/100yd 2.6ft 2.5ft
m/100m 0.85m 0.77m
Pupillary distance 71-89 mm
(2.8-3.5 inches) 59-72mm
(2.32-2.83 inch)
1 Click 1/8MOA Adjustment
Elevation travel 60 MOA
40MOA windage travel
Focus distance 10yd - infinity

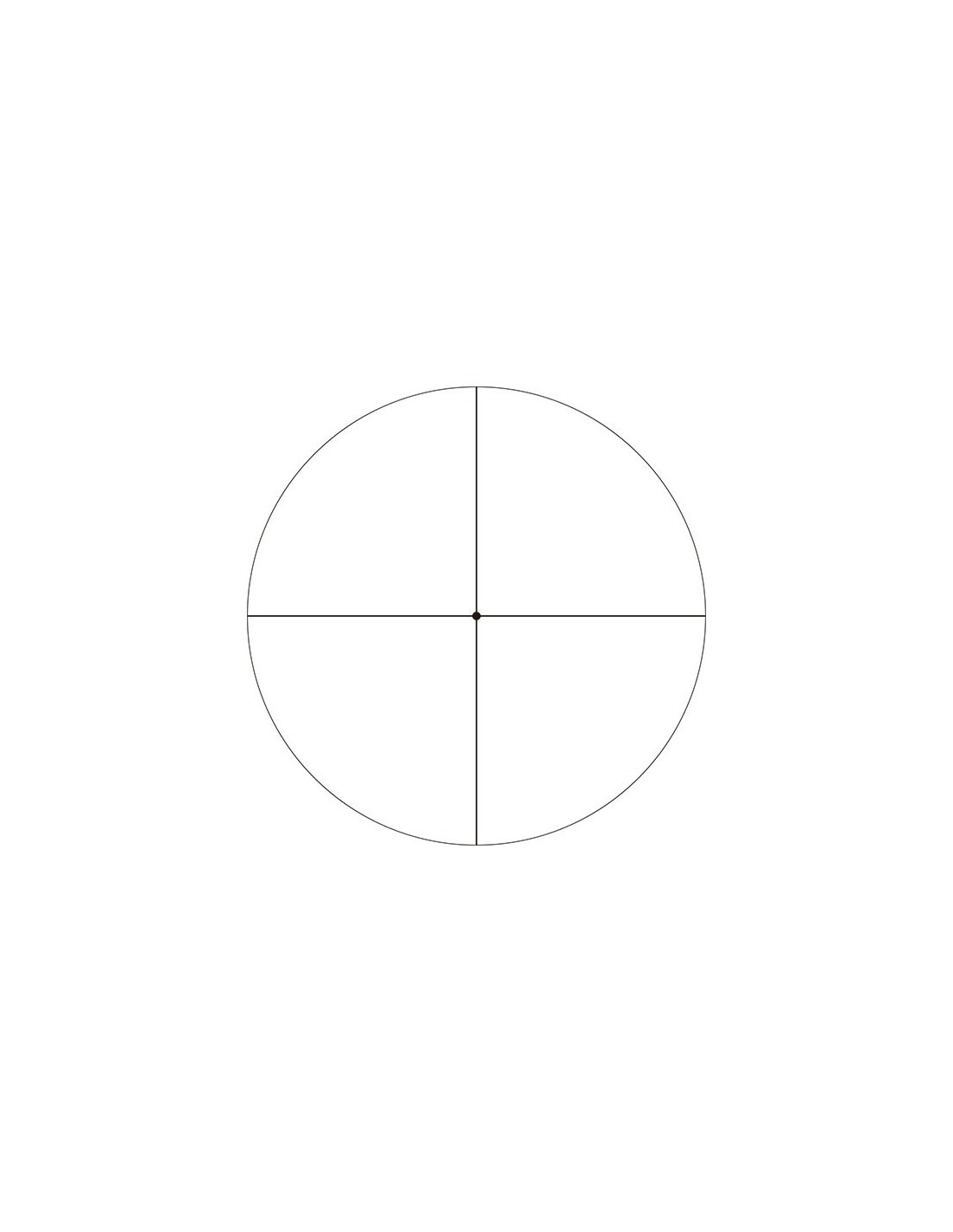

CH reticle
1/8 point
3/32 points
1/16 point
L.R
