HIGH MASTER 48X52BR HM Rifle Scope with Fixed Magnification. Reticle 1/8 - MARCH

Normal model (unlit)

Fixed Power Gear "High Master" 48x52mm
The High Master 48x52mm Fixed Power Scope is the ultimate fixed power scope, based on the successful March 40x and 50x scopes. The High Master lens system has 2 Super ED lens elements within its lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with higher contrast, while having a long range. The High Master 48x52mm offers superior image quality and sharpness right to the edge of the lens, thanks to its Super ED lens and high refractive glass. This scope is suitable for bench shooting.

・48x fixed viewfinder in SFP
・30mm diameter body
・52mm lens
・High Master Lens System (Super ED Lenses)
・Side Focus 10 yards - infinity
・Scope body completely machined from an aluminum ingot
・All Japanese metal parts with no plastic parts except the minimal essentials such as an insulator
・Argon gas filled for internal stability

D48F52
D48F52
D48F52
D48F52
D48F52
Dials
D48F52
1/8 MOA type

1-Click Adjustment: 1/8 MOA (0.13 inch at 100yds)
10 MOA (10.47 in at 100 yd) turret revolution

The 1/4 MOA adjustment turret is also available.

lattices



Technical data
Low high
48x magnification --
Effective diameter of the lens 52 mm
Body tube diameter 30 mm
Exit pupil 1.08mm
(0.04 inch) --
Field of view (real) degrees 0.52° --
feet/100 yards 2.7 feet --
m/100m 0.90m --
Pupillary distance 66-81 mm
(2.6-3.19 inch) --
1 Click 1/8MOA Adjustment
Elevation travel 60 MOA
40MOA windage travel
Focus distance 10yd - infinity

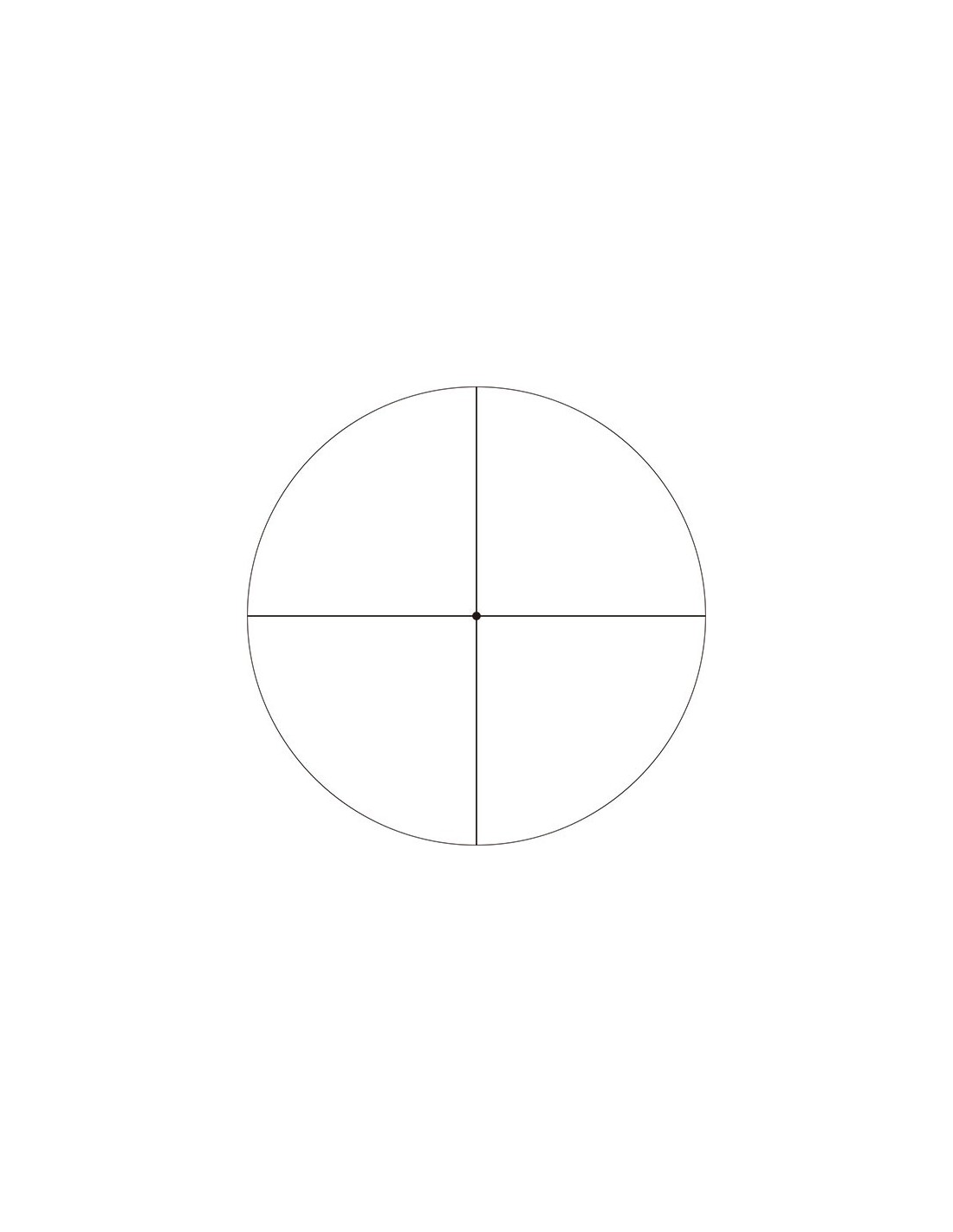

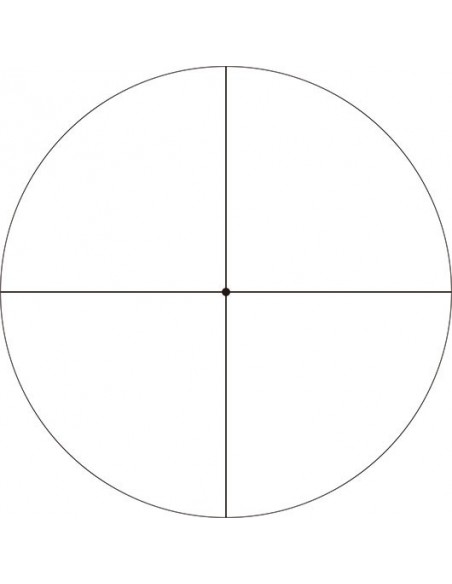

CH reticle
1/8 point
3/32 points
1/16 point
L.R
In the Box Leather Caps (Objective and Eyepiece)
MD disc
Lens cloth
Optical size A 370 mm (14.57 in)
size B 177 mm (6.97 in)
C 60 mm (2.36 in)
D 41 mm (1.61 in)
E 126 mm (4.96 in)
F 67 mm (2.64 in)
G 70 mm (2.76 in)
Height 70 mm (2.76 inches)
Weight 635 g (22.4 oz)
