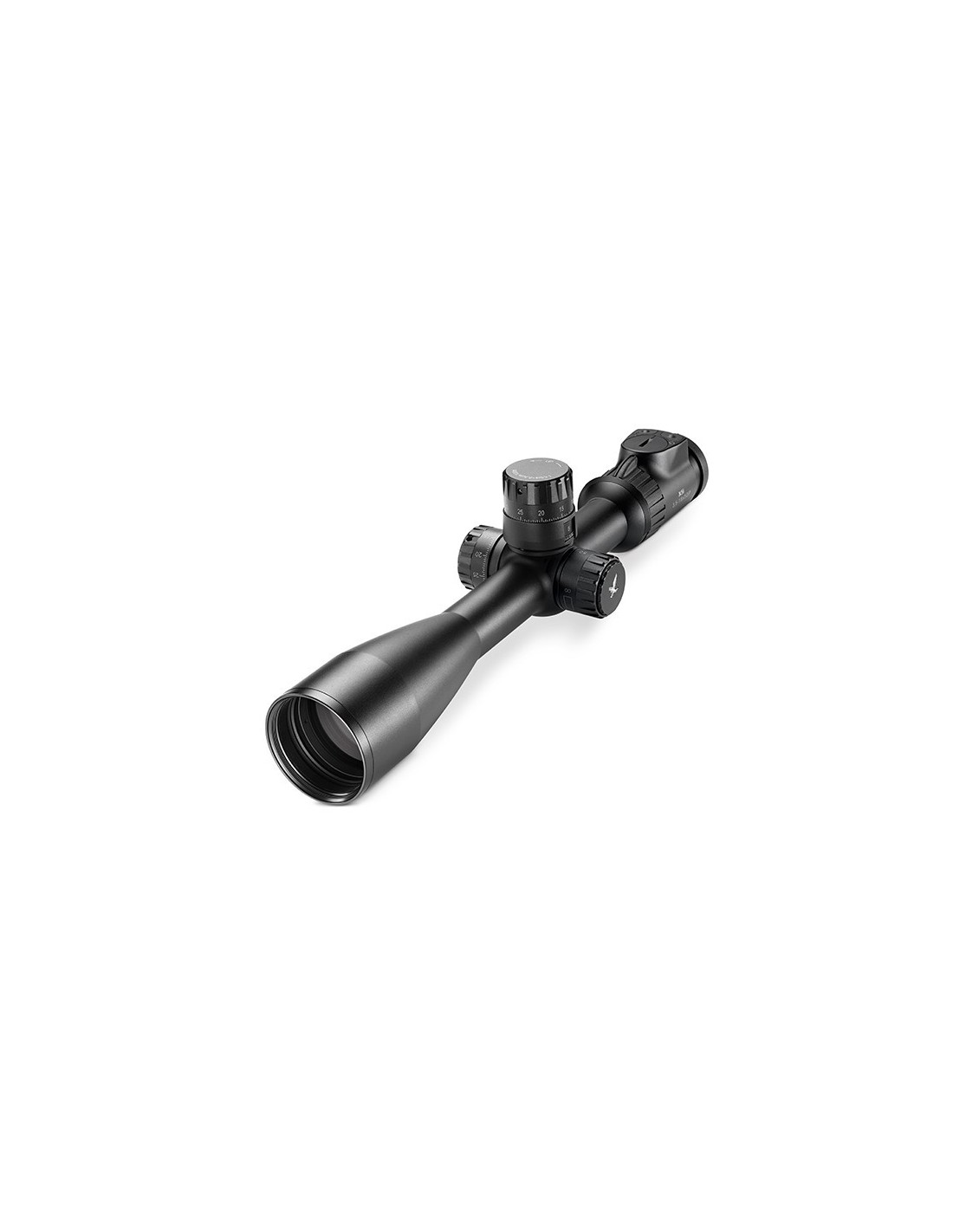

UNCOMPROMISING PRECISION FOR LONG RANGE HUNTING
The extensive adjustment ranges of this compact rifle scope allow you to achieve the longest distances effortlessly and accurately.
Technical Data
Magnification3.5-18x
Effective objective lens diameter (mm)34.2-50
Exit pupil diameter (mm)9.5-2.8
Exit pupil distance (mm) (Eye relief)95
Field of view (ft/100 yds / m/100 m)30-6.3 / 10-2.1
Field of view (degrees)5.8-1.2Field of view, apparent (degrees)21.4
Dioptric compensation (dpt)-3 to +2Light transmission (%)91
Twilight factor acc. to ISO 14132-110-30
Impact point corr. per click (mm/100 m)5
Max. elevation / windage adjustment range (in/100 yds / m/100 m)122.4/72 / 3.4/2
Max. elevation / windage adjustment range (in/100 yds / m/100 m)122.4/72 / 3.4/2
Elevation/windage impact point correction per rotation (clicks)100/90Option to go below sight-in distance SUBZERO (clicks)80Parallax correction (yds / m)55-∞ / 50-∞Objective filter threadM 52x0.75
Length (in / mm)14.4 / 367Weight (oz / g)30.7 / 870
Central tube diameter (in / mm)1.18 / 30
Functional temperature-4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness13 ft / 4 m water depth (inert gas filling)
Illumination unit
Brightness levels 10
