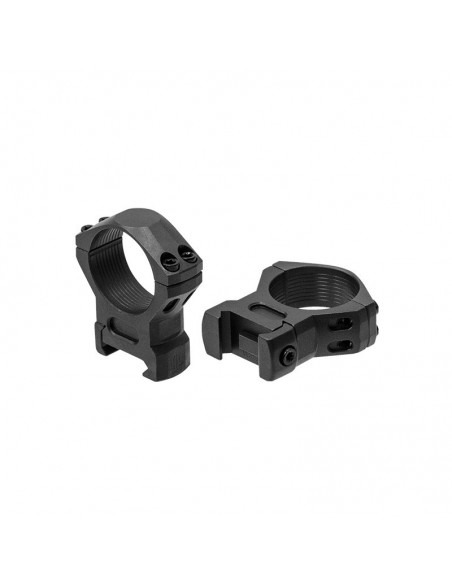

RSW steel scope rings - Picatinny - 1" DIAMETER - LOW PROFILE - LEAPERS UTG

DETAILS
These rings offer the best of mechanical workmanship. Each half ring is made by milling starting from high density steel blocks.

The matte black finish is QPQ nitride and high temperature fixed to ensure resistance to wear and corrosion.

Each half ring is fixed to the obverse through 4 Torx screws creating a firm fixation on the scope.

The internal machining of the grooved ring increases the holding force without risking damage or deformation of the optics.

The fixing to the Picatinny slide is guaranteed by a classic closure with Torx 15 screw (key included) and made solid by the coplanar design of the slide which guarantees perfect alignment and great resistance to recoil thanks also to the pin that protrudes from the base and which goes to fix on the Picatinny rail.

Available for 1 inch diameter optics; 30mm and 34mm

RSW rings. Code Diameter (A) Profile Thickness (B) Height (C) Lens diameter Max
RSW1104 1" Bass 16mm 10mm 45mm
RSW1154 1" Medium 16mm 15mm 50mm
RSW1204 1" High 16mm 20mm 65mm
RSW3104 30mm Low 16mm 10mm 49mm
RSW3154 30mm Medium 16mm 15mm 59mm
RSW3224 30mm High 16mm 20mm 69mm
RSW4154 34mm Medium 16mm 15mm 63mm
RSW4204 34mm High 16mm 22mm 73mm
