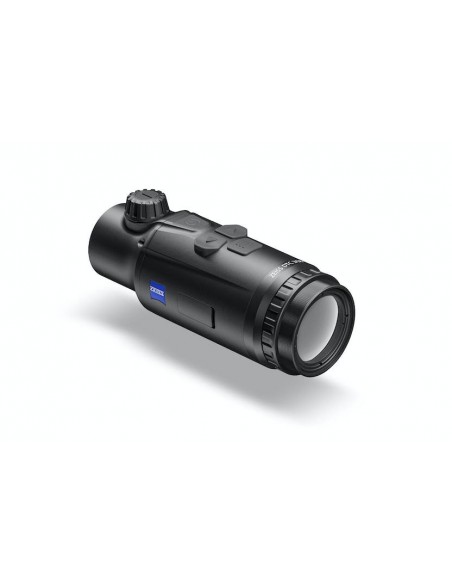

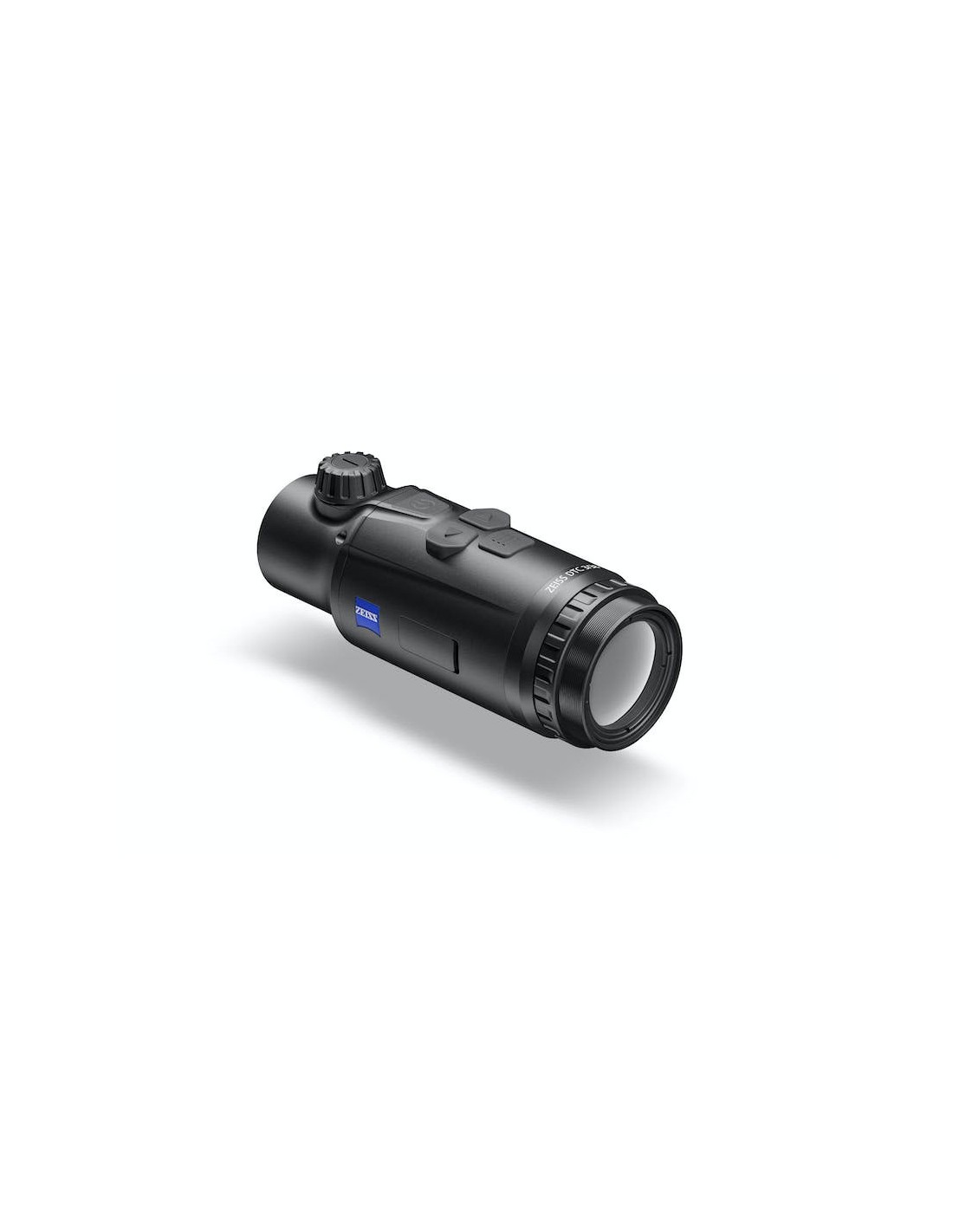

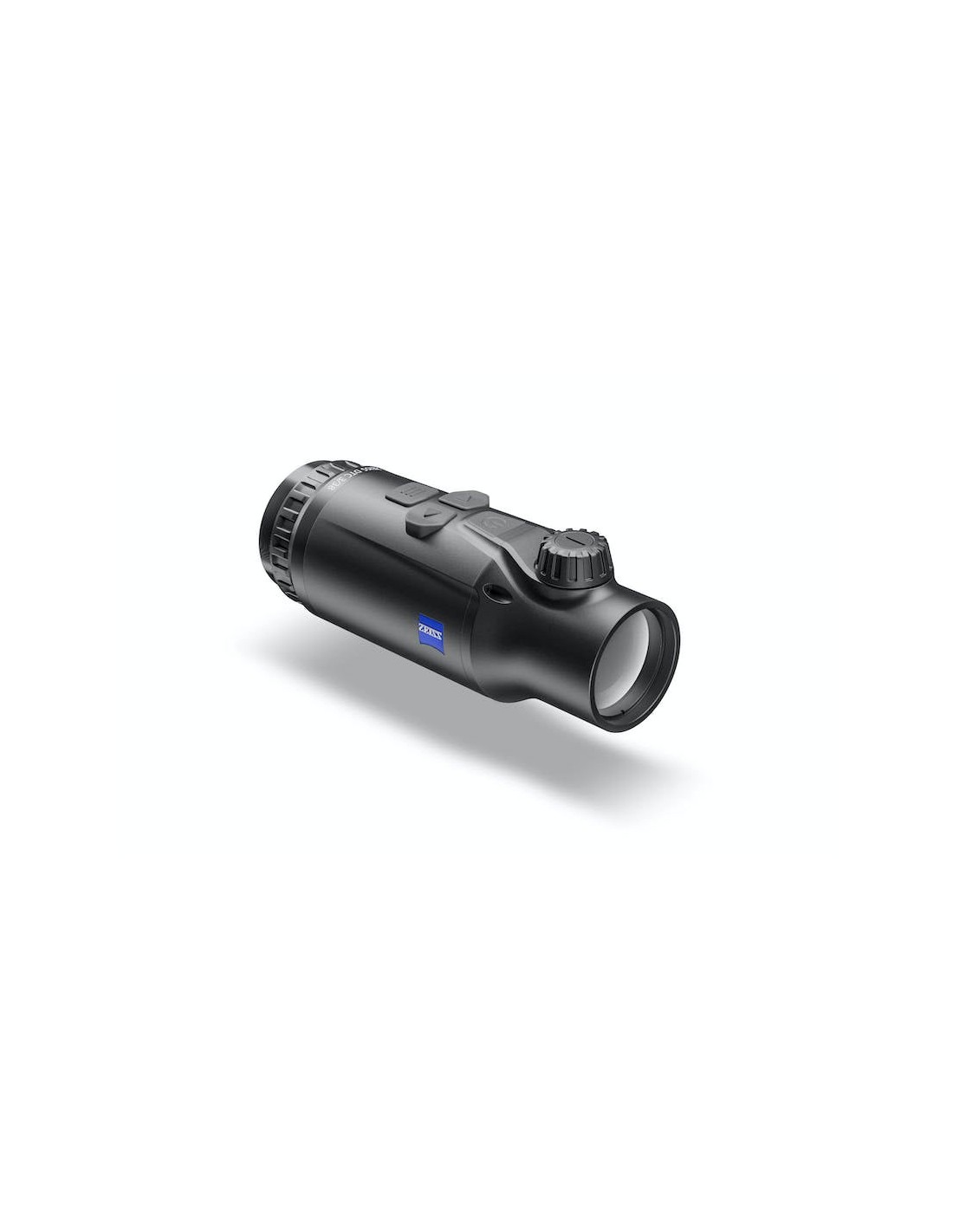

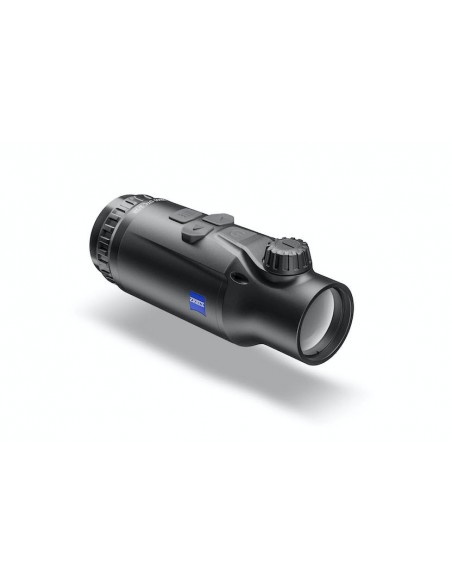

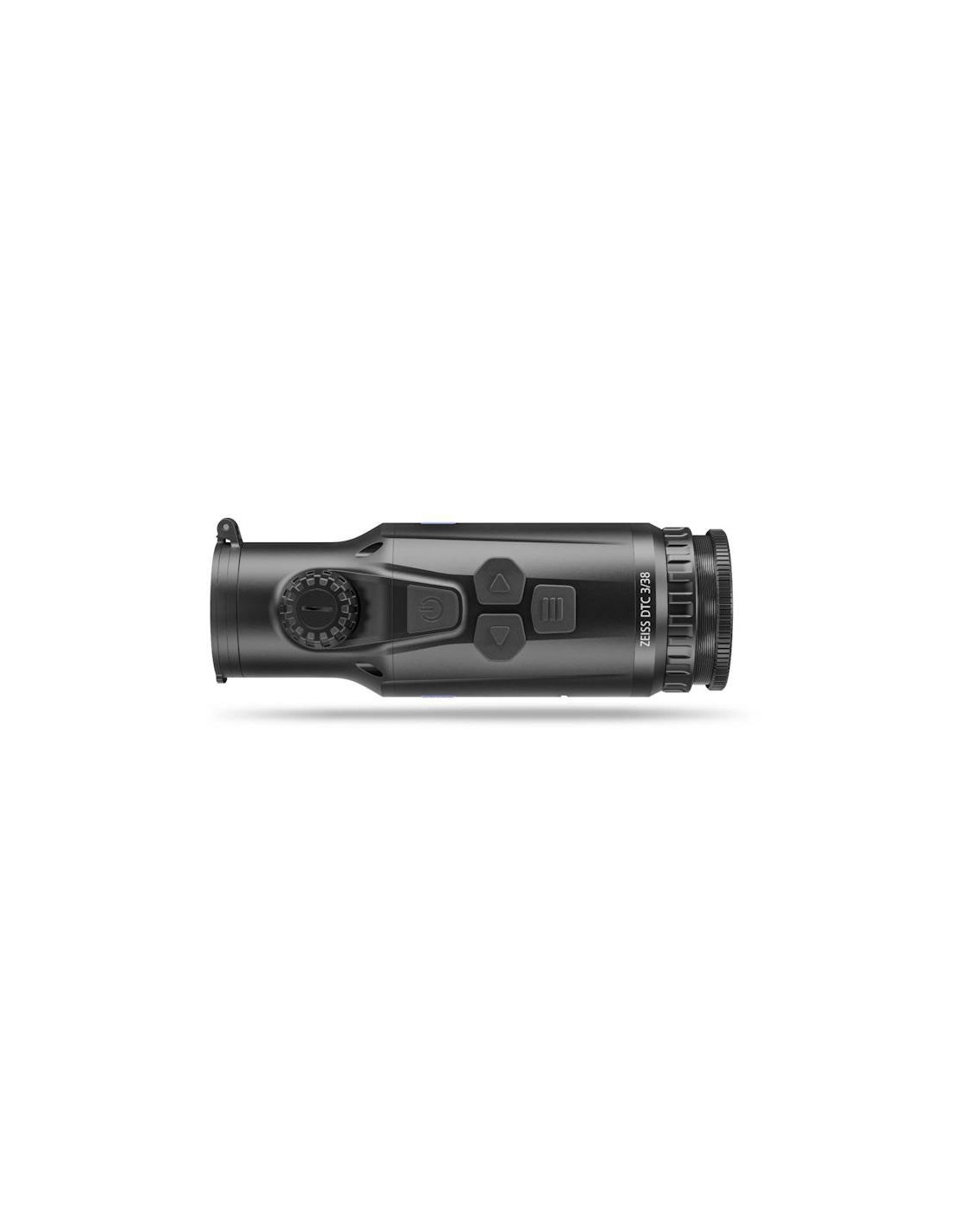

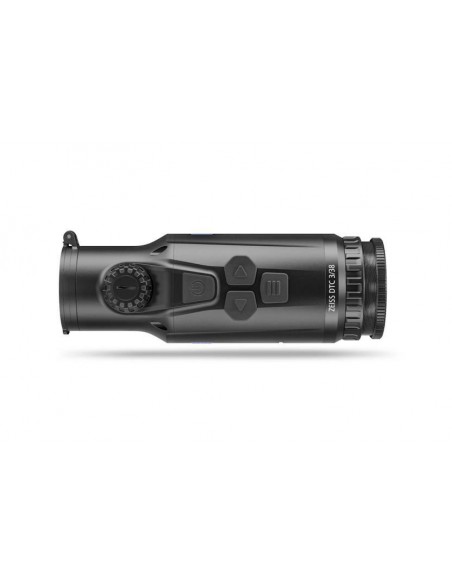

Dtc 3/38 Clip On Thermal Viewer - ZEISS

Make sure every night hunt is a success: the new ZEISS DTC 3 thermal imagers offer compatible optics with a large, high-contrast HD AMOLED 1024 × 768 display, intuitive ergonomics, a precise zeroing procedure and easy to use thanks to the app-controlled reset assistant, almost unlimited battery life and numerous customization possibilities. Range and accuracy at long distances play a vital role in open-field night hunting. The ZEISS DTC 3/38 covers a larger area, features a field of view of 12.3 meters at 100 meters and a precise click value of 1.6 cm at 100 meters – for extremely precise zeroing and, therefore, highly shooting precise and ethical. The ZEISS DTC 3 can be connected to the ZEISS Hunting app via Bluetooth and therefore offers many customization possibilities. The control buttons of the ZEISS DTC 3 can also be mirrored on a smartphone, turning it into a flexible remote control. Furthermore, personal settings can also be configured via the app, such as icon mode or color mode.
NB: The ring and mounting adapters must be purchased separately.

Performance.

Focal length = 38 mm
Aperture = f/1.0
Field of view at 100 m (yds) _ 12.3 m (40 ft)
Lens angle of view = 7° x 5°
Range = 1,950 m (2,133 yd)
Sensor resolution = 384 x 288
Sensor pixel pitch = 12 μm
Screen resolution = 1024 x 768
Screen frame rate = 50 Hz
Screen type = AMOLED
Optical magnification = 1.0
Vertical adjustment range at 100 m = 154 cm
Lateral adjustment range at 100 m = 205 cm
Click adjustment 100 m = 1.6 cm

Features.

Battery type = Li-Ion
Battery autonomy = 10 h

Physical data

Temperature operating temperature = − 10°C | + 50°C (+ 14 °F | + 122°F)
Length x Width x Height) = 164 x 60 x 65 mm (6.5 x 2.4 x 2.6")
Weight = 650 g (22.9 oz)
