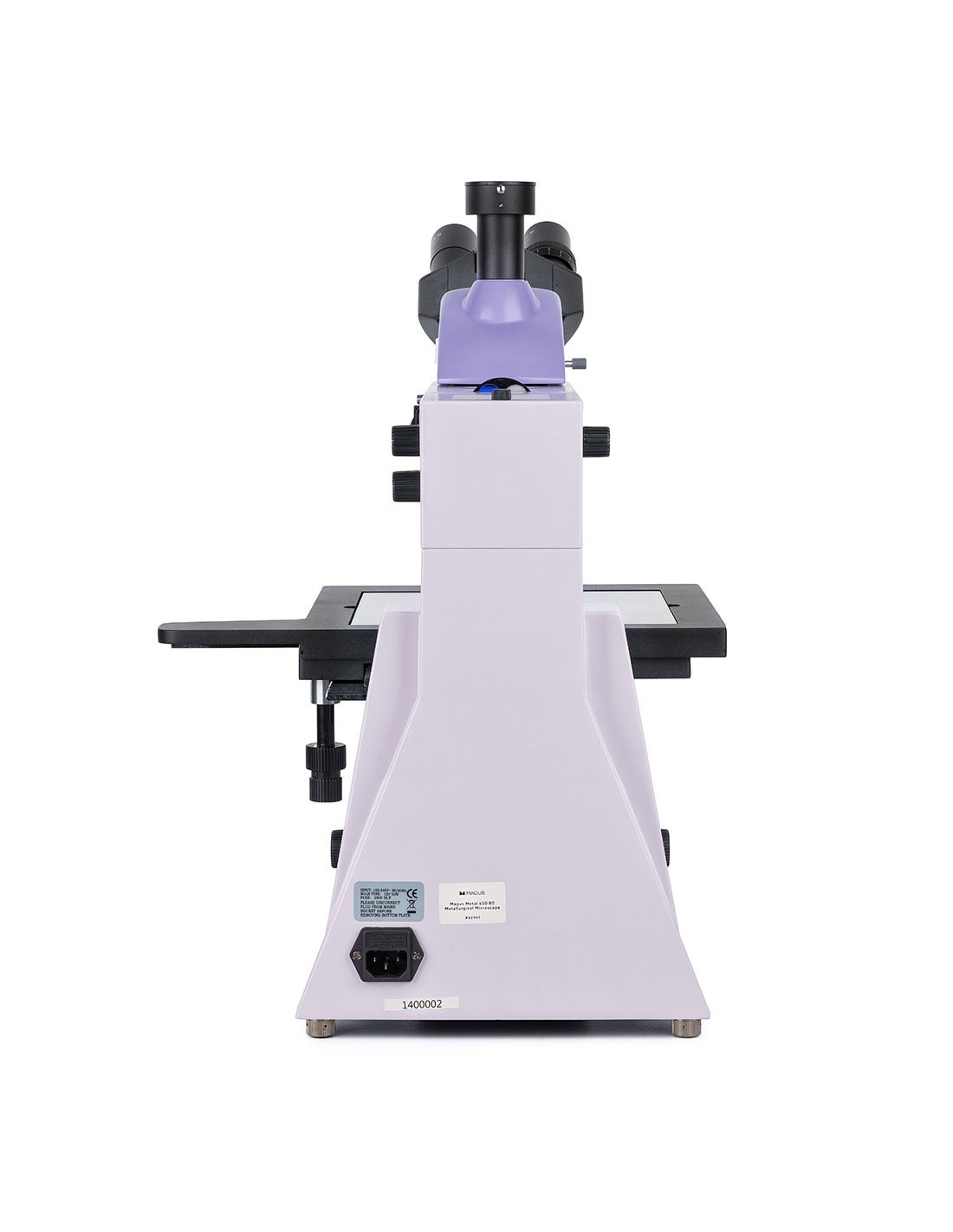

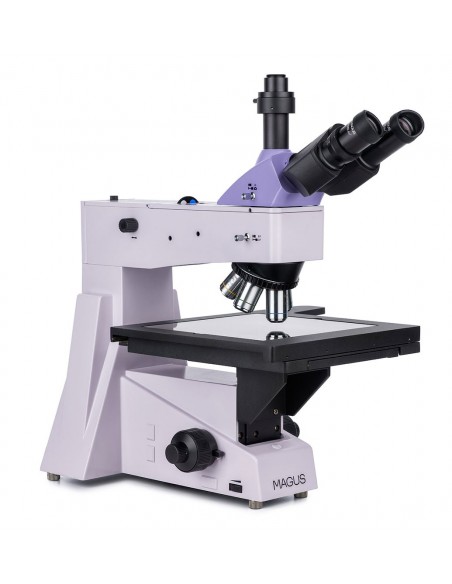

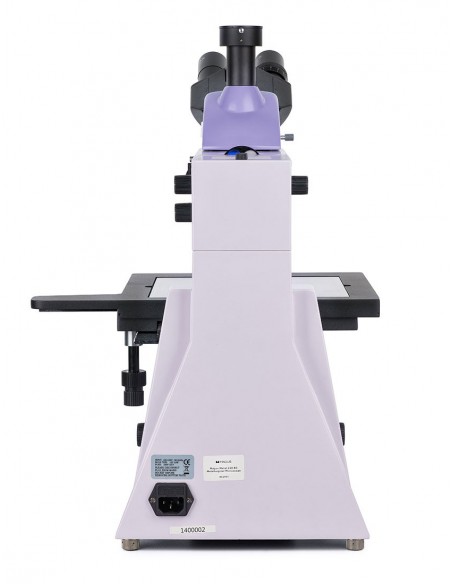

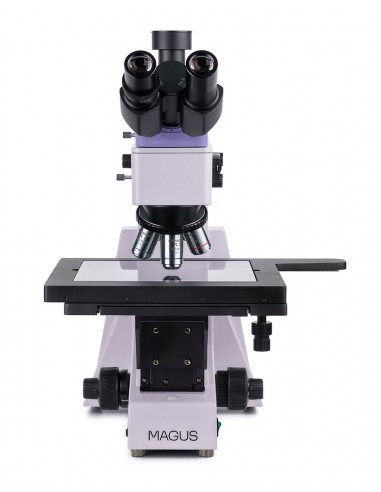

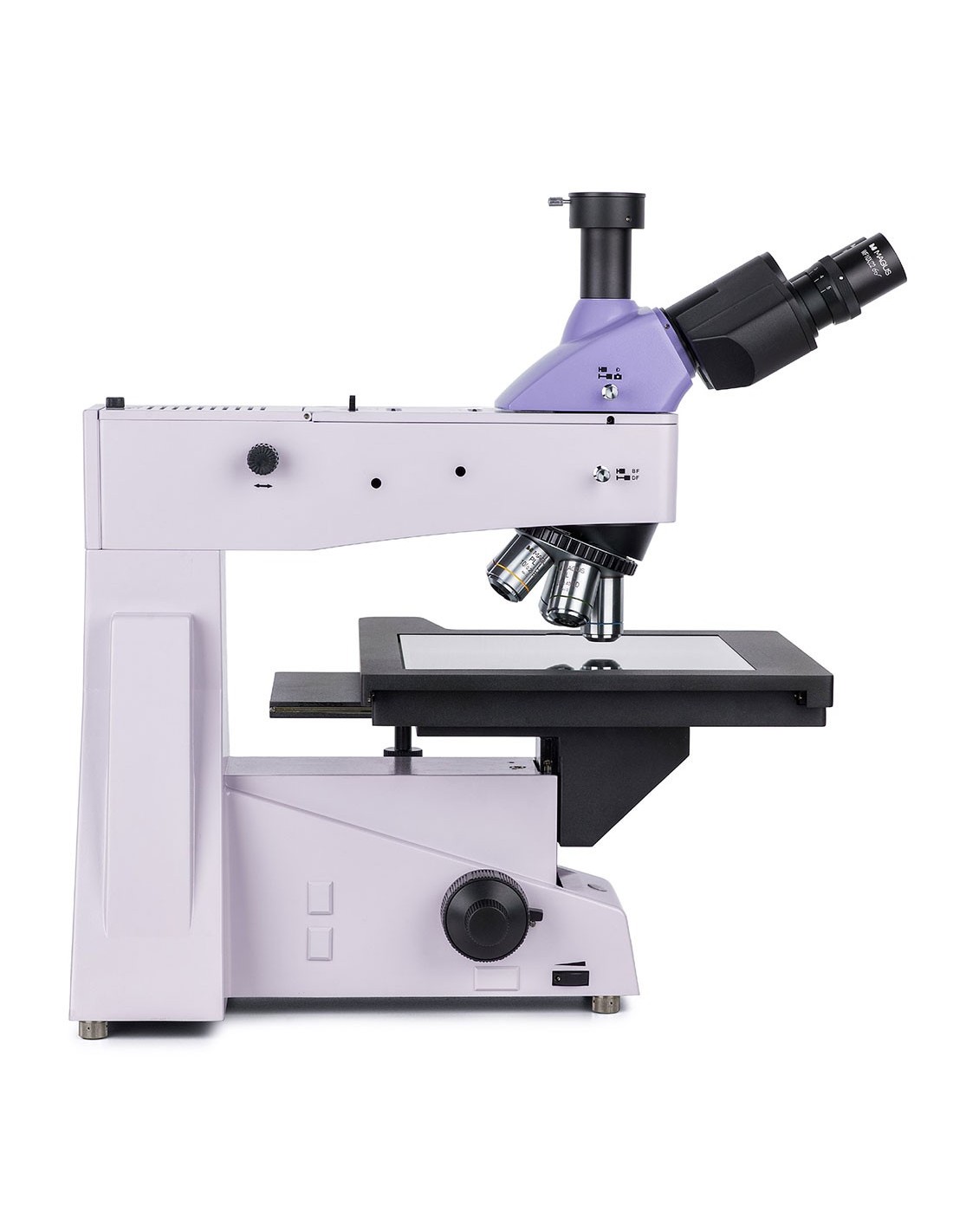

MAGUS Metal 650 BD metallographic microscope - MAGUS

The MAGUS Metal 650 BD metallographic microscope is suitable for observing the surfaces of photomasks, integrated circuits, printed circuit boards and other long and wide objects. It features a large stage that can accommodate large specimens and fine focusing with a value of 0.7 µm for high precision observations at high magnification. Microscopy techniques in bright field, dark field and polarized light. The microscope is suitable for quality control laboratories, research centers and university departments.

Optics

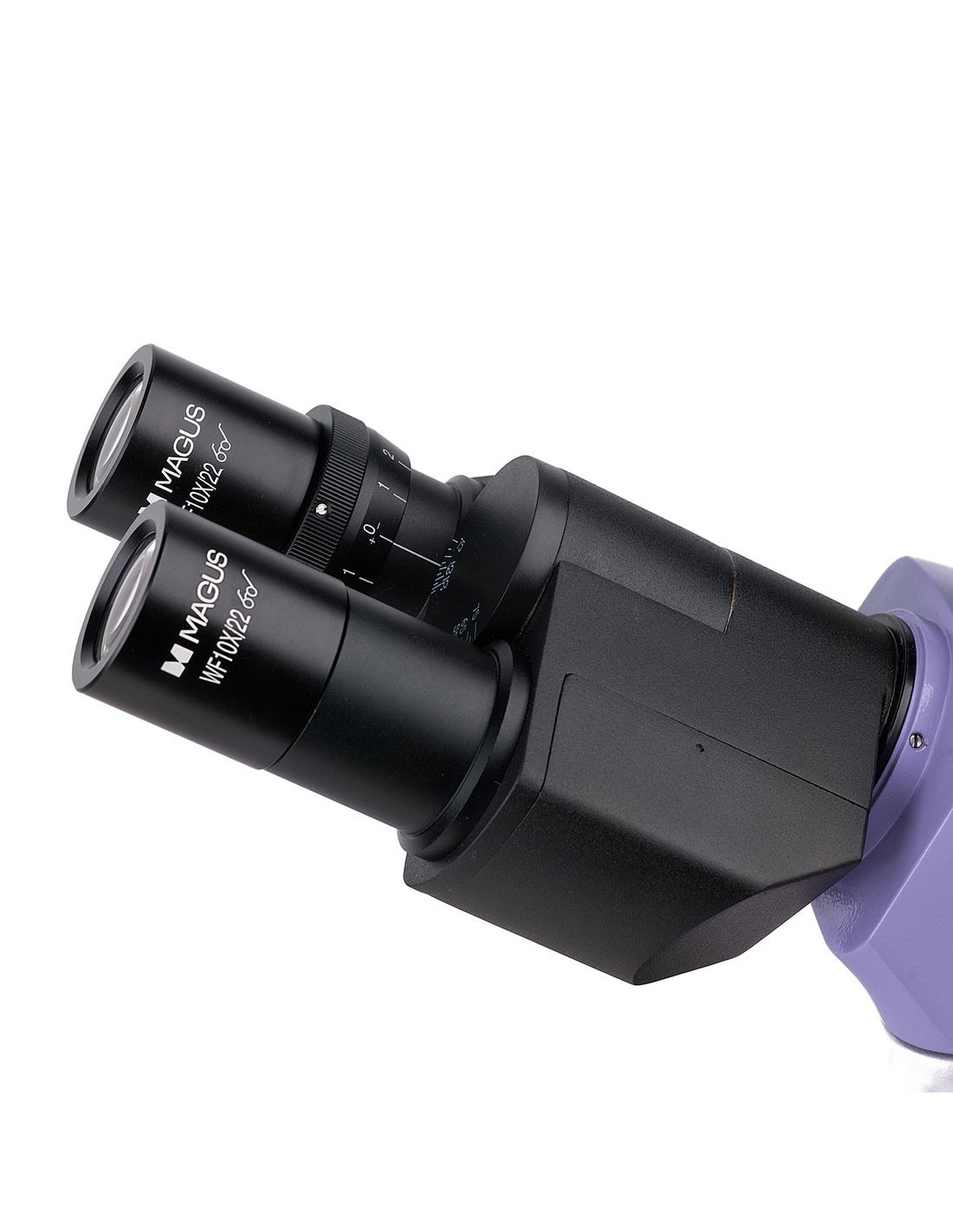

The trinocular head is equipped with a trinocular tube for housing a digital camera. The light/camera selection dial directs the light beam to the camera for bright, well-detailed photos and videos that can be viewed on the external screen. The camera is not included in the basic configuration. The left eyepiece features an image adjustment ring.

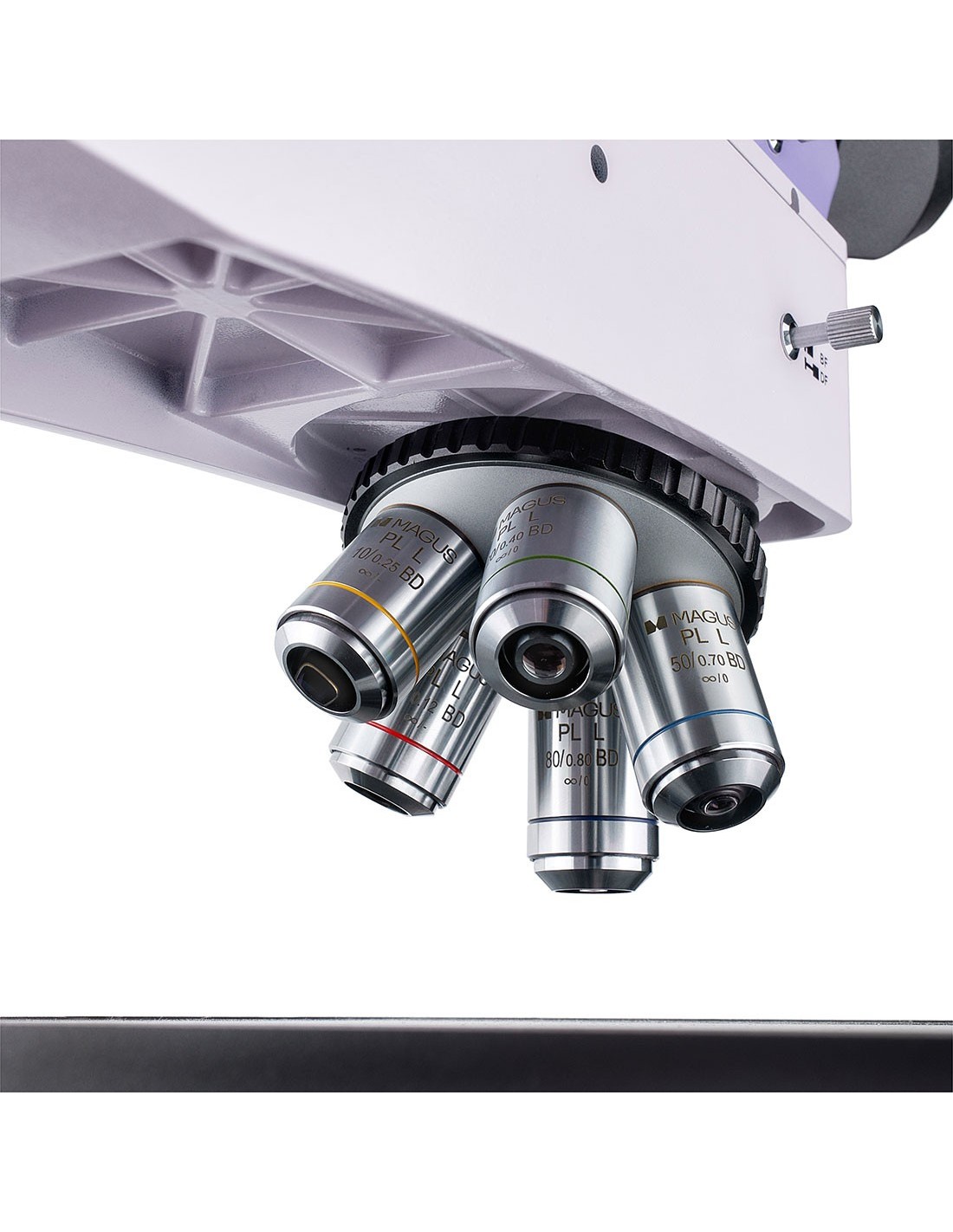

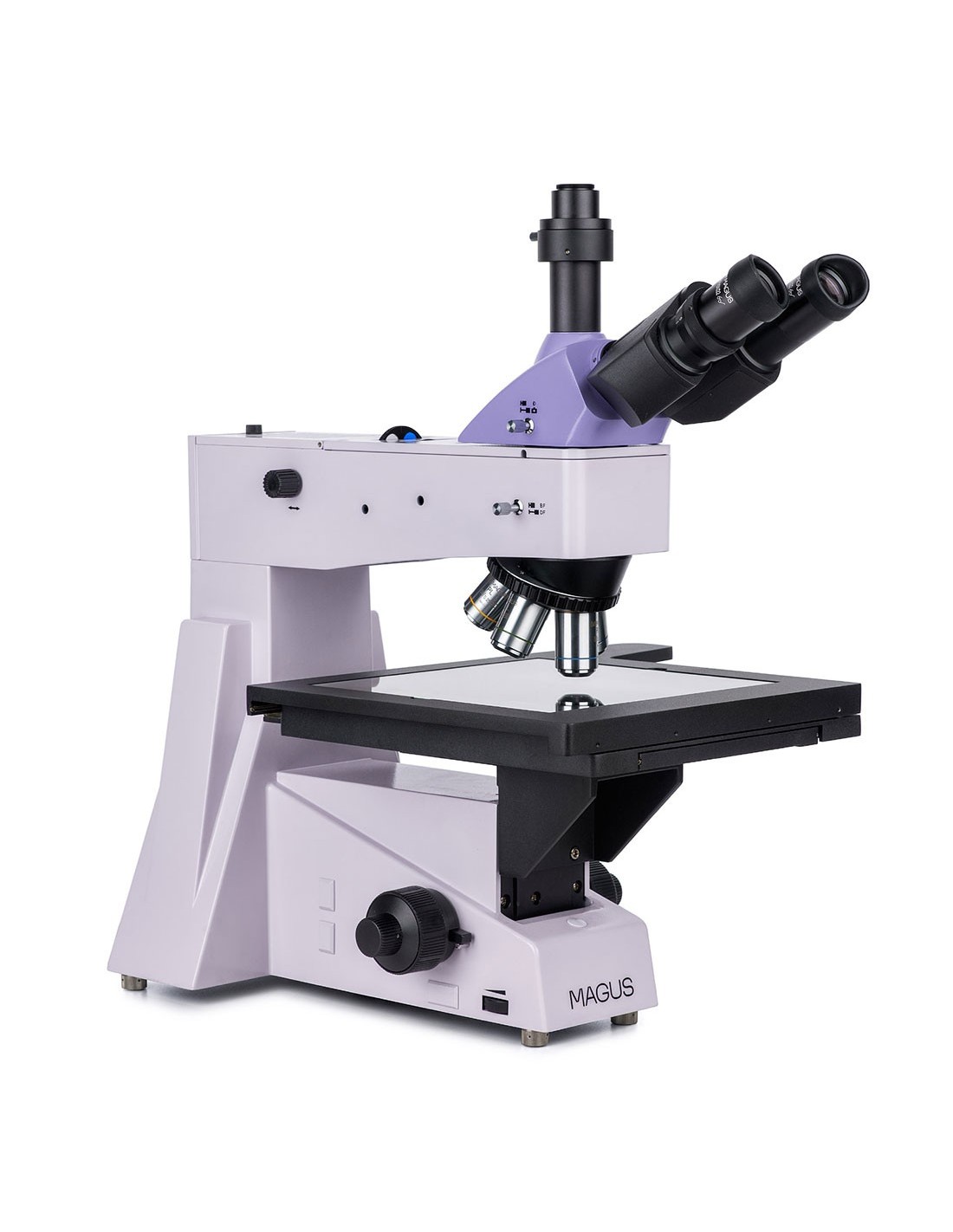

Planachromatic objectives with the BD symbol are specially designed for bright- and dark-field microscopy techniques. The lenses have a long working distance. The kit includes five objectives, one for each nosepiece socket. Each installed lens can be replaced with an optional one if necessary. Infinity corrected optics with magnification from 50x to 800x. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.

Illumination

The reflected light illumination system is designed so that all observations are well detailed regardless of the objective used and microscopy techniques. The light source is a 50W halogen lamp which creates a bright, warm and uniform light. You can use the Köhler lighting method to adjust the lighting. Filters to create a colorful effect and a polarization device (integrated analyzer and removable polarizer) are included. The light source, aperture and field diaphragms can be centered. The illumination system also includes a dark field device.

Stage and focusing mechanism

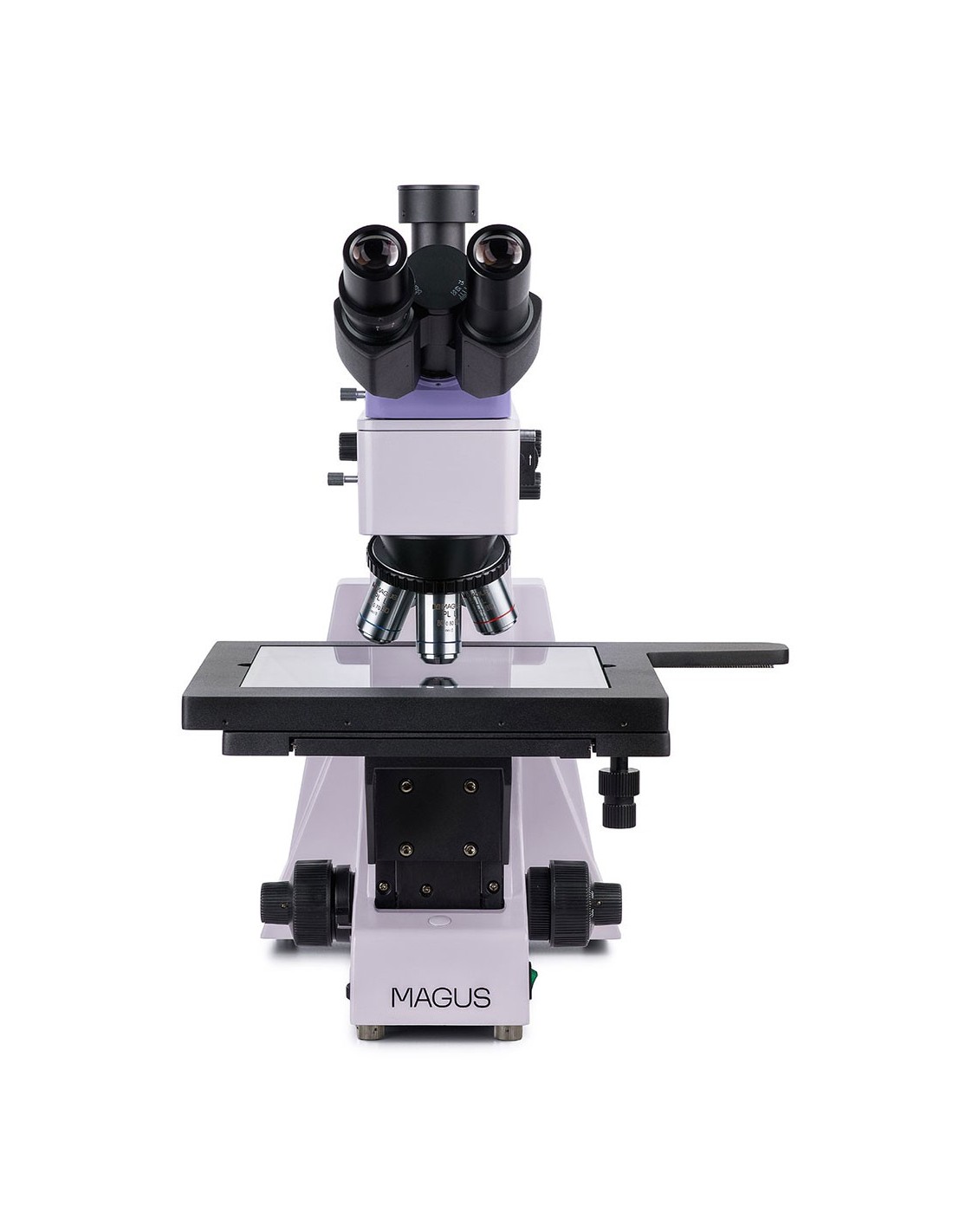

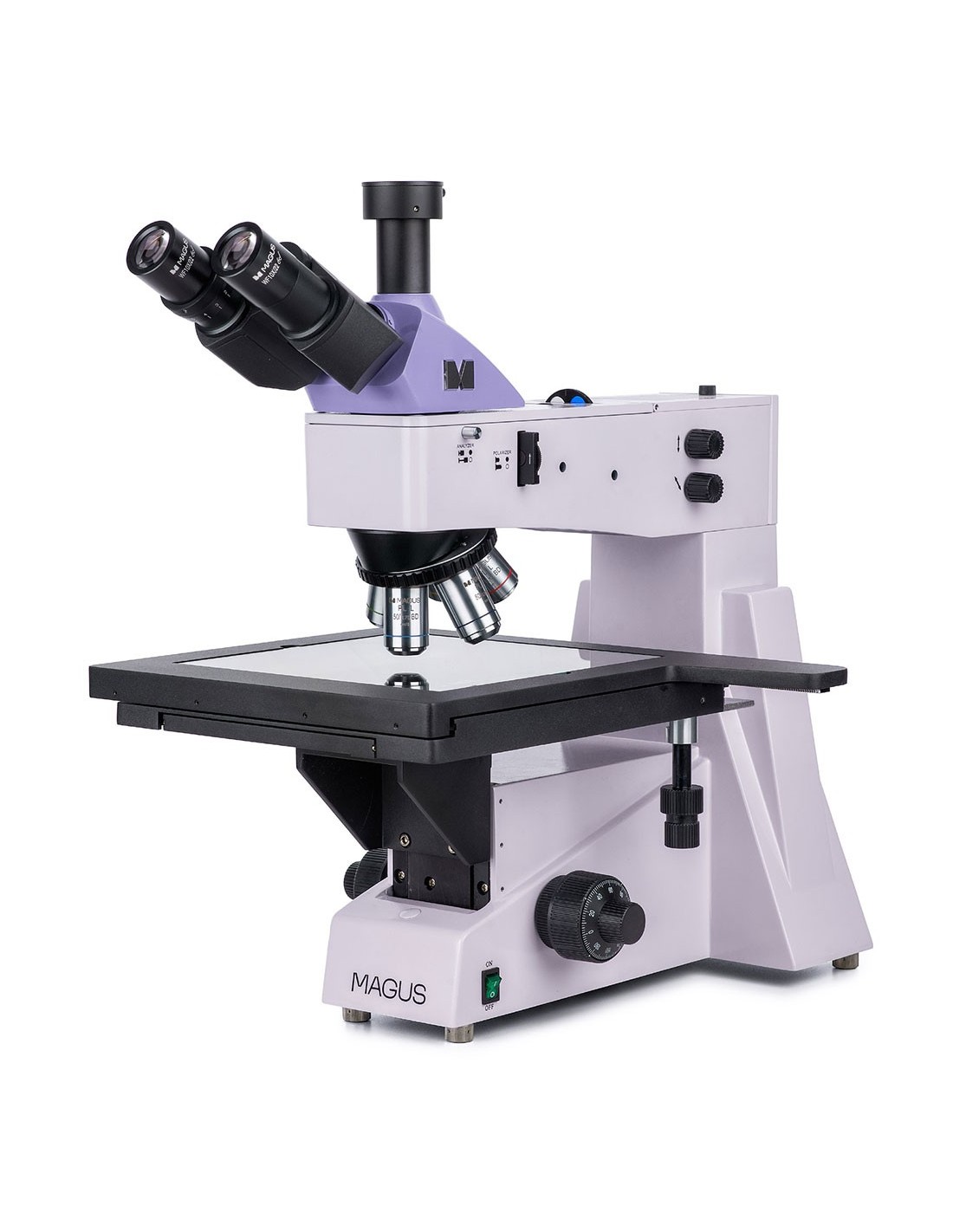

The large 280x270 mm stage is a special feature of the microscope. It has a range of motion of 204mm on the X and Y axis. Focus is adjusted by rotating the coarse and fine focus knobs. They work smoothly and thanks to the fine focus value, the operation at a high magnification level is precise. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focusing handles are positioned at the base of the microscope so you can assume a relaxed and comfortable position. This way the operator can keep his hands resting on the table instead of holding them in the air.

Accessories

To get the most out of the MAGUS Metal 650 microscope BD you can purchase other additional accessories, such as eyepieces, long working distance objectives for bright field and dark field, calibration slides and digital cameras.

Key features:

• Precise focus: fine focus value of 0.7 µm, coarse focus with a locking knob and tension adjustment
• Large stage dimensions for easily observing long and wide objects, wide range of stage movement in two axes
• Planachromatic optics, trinocular head with 100:0 and 0:100 beam splitter, trinocular tube for camera installation
• Light source, centrable aperture and field diaphragms, Köhler illumination adjustment, polarization device, set of color filters, dark field microscopy techniques
• Illuminator – halogen lamp 50 W with 220 V power supply and brightness adjustment
• Optional accessories

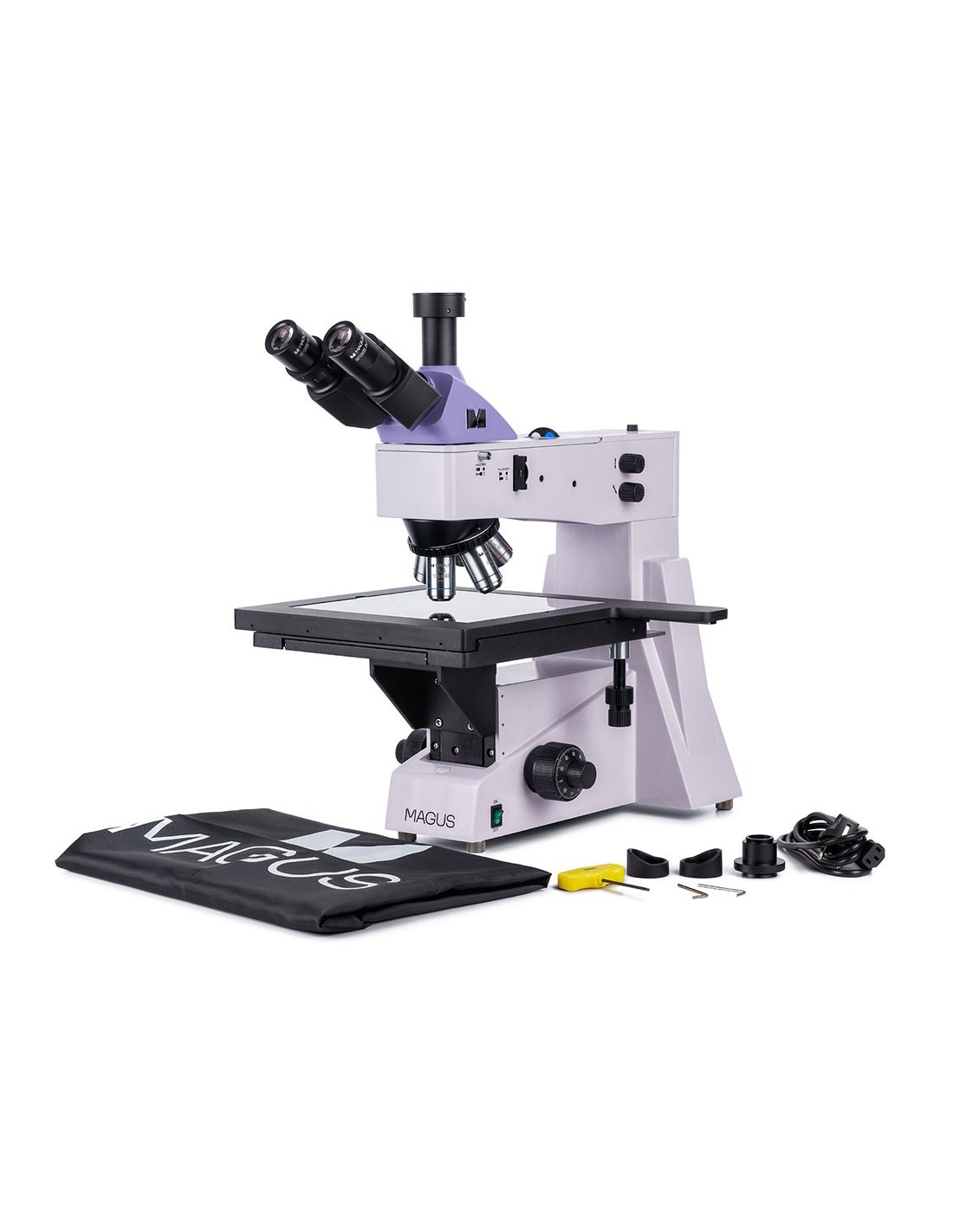

The package contains:

• Base with power input, reflected light illuminator, focusing mechanism, stage and nosepiece
• Trinocular head
• Infinity plan achromatic objective: PL L5x/0 ,12 BD WD 9.7 mm
• Plan achromatic infinity objective: PL L10x/0.25 BD WD 9.3 mm
• Plan achromatic infinity objective: PL L20x/0 ,40 BD WD 7.2 mm
• Plan achromatic infinity objective: PL L50х/0.70 BD WD 2.5 mm
• Plan achromatic infinity objective: PL L80x/0 ,80 BD WD 0.8 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• A key Allen key
• AC power cord
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with graduated scale
• 12.5x/14 mm eyepiece (2 pcs.)
• Eyepiece 15x/15 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 25x/9 mm (2 pcs.)
• Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0 mm
• Infinity plan achromatic objective: PL L60x/0.70 BD WD 1.9 mm
• Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4 mm
• Digital camera
• Calibration slide ul>
