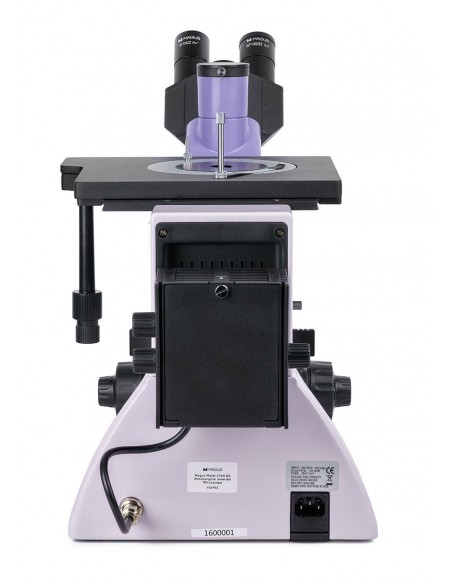

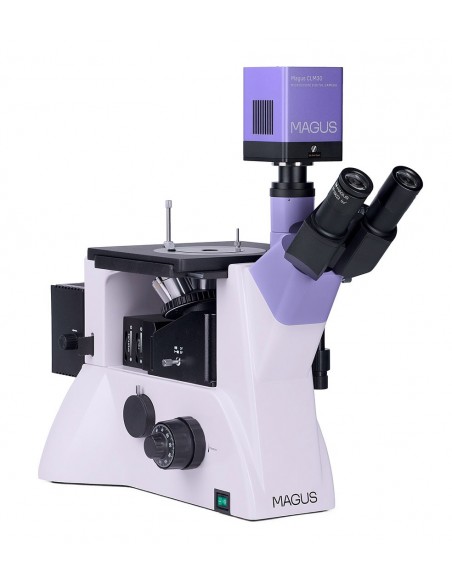

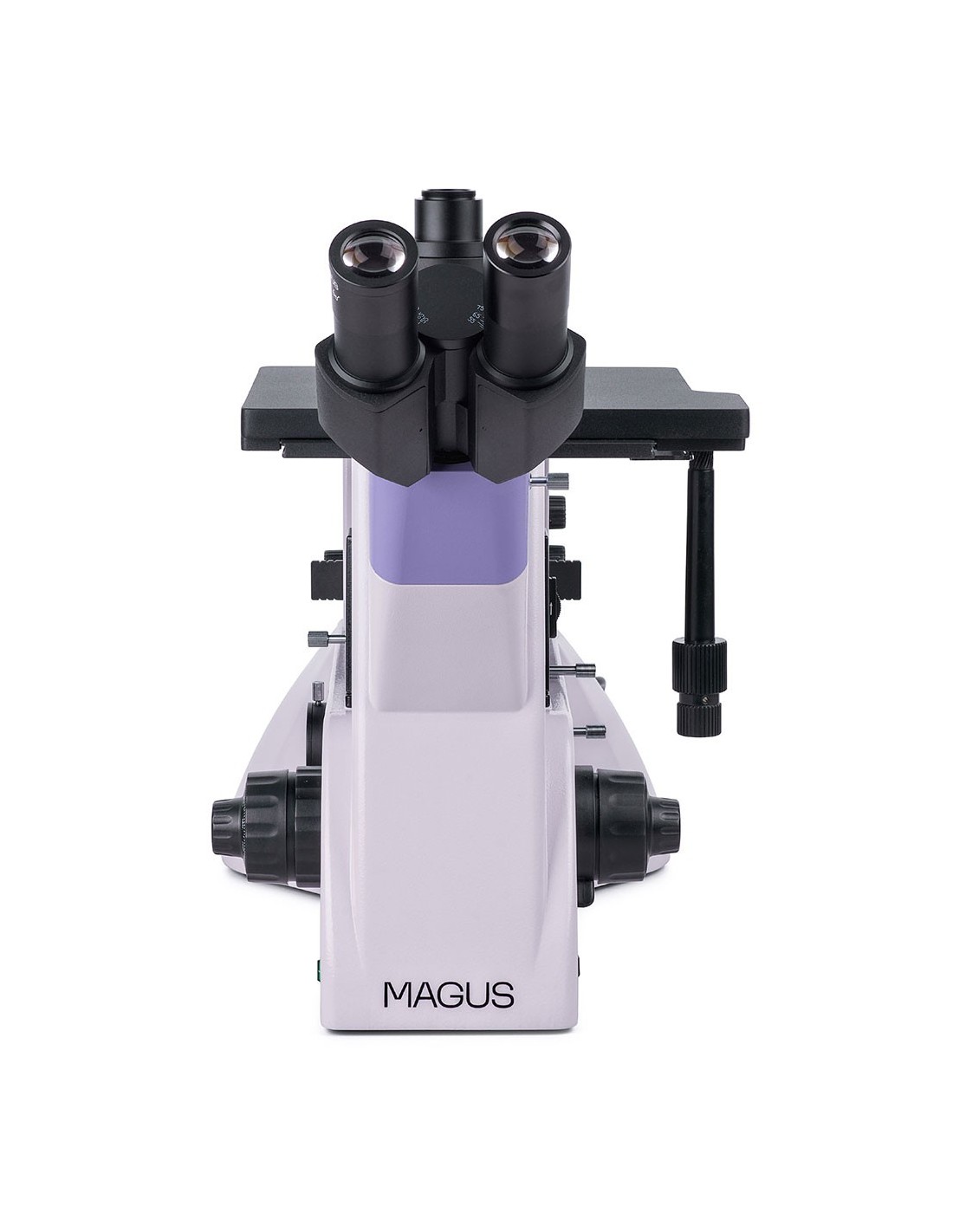

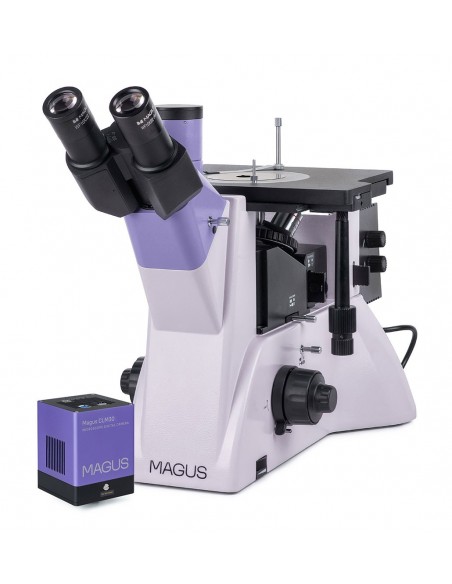

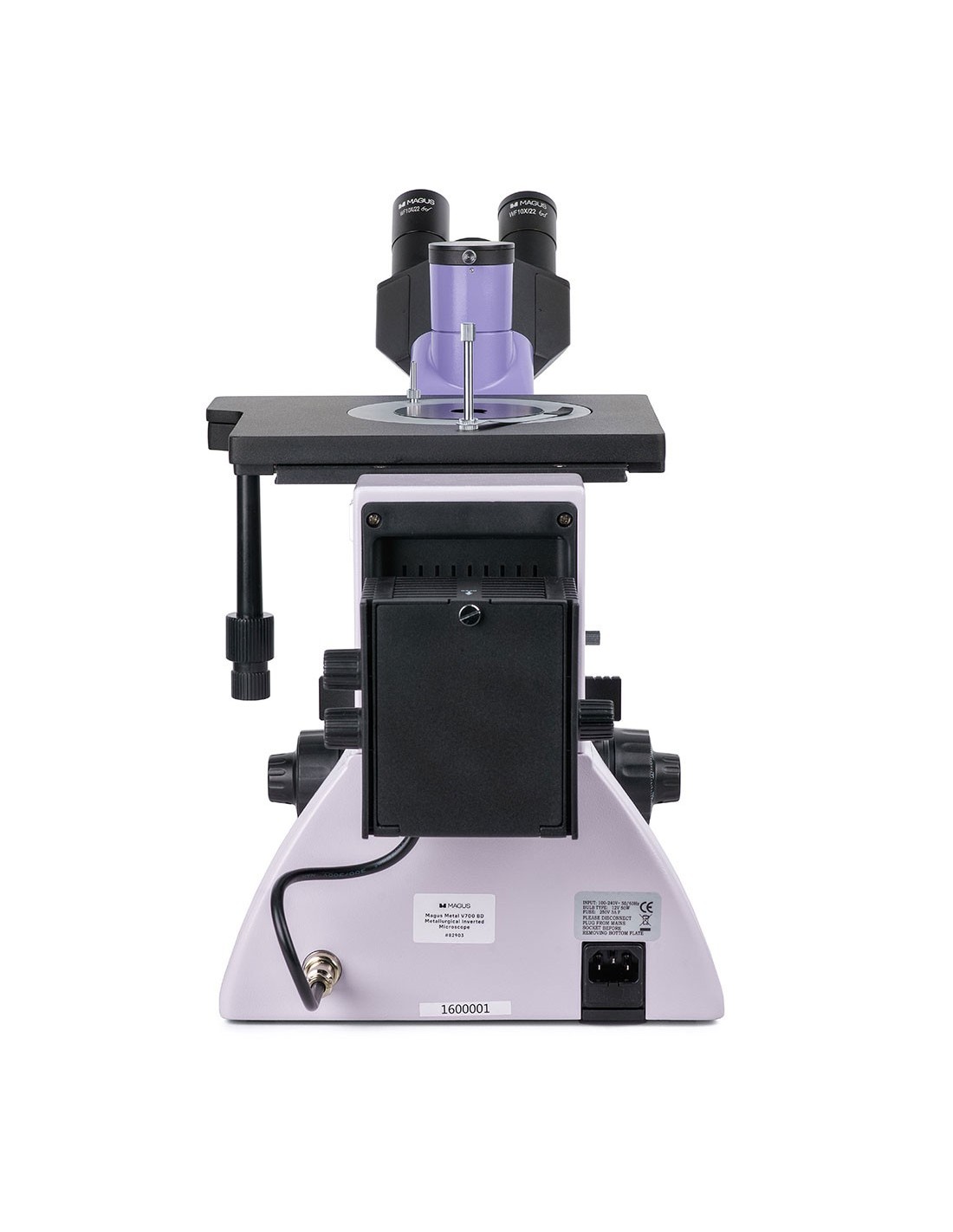

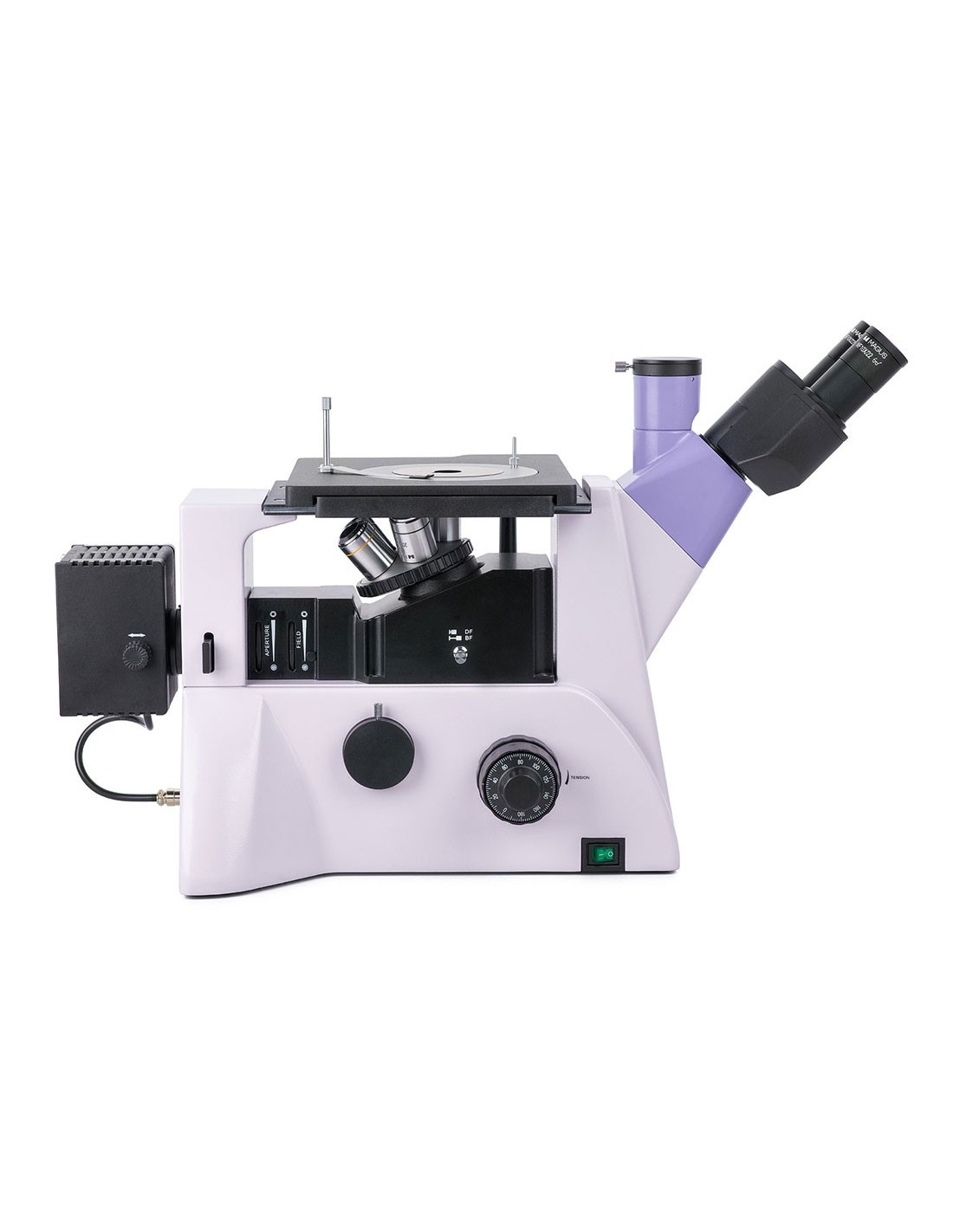

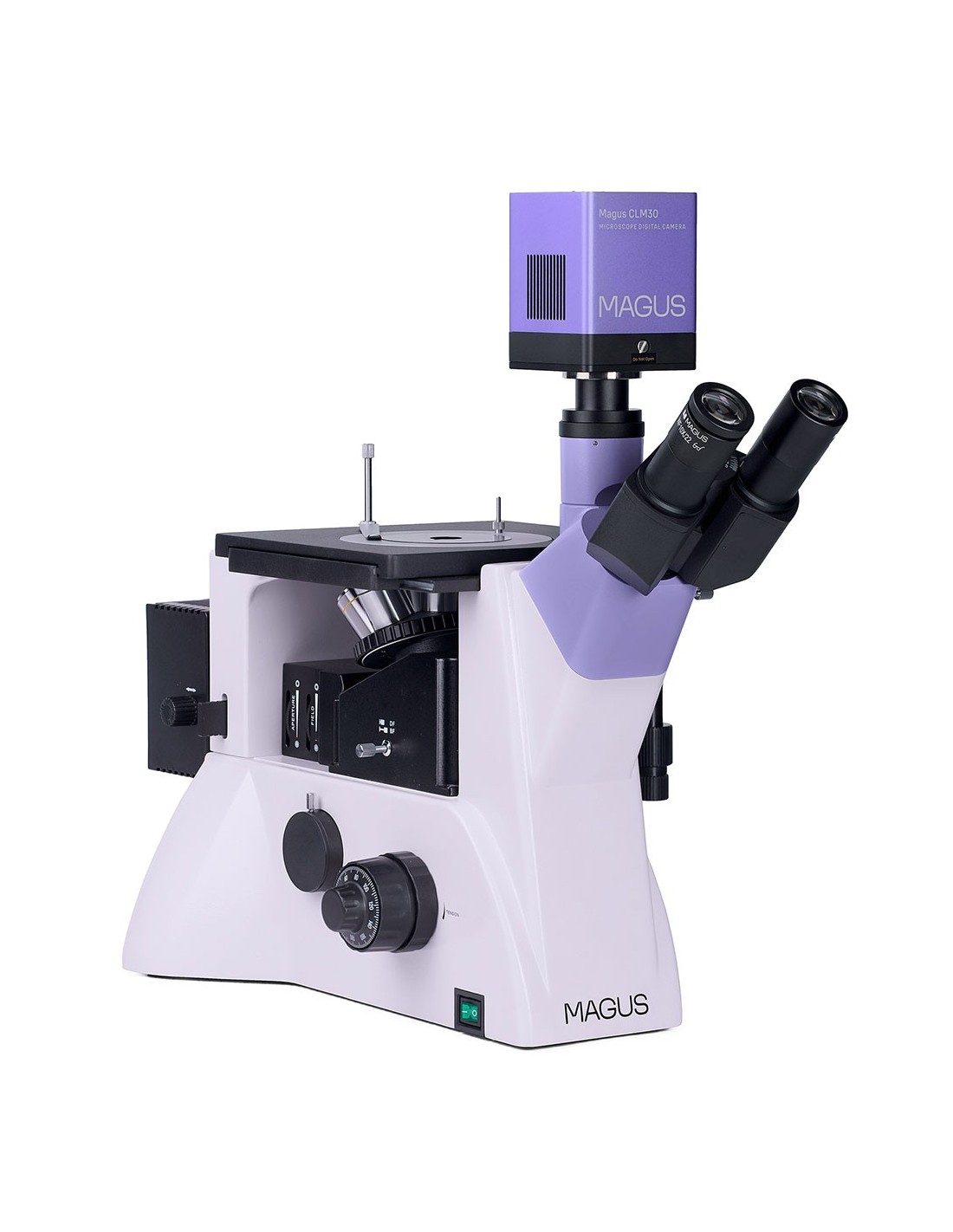

The MAGUS Metal VD700 BD digital metallographic microscope is an inverted metallographic microscope: this means that the nosepiece is positioned below the sample and that observations are carried out in reflected light. Available microscopy techniques: bright field, dark field or polarized light. This microscope is used for the examination of metals, alloys, semiconductor materials and other non-transparent materials of large dimensions weighing up to 2 kg. It is widely used in industrial plants, factories, quality control laboratories as well as universities and research centers.
Digital camera
The MAGUS CLM30 digital camera is designed for dark field and fluorescence microscopy techniques. The camera is equipped with an 8.3 MP sensor and produces realistic images at a resolution of 3840x2160 px. It is recommended to use the camera with 4x, 10x, 20x and 40x lenses. When using low magnification lenses, the camera allows the user to see sharper details.
Videos are recorded at 45 fps or 70 fps depending on the resolution - videos flow smoothly with smooth and delicate transactions between frames. The movement of the sample is shown in real time, without delays. The camera facilitates the observation of moving objects and is suitable for academic demonstrations.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research or university education.
Optics

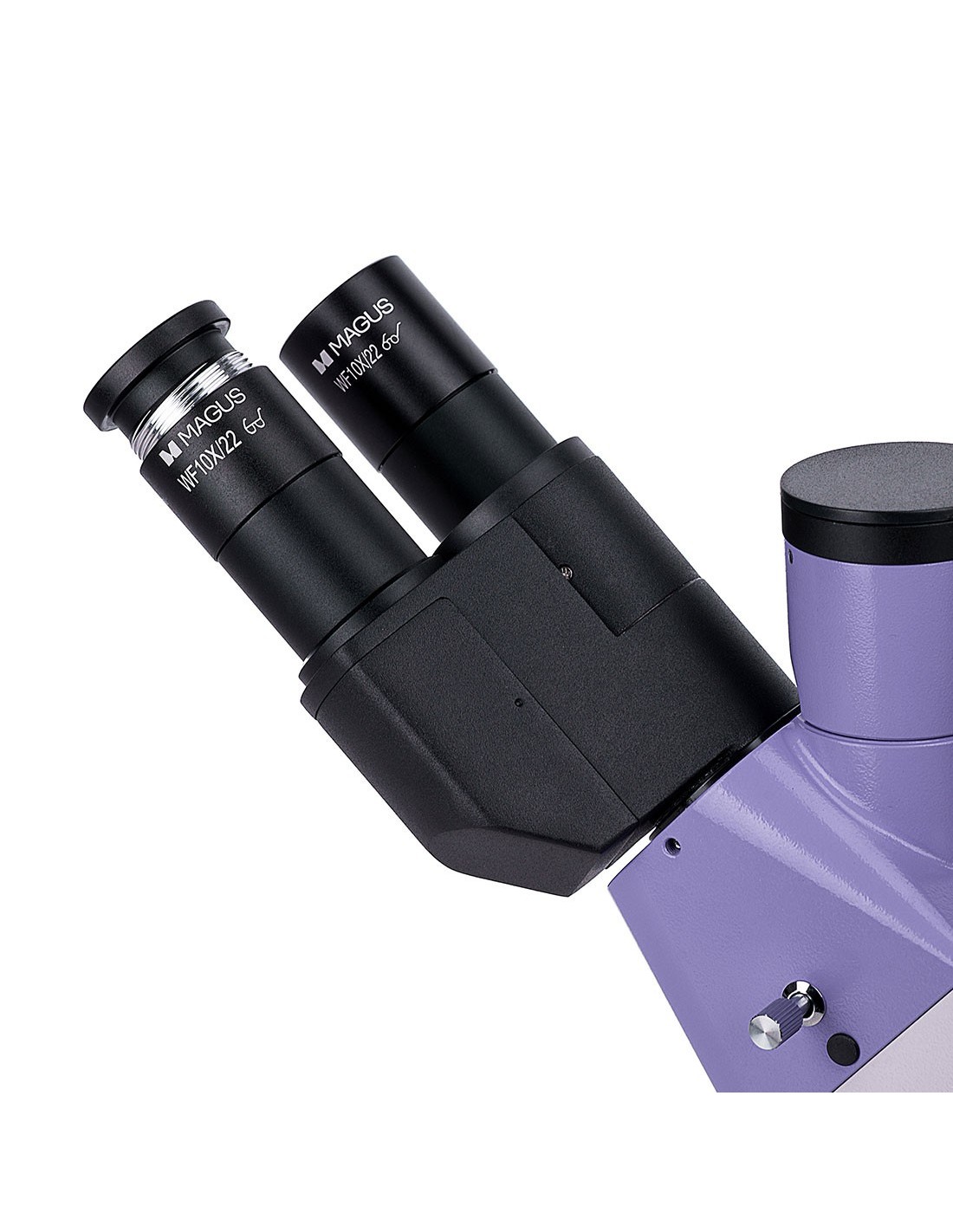

The design of the microscope will allow the head to be assembled in the normal direction or by rotating it 180°. A digital camera and monitor can be installed: the microscope head is equipped with a trinocular tube, and there is a side camera port on the frame. In both optical paths there is a beam splitter: with a ratio of 50:50 and 100:0 for the microscope head, 100:0 and 0:100 for the frame.

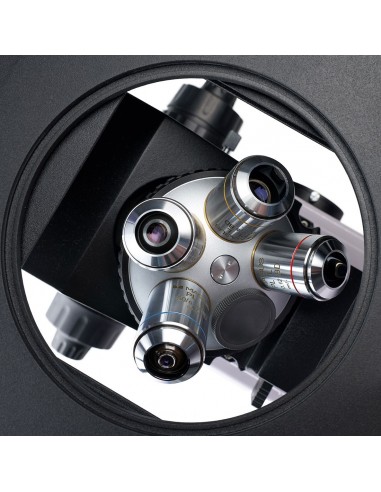

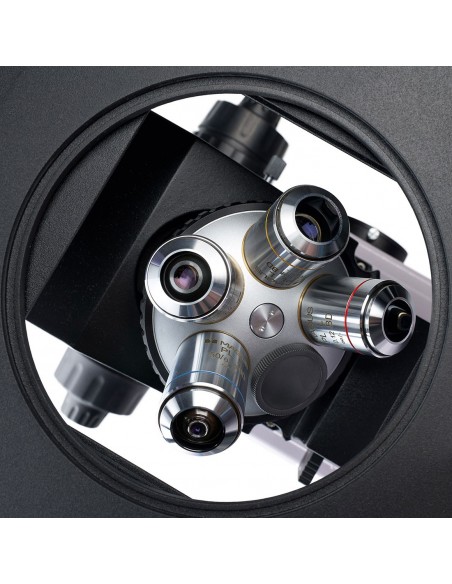

An nosepiece revolver for 5 objectives it is positioned below the sample to be observed. There are 4 slots to install the lenses included in the package and an additional slot for an additional lens. All objectives for this microscope are labeled BD, meaning specifically designed for both brightfield and darkfield microscopy, and have a long working distance.
Illumination
Light source: 50W halogen lamp. The warm light reduces eye strain and is ideal for long hours spent working under the microscope. Thanks to the powerful illumination, you obtain sharp, detailed images using any microscopy technique and any objective. The light source can be centered along the three axes and the Köhler illumination can be adjusted via the field and aperture diaphragms. The illumination system for reflected light observations also includes a polarization device and the necessary instrumentation for dark field microscopy.
Stage and focusing mechanism
A round, rotating plate is positioned in the center of the table. Different plates can be used, depending on the observation you want to make: they differ from each other in the diameter of the hole: 10 mm, 20 mm or 30 mm. After placing the sample on the stage, you can secure it with a support system. The sample moves integrally with the stage in two directions: along the sharpness adjustment. Coaxial knobs for coarse and fine focusing (coarse and fine screw) are positioned on both sides so you can rest your hands on the table while using the microscope, without having to hold them in mid-air to adjust the focus. instrument.
Accessories
By adding additional accessories to the MAGUS Metal V700 BD microscope you can increase its performance. The range of accessories includes eyepieces, darkfield and brightfield objectives with long working distance, digital cameras and calibration slides.
Key features of the microscope:
- Stage with round plate and 10mm, 20mm and 30mm holes; suitable for examining large and heavy samples
- Bright field, dark field or polarized light microscopy techniques
- Possibility to rotate the microscope head by 180° during installation
- Two options for housing the digital camera and installing a monitor: the trinocular tube and the side camera port; beam splitter: 100:0 and 0:100 in the microscope frame, 50:50 and 100:0 in the trinocular head
- Powerful illumination with halogen lamp (50 W) for comfortable observations using dark field techniques, brightness control, Köhler illumination, color filters and light source that can be centered on three axes
- Optional accessories to improve the performance of the microscope
Key camera features:
- For darkfield and fluorescence microscopy with 4x, 10x, 20x and 40x objectives
- 8.3 MP resolution: when perform observations with low magnification lenses, the camera allows the user to see sharper details
- 45 fps and 70 fps, respectively at 3840x2160 pixels and 1920x1080 pixel resolution, for observing samples with elements mobile, for video recording and for moving the specimen without jerks or delays
- The Peltier cell lowers the temperature of the sensor during prolonged operation and eliminates thermal noise, thus allowing the use of a long speed shutter when taking photographs.
- The color back-illuminated SONY Exmor CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- USB 3.0 interface for fast and smooth data transfer
- Software for recording and editing photos and videos, recording functions external display, linear and angular measurements

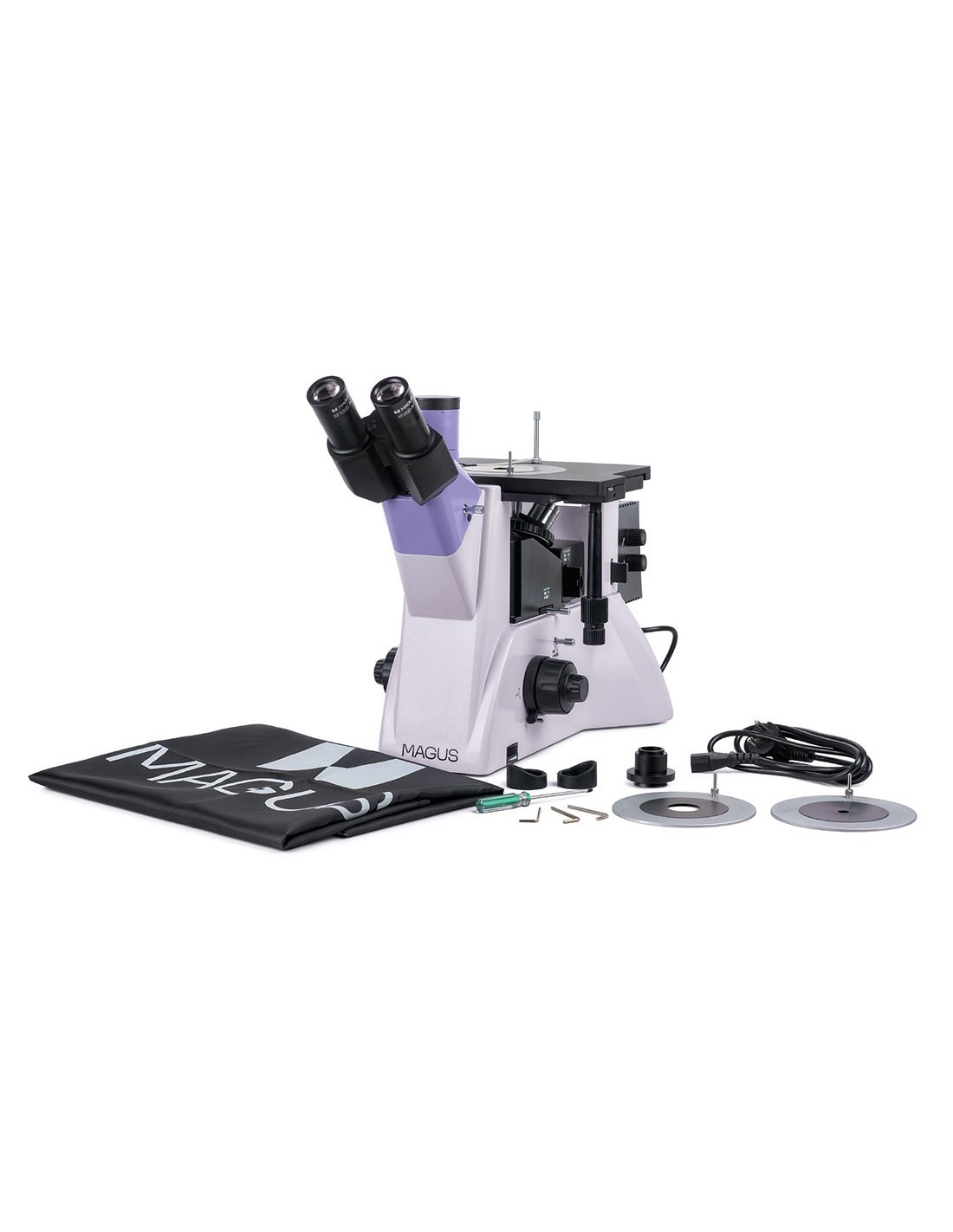

The package contains:
- The MAGUS CLM30 digital camera (digital camera, USB cable , 12 V, 3 A adapter, carrying case, installation CD with drivers and software, user manual and warranty card)
- Stand with power input, focusing mechanism, stage and nosepiece li>
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity planachromatic objective: PL L5x/0.12 BD WD 9.7 mm
- Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
- Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
- Planachromatic infinity objective: PL L50х/0.70 BD WD 2.5 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- 1x C-mount adapter
- Allen key
- AC mains power cable
- Dust cover
- User manual and certificate warranty
Available on request:
- 10x/22 mm eyepiece with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0 mm
- Infinity plan achromatic objective: PL L60x/0.70 BD WD: 1.9 mm
- Infinity plan achromatic objective: PL L80x/0.80 BD WD: 0.8 mm
- Infinity plan achromatic objective infinity: PL L100х/0.85 (dry) BD WD: 0.4 mm
- Calibration slide
| Mark | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018485 |
| Package size (LxWxH) | 49x34x68 cm |
| Shipping weight | 19.3 kg |
| Delimiter | MAGUS Metal V700 BD inverted metallographic microscope |
| Type | light/optical, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf, 180° rotatable |
| Head tilt angle | 45° |
| Magnification, x | 50–500 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L50x/0.70 BD; parfocal height 45 mm (*optional: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 ( 5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 242x200 |
| Range of movement of the stage, mm | 30/30 |
| Stage characteristics | two-axis mechanical, Ø130 mm rotating plate with Ø10 mm, Ø20 mm and Ø30 mm holes |
| Diaphragm | integrated field and aperture |
| Focus | coaxial, coarse focus (with micrometer screw tension adjustment knob and knob fixing) and fine focus (0.002 mm micrometric screw) |
| Halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/50 W |
| Optical filters | green, blue, yellow, satin |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | removable analyzer and polarizer, dark field device |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Lighting position | lower |
| Search method | bright field, dark field, polarized light |
| Set with case/case/bag | dust cover |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/Monochrome | Color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Two-phase thermoelectric module (Peltier cell) to set the temperature to 42°C below room temperature | yes |
| Light sensitivity | 5970 mV with 1/30 s |
| Signal to noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate, fps@resolution | 45@3840x2160, 70@1920x1080 |
| ADC digital capacity ( bit) | 8/12 (selectable) |
| Installation location | trinocular tube |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS .8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Mount type | C-mount |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
