MAGUS Metal D630 BD LCD digital metallographic microscope - MAGUS

Art. OM-83031
€6,899.95
Tax included

MAGUS Metal D630 BD LCD digital metallographic microscope for bright field, dark field and polarization microscopy techniques. Powerful halogen illumination produces a quality image with any objective lens and microscopy method. The microscope is designed for quality control and study of the microstructure of semiconductor materials, metals and opaque objects. It is used to conduct research at manufacturing plants, research center laboratories and university departments.



MAGUS Metal D630 BD LCD digital metallographic microscope for bright field, dark field and polarization microscopy techniques. Powerful halogen illumination produces a quality image with any objective lens and microscopy method. The microscope is designed for quality control and study of the microstructure of semiconductor materials, metals and opaque objects. It is used to conduct research at manufacturing plants, research center laboratories and university departments.

Digital camera

MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on monitor resolution.< br /> The camera is equipped with an 8 MP sensor and produces lifelike images at a 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).
The camera uses an HDMI interface to connect directly to a TV, monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB 3.0. Video is recorded at 30 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.

Monitor

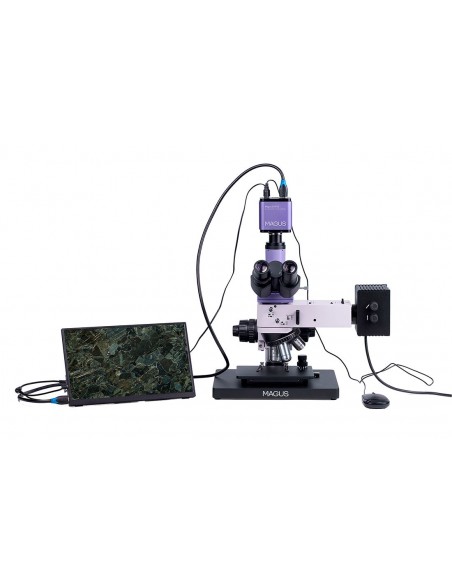

The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display real-time images. Supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix offers bright images with wide viewing angles. If you look at the display from the side the color reproduction is not distorted. You can place the display on a table or shelf using a folding stand or install it directly on the camera or microscope base.

Optics

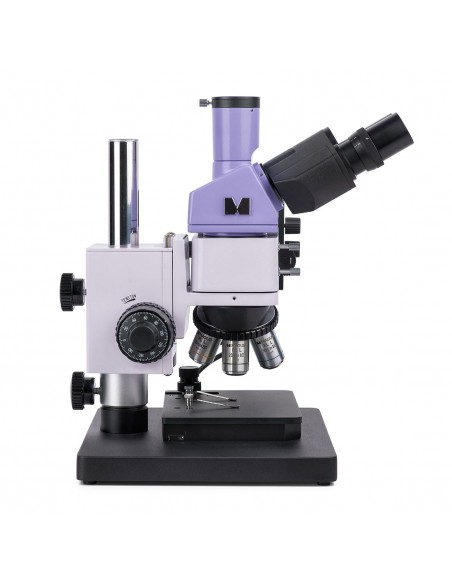

The trinocular head is equipped with a trinocular tube in which the digital camera (not included) is mounted. You can direct the light beam onto the eyepiece or trinocular tube using a light path selection knob on the camera/eyepiece. The trinocular head is inclined at 30° to facilitate observation. The diopter adjustment ring is positioned on the left optical tube.

Once the lenses included in the kit have been mounted on the nosepiece, a slot for an additional lens will be available. All base objectives are planachromatic, with a long working distance, suitable for bright and dark field microscopy.

Illumination

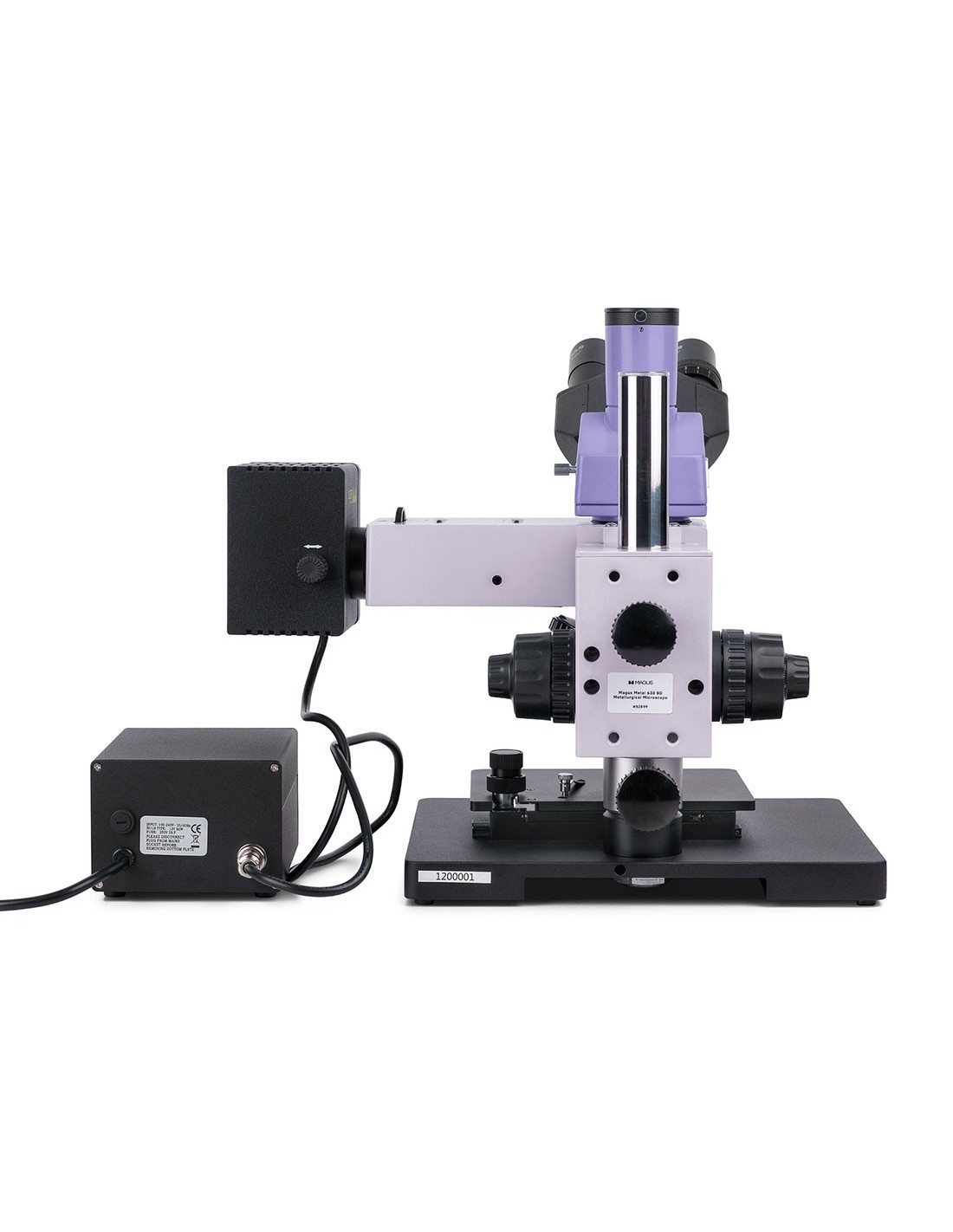

For observations in dark field, the microscope has a higher power halogen lamp (50 W). In addition, the reflected light illumination system includes: a set of filters, field and aperture diaphragms, a dark field device, an integrated analyzer and a removable polarizer. The openings and light source can be centered. You can configure the Köhler illumination method.

Stage and focusing mechanism

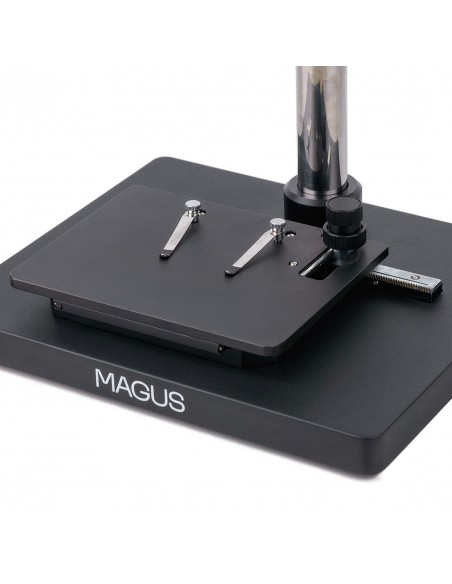

The microscope features a stand and focusing mechanism from interesting design and the analyzed sample can be of any size and height. It is also characterized by its small dimensions, which allow the microscope to be positioned on surfaces with a maximum height of 40 cm. The coarse and fine focus knobs are coaxial and are located on both sides of the microscope body. You can also adjust the coarse tension adjustment.

Accessories

Additional accessories of the MAGUS Metal 630 BD microscope can be ordered separately. These include compatible eyepieces, objectives with a long working distance for bright and dark field techniques, calibration slides and digital cameras.

Key features of the microscope:

  • Suitable for studying opaque specimens of any height and size
  • Trinocular head with trinocular tube for mounting a digital camera and beam splitter 100:0 and 0:100 li>
  • Reflected light observations using bright field, dark field and polarization microscopy techniques
  • The power of the halogen light source has been increased to 50 W (suitable for dark field)
  • li>
  • Aperture and field diaphragms for Köhler illumination and a set of color filters, centering of both diaphragms and a light source.
  • Compact design support for mounting the microscope in small spaces
  • Support with compact design for mounting the microscope in small spaces li>
  • A wide range of optional accessories

Key features of the camera:

  • The camera works autonomously without a connection to a PC via HDMI interface. You can connect to a PC via Wi-Fi and USB 3.0 interface
  • Automatic switching between 4K and Full HD based on monitor resolution
  • 30 fps for observing objects in motion, video recording, and sample movement without lag or stuttering
  • The color back-illuminated SONY Exmor/ Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
  • Software for recording and editing photos and videos, external display functions, linear and angular measurements

The package contains:

  • MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), mouse with USB, 32GB SD Memory Card, Wi-Fi USB Adapter (2pcs), 12V/1A AC Power Adapter (Euro), Installation CD with Drivers and Software, User Manual and Warranty Card)
  • MAGUS MCD40 LCD monitor
  • Stand with focusing mechanism, stage and nosepiece nosepiece
  • Illuminator for reflected light observations with bulb housing
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7 mm
  • Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
  • Plan achromatic infinity objective: PL L20x/0.40 BD WD 7.2 mm
  • Plan achromatic infinity objective: PL L50х/0.70 BD WD 2.5 mm
  • 10x/22 mm eyepiece with long eye relief (2 pcs.)
  • 1x C-mount adapter
  • Allen key
  • Base with power input
  • Power cable
  • Reflected light illuminator power cable
  • Dust cover
  • User manual and warranty certificate

Available on request:

  • 10x/22 mm eyepiece with graduated scale
  • Eyepiece 12.5x/14 mm (2 pcs.)
  • Eyepiece 15x/15 mm (2 pcs.)
  • Eyepiece 20x/12 mm (2 pcs.)
  • Eyepiece 25x/9 mm (2 pcs.)
  • Infinity planachromatic objective: PL L40x/0.60 BD WD 3.0 mm
  • Objective plan achromatic at infinity: PL L60x/0.70 BD WD 1.9 mm
  • Plan achromatic at infinity objective: PL L80x/0.80 BD WD 0.8 mm
  • Objective infinite planachromatic: PL L100х/0.85 (dry) BD WD 0.4 mm
  • Calibration slide
BrandMAGUS
Warranty5 лет
EAN5905555018379
Package size (LxWxH)39x37x73 cm
Weight shipping22.25 kg
DelimiterMAGUS Metal 630 BD metallographic microscope
Typelight/optical, metallographic
Headtrinocular
Vertical tubeSiedentopf
Head inclination angle30°
Magnification, x50–500 base (*optional: 50–1000/1250/1500/2000/2500)
Range of magnification200x to 800x
Eyepiece tube diameter, mm30
Eyepieces10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectivesplanachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L50x/0.70 BD; parfocal height 45 mm (*optional: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry))
Nosepiece nosepiecefor 5 objectives
Working distance, mm9.7 ( 5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x)
Interpupillary distance, mm48 — 75
Stage, mm185x140
Range of movement of the stage, mm35/30
Stage featurestwo-axis mechanical stage; Microscope base dimensions: 300x240 mm
Eyepiece diopter adjustment, diopters±5 (on the left barrel)
Focuscoaxial, coarse (with focus voltage adjustment coarse) and fine focus (0.002 mm)
Halogen
Brightness adjustmentyes
Power supply220±22 V, 50 Hz, AC mains
Type of light source12 V/50 W
Optical filtersgreen, blue, yellow, frosted
Operating temperature range, °C5 — 35
Extra elements integrated analyzer and removable polarizer, dark field device
User levelexpert users, professionals
Assembly and installation level of difficultycomplicated
Applicationmetallographic
Search methodbright field, dark field, polarized light
Set with pencil case/case/bagdust cover
=== Delimiter ===Digital camera
SensorSony Exmor/Starvis CMOS
A color/monochromecolor
Megapixel8
Resolution maximum, px3840x2160
Sensor size1/1.2'' (11.14x6.26 mm)
Pixel size, µm2.9x2.9
Interface connectorsWi-Fi, HDMI 1,4, USB 3.0
Memory cardSD up to 32 GB
Possibility to connect additional equipmentmouse with USB, stick (USB), Wi-Fi adapter (USB)
Sensitivity to light1028 mV with 1/30 s
Signal to noise ratio0.13 mV with 1/30 s
Exposure time0.14 ms – 1000 ms
Video recording yes
Frame rate, fps@resolution30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@ 3840x2160 (USB 3.0)
Installation locationtrinocular tube, optical tube instead of eyepiece
Image format*.jpg, *.tif
Video format*.h264/*.h265, *.mp4
Spectral range, nm380-650 (integrated IR filter)
Shutter type ERS (electronic curtain shutter)
SoftwareHDMI: integrated; USB: MAGUS View
System requirementsWindows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen
Mount type C pitch
BodyCNC aluminum alloy
Camera powerDC adapter 12 V, 1 A
DC power adapter specificationsinput: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A
Camera operating temperature range, °C-10 — 50
Humidity operating range, %30 — 80
=== Delimiter == =Monitor
Matrix typeIPS
Display diagonal , inches13.3
Display resolution, px3840x2160 (4K)
Format16:9
Brightness, cd/m²400
Contrast1000:1
Horizontal/vertical viewing angle, °178/178
Dimensions of the visible area of the screen (WxH ), mm295x165
Pixel pitch (WxH), mm0.154x0.154
Optical source frequency, Hz60
Matrix type backlightLED
LED backlight life, h50000
InterfaceHDMI
Operating temperature range, °C-15 — 55
Humidity operating range, %10 — 90
Power SupplyAC 110–220 V, DC 5–12 V/1 A (Type C )
Energy consumption, W12 (max.)
