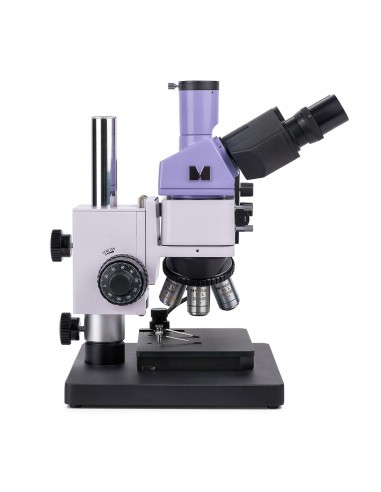

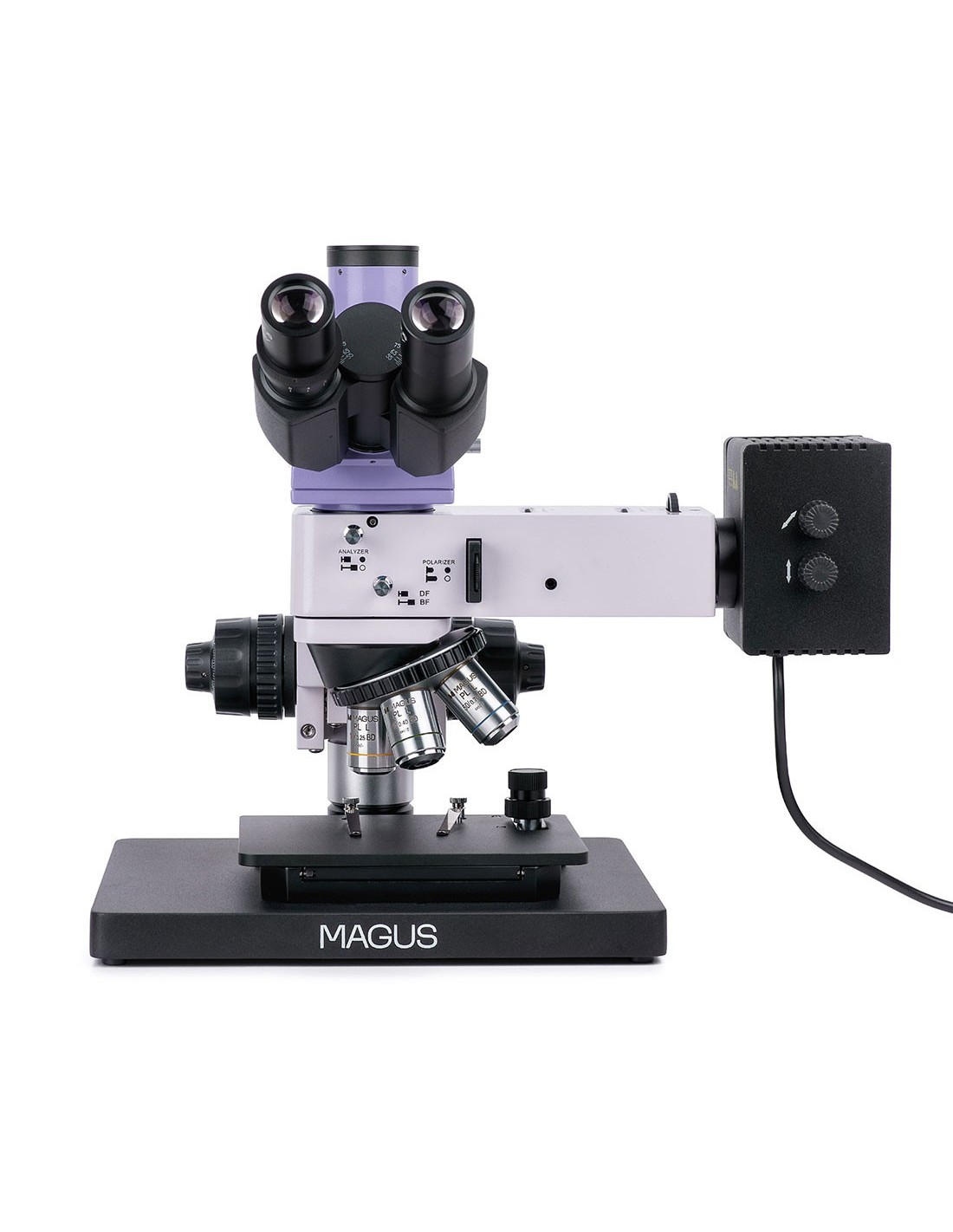

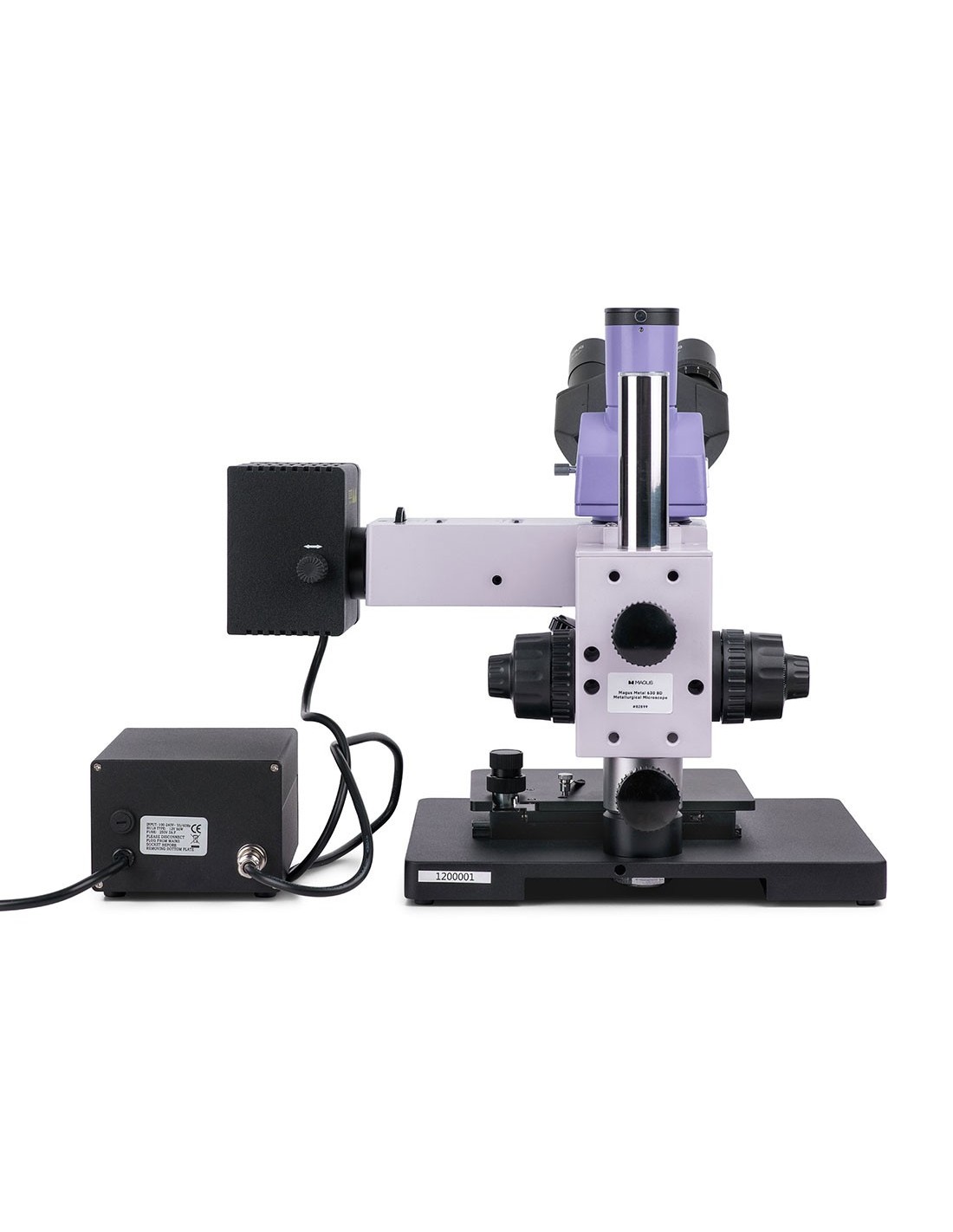

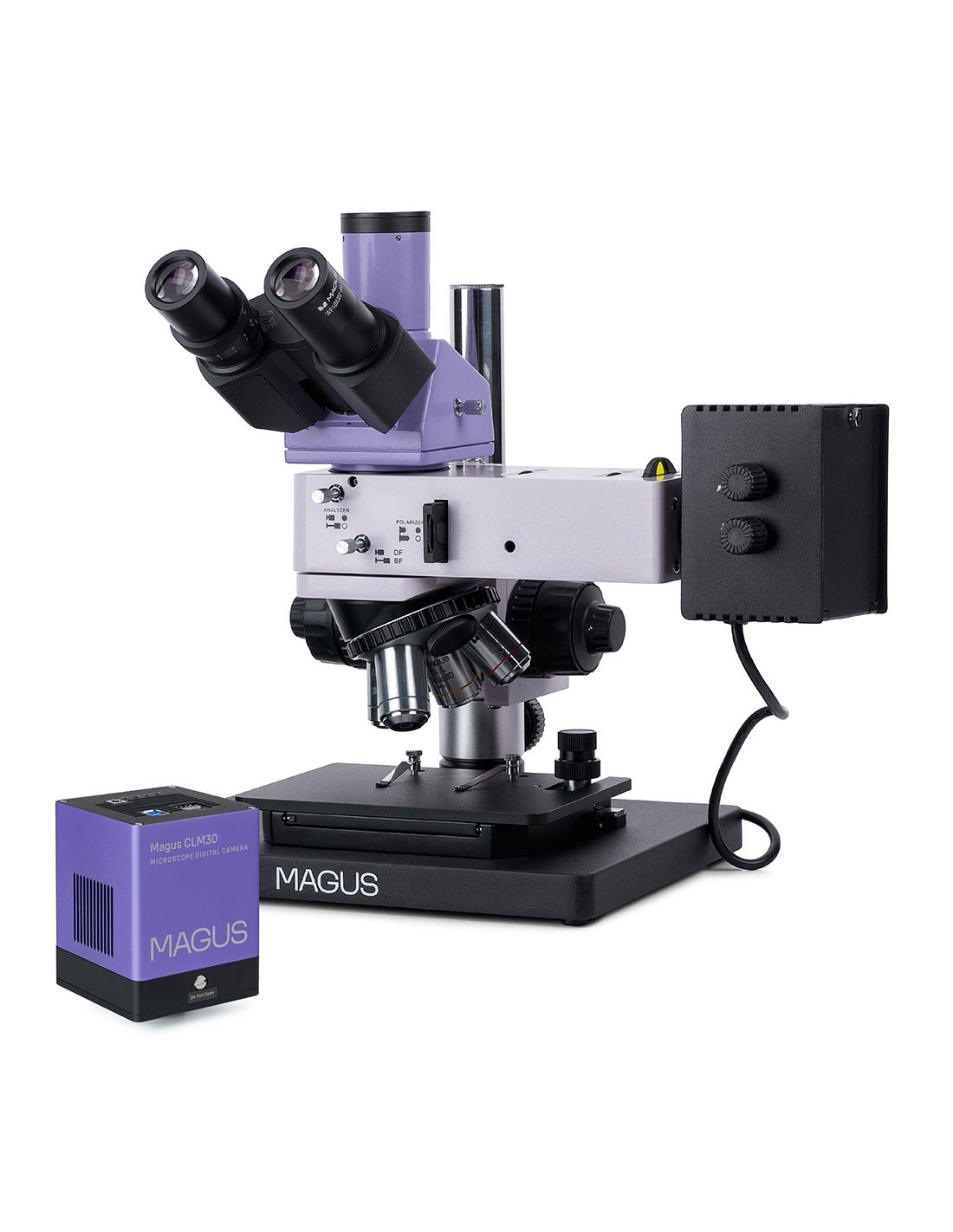

MAGUS Metal D630 BD metallographic digital microscope for bright field, dark field and polarization microscopy techniques. Powerful halogen illumination produces a quality image with any objective lens and microscopy method. The microscope is designed for quality control and study of the microstructure of semiconductor materials, metals and opaque objects. It is used to conduct research at manufacturing plants, research center laboratories and university departments.
Digital camera

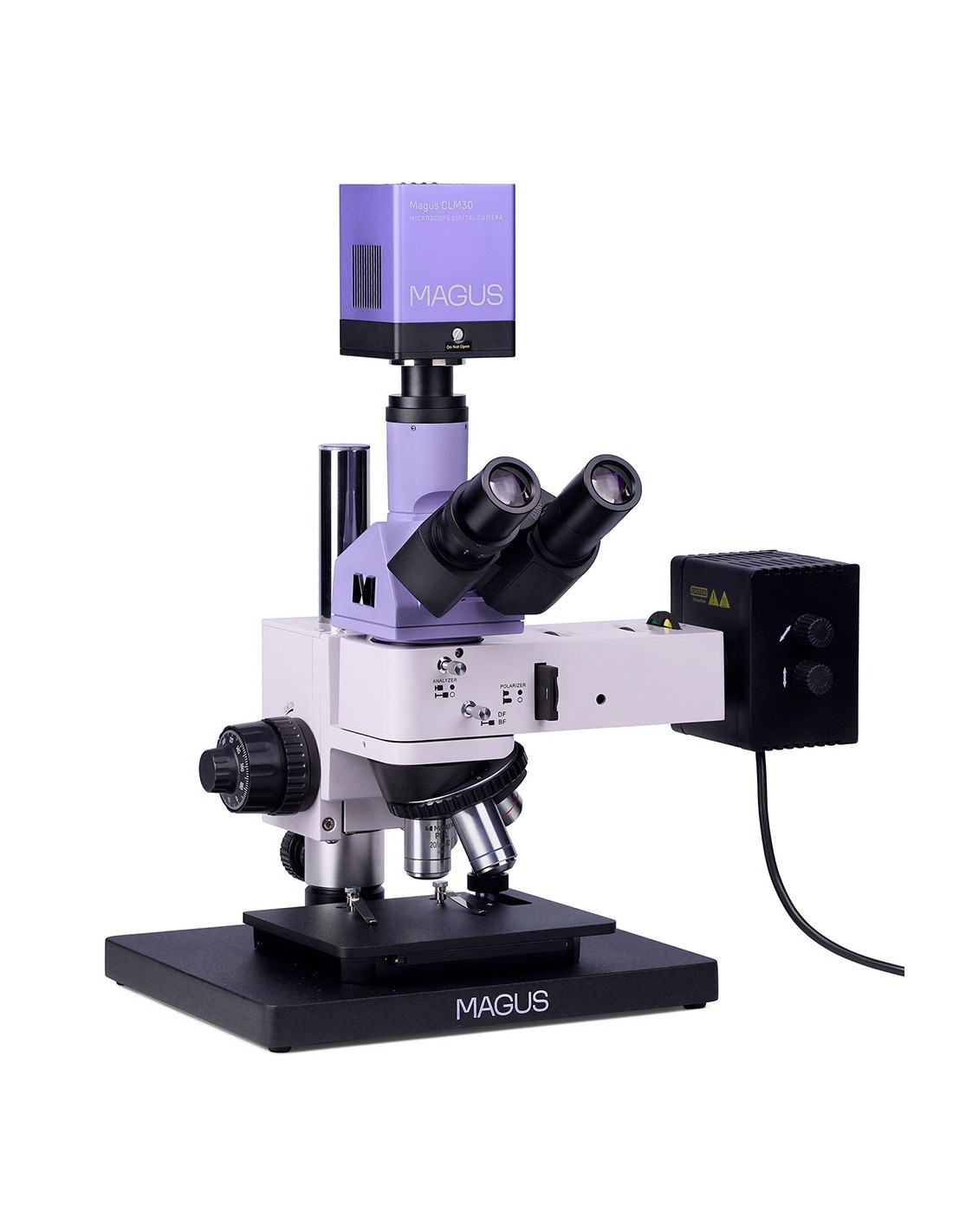

The MAGUS CLM30 digital camera is designed for the dark-field and fluorescence microscopy technique. The camera is equipped with an 8.3 MP sensor and produces realistic images at a resolution of 3840x2160 px. It is recommended to use the camera with 4x, 10x, 20x and 40x lenses. When using low magnification lenses, the camera allows the user to see sharper details.
Videos are recorded at 45 fps or 70 fps depending on the resolution - videos flow smoothly with smooth and delicate transactions between frames. The movement of the sample is shown in real time, without delays. The camera facilitates the observation of moving objects and is suitable for academic demonstrations.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research or university education.
Optics

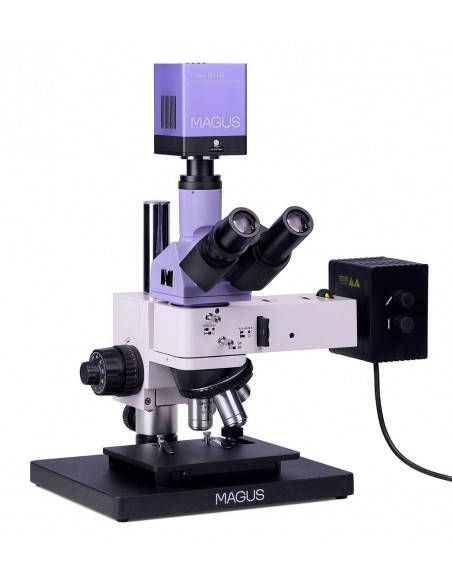

The trinocular head is equipped with a trinocular tube in which it is digital camera mounted (not included). You can direct the light beam onto the eyepiece or trinocular tube using a light path selection knob on the camera/eyepiece. The trinocular head is inclined at 30° to facilitate observation. The diopter adjustment ring is positioned on the left optical tube.

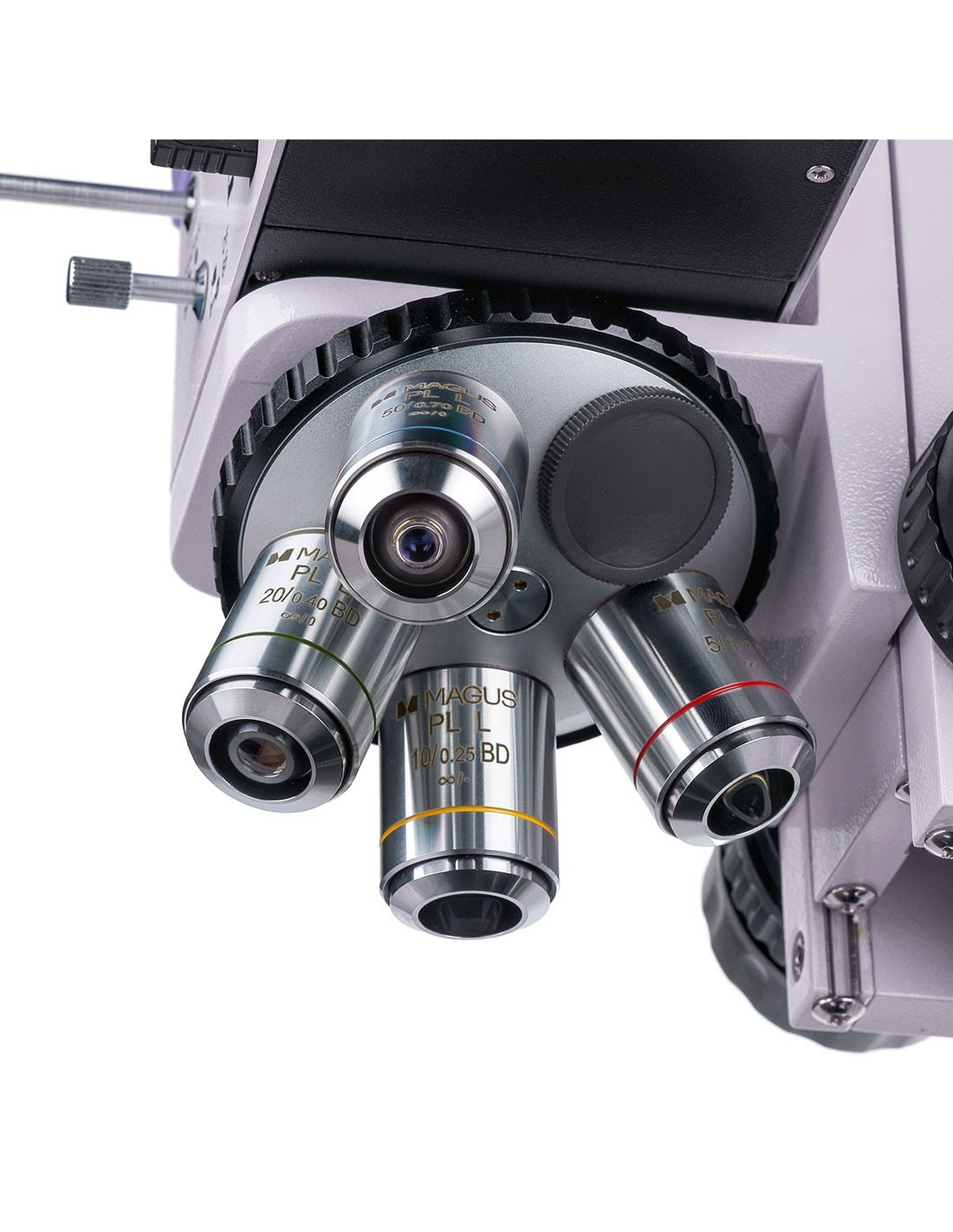

Once the lenses included in the kit have been mounted on the nosepiece, a slot for an additional lens will be available. All base objectives are planachromatic, with a long working distance, suitable for bright and dark field microscopy.
Illumination
For observations in dark field, the microscope has a higher power halogen lamp (50 W). In addition, the reflected light illumination system includes: a set of filters, field and aperture diaphragms, a dark field device, an integrated analyzer and a removable polarizer. The openings and light source can be centered. You can configure the Köhler illumination method.

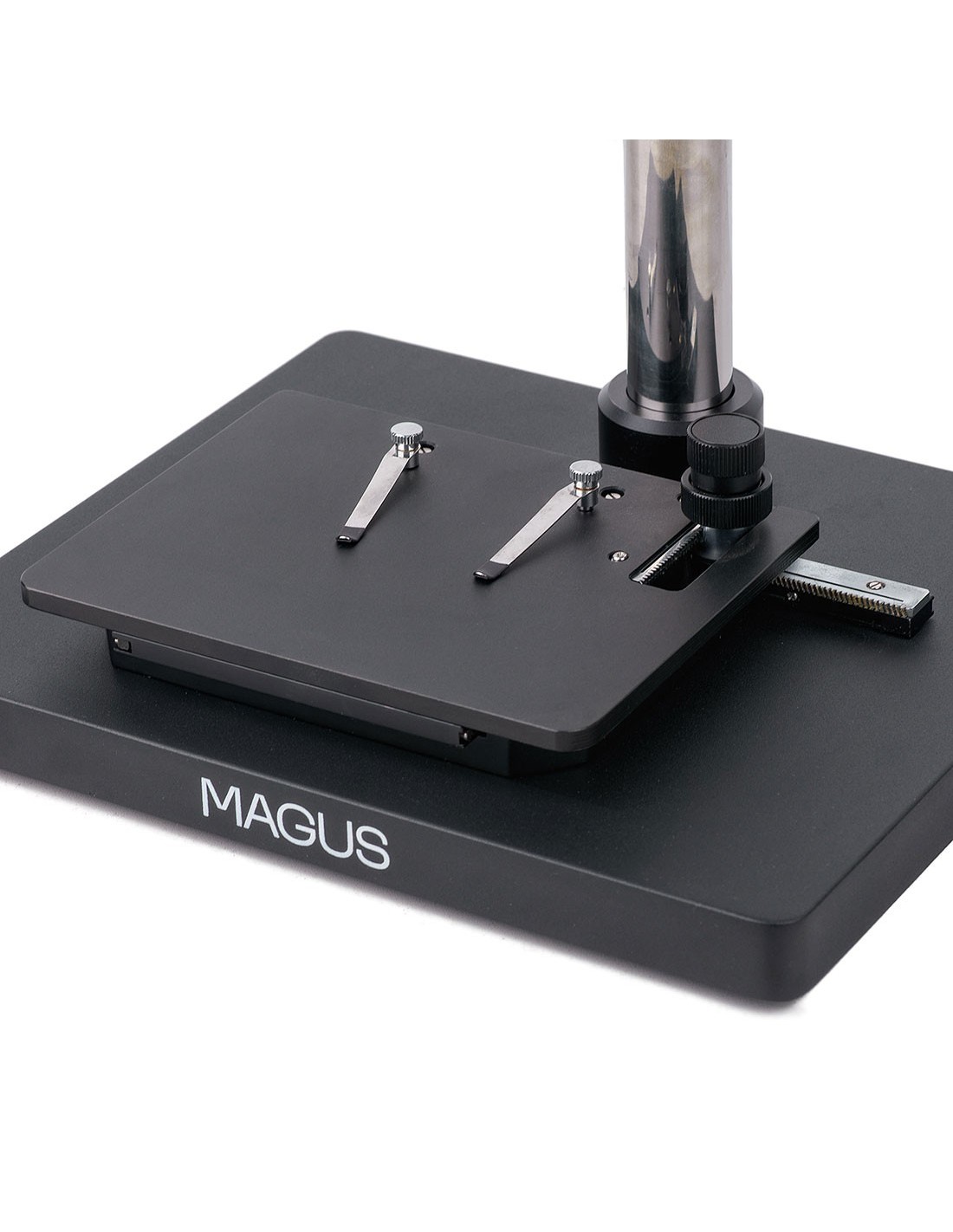

Stage and focusing mechanism

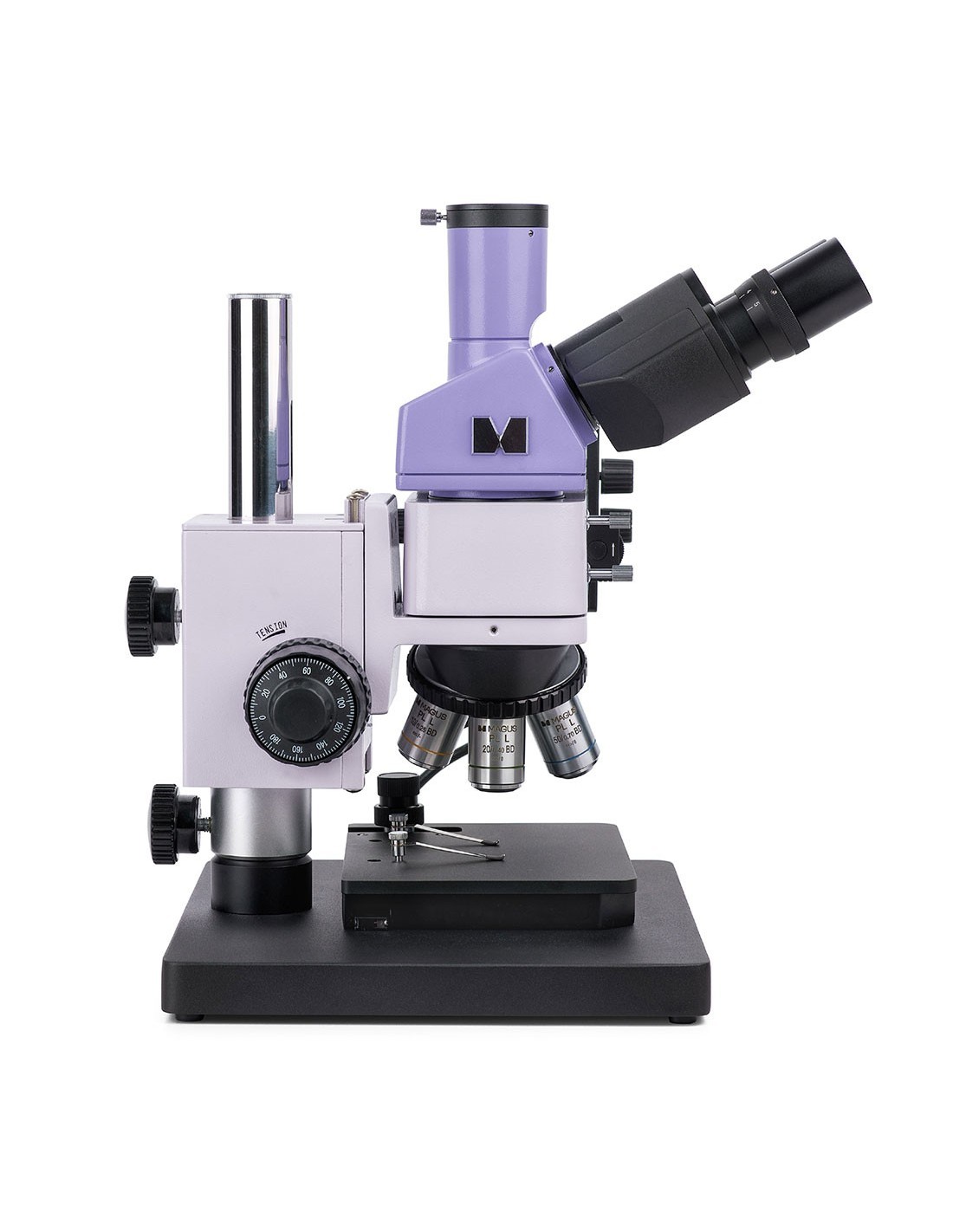

The microscope features a stand and focusing mechanism from interesting design and the analyzed sample can be of any size and height. It is also characterized by its small dimensions, which allow the microscope to be positioned on surfaces with a maximum height of 40 cm. The coarse and fine focus knobs are coaxial and are located on both sides of the microscope body. You can also adjust the coarse tension adjustment.
Accessories
Additional accessories of the MAGUS Metal 630 BD microscope can be ordered separately. These include compatible eyepieces, objectives with a long working distance for bright and dark field techniques, calibration slides and digital cameras.
Key features of the microscope:
- Suitable for studying opaque specimens of any height and size
- Trinocular head with trinocular tube for mounting a digital camera and beam splitter 100:0 and 0:100 li>
- Reflected light observations using bright field, dark field and polarization microscopy techniques
- The power of the halogen light source has been increased to 50 W (suitable for dark field)
- li>
- Aperture and field diaphragms for Köhler illumination and a set of color filters, centering of both diaphragms and a light source.
- Compact design support for mounting the microscope in small spaces
- Support with compact design for mounting the microscope in small spaces li>
- A wide range of optional accessories
Key camera features:
- For darkfield microscopy and fluorescence with 4x, 10x, 20x and 40x objectives
- 8.3 MP resolution: when observing with low magnification objectives, the camera allows the user to see sharper details
- 45 fps and 70 fps, respectively at 3840x2160 pixels and 1920x1080 pixels of resolution, for the observation of samples with moving elements, for recording videos and for moving the specimen without jerks or delays
- The Peltier cell lowers the temperature of the sensor during prolonged operation and eliminates thermal noise, thus allowing you to use a long shutter speed when taking photographs.
- The color back-illuminated SONY Exmor CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- USB 3.0 interface for fast and smooth data transfer
- Software for recording and editing photos and videos, recording functions external display, linear and angular measurements

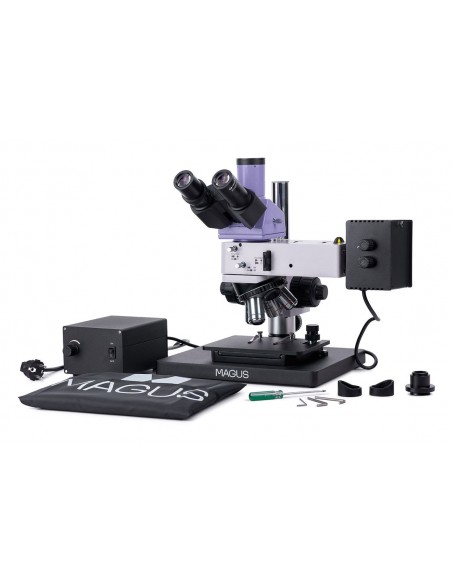

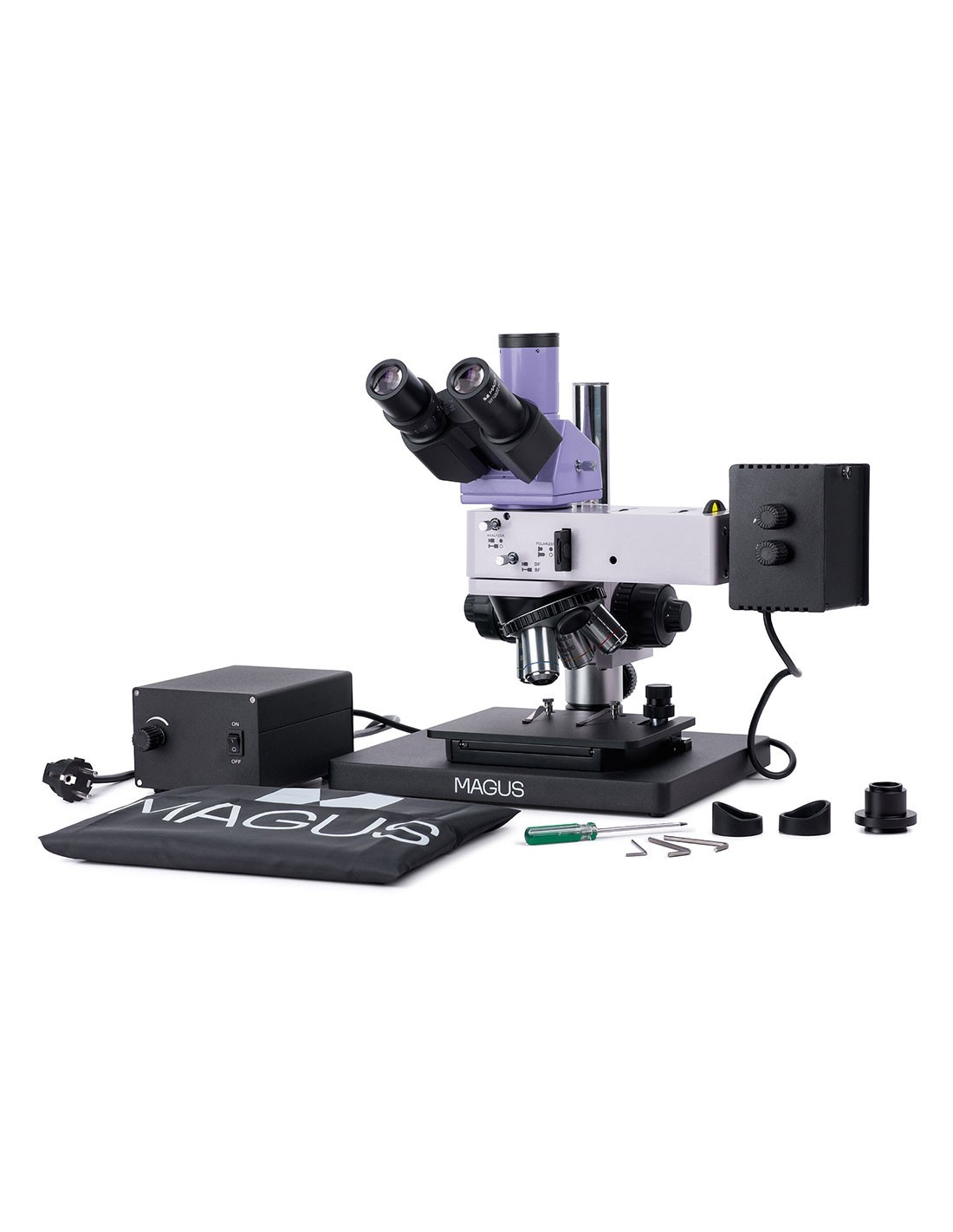

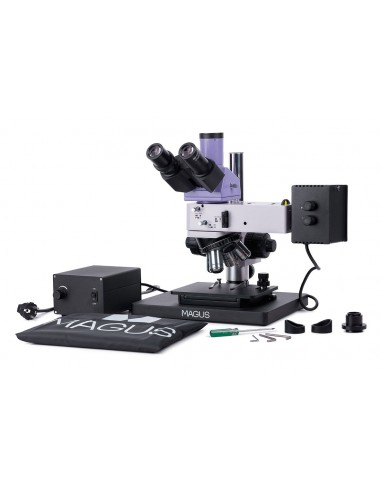

The package contains:
- The MAGUS CLM30 digital camera (digital camera, USB cable , 12 V, 3 A adapter, case, installation CD with drivers and software, user manual and warranty card)
- Support with focusing mechanism, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity planachromatic objective: PL L5x/0.12 BD WD 9.7 mm
- Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3 mm
- Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2 mm
- Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Adapter C-mount 1x
- Allen key
- Base with power input
- Power cable
- Power cable for reflected light illuminator
- Dust cover
- User manual and warranty card
Available upon request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- 15x/15 mm eyepiece (2 pcs.) li>
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Planachromatic infinity objective: PL L40x/0, 60 BD WD 3.0 mm
- Plan achromatic infinity objective: PL L60x/0.70 BD WD 1.9 mm
- Plan achromatic infinity objective: PL L80x/0, 80 BD WD 0.8 mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4 mm
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018362 |
| Package size (WxDxH) | 39x37x73 cm |
| Shipping weight | 22.3 kg |
| Delimiter | MAGUS metallographic microscope Metal 630 BD |
| Type | light/optical, metallographic |
| Tested | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–500 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12, 5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L50x/0.70 BD; parfocal height 45 mm (*optional: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 ( 5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 185x140 |
| Range of movement of the stage, mm | 35/30 |
| Stage features | two-axis mechanical stage; Microscope base dimensions: 300x240 mm |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Focus | coaxial, coarse (with focus voltage adjustment coarse) and fine focus (0.002 mm) |
| Halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/50 W |
| Optical filters | green, blue, yellow, frosted |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer, dark field device |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Search method | bright field, dark field, polarized light |
| Set with pencil case/case/bag | dust cover |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/ monochrome | color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Two-phase thermoelectric module (Peltier cell) to set the temperature to 42°C below room temperature | yes |
| Light sensitivity | 5970 mV with 1 /30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate, fps@resolution | 45@3840x2160, 70@1920x1080 |
| ADC digital capacity (bit) | 8/12 (selectable) |
| Installation location | trinocular tube |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: * .wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS larger |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
