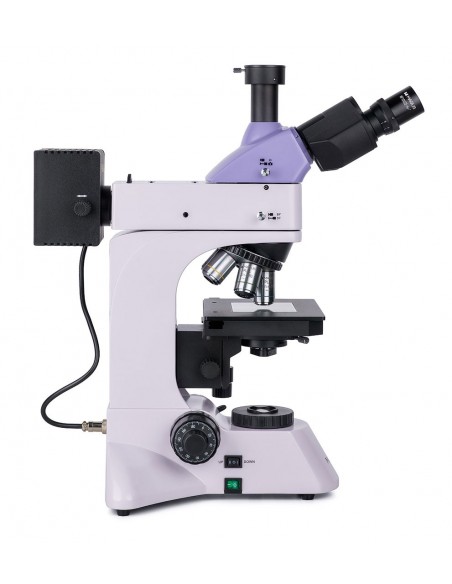

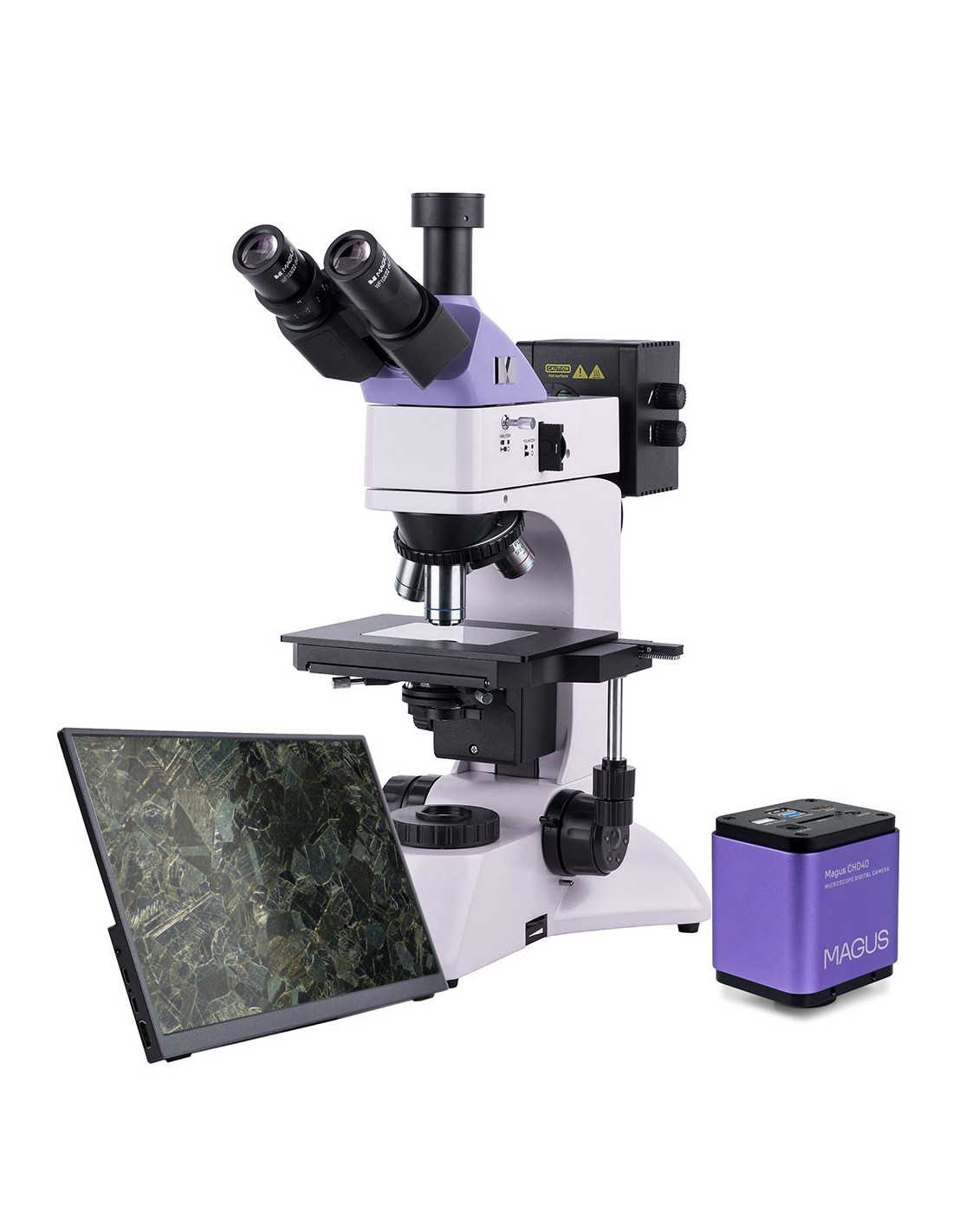

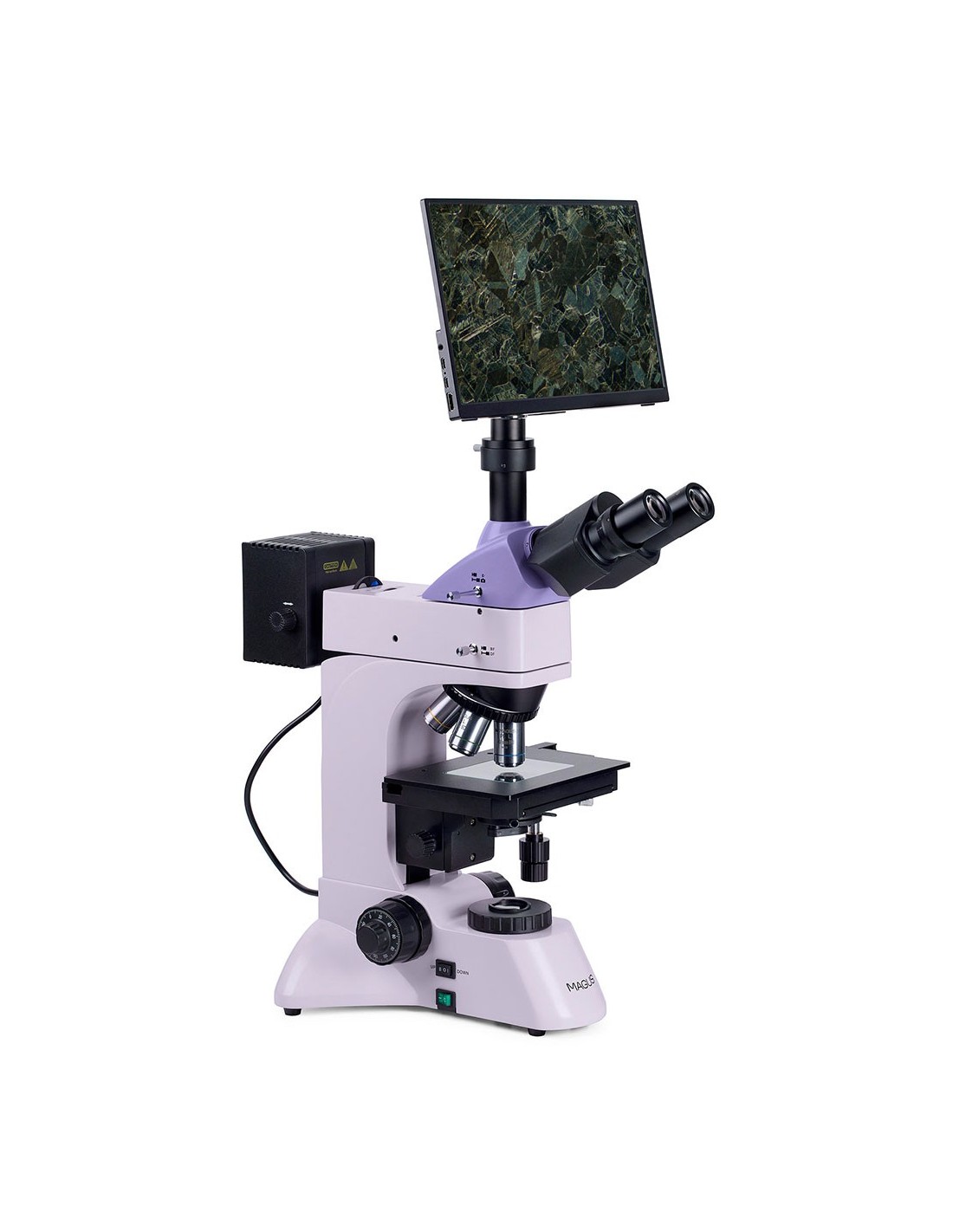

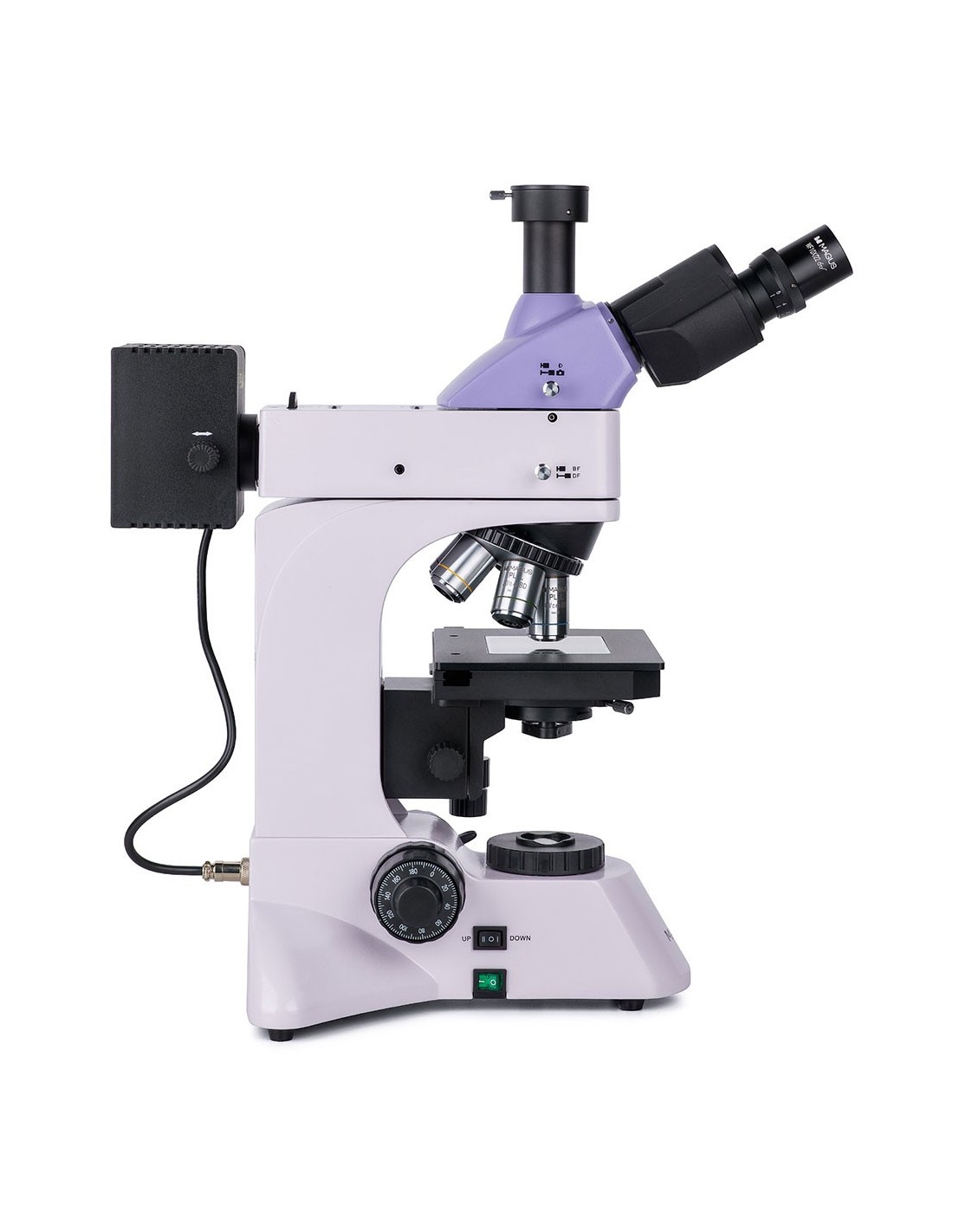

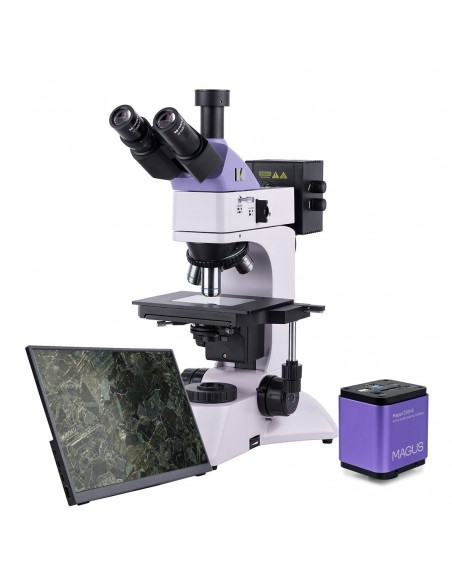

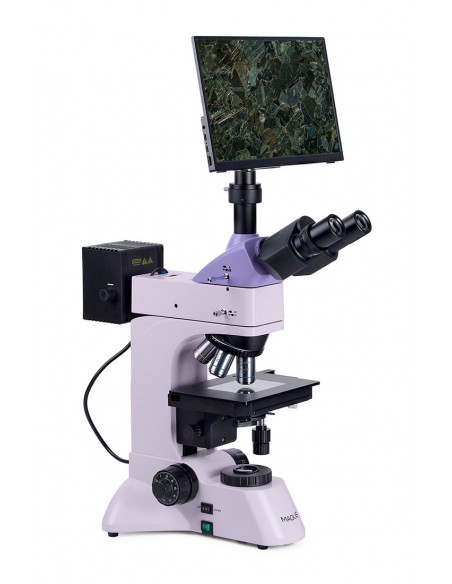

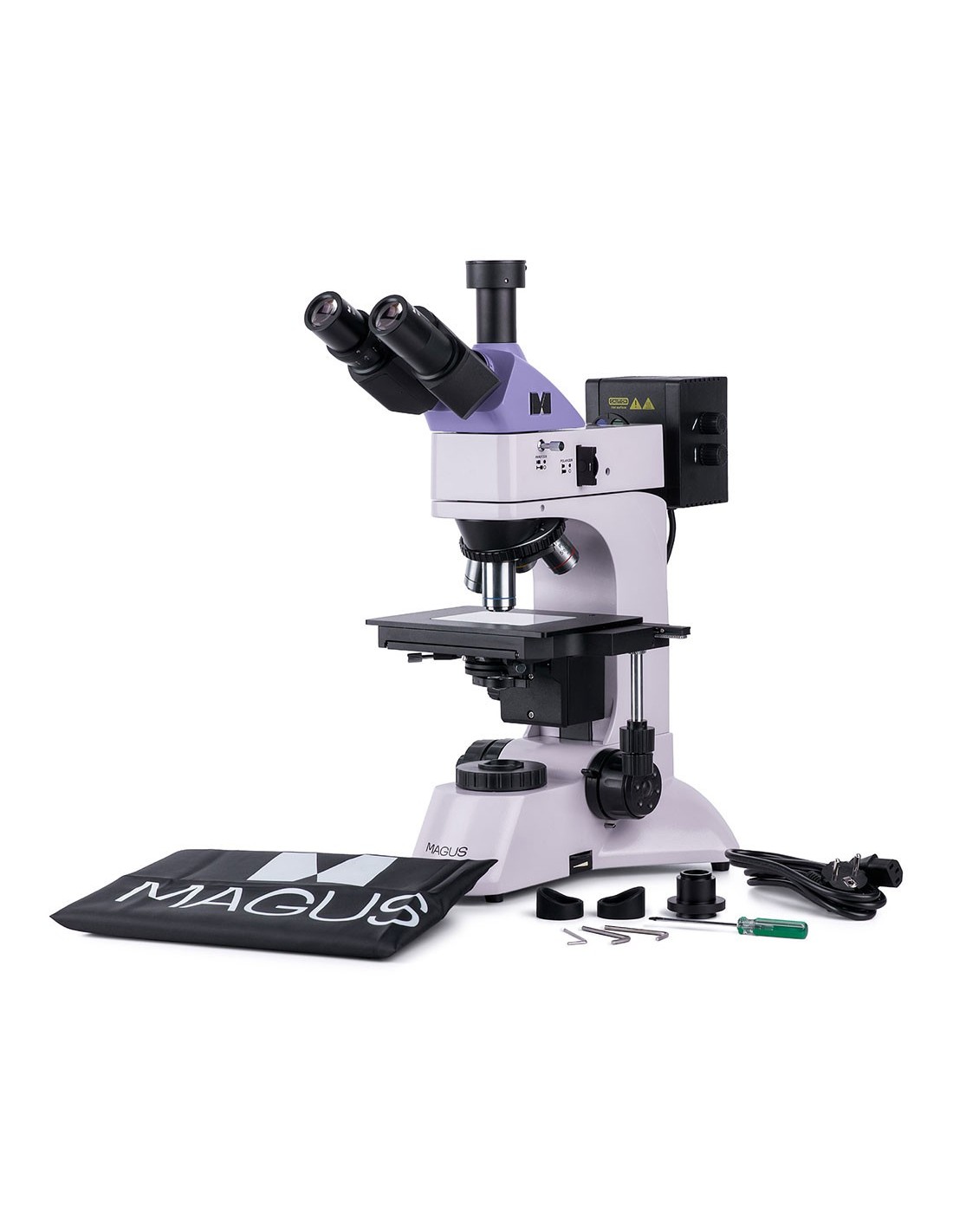

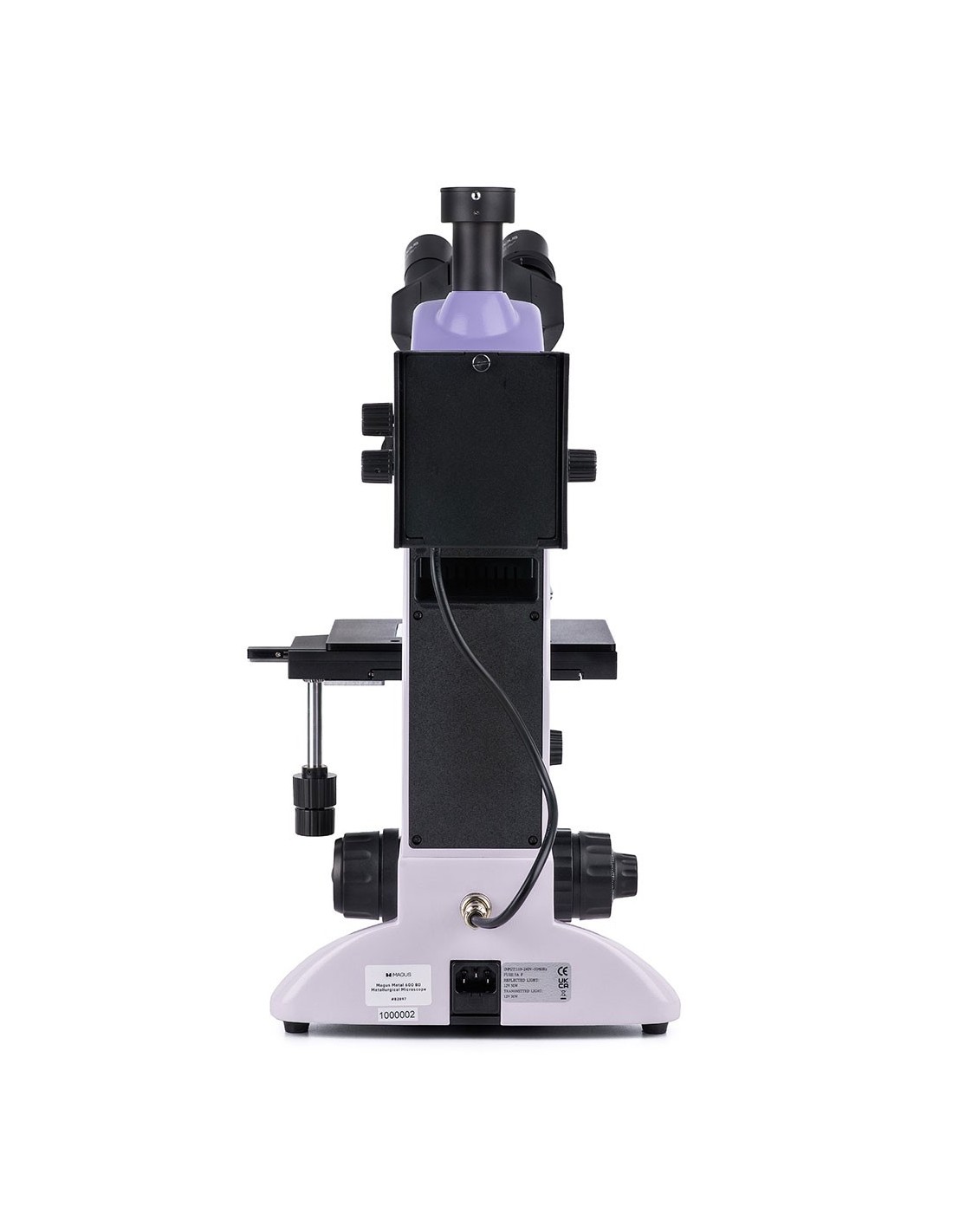

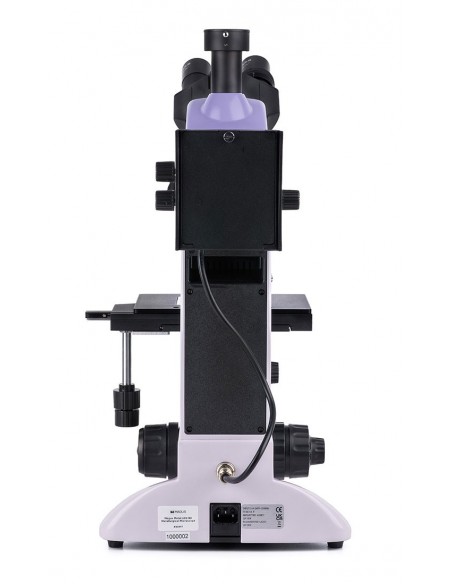

The MAGUS Metal D600 BD LCD digital metallographic microscope is designed for the study of objects in reflected light using bright field, dark field and polarization microscopy techniques. The microscope is used to examine metal and semiconductor samples, as well as other highly reflective polished and flat samples. The transmitted light technique allows the examination of translucent samples such as thin films and particles stuck on filters. The microscope can be used in mechanical and metallurgical engineering, in engineering and quality control laboratories and in polytechnics.
Digital camera
MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on the monitor resolution.
The camera is equipped with an 8 MP sensor and produces realistic images at a 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).
The camera uses an HDMI interface to connect directly to a TV, monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB 3.0. Video is recorded at 30 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor

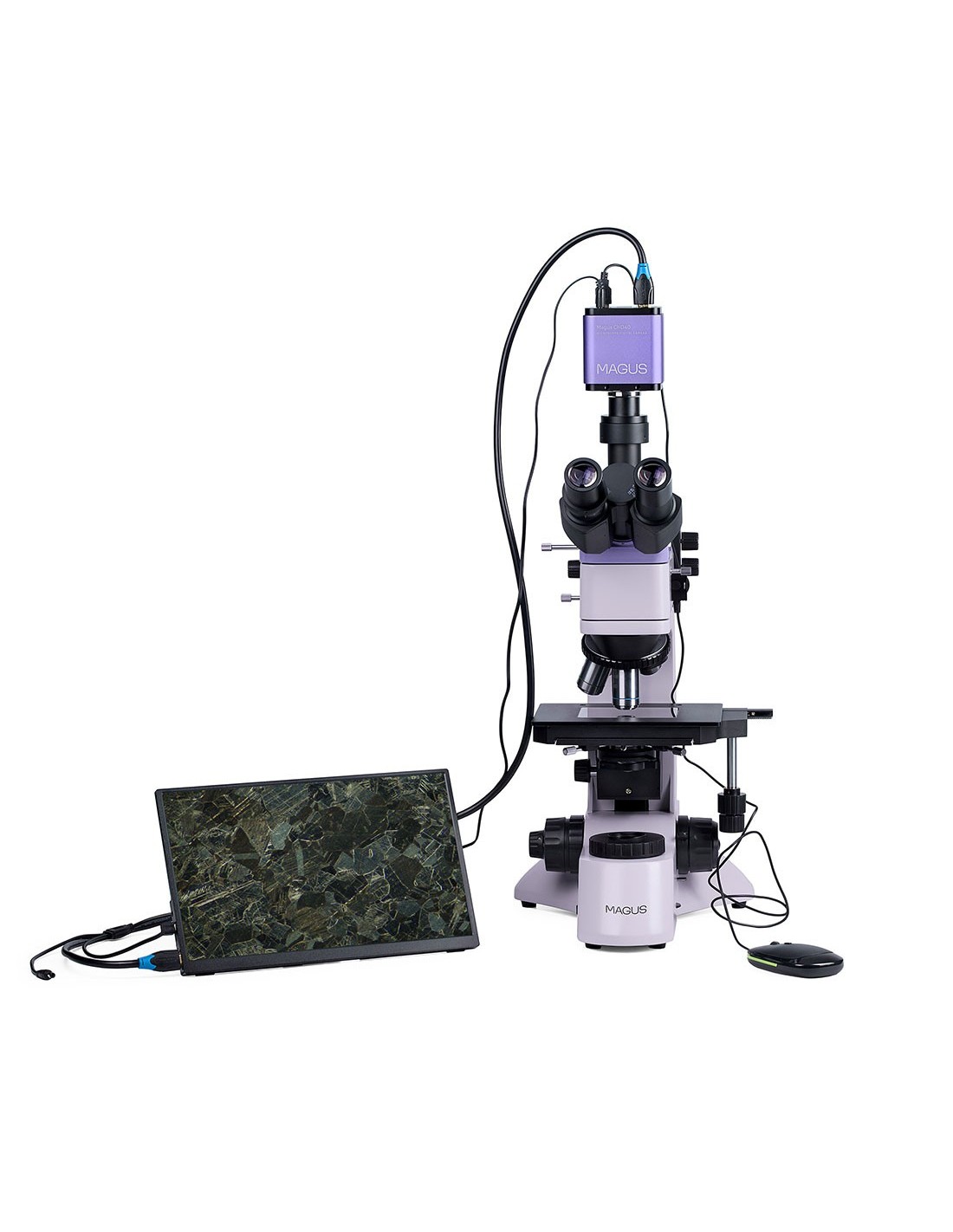

The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display real-time images. Supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix offers bright images with wide viewing angles. If you look at the display from the side the color reproduction is not distorted. You can place the display on a table or shelf using a folding stand or install it directly on the camera or microscope base.
Optics

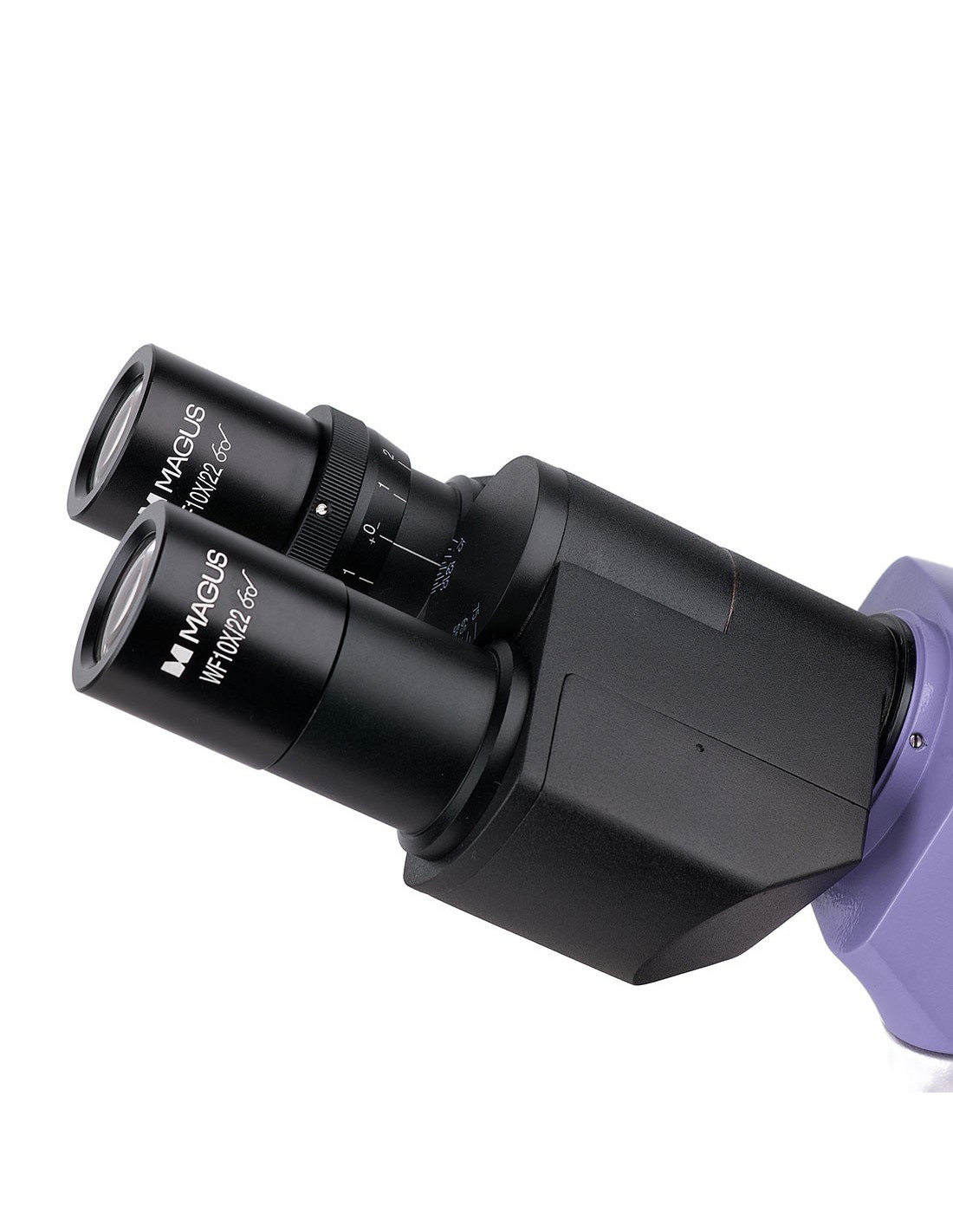

The trinocular head is equipped with a trinocular tube for housing a digital camera. The beam splitter directs the light onto the camera, at two positions: 100:0 and 0:100. The light beam reaches the eyepiece or trinocular tube. Diopter adjustment ring on the left eyepiece.

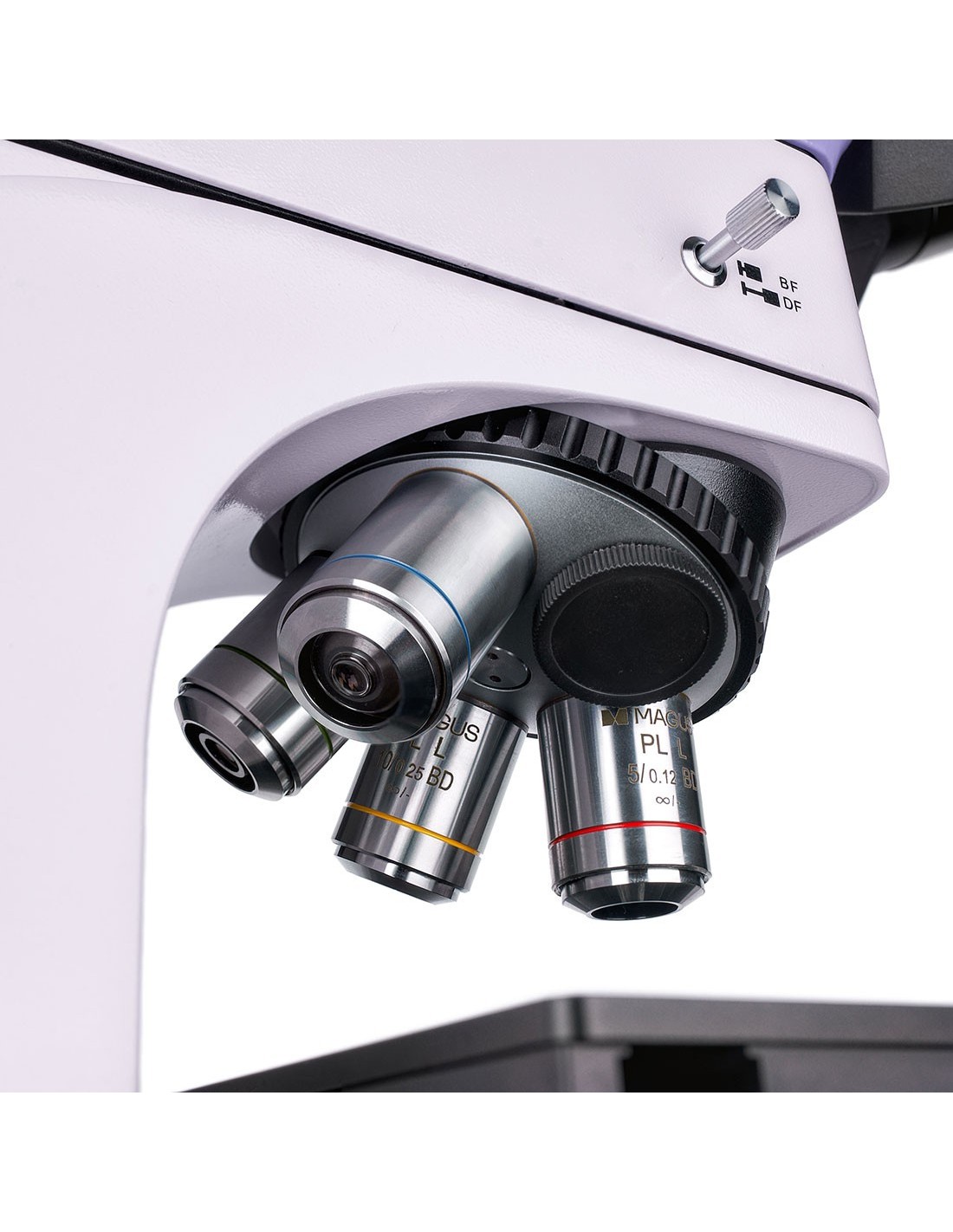

The magnification of the microscope in the basic configuration is 50–400x. Any additional objectives and eyepieces will increase the magnification range. The microscope uses planachromatic objectives with a long working distance suitable for bright- and dark-field microscopy techniques. There are five slots in the nosepiece nosepiece to mount objectives. Four lenses are included and one is optional. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Illumination
The lighting uses warm light halogen lamps that do not tire the eye during long-lasting observations. The transmitted light illuminator has a power of 30 W and the reflected light illuminator of 50 W, which guarantees comfortable observation via dark field microscopy.
The reflected light illumination system contains: a dark field device, polarization device, centerable field and aperture diaphragms for the Köhler illumination method and color filters. It is also possible to center the light source.
The transmitted light illumination system includes: a condenser with a folding lens for low magnification objectives, an aperture and a field diaphragm for the Köhler method.
Stage and focusing mechanism
The sample moves together with the stage along the two axes. The height of the examined sample must not exceed 20 mm. The stage features a transparent glass slide for observation of translucent specimens.
Focus is adjusted by means of coarse and fine focus knobs located on both sides at the bottom of the microscope , thus allowing the observer to freely place his hands on the table rather than holding them in the air. The coarse focus mechanism features a lock knob on the right and a tension adjustment knob on the left.
Accessories
The range of compatible accessories with the MAGUS Metal 600 BD microscope includes: objectives with a long distance for dark and bright field observations, eyepieces, calibration slides and digital cameras.
Key features of the microscope:
- Observations of opaque and polished flat specimens up to 20 mm in reflected light using dark-field, bright-field and polarization microscopy techniques
- Observations of translucent specimens in transmitted light
- Trinocular tube for mounting a digital camera and a beam splitter with two positions (100:0 and 0:100)
- Planachromatic objectives with a long working distance. The acronym BD means that it is suitable for dark and bright field techniques
- Transmitted light illuminator with 30 W halogen lamp and reflected light illuminator with 50 W halogen lamp which allow convenient observation under the microscope in dark field
- Köhler illumination (reflected light) with the option of centering the light source, aperture and field diaphragms, color filters
- Köhler illumination (transmitted light) with condenser Centerable and height-adjustable Abbe, flip-up condenser lenses for low magnification objectives
- Wide range of fully compatible eyepieces and lenses
Key camera features:
- The camera works independently without a connection to a PC via HDMI interface. You can connect to a PC via Wi-Fi and USB 3.0 interface
- Automatic switching between 4K and Full HD based on monitor resolution
- 30 fps for observing objects in motion, video recording, and sample movement without lag or stuttering
- The color back-illuminated SONY Exmor/ Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements
The package contains:
- MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), mouse with USB, 32GB SD Memory Card, Wi-Fi USB Adapter (2pcs), 12V/1A AC Power Adapter (Euro), Installation CD with Drivers and Software, User Manual and Warranty Card)
- MAGUS MCD40 LCD monitor
- Base with power input, transmitted light light source and condenser, focusing mechanism, stage and nosepiece
- Illuminator for observations in reflected light with bulb holder
- Trinocular head
- Infinity planachromatic objective: PL L5x/0.12 BD WD 9.7 mm
- Objective plan achromatic at infinity: PL L10x/0.25 BD WD 9.3 mm
- Plan achromatic at infinity objective: PL L20x/0.40 BD WD 7.2 mm
- Objective planachromatic to infinity: PL L40x/0.60 BD WD 3.0 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Transparent stage plate
- 1x C-mount adapter
- Allen key
- Power cable for AC mains
- Power cable for reflected light illuminator li>
- Dust cover
- User manual and warranty card
Available upon request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- 15x/15 mm eyepiece (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Planachromatic infinity objective: PL L50х/0.70 BD WD 2.5 mm
- Infinity plan achromatic objective: PL L60x/0.70 BD WD: 1.9 mm
- Infinity plan achromatic objective: PL L80x/0.80 BD WD: 0.8 mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD: 0.4 mm
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018317 |
| Package size (WxDxH) | 35x30x75 cm |
| Shipping weight | 17.25 kg |
| Delimiter | Metallographic microscope MAGUS Metal 600 BD |
| Type | light/optical, metallographic |
| Tested | trinocular |
| Vertical tube | Siedentopf |
| Angle of inclination of the head | 30° |
| Magnification, x | 50–400 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12 ,5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L40x/0.60 BD; parfocal height 45 mm (*optional: PL L50x/0.70 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 ( 5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 210x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical stage, with a glass slide |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Condenser | transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, aperture diaphragm and lenses adjustable folding, with fixing screws |
| Diaphragm | transmitted and reflected light: integrated aperture and field diaphragms |
| Focus | coaxial, coarse focus (25 mm, with fixing knob and tension adjustment knob) and fine focus (0.002 mm) |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Optical filters | green, blue, yellow , satin |
| Operating temperature range, °C | 5 — 35 |
| Extra elements< /td> | integrated analyzer and removable polarizer, dark field device |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Illumination position | double |
| Search method | bright field, dark field, polarized light |
| Set with pencil case/case/bag | dust cover |
| Weight, kg |
| td> | 11 |
| === Delimiter === | Digital camera |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 8 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm |
| Interface connectors | Wi-Fi, HDMI 1.4, USB 3.0 |
| Possibility to connect additional equipment | mouse with USB, stick (USB), Wi-Fi adapter (USB) |
| Light sensitivity | 1028 mV at 1/30 s |
| Signal-to-noise ratio | 0.13 mV with 1/30 s |
| Exposure time | 0.14 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@3840x2160 (USB 3.0) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 3840x2160 (4K) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen (WxH ), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED< /td> |
| LED backlight life, h | 50000 |
| Interface | HDMI< /td> |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range, % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C ) |
| Energy consumption, W | 12 (max.) |
