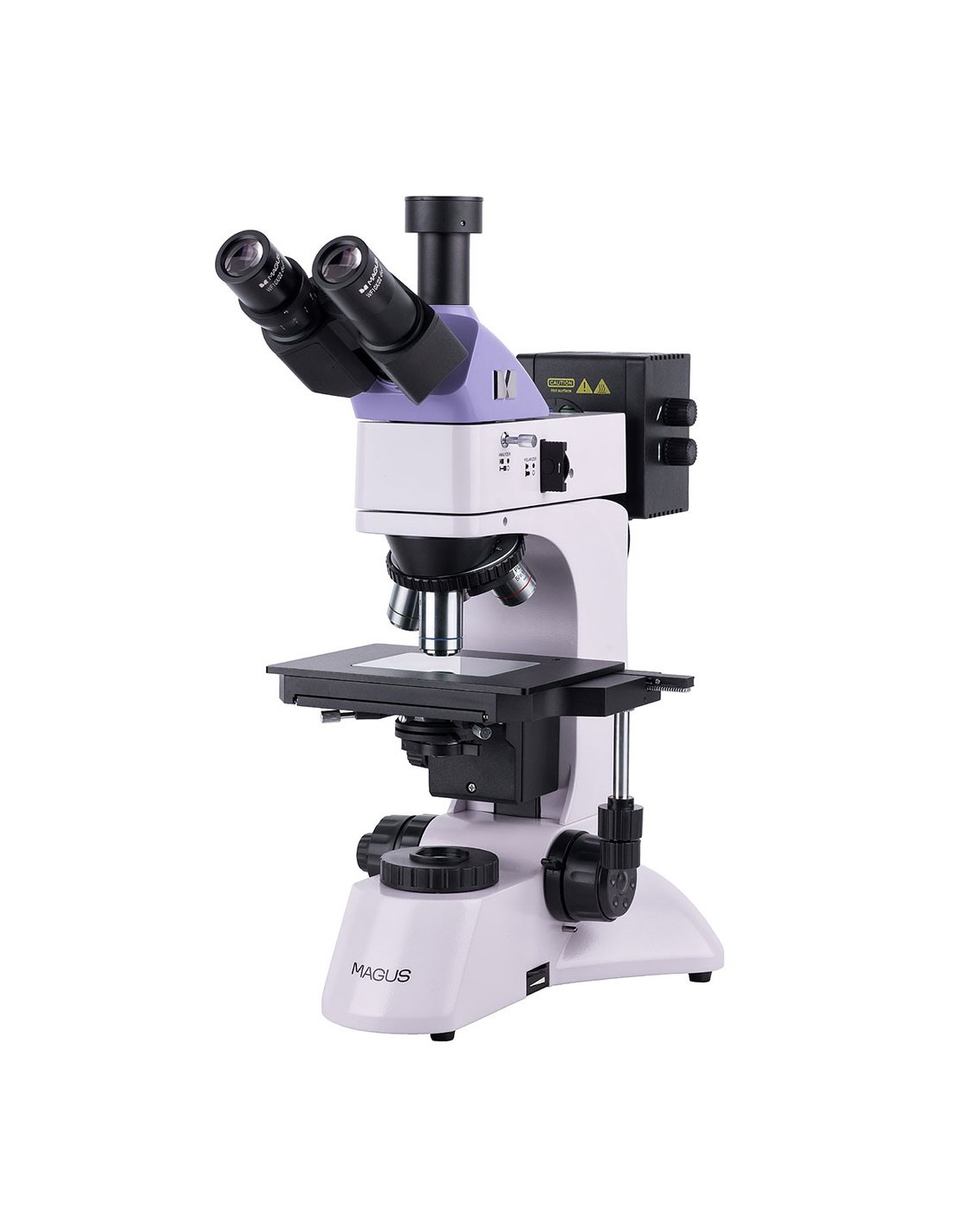

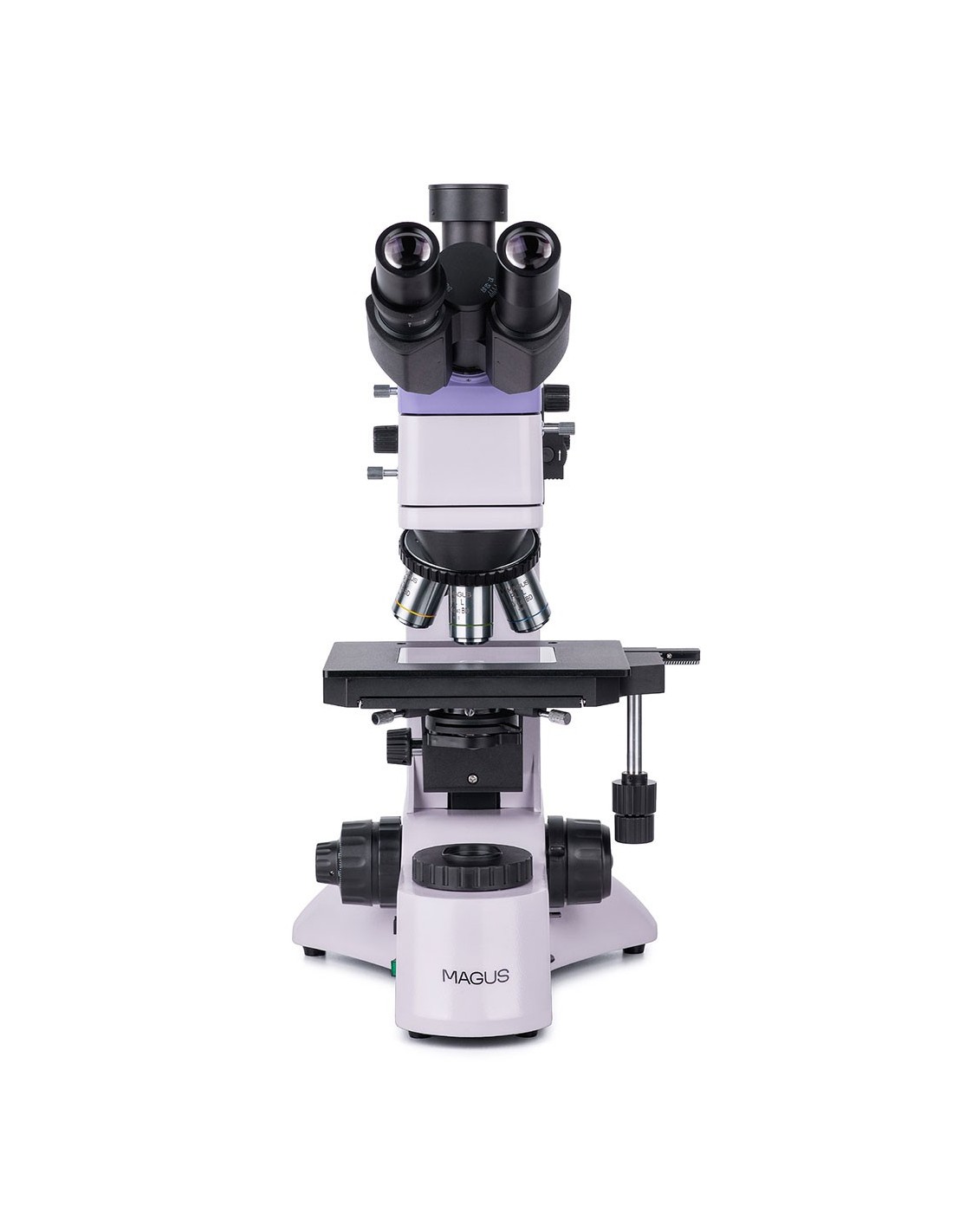

The MAGUS Metal 600 BD metallographic microscope is designed for the study of objects in reflected light using bright field, dark field and polarization microscopy techniques. The microscope is used to examine metal and semiconductor samples, as well as other highly reflective polished and flat samples. The transmitted light technique allows the examination of translucent samples such as thin films and particles stuck on filters. The microscope can be used in the mechanical and metallurgical engineering sectors, in engineering and quality control laboratories and in polytechnics.
The MAGUS Metal 600 BD metallographic microscope is designed for the study of objects in reflected light using bright field, dark field and polarization microscopy techniques. The microscope is used to examine metal and semiconductor samples, as well as other highly reflective polished and flat samples. The transmitted light technique allows the examination of translucent samples such as thin films and particles stuck on filters. The microscope can be used in the mechanical and metallurgical engineering sectors, in engineering and quality control laboratories and in polytechnics.
Optics

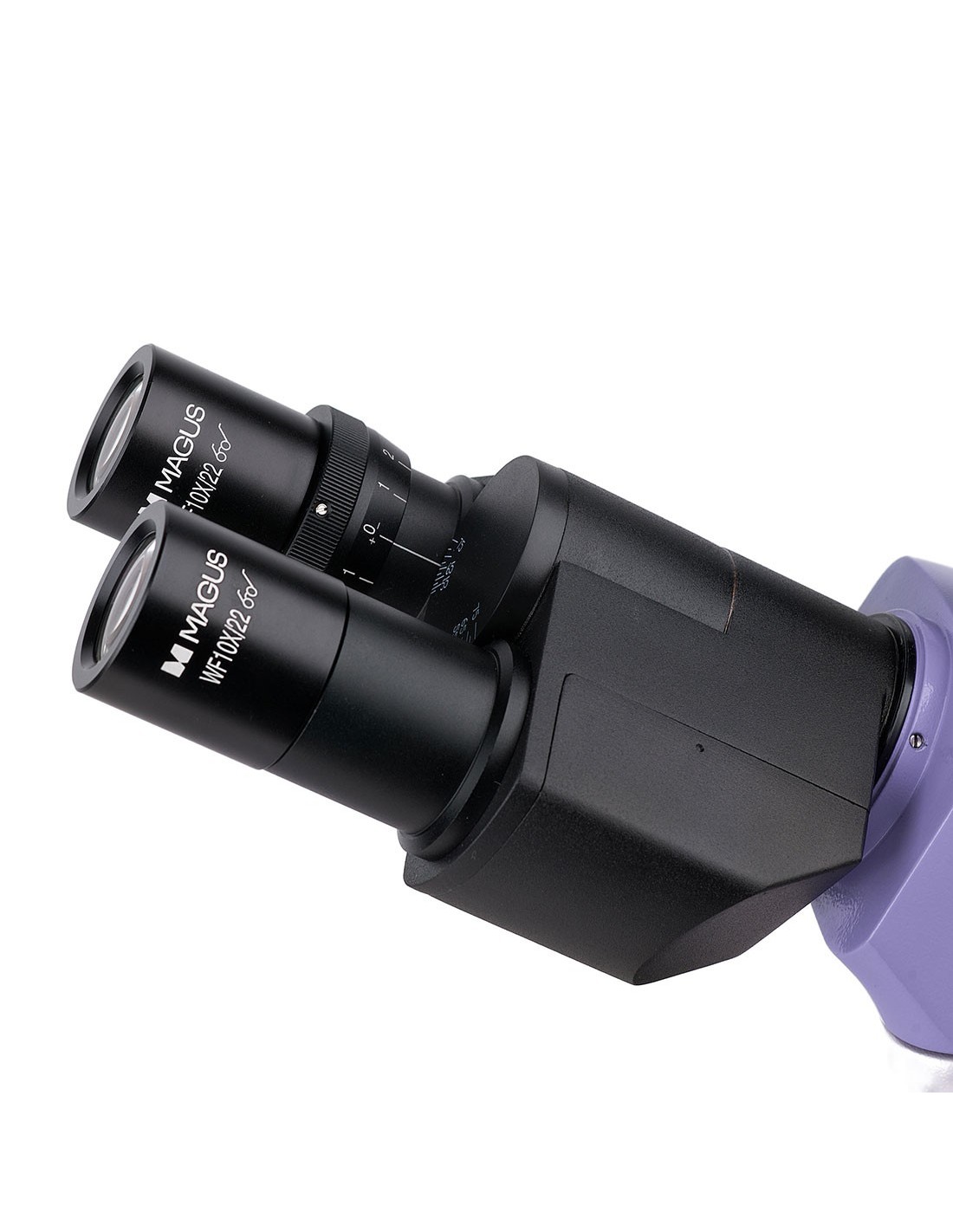

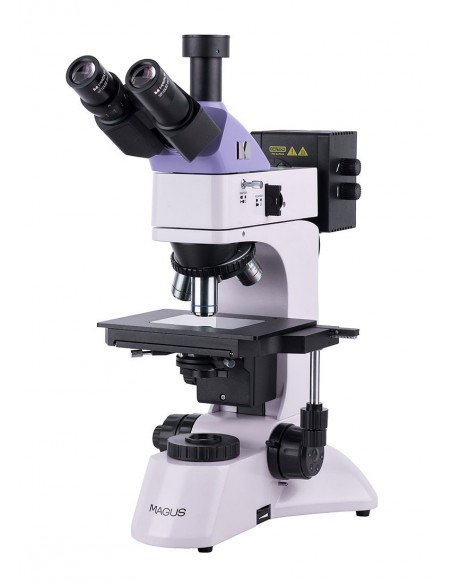

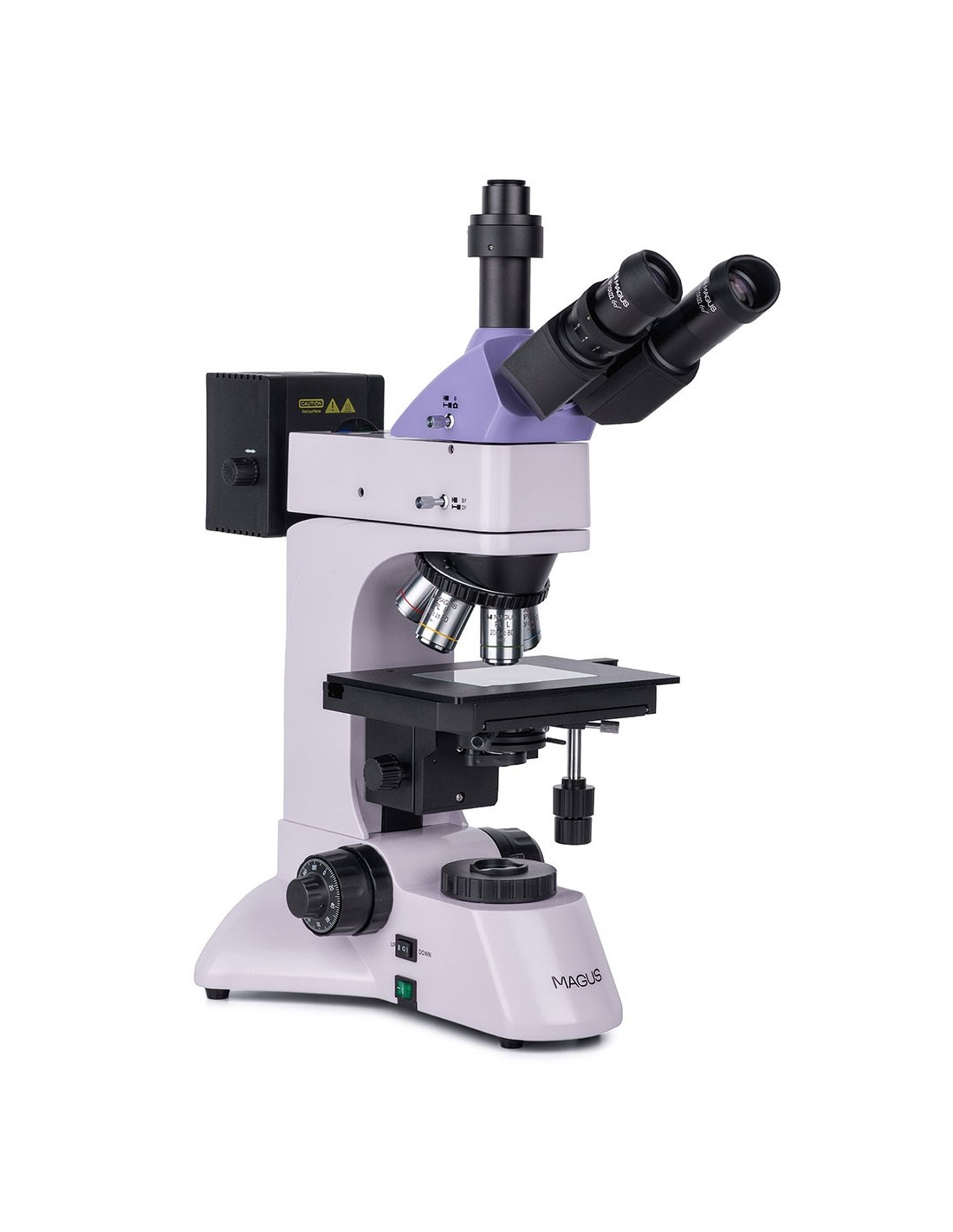

The trinocular head It is equipped with a trinocular tube for housing a digital camera. The beam splitter directs the light onto the camera, at two positions: 100:0 and 0:100. The light beam reaches the eyepiece or trinocular tube. Diopter adjustment ring on the left eyepiece.

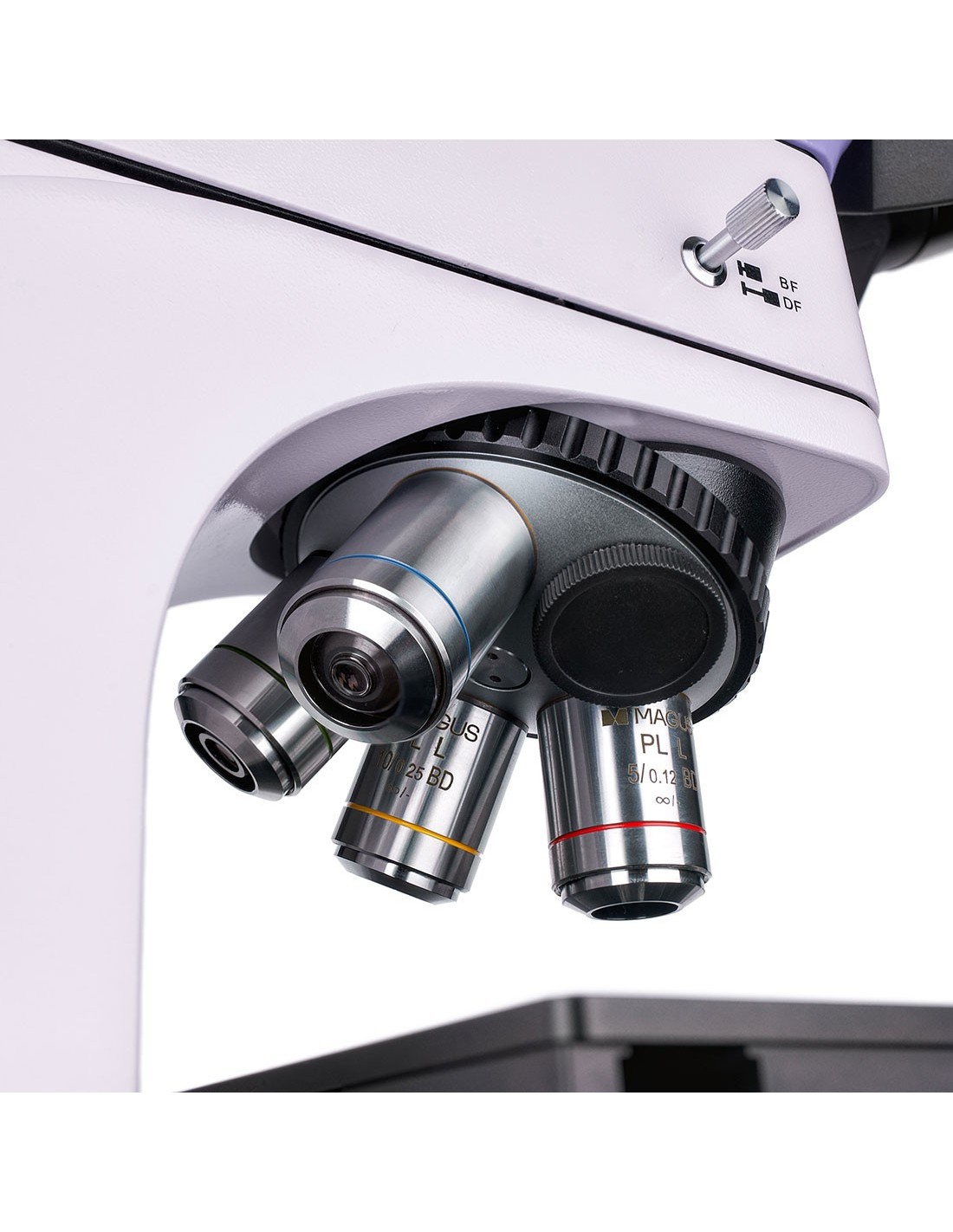

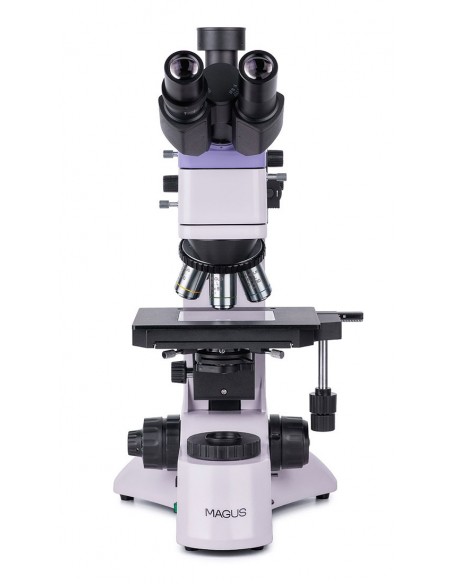

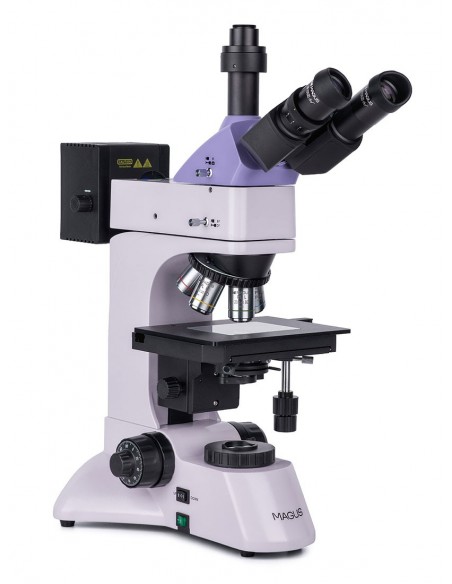

The magnification of the microscope in the basic configuration is 50–400x. Any additional objectives and eyepieces will increase the magnification range. The microscope uses planachromatic objectives with a long working distance suitable for bright- and dark-field microscopy techniques. There are five slots in the nosepiece nosepiece to mount objectives. Four lenses are included and one is optional. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Illumination
The lighting uses warm light halogen lamps that do not tire the eye during long-lasting observations. The transmitted light illuminator has a power of 30 W and the reflected light illuminator of 50 W, which guarantees comfortable observation via dark field microscopy.

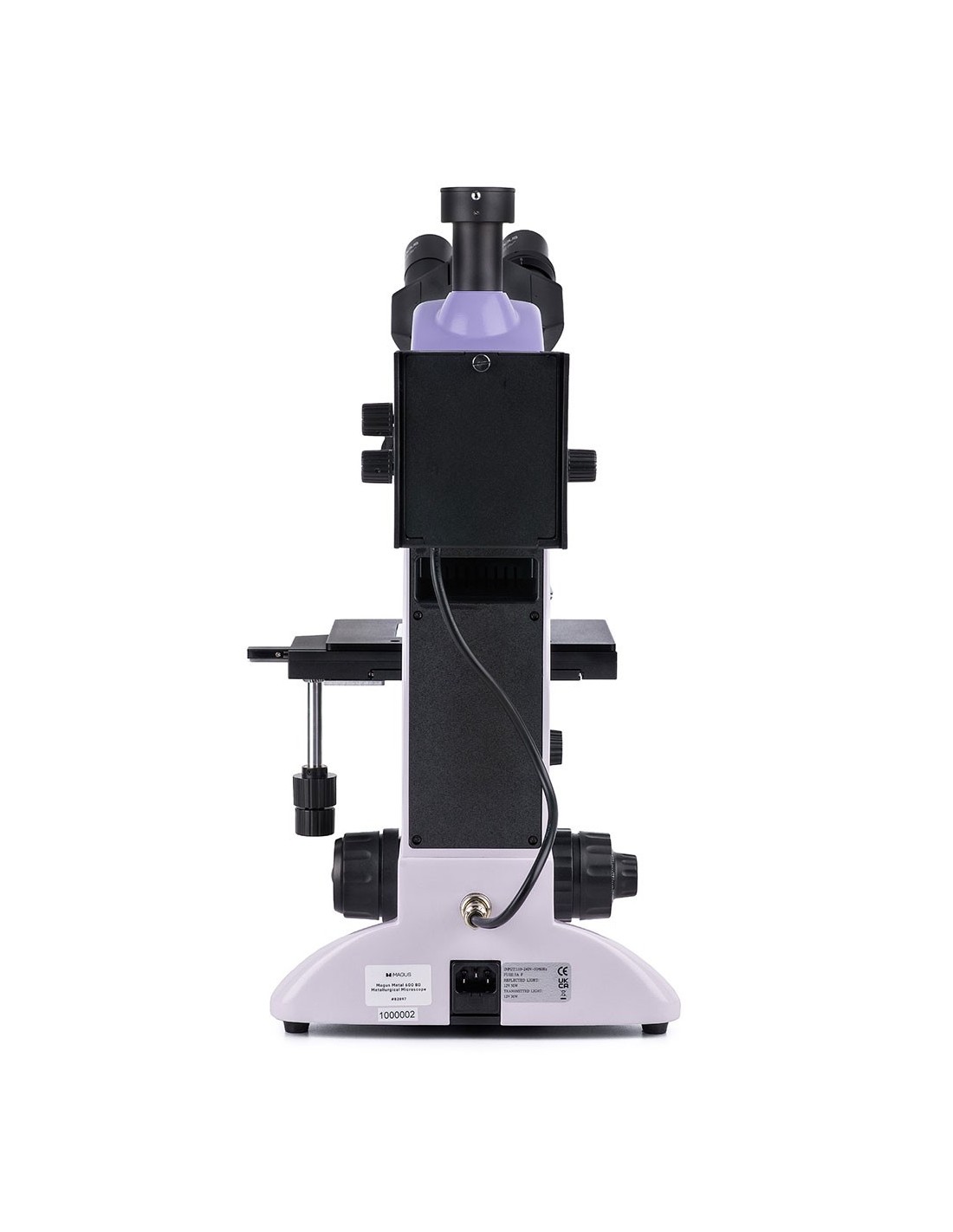

The reflected light illumination system contains: a dark field device, polarization device, centerable field and aperture diaphragms for the Köhler illumination method and color filters. It is also possible to center the light source.
The transmitted light illumination system includes: a condenser with a folding lens for low magnification objectives, an aperture and a field diaphragm for the Köhler method.
Stage and focusing mechanism
The sample moves together with the stage along the two axes. The height of the examined sample must not exceed 20 mm. The stage features a transparent glass slide for observation of translucent specimens.

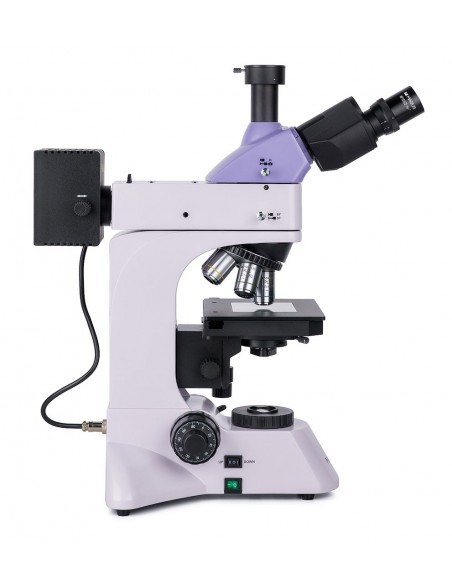

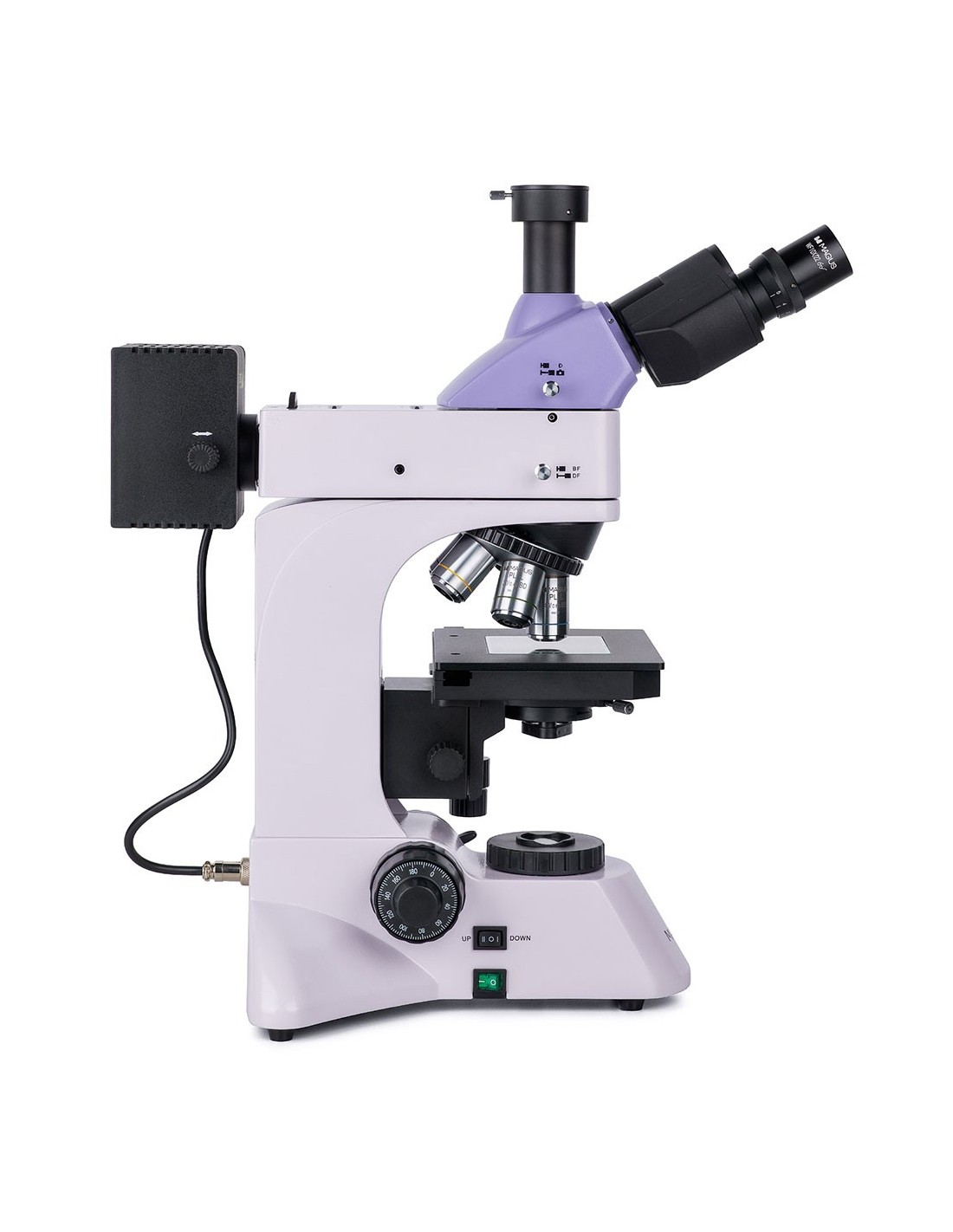

Focus is adjusted by means of coarse and fine focus knobs located on both sides at the bottom of the microscope , thus allowing the observer to freely place his hands on the table rather than holding them in the air. The coarse focus mechanism features a lock knob on the right and a tension adjustment knob on the left.
Accessories
The range of compatible accessories with the MAGUS Metal 600 BD microscope includes: objectives with a long distance for dark and bright field observations, eyepieces, calibration slides and digital cameras.
Key features:

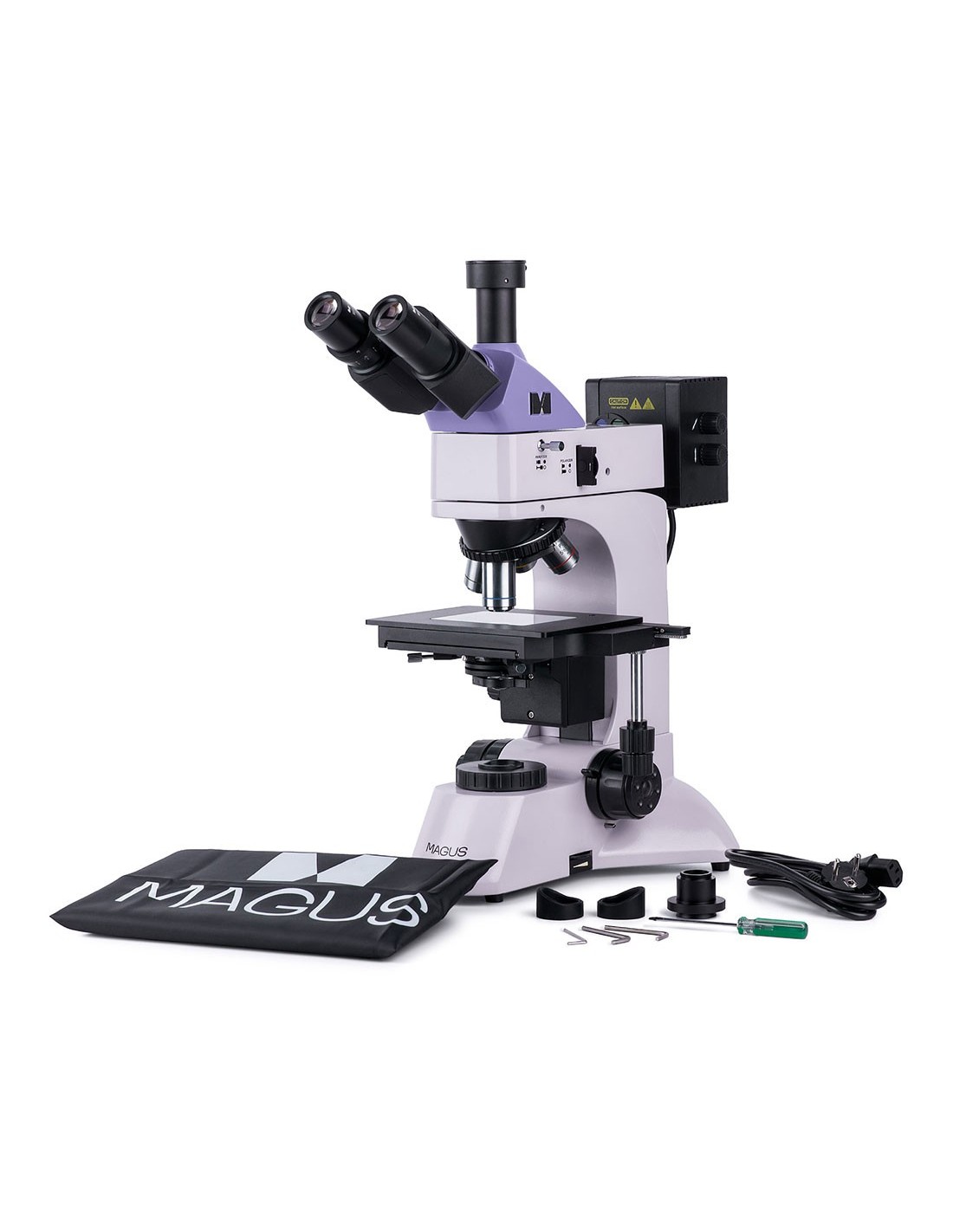

The package contains:
Available on request:
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018294 |
| Package size (LxWxH) | 35x30x75 cm |
| Shipping weight | 14.5 kg |
| Type | light/optical, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–400 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | from 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L40x/0.60 BD; parfocal height 45 mm (*optional: PL L50x/0.70 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 ( 5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 210x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical stage, with a glass slide |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Condenser | transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, aperture diaphragm and lenses adjustable folding, with fixing screws |
| Diaphragm | transmitted and reflected light: integrated aperture and field diaphragms |
| Focus | coaxial, coarse focus (25 mm, with fixing knob and tension adjustment knob) and fine focus (0.002 mm) |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | reflected light: 12V/50W; transmitted light: 12 V/30 W |
| Optical filters | green, blue, yellow, frosted |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer, device dark field |
| User level | expert users, professionals |
| Assembly and installation difficulty level< /td> | complicated |
| Application | metallographic |
| Lighting position | double |
| Research method | bright field, dark field, polarized light |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 11 |
