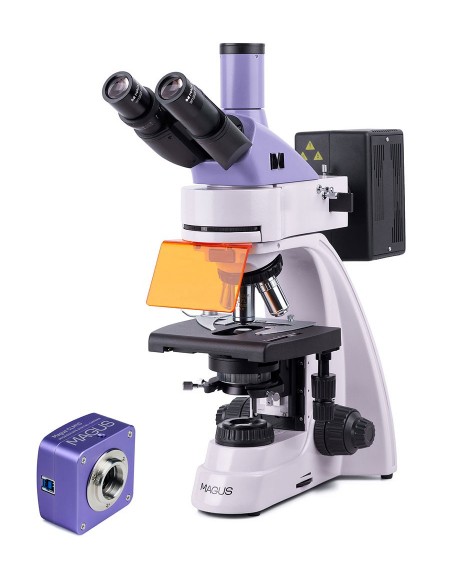

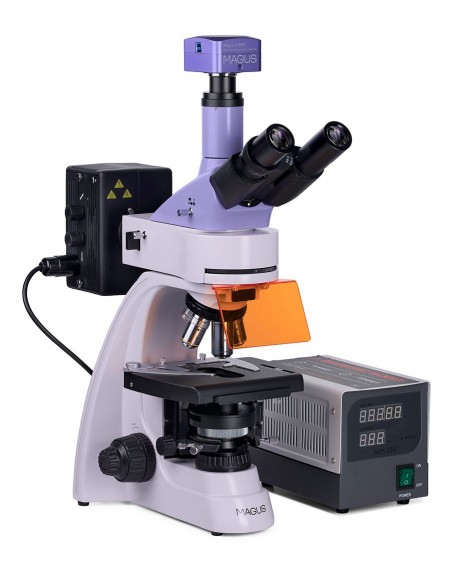

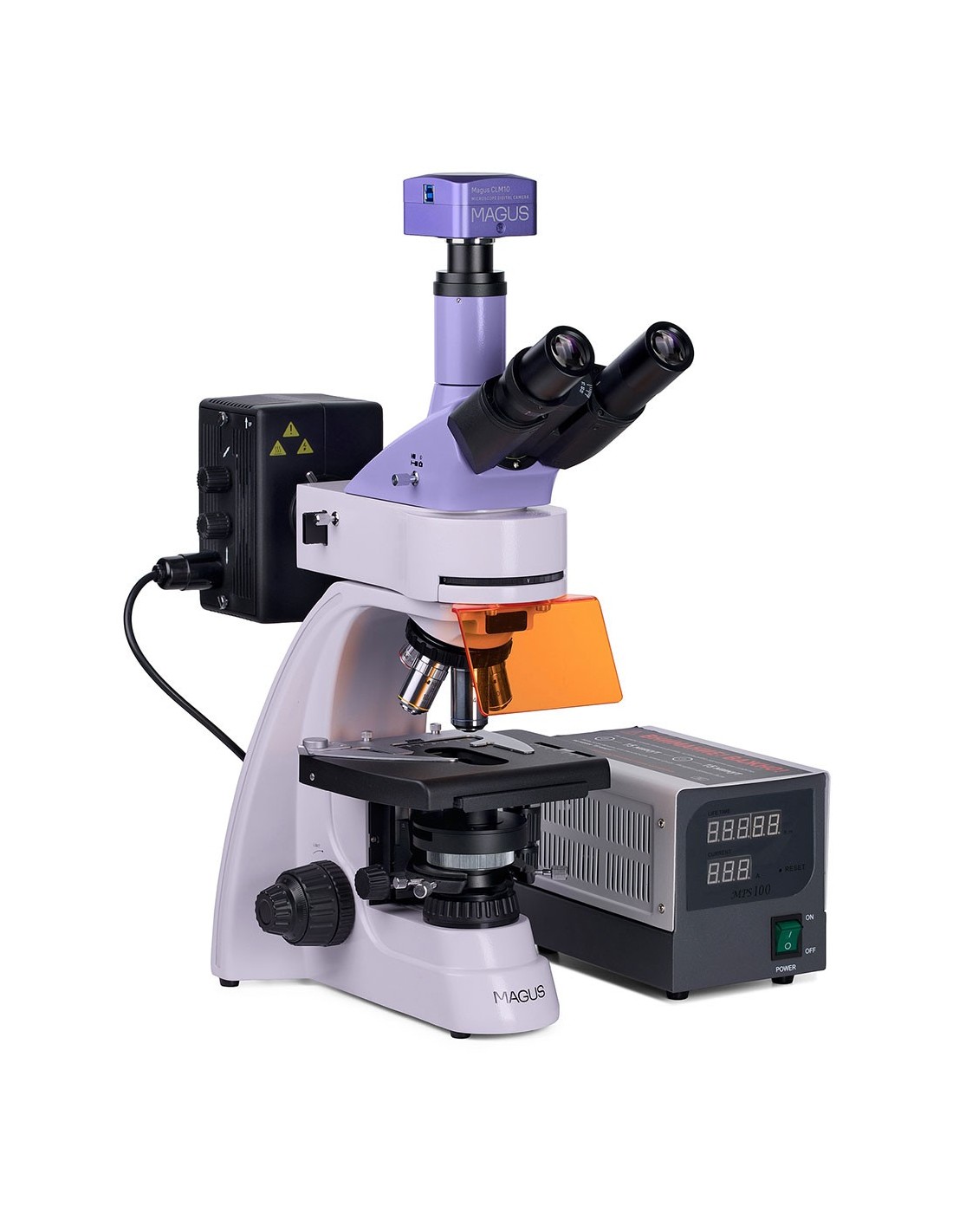

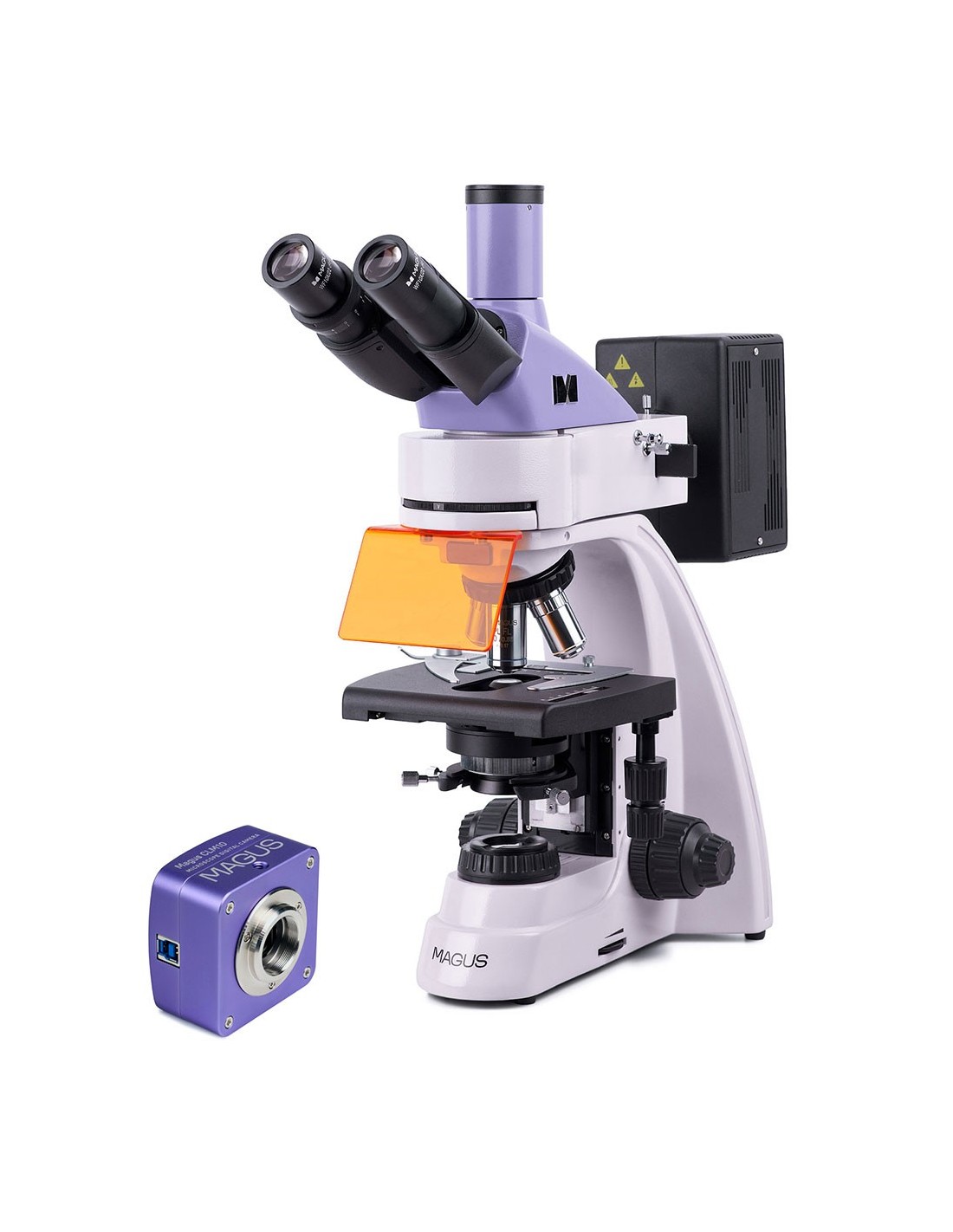

The MAGUS Lum 400 fluorescence microscope is designed for diagnostics and research and can be used for fluorescence (reflected light) and brightfield (transmitted light) microscopy methods. With additional instruments it is possible to use polarization, dark field and phase contrast techniques. Areas of application of the fluorescence microscope: DNA analysis, study of pathogens, health and epidemiological surveillance, forensic assessment, etc.
Digital camera
The MAGUS CLM10 digital camera is designed for dark field and fluorescence microscopy technique. The camera is equipped with a 2.3 MP sensor and produces realistic images at a resolution of 1920х1200 px. It is recommended for 40x, 60x and 100x objectives. When making observations with medium magnification lenses, the camera will produce even sharper details.
Videos are recorded at 120 fps at full resolution. Videos flow smoothly, with smooth, subtle transitions between frames. The movement of the object is shown in real time, without delay. The camera facilitates the observation of moving objects and is suitable for academic demonstrations.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research or university education.
Optics

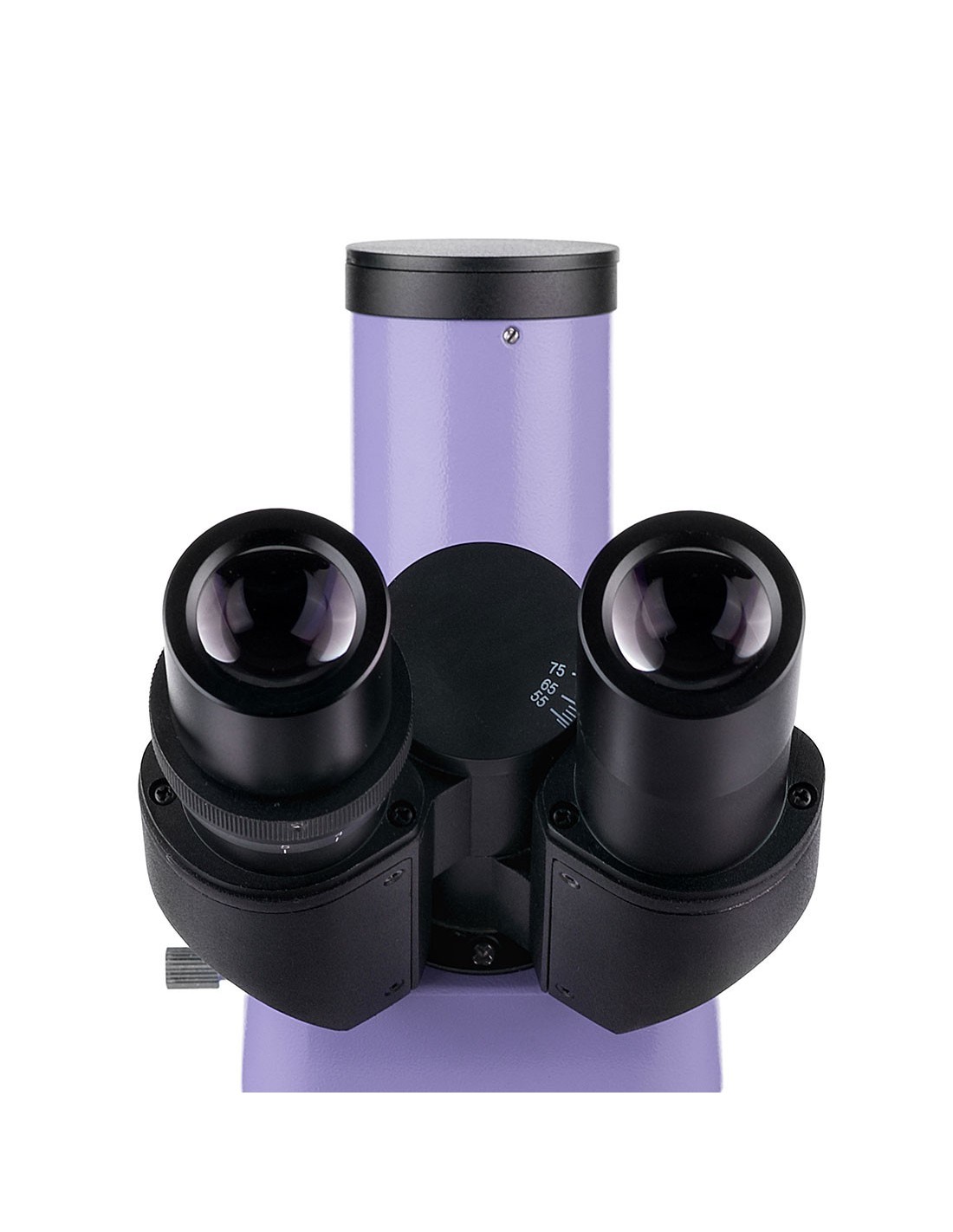

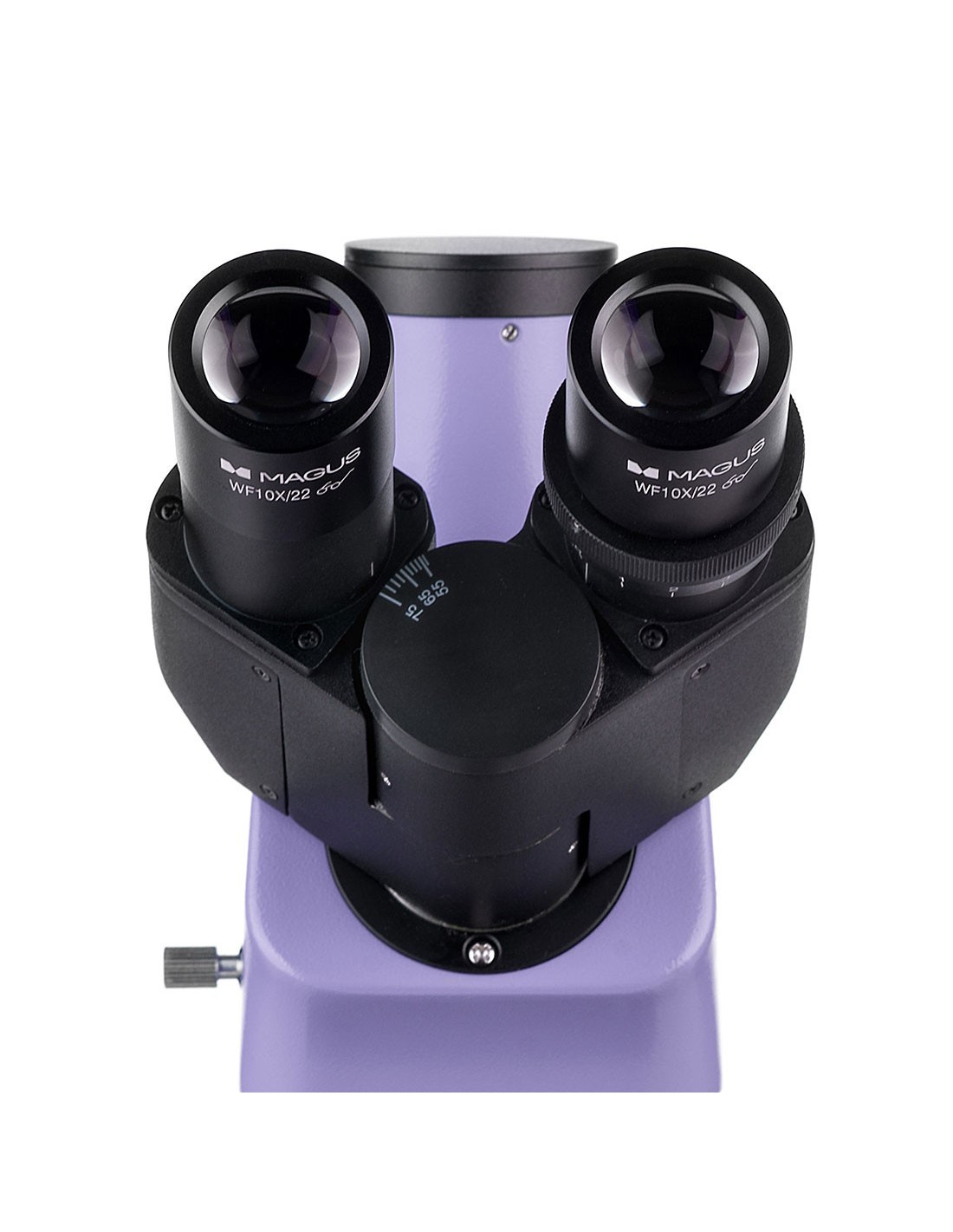

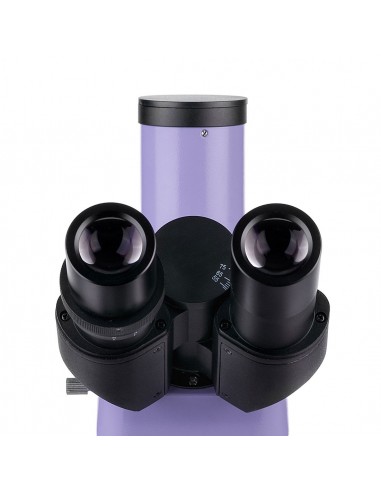

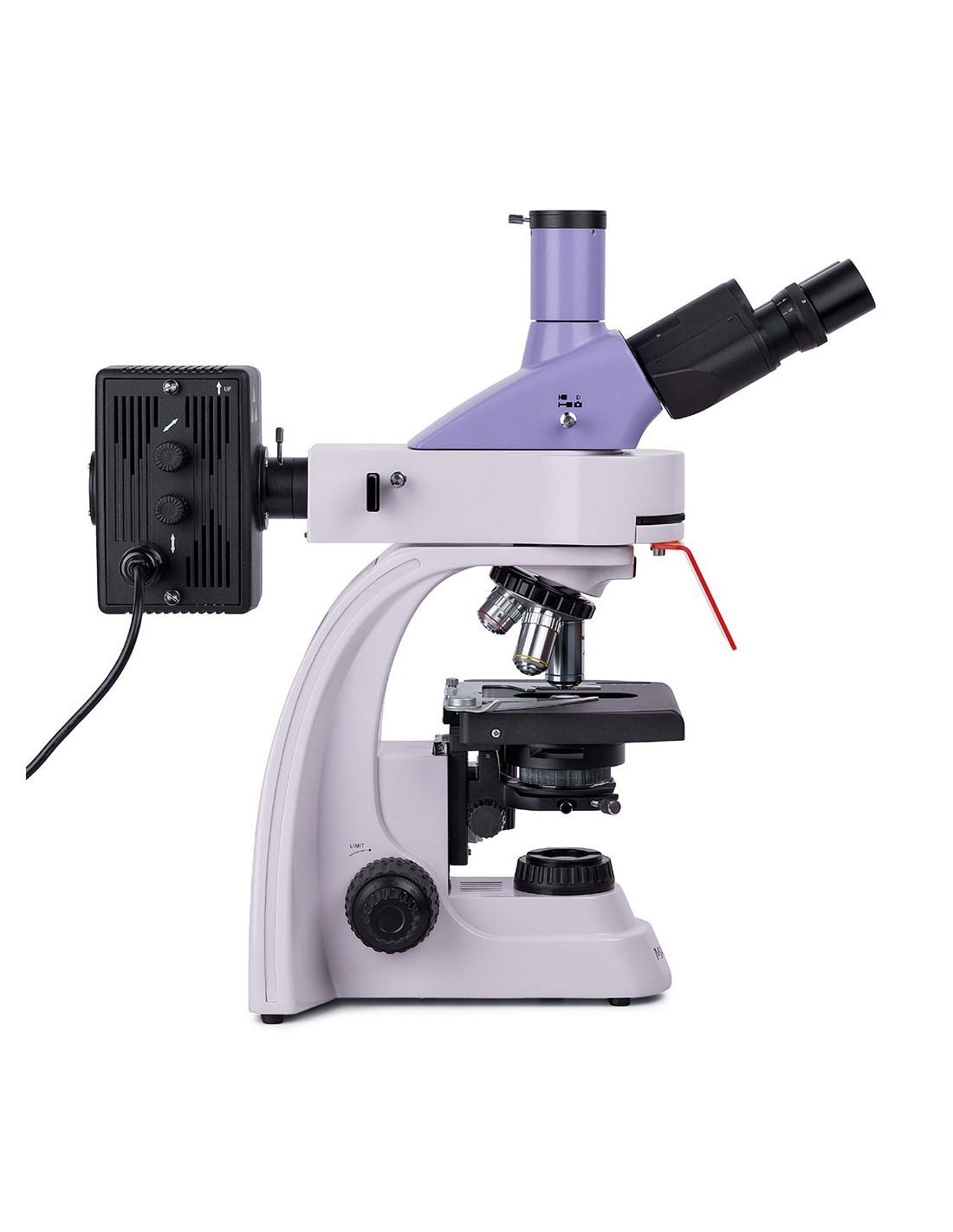

It is a trinocular microscope: the binocular head is inclined by 30 ° and the digital camera (not included) is installed on the trinocular tube. The eyepiece tubes are rotatable 360° so it is easy to adjust them to suit the user's height.

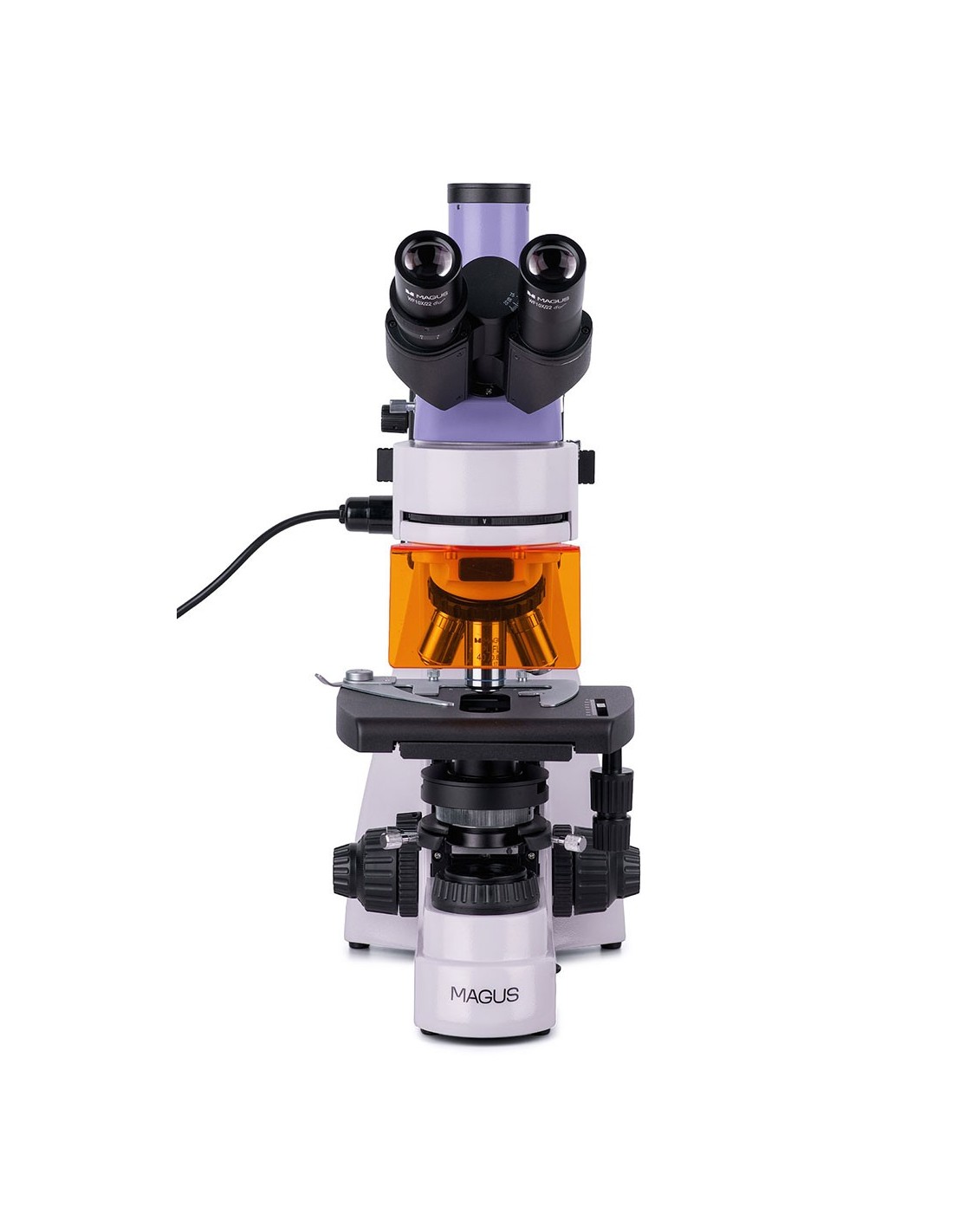

You can install five objectives in the nosepiece. Four infinity plan achromatic objectives are included. One of them is fluorescent with 40x magnification and is designed for fluorescence observations. 4x, 10x and 100x objectives are used for the bright field microscopy technique. In the available slot of the nosepiece it is possible to mount an additional objective to achieve greater magnification within the magnification range of the microscope.

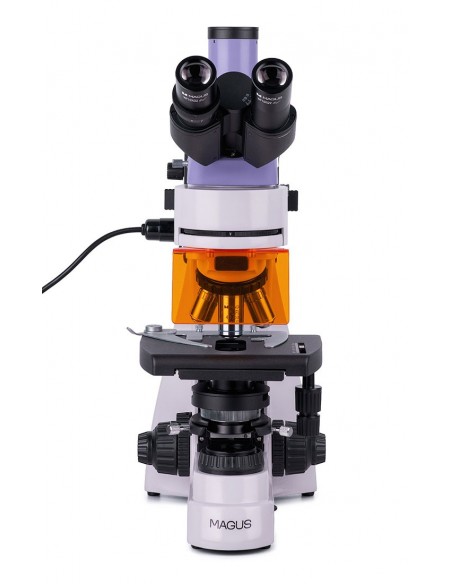

The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Illumination

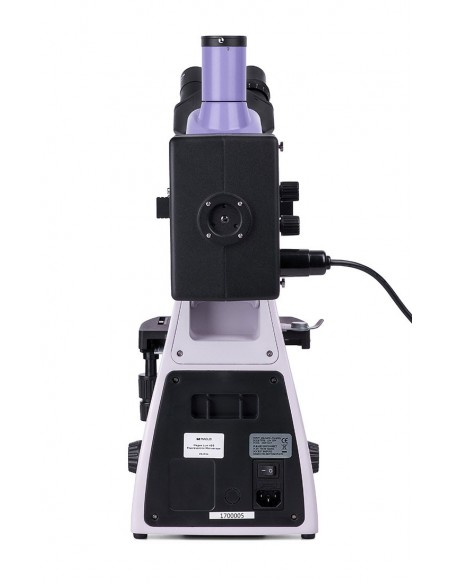

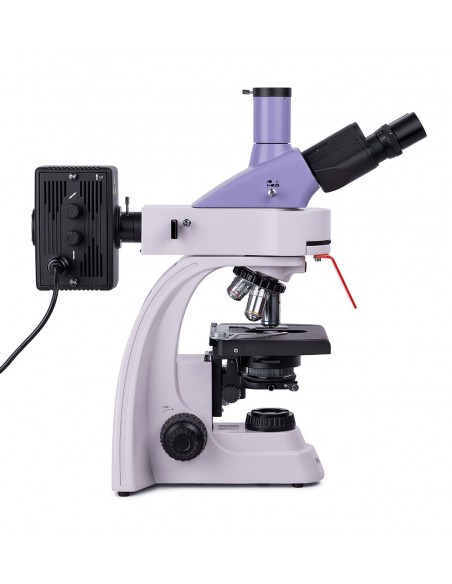

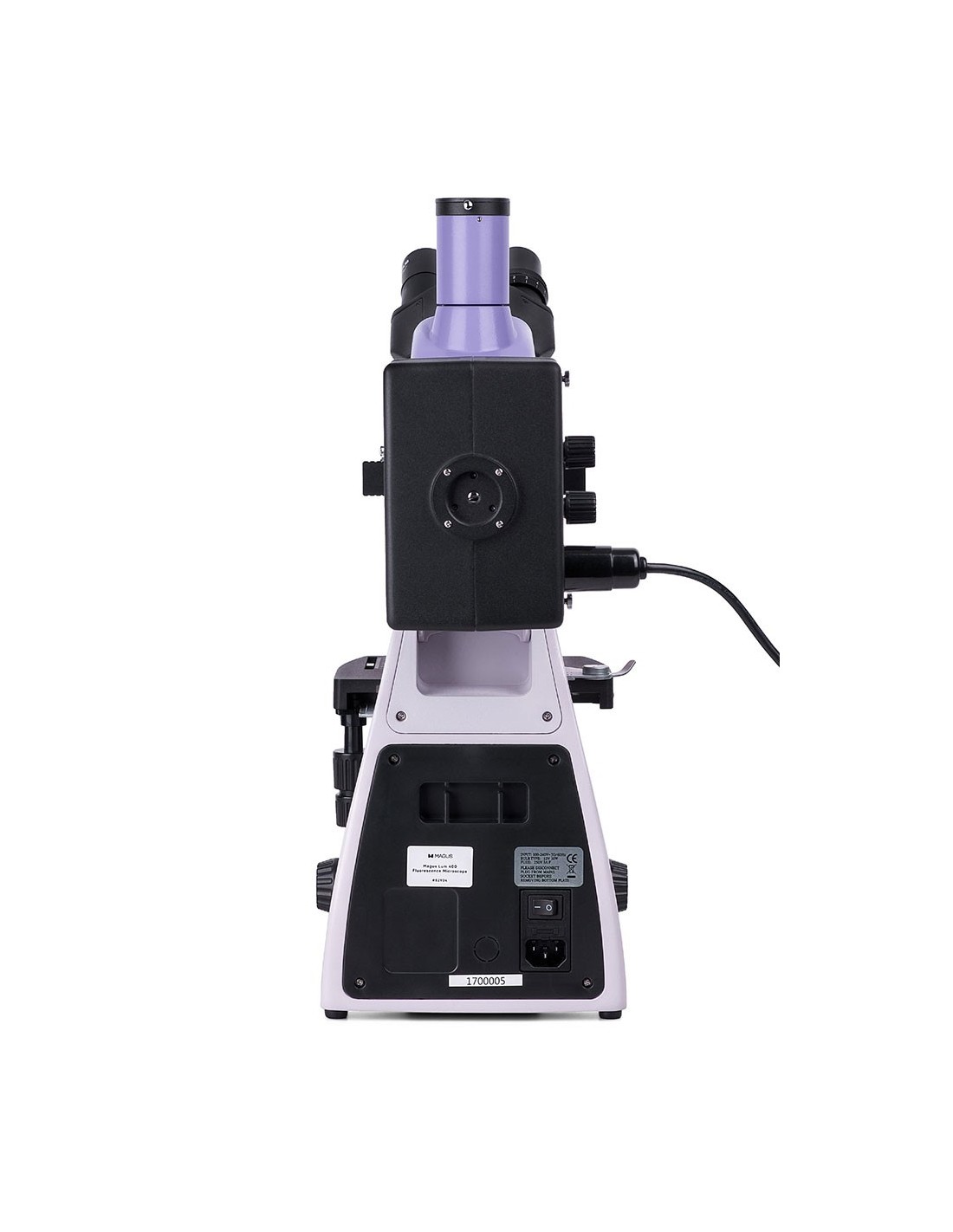

The reflected light source is a 100 W mercury vapor lamp It is located in the lamp housing which offers efficient heat dissipation: the lamp does not overheat even after long hours of operation. It is possible to center the lamp on three axes to provide optimal illumination of the work area. If you need to replace it, simply remove and install it. The mercury vapor lamp is suitable for fluorescent pigments because they have distinct peaks. The reflected light illuminator contains four excitation filters: ultraviolet (UV), violet (V), blue (B) and green (G).
Transmitted light light source: 30 W halogen lamp It has enough intensity to work with any lens, regardless of magnification. Thanks to the color temperature of the illumination, even long-term observations do not tire the eyes. The lighting system also includes a capacitor. There is a slot for a slider (contrast phase or dark field).
In transmitted and reflected light, the Köhler illumination method can be set. With this illumination method, the edges are not darkened, the sample is clearly visible, and the image has no artifacts.
Stage and focusing mechanism
The microscope is equipped with an ergonomic stage without a positioning rack. For reflected light observations, it is necessary to place a black plate on the stage, in order to reduce any unwanted light. The sample holder plate is removable, if necessary, by loosening two screws. The focus knobs are coaxial and are located on both sides of the microscope. The coarse focus mechanism is equipped with a fixing knob and tension adjustment and the fine focus is used for sharpness adjustment.
Accessories
The MAGUS Lum 400 microscope can be equipped with additional accessories: digital camera, phase contrast device, polarization device, dark field condenser, eyepieces and objectives, phase contrast and dark field slider. If you want to measure objects, you can equip the microscope with a calibration slide.
Key features of the microscope:
- Microscopy techniques : fluorescence in reflected light, bright field in transmitted light
- Other research methods with optional accessories: phase contrast, simple polarization, dark field
- Trinocular head with trinocular tube for the installing a digital camera; 360° rotatable eyepiece tubes
- Infinity plan achromatic objectives, including a fluorescent objective
- Reflected light source: 100 W mercury vapor lamp, transmitted light source: lamp 30 W halogen
- Köhler illumination method in transmitted and reflected light
- Fluorescence filters: ultraviolet (UV), violet (V), blue (B), green (G)
- Ergonomic stage with a removable sample holder and without positioning rack
Key camera features:
- For darkfield and fluorescence microscopy with 40x, 60x and 100x objectives
- 2.3 MP resolution for detailed images at high magnification; low noise level, low power consumption
- 120 fps for observing moving objects, video recording, and moving the sample without delays or stutters
- Global shutter for fast reading of the signal from the sensor, increased image brightness without optical effects during observations of moving objects
- The monochrome back-illuminated SONY Exmor CMOS sensor offers images with low noise and high sensitivity to light even in of low light. You can get sharper, brighter and more saturated color images.
- USB 3.0 interface for fast and smooth data transfer
- Software for recording and editing photos and videos, recording functions external display, linear and angular measurements

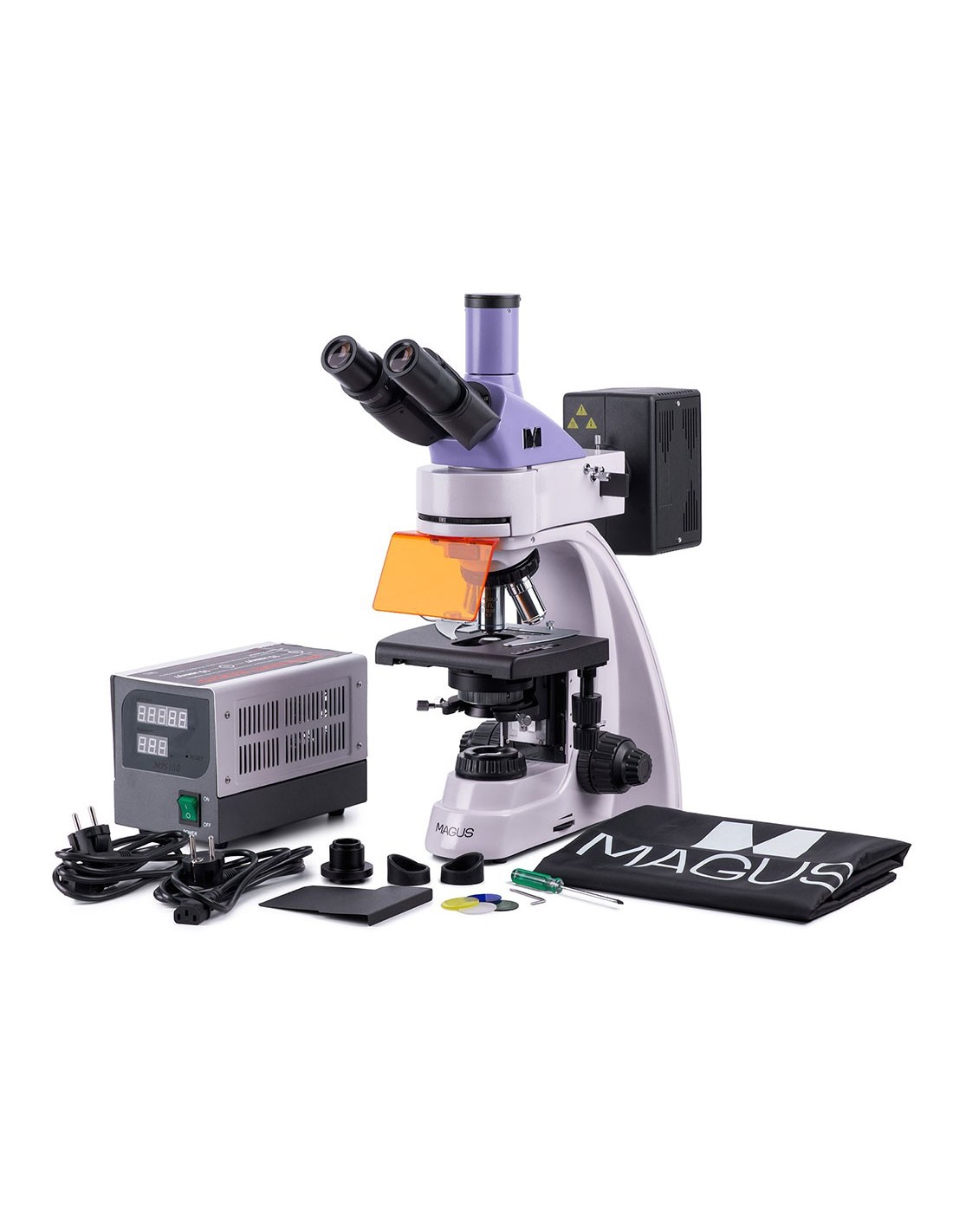

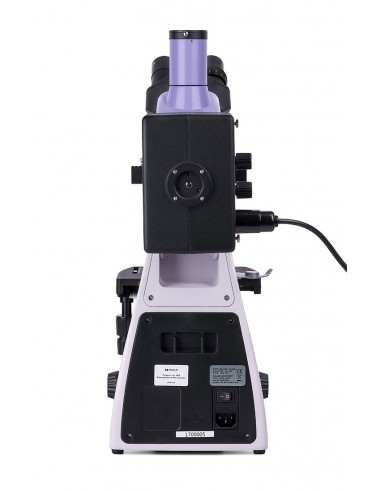

The package contains:
- MAGUS CLM10 digital camera (digital camera, USB cable, Installation CD with drivers and software, user manual and warranty certificate)
- Support with transmitted light source, focusing mechanism, stage, condenser mount and nosepiece
- Condenser by Abbe
- Illuminator for reflected light observations
- Housing for the mercury vapor lamp
- Trinocular head
- Infinity planachromatic objective : PL 4x/0.10 WD 19.8 mm
- Infinity plan achromatic objective: PL 10x/0.25 WD 5.0 mm
- Infinity plan achromatic objective, fluorescent : PL FL 40x/0.85 (with spring mechanism) WD 0.42 mm
- Infinity planachromatic objective: PL 100x/1.25 (with spring mechanism, oil) WD 0, 36 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- UV screen
- Filter slider
- Black protective plate for installation under the table
- C-mount adapter
- Color filter (4 pcs.)
- Immersion oil bottle
- Mercury vapor lamp power supply
- AC power cord (2 pcs.)
- Vapor lamp power cord of mercury
- Dust cover
- User manual and warranty card
Available upon request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- 15x/15 mm eyepiece (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity planachromatic objective, fluorescent: PL FL 10x/0.35 WD 2.37 mm
- Infinity plan achromatic objective: PL 20х/0.40 WD 8.8 mm
- Infinity plan achromatic objective: PL 60x /0.80 ∞/0.17 WD 0.46 mm
- Phase contrast device
- Dark field condenser with NA 0.9
- Condenser oil dark field slider with NA 1.36–1.25
- Dark field slider
- Polarizer tool
- Calibration slide
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018157 |
| Package size (LxWxH)< /td> | 45x30x96 cm |
| Shipping weight | 17.1 kg |
| Delimiter | td> | MAGUS Lum 400 fluorescence microscope |
| === Delimiter === | Microscope specifications |
| Type | biological, light/optical, digital |
| Tested | trinocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Head inclination angle | 30° |
| Magnification, x | 40–1000 in basic configuration (*optional: 40–1250/1500/2000/2500 ) |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | infinity planachromatic and fluorescent objectives: PL 4x/0.10, PL 10x/0.25, PL FL 40x/0.85, PL 100x/1.25 (oil); parfocal distance 45 mm (*optional: PL FL 10x/0.35, PL 20х/0.40, PL 60x/0.80 ∞/0.17) |
| Revolver nosepiece | for 5 objectives |
| Working distance, mm | 19.8 (4x); 5.0 (10x); 0.42 (FL 40x); 0.36 (100x); 2.37 (FL 10х); ); 8.8 (20х); 0.46 (60х) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the stage, mm | 75/50 |
| Stage characteristics | two-axis mechanical translator, without positioning rack |
| Condenser | condenser from Abbe, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm< /td> | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39 .8 mm/turn, with fixing knob and micrometer screw tension adjustment knob) and fine focus (0.002 mm micrometer screw) |
| Illumination | halogen, fluorescent |
| Brightness adjustment | yes |
| Power supply | AC mains, 85–265 V, 50/60 Hz |
| Type of light source | reflected light: mercury vapor lamp 100W; transmitted light: 12 V halogen lamp, 30 W |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility of connecting additional equipment | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer), dark field slider |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Fluorescent module | filters: ultraviolet (UV), violet (V), blue (B), green (G) |
| Fluorescence filter: type of filter/excitation wavelength/dichroic mirror/emission wavelength | ultraviolet (UV), 320–380 nm/425 nm/435 nm; violet (V) 380–415 nm/455 nm/475 nm; blue (B) 450–490 nm/505 nm/515 nm; green (G) 495–555 nm/585 nm/595 nm |
| Application | laboratory/medical |
| Illumination position | double |
| Research method | bright field, fluorescence |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/monochrome |
| Megapixel | 2.3 |
| Maximum resolution, px | 1920х1200 |
| Sensor size | 1/1.2" (11.25x7.03 mm) |
| Pixel size, µm | 5.86x5.86 |
| Light sensitivity | 1016 mV with 1/30 s< /td> |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.244 ms – 2 s |
| Video recording | yes |
| Video recording | yes |
| Frame rate, fps@resolution | 120@1920x1200 |
| Installation location | trinocular tube , optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (with IR filter and anti-reflection filter) |
| Shutter type | Global shutter |
| White balance | manual, automatic |
| Exposure control< /td> | manual, automatic |
| Software features | image size, brightness, exposure control |
| Output | USB 3.0, 5 Gb/s |
| System Requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Camera power supply | DC, 5V, from the computer's USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
