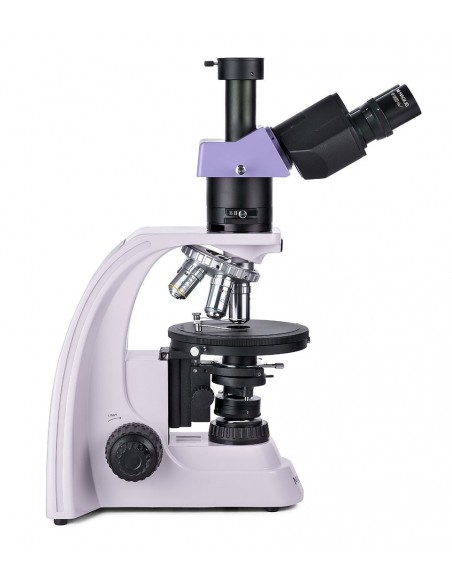

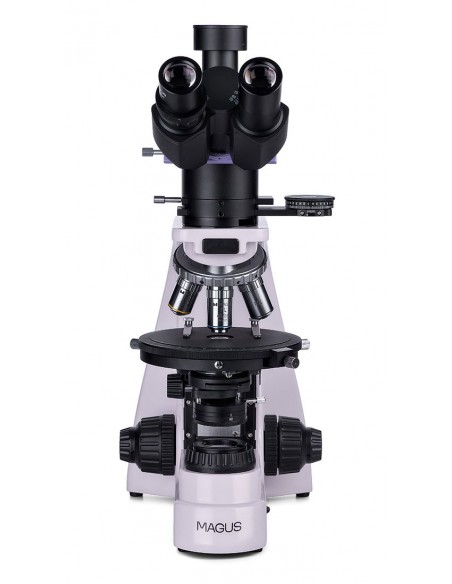

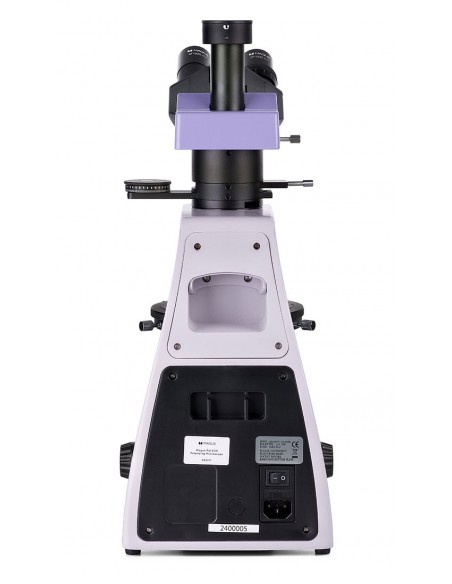

The MAGUS Pol 800 polarizing microscope is used to study anisotropic objects in polarized and ordinary transmitted light. The objects of study can be biological, geological or polymeric. The microscope optics are voltage-free, meaning they do not create parasitic refractions. It forms a clear, high-contrast and authentic image. The functionality of the microscope is useful in various fields of science: medicine, forensics, mineralogy, petrography, crystallography, etc.
Digital camera
MAGUS CHD40 is an HDMI digital camera with three video interfaces and automatic switching between Full HD and 4K based on the monitor resolution.
The camera is equipped with an 8 MP sensor and produces realistic images at a 4K resolution (3840x2160 px) when connected via HDMI or USB 3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080 px).
The camera uses an HDMI interface to connect directly to a TV, monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB 3.0. Video is recorded at 30 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor
The MAGUS MCD40 monitor is designed to use a MAGUS microscope display system. It is connected to a camera mounted on the microscope to display real-time images. Supports cameras with HDMI connection and 4K resolution. The screen is 13.3 inches. The IPS matrix offers bright images with wide viewing angles. If you look at the display from the side the color reproduction is not distorted. You can place the display on a table or shelf using a folding stand or install it directly on the camera or microscope base.
Optics
The trinocular head is equipped with a trinocular tube for mounting a digital camera. Using the switch on the body, the light is directed completely onto the eyepiece tubes or the digital camera. The 30° angle of the eyepiece tubes is comfortable for long-term observations and does not cause strain on the neck muscles. The left tube has a diopter adjustment ring in which it rotates and adapts the microscope optics to the user's unique vision.
The nosepiece nosepiece is designed for the simultaneous installation of five objectives, including four already included in the package. An additional lens from the MAGUS accessory range can be purchased separately. All objectives are designed to work with 0.17 mm thick coverslips. Thanks to the “far from the observer” design of the revolver, the objective inserted into the optical path is clearly visible during work, which makes the researcher's work more comfortable. The grooves of the nosepiece objective holder are centered.
Illumination
The illumination source is located under the object stage, i.e. observations are made in transmitted light. The 30W halogen lamp produces bright, eye-pleasing illumination, suitable for use on all lenses. Adjusting the illumination using the Köhler method allows for higher contrast and better image quality.

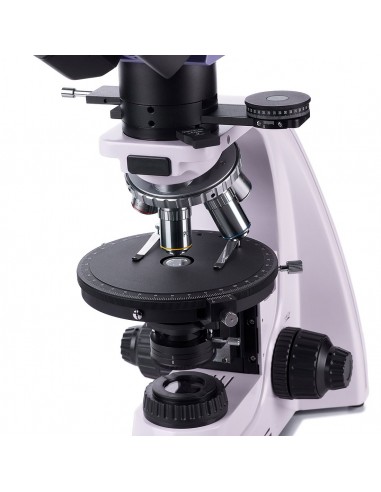

The microscope is equipped with a polarizer and analyzer. To work in polarized light, the analyzer is introduced into the optical path and the polarization angle is changed by rotating the polarizer and analyzer relative to each other. The microscope also has an intermediate tube that holds a Bertrand lens and has a housing for compensators. Compensators improve the contrast of samples with low birefringence, and the Bertrand lens is designed forconopic studies.
Stage and focusing mechanism
The stage of the microscope rotates and this allows you to quickly change the refraction of light by the sample when working in polarized light. The stage is centered with respect to the optical axis of the microscope, has a gradation of the angle of rotation and a scale that allows you to determine the angle with a precision of 0.1°.
The setting mechanism in focus provides coarse and fine adjustment of sharpness. A coarse focus lock is available for coarse focusing, and you can also adjust the coarse tension for more comfortable control.
Accessories
Optional eyepieces, objectives, digital cameras and calibration slides are available for the microscope. They expand the capabilities of the microscope to carry out the tasks of researchers.
Key features of the microscope:
- Observations in transmitted light in bright field and with polarization methods
- The illumination source is a 30 W halogen lamp with a “warm” light spectrum that is comfortable for the eyes
- The polarization is obtained using an analyzer and a rotating polarizer; The intermediate tube has a Bertrand lens and a housing for compensators
- It is possible to adjust the illumination according to the Köhler method, which improves the readability of the image
- The trinocular tube allows the installing a digital camera
- Infinity planachromatic lenses are voltage-free; the grooves of the nosepiece revolver are centered
- Rotating stage, coarse and fine focusing
- Compatible with additional accessories: eyepieces, objectives, etc.
Key features of the camera:
- The camera works independently without a connection to a PC via HDMI interface. You can connect to a PC via Wi-Fi and USB 3.0 interface
- Automatic switching between 4K and Full HD based on monitor resolution
- 30 fps for observing objects in motion, video recording, and sample movement without lag or stuttering
- The color back-illuminated SONY Exmor/ Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements
The package contains:
- MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), mouse with USB, 32GB SD Memory Card, Wi-Fi USB Adapter (2pcs), 12V/1A AC Power Adapter (Euro), Installation CD with Drivers and Software, User Manual and Warranty Card)
- MAGUS MCD40 LCD monitor
- Base with power input, transmitted light light source and condenser, focusing mechanism, stage and nosepiece
- Trinocular head
- Intermediate tube with Bertrand lenses, an analyzer and a compensator housing
- Compensators: λ compensator, λ/4 compensator, quartz wedge
- All plan achromatic objective 'infinity: PL 4x/0.10 WD 21 mm
- Infinity plan achromatic objective: PL 10x/0.25 WD 5.0 mm
- Infinity plan achromatic objective: PL 40x/0.65 (with spring mechanism) WD 0.66 mm
- Infinity plan achromatic objective: PL 60x/0.80 (with spring mechanism) WD 0.46 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- 10x/22 mm eyepiece with graduated scale. Scale value: 0.1 mm
- 1x C-mount adapter
- Allen key
- Power cable
- Dust cover
- Dust cover li>
- User manual and warranty certificate
Available on request:
- 10x/22 mm eyepiece with viewfinder
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity planachromatic objective: PL 5x/0.12 WD 26.1 mm
- Infinity plan achromatic objective: PL 20x/0.4 WD 8.8 mm
- Infinity plan achromatic objective, fluorescent: PL 100x/1.25 (with spring mechanism, oil) WD 0 .36 mm
- Infinity planachromatic objective, fluorescent: PL 100x/0.8 (with spring mechanism, dry) WD 2.02 mm
- Mechanical stage
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018522 |
| Package size ( WxDxH) | 43x27x63 cm |
| Shipping weight | 17.25 kg |
| Boundary | MAGUS Pol 800 polarizing microscope |
| Type | biological, light/optical, digital |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Ocular tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm; 10х/22 mm with scale (*optional: 10x/22 mm with viewfinder, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic, non-deforming objectives: PL 4x/0.10; PL 10x/0.25; PL 40x/0.65; PL 60x/0.80 (*optional: PL 5x/0.12; PL 20x/0.4; PL 100x/1.25 (oil); PL 100x/0.8 (dry)); parfocal height of 45 mm, designed for use with 0.17 mm thick coverslips |
| Nosepiece nosepiece | for 5 objectives, centering |
| td> |
| Working distance, mm | 21 (4x); 5.0 (10x); 0.66 (40x); 0.46 (60x); 26.1 (5x); 8.8 (20x); 0.36 (100x (oil)); 2.02 (100x (dry)) |
| Interpupillary distance, mm | 48 — 75 |
| Ø150 |
| Stage features | 360° rotatable, centering, gradation equal to 1° of 'angle of rotation; a vernier scale for measuring angles with an accuracy of 0.1° |
| Diopter adjustment of the eyepiece, diopters | ±5 (on the barrel left) |
| Condenser | Abbe NA 1.25 condenser with an adjustable aperture diaphragm and rotatable lenses |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and micrometer screw tension adjustment knob) and fine focus (0.002 mm micrometer screw) |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power | 220±22 V, 50 Hz, AC mains |
| Type of light source | halogen lamp: 12V/30W |
| Operating temperature range, °C | 5 — 35 |
| User level |
| Assembly and installation level of difficulty | complicated |
| Polarizer< /td> | with 0°, 90°, 180°, 270° marked on the scale; 360° rotatable |
| Intermediate tube | integrated analyzer rotatable 0–360°; a vernier scale for measuring angles with an accuracy of 0.1°; Bertrand lenses; housings for installing compensators |
| Compensator | compensator λ; λ/4 compensator; quartz wedge |
| Application | laboratory/medical |
| Lighting position | lower |
| Research method | bright field, polarized light |
| Set with case/case /bag | dust cover |
| === Boundary === | Digital camera |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 8 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Interface connectors | Wi-Fi, HDMI 1.4, USB 3.0 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment |
| Light sensitivity | 1028 mV at 1/30 s< /td> |
| Signal-to-noise ratio | 0.13 mV with 1/30 s |
| Exposure time | 0.14 ms – 1000 ms |
| Video recording | yes |
| 30@3840x2160 (HDMI), 30@1920x1080 (Wi-Fi), 30@3840x2160 (USB 3.0) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range , nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) | td> |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| AC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 3840x2160 (4K) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen (WxH ), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED< /td> |
| LED backlight life, h | 50000 |
| Interface | HDMI< /td> |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range, % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C ) |
| Energy consumption, W | 12 (max.) |
