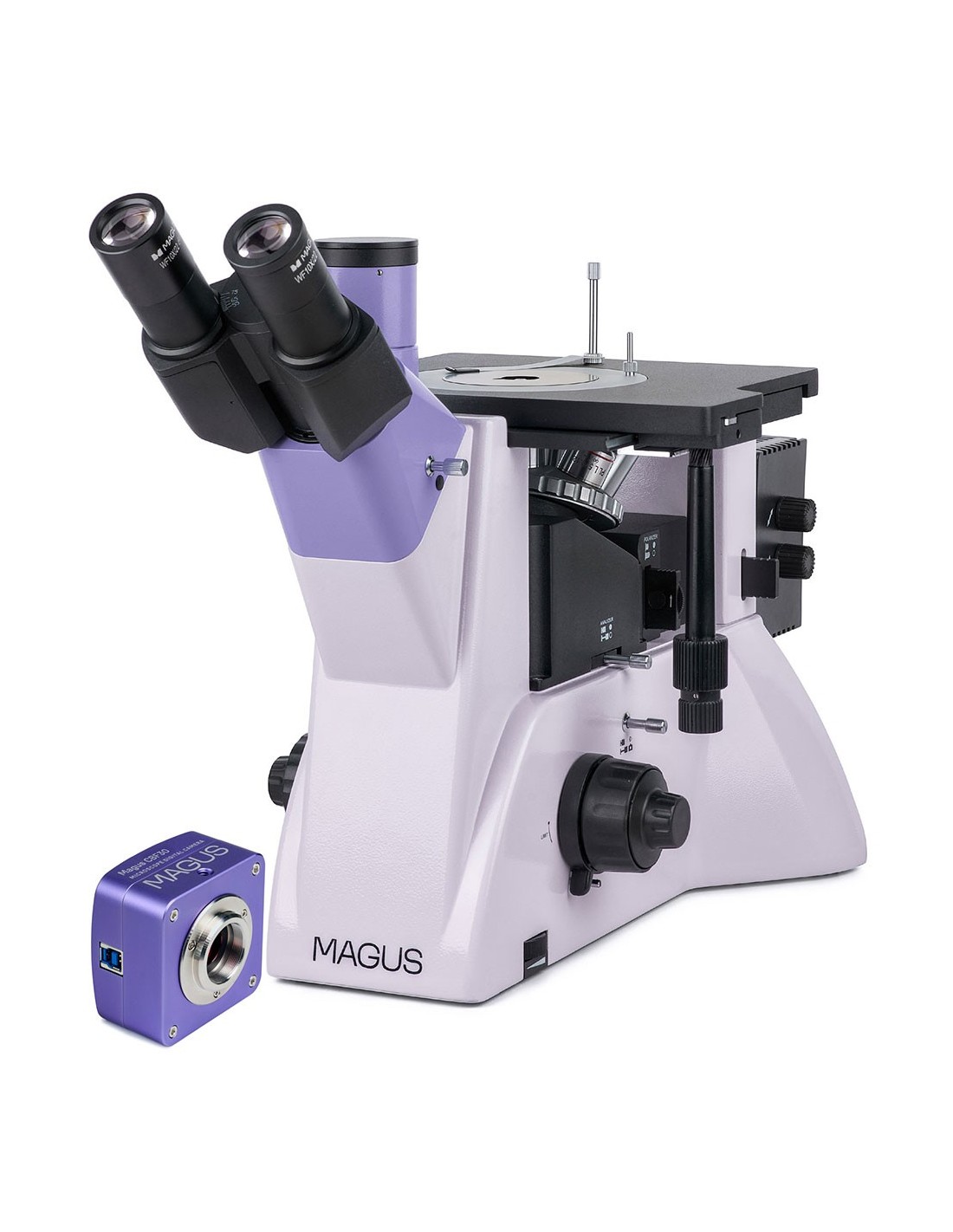

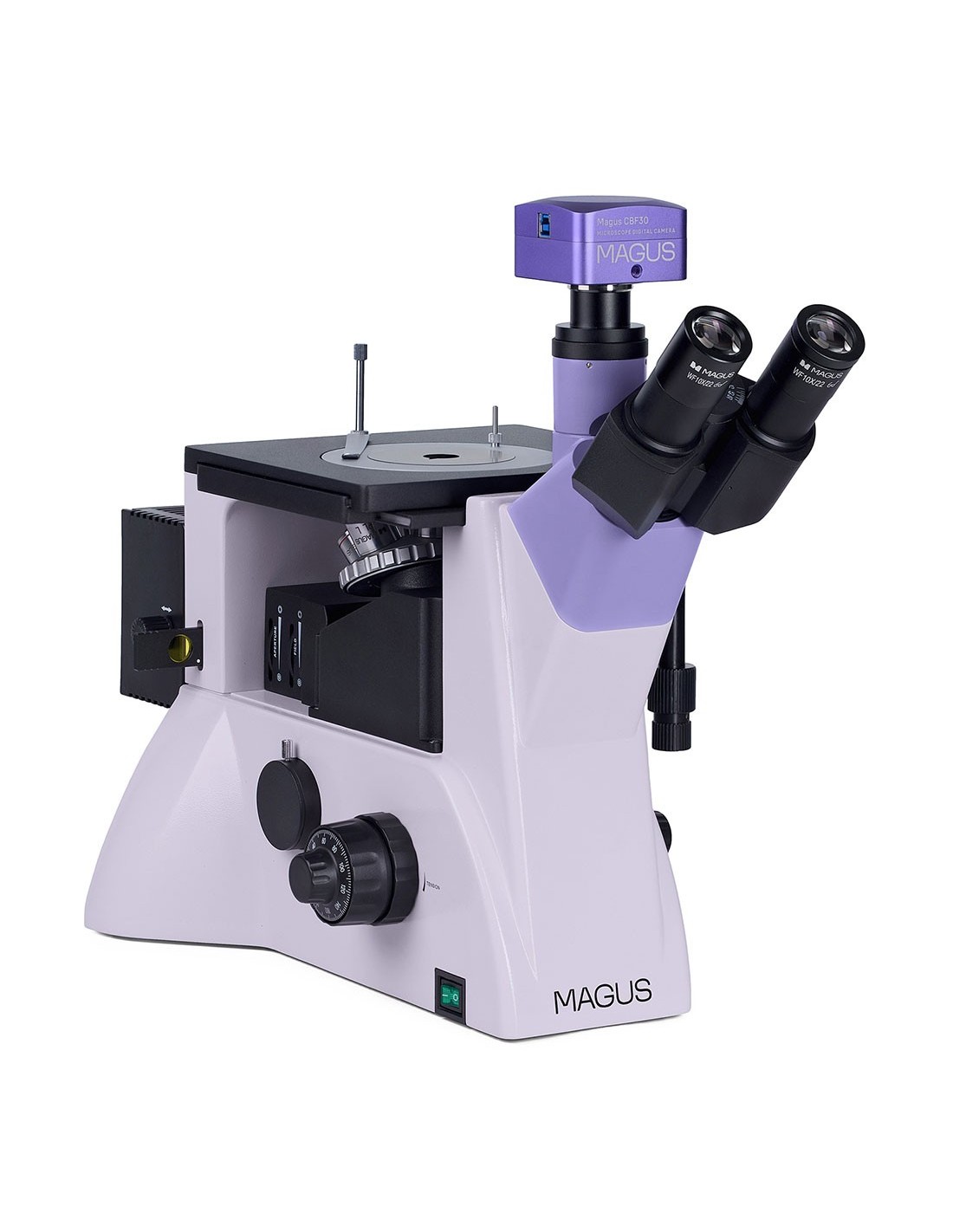

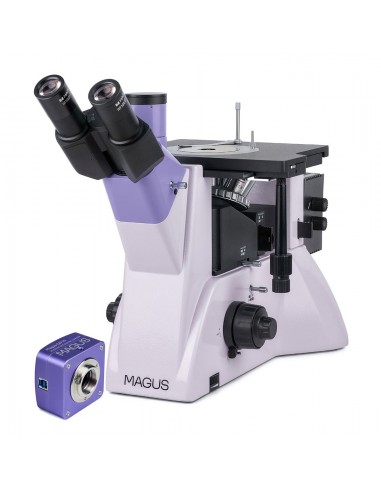

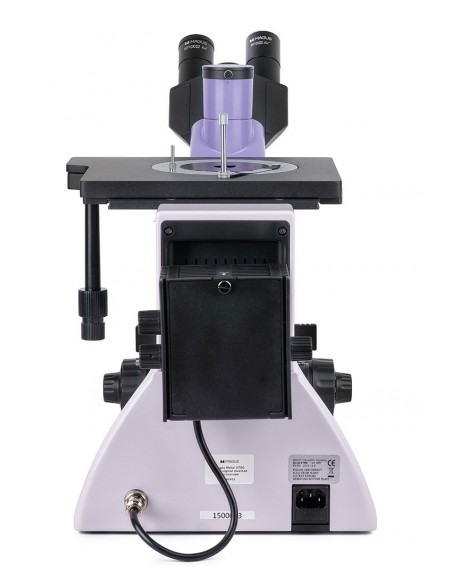

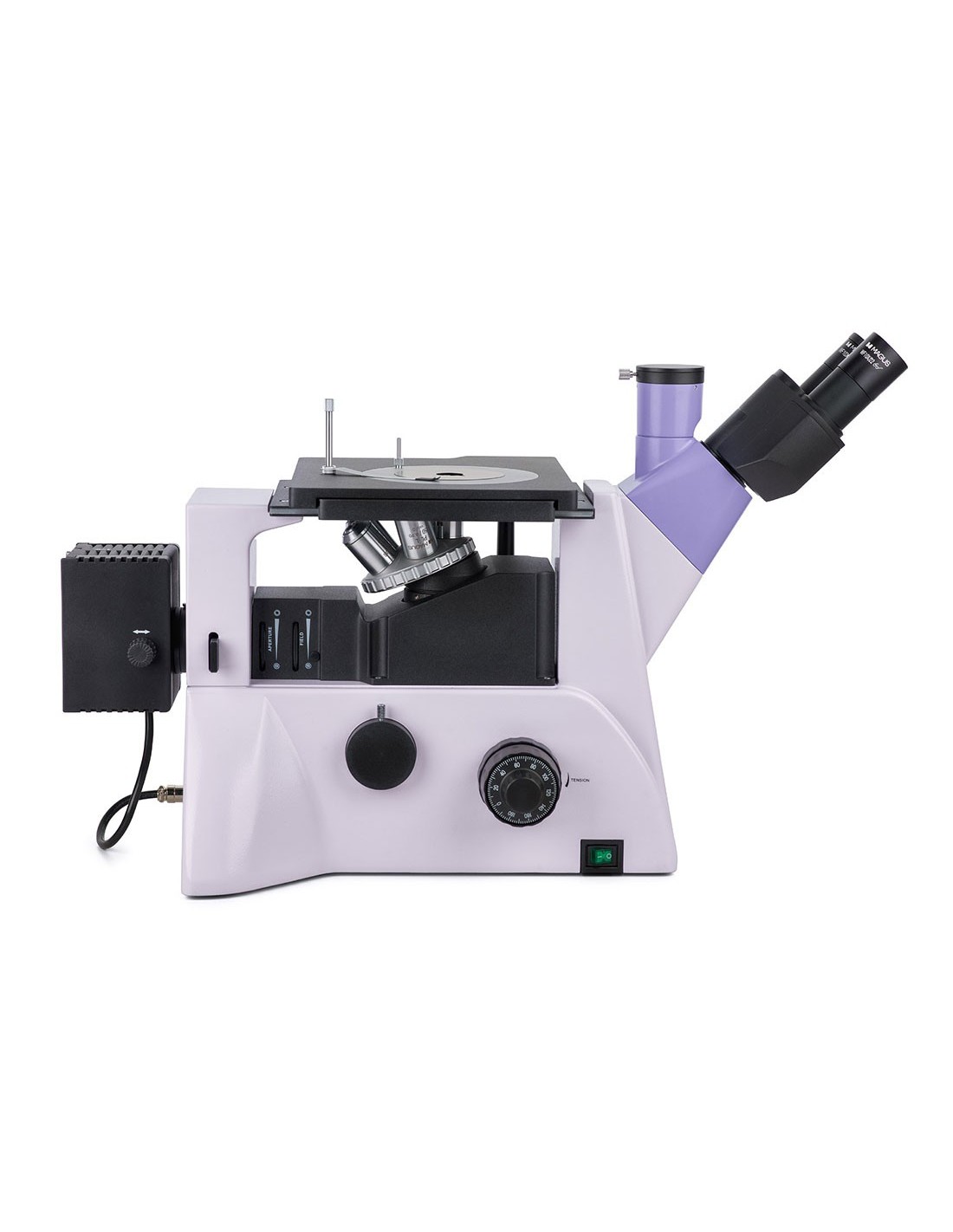

The MAGUS Metal V700 inverted metallographic microscope is suitable for studying the microstructures of metals, alloys and semiconductor materials in reflected light. The stage can hold samples up to 2 kg (only the bottom surface of the sample needs to be flat). The other parts of the sample do not need to be prepared and can be of any shape. This microscope is designed for brightfield and polarized light observations, features a side camera port and a trinocular tube; Furthermore, it is suitable for a wide range of applications in the laboratory and in the field of industrial production.
Digital camera
The MAGUS CBF30 digital camera allows you to take photographs and shoot short videos through a microscope, edit the resulting files, organize presentations and perform linear and angular measurements of objects (after proper calibration).
The device is designed to work on microscopes using the field method clear and 4x, 10x, 20x, and 40x lenses.
The 6.3 MP sensor allows you to take bright, detailed photos and videos at a maximum resolution of 3072x2048 px. If necessary, the resolution can be reduced to 1536x1024 px. However, this will not affect the frame rate, which will remain at 59 fps, thus ensuring smooth frame transitions without stuttering or delays.
The color back-illuminated SONY Exmor CMOS sensor allows you to use the camera even in harsh conditions. of low light. The image will remain readable and bright. Using an adapter with 0.5x to 0.75x magnification will provide the clearest image possible, without distortion.
Optics

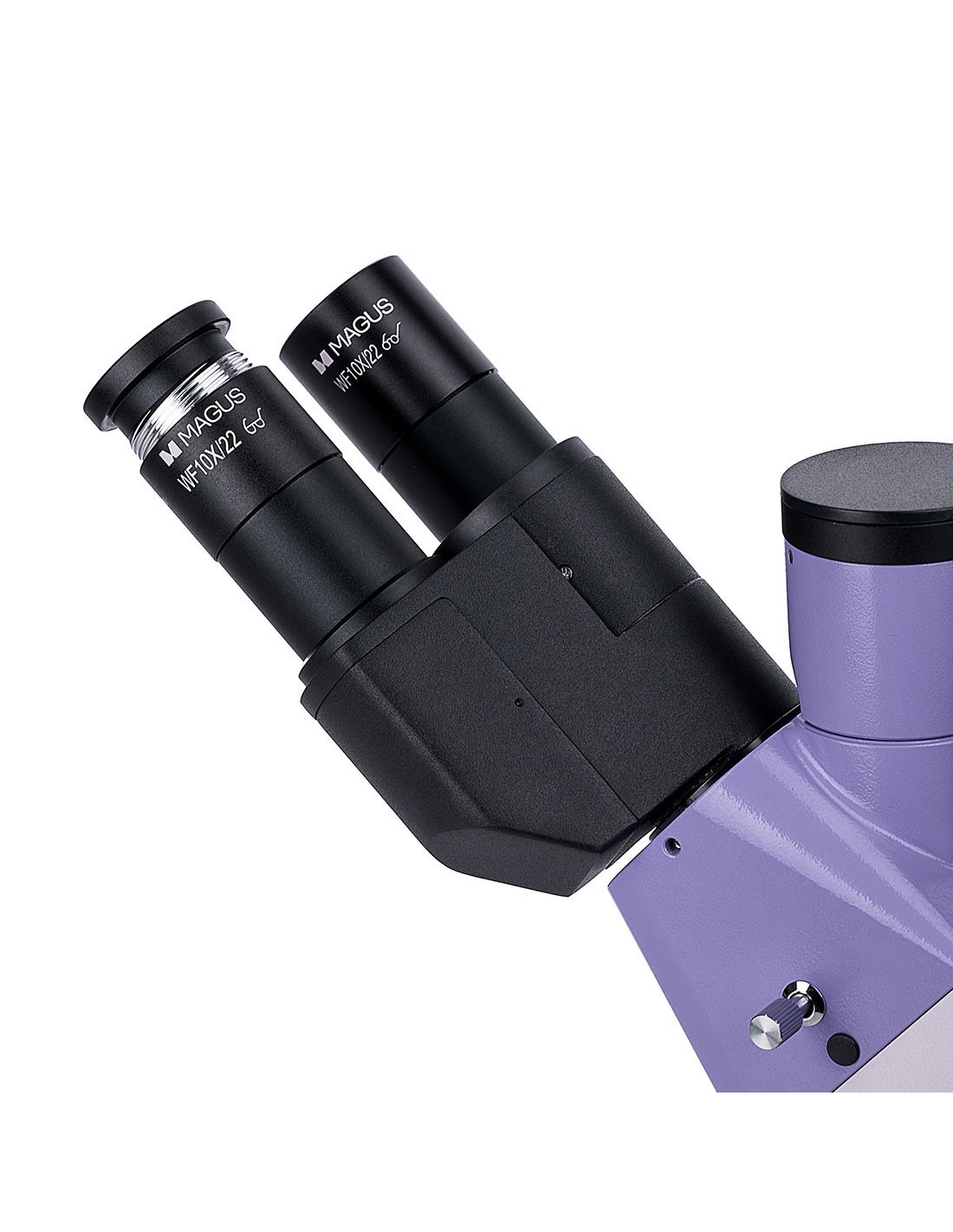

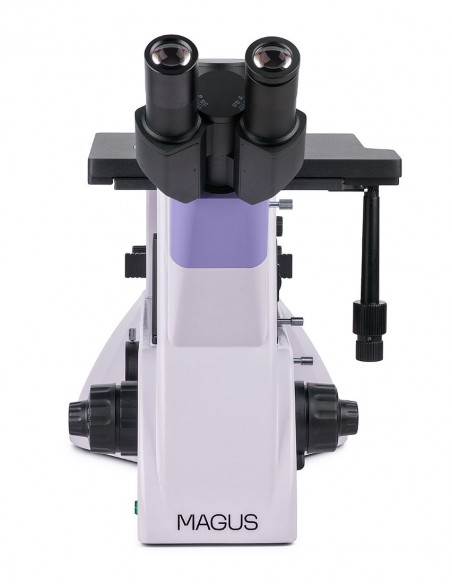

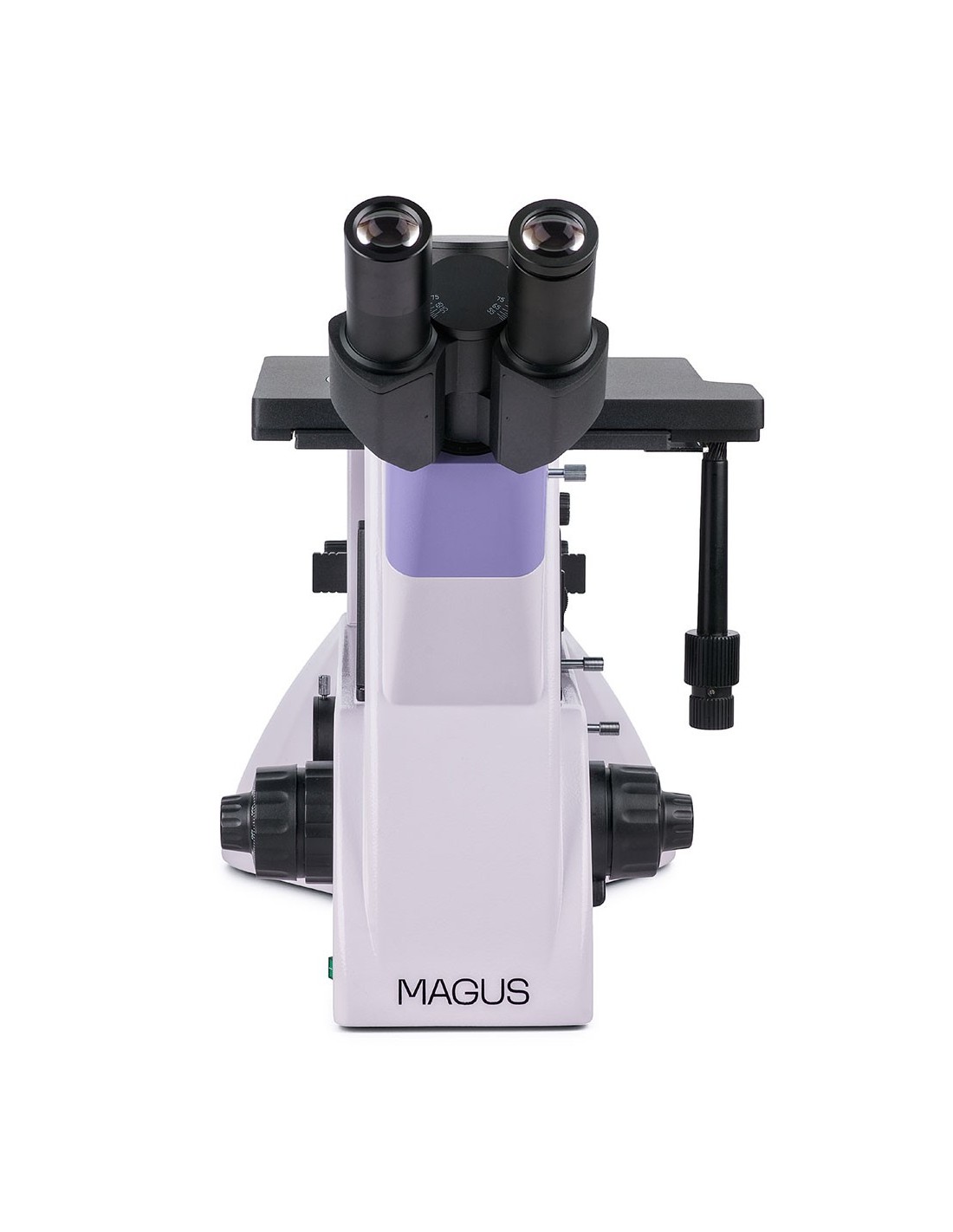

The microscope is equipped with a specially designed trinocular head, so it is possible to adjust the position of the eyepieces; it is also possible to rotate the head 180°. The digital camera must be housed in the appropriate side port on the microscope frame and the monitor can be installed in the third tube of the trinocular head. The beam splitter in the microscope body diverts the light beam with a ratio of 100:0 and 0:100, while the beam splitter in the trinocular head has a ratio of 50:50 and 100:0.

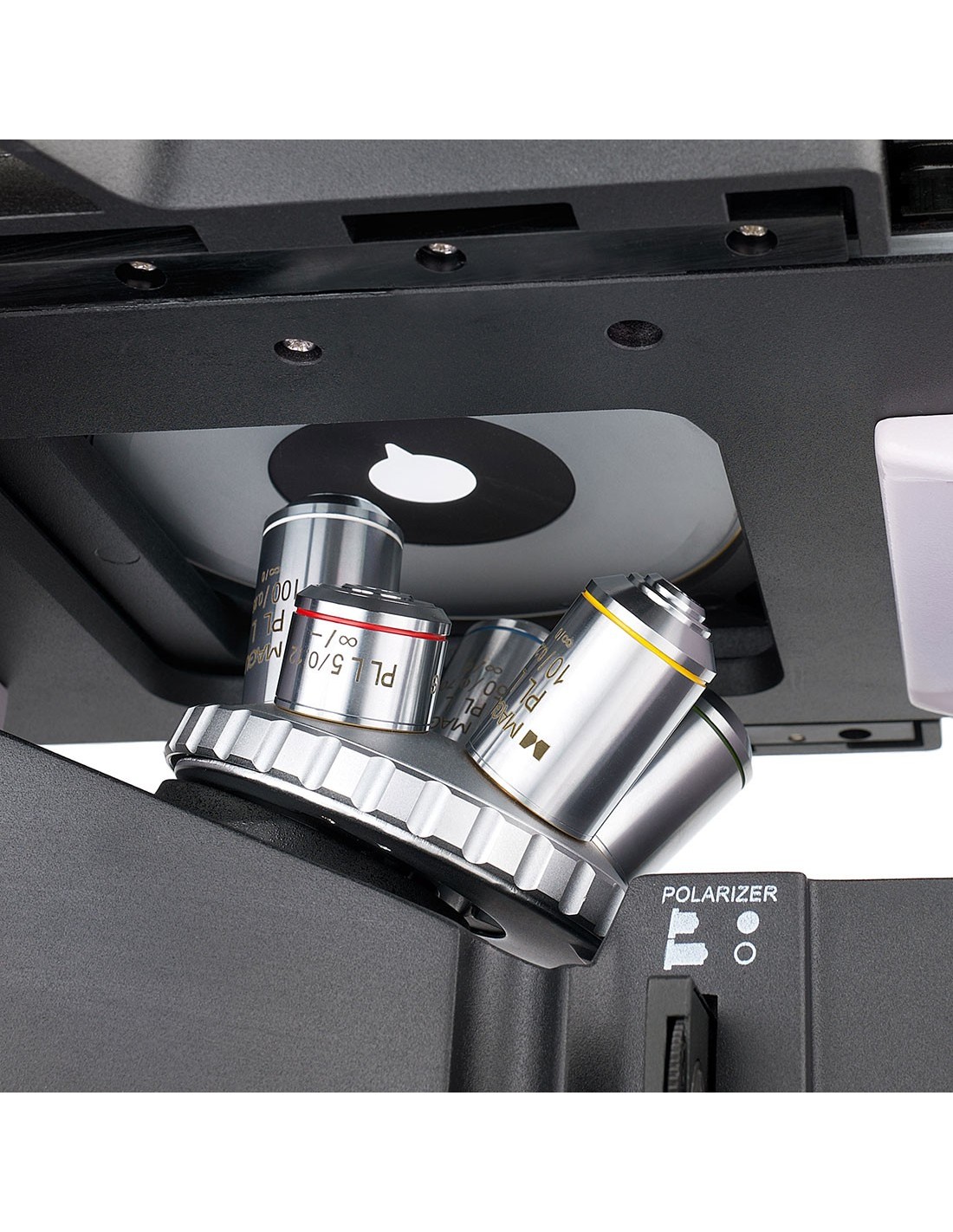

The nosepiece is positioned under the sample to be examined and is equipped with 5 slots for objectives (all included in the basic configuration). All objectives are infinity corrected plan achromatic, with long working distance. An additional lens can be mounted in place of one of the ones supplied. In its basic configuration, the total magnification range of the microscope is from 50x to 1000x.
Illumination

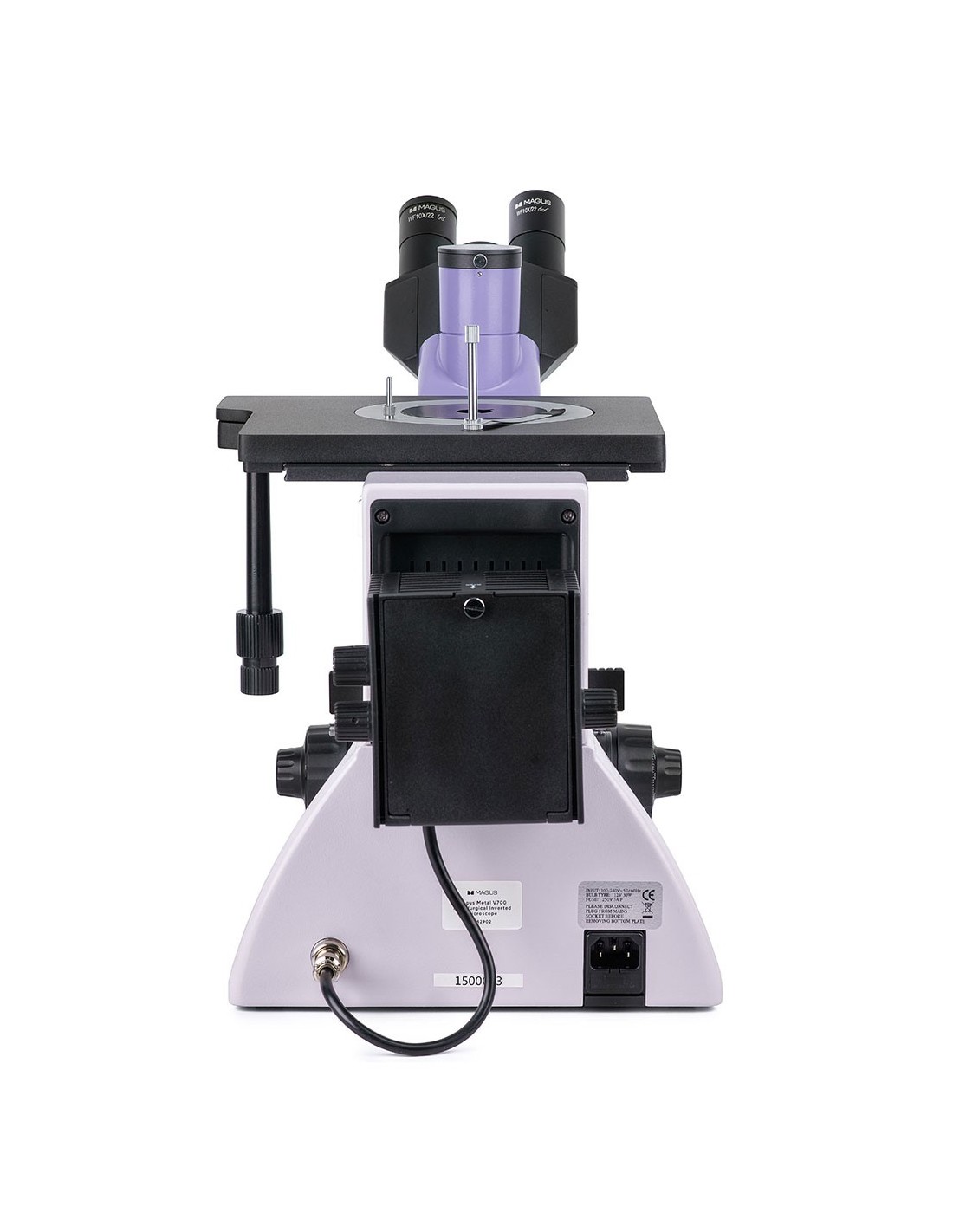

The illuminator for reflected light observations has a 30W halogen bulb with adjustable brightness. The light is powered by the AC mains electricity supply. The brightness is bright enough to make observations with all included objectives, using brightfield or polarized light microscopy techniques. Köhler illumination can be set up and the light source can be centered along the three axes. To modify the color rendering in photomicrograph images you can use the color filters provided. Polarization tools are also available: an analyzer and a polarizer, both removable.
Stage and focusing mechanism
The stage includes the insertion of a round plate with a 10 mm, 20 mm or 30 mm hole to which the sample to be observed is fixed with a support system. The stage is quite large (242x200 mm) and moves along two axes integrally with the sample fixed to it. You can adjust the sharpness of the image using the coarse and fine focus knobs (coarse and fine screw). It is possible to adjust the tension stiffness for the coarse screw and there is a fixing knob.
Accessories
Additional accessories make it possible to obtain maximum performance performance from the MAGUS Metal V700 microscope. Eyepieces, planachromatic objectives with long working distance, calibration slides and digital cameras are available.
Key Features of the Microscope:
- Examination of large, heavy samples using bright-field and polarized light microscopy techniques; only one side of the sample needs to be prepared
- Large stage with round plates equipped with holes of 10 mm, 20 mm or 30 mm diameter
- The trinocular head can be rotated 180 ° during assembly
- Two options for housing a digital camera and a monitor: on the trinocular head with 50:50 and 100:0 beam splitter or on the microscope frame with 100:0 or 0 beam splitter: 100
- Observations in reflected light, light source: 30 W halogen lamp with adjustable brightness
- Configurable Köhler illumination, removable analyzer and polarizer and light source with centering possibility
- Large selection of compatible accessories to expand the capabilities of your microscope
Key camera features:
- Recommended for use with low magnification lenses
- Light-sensitive sensor for clear images even in low light conditions
- Frame rate of 59 fps, which is sufficient for observation of moving objects or fast-moving processes
- The package includes software that fully ensures the functionality of all the camera's features and, consequently, a “quick start”
- USB 3.0 interface reliable for high data transfer speeds
- Resolution adjustment so you can choose the option that best suits you at any given moment

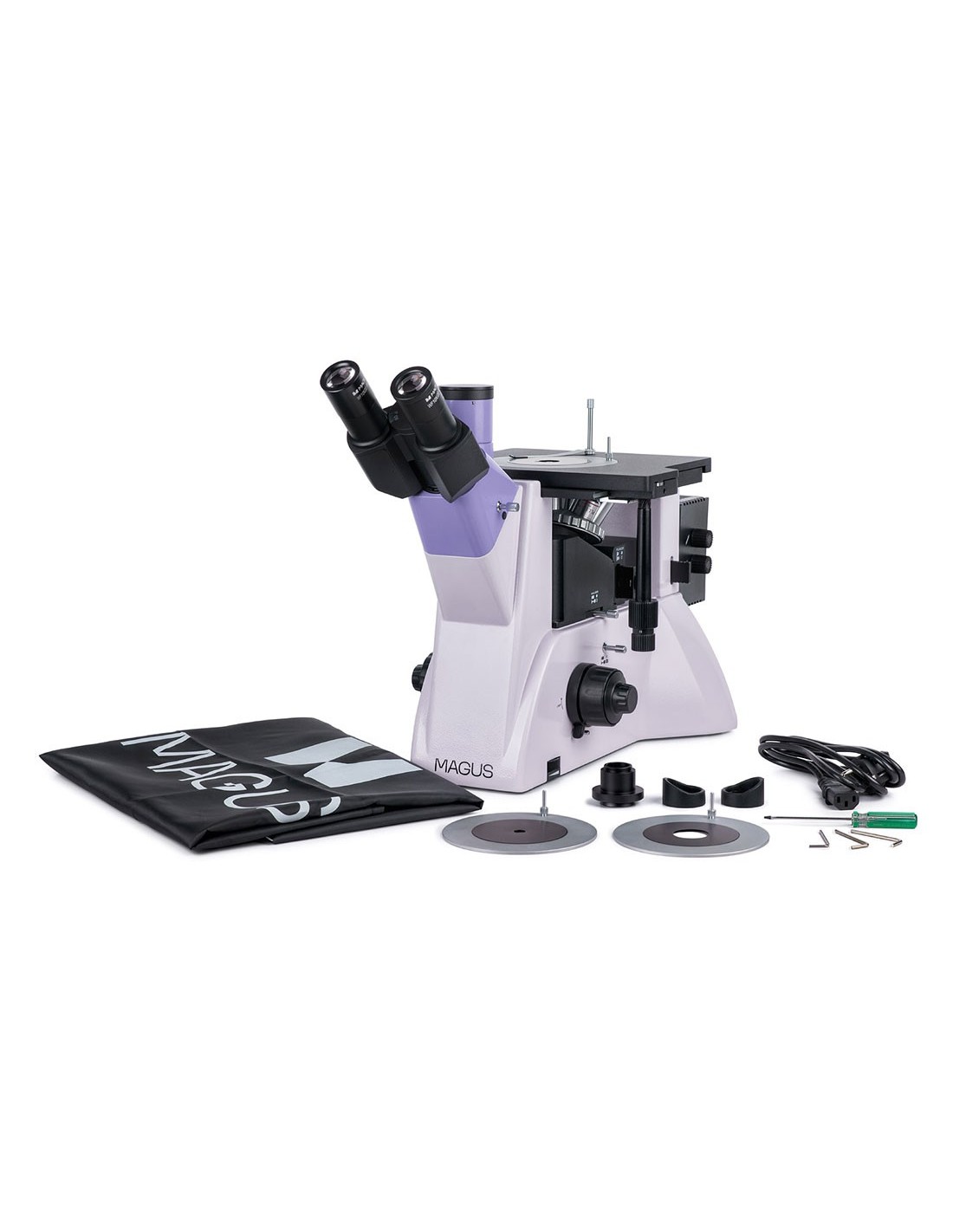

The package contains :
- MAGUS CBF30 digital camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Stand with power input, focusing mechanism, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- All-round plan achromatic objective 'infinity: PL L5x/0.12 WD 26.1 mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2 mm
- Infinity plan achromatic objective : PL L20х/0.40 WD 8.80 mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68 mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- 1x C-mount adapter
- Allen key
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs. )
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs) .)
- Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98 mm
- Infinity plan achromatic objective: PL L60x/0.70 WD: 2, 08 mm
- Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25 mm
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018454 |
| Package size (WxDxH) | 49x34x68 cm |
| Shipping weight | 17.1 kg |
| Delimiter | MAGUS Metal V700 inverted metallographic microscope |
| === Delimiter === | Microscope Specifications |
| Type | light/optical , digital, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf, 180° rotatable |
| Tilting angle of the head | 45° |
| Magnification, x | 50–1000 base (*optional: 50–1250/1500/2000/2500) |
| Magnification range | from 800x to 1280x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12; PL L10x/0.25; PL L20x/0.40; PL L50x/0.70; PL L100x/0.85 (dry); parfocal distance: 45 mm (*optional: PL L40x/0.60; PL L60x/0.70; PL L80x/0.80) |
| Nosepiece revolver | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 242x200 |
| Range of movement of the stage, mm | 30/30 |
| Stage characteristics | two-axis mechanical, Ø130 mm rotating plate with Ø10 mm, Ø20 mm and Ø30 mm holes |
| Diaphragm< /td> | integrated field and aperture |
| Focus | coaxial, coarse focus (with micrometer screw tension adjustment knob and knob fixing) and fine focus (0.002 mm micrometric screw) |
| Halogen |
| yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/30 W |
| Optical filters | green, blue, yellow, satin |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | removable analyzer and polarizer |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Lighting position | lower |
| Search method | bright field, polarized light |
| Set with pencil case/case/bag | dust cover |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 6.3 |
| Maximum resolution, px |
| td> | 3072x2048 |
| Sensor size | 1/1.8" (7.37x4.92 mm) |
| Pixel size, µm | 2.4x2.4 |
| Light sensitivity | 425 mV at 1 /30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.02 ms – 15 s |
| Video recording | yes |
| Video recording | yes |
| Frame rate, fps@resolution | 59@3072x2048, 59@ 1536x1024 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format |
| Image format |
| td> | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, * .avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 ( built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Balance white | manual, automatic |
| Exposure control | manual, automatic |
| image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/ 10/11 (32-bit and 64-bit), Mac OS td> |
| Mount type | C-mount |
| Body | robust aluminium |
| td> |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
