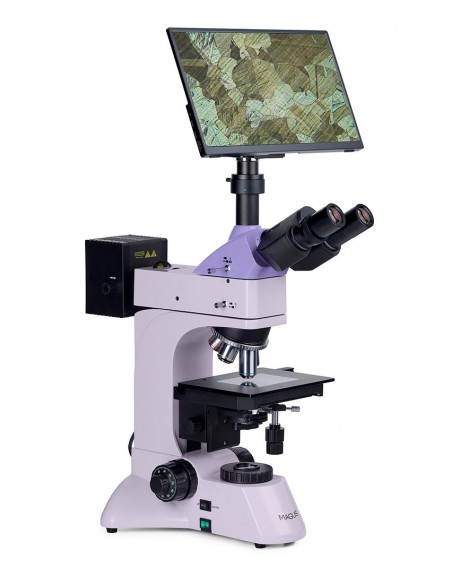

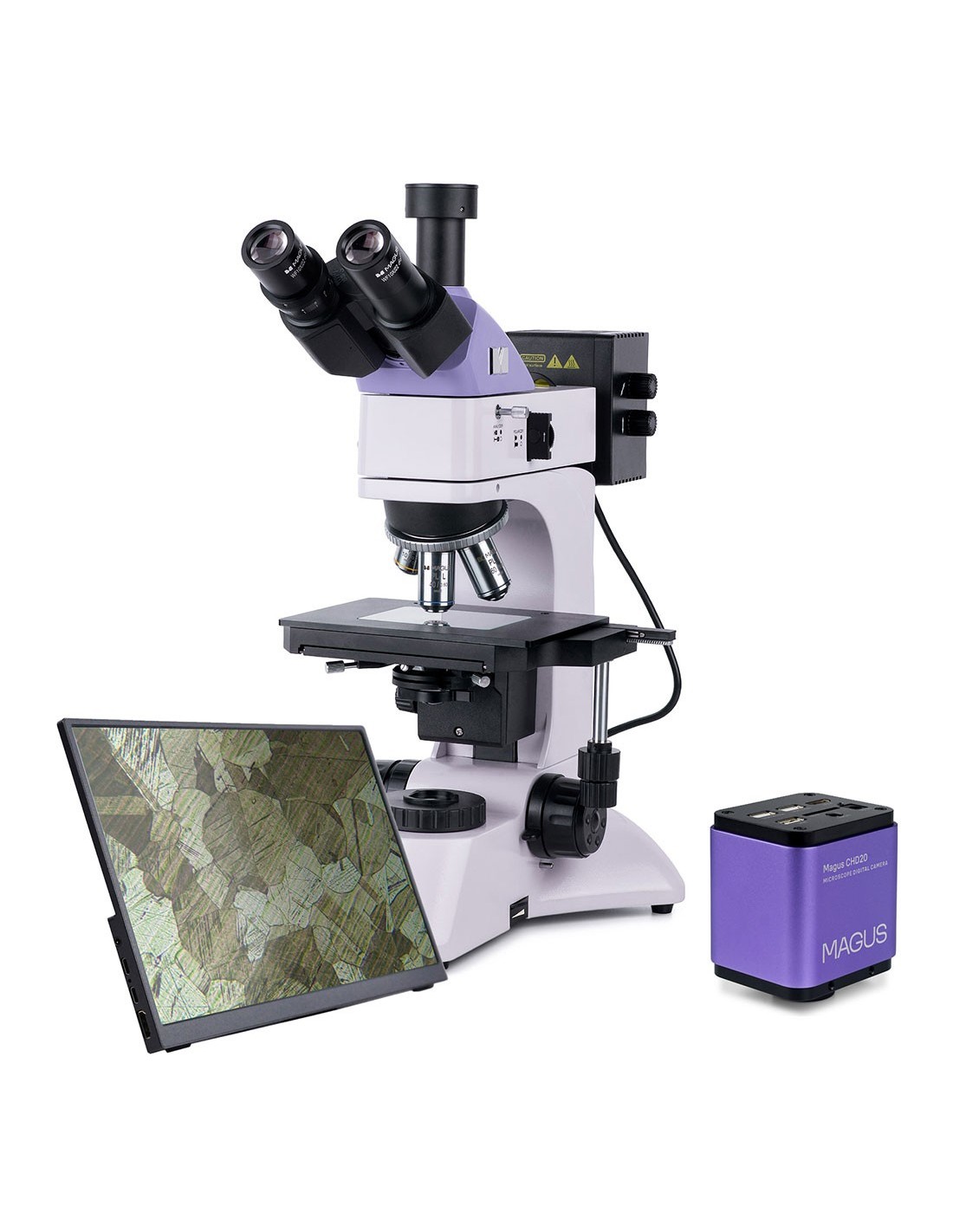

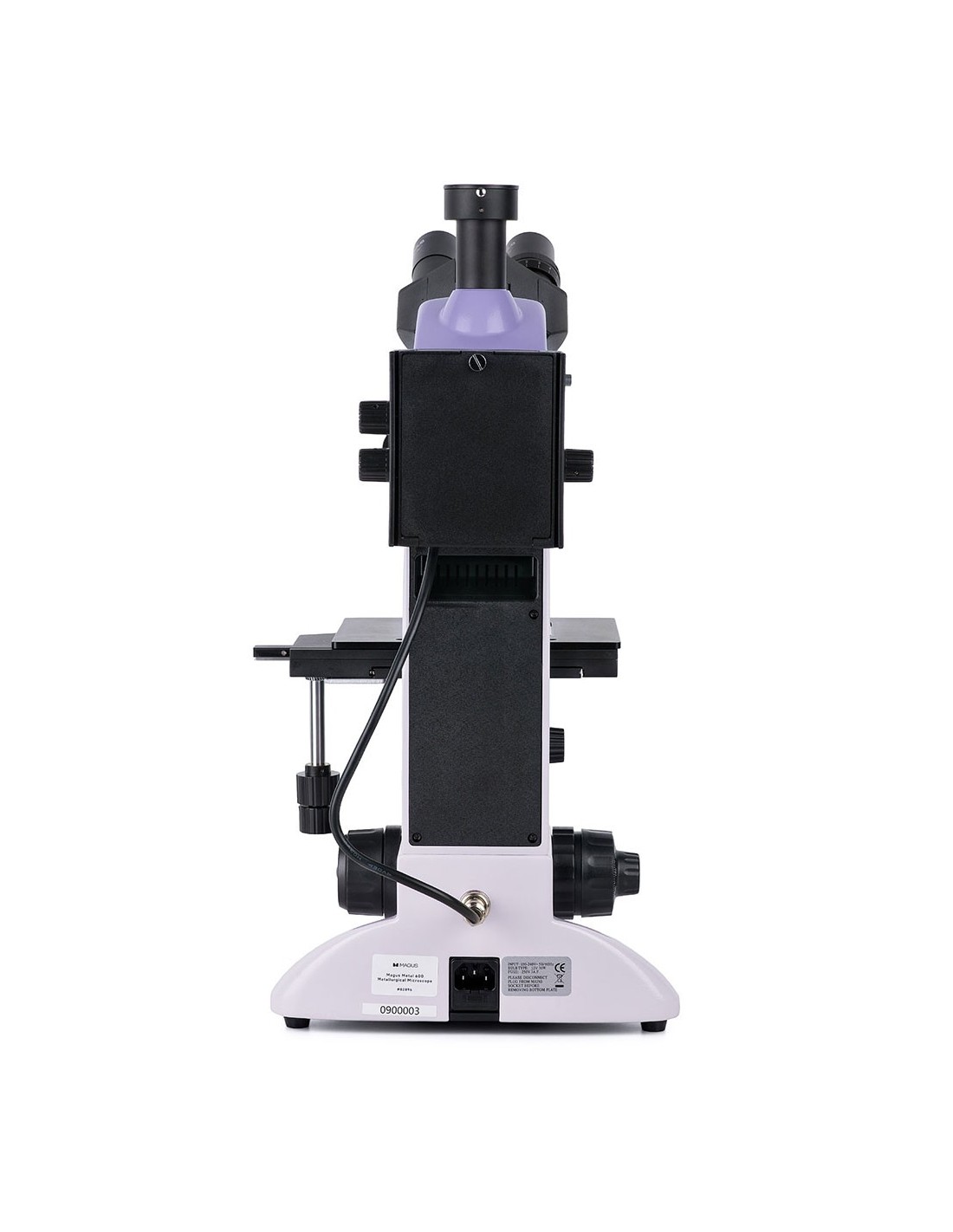

The MAGUS Metal D600 LCD metallographic microscope is designed for the study of opaque samples (metals, alloys, paint coatings, semiconductors and other materials) in reflected light with bright field and polarized light microscopy techniques. It is possible to study the microstructures of polished flat samples. The transmitted light illuminator also allows the examination of particles stuck on filters and translucent materials (such as films) under the microscope. The microscope is suitable for research and analyzes conducted by geologists, metallurgists, engineers, archaeologists and specialists in other scientific fields.
Digital camera
The MAGUS CHD20 digital camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 px. The camera has high light sensitivity suitable for observations with fluorescent light. Using R, G, B primary color mosaic filters produces sharp, low dark current images.
The camera uses an HDMI interface to connect directly to a TV monitor or projector. In this way, the camera operates independently without a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. An additional USB 2.0 interface is available for connecting the camera to a PC.
Video is recorded at 60 fps or 50 fps depending on the video output interface.
The camera combines high FPS speed and high HDMI bandwidth, so videos look brilliant without stuttering or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor

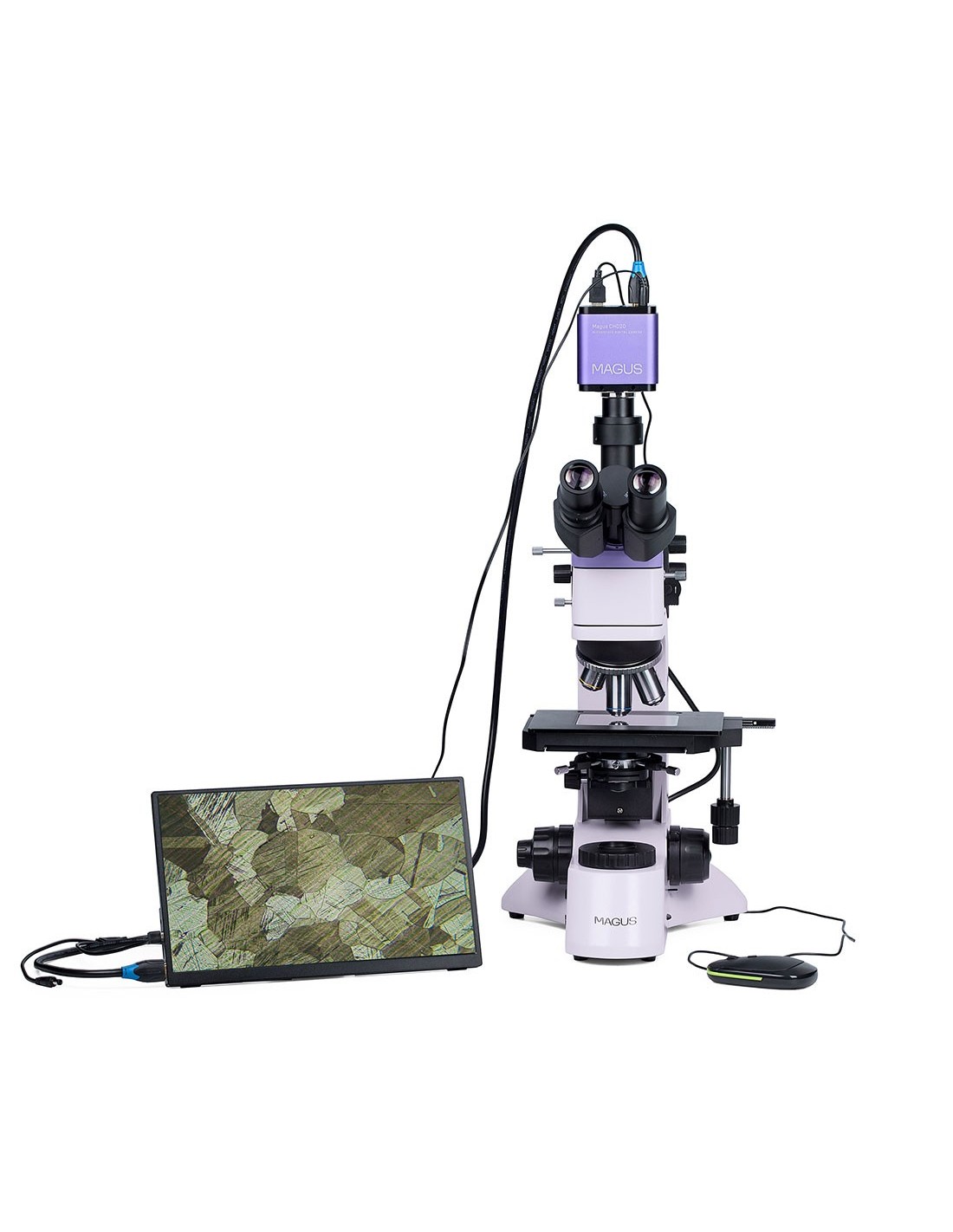

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.
Optics
Optics
strong>

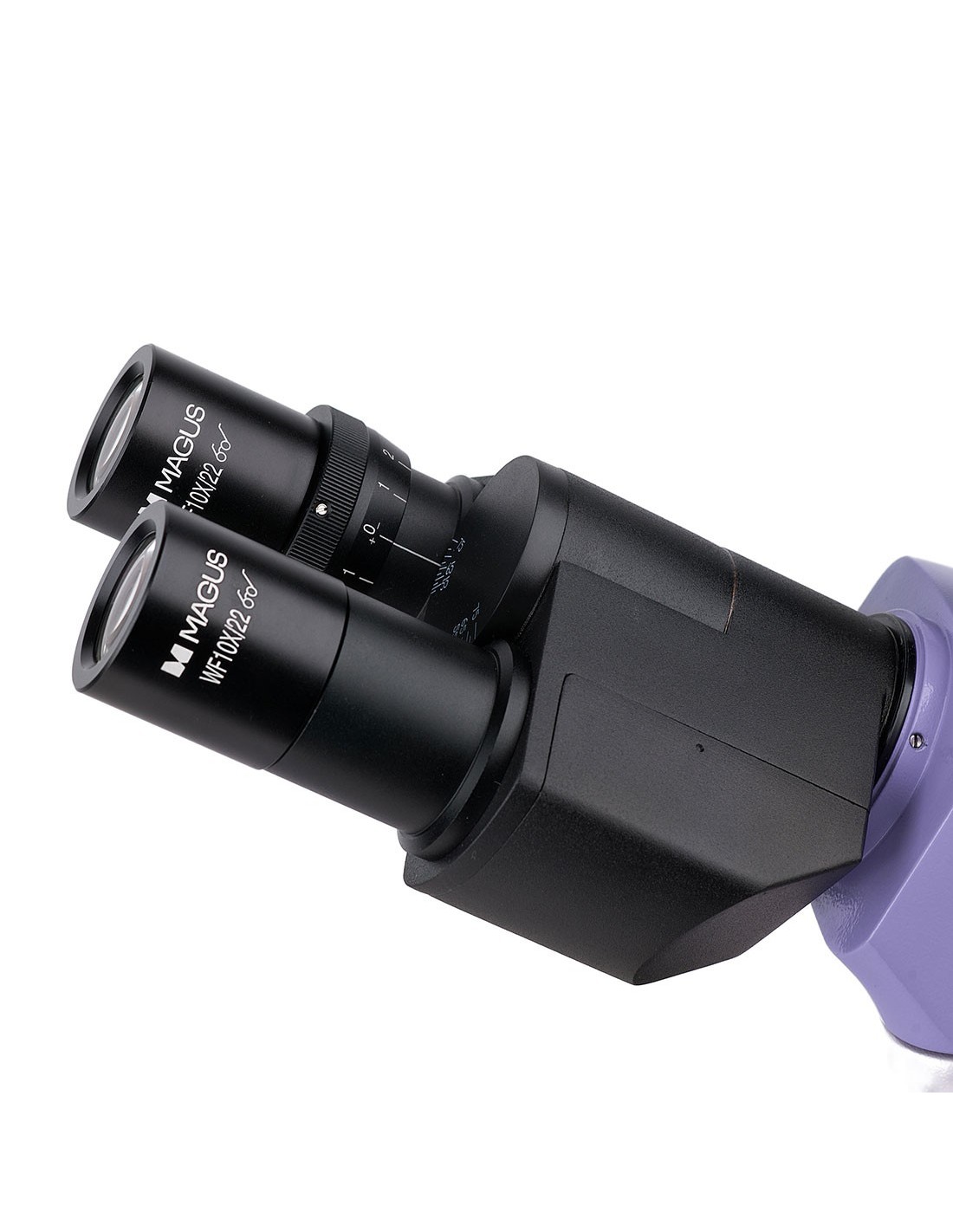

The trinocular head comes with a trinocular tube for mounting on the camera (not included). The light beam can take two positions: 100:0 or 0:100, i.e. the light beam can be directed onto the digital camera or the eyepiece tube. The trinocular head is inclined by 30°, making it ideal for long-lasting observations. On the left barrel there is a diopter adjustment ring.

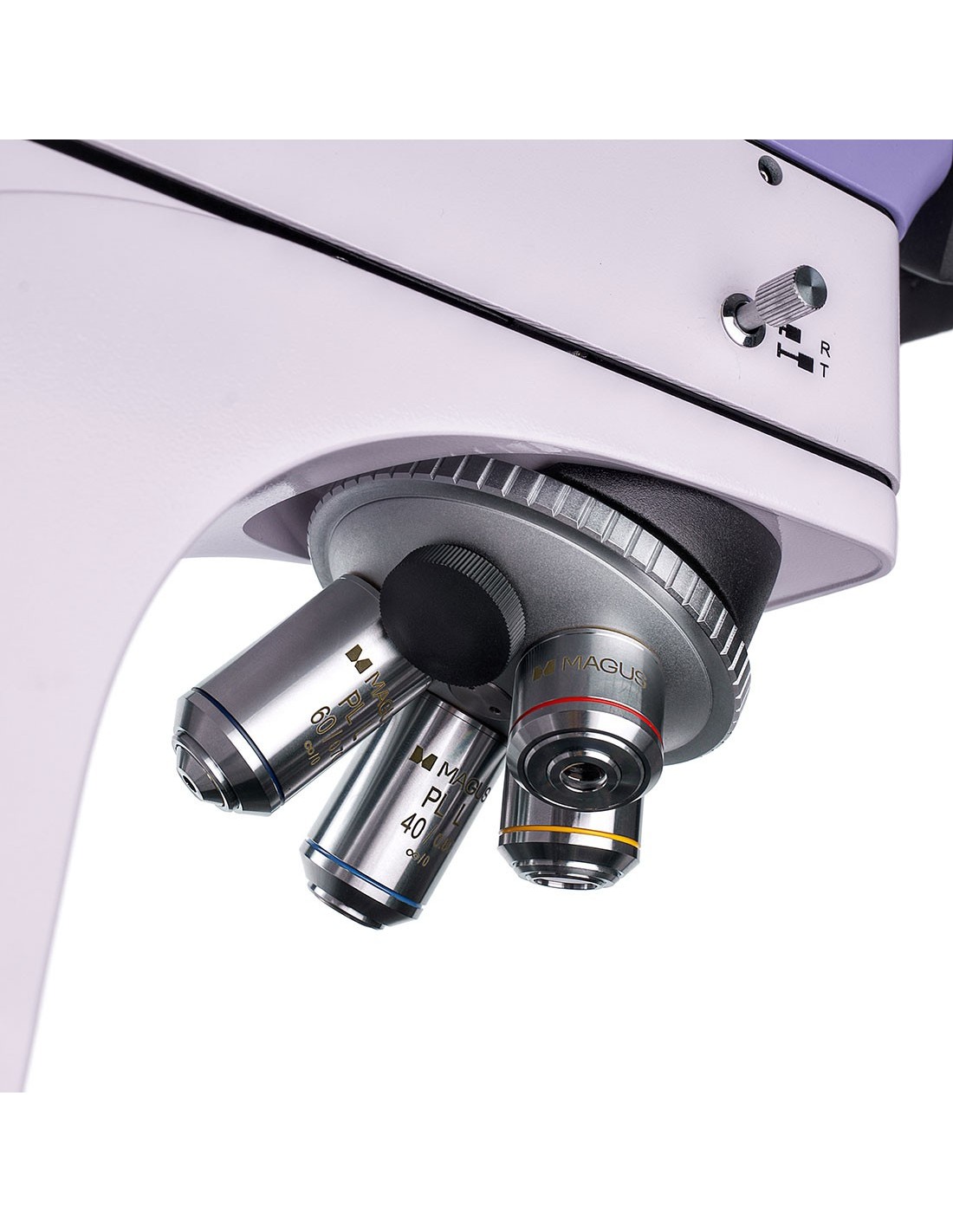

In the basic configuration, the magnification of the microscope varies from 50x to 600x. To increase the maximum magnification limit, additional eyepieces can be mounted. The nosepiece is oriented towards the inside of the instrument. Five lenses can be mounted simultaneously: four are included in the kit and one slot is free for installing an additional lens. The microscope is equipped with plan achromatic objectives with a long working distance suitable for bright field microscopy.
Illumination

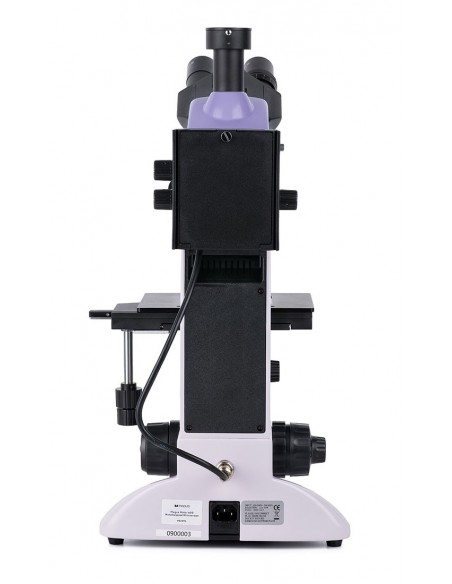

The microscope is equipped with transmitted and reflected light illumination. Both use 30W halogen lamps with adjustable brightness, powered by AC power. Halogen lamps emit light with a color temperature that ensures greater comfort for the eyes.
The microscope is equipped with polarization tools for reflected light observations: an integrated analyzer and a removable polarizer. The aperture and field diaphragms make it possible to set the Köhler illumination. Colored filters are also included in the kit. The apertures and the reflected light light source can be centered.
The transmitted light lighting system uses a traditional Abbe condenser, the position of which can be adjusted in two ways: centered and height-adjusted. It is completed with a folding lens that allows it to be used with low magnification objectives. There are field diaphragms and an aperture, which allow the Köhler illumination method to be used.

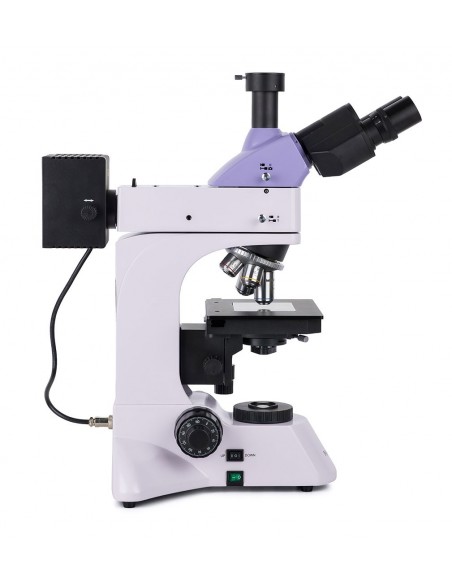

Stage and focusing mechanism
The maximum Height of the sample that can be put on the stage is 20 mm. The sample can be moved by moving the stage along the two axes. It is equipped with a glass slide to be used for the observation of opaque specimens.
Coarse and fine focusing mechanisms are used to adjust the focus. Focusing is smooth and precise. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focusing knobs are positioned coaxially on both sides, so you don't have to keep your hands in the air during observation, but comfortably on the table.
Accessories
The MAGUS Metal 600 microscope can be further equipped with additional eyepieces, objectives with a long distance, digital cameras and calibration slides.
Key features of the microscope:
- Microscope for studying opaque, flat and polished specimens in reflected light and translucent specimens in transmitted light
- Trinocular head with a trinocular tube and beam splitter
- Trinocular head with a trinocular tube and beam splitter li>
- Reflected and transmitted light light source: 30 W halogen lamp
- Köhler illumination method in transmitted and reflected light, reflected light polarized microscopy technique
- Elements (diaphragms and light sources) of the reflected light illumination system that can be centered, filter sets
- Abbe condenser with flip-up lenses can be used with low magnification objectives
- Wide range of additional eyepieces and lenses
Key features of the camera:
- The camera works independently without a PC connection via HDMI interface . It is possible to connect to a PC via USB 2.0 interface
- The camera has a resolution of 1920x1080 pixels, the ideal choice for viewing images on a Full HD monitor
- 60 fps or 50 fps based on the video output interface for observing moving objects, recording videos and specimen movements without lag or jerkiness
- The color back-illuminated SONY Starvis CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

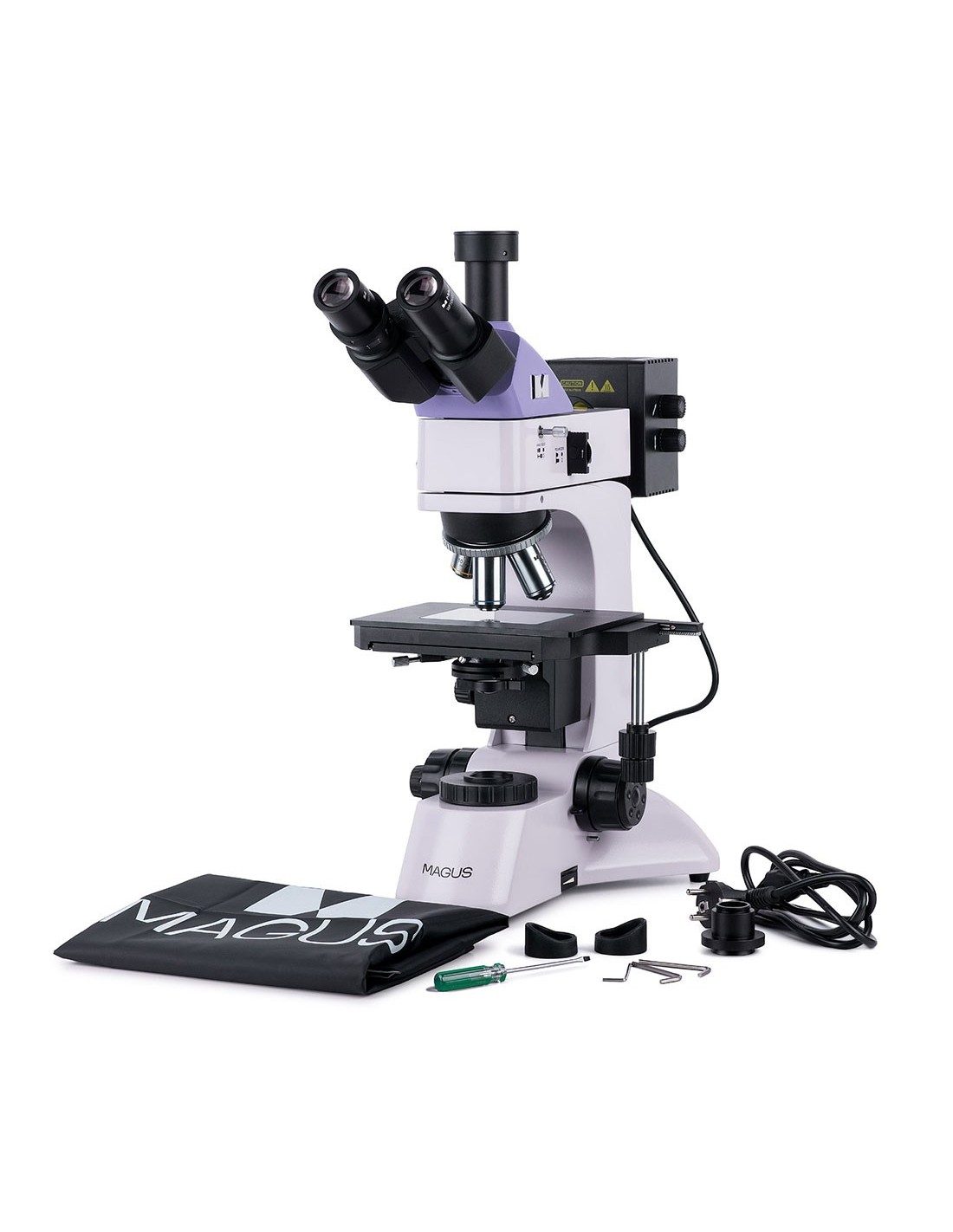

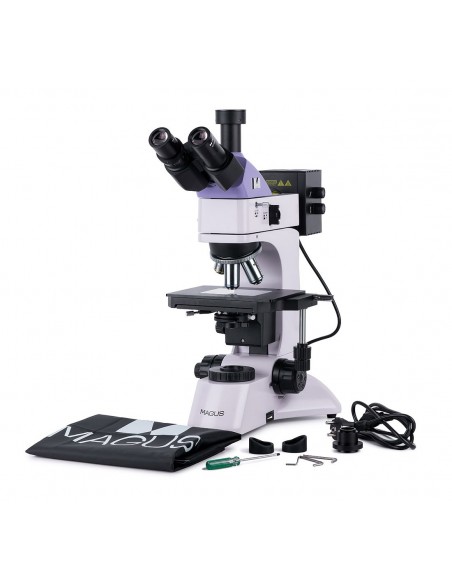

The package contains:
- MAGUS CHD20 digital camera (digital camera, HDMI cable (1.5 m), USB 2.0 cable (2 m), mouse with USB, 32 GB SD memory card, 12 V/1 A AC power adapter (Euro), installation CD with drivers and software, user manual and warranty card)
- MAGUS MCD20 LCD monitor
- MAGUS MCD20 LCD monitor li>
- Base with power input, transmitted light light source and condenser, focusing mechanism, stage and nosepiece
- Illuminator for reflected light observations with bulb holder
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 WD 26.1 mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20 .2 mm
- Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98 mm
- Infinity plan achromatic objective: PL L60x/0.70 WD: 2 .08 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Glass plate for stage
- 1x C-mount adapter
- Allen key
- Power cable for AC mains
- Power cable for reflected light illuminator
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/22 mm eyepiece with graduated scale
- li>
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.) )
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity planachromatic objective: PL L20х/0.40 WD 8.80 mm
- Objective plan achromatic objective at infinity: PL L50х/0.70 WD 3.68 mm
- Plan achromatic objective at infinity: PL L80x/0.80 WD: 1.25 mm
- Plan achromatic objective to infinity: PL L100x/0.85 (dry) WD 0.40 mm
- Calibration slide
| Mark | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018287 |
| Package size (LxWxH) | 35x30x75 cm |
| Shipping weight< /td> | 17.25 kg |
| Delimiter | MAGUS Metal 600 metallographic microscope |
| Type | light/optical, digital, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–600 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12, PL L10x/0.25, PL L40x/0, 60, PL L60x/0.70; parfocal distance 45 mm (*optional: PL L20x/0.40, PL L50x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 210x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical stage, with a glass slide |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Condenser | transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, aperture diaphragm and lenses adjustable flip-ups, with fixing screws |
| Focus | coaxial, coarse focus (25 mm, with fixing knob and tension adjustment knob) and fine focus (0.002 mm) |
| Illumination | halogen |
| Brightness adjustment< /td> | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | reflected and transmitted light: 12 V/30 W |
| Optical filters | green, blue , yellow, satin |
| Operating temperature range, °C | 5 — 35 |
| Elements extra | integrated analyzer and removable polarizer |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Search method | bright field, polarized light |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 11 |
| === Delimiter === | Digital camera |
| Sensor |
| Color/monochrome | color |
| Megapixel< /td> | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size< /td> | 1/2" (7.2x4.05 mm) |
| Pixel size, µm | 3.75x3.75 |
| Interface connectors | USB 2.0, HDMI 1.4 |
| Memory card |
| Possibility to connect additional equipment | mouse with USB, stick (USB) |
| Signal to noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 60@1920x1080 (HDMI), 50@1920x1080 ( USB) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format< /td> | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 1920x1080 (Full HD) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Number of colors displayed | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen ( WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range , % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C) |
| Energy consumption, W | 12 (max.) |
