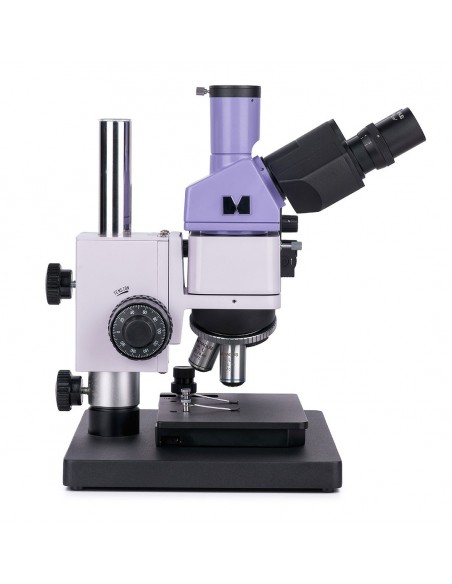

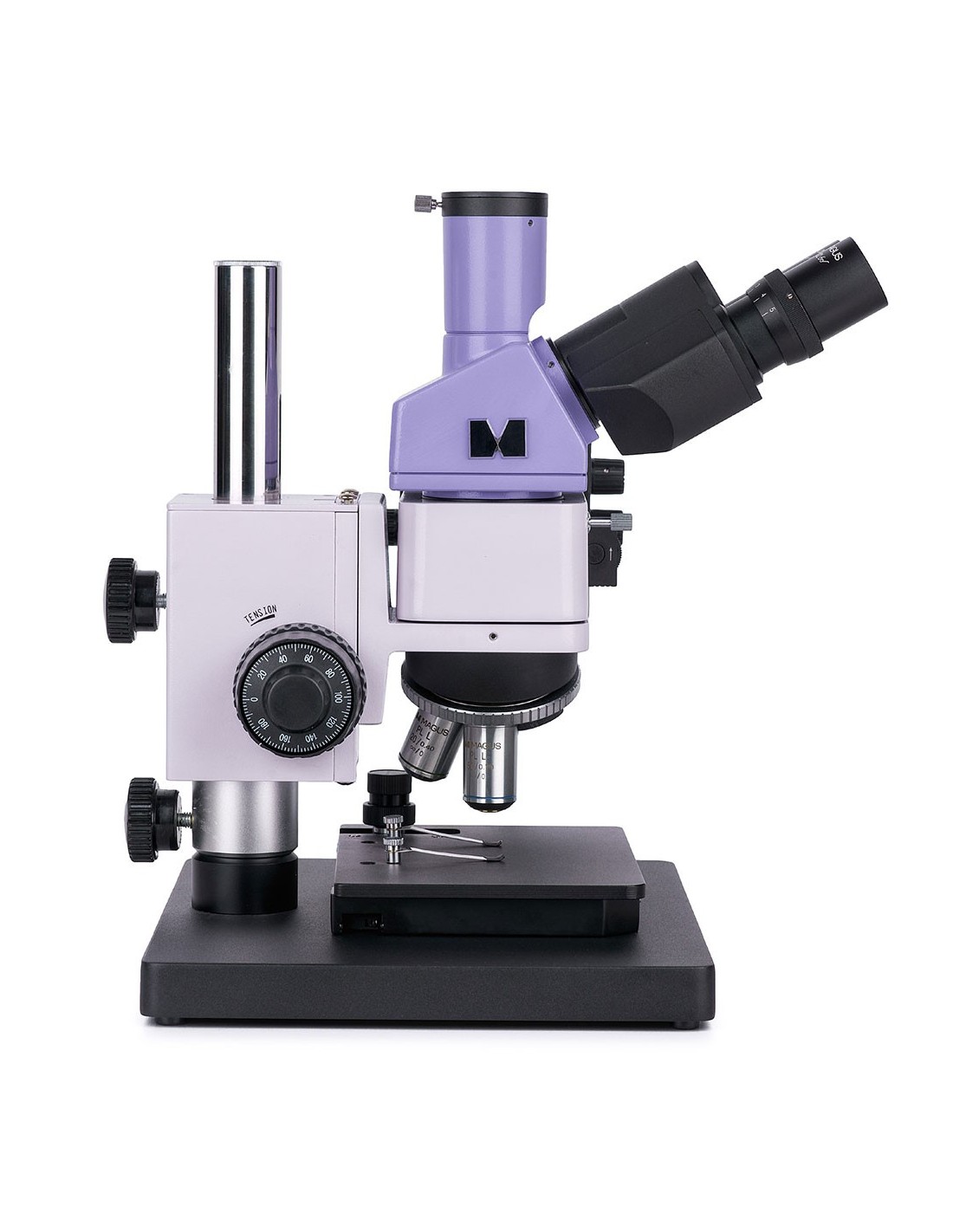

The MAGUS Metal 630 reflected light metallographic microscope is used to examine the microstructure of opaque objects of any height and size. The objects examined are metals, alloys, semiconductors and paint coatings. Microscopy techniques available are bright field and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. The MAGUS Metal 630 microscope is the ideal choice for companies in various sectors, research centers and university departments.
Optics

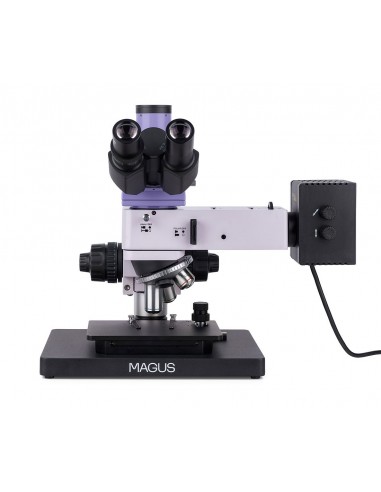

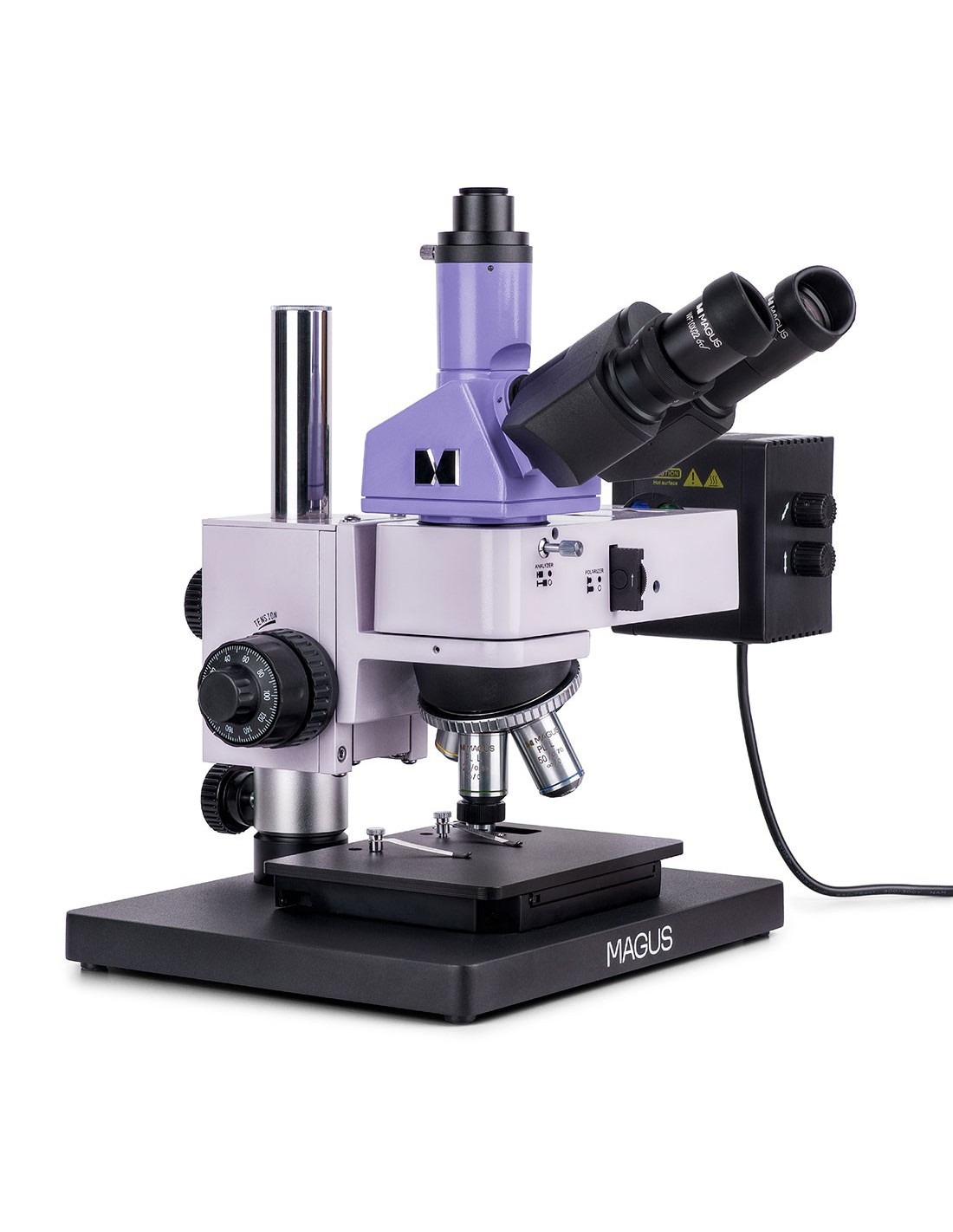

The microscope optics are infinitely correct. The trinocular tube intended for mounting the camera is positioned vertically. You can direct the light beam onto the eyepiece or into the trinocular tube. The camera is not included in the basic configuration. The microscope allows you to work comfortably for many hours thanks to the 30° inclination of the binocular head. The left eyepiece features a diopter correction tool to adjust the optics based on the user's vision.

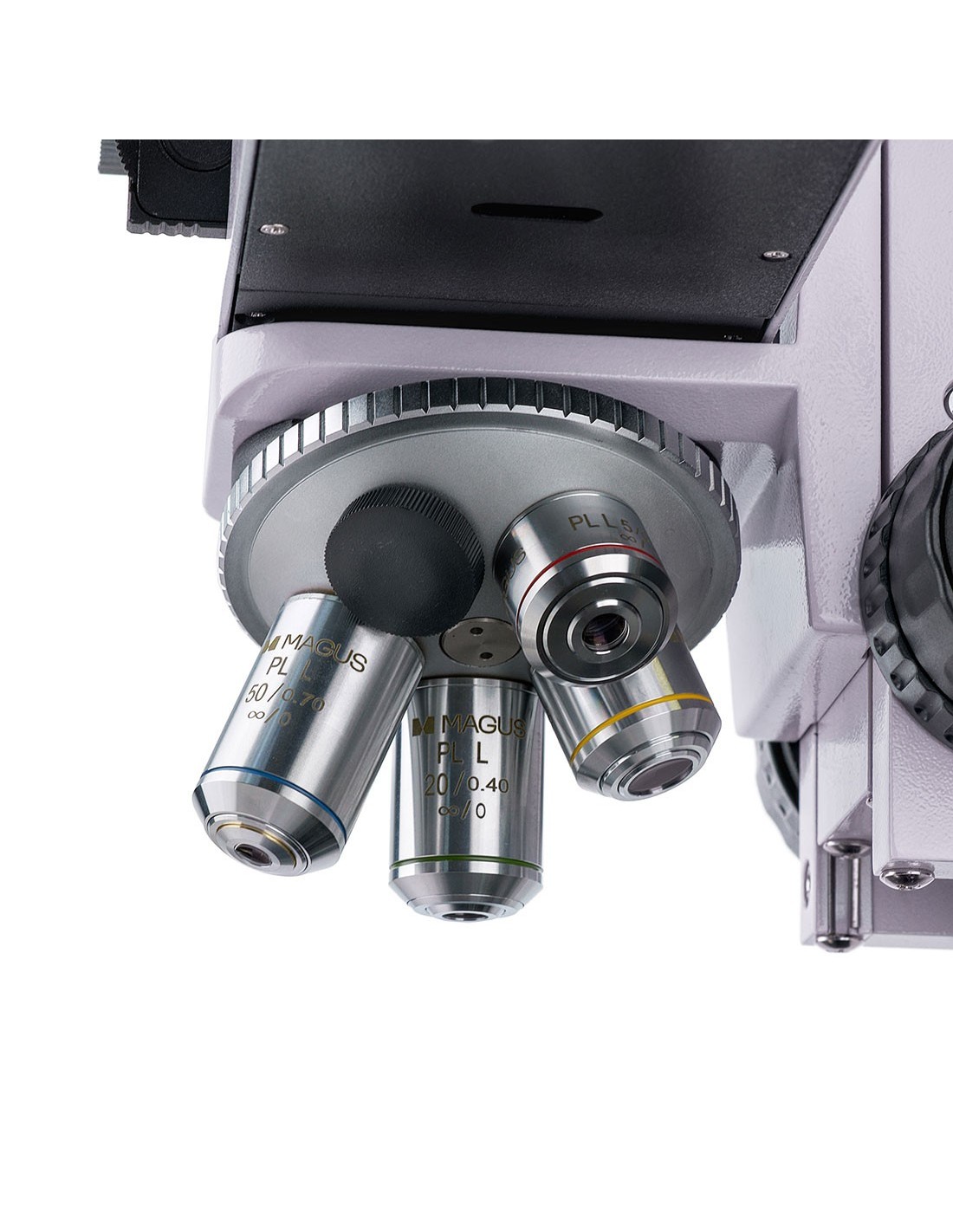

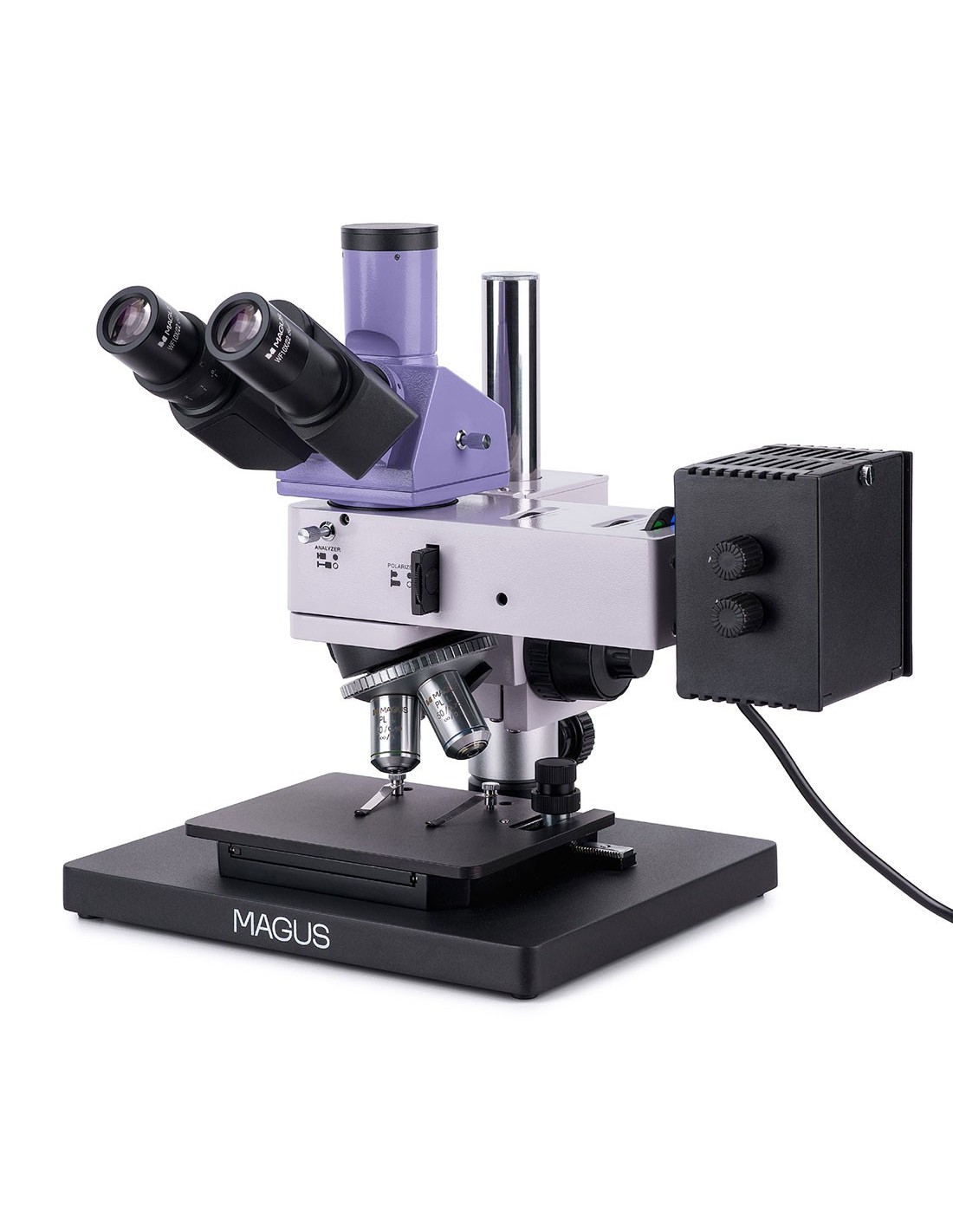

The nosepiece nosepiece has 5 slots. The kit includes 4 plan achromatic objectives. Once installed, there is a free slot for installing an optional lens. Objectives with a long working distance are designed for brightfield microscopy.
Illumination

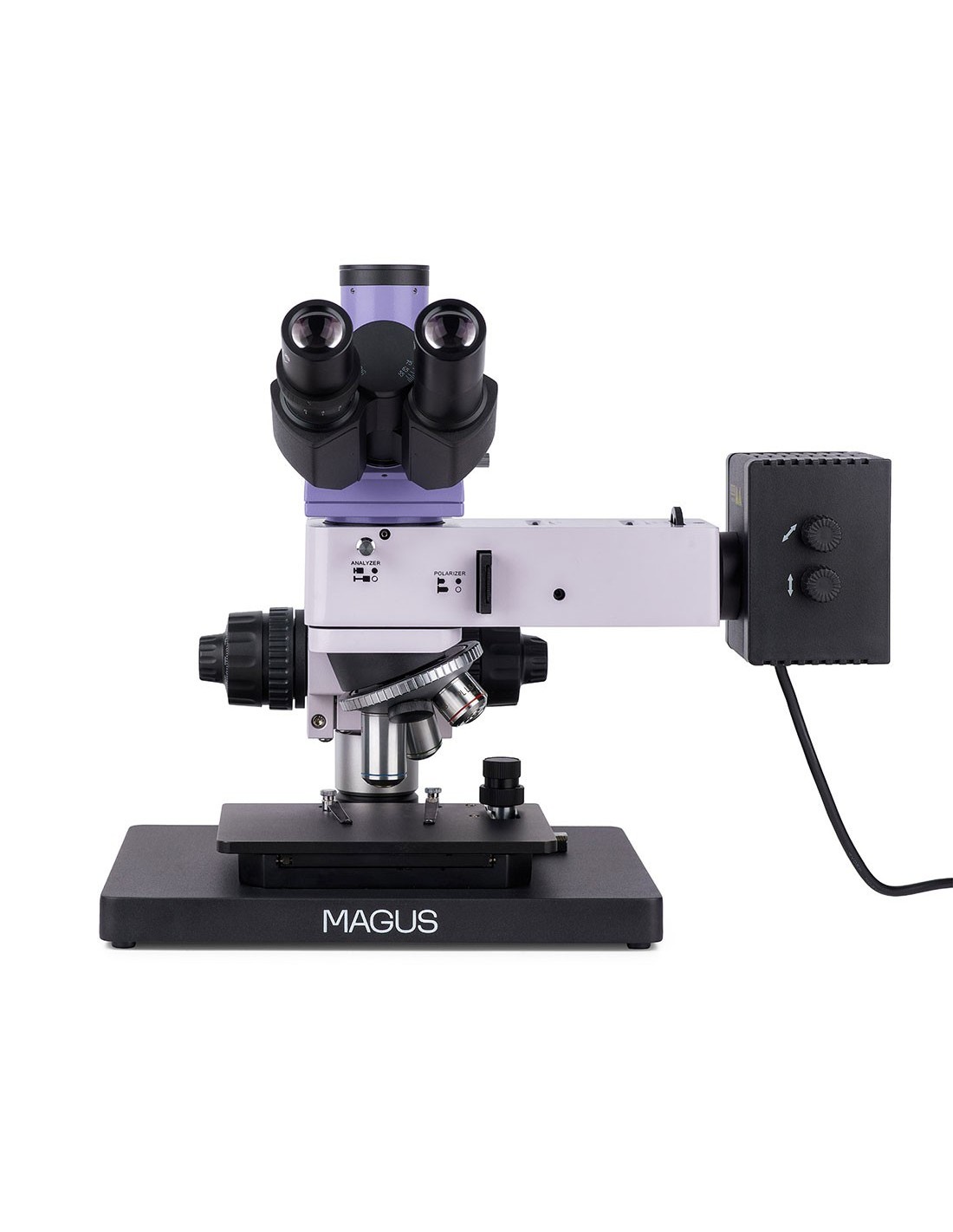

The microscope uses only reflected light illumination. The illumination system is composed of a polarization device, an aperture diaphragm and a field diaphragm. Light source: 30W halogen lamp. The light emitted is not dazzling and does not tire the eyes. Both the iris and the light source can be centered. You can also set the Köhler lighting. The kit includes colored filters.
Stage and focusing mechanism

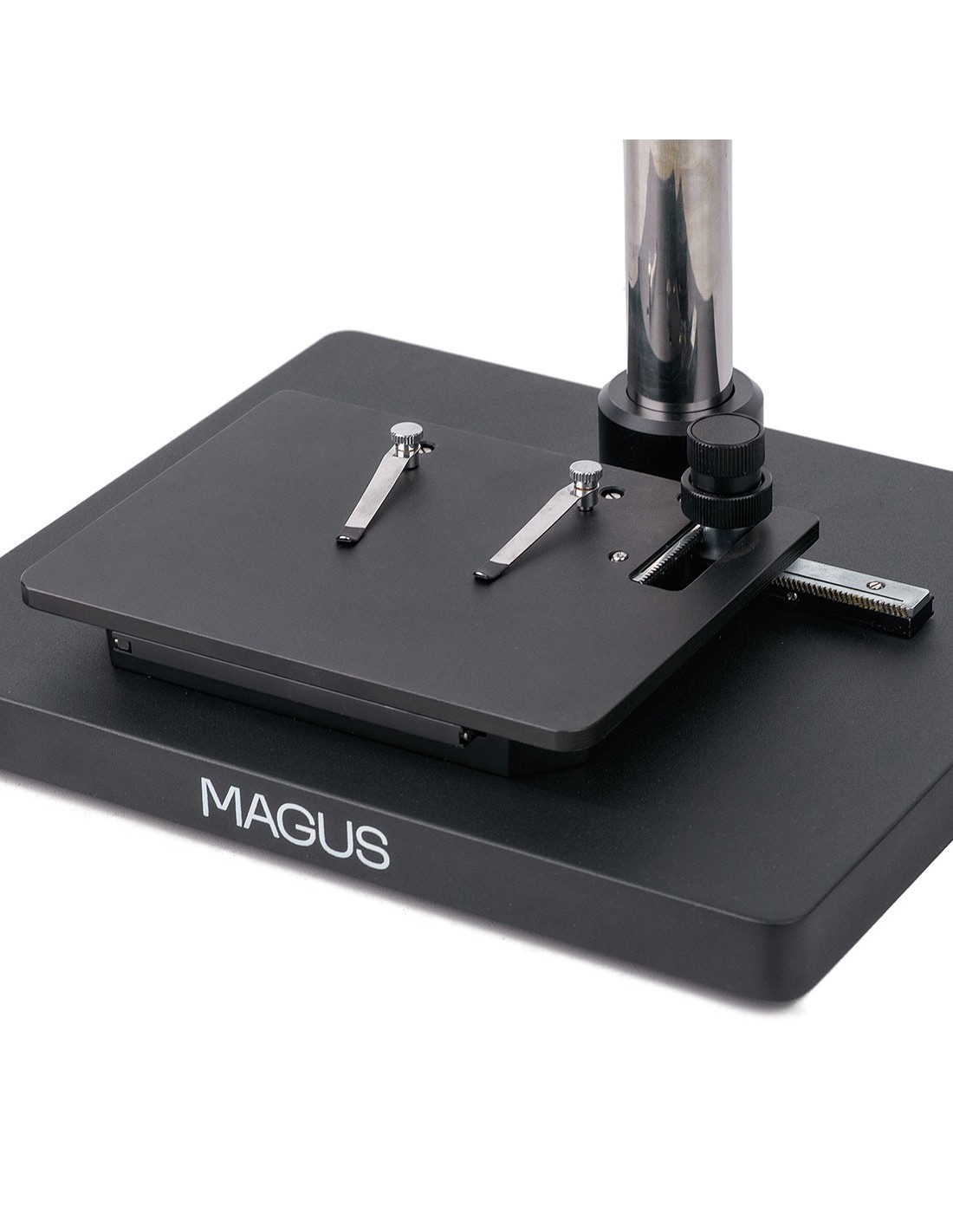

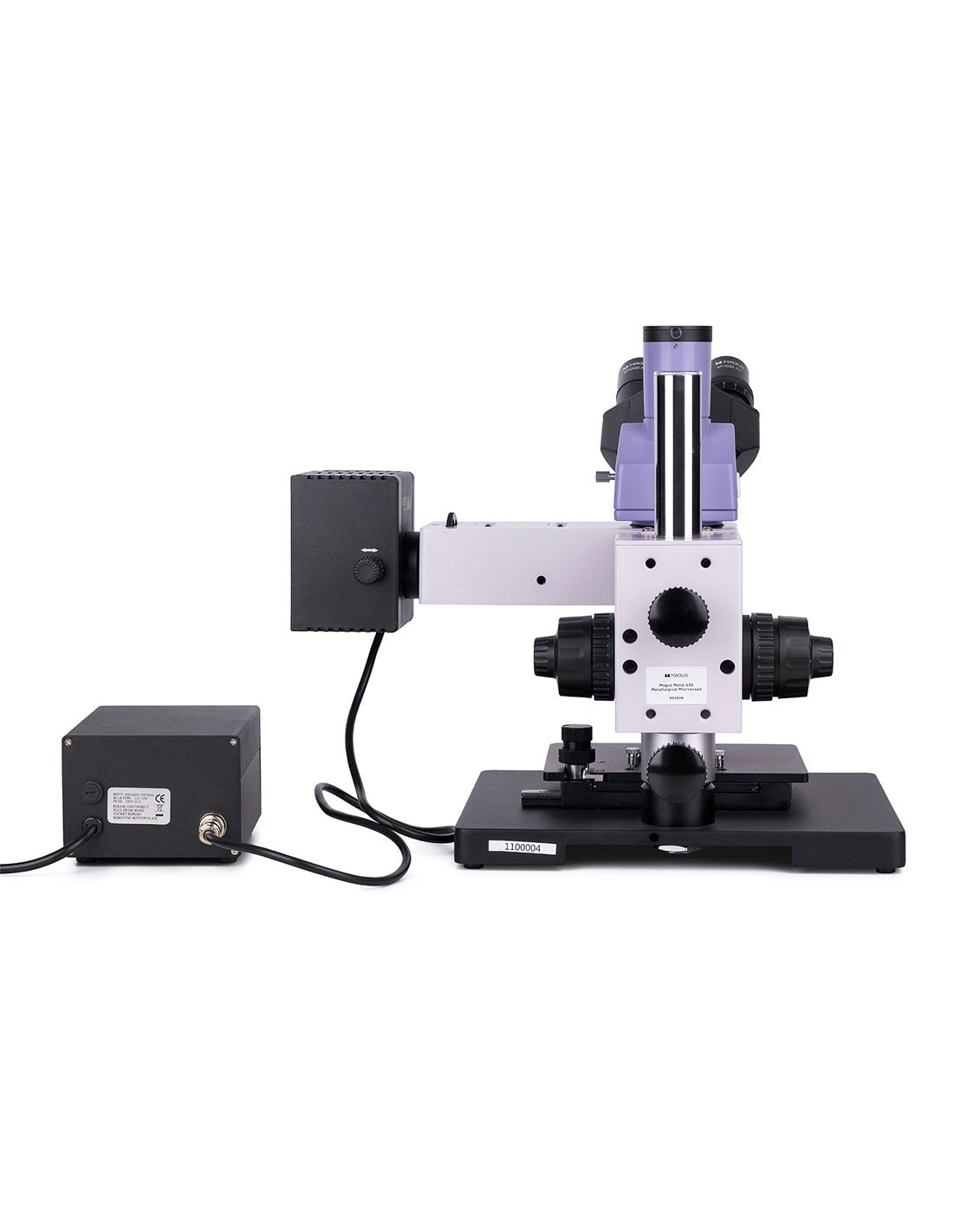

The innovatively designed stand and focusing mechanism has two advantages: compact dimensions and the possibility of observing samples of any height. The microscope can be easily placed on a laboratory floor with a maximum height of 40 cm. Small samples can be examined using a two-axis stage. Focus is adjusted via coaxial coarse and fine focus knobs, located on either side of the stand. The mechanisms work precisely and smoothly. You can also adjust the coarse tension setting.
Accessories
You can upgrade your microscope with optional accessories, such as objectives with a long distance workpiece, eyepieces, digital camera and calibration slides.
Key Features:
- Specimens of any height and size
- Trinocular head with trinocular tube for mounting a digital camera and 100:0 and 0:100 beam splitter
- 30 W halogen lamp with warm tone light for working in reflected light with microscopy techniques brightfield and polarization
- Color filters, option for setting the Köhler illumination, light source and aperture and field diagrams that can be centered
- Compact stand for mounting the microscope on a piece of furniture
- Numerous additional accessories

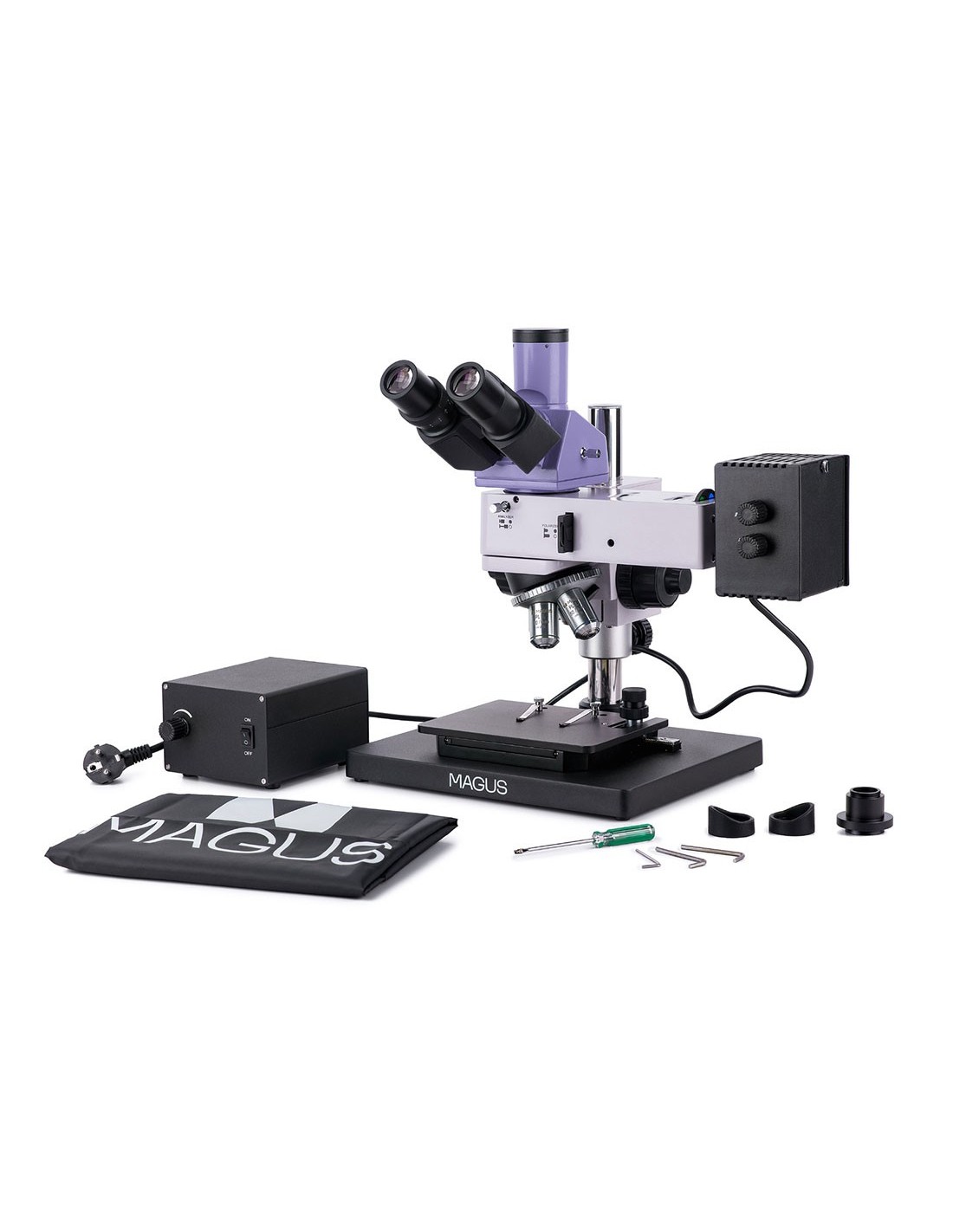

The package contains:
- Support with putting mechanism focus, stage and revolver nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity planachromatic objective: PL L5x/ 0.12 WD 26.1 mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2 mm
- Infinity plan achromatic objective: PL L20х/0, 40 WD 8.80 mm
- Planachromatic infinity objective: PL L50х/0.70 WD 3.68 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs. )
- 1x C-mount adapter
- Allen key
- Base with power input
- Power cable
- Reflected light illuminator power cable
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- 15x eyepiece/ 15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Planachromatic objective at infinity: PL L40x/0.60 WD 3.98 mm
- Plan achromatic objective at infinity: PL L60x/0.70 WD 2.08 mm
- Plan achromatic objective at infinity infinity: PL L80x/0.80 WD 1.25 mm
- Infinity planachromatic lens: PL L100x/0.85 (dry) WD 0.40 mm
- Digital camera
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018324 |
| Package size (WxDxH) | 39x37x73 cm |
| Shipping weight | 19.5 kg |
| Type | light/optical, metallographic |
| Trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–500 base (*optional: 50–1000/1250/1500/2000/2500) |
| Range magnification | from 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL L5x/0.12, PL L10x/0.25, PL L20x/0, 40, PL L50x/0.70; parfocal distance 45 mm (*optional: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 185x140 |
| Range of movement of the stage, mm | 35/30 |
| Stage features | two-axis mechanical stage; Microscope base dimensions: 300x240 mm |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Iris | integrated field and aperture |
| Focus | coaxial, coarse (with focus voltage adjustment coarse) and fine focus (0.002 mm) |
| Halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/30 W |
| Optical filters | green, blue, yellow, frosted |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer |
| User level | expert users, professionals |
| Level difficult assembly and installation | complicated |
| Application | metallographic |
| Illumination position | upper |
| Search method | bright field, polarized light |
| Set with pencil case/case/bag | dust cover |
