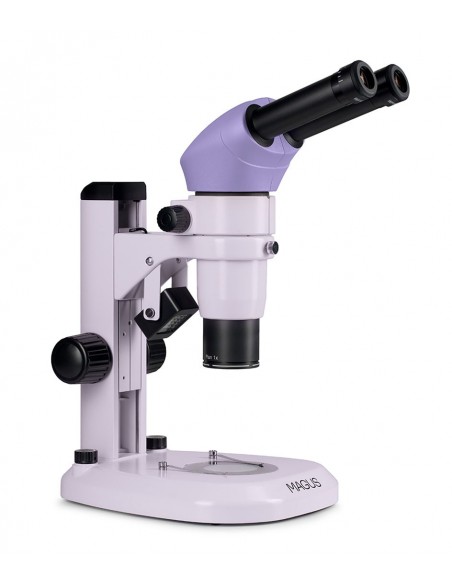

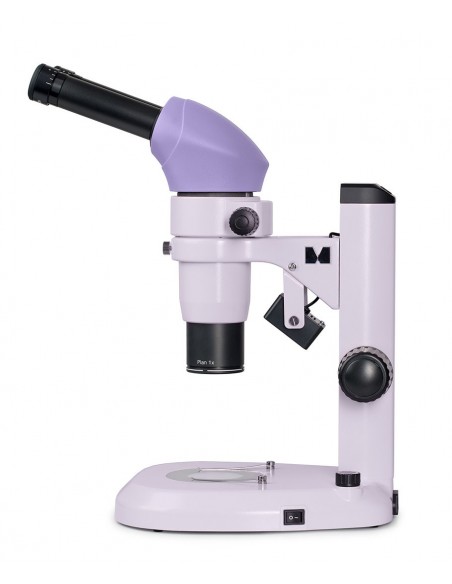

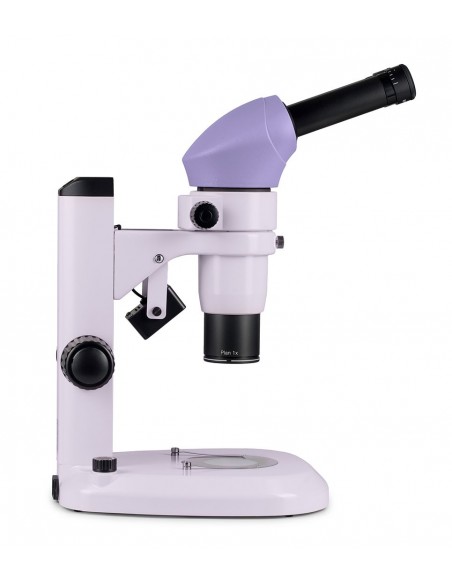

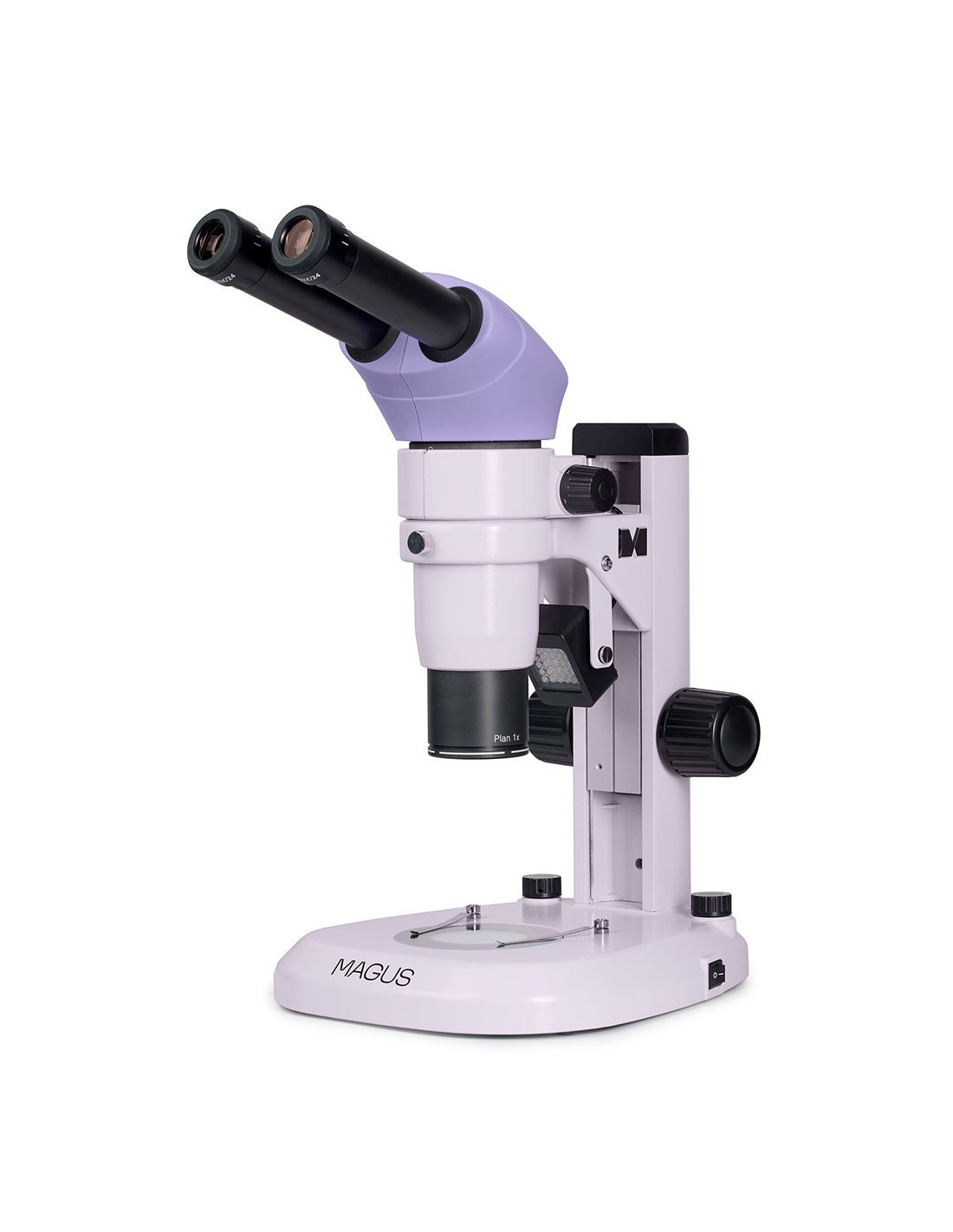

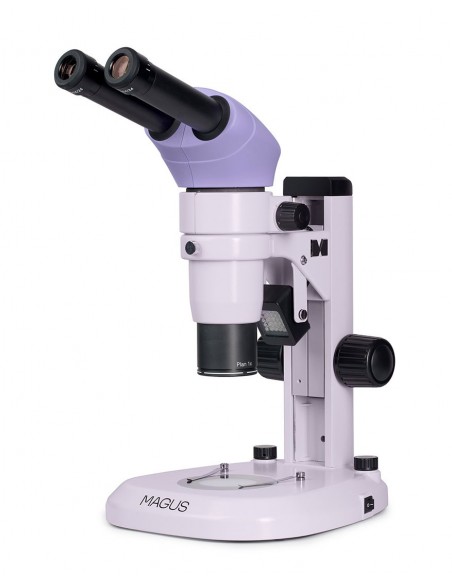

MAGUS Stereo A8 is a stereoscopic research microscope. This model works with three-dimensional objects and creates a 3D image: the researcher has the opportunity to examine the topographical features of the object and estimate its size in a three-dimensional way. The microscope works with opaque and transparent samples, therefore it is equipped with illuminators for reflected and transmitted light.
The microscope is designed according to the CMO (Common Main Objective) system. It has a wide field of view, the image is displayed without geometric distortion, at high resolution and with remarkable color rendering. Additional accessories can add extra functionality to your microscope. The MAGUS Stereo A8 model is suitable for forensic examinations, medical, biological and archaeological research, for observations in the field of microelectronics, materials science and for industrial quality control.

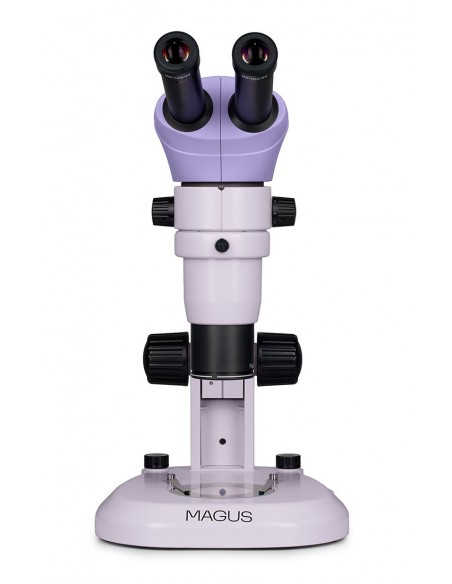

The microscope has a binocular head with pipes installed at an angle of 20 degrees. They do not have a diopter adjustment system. If it is necessary to adjust the sharpness to suit the user's vision, use eyepieces with a diopter adjustment ring. It is possible to install a digital camera on the microscope head: mounted on the intermediate accessory which will require a C-mount adapter.
In a stereoscopic microscope with a CMO system, the two optical channels that pass through the eyepiece tubes are unite in the main goal. It is located at a right angle to the plane of the observed object, without deforming the image of the object. The stereoscopic angle is 11 degrees: the object is visible in three dimensions. The MAGUS Stereo A8 model is equipped with a plan achromatic objective with 1x magnification. The planachromatic lens corrects spherical and chromatic distortions. The working distance of the microscope is 78 mm.
The zoom lens in the tubes simultaneously changes the magnification and focal length, constantly maintaining a clear and sharp image of the object. The image is initially formed in a direct, not inverted form. The zoom ratio of the MAGUS Stereo A8 microscope is 8:1.
You can adjust the focused image using the focus knobs, arranged coaxially. You can adjust the tension of the stroke.

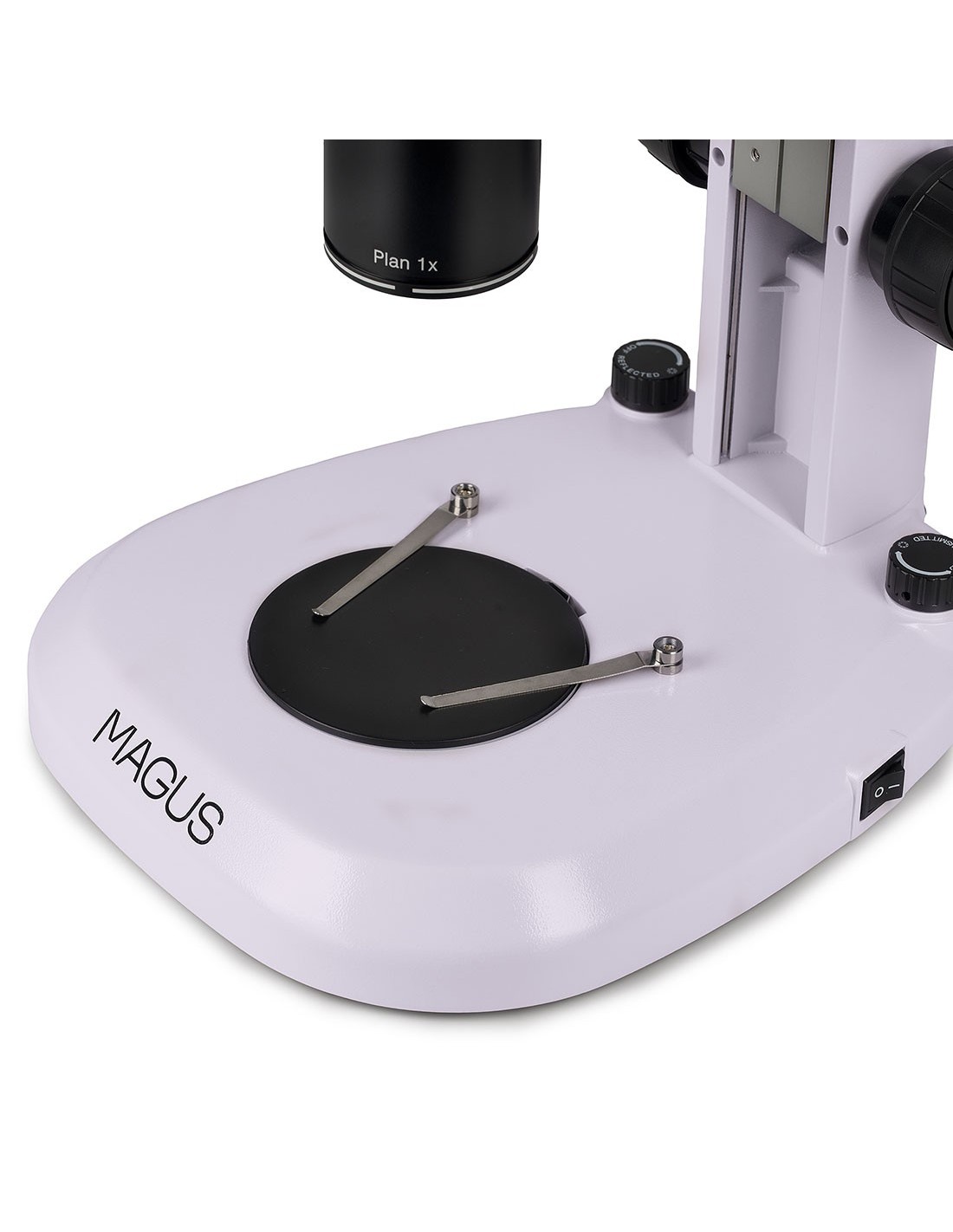

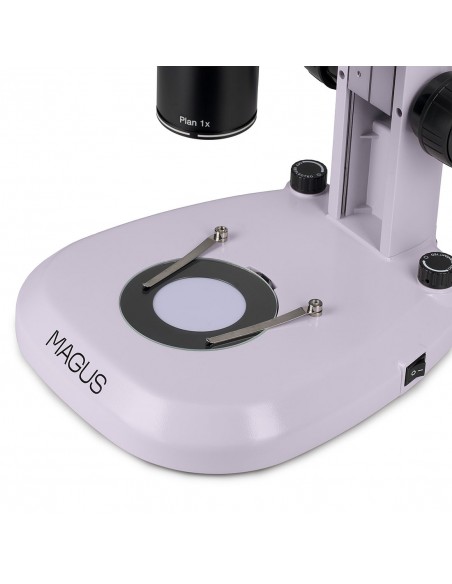

The table is equipped with two plates. The transparent plate is used for translucent and transparent samples and for studying in transmitted light. Helps achieve uniform illumination of the object. The black and white plate serves as a background for opaque objects based on contrast. Light samples are examined on the black plate and dark samples on the white plate.
The light source of the microscope consists of two LED lights. There are two illuminators: transmitted light (6 W) and oblique reflected light (3 W). The LED has a life of 50,000 hours.
It is possible to modify the accessories of the microscope to achieve the desired technical characteristics. Eyepieces affect magnification. The main objective is intended for magnification, working distance and width of the field of view. To measure an object being examined, you must use calibration slides with a division value of 0.1 mm.
Key Features:
- Stereoscopic microscope for research. Technical characteristics can be adjusted with additional or replaceable accessories
- Works with opaque and transparent samples using oblique transmitted and reflected light illuminators
- Light source: LED
- It features the CMO system, with a wide field of view capable of displaying images without geometric distortion
- The binocular head can be integrated with a digital camera
- The main plan achromatic objective has 1x magnification
- The zoom reaches 8x magnification
- Two table plates for different types of study
The package contains:
- Base with integrated transmitted light source and power supply
- Support with focusing mechanism
- Microscope head – objective with visual attachment
- 1x planachromatic main objective
- 10x/22 mm eyepiece with diopter adjustment (2 pcs.)
- 10x/24 mm eyepiece with diopter adjustment (2 pcs.)
- Black and white plate
- Transparent plate
- Oblique reflected light illuminator
- Power cable for AC mains
- Dust cover
- User manual and warranty card
Available upon request:
- Eyepiece 15x/16 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Achromatic main objective 0.3x
- 0.5x plan achromatic main objective
- 2x plan achromatic main objective
- Calibration slide
| Mark td> | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019543 |
| Package size (LxWxH) | 46x44x62 cm |
| Shipping weight | 9.2 kg |
| Type | stereo/instrumental |
| Tested | binocular |
| Magnification, x | 8–64 in basic configuration (*optional: 2.4–256), zoom ratio 8: 1 |
| Magnifying range | up to 200x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10x/22 mm, 10x/24 mm (*optional: 15x/16 mm, 20х/12 mm) |
| Objectives | main objective: 1x planachromatic (*optional: 0.3x achromatic, 0.5x planachromatic, 2x planachromatic); zoom lens: 0.8–6.4х |
| Working distance, mm | 78 |
| Interpupillary distance, mm | 55 — 75 |
| Linear field of vision, mm | 9.17 — 3.43 |
| Stage Features | white/black plate, glass plate |
| Eyepiece diopter adjustment, diopters | ±5D on each eyepiece |
| Eyepiece diopter adjustment | yes |
| Focus | coaxial, coarse (105 mm, with coarse focus voltage adjustment) |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz, AC mains, via 5 V, 2 A power adapter |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 6 W LED |
| Operating temperature range, °C | 5 — 35 |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | CMO |
| Application | laboratory/medical, for applied research | td> |
| Lighting position | double |
| Search method | bright field |
| td> |
| Set with pencil case/case/bag | dust cover |
