MAGUS Bio DH240 digital biological microscope - MAGUS

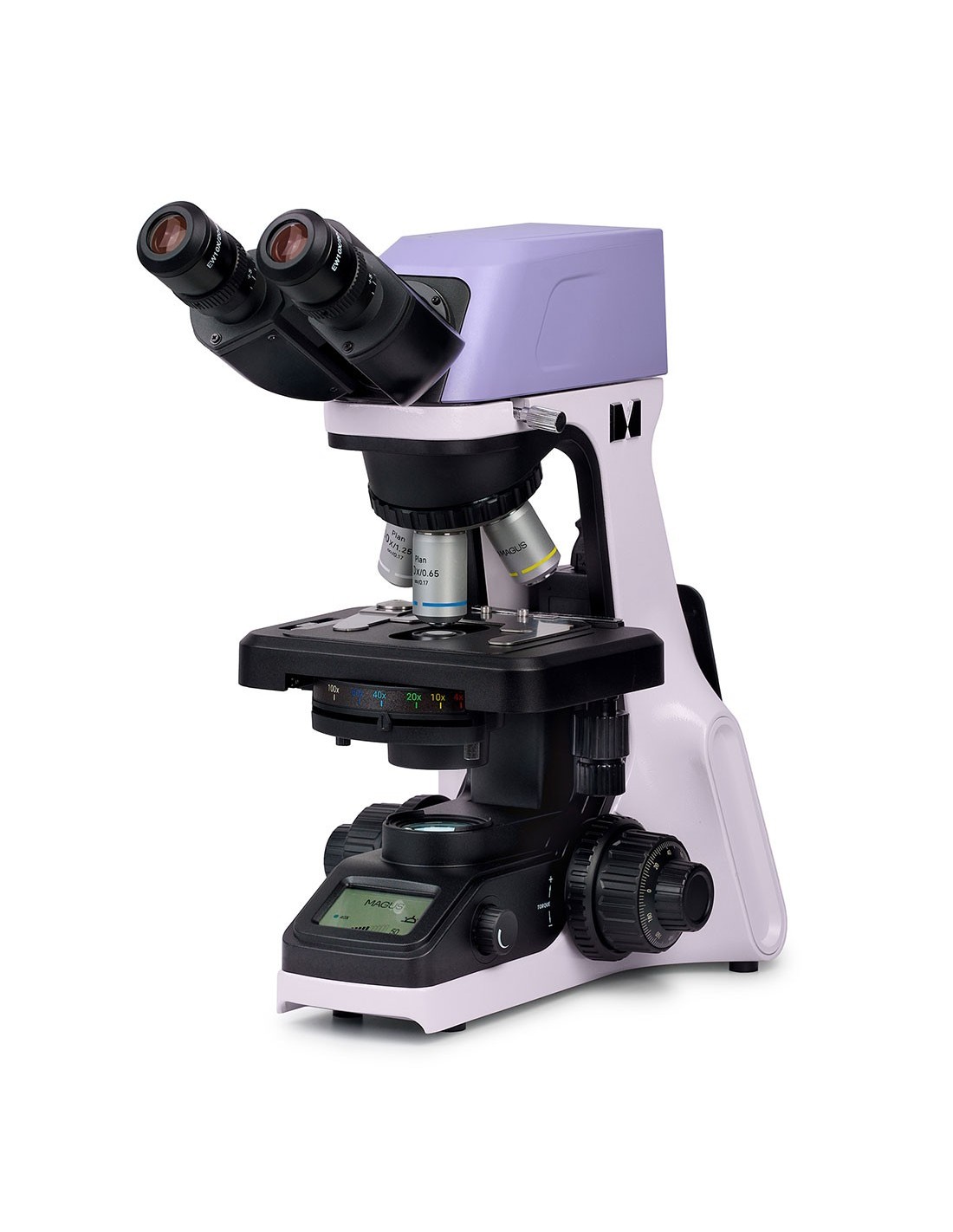

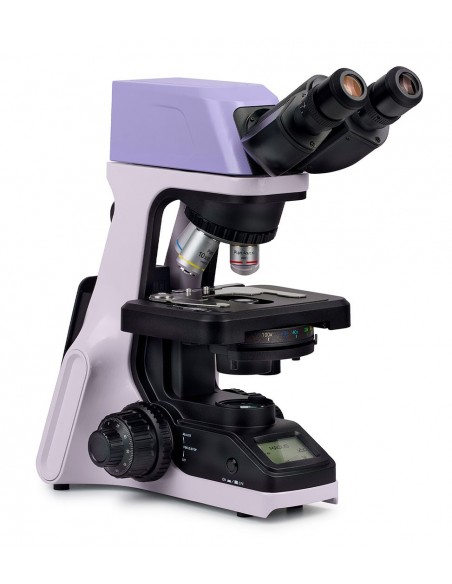

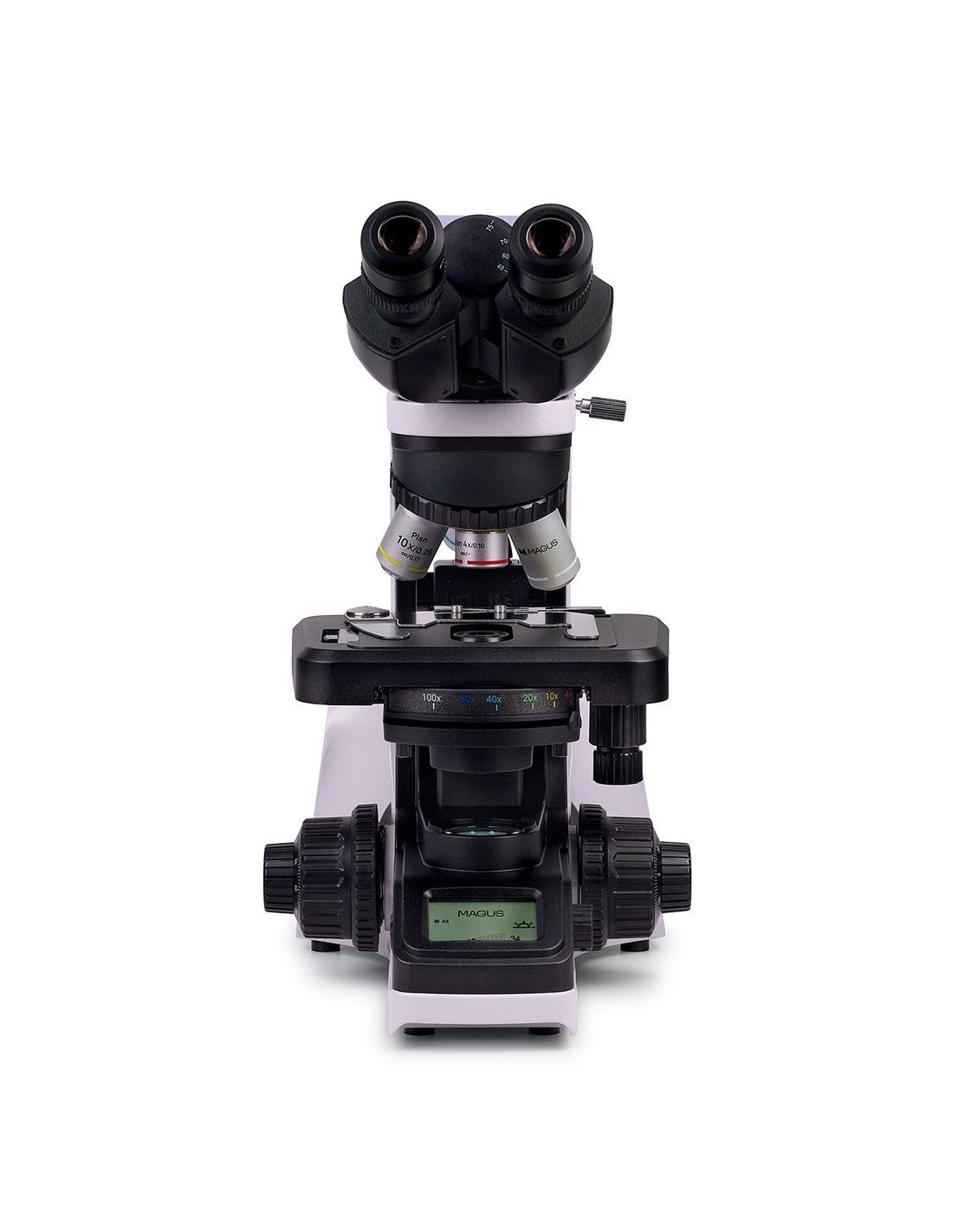

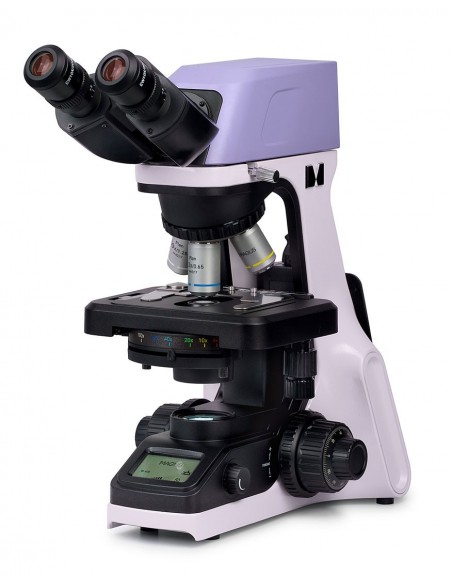

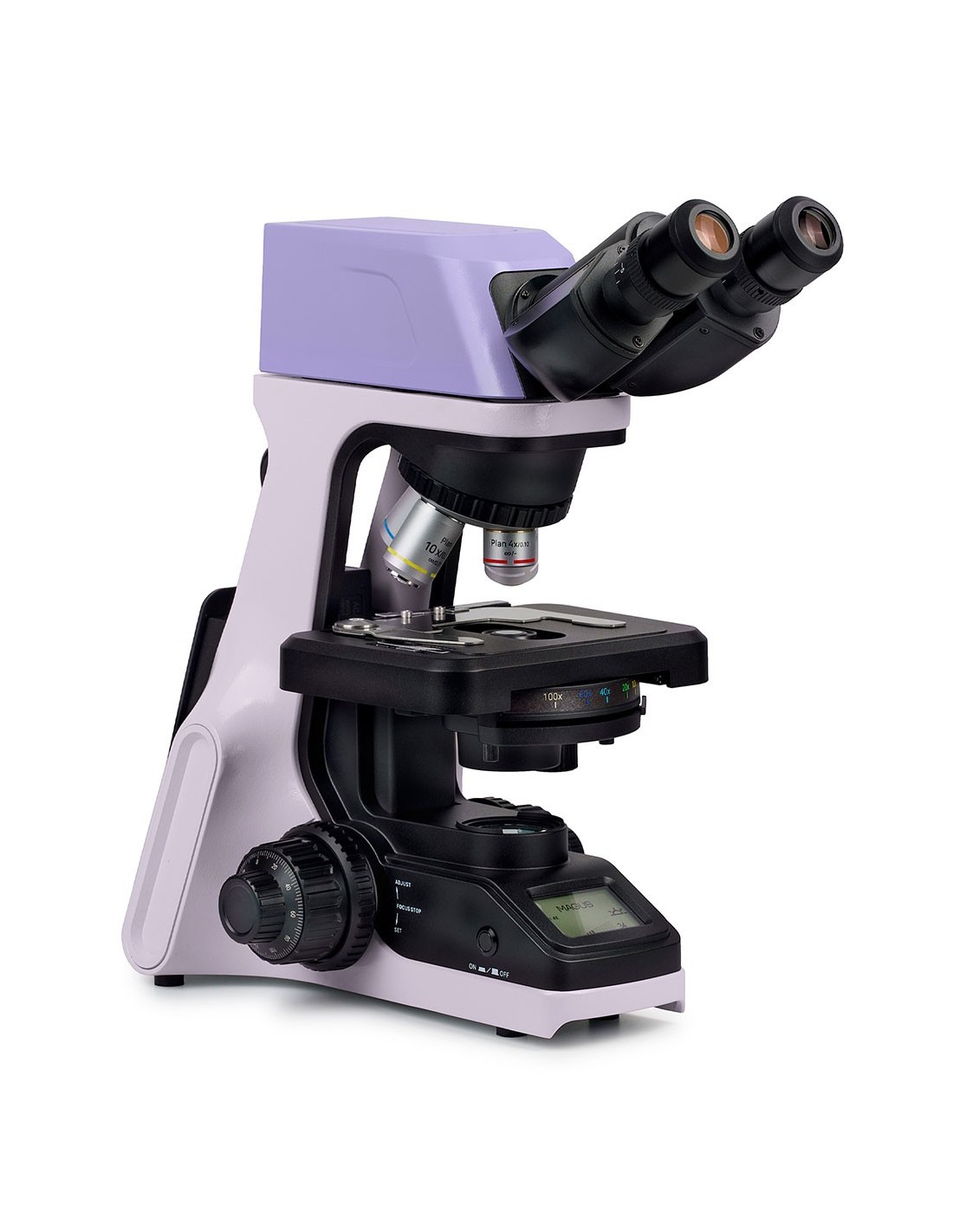

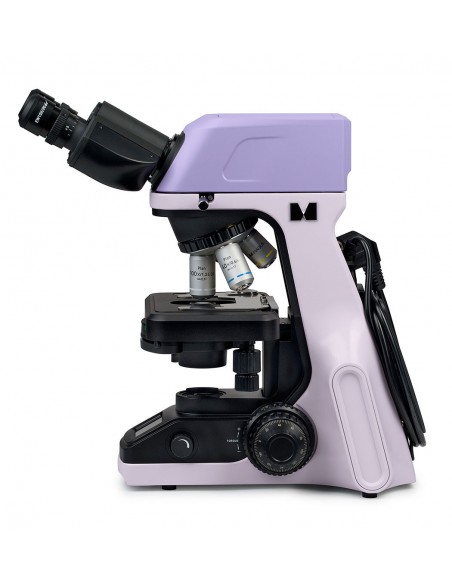

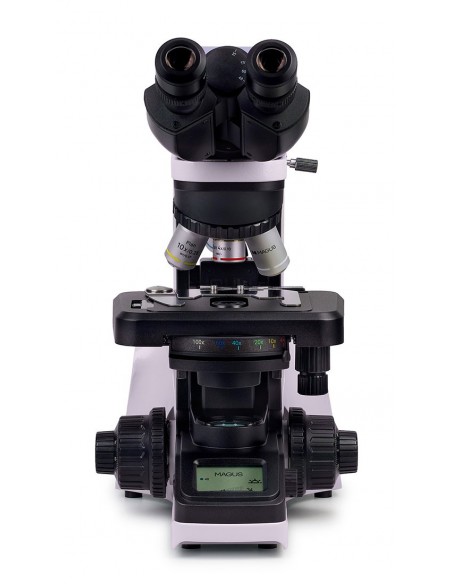

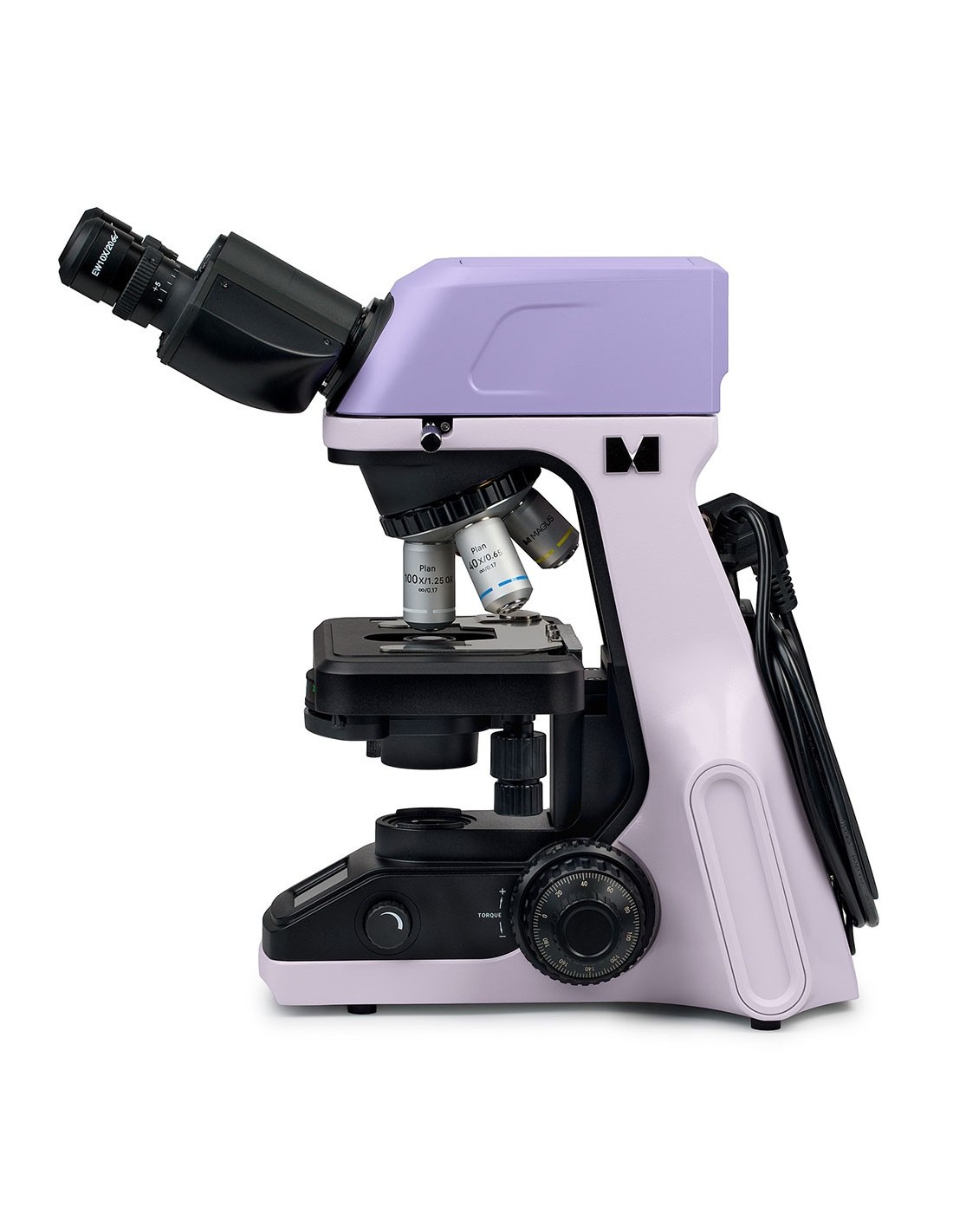

The MAGUS Bio DH240 microscope is designed to work with transparent and translucent biological samples via the bright field method. The device is equipped with a binocular head with integrated digital camera. The nosepiece nosepiece with 4 objectives is equipped with an intelligent light control system. The selected operating settings are displayed on the integrated LCD screen.

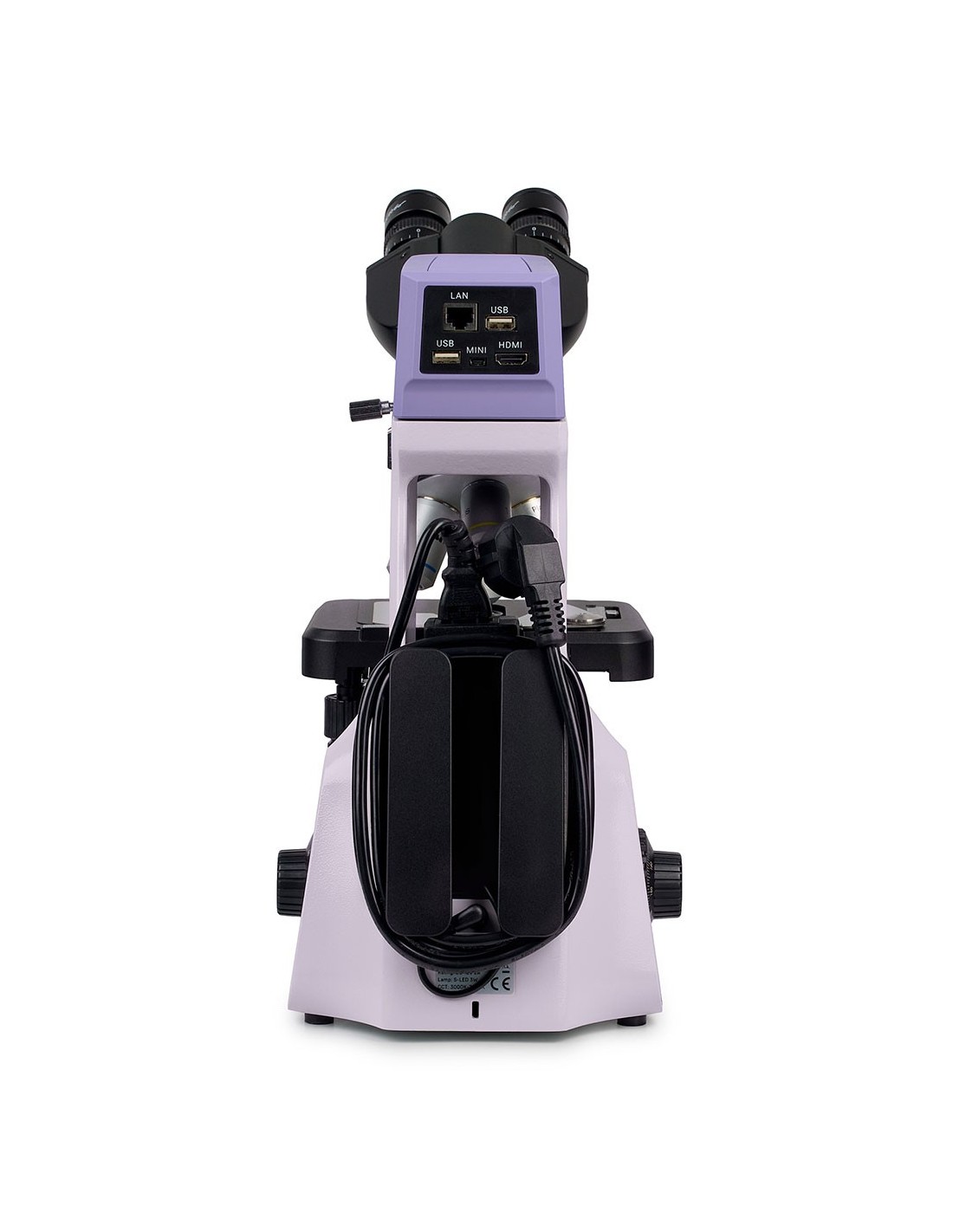

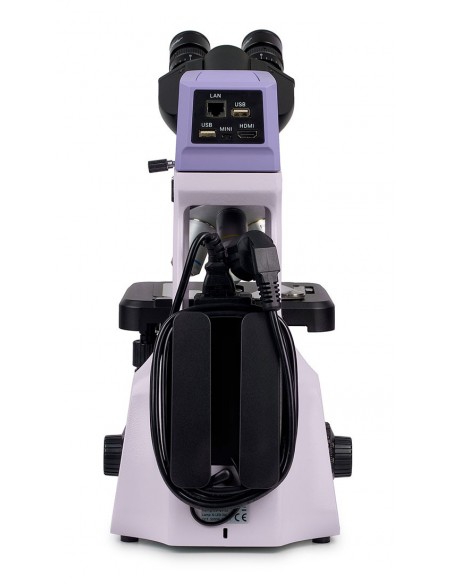

The MAGUS Bio DH240 model is quite compact. It is light and small in size. The ergonomic body design makes it easy to carry and store. All cables and power supply are hidden on the back of the microscope and you can use the side openings of the stand as carrying handles.

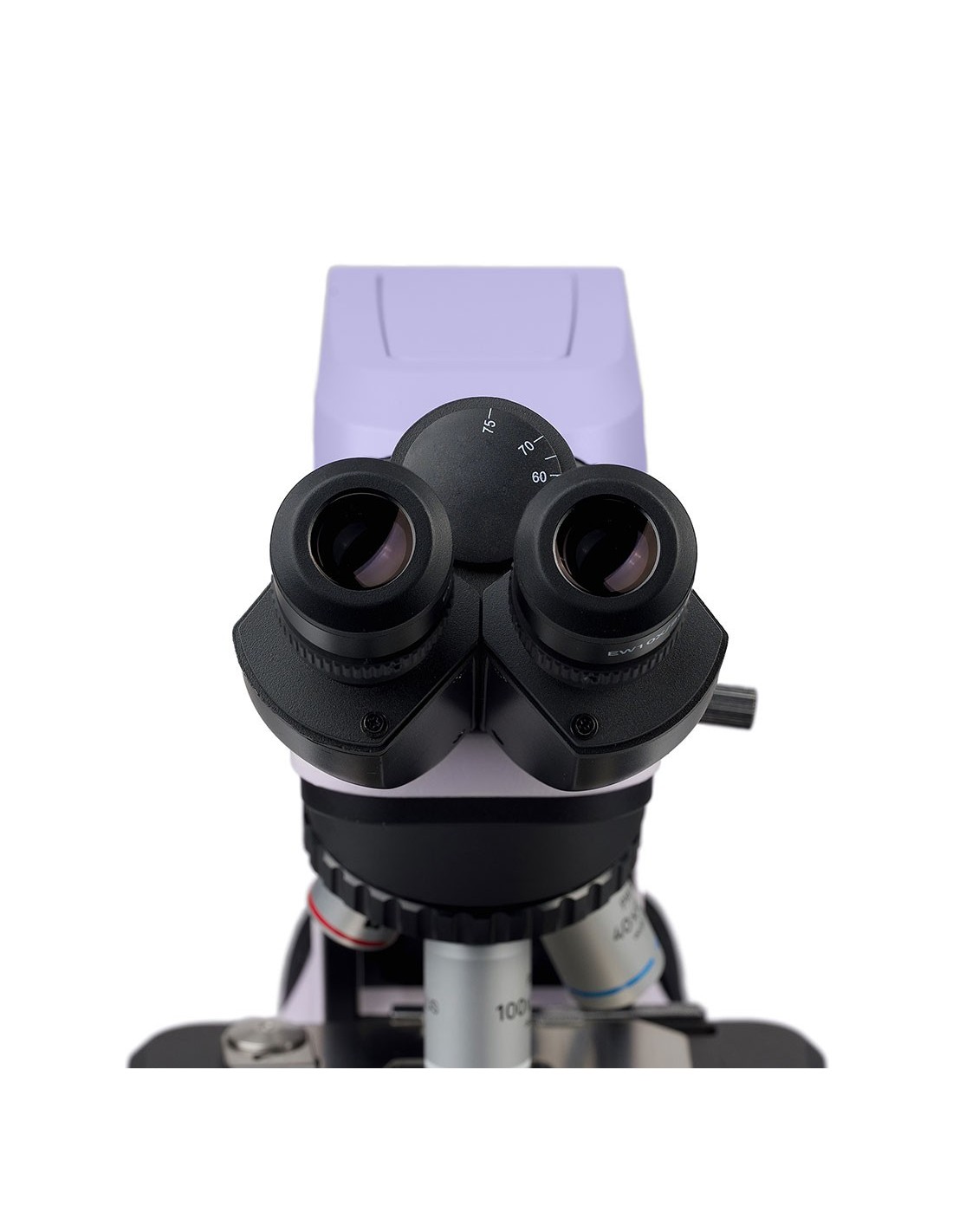

The binocular head also embellishes the design: the digital camera is integrated and does not take up additional space. Both tubes rotate 360° around their axis, so you can adjust the eye relief to suit your needs. The microscope is equipped with 10x/20 mm eyepieces. These include flat rubber shells, which are practical for those who wear glasses. These shells prevent the lenses from touching the eyepieces and avoid damage. The optics are infinitely corrected. On the microscope tubes there are diopter adjustment rings that adjust the user's visual acuity.

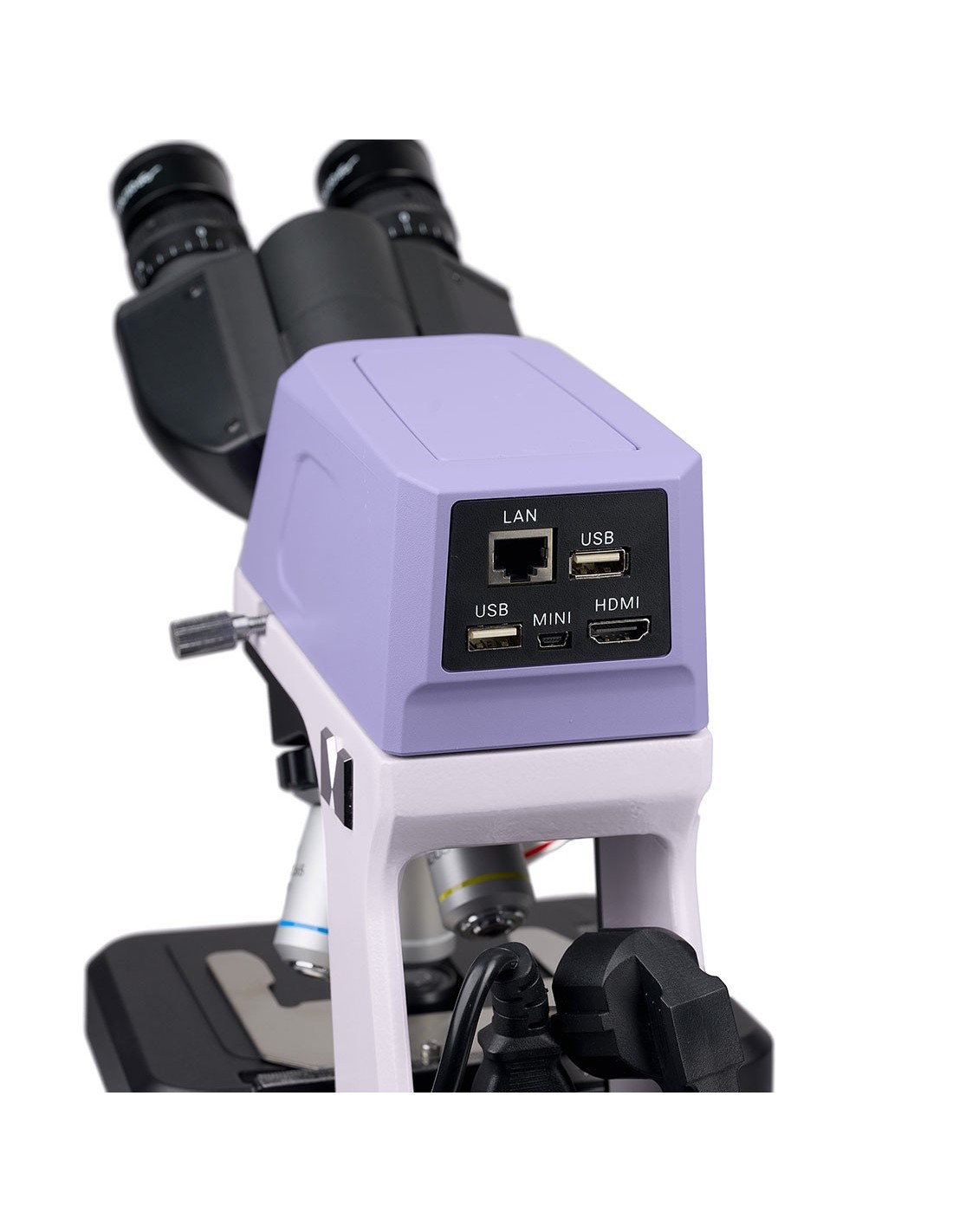

A digital camera built on an 8 MP matrix produces images at a resolution of 4K (3840x2160 px). It perfectly produces all the nuances of the observed object. The optimal combination is achieved with 4x and 10x objectives. The camera can capture photos and videos of static and inactive samples. It can be used to adjust the focus of the microscope. You can transfer images to a computer via Wi-Fi.

The nosepiece of the MAGUS Bio DH240 model is designed to accommodate 4 objectives. It is oriented inward. The lens in use sits directly in front of the user, while the rest points in the opposite direction. The design frees up space in front of the user, making observations more convenient. Coded nosepiece: When changing the objective, the sample illumination changes automatically. Since objectives of different magnifications have different light transmission, changing objectives means that the illumination intensity of the eyepiece is subject to considerable fluctuations. This tires the eyes and the researcher has to spend time each time adjusting the brightness of the light. The intelligent illumination system remembers the user's settings for each objective and when you turn the nosepiece, the light automatically adjusts to the right intensity. This is especially convenient when you frequently change the magnification of the microscope during observations.

The microscope uses a 3W LED light as the light source. The illuminator creates a transmitted light with the ability to change the color temperature: the user is able to set the desired value between 3000 and 7000K. The LED has a lifespan of 50,000 hours.

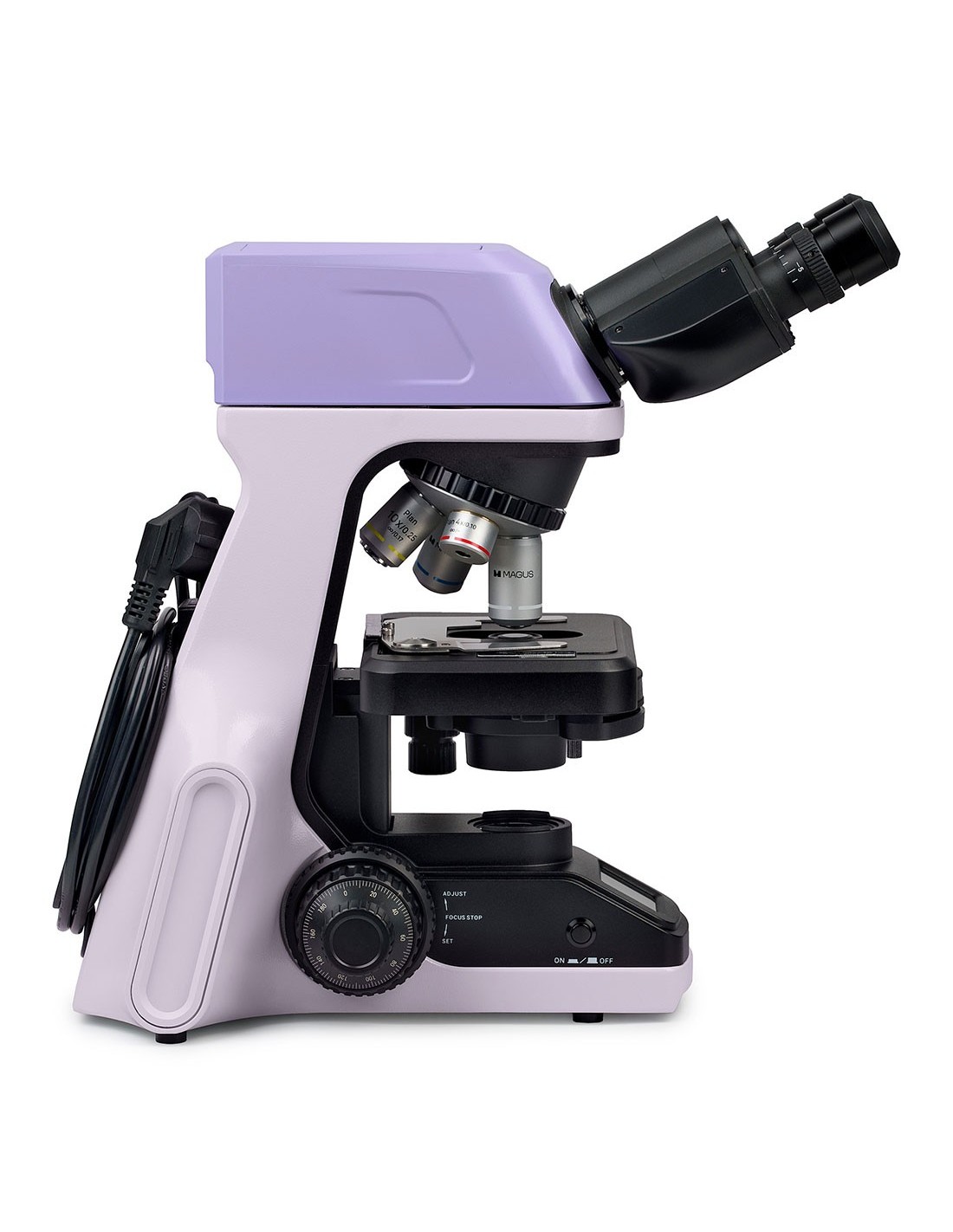

Two focus knobs are located on the same axis on opposite sides of the microscope and are used for coarse and fine adjustment. In addition, the microscope is equipped with a coarse focus lock handle, used after changing lenses, and a coarse focus path tension adjustment ring. All adjustment mechanisms are located at the bottom of the microscope body. To operate it, the user can place his hands on the table and assume a comfortable position, which is particularly important for long-term observations.

The sample stage has an ergonomic shape. It features a belt mechanism that allows you to gently move the sample across the stage surface. The lens holder is attached with 2 screws and can be removed easily. There is no positioning rack.

The model's Abbe capacitor also has features. It is fixed at the desired height and is located in the center of the microscope's optical axis: it cannot be moved by mistake, which is particularly important for novice researchers' observations in a common space. To adjust the iris diaphragm, you use a knob set to the values marked on the condenser. Each value corresponds to the magnification of a specific lens, so you need to move the knob to the position corresponding to the lens you are using.

You can control all settings on the built-in LCD screen, which is another feature of this MAGUS microscope model. The screen displays the selected illuminator brightness, its color temperature, the magnification of the lens in use, and the operating mode. Most of these functions are configured via the screen.

Key features:

• Observation of transparent and translucent samples via the bright field method
• Binocular head with camera integrated digital
• Both tubes rotate 360° and there is a diopter adjustment system
• Nosepiece nosepiece for 4 objectives with intelligent light control system
• The selected operating parameters are displayed on the LCD screen
• Compact and lightweight device with an ergonomic body: the cables and adapter are hidden, and the body design allows it to be stored and transported comfortably
• Belt-driven sample stage that does not have a positioning rack
• The condenser requires no further adjustment; the opening diaphragm is adjusted based on the magnification values of the objectives

The package contains:

• Support with a source transmitted light, focusing mechanism, stage, condenser mount and nosepiece
• Abbe condenser
• Binocular head with integrated digital camera
• Planachromatic objective infinity: 4x/0.10
• Plan achromatic objective at infinity: 10x/0.25
• Plan achromatic objective at infinity: 40x/0.65 (with spring mechanism)
• Infinity plan achromatic objective: 100x/1.25 oil (with spring mechanism)
• 10x/20 mm eyepiece with long eye relief (2 pcs.)
• Eyecup (2 pcs.)
• Optical filter
• Bottle of immersion oil
• Microscope adapter and power cord
• Dust cover
• User manual and warranty card

Available upon request:

• Digital camera
• Calibration glass
• C-mount adapter
• Monitor
