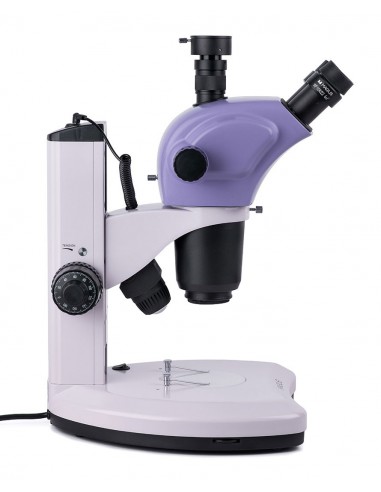

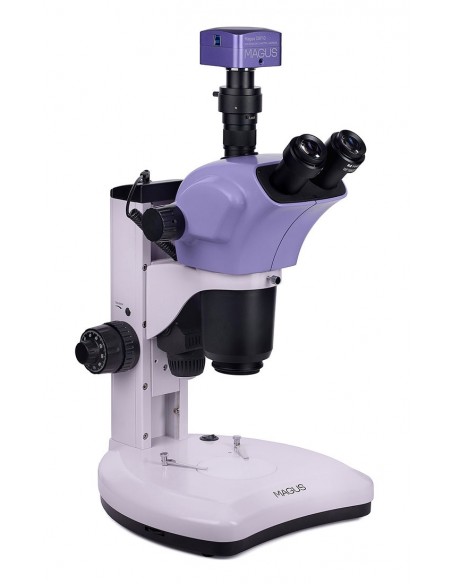

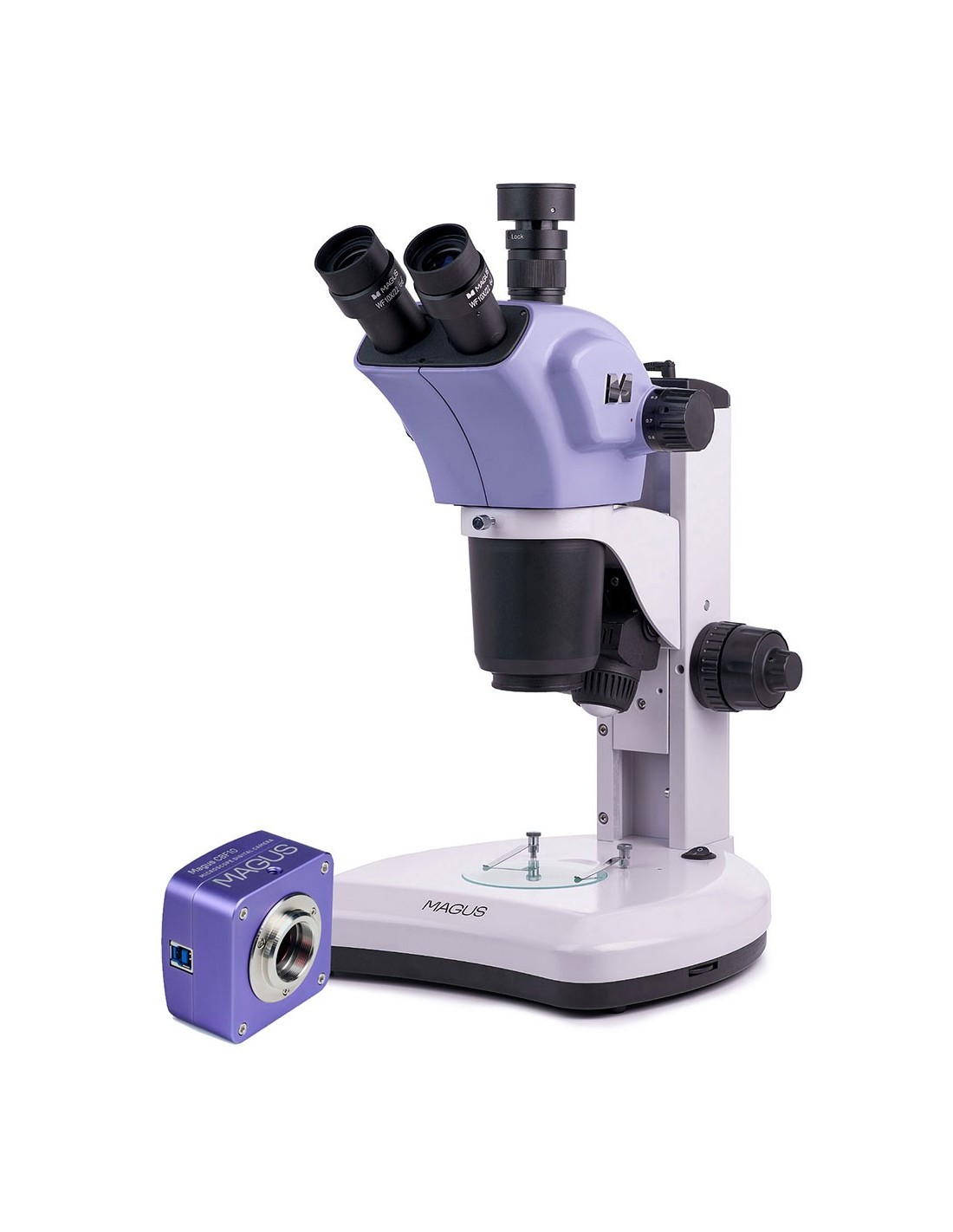

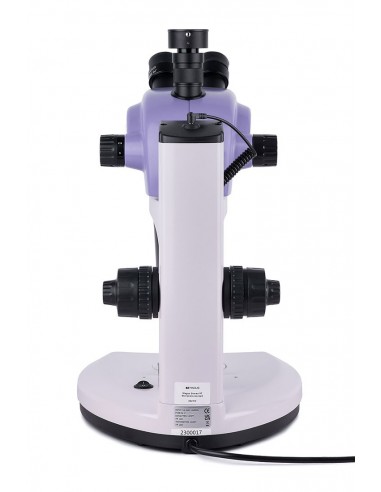

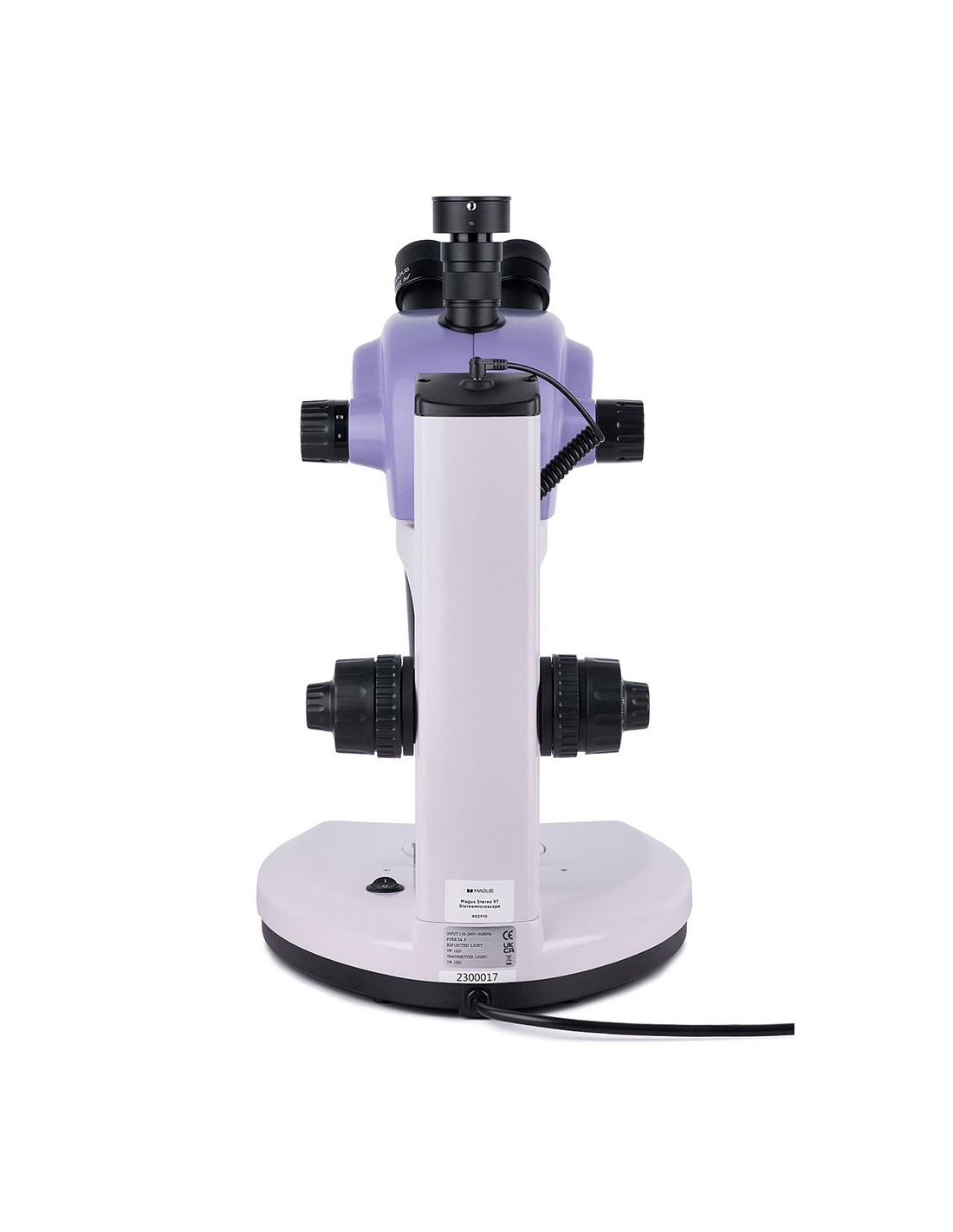

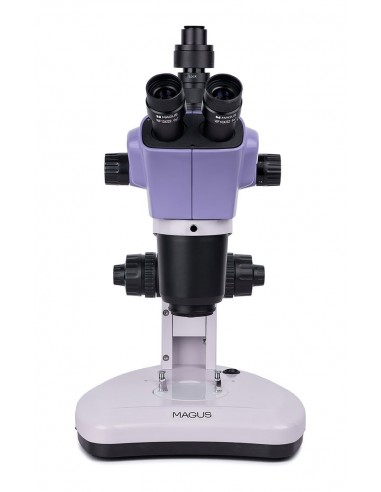

The MAGUS Stereo 9T stereoscopic microscope forms a non-inverted three-dimensional image and has a wide working distance. It is possible to examine the samples but also to experiment with them. The Greenough-type optical scheme produces sharp, three-dimensional images, essential for high-precision observations. The microscope has a zoom and two illuminators (transmitted and reflected light) and can be upgraded with additional accessories. Excellent choice for restoration, welding, model making, machinery repairs and quality control.
Digital camera

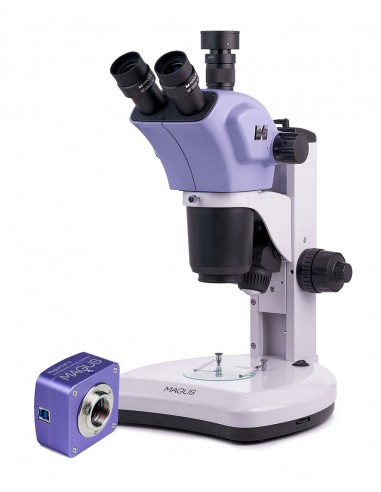

The MAGUS CBF10 digital camera is designed for work together with a microscope: take photographs, record videos and view images on an external screen. Its characteristics are best suited for bright-field work on 4x and 10x flat-field microscope objectives and stereomicroscopes.
The MAGUS CBF10 camera is equipped with an Aptina CMOS sensor with a light sensitivity of 0. 62 mV/lux/s. You can achieve the maximum field of view without distortion using an adapter with 0.4x to 0.6x magnification.
The 18 MP sensor allows you to obtain a realistic and highly detailed image with a resolution of 4912x3684 px. In this mode, video is captured at 13.1 fps. You can increase the frame rate and, as a result, improve the smoothness of the video by reducing the resolution. Available options: 2456x1842 px (34.3 fps) and 1228x922 px (54.4 fps). In any of the selected modes, it is convenient to adjust the focus of the microscope. Modes with increased frame rates are suitable for studying moving objects and fast processes, as well as for presentations and demonstrations.
Optics

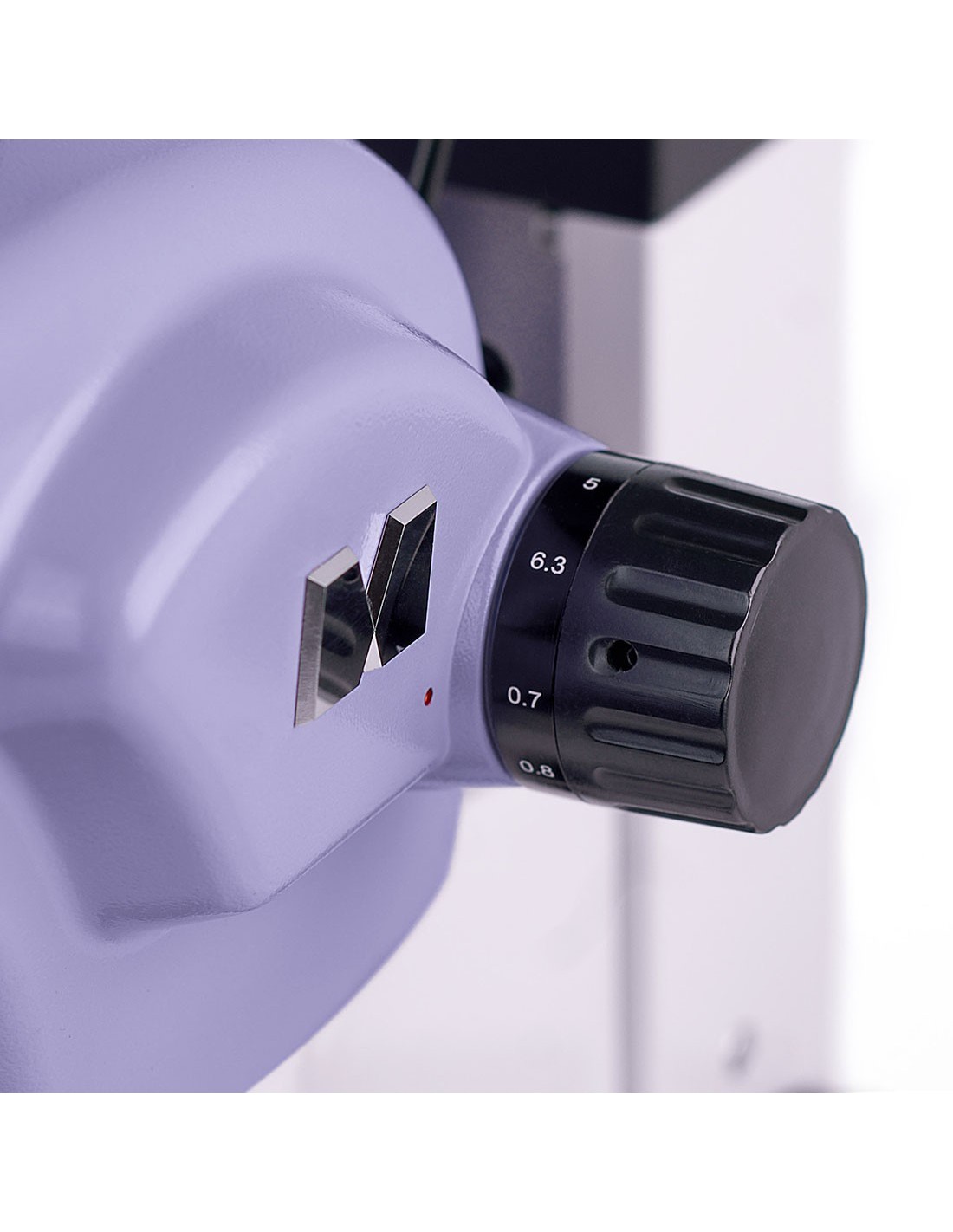

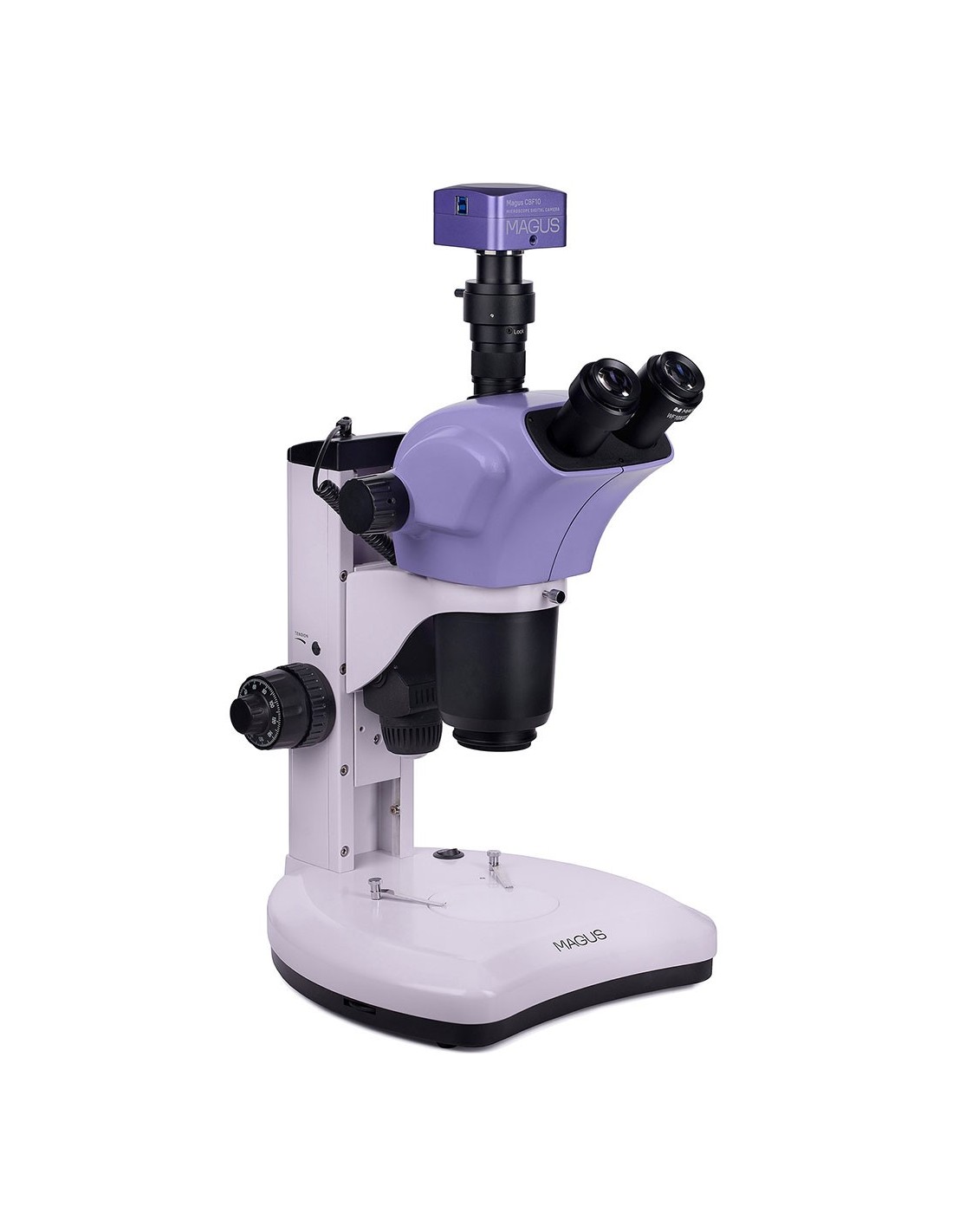

The microscope features a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, however the digital camera must be purchased separately. The trinocular head rotates 360°. The zoom lens used in conjunction with a 10x eyepiece offers 7x to 63x magnification. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use additional objectives (not included), you can change the magnification range, working distance and field of view of the microscope. It is possible to increase the magnification of the microscope up to 315x thanks to optional accessories.
Lighting
The work area is illuminated by two LED illuminators: a 5W transmitted light illuminator and a 3W reflected light (oblique) illuminator. Both illuminators are powered by an AC source, are bright and do not change color temperature when you adjust the brightness. They have a lifespan of 50,000 hours.
Stage and focusing mechanism
One of the included plates is installed on the stage: white and black on both sides sides, white or transparent. The first plate is used for observations of opaque objects and produces a high-contrast image. Dark colored samples are examined on the white part, while light colored samples are examined on the black part. The white and transparent plates are used for observations of translucent or transparent samples when maximum brightness and uniform illumination of the working area is desired.
The microscope features a mechanism for focusing coarse and fine fire. Fine focus is used at a magnification greater than 40x. The coarse focus features tension adjustment.
Accessories
To increase the capabilities of your microscope, you can use additional accessories, such as eyepieces, auxiliary lenses, calibration slides and digital cameras. It is also possible to install a device for polarized light observations.
Key features of the microscope:
- Zoom objective with a ratio of 9: 1
- 360° rotation of the trinocular head, trinocular tube for capturing photos and videos
- Greenough-type optical scheme, three-dimensional image with a large depth of field
- Transmitted and reflected light (oblique) illumination, two LED illuminators
- Optional accessories to improve the performance of the microscope
Key camera features:
- Aptina CMOS sensor with high light sensitivity
- 18 MP sensor resolution: highly detailed images on low magnification lenses
- Sufficient frame rate for focus adjustment: 13.1 fps at a resolution of 4912x3684 px
- Make classroom demonstrations and observing moving objects easier, all thanks to the increased frame rate while decreasing resolution; sample movement is visible without jerkiness
- USB 3.0 provides data transfer speeds 10 times faster than USB 2.0
- Software to create photos and videos as well as view and edit them in real time
- Linear and angular measurements

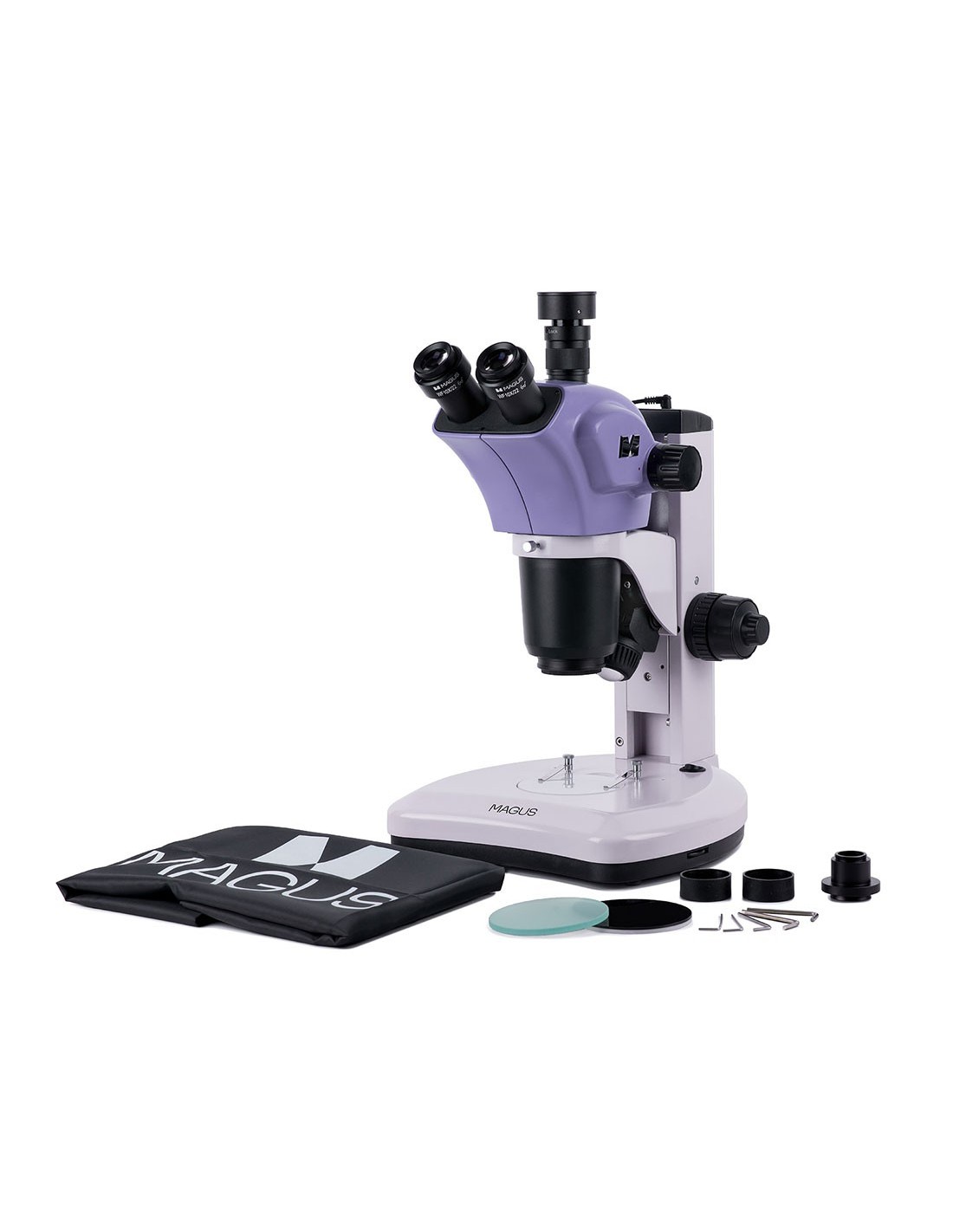

The package contains:
- MAGUS CBF10 digital camera (digital camera , USB cable, installation CD with drivers and software, user manual and warranty certificate)
- Base with light source for transmitted light observations and power supply
- Support with adjustment mechanism focus
- Trinocular head
- Eyepiece 10x/22 mm (2 pcs.)
- White and black stage plate
- White plate
- Transparent plate
- Oblique reflected light illuminator
- C-mount adapter
- Power cable for AC mains
- Dust cover
- User manual and warranty card
Available upon request:
- 15x eyepiece/ 15 mm (2 pcs.)
- Eyepiece 16x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x /9 mm (2 pcs.)
- Auxiliary objective 0.5x
- Auxiliary objective 2x
- Reflected light ring illuminator
- Instruments of polarization
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018577 |
| Package size (LxWxH) | 44x42x67 cm |
| Shipping weight | 12.1 kg |
| Delimiter | MAGUS Stereo 9T stereoscopic microscope |
| === Delimiter === | Microscope specifications |
| Type | stereo/instrumental, digital |
| Text | trinocular |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 7–63 in basic configuration (*optional: 3.5–315); 9:1 zoom ratio |
| Magnifying range | up to 200x |
| Eyepiece tube diameter , mm | 30 |

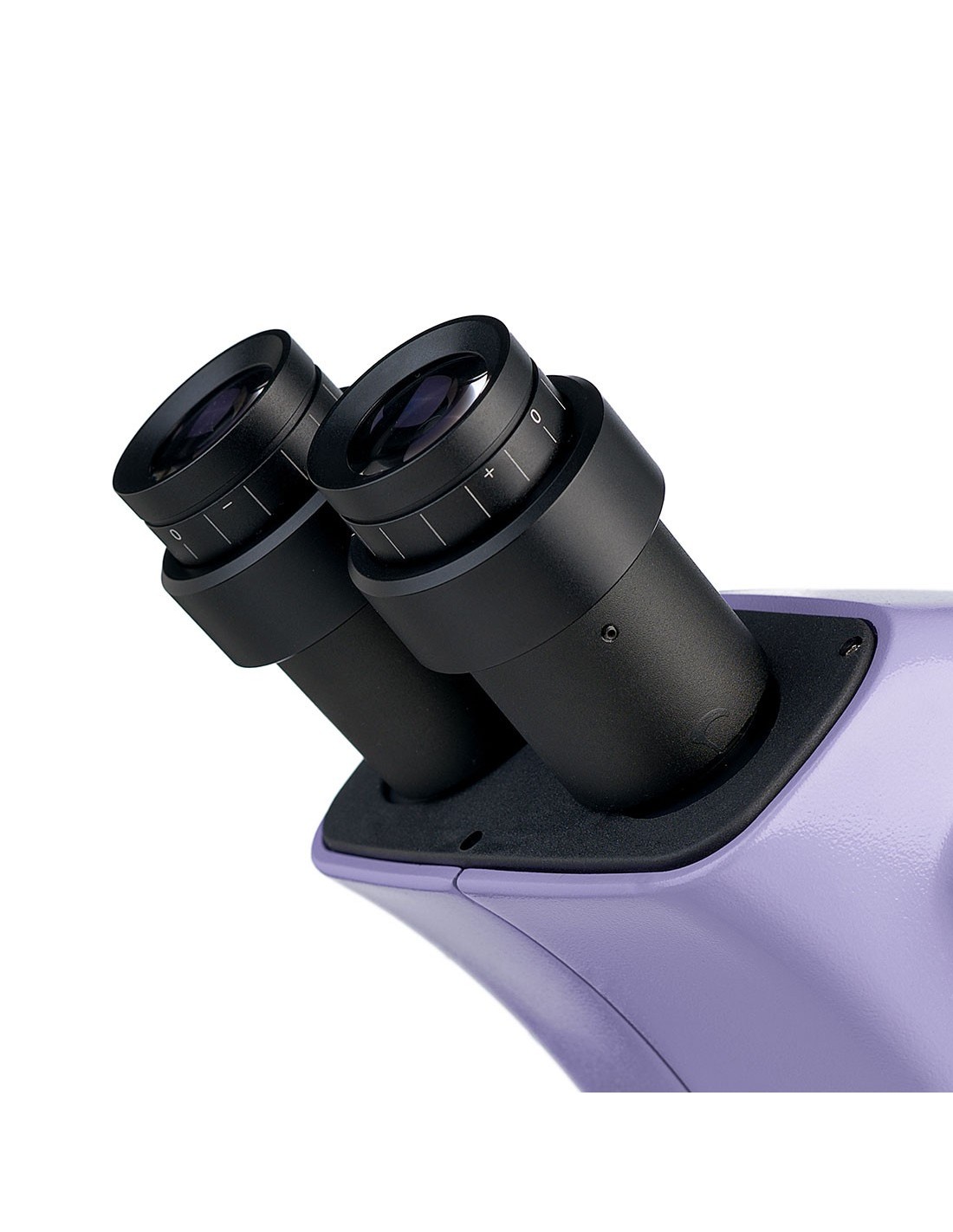

| Eyepieces | 10x/22 mm, long eye relief (*optional: 15x/15 mm, 16x /15 mm, 20x/12 mm, 25x/9 mm) |
| Objectives | 0.7–6.3x (*optional: with auxiliary objective 0.5x: 0.35–3.15x; with auxiliary objective 2x: 1.4–12.6x) |
| Working distance, mm | 110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4) |
| Interpupillary distance, mm | 53 — 75 |
| Field of view, mm | 31.43–3.49 (with 0.5x auxiliary lens: 62.85–6.98; with auxiliary lens 2x: 15.71–1.745), with a 10x eyepiece |
| Stage, mm | Ø90 |
| Stage features | white plate, white/black plate, transparent plate |
| Eyepiece diopter adjustment, diopters | ± 5D on each eyepiece |
| Focus | coaxial, coarse (83 mm, with coarse focus tension adjustment) and fine (0.002 mm) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz, AC mains |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 5 W LED |
| Possibility to connect additional equipment | polarization instruments |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | Greenough |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 8 |
| Dimensions, mm | 280x463x335 |
| === Delimiter === | Digital camera |
| Sensor | Aptina CMOS |
| Color/monochrome | color |
| Megapixel | 18 |
| Maximum resolution, px | 4912x3684 |
| Sensor size | 1/2.3" (6.14x4.61 mm) |
| Pixel size, µm | 1.25x1.25 |
| Light sensitivity | 0.62 mV/lux/ s |
| Signal-to-noise ratio | 36.3 dB |
| Exposure time | 0.1 ms – 2 s |
| Video recording | yes |
| Recording video | yes |
| Frame rate, fps@resolution | 54.4@1228x922, 34.3@2456x1842, 13 ,1@4912x3684 |
| Dynamic range, dB | 65.8 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb /s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS 8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Mount type | C-mount |
| Body | robust aluminum |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
