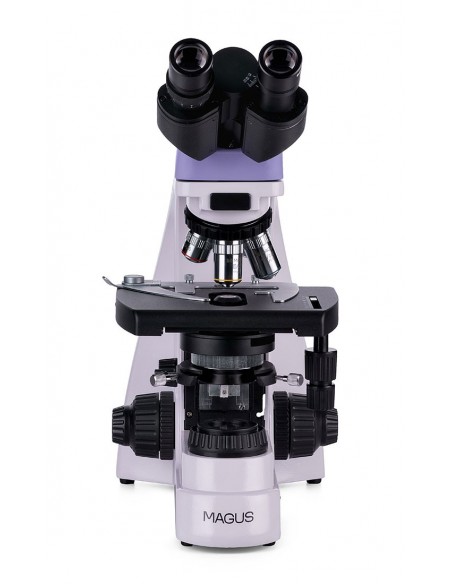

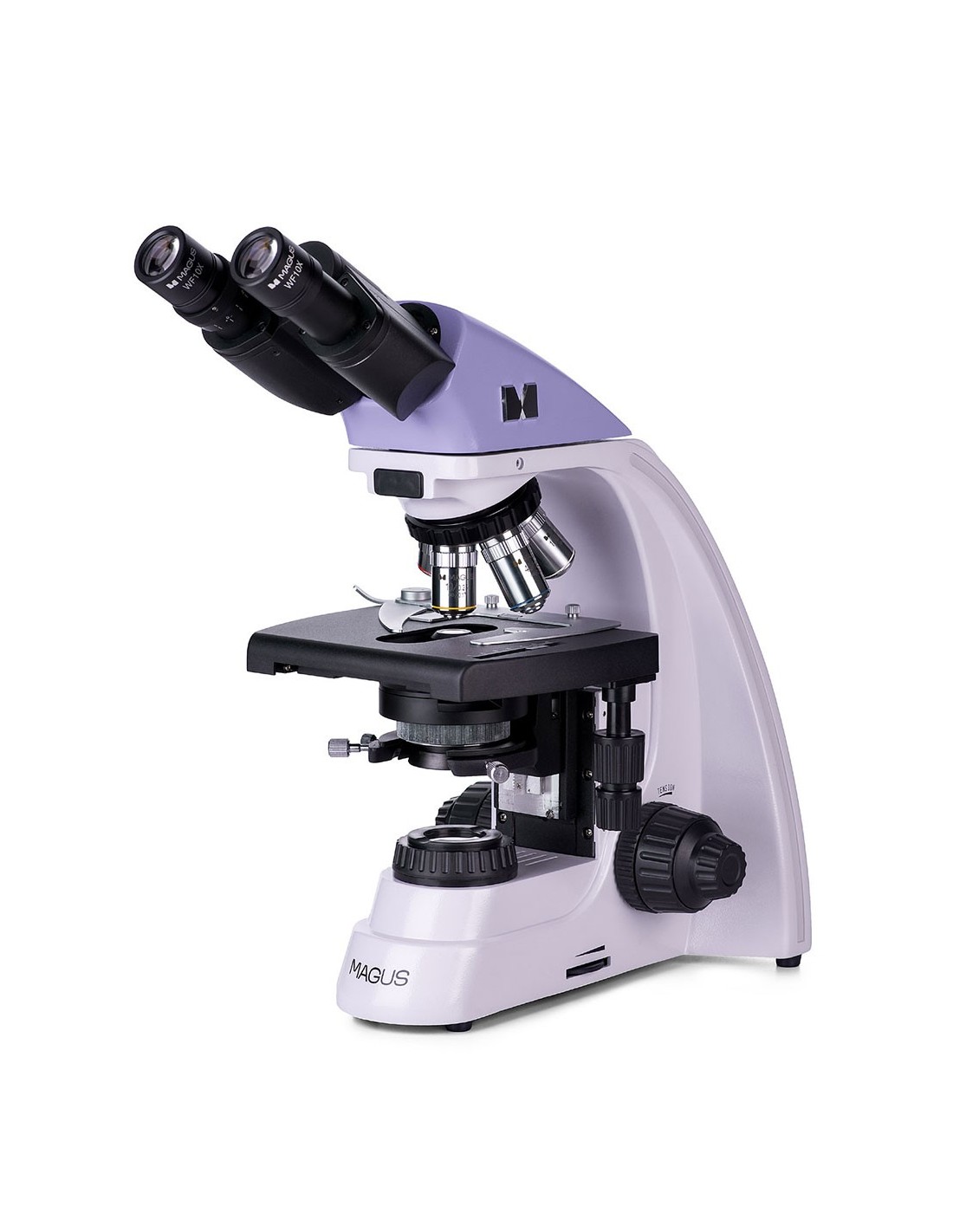

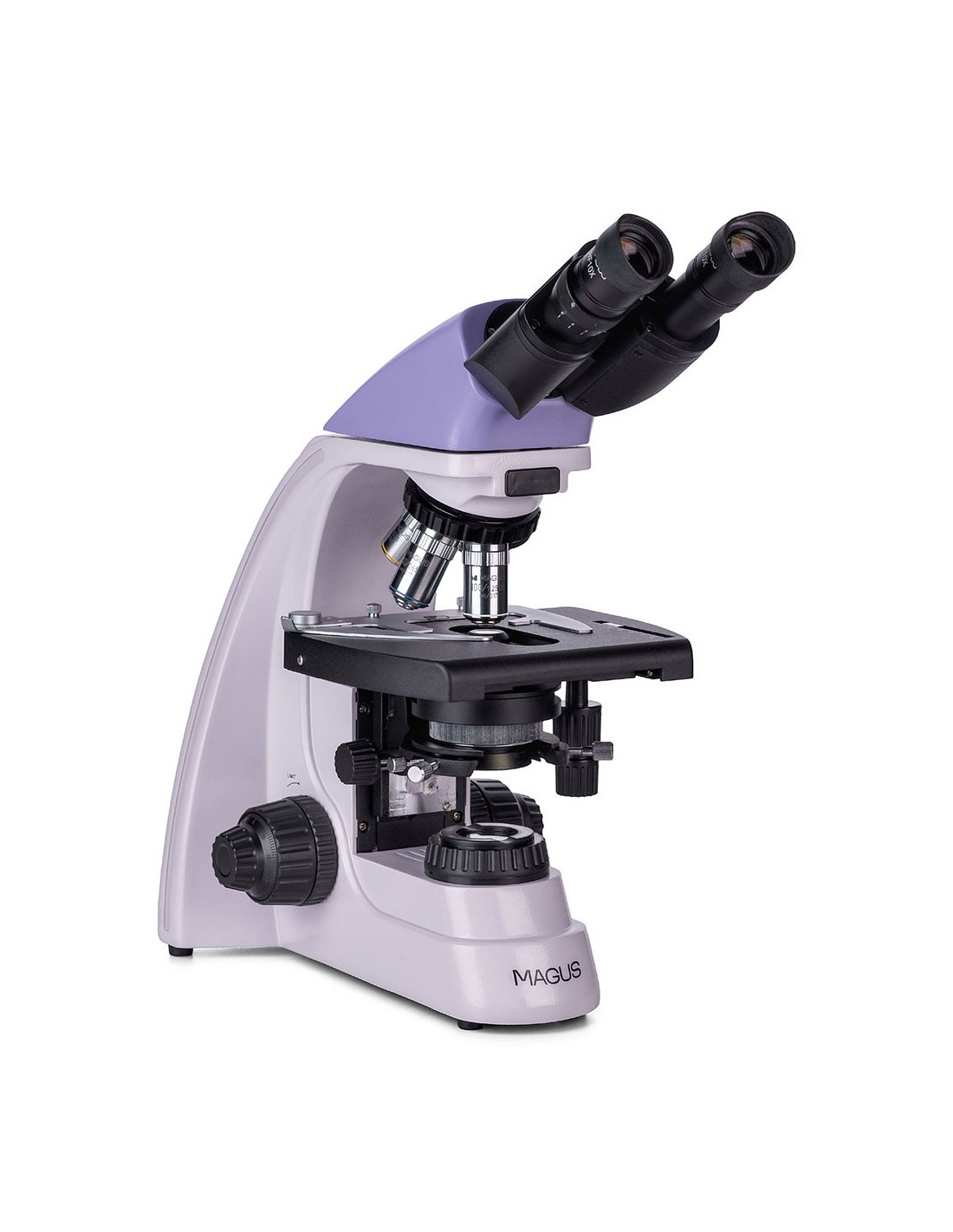

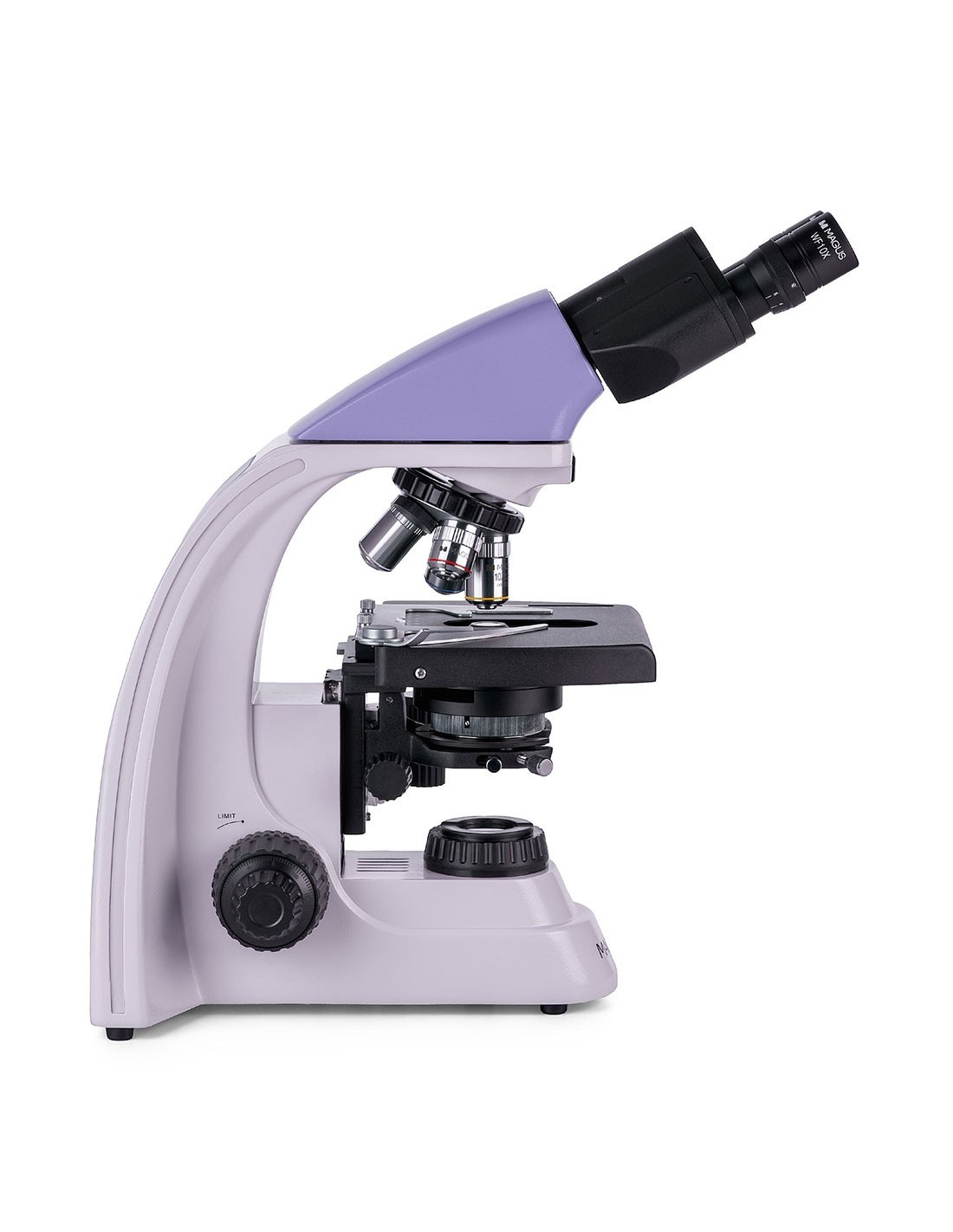

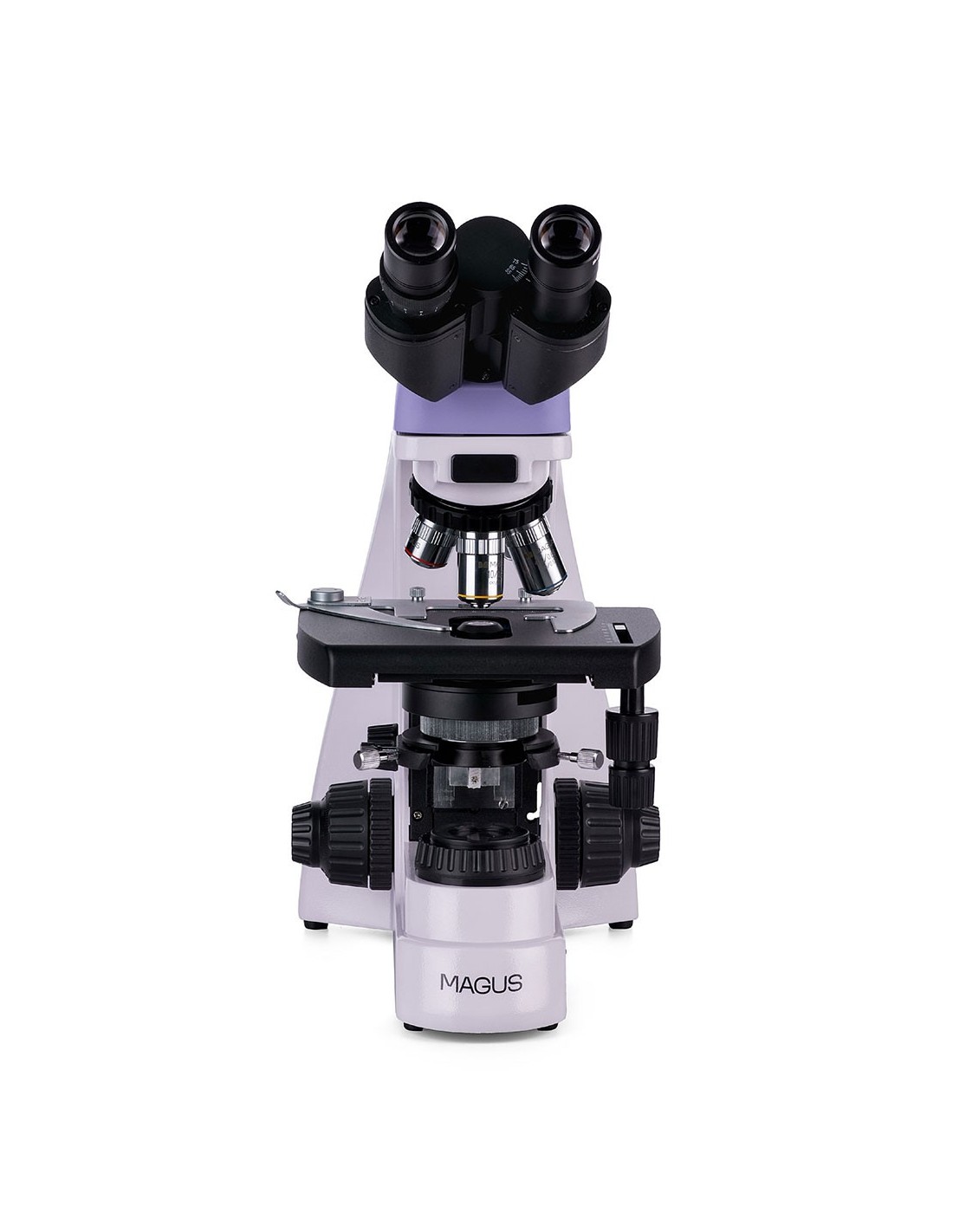

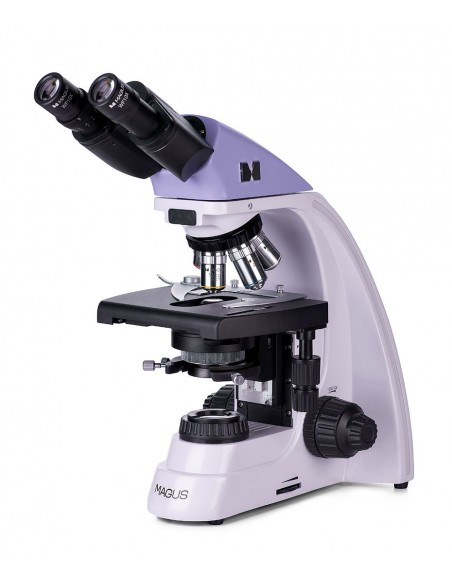

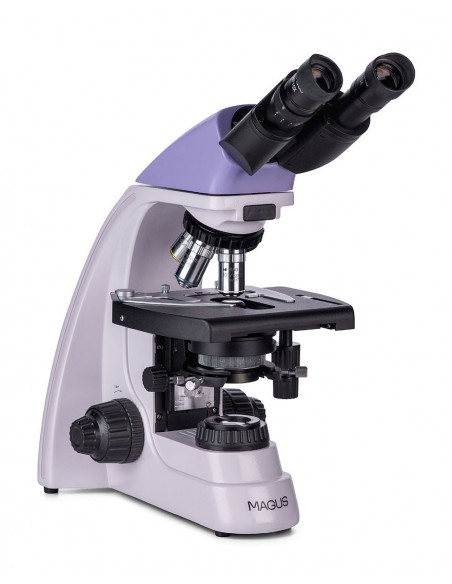

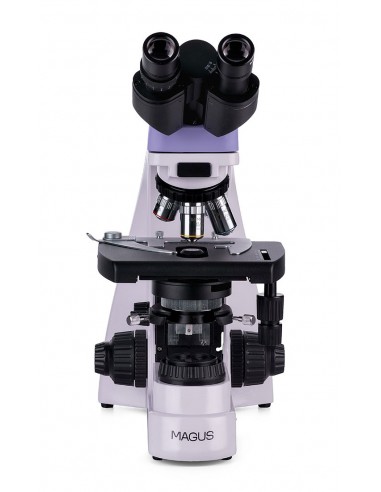

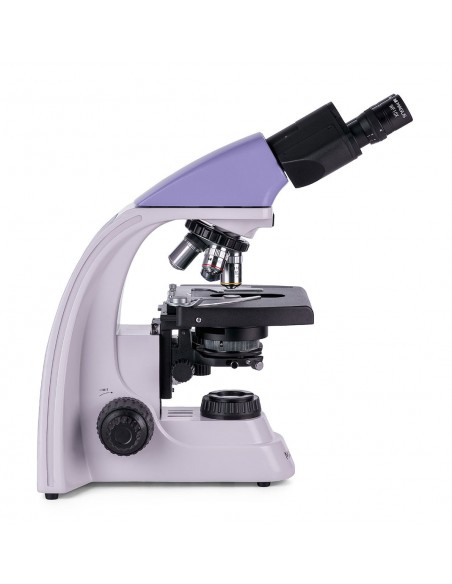

MAGUS Bio 230BL is a binocular microscope with achromatic objectives and LED illumination for the observation of biological samples such as smears and thin sections. The observations are carried out using transmitted light (bright field) microscopy technique. The microscope can be equipped with additional accessories for observations in dark field, polarized light and phase contrast techniques. Application areas: pharmaceuticals, medicine, biotechnology, veterinary medicine, forensic science, agriculture, etc.
Optics

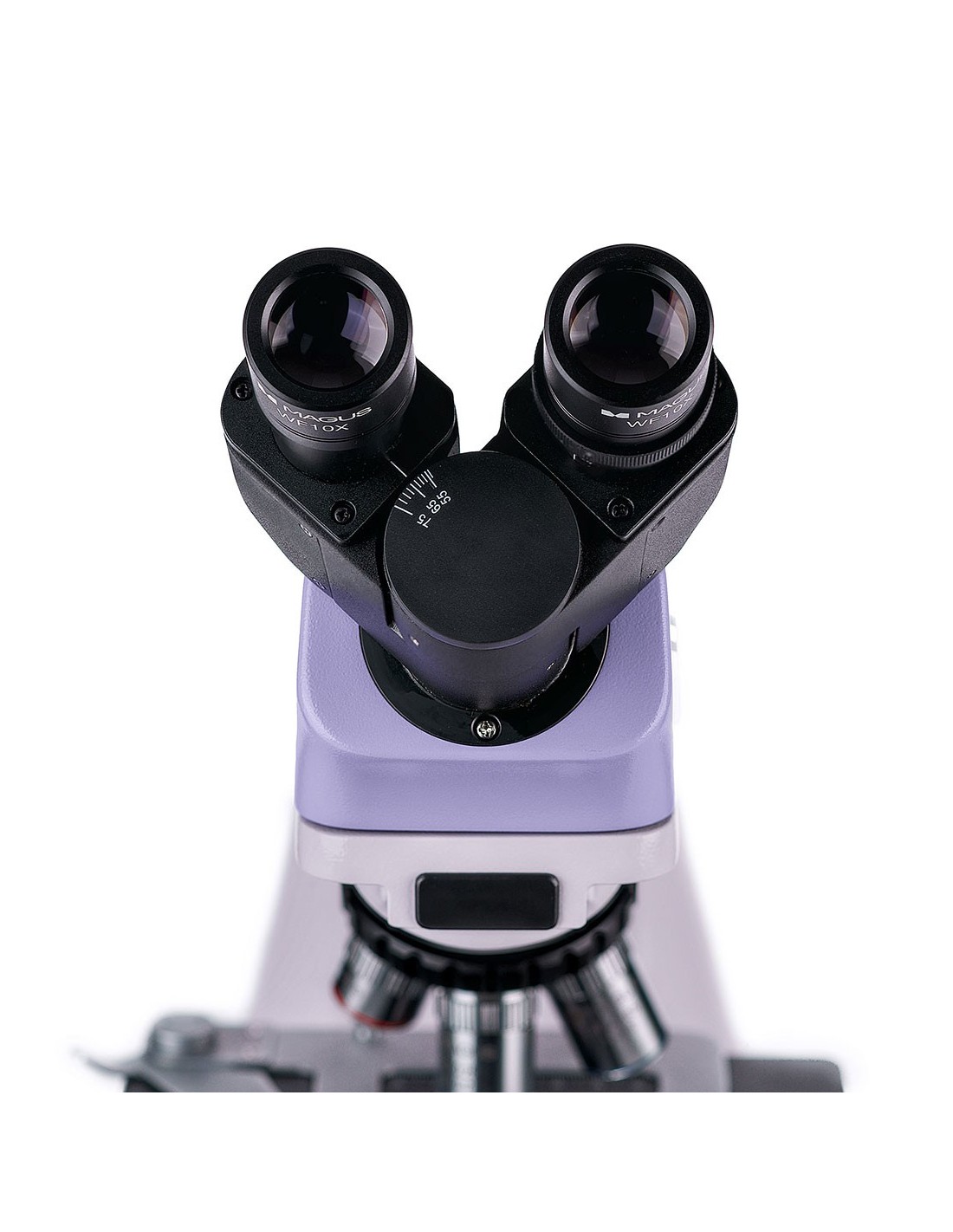

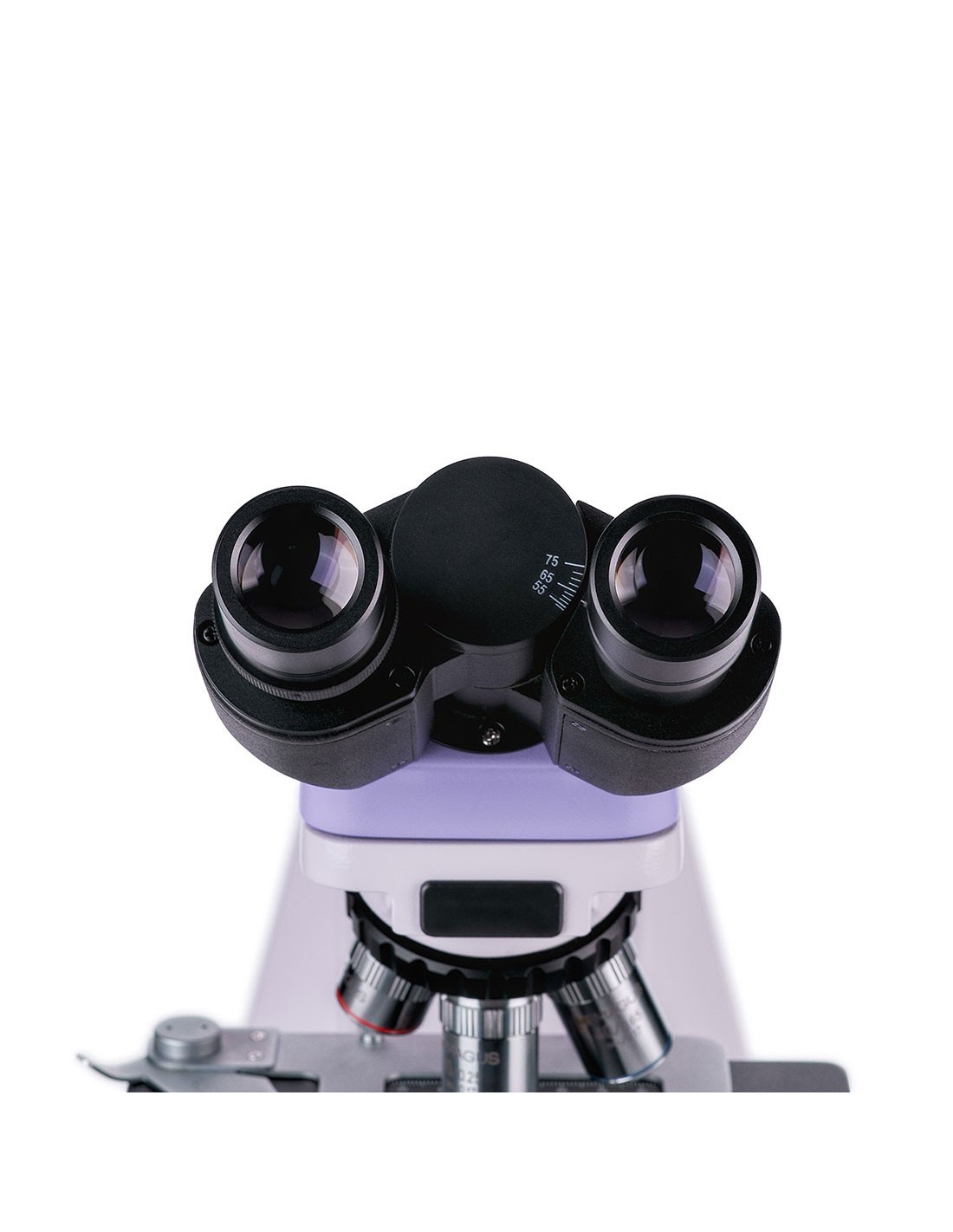

The optical tubes rotate 360°, which allows you to adapt the position of the eyepieces based on the height of the observer. On the left barrel there is a diopter adjustment ring. It is possible to house a digital camera (to be purchased separately) in place of the eyepiece, always in the left optical tube.
Since the nosepiece revolver has 5 slots, it is possible to add a fifth lens, in addition to those supplied , and obtain a higher maximum magnification. In its basic configuration, the microscope offers magnification ranging from 40x to 1000x, but the upper limit can be increased up to 1500x, 1600x or 2000x with the use of additional eyepieces. The microscope optics are corrected to infinity. The nosepiece is oriented towards the inside of the instrument.
Illumination
The light source for transmitted light observations is a 3 W LED, powered by AC mains. The color temperature remains unchanged at any brightness level and the life cycle of the LEDs is 50,000 hours.
The lighting is controlled by adjusting the field diaphragm and the aperture diaphragm, so it is possible to set up the Köhler illumination. The Abbe condenser is height adjustable and can be centered. You can insert a darkfield slider or a phase contrast slider into the appropriate slot on the condenser. The sliders make it easier for the user to switch between the various microscopy techniques.
Stage and focusing mechanism
You can move the object of study on the table thanks to a mechanical insert, which, if necessary, can be removed. The stage does not have a positioning rack, so the moving mechanism takes up less space.
Focusing is controlled by coaxial knobs for coarse and fine (macro- and fine) focusing. These knobs share the same axis (coaxial) on both sides of the microscope. Positioned at the base, they can be rotated comfortably and without any effort. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. Rotating the knobs is smooth and easy.
Accessories
Additional accessories for the MAGUS Bio 230BL microscope: dark field condensers, polarization instruments, cameras lenses, calibration slides, eyepieces, objectives, phase contrast devices, etc.
Key Features:
- All-corrected achromatic objectives 'infinity, nosepiece revolver with 5 slots
- Binocular head with diopter adjustment ring on the left optical tube
- Height adjustment of the eyepieces by rotating them 360°
- The 3W LED light has a life cycle of 50,000 hours
- Coarse and fine focus knobs (coarse and fine screw), voltage adjustment knob for the coarse screw, fixing for coarse screw
- Field diaphragm, possibility of installing dark field slider and phase contrast slider (to be inserted in the condenser slot)
- Numerous additional accessories

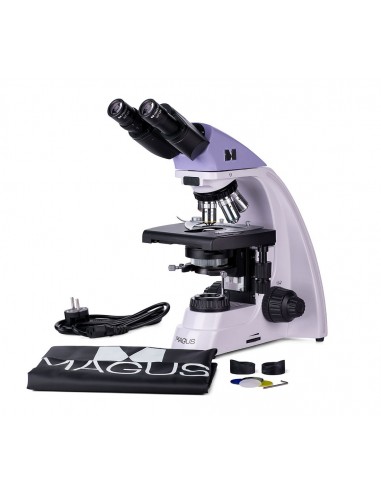

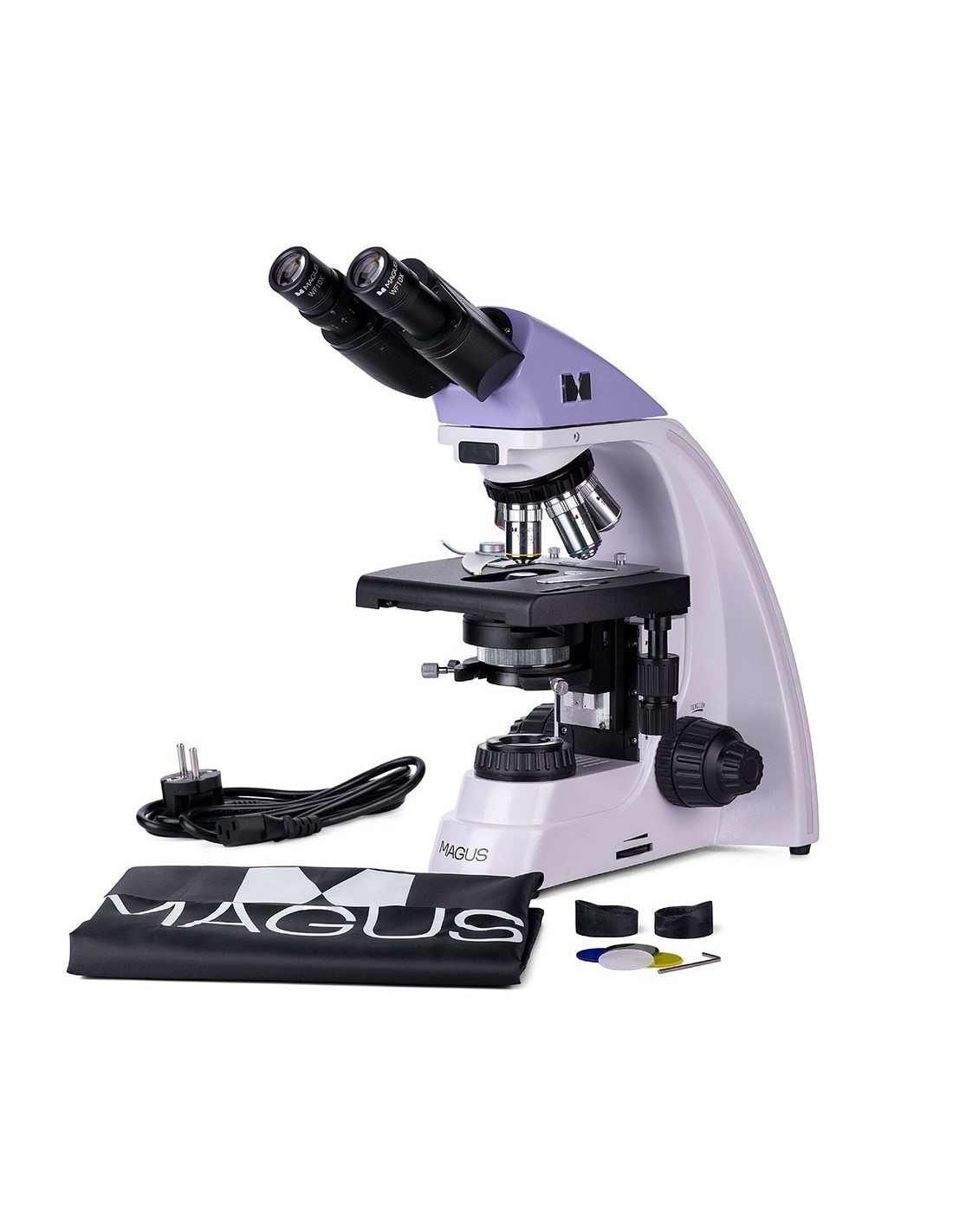

The package contains:

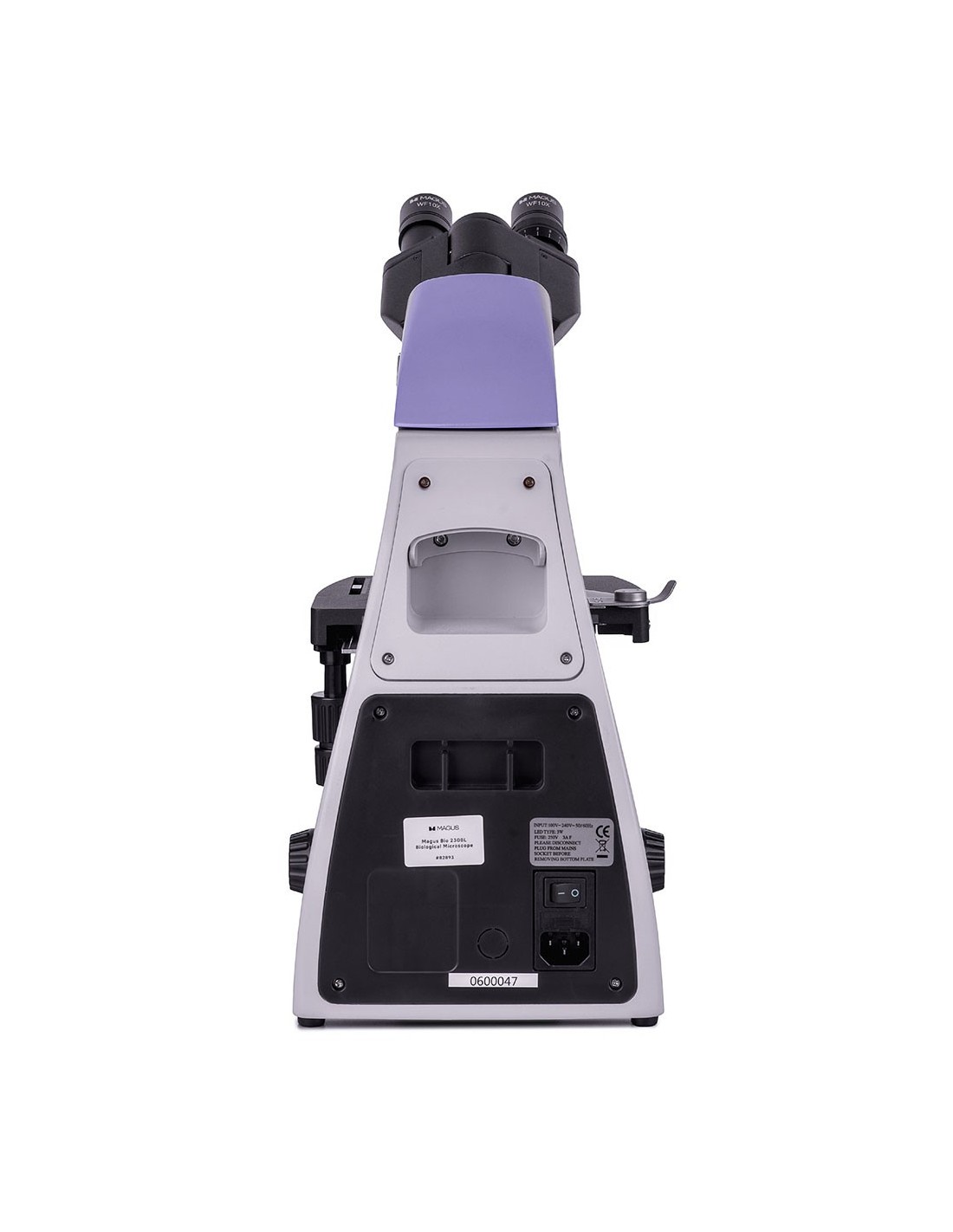

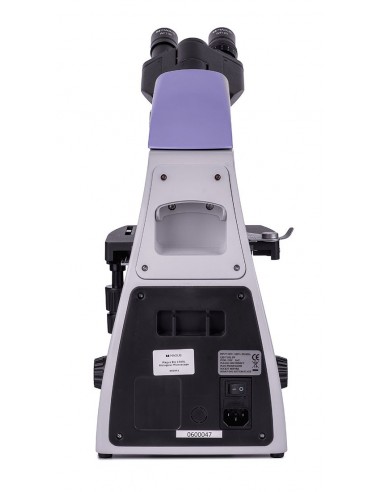

- Base with power input, light source for transmitted light observations, focusing mechanism, stage, attachment condenser and nosepiece
- Abbe condenser
- Binocular head
- Achromatic objective at infinity: 4x/0.10
- Achromatic objective at infinity: 10x/0.25
- Achromatic objective at infinity: 40x/0.65 (with spring mechanism)
- Achromatic objective at infinity: 100x/1, 25 oil (with spring mechanism)
- Eyepiece 10x/18 mm with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- Vial of immersion oil
- AC power cord
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/20 mm eyepiece with graduated scale
- Eyepiece 15x/11 mm (2 pcs.)
- Eyepiece 16x/11 mm (2 pcs.)
- Eyepiece 20x/11 mm (2 pcs.)
- Achromatic objective at infinity: 20x/0.40
- Plan achromatic objective at infinity: 20х/0.40
- Plan achromatic objective at infinity: 60x/0.80 (loaded spring)
- Phase contrast device
- Slider for phase contrast
- Dark field condenser with NA 0.9
- Oil-filled dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarization instruments
- Digital camera
- Calibration glass
- C-mount adapter
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555017969 |
| Package size (WxDxH) | 43x27x63 cm |
| Shipping weight | 10 kg |
| Type | biological, light/optical |
| Tested | binocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Tilting angle of the head | 30° |
| Magnification, x | 40–1000 in the basic configuration (*optional: 40–1500/1600/2000) |
| Magnifying range | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | 10х/18 mm, eye relief: 10 mm (*optional: 10x /20 mm with scale, 15x/11 mm, 16x/11 mm; 20x/11 mm) |
| Infinity corrected achromatic objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45 mm (*optional: 20x/0.40; 60xs/0.80) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ±5 (on left barrel) |
| Condenser | Abbe condenser, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and focus adjustment knob tension of the micrometer screw) and fine focus (0.002 mm micrometer screw) |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 3 W LED |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with case/case/bag | anti-cover powder |
| Weight, kg | 8 |
| Dimensions, mm | 200x436x400 |
