We are proud to introduce the Discovery line of optical instruments, manufactured by Levenhuk and sponsored by Discovery.

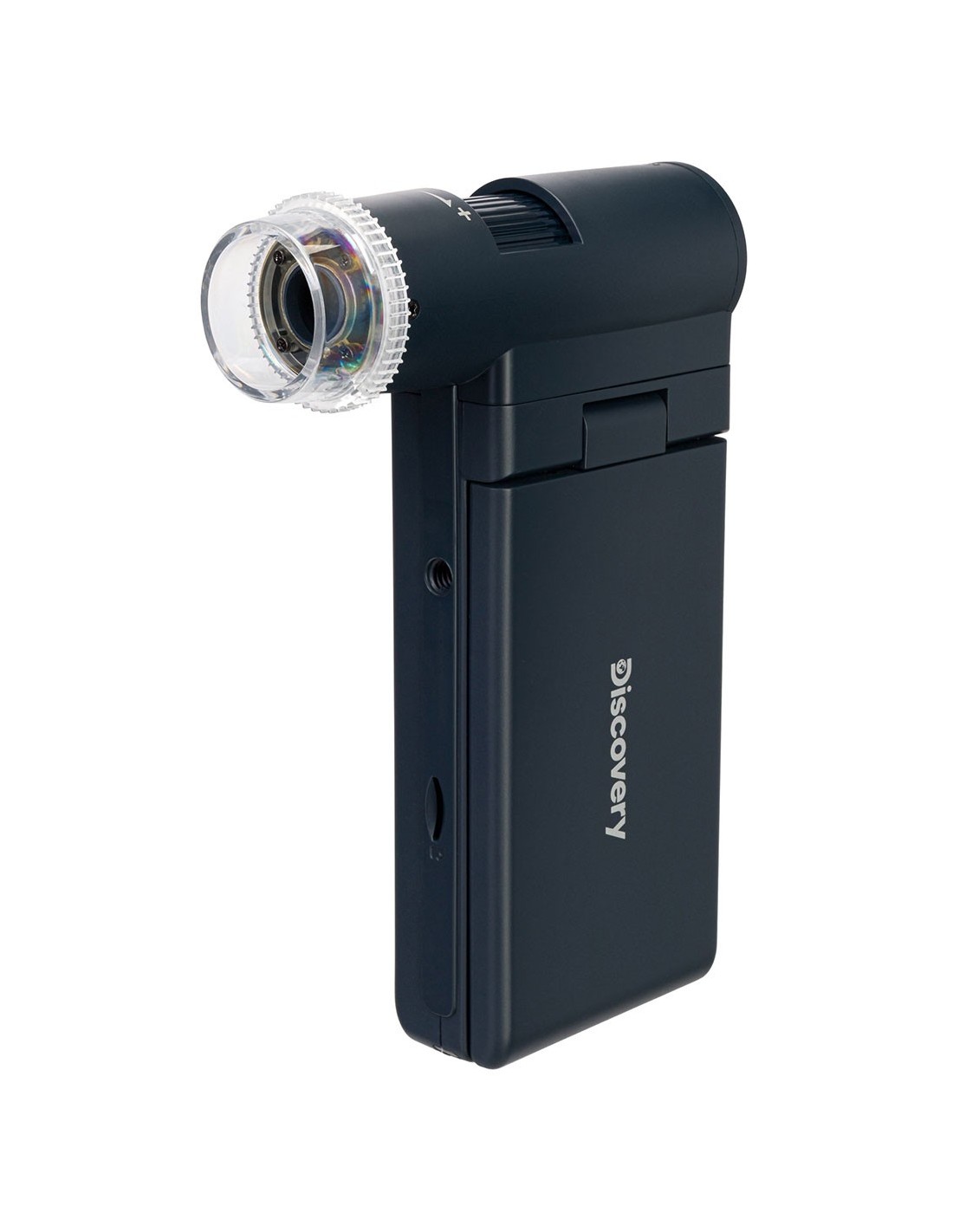

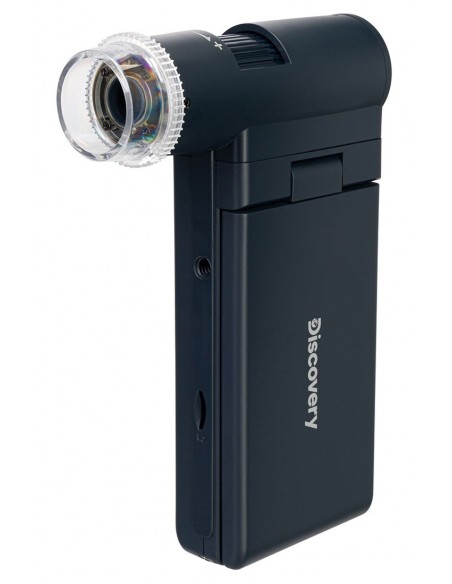

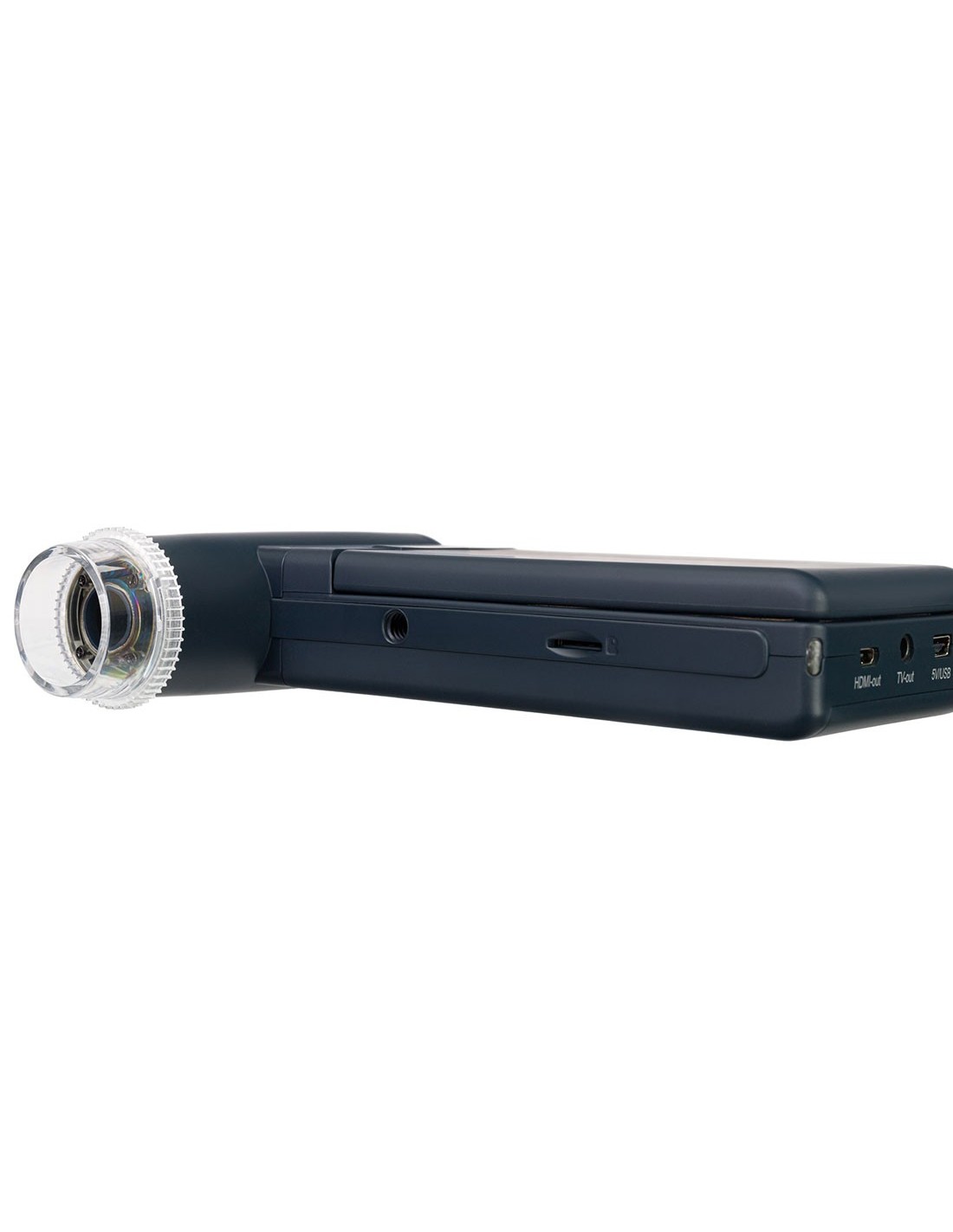

The microscope is equipped with an LED lighting system with brightness adjustment. The LEDs are positioned around the objective, so all observations are made in reflected light. There is a polarizing filter that helps reduce glare and stray reflections when viewing objects with shiny surfaces. The magnification is continuously variable in a range between 10x and 300x, furthermore the digital zoom allows you to reach a magnification of 1200x.
The kit includes a small support that allows you to make stationary observations. Additionally, a case is included for protection and transportation.
Features:
- Magnification: 10–300x (with digital zoom: 10 –1200x)

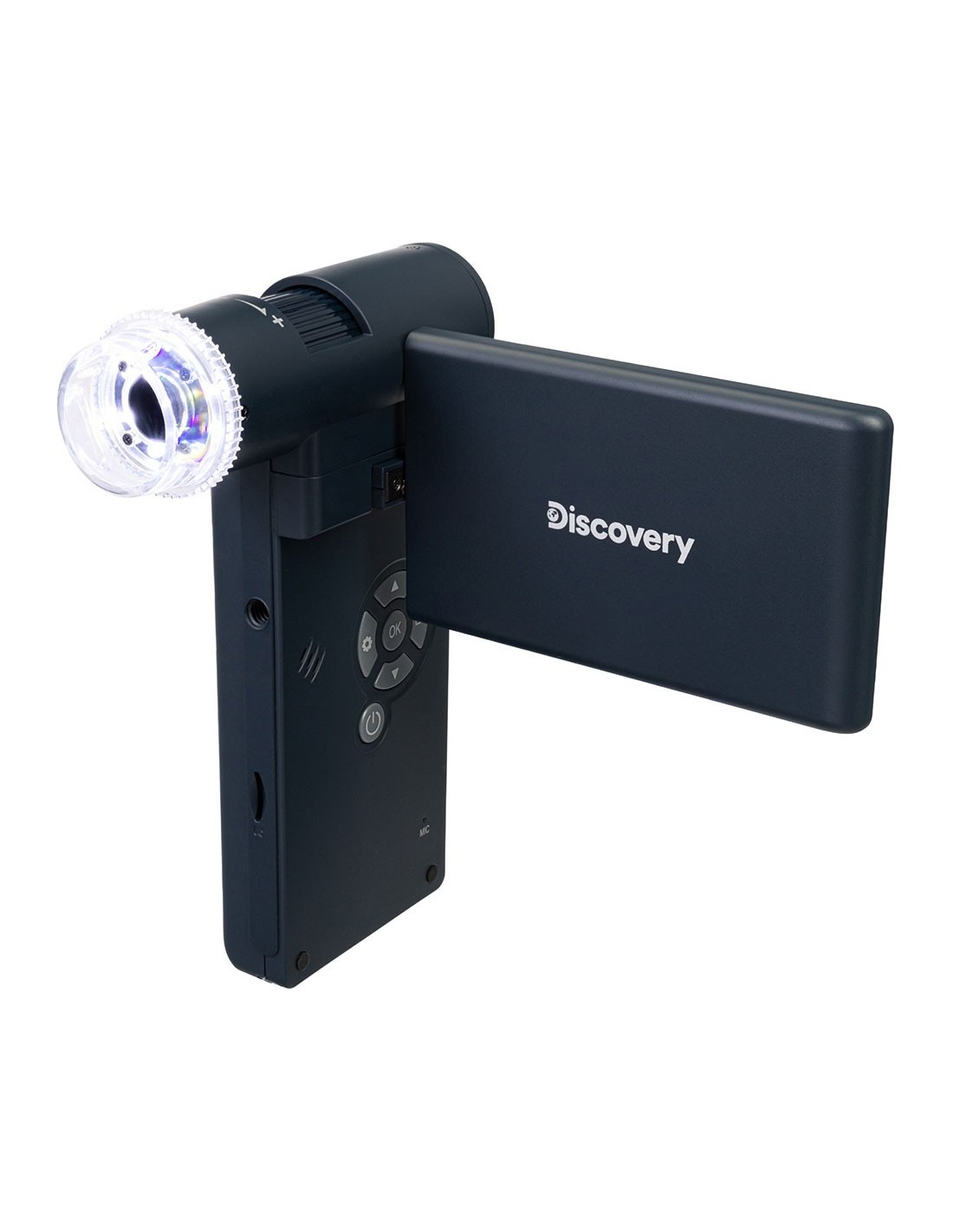

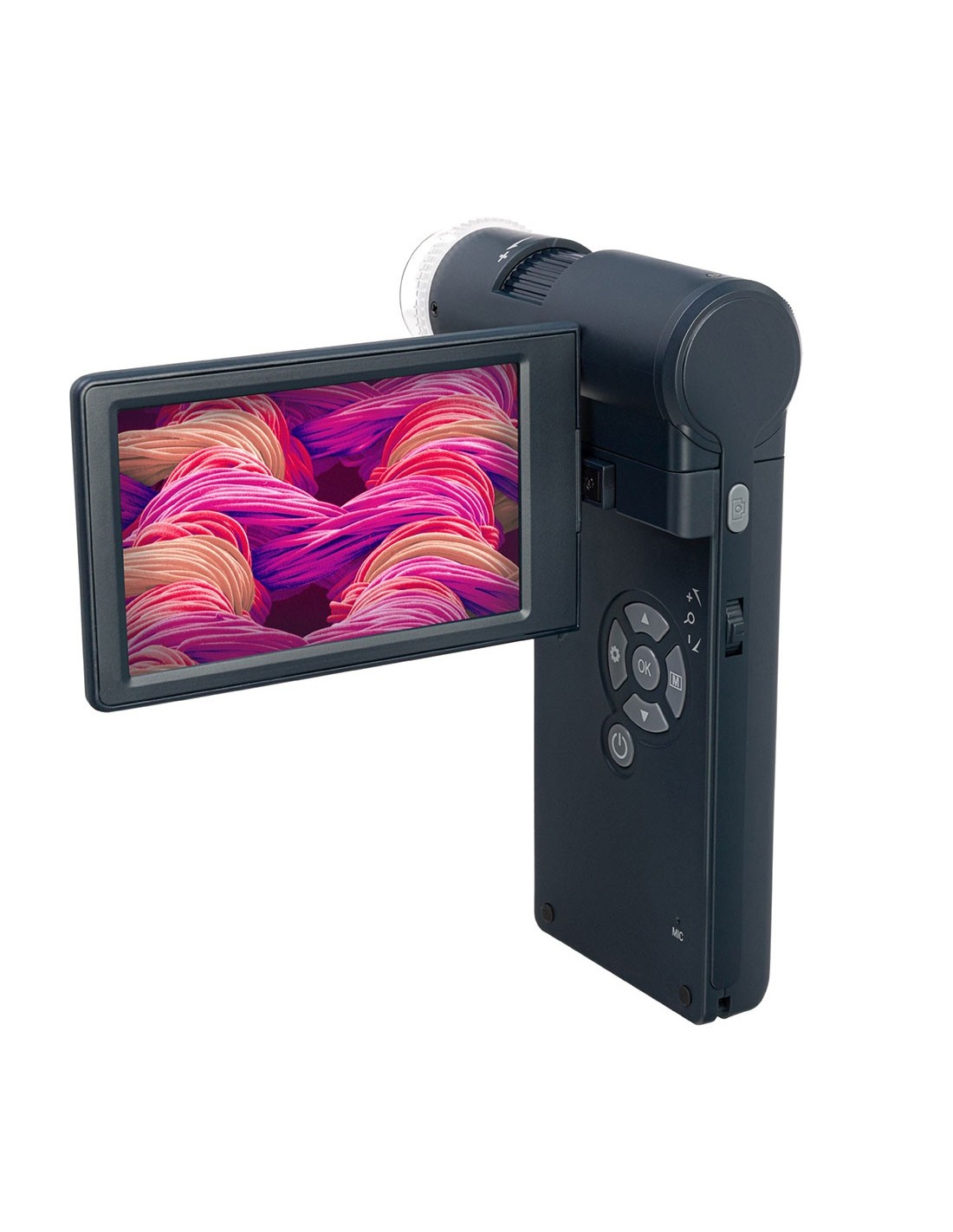

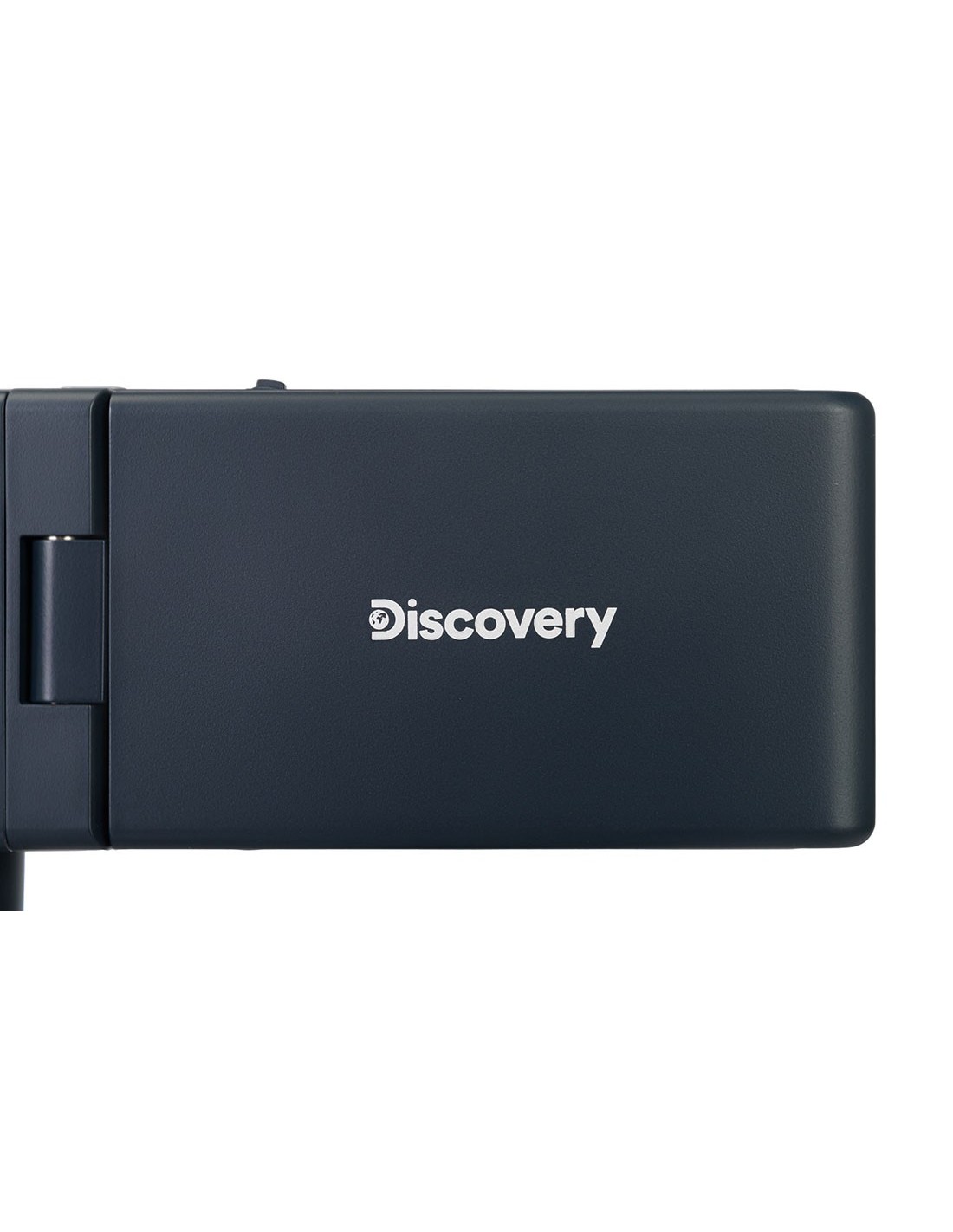

- 4″ rotatable color LDC screen
- LED top lighting with brightness adjustment
- Integrated polarizing filter
- Connection to computer or TV
- Ability to record video, take photos and transmit the image to an external display
- Image processing software with measurement function
- Portable design; powered by battery or AC mains

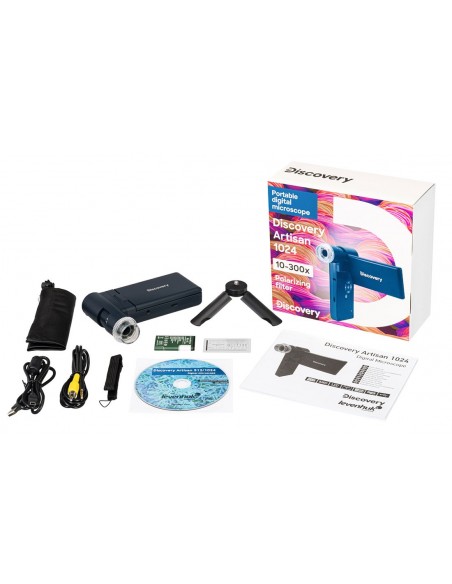

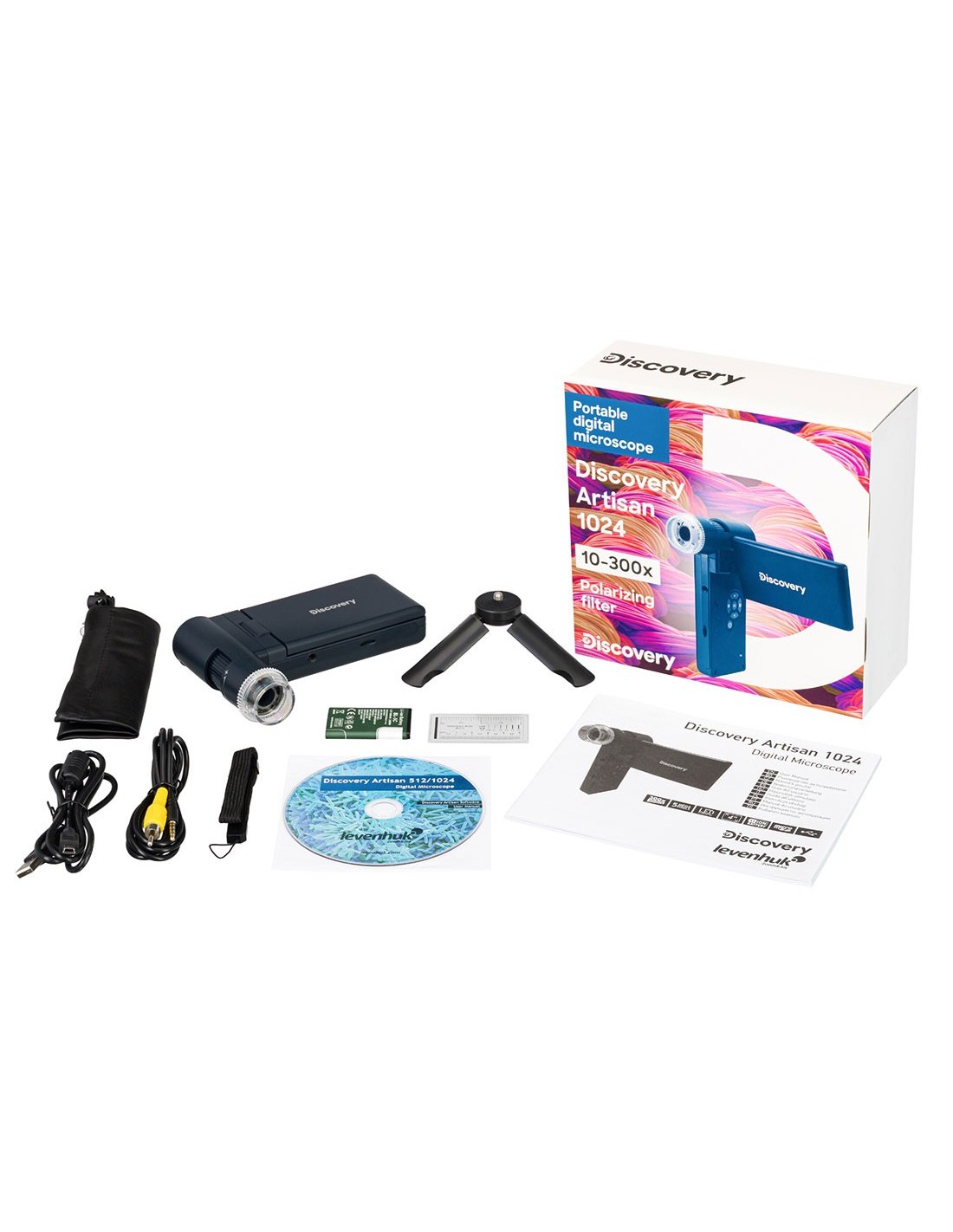

The kit includes:
- Microscope
- Adapter ( 100–240 V, 50/60 Hz)

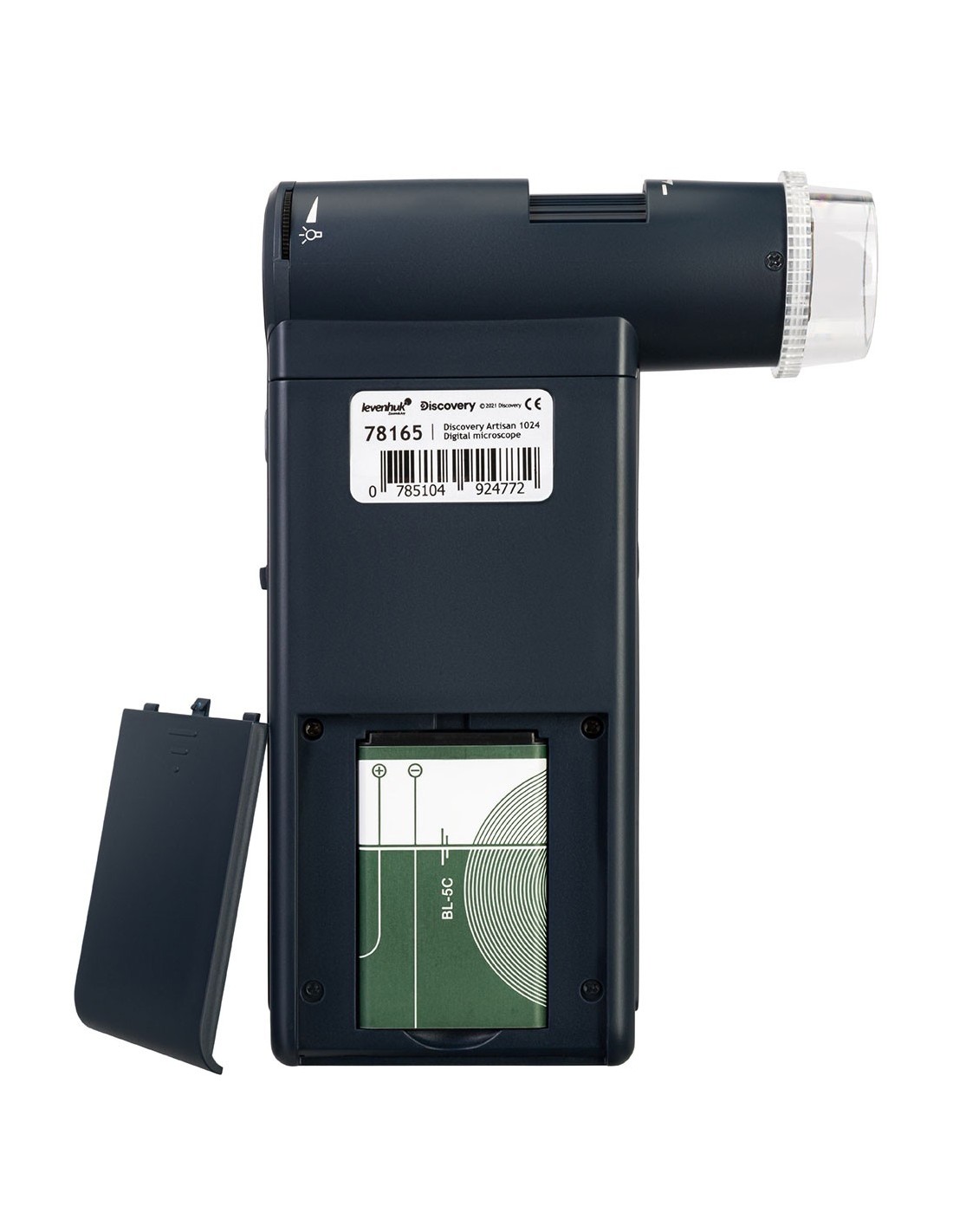

- Rechargeable lithium-ion battery
- USB cable
- AV cable
- Stand

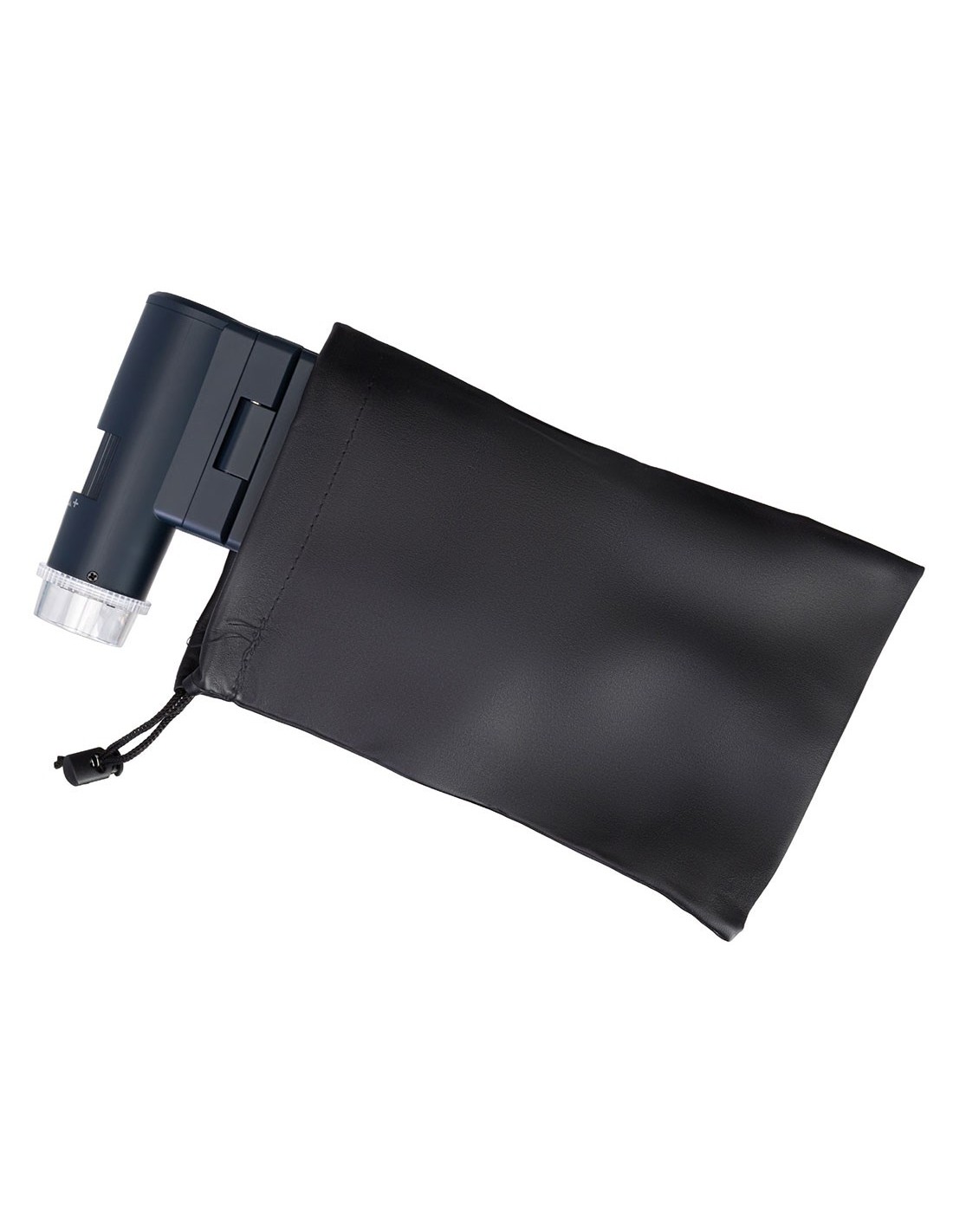

- Case
- Software CD
- User manual and warranty card
Tips for using the software.
For the program to function correctly, start the installed application only when the microscope is connected to the PC and ready for observations.
Note :The mains voltage in the United States and Canada is 110 V, while in most European countries it is 220–240 V. For information regarding the correct mains voltage, see the specifications table. Never attempt to connect a 110V device to a 220V power outlet, or vice versa, without using a voltage converter.
The Levenhuk Discovery Artisan 1024 digital microscope is not compatible with external digital cameras .
| Brand | Discovery |
| Warranty | 10 лет |
| EAN | 5905555012063 |
| Package size (WxDxH) | 21x20x7 cm |
| Shipping weight | 0.685 kg |
| Type | portable, digital |
| Tested | digital screen/PC monitor |
| Optics material | optical glass |
| Vertical tube | 4" rotatable color LCD screen |
| Magnification , x | with digital zoom 10–1200, 10–300 |
| Magnifying range | 800x to 1280x |
| Focus | manual, 0–100 mm |
| Body | plastic |
| Plastic |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | 100–240V, 50/60Hz, 5V,1A output, 3.7V/1050mAh lithium-ion battery |
| Power: batteries/built-in battery | yes |
| Type of light source | 8 LEDs |
| Optical filters | polarizer |
| Operating temperature range, °C |
| td> | -10 — 65 |
| Extra elements | a tripod with adjustable height (0.5–3 cm), battery life of battery: 2.5 hours; charging time: 4 hours |
| Possibility to connect additional equipment | microSD card up to 32 GB (not included)
computer: via USB cable (included)
TV: via AV cable (included) |
| User level | beginner, advanced users |
| Assembly and installation level of difficulty | easy |
| Software languages | Russian, English, German, Spanish, French, Japanese, Chinese |
| Application | for applied research |
| Lighting position | upper |
| Search method | bright field |
| Set with case/case /bag | case |
| Maximum resolution | images: 12 MP, 10 MP, 8 MP, 5 MP, 3 MP, 2 MP
video: 1080p, 720p |
| Megapixel | 5 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.avi |
| Frame rate | 30 frames per second |
| Software, drivers | photo and video processing software with object measurement capabilities |
| Output | USB 2.0, HDMI/TV |
| System requirements | OS: Windows 7/8/10, Mac 10.14 and later, minimum P2 1 GHz, 512 MB RAM, video card 512 MB, USB 2.0 port, CD-ROM |
