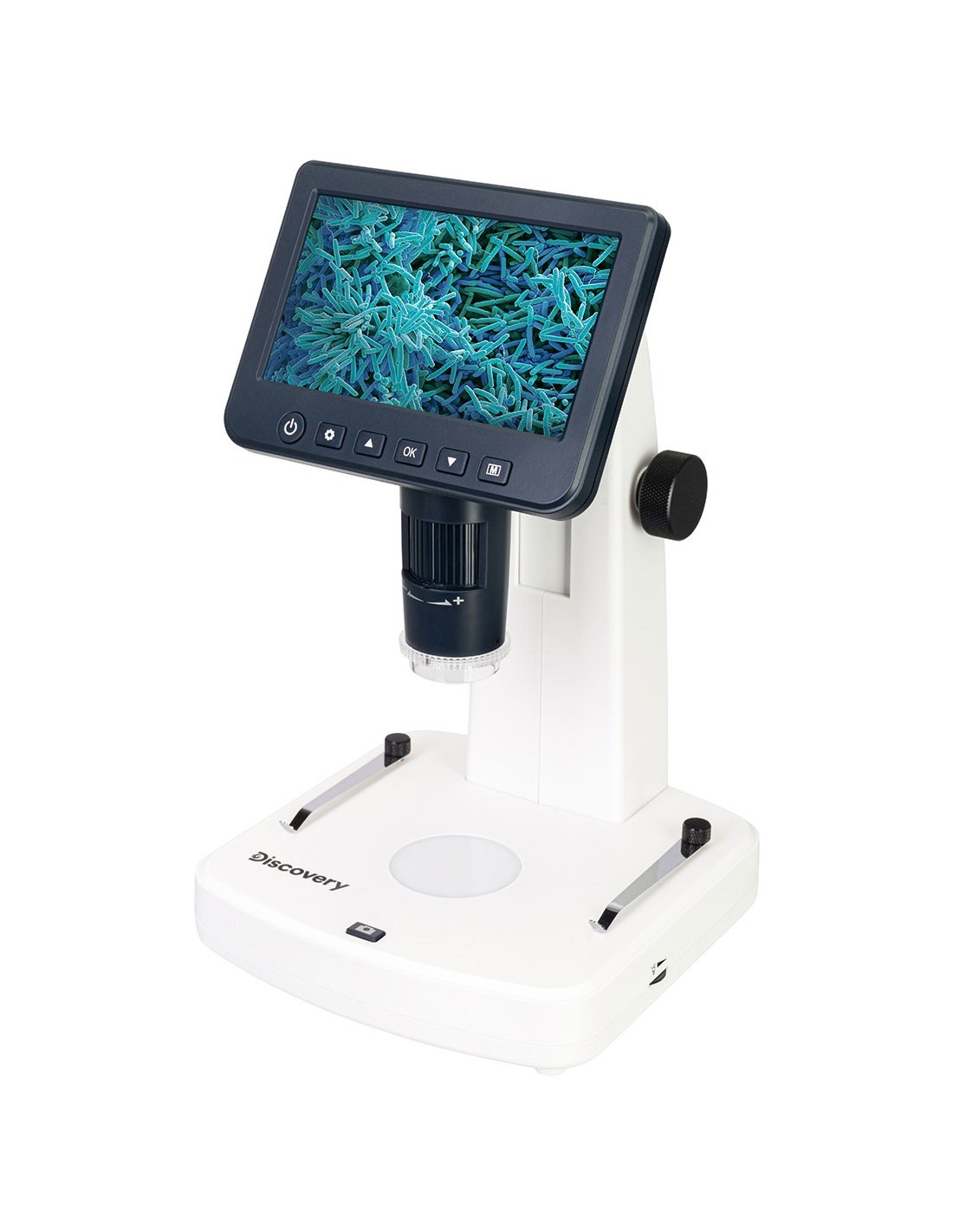

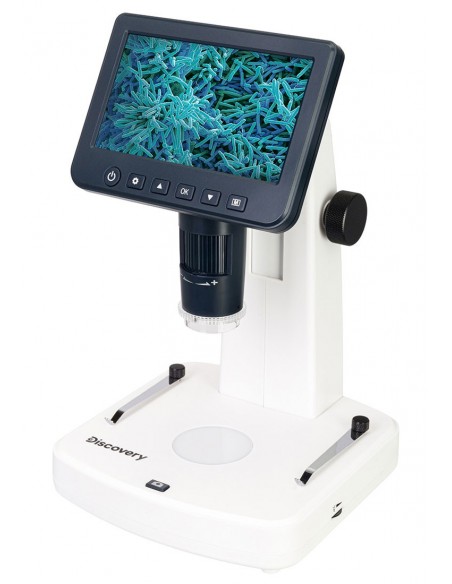

We are proud to introduce the Discovery line of optical instruments, manufactured by Levenhuk and sponsored by Discovery.

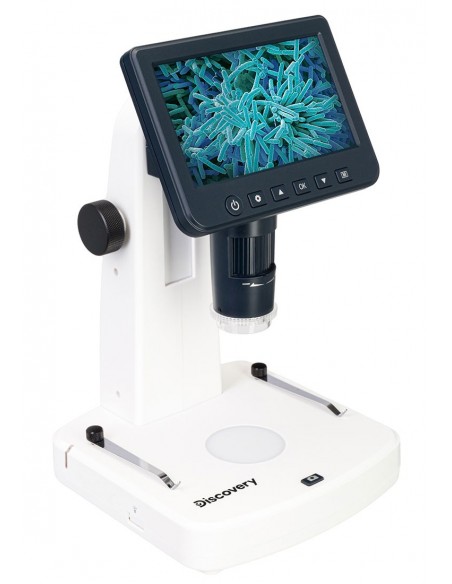

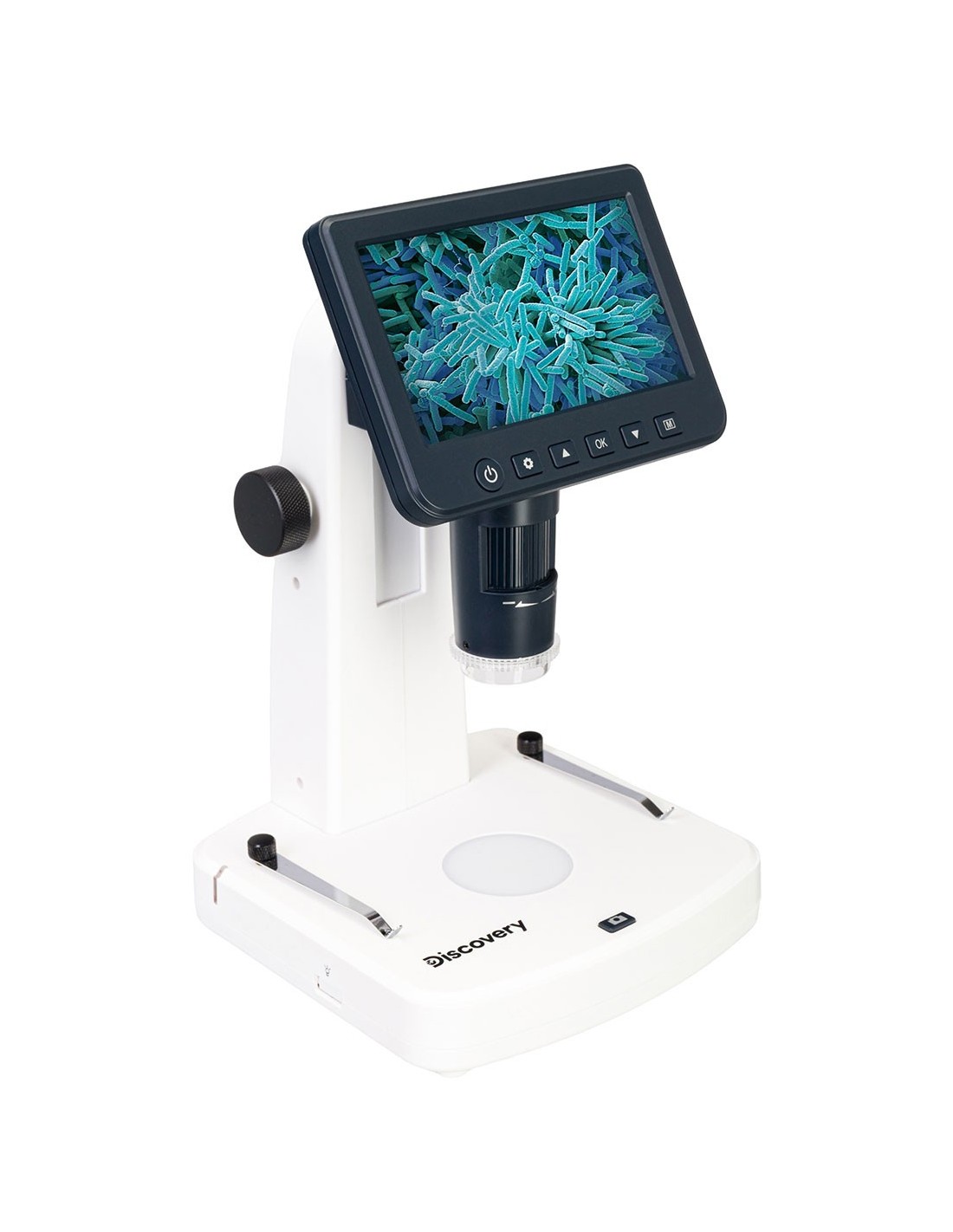

The microscope can also be connected to an external monitor, a TV or a computer. The kit includes all necessary cables. Therefore, you will not need to purchase them separately. A memory card (not included) must be used to save photos and videos. microSD cards with capacities up to 32 GB are supported. The microscope is sold accompanied by computer software that offers various functions, including the measurement of the observed objects. It is possible to measure the radius, the diameter, the angle between three points, the length of a line and much more.
The microscope is powered by AC mains or by the built-in battery, which guarantees up to three hours of autonomy.
Features:

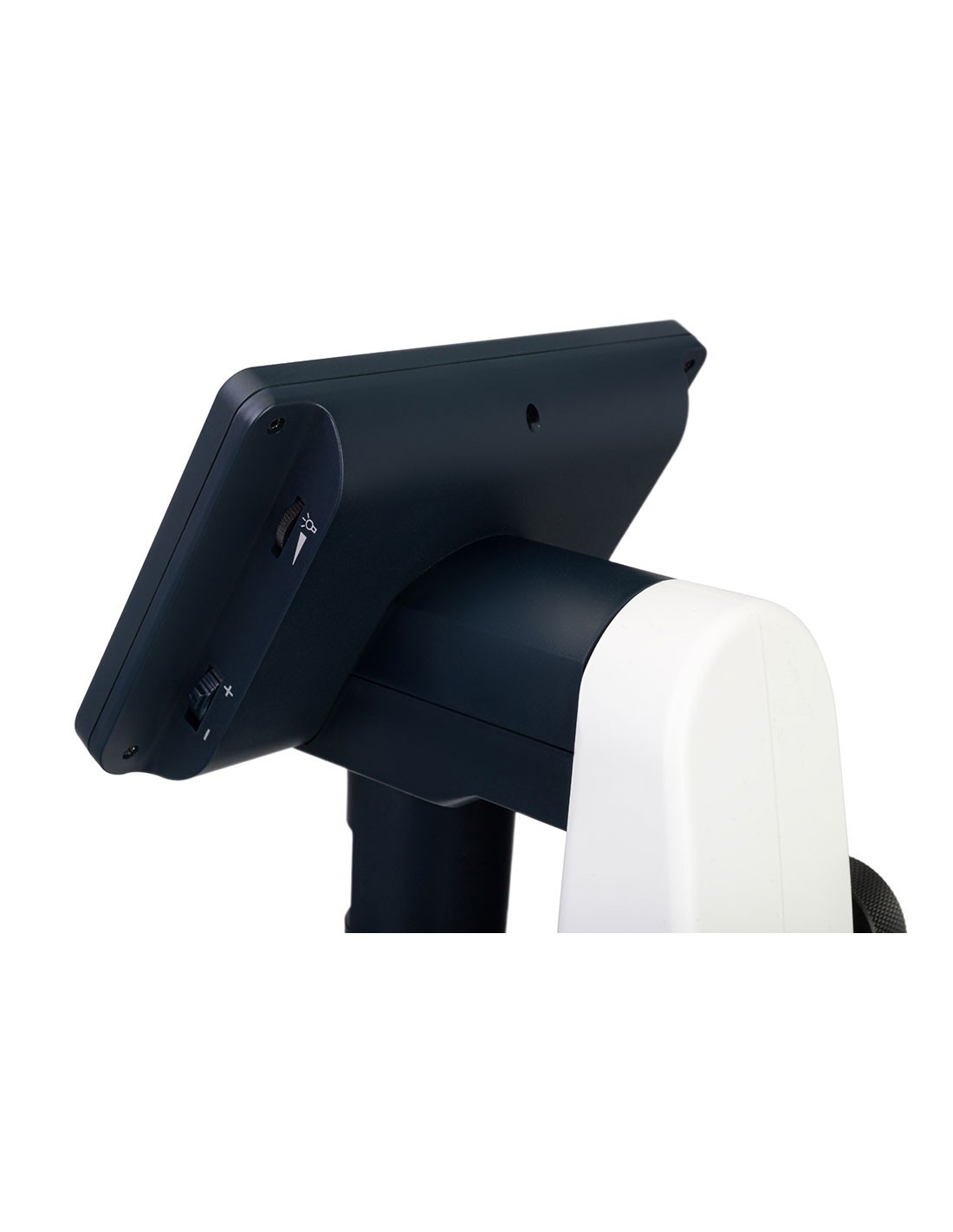

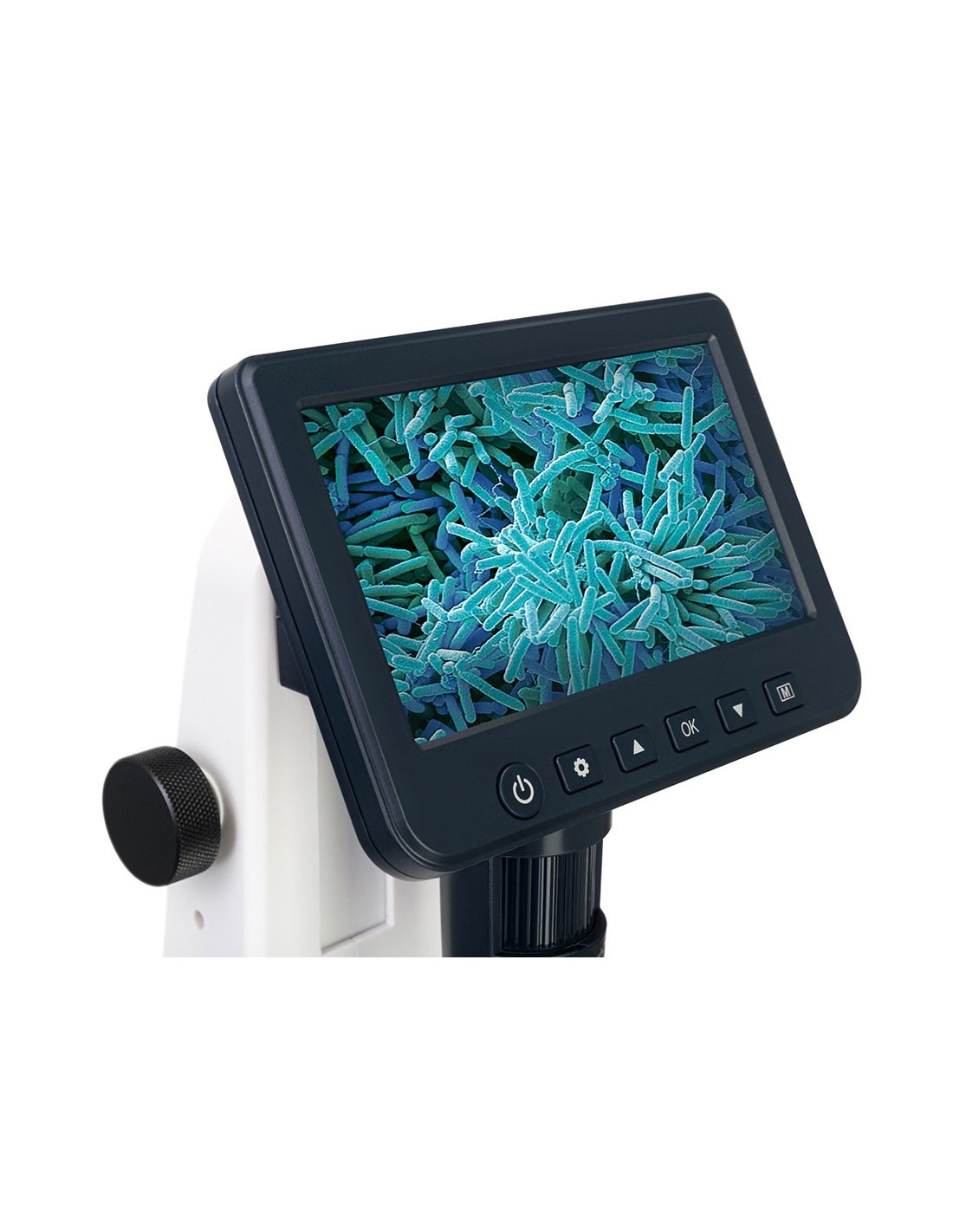

- Integrated 5" LCD screen
- Connection to computer or TV
- Integrated polarizing filter for studying objects with shiny surfaces
- Magnification: 10–300x (with digital zoom: 10–1200x)

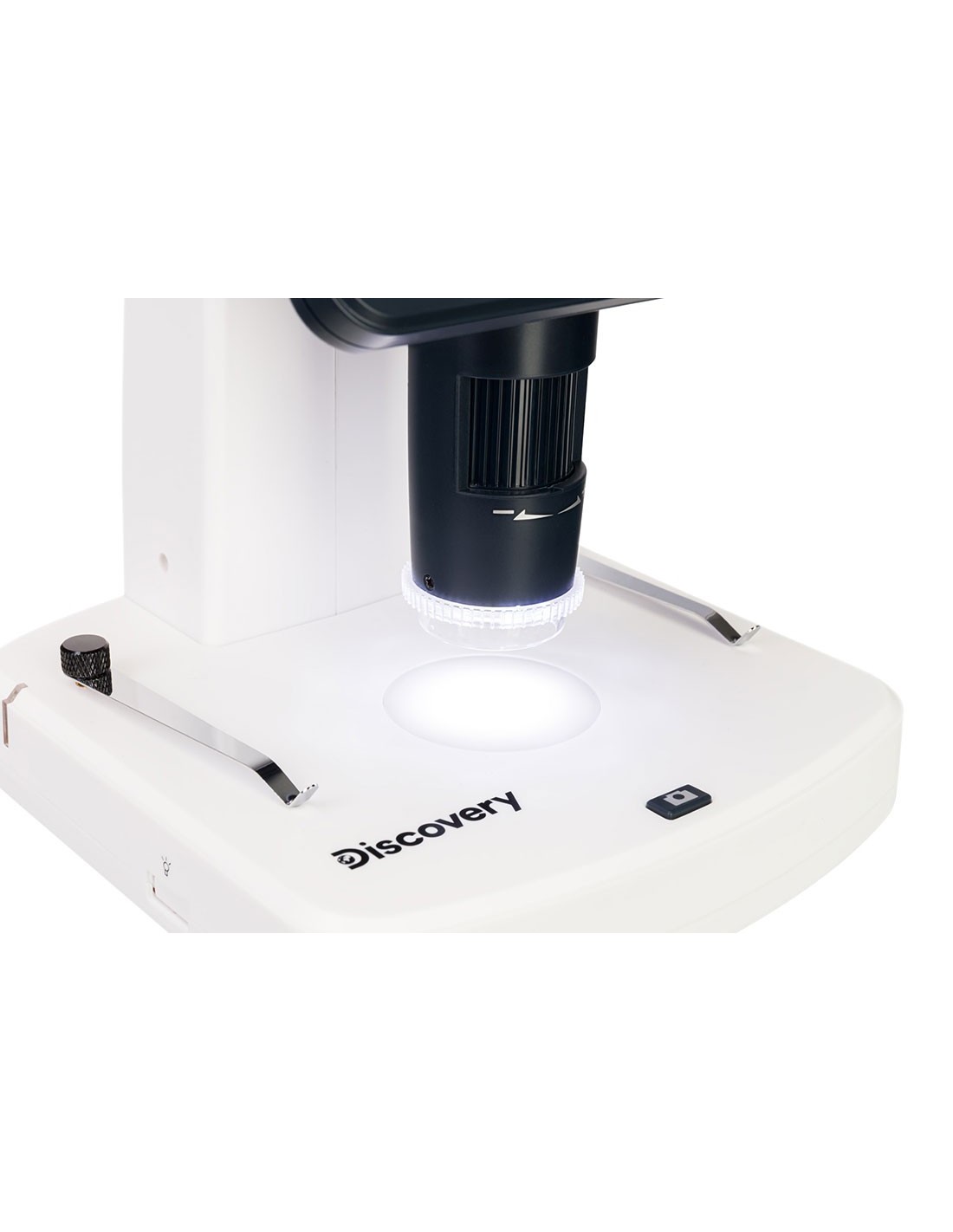

- LED illumination with brightness adjustment
- Capture photos and videos, measure objects
- Powered by AC mains or integrated battery

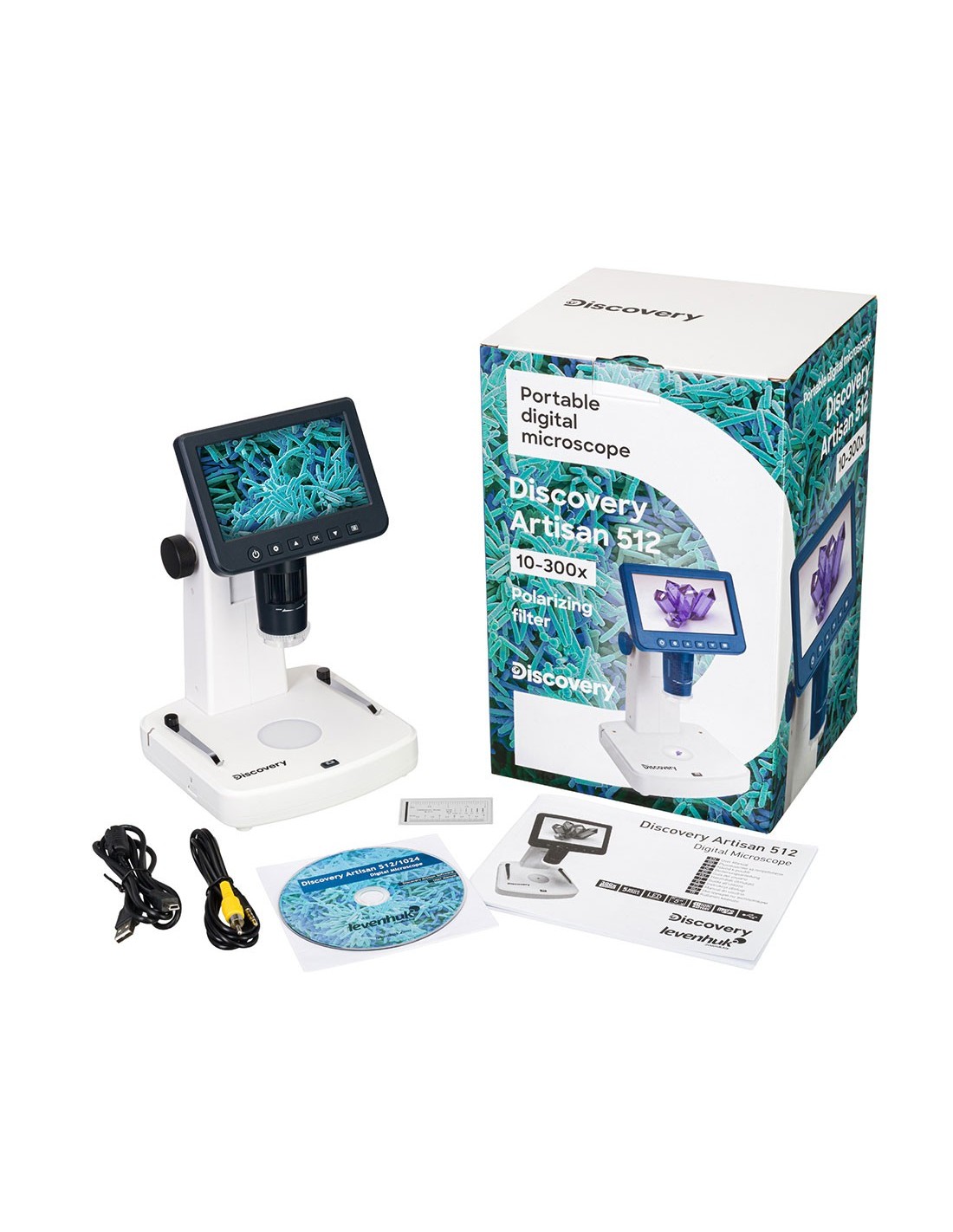

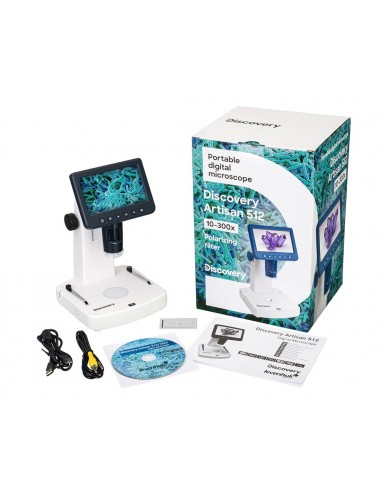

The kit includes:
- Microscope
- Adapter (100–240 V, 50/60 Hz)
- USB cable
- AV cable
- Calibration slide
- Software CD
- User manual and warranty card
Tips for the use of the software.
For the correct functioning of the program, start the installed application only when the microscope is connected to the PC and ready for observations.
Note: The mains voltage in the United States and Canada is 110 V, while in most European countries it is 220–240 V. For information regarding the correct mains voltage, see the specification table. Never attempt to connect a 110V device to a 220V power outlet, or vice versa, without using a voltage converter.
The Levenhuk Discovery Artisan 512 digital microscope is not compatible with external digital cameras .
| Brand | Discovery |
| Warranty | 10 лет |
| EAN | 5905555012056 |
| Package size (WxDxH) | 32x20x19 cm |
| Shipping weight | 1,585 kg |
| Type | digital |
| Tested | digital screen/PC monitor |
| Optics material | optical glass |
| Vertical tube | 5" color LDC screen (fixed) |
| Magnification , x | with digital zoom 10–1200, 10–300 |
| Magnifying range | 800x to 1280x |
| Stage, mm | ø45 |
| Range of movement of stage, mm | fixed |
| Table features | with pegs |
| Fire | manual, 5–70 mm |
| Body | plastic |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | 100–240 V, 50/60Hz, built-in 3.7V/25000mAh lithium ion battery, 5V,2A output |
| Power supply: batteries/built-in battery | yes |
| Optical filters | polarizer |
| Operating temperature range, °C | -10 — 65 |
| Extra items | battery life: 3 hours; charging time: 7 hours |
| Possibility to connect additional equipment | microSD card up to 32 GB (not included)
computer: via USB cable (included)
TV: via AV cable (included) |
| User level | beginner, advanced users |
| Assembly and installation level of difficulty | easy |
| Software languages | Russian, English, German, Spanish, French, Japanese, Chinese |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Maximum resolution | images: 12 MP, 10 MP, 8 MP, 5 MP, 3 MP, 2 MP
video: 1080p, 720p |
| Megapixel | 5 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.avi |
| Frame rate | 30 frames per second |
| Software, drivers | photo and video processing software with object measurement capabilities |

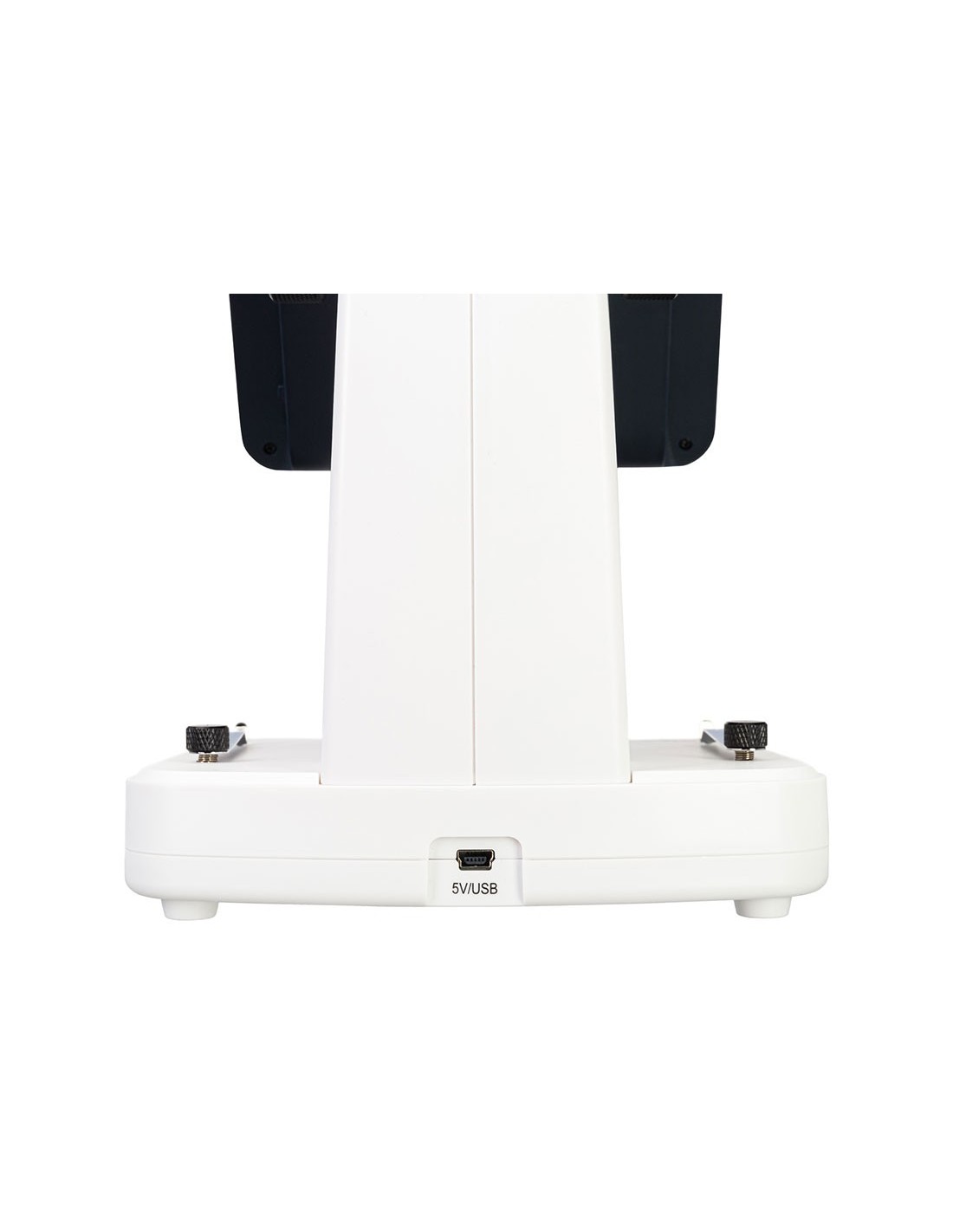

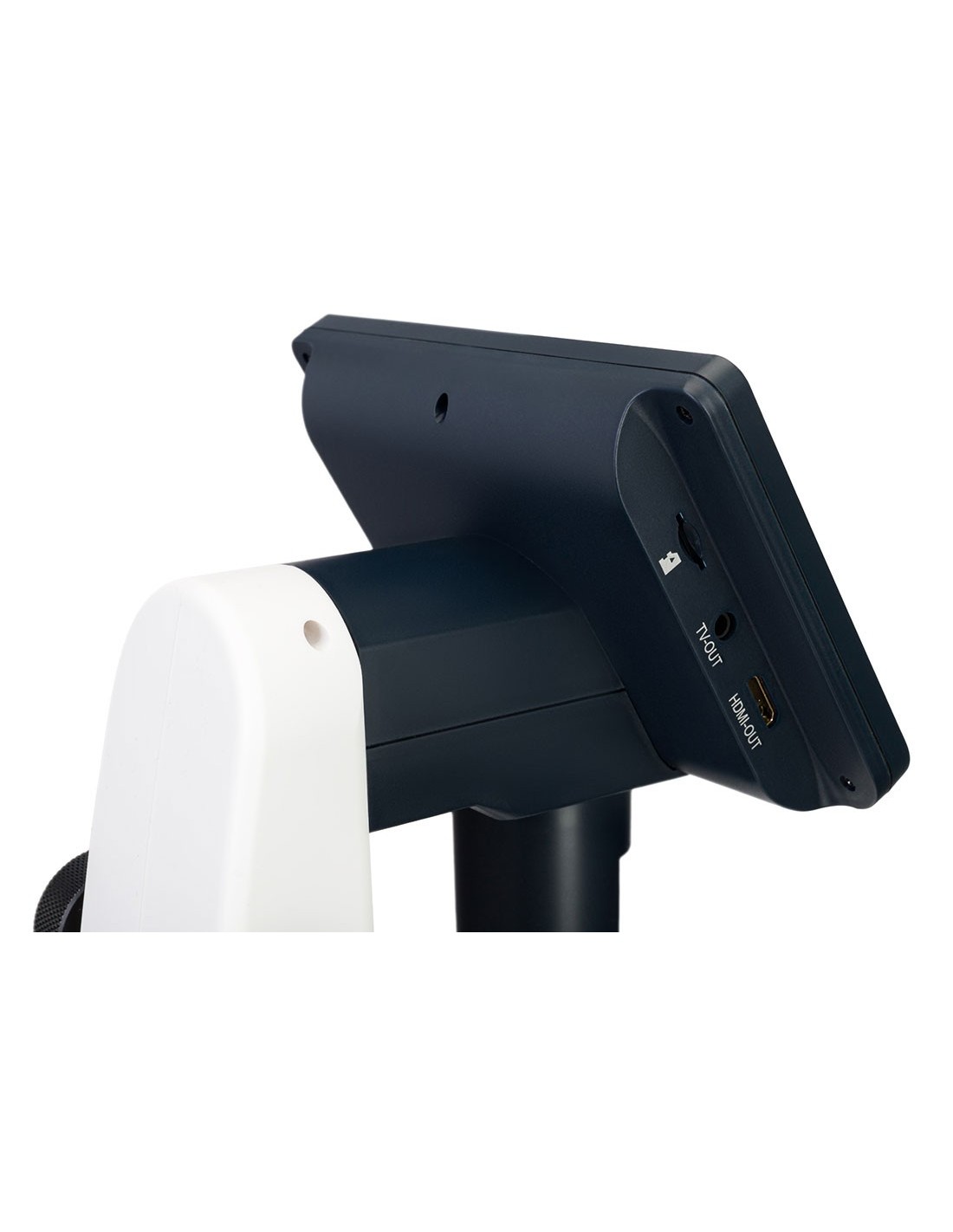

| Output | USB 2.0, HDMI/TV |
| System requirements | OS: Windows 7/ 8/10, Mac 10.14 and later, minimum P2 1 GHz, 512 MB RAM, 512 MB video card, USB 2.0 port, CD-ROM |
