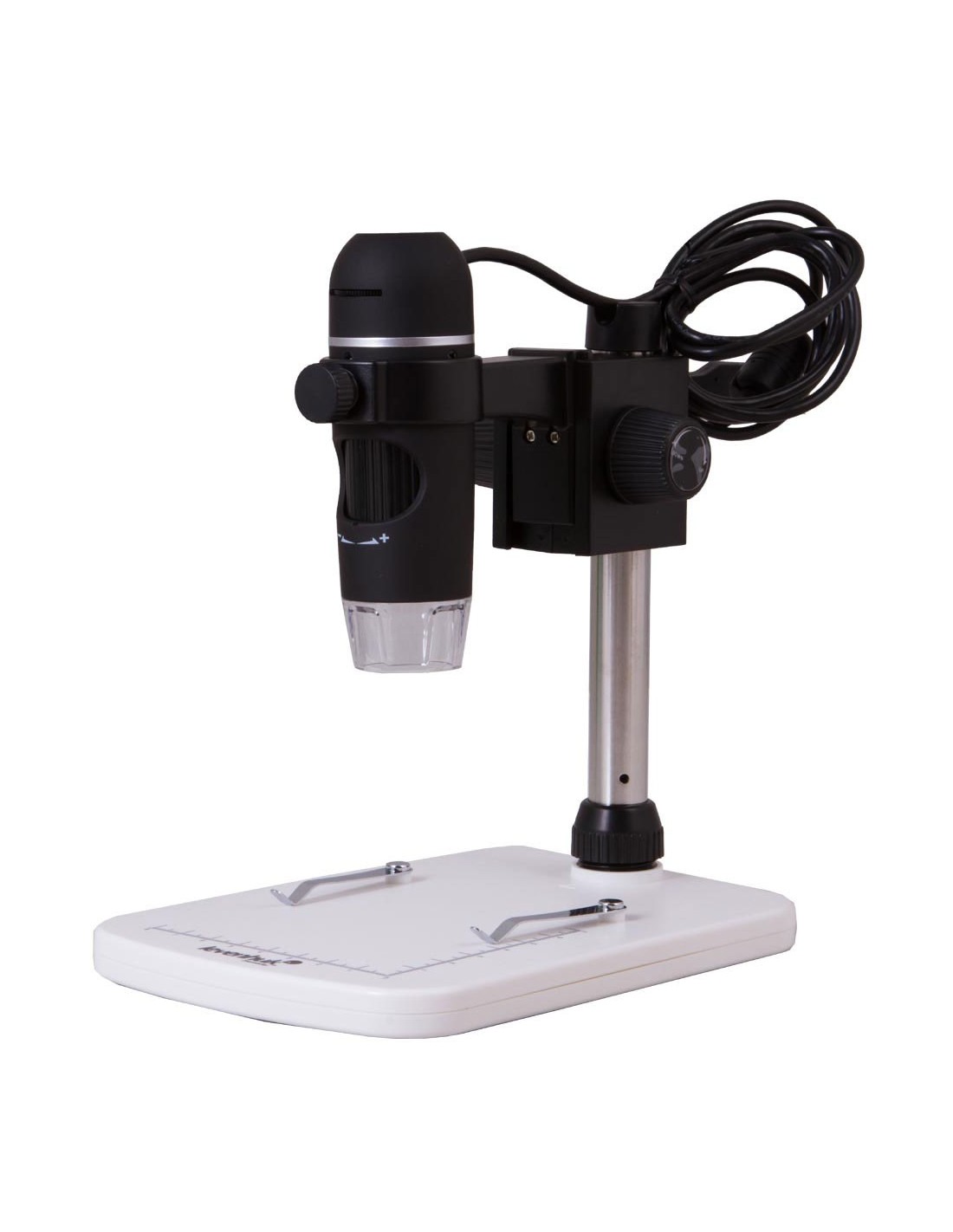

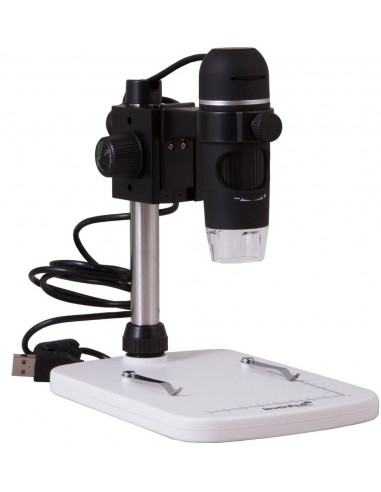

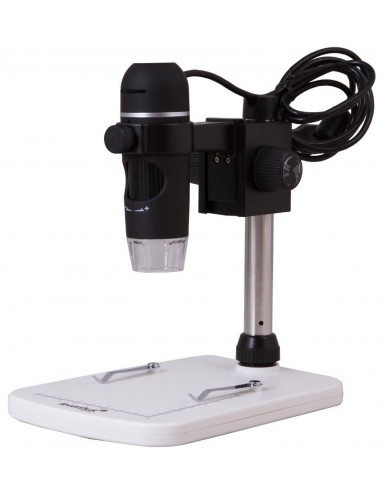

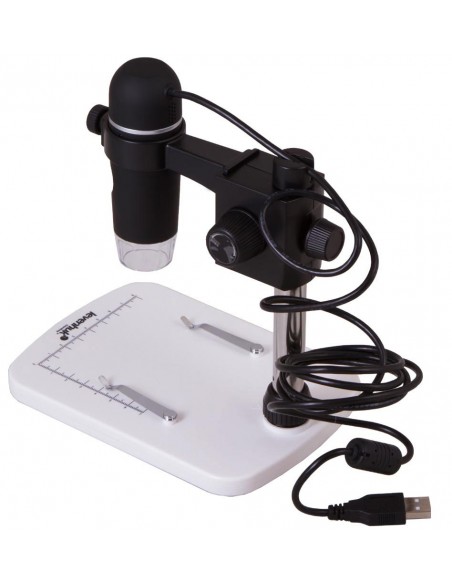

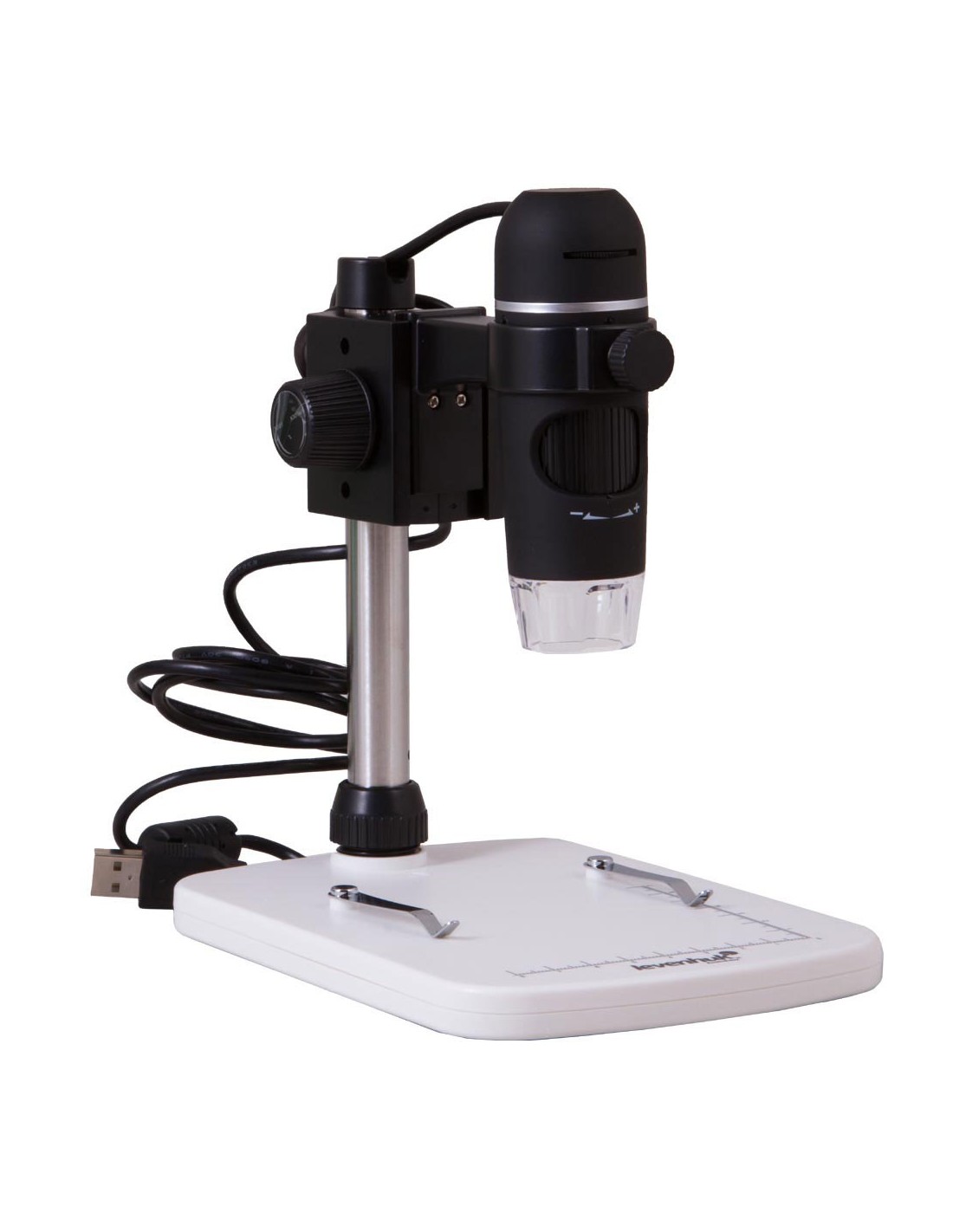

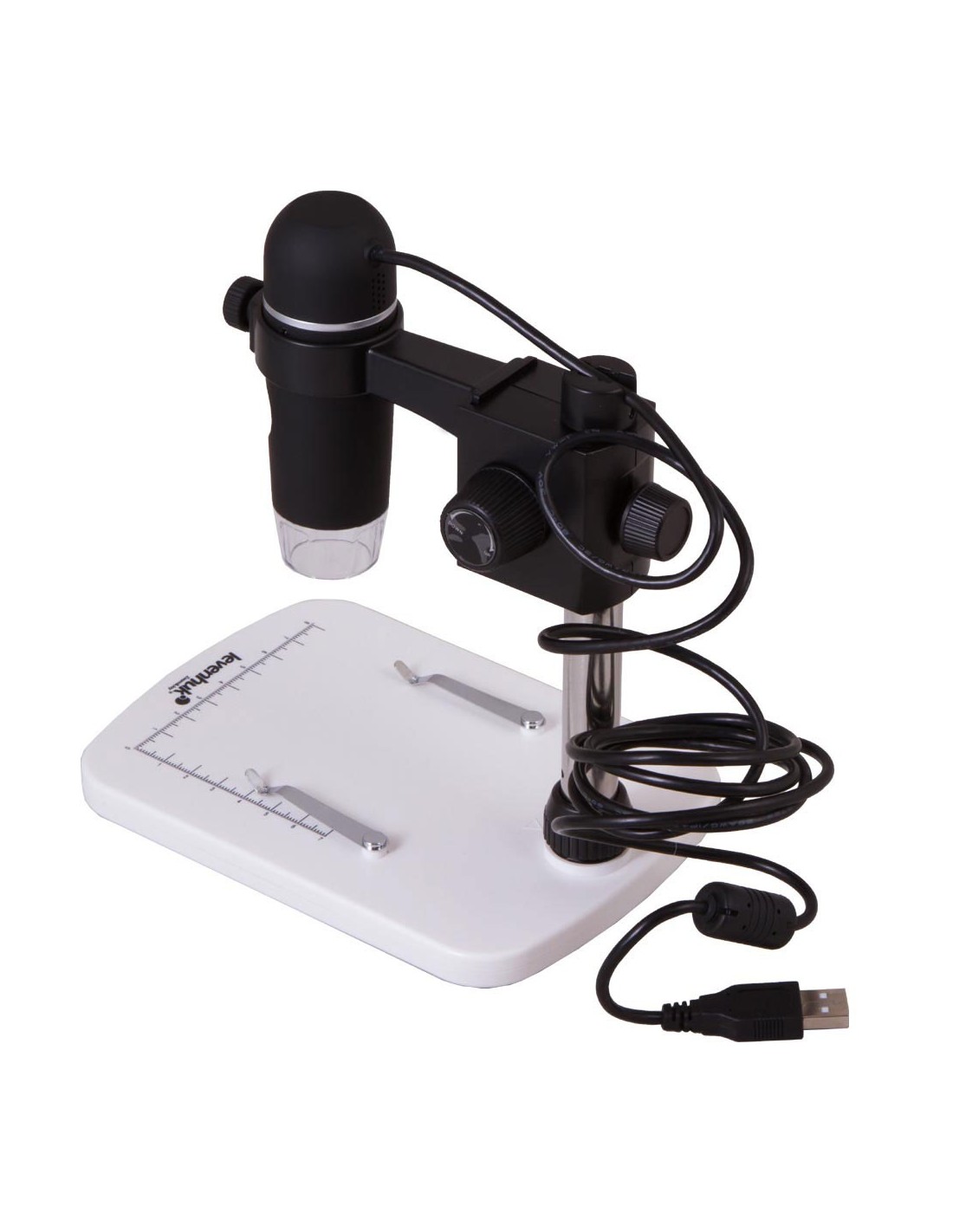

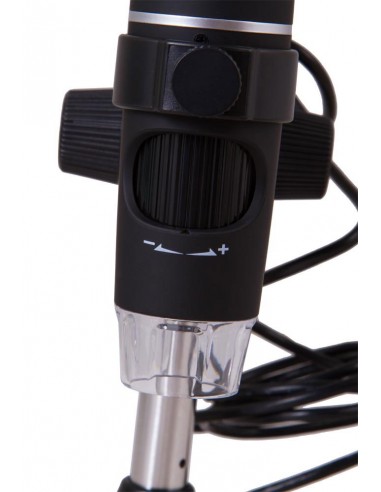

Levenhuk DTX 90 is a modern digital microscope, with USB, for high precision work. The microscope is equipped with a 5 Mpx camera and offers a magnification ranging from 10x to 300x. It is equipped with a special tripod, a stage with a graduated scale (8 cm long on the

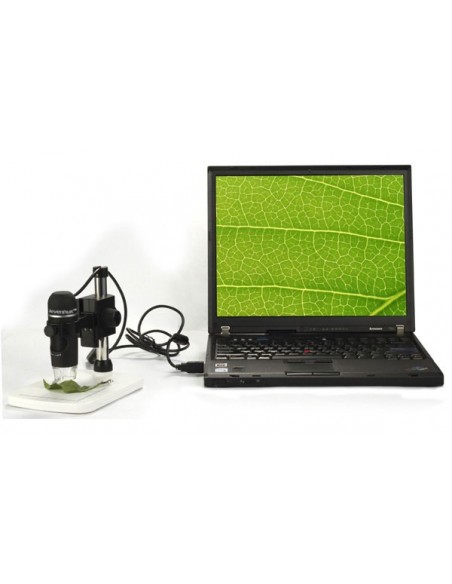

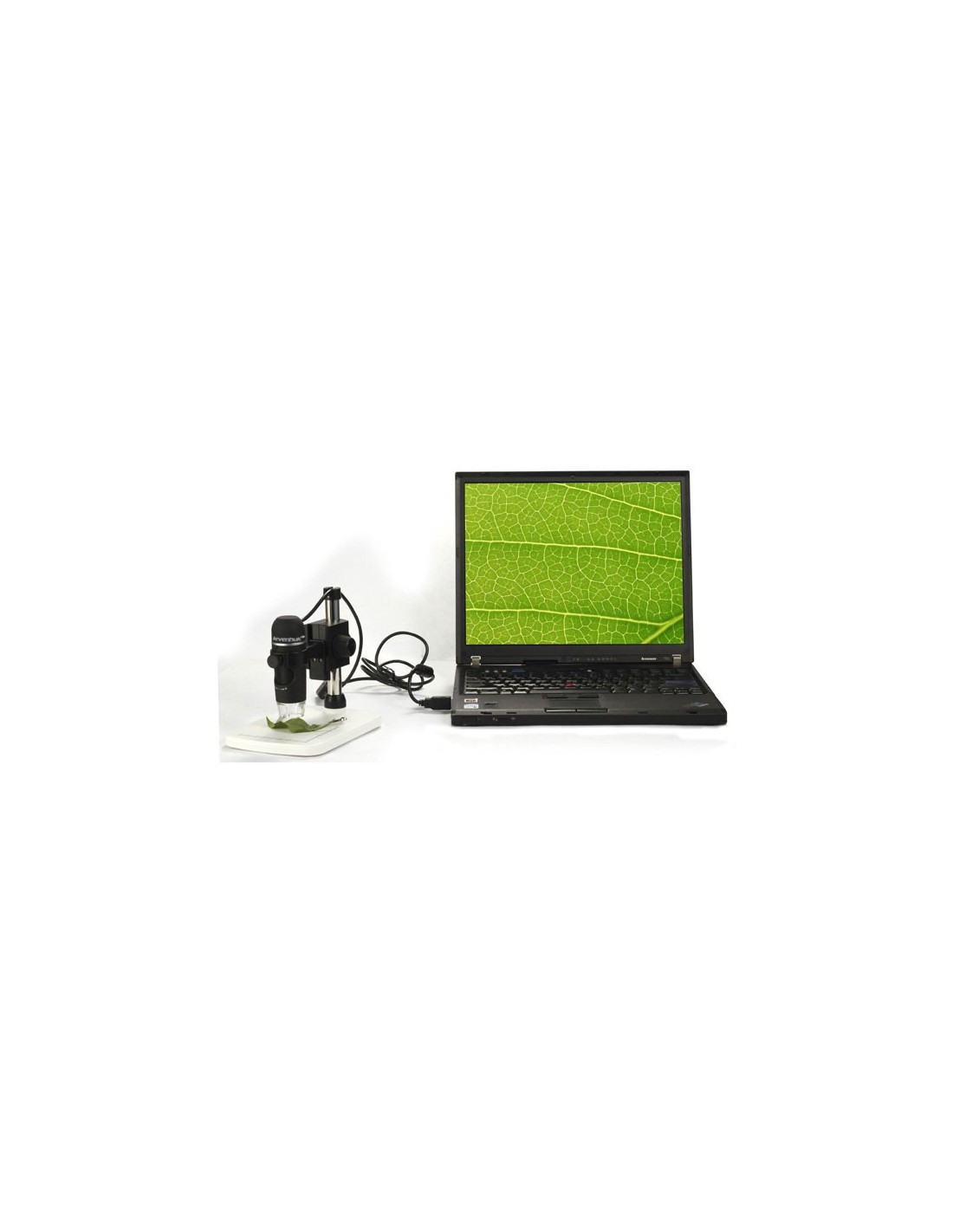

The Levenhuk DTX 90 digital microscope allows you to obtain images of the highest quality and resolution. The microscope is connected to a PC via a standard USB 2.0 cable. Thanks to the easy-to-use image processing software included in the kit, you can observe the samples and process the captured images. In addition to the image processing functionality, which allows you to acquire and edit images and videos, the software also allows you to measure linear dimensions, perimeters, radii and different angles of the observed samples.
Levenhuk DTX 90 is very easy to use and requires no special knowledge or skills. Thanks to its compact size, this microscope is particularly suitable for home use. If necessary, you can take out the digital camera and use it without the tripod.
The rubber coating of the microscope body makes it pleasant to the touch, offers a comfortable grip and prevents it from slipping from your hand.
Features:

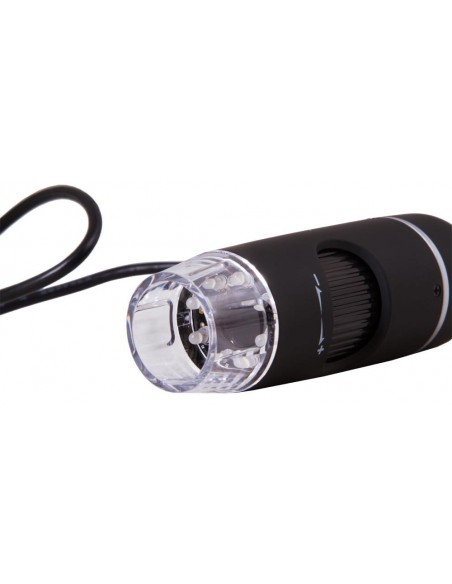

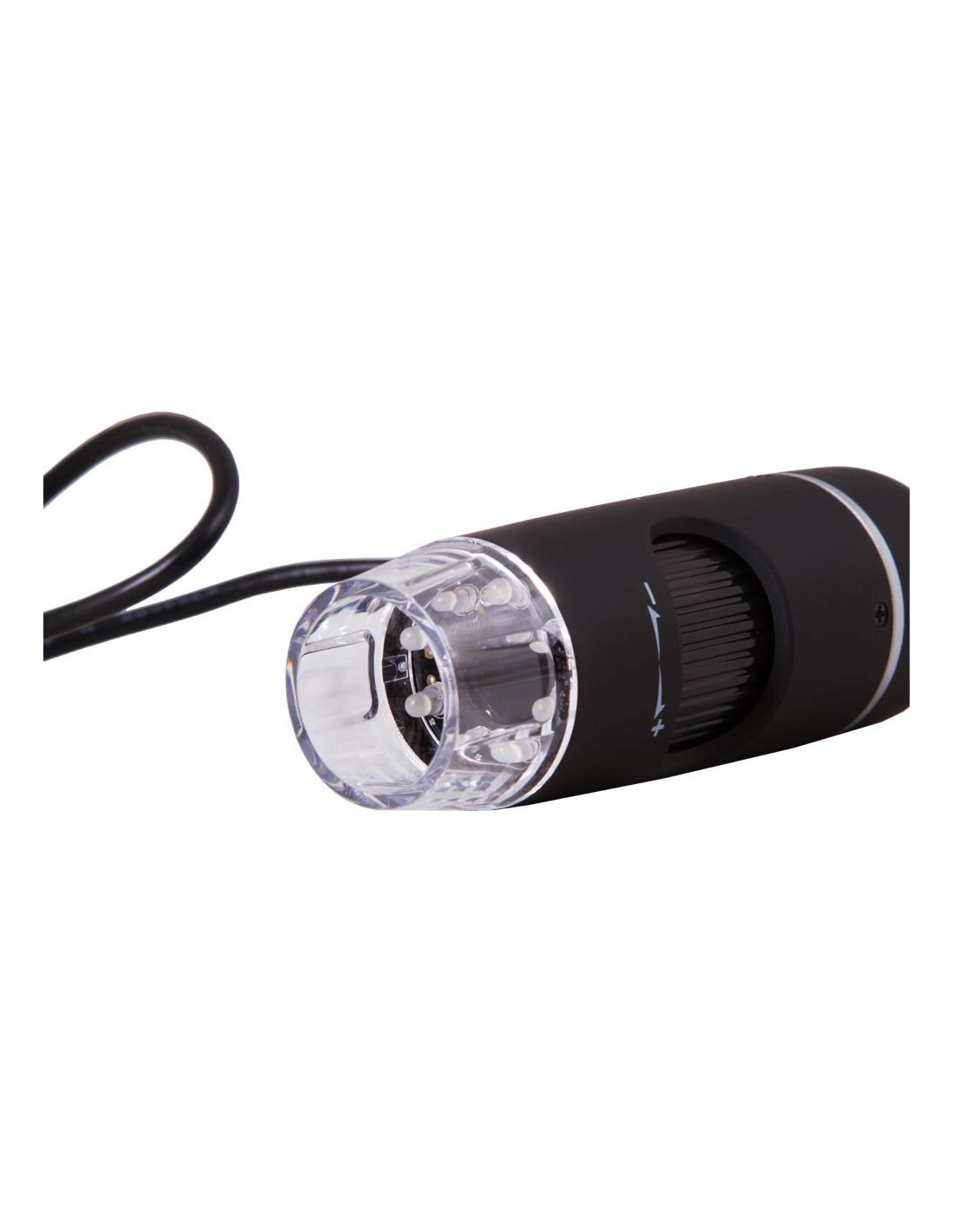

- Removable 5 Mpx digital camera
- Powered by USB
- 8 White LEDs with brightness adjustment
- Ability to take photographs/videos
- Equipped with special software to measure the linear dimensions, areas, angles and radii of the studied samples
- Very broad field of application
- Ease of use
- Compatible with Windows and Mac OS

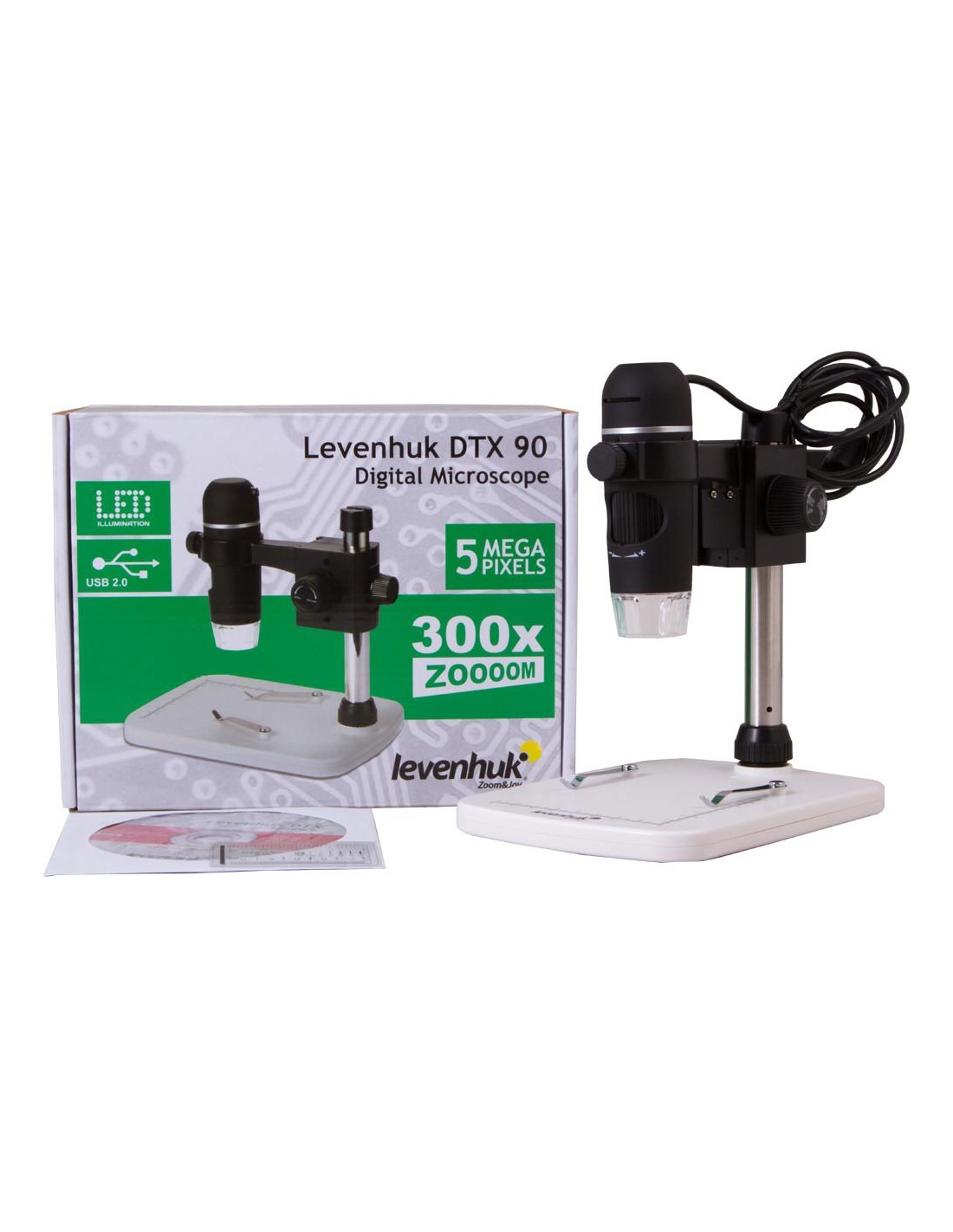

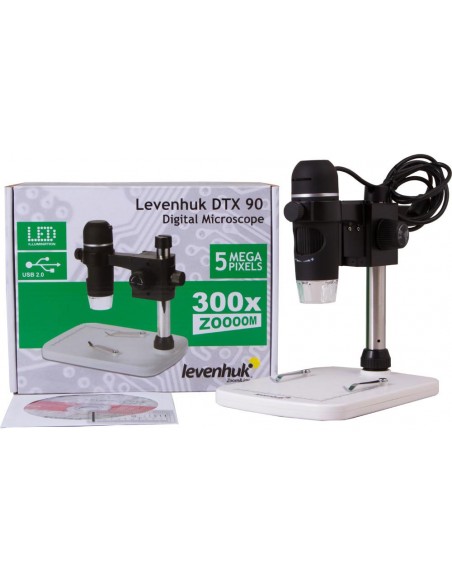

The kit includes:
- Levenhuk DTX 90 Microscope
- Professional tripod

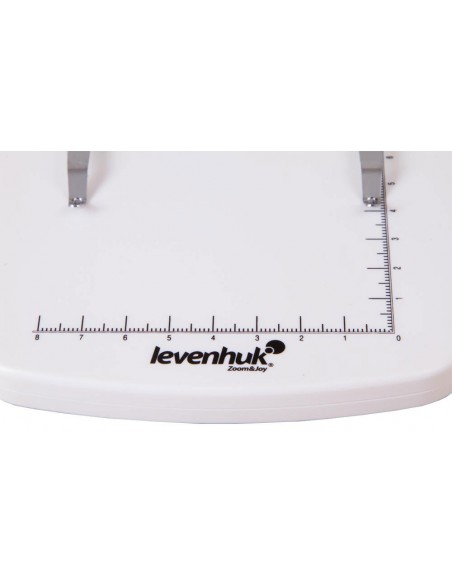

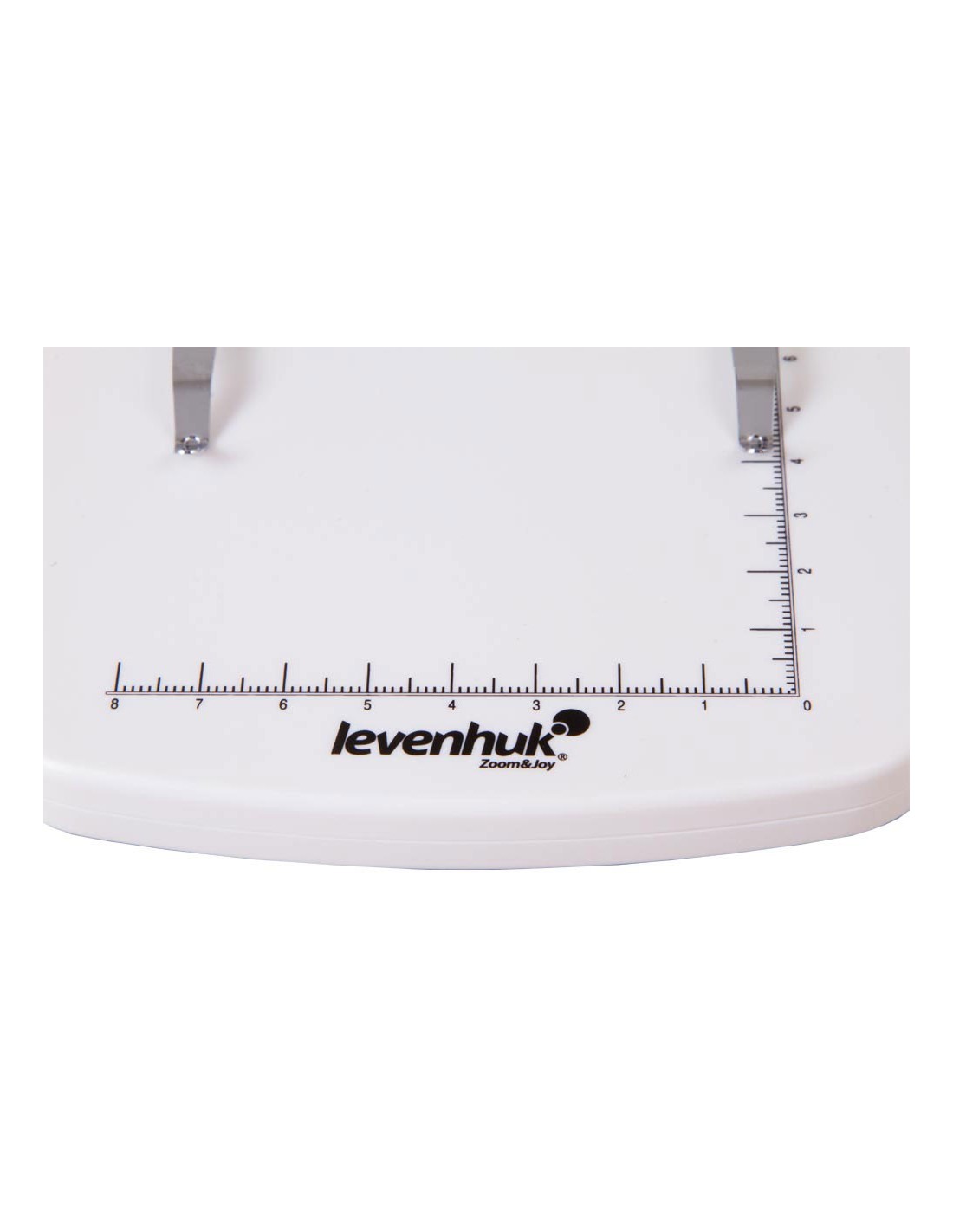

- Stage stage with graduated scale
- Calibration scale
- Software CD
- USB cable
- User manual and lifetime warranty
Tips for using the software:
For the program to function correctly, start the installed application only when the microscope is connected to a PC and you are ready for observations.
The Levenhuk DTX 90 digital microscope is not compatible with external digital cameras.
| Brand | Levenhuk Inc., USA |
| Lifetime Warranty |
| EAN | 5905555004310 |
| td> |
| Package size (LxWxH) | 14x22x17 cm |
| Shipping weight | 0.92 kg |
| Type | digital |
| Head | digital screen/monitor PC |
| Optics material | optical glass |
| Magnification, x | 10 — 300 |
| Magnifying range | 200x to 800x |
| Stage, mm | 120x165 |
| Range of movement of the table, mm | fixed |
| Table features | with clips, with measurement scale |
| Manual fire | , 0–150 mm |
| Body | plastic, rubber coated |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 5 V DC via USB cable |
| User level | beginners |
| Assembly and installation level of difficulty | extremely simple |
| Image | 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024 |
| Application | for applied research |
| Lighting position | upper |
| Research method | bright field |
| Megapixel | 5 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.avi |
| Software, drivers | photo and video processing software with object measurement capabilities |
| Output | USB 2.0 |
| System Requirements | Windows 7/8/10, Mac 10.12 and later, minimum P4 1.8 GHz, 512MB RAM, 64 MB video card, USB 2.0 port, CD-ROM |
