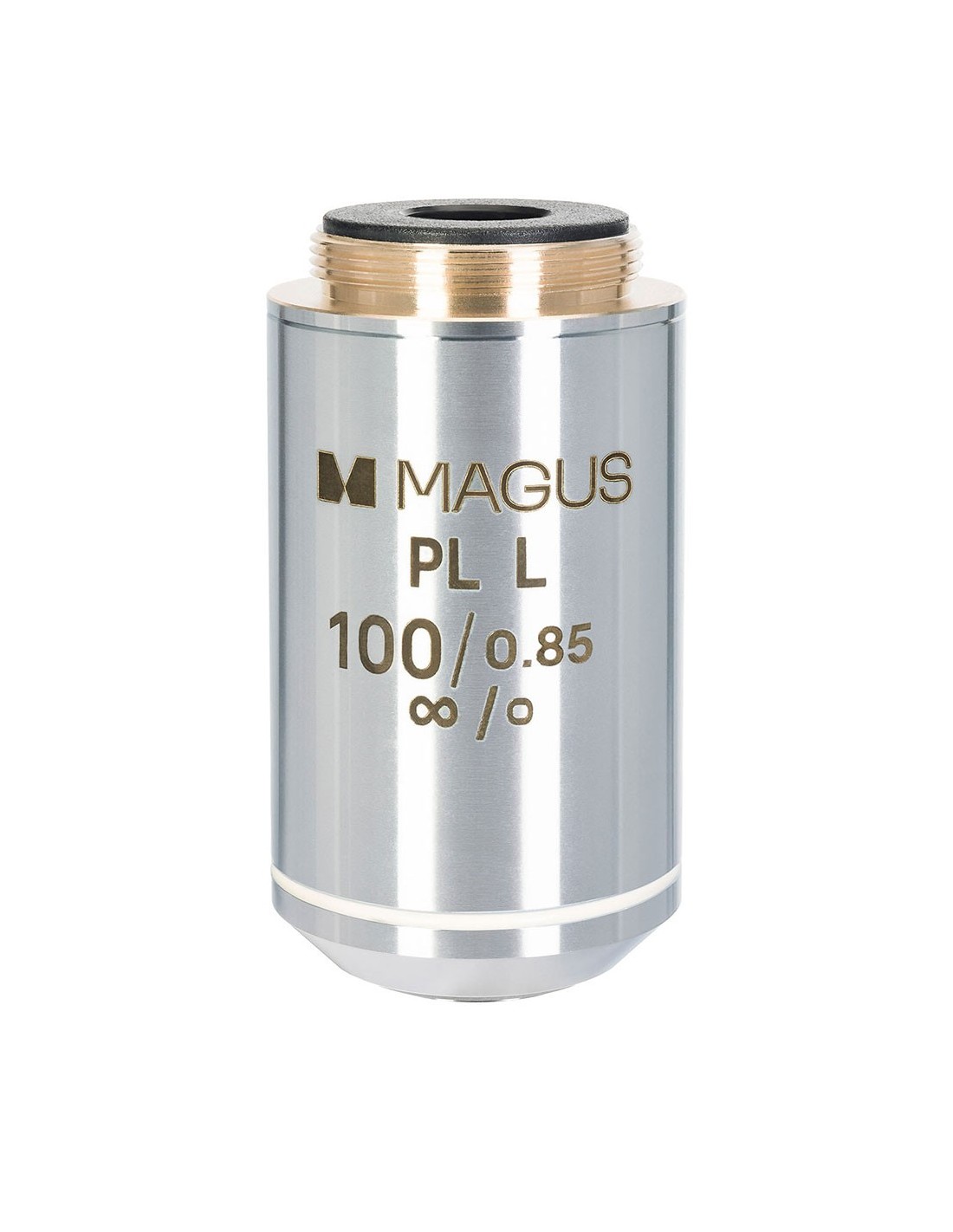

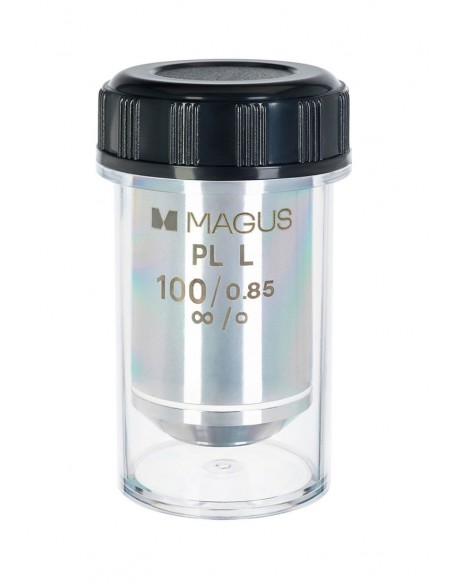

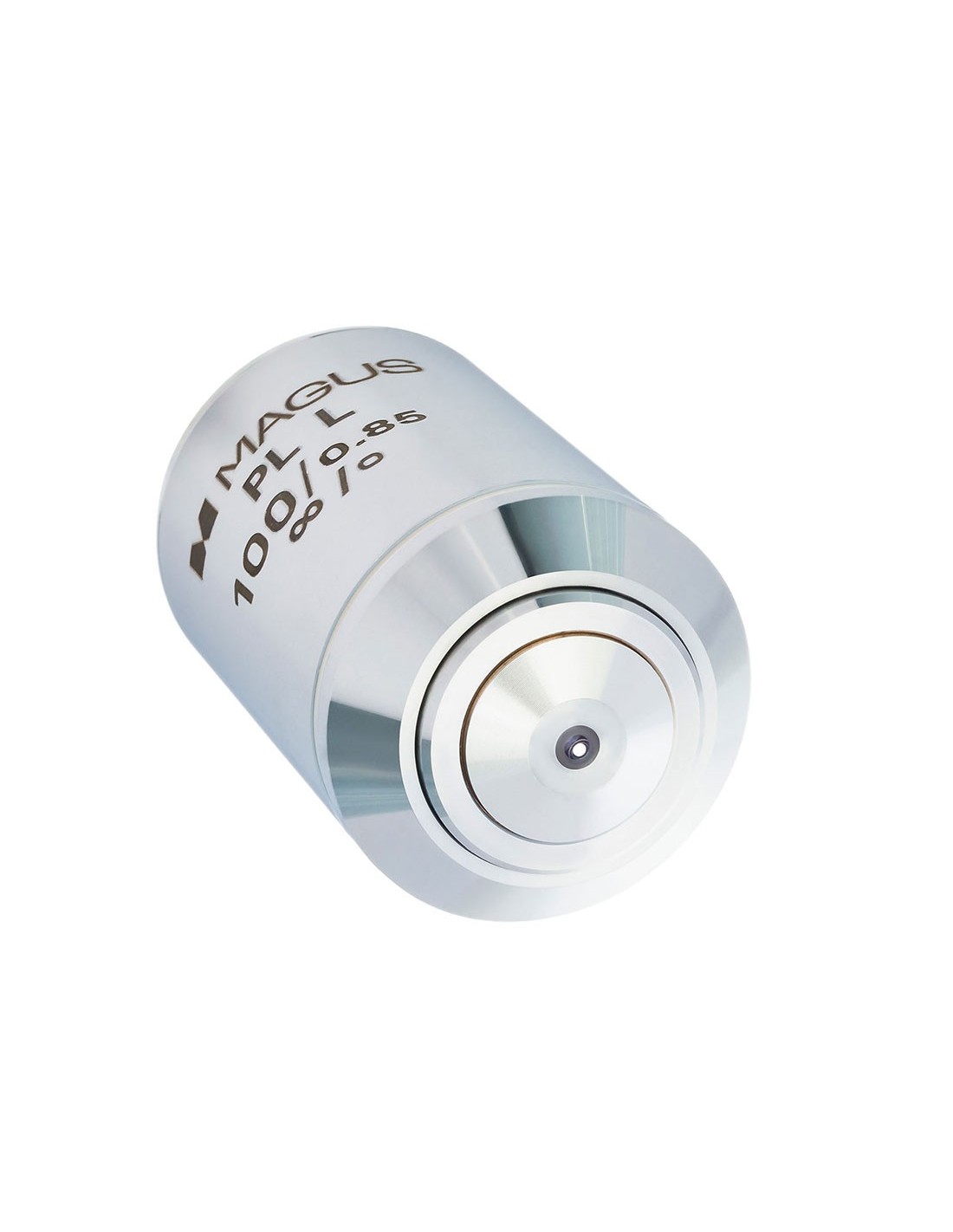

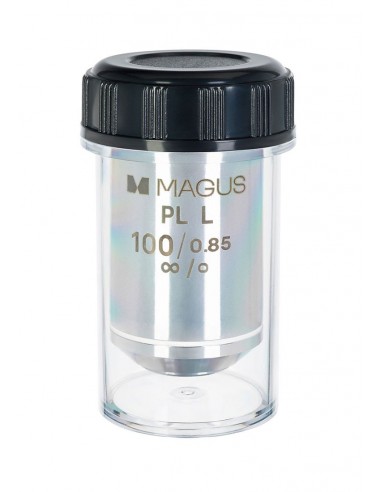

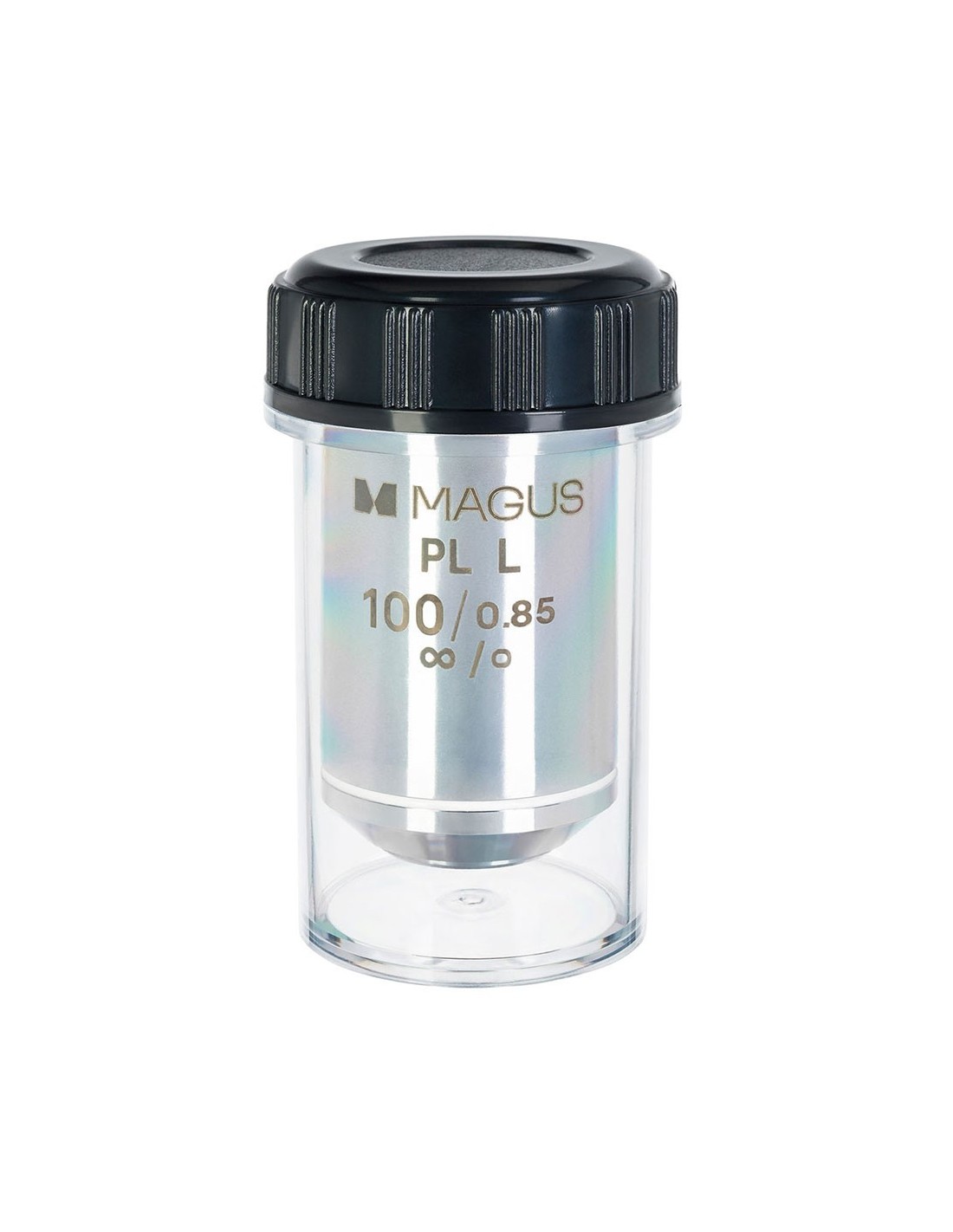

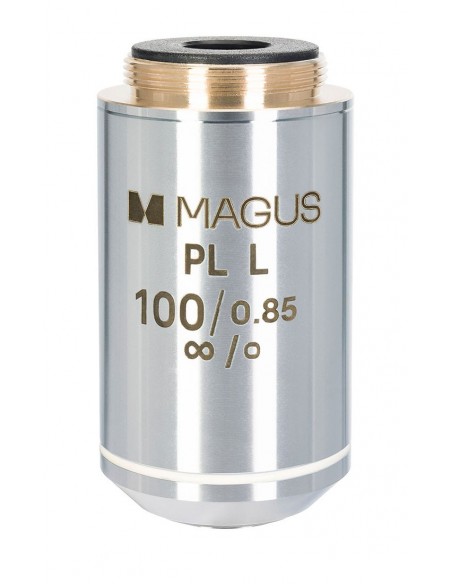

MAGUS 100PLL 100х/0.85 Plan L WD 0.40 mm objective - MAGUS

Art. OM-83466
€599.95
Tax included

The Plan objective with 100x magnification is designed for use with a metallurgical microscope. It has a wide working distance of 0.40 mm and can work with samples with pronounced relief without the risk of scratching the lens or damaging the sample.



The Plan objective with 100x magnification is designed for use with a metallurgical microscope. It has a wide working distance of 0.40 mm and can work with samples with pronounced relief without the risk of scratching the lens or damaging the sample.

The Plan achromatic lens corrects chromatic aberration for red and blue colors and spherical distortion for green. The curvature of the visual field was corrected by 90%. The image is equally focused both in the center and at the edges. This is an advantage when using eyepieces with a wide field of view. Combined with a 10x/22mm eyepiece it forms a 0.22mm field of view.

Eyepieces with 5x to 10x magnification will provide the best image clarity with this lens. The useful magnification range of the microscope varies from 425x to 850x. The maximum resolution of the lens is 0.33 µm.

The lens is designed for an infinity corrected optical system. Its parfocal height is 45 mm. Does not require a cover glass.

Compatibility:

  • MAGUS Metal 600 metallographic microscope
  • MAGUS Metal 630 metallographic microscope
  • MAGUS Metal 650 metallographic microscope
  • MAGUS Metal V700 inverted metallographic microscope
  • MAGUS Metal V700 DIC inverted metallographic microscope
Specifications
Lens material optical glass
Lens class by degree of aberration correction planachromatic
Focal length of the tube corrected to infinity (∞)
Contrast technique brightfield
Magnification, x 100
Aperture 0.85
Working distance, mm 0.40
Parfocal distance, mm 45
Coverglass thickness, mm without a coverslip
Spring mechanism +
Immersion mechanism −
Body material copper
BrandMAGUS
Warranty2 days
EAN5905555021133
Package size (LxWxH)7x4x4 cm
Shipping weight0.135 kg
