MAGUS MCD20 LCD monitor - MAGUS
MAGUS MCD20 LCD monitor - MAGUS
MAGUS MCD20 LCD monitor - MAGUS
MAGUS MCD20 LCD monitor - MAGUS

MAGUS MCD20 LCD monitor - MAGUS

Art. OM-83210
€449.95
Tax included

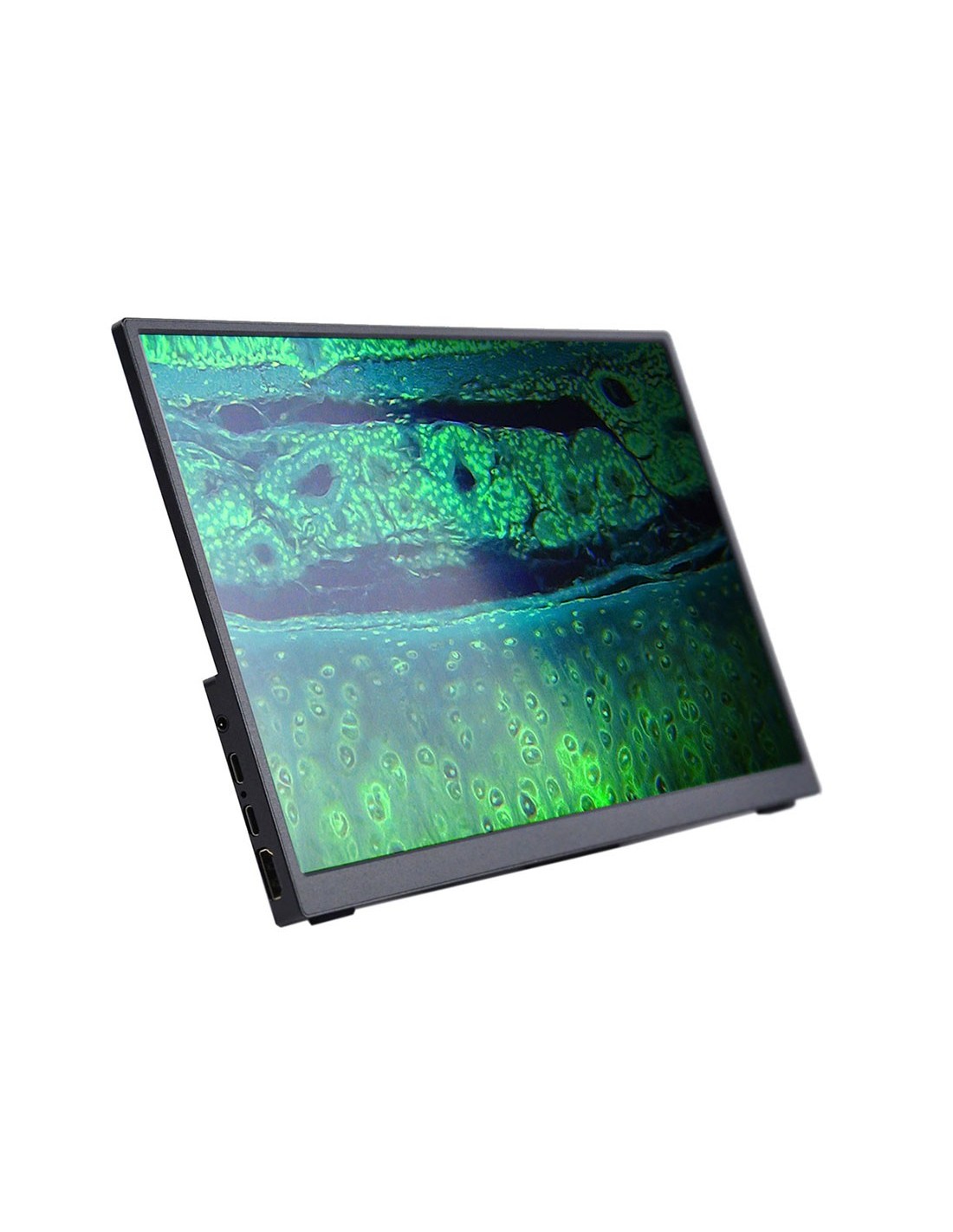

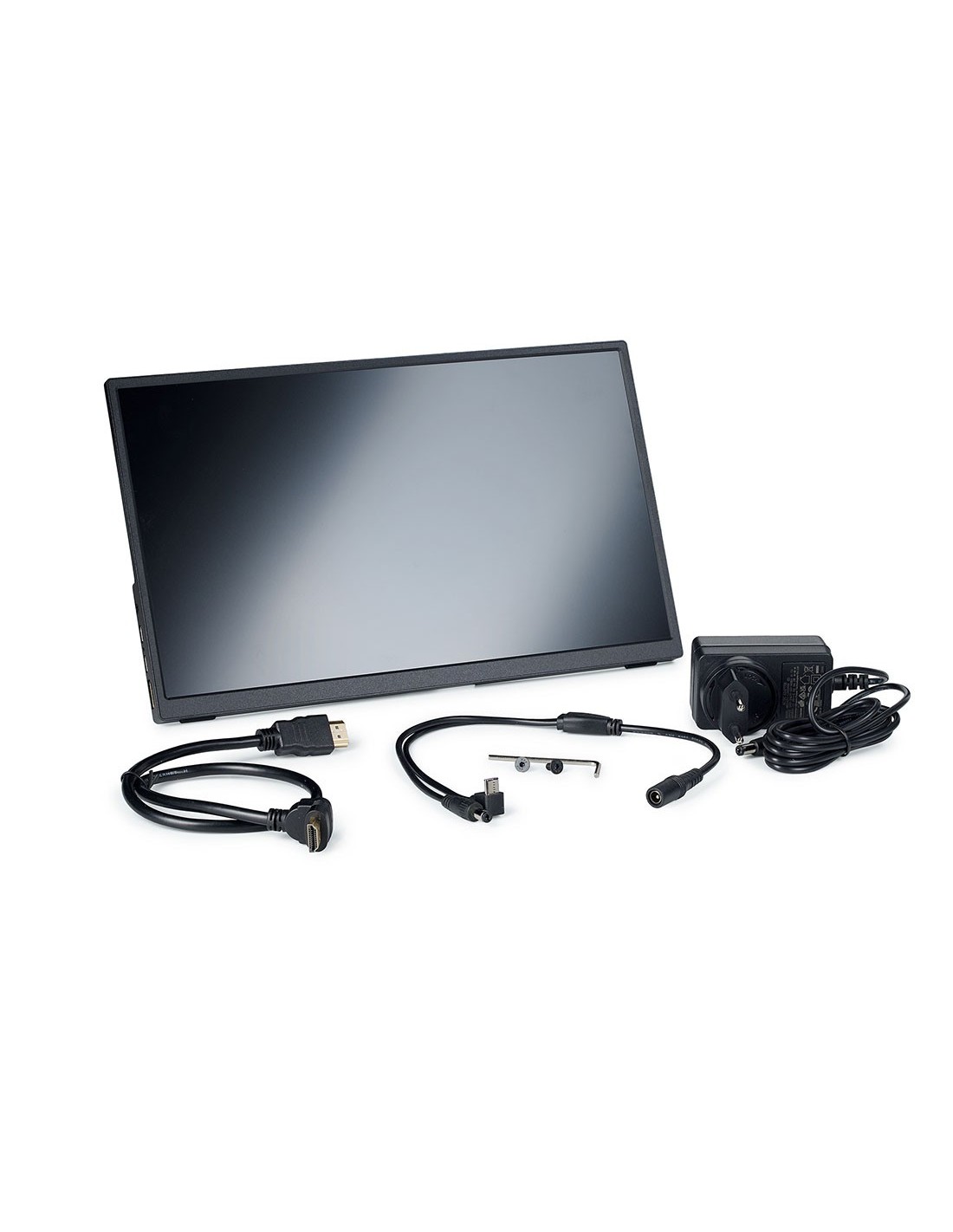

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.



MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.

The MCD20 model reproduces the image in Full HD resolution and is recommended for cameras MAGUS:

  • CHD10
  • CHD20
  • CHD30

The connection to the camera is via its HDMI interface . The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.

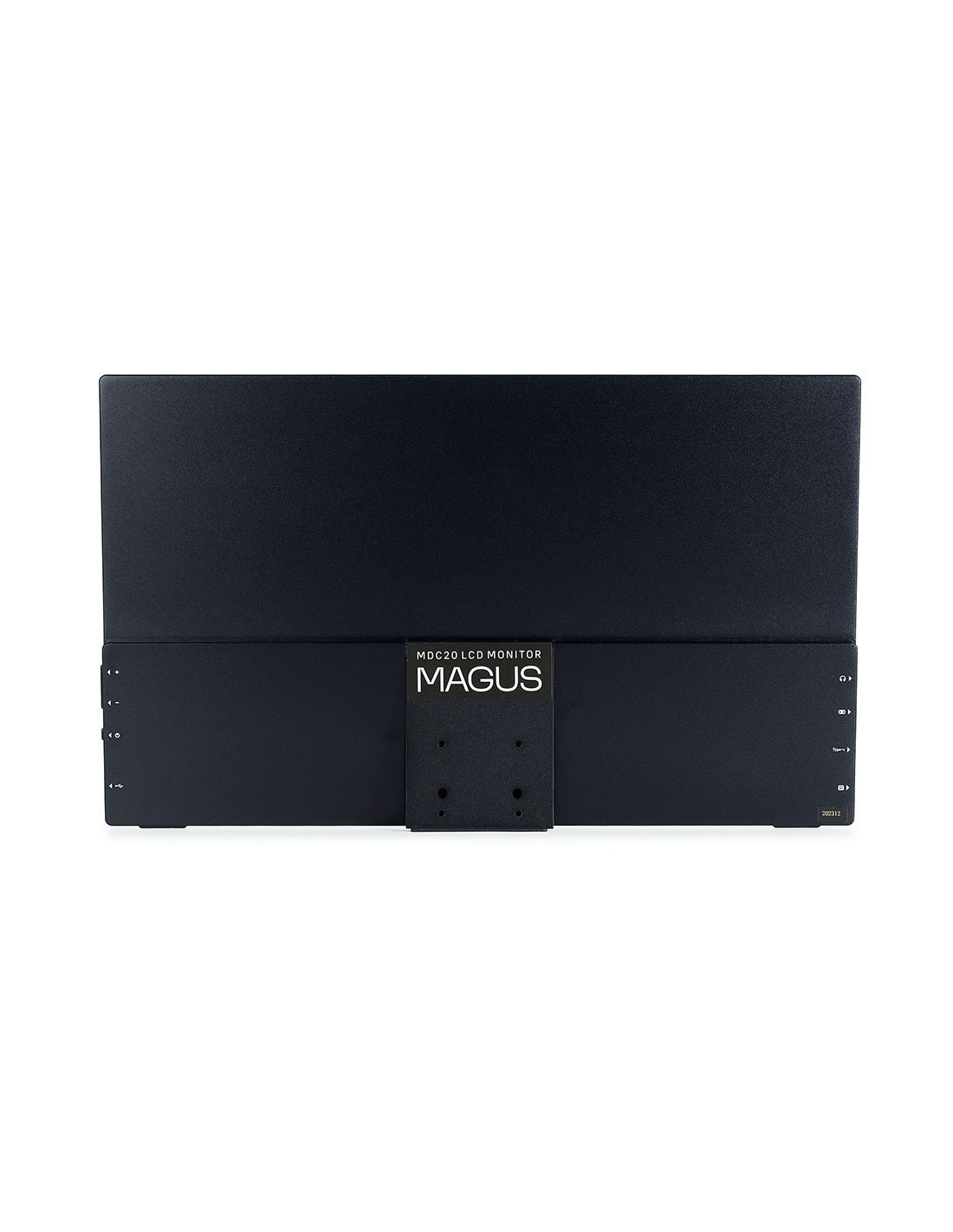

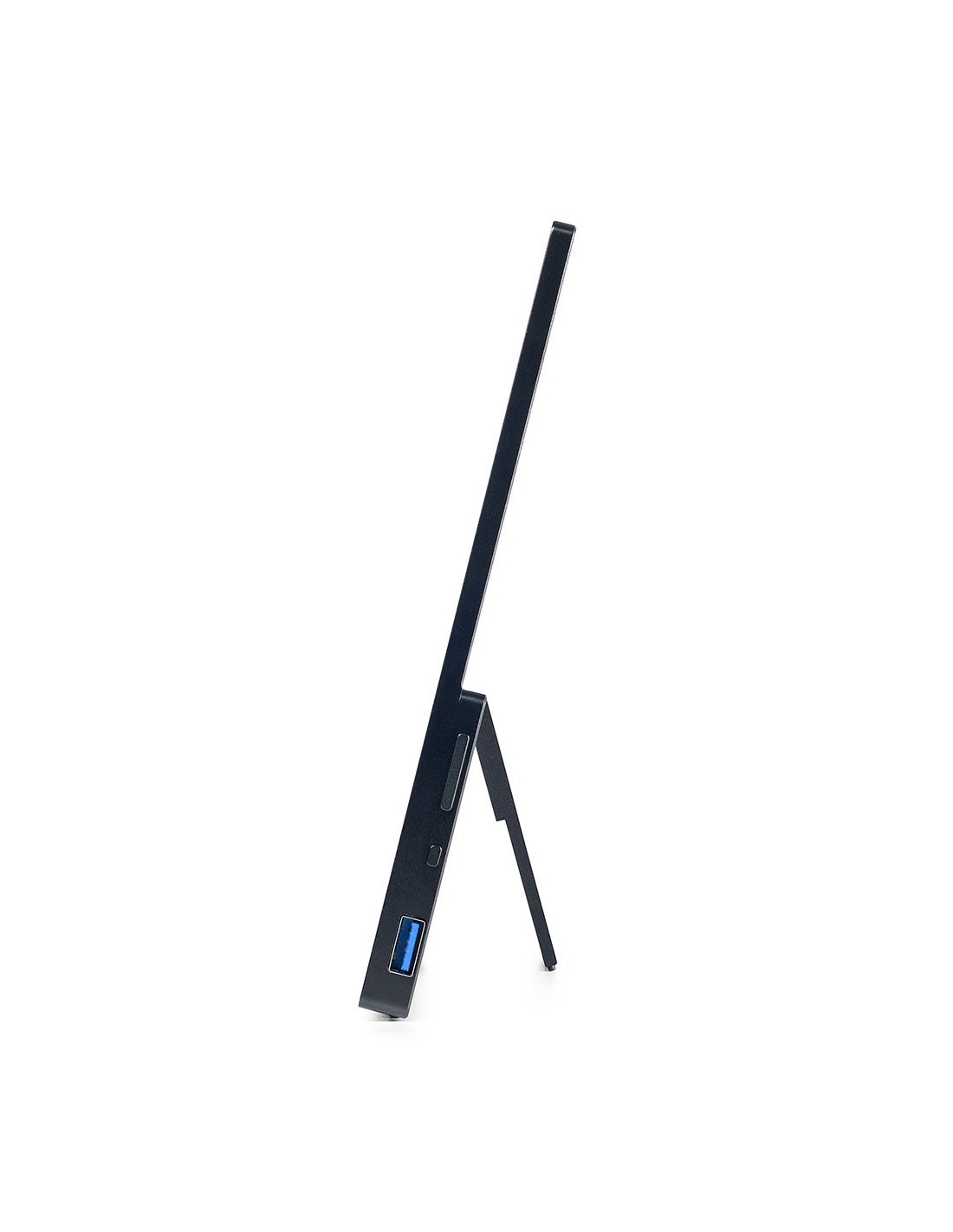

The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.

BrandMAGUS
Warranty5 лет
EAN5905555019321
Package size (WxDxH)35x24x6 cm
Shipping weight1.25 kg
Matrix typeIPS
Display diagonal, inches13.3
Display resolution, px1920x1080 (Full HD)
Format16:9
Brightness, cd/m²400
Number of colors displayed16.7 m
Contrast1000 :1
Horizontal/vertical viewing angle, °178/178
Screen size visible area of the screen (WxH), mm295x165
Pixel pitch (WxH), mm0.154x0, 154
Optical source frequency, Hz60
Matrix type backlight
td>LED
LED backlight life, h50000
Interface td>HDMI
Operating temperature range, °C-15 — 55
Humidity operating range, %10 — 90
Power SupplyAC 110–220 V, DC 5–12 V/1 A (Type C)
Power consumption, W12 (max.)
MAGUS
