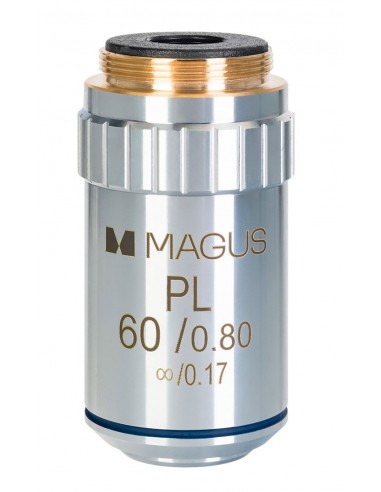

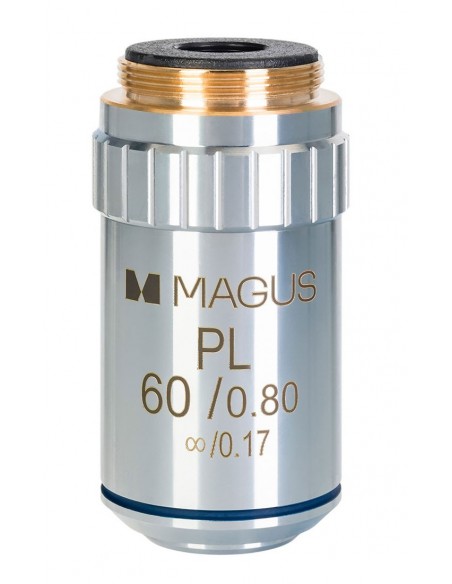

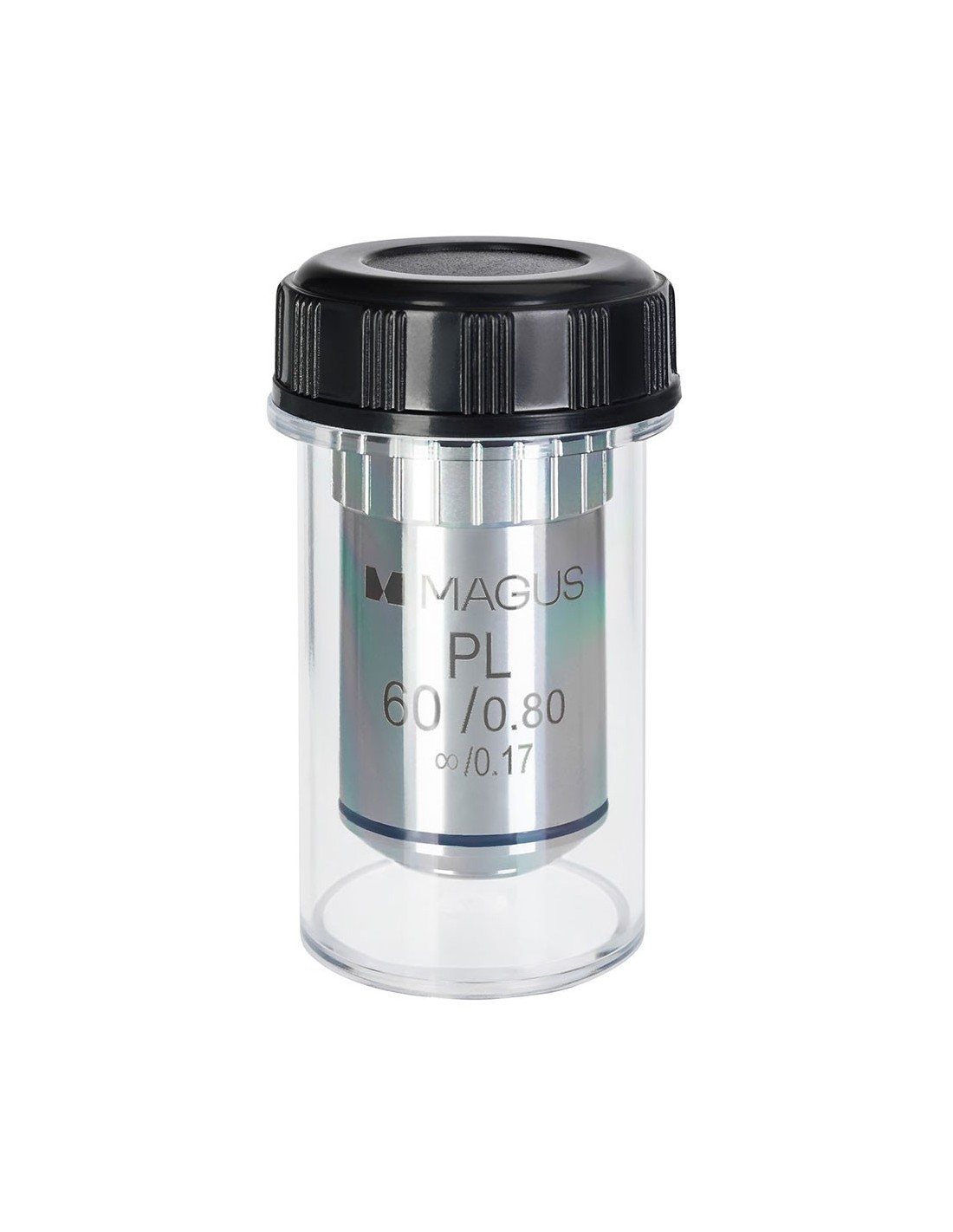

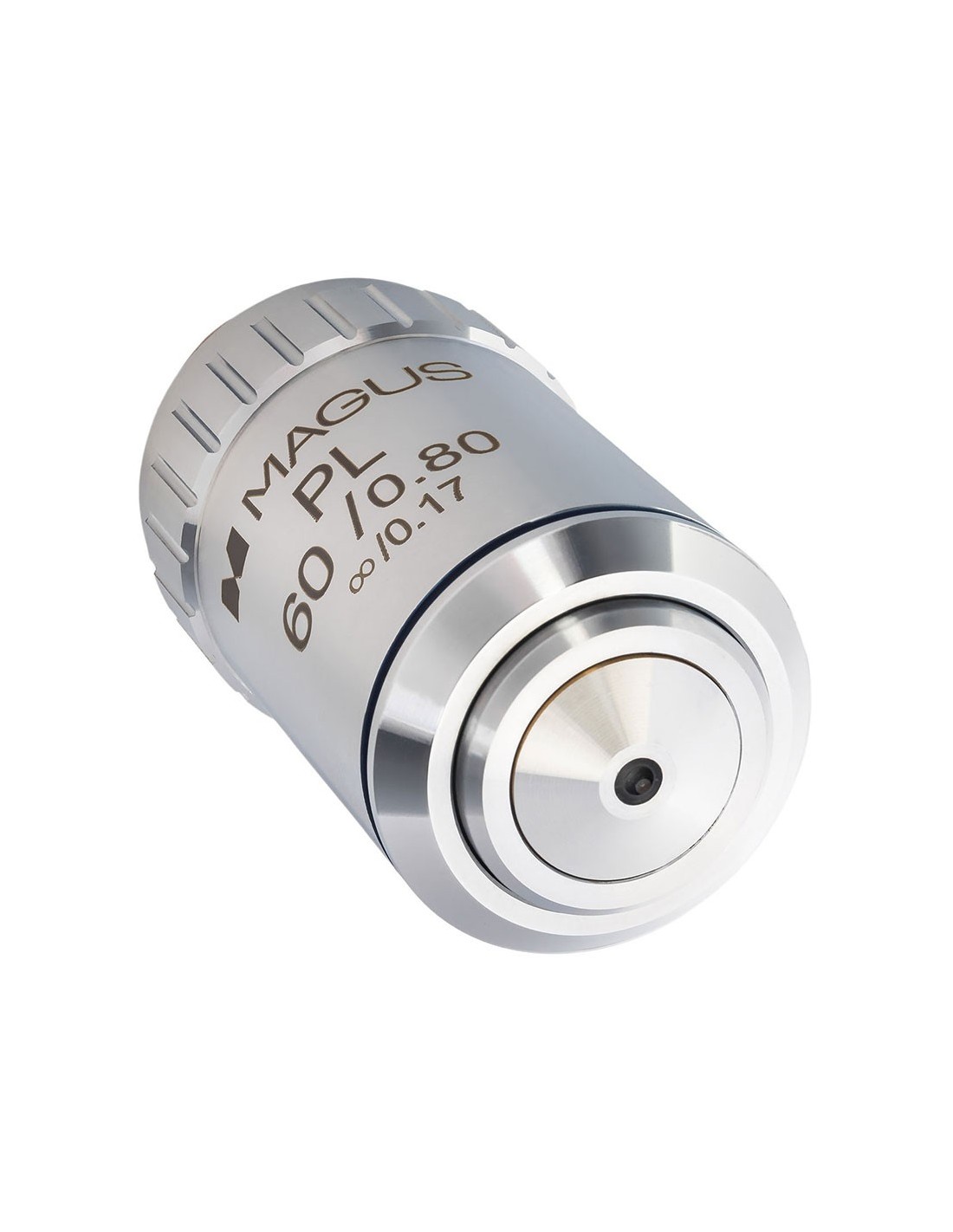

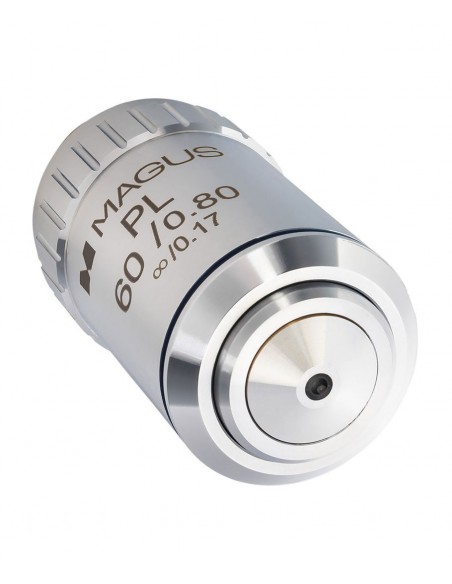

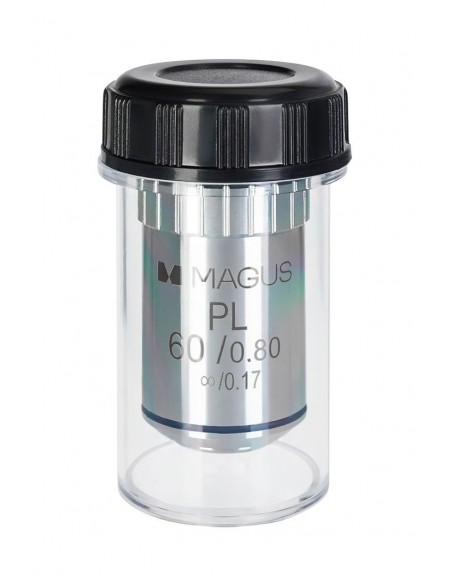

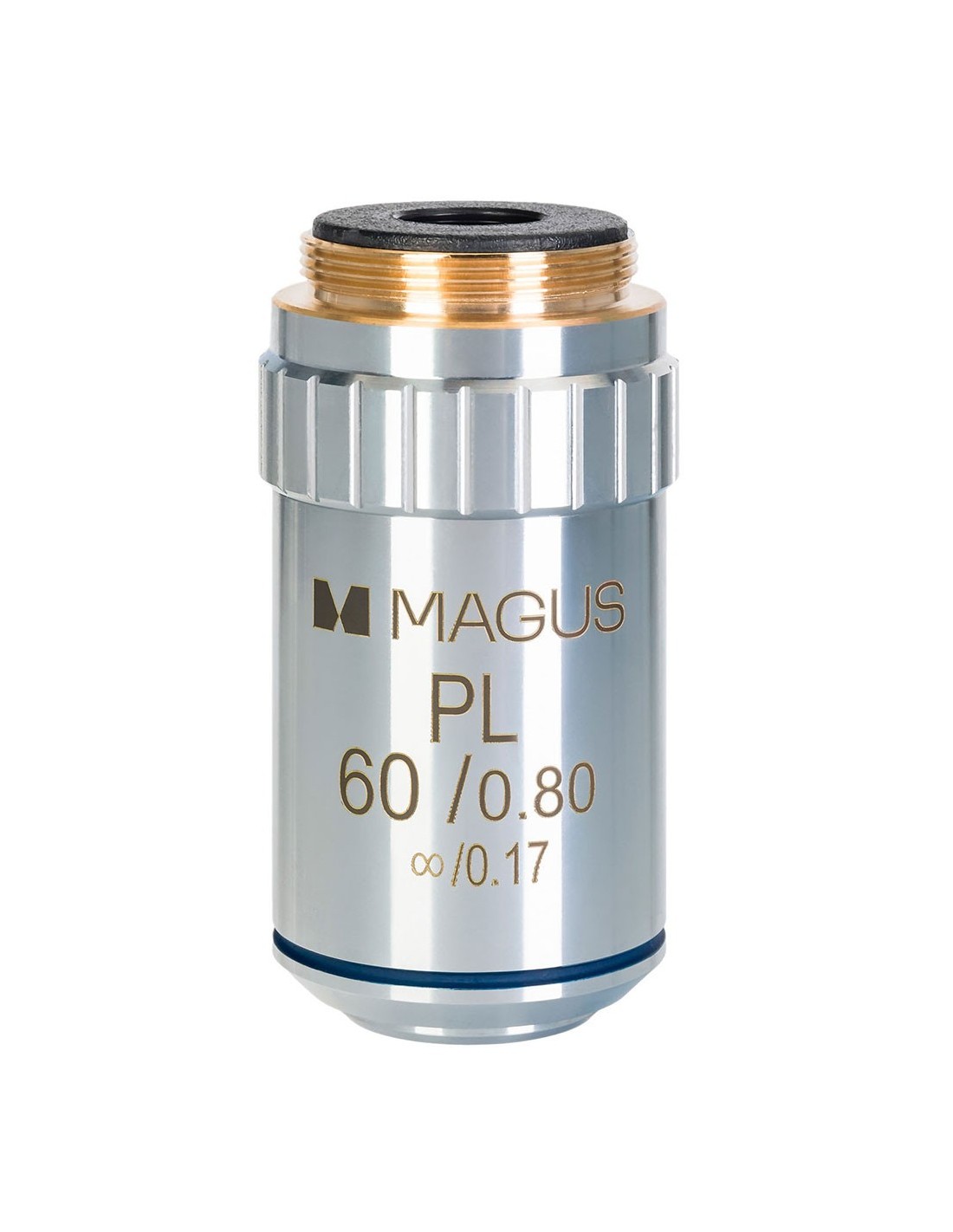

Infinity Plan MAGUS MP60 60х/0.80 ∞/0.17 objective - MAGUS

Art. OM-82914
€229.95
Tax included

This planachromatic infinity objective has a magnification of 60x and a resolution limit of 0.35 µm. When used in combination with a 10/22 mm eyepiece, the field of view diameter is 0.36 mm. The field curvature is corrected within 90% of this diameter. Aberration correction: chromatic aberrations for blue and red light, spherical aberration for green light. This objective can be used for the observation of samples with dimensions of 0.5 µm, such as sperm, red blood cells and white blood cells in semen, blood or urine analyses.



This planachromatic infinity objective has a magnification of 60x and a resolution limit of 0.35 µm. When used in combination with a 10/22 mm eyepiece, the field of view diameter is 0.36 mm. The field curvature is corrected within 90% of this diameter. Aberration correction: chromatic aberrations for blue and red light, spherical aberration for green light. This objective can be used for observing samples with a size of 0.5 µm, such as sperm, red blood cells and white blood cells in semen, blood or urine analyses.

For observations with the objective MAGUS MP60 60x/0.80 Plan ∞/0.17 we recommend the use of eyepieces with magnification between 7x and 14x. During observations, use a 0.17 mm thick cover glass. This parfocal objective ensures minimal aberrations, is suitable for digital photography and can be used in combination with wide-field eyepieces with a 22 mm field of view.

Compatibility:

  • MAGUS Bio 230B biological microscope
  • MAGUS Bio 230BL biological microscope
  • MAGUS Bio 230T biological microscope
  • MAGUS Bio 230TL biological microscope li>
  • MAGUS Bio 250B biological microscope
  • MAGUS Bio 250BL biological microscope
  • MAGUS Bio 250T biological microscope
  • MAGUS Bio 250TL biological microscope
  • MAGUS Lum 400 Fluorescence Microscope
  • MAGUS Lum 400L Fluorescence Microscope
Specifications
Lens material optical glass
Optical scheme planachromatic
Compatible tube length, mm infinity (∞ )
Magnification, x 60
Aperture 0, 80
Working distance, mm 0.46
Parfocal distance, mm45
Thickness of coverslips, mm 0.17
Mechanism spring +
Oil immersion −
Material body copper
Thread type WJ 4/5"*1/36"
BrandMAGUS
Warranty2 orders
EAN5905555018980
Package size (LxWxH) 4x7x4 cm
Shipping weight0.13 kg
