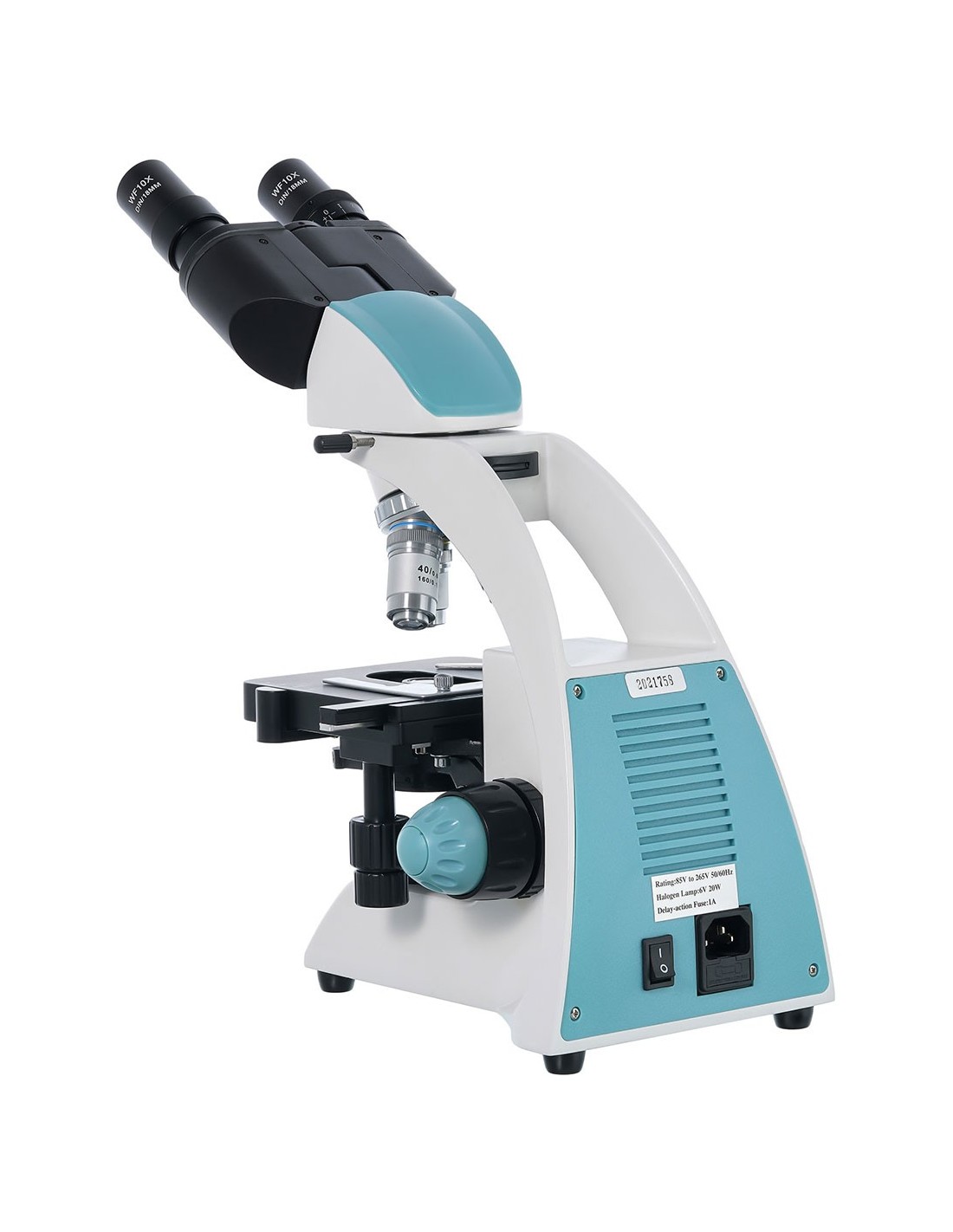

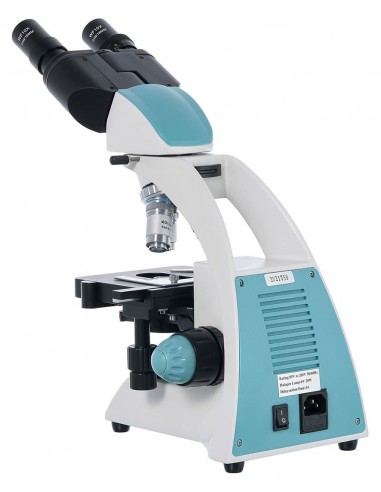

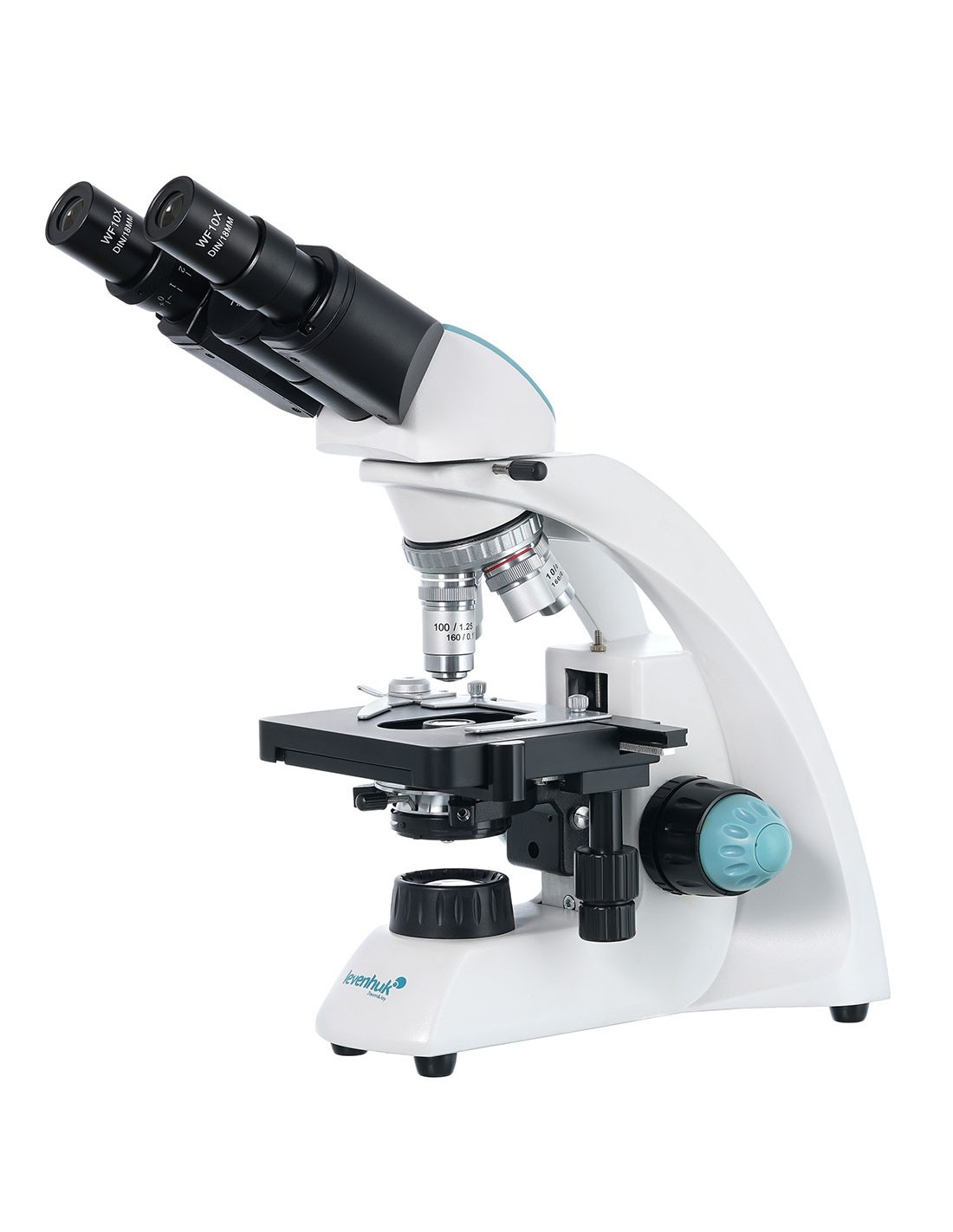

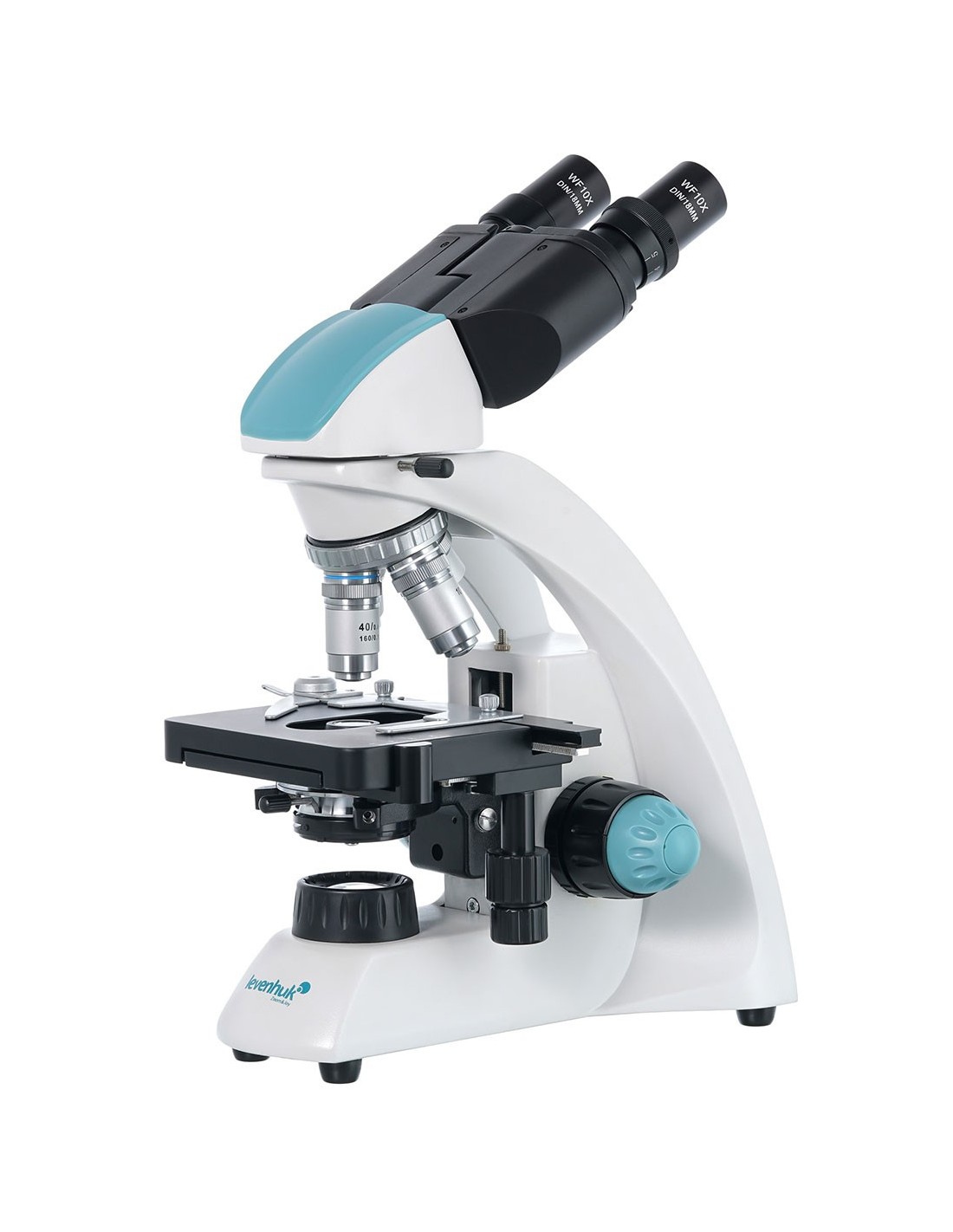

The Levenhuk 500B binocular microscope is perfect for laboratory analysis of stained slides containing plant or animal tissue. Thanks to halogen light, the entire range of visible colors will be transmitted as accurately as possible and the excellent contrast of details will amaze even the most demanding researchers. This microscope is a fantastic choice for biochemists, microbiologists or veterinarians.
This model features wide-field eyepieces with 10x magnification and achromatic objectives with 4x, 10x, 40x and 100x magnification. For greater comfort, the binocular head is inclined at 45°; furthermore, it rotates 360°. The optics allow you to examine samples at magnifications between 40x and 1000x using the bright field method combined with oil immersion. Two of the lenses have front lens protection (retractable spring mechanism): the 40x and 100x lenses. Immersion oil must be used with the 100x objective.

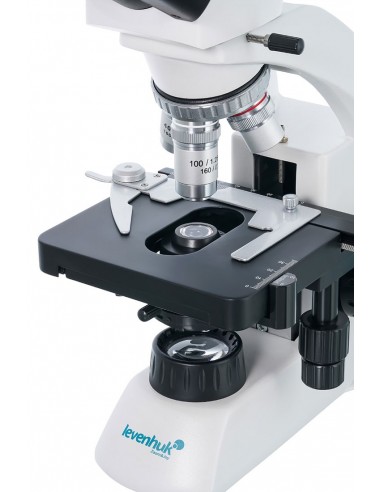

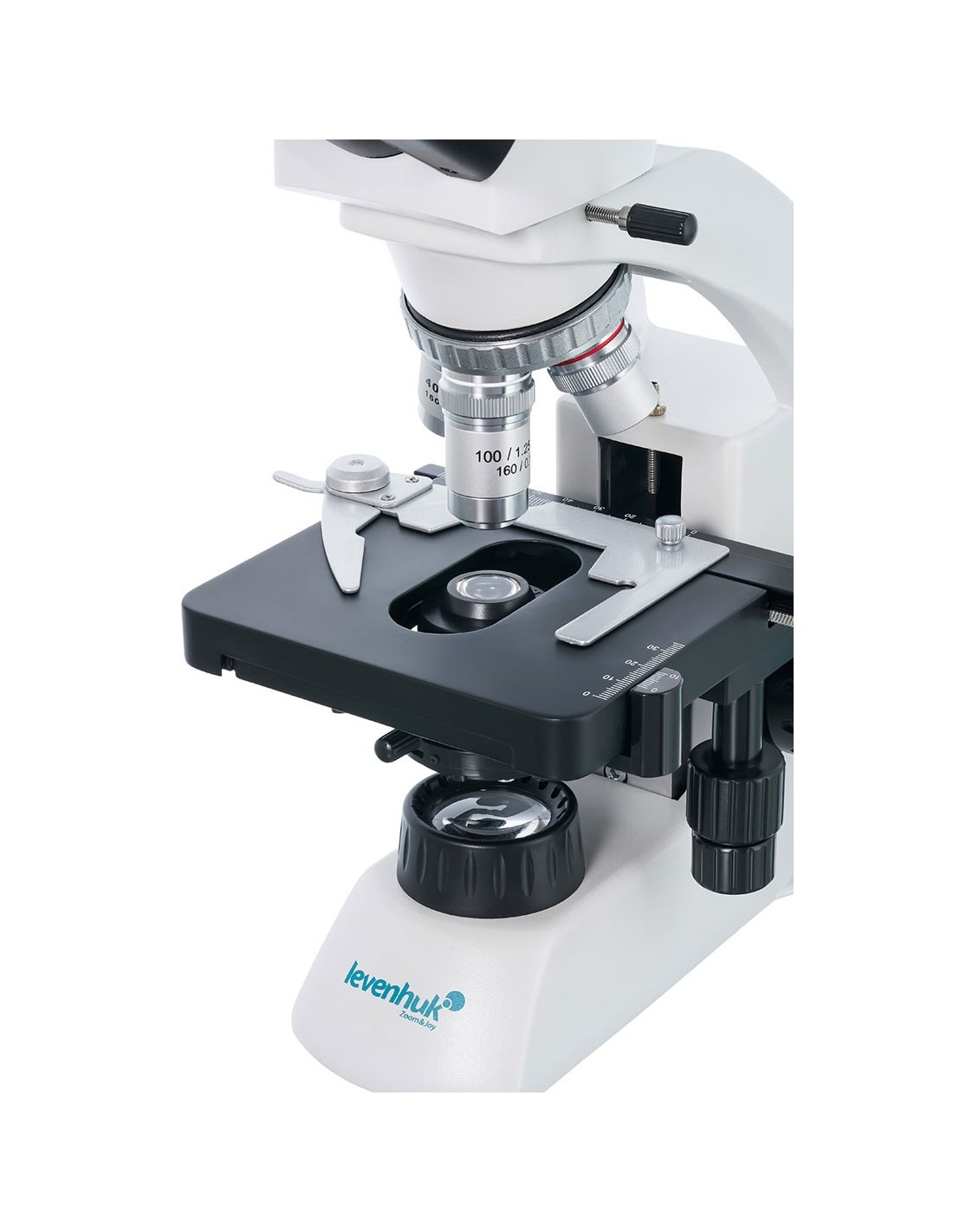

The microscope is equipped with a stage equipped with a mechanical translator, useful for accurate positioning of the sample under the objective. Under the table, there is an Abbe condenser with adjustable height and iris diaphragm. You can install an optical filter using a special holder. The powerful halogen light is equipped with a collector and equipped with brightness adjustment. The light is powered by AC mains electricity.
All optical elements of this microscope are made of glass. The body is made of metal.
Features:
- Binocular microscope with achromatic optics
- Conveniently tilted viewer; the head rotates 360°
- Wide-field eyepieces, magnification range of the optics: 40–1000x
- Halogen light with collector, powered by the AC mains electricity

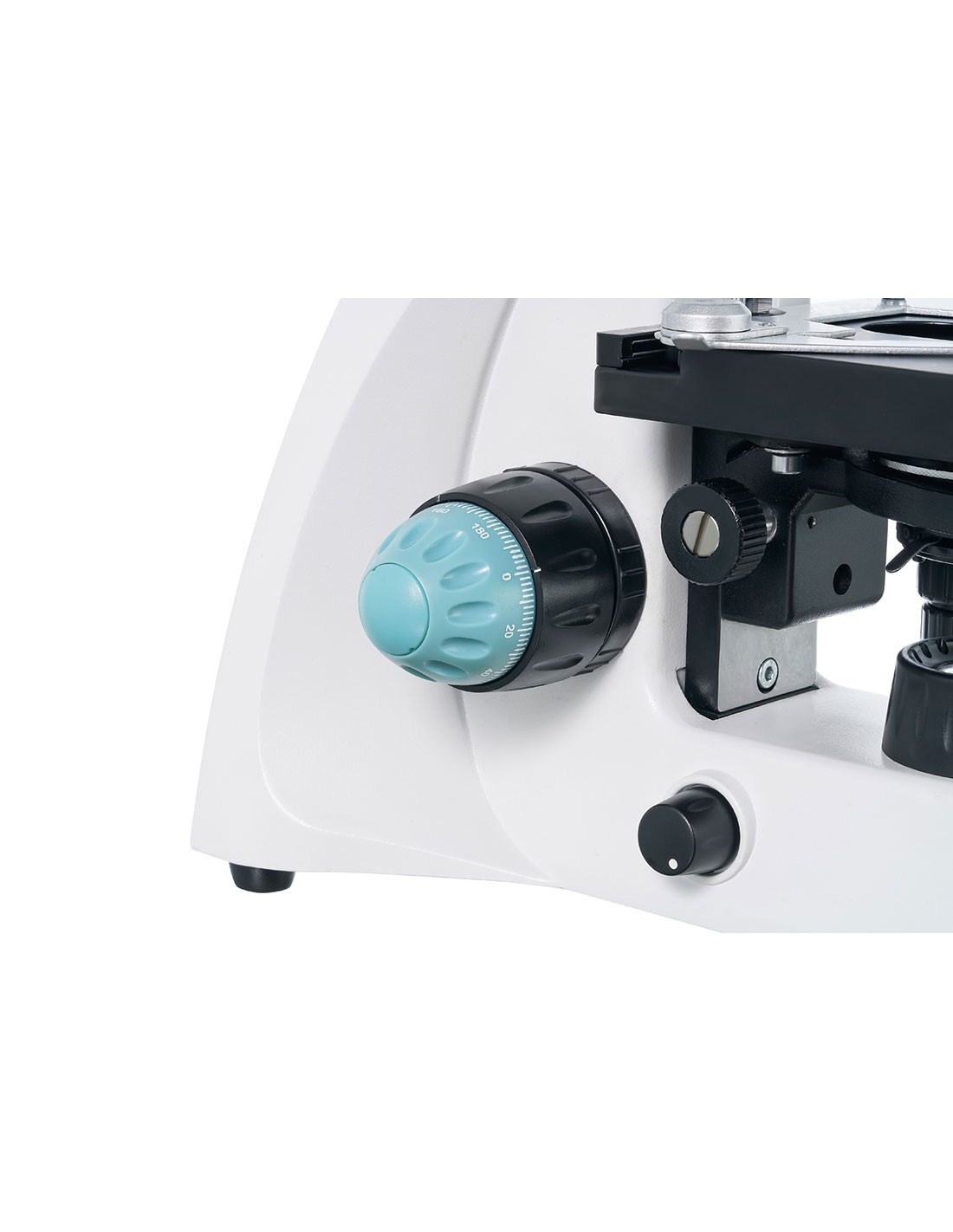

- Brightness adjustment, coarse and fine focus
- Slot for installing an analyzer filter (the analyzer is not included)

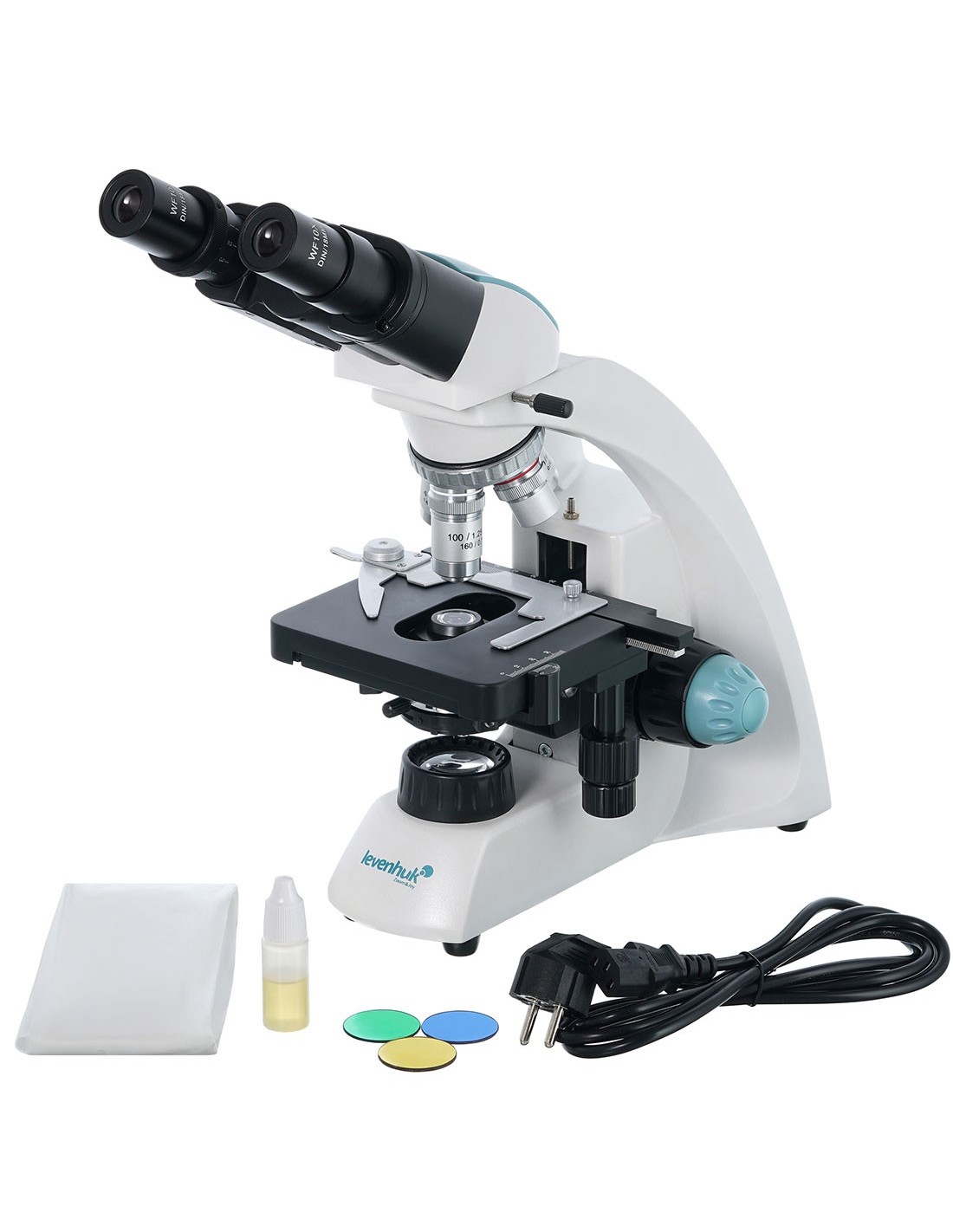

The kit includes:
- Microscope
- Achromatic objectives 4x, 10x, 40xs, 100xs (oil)

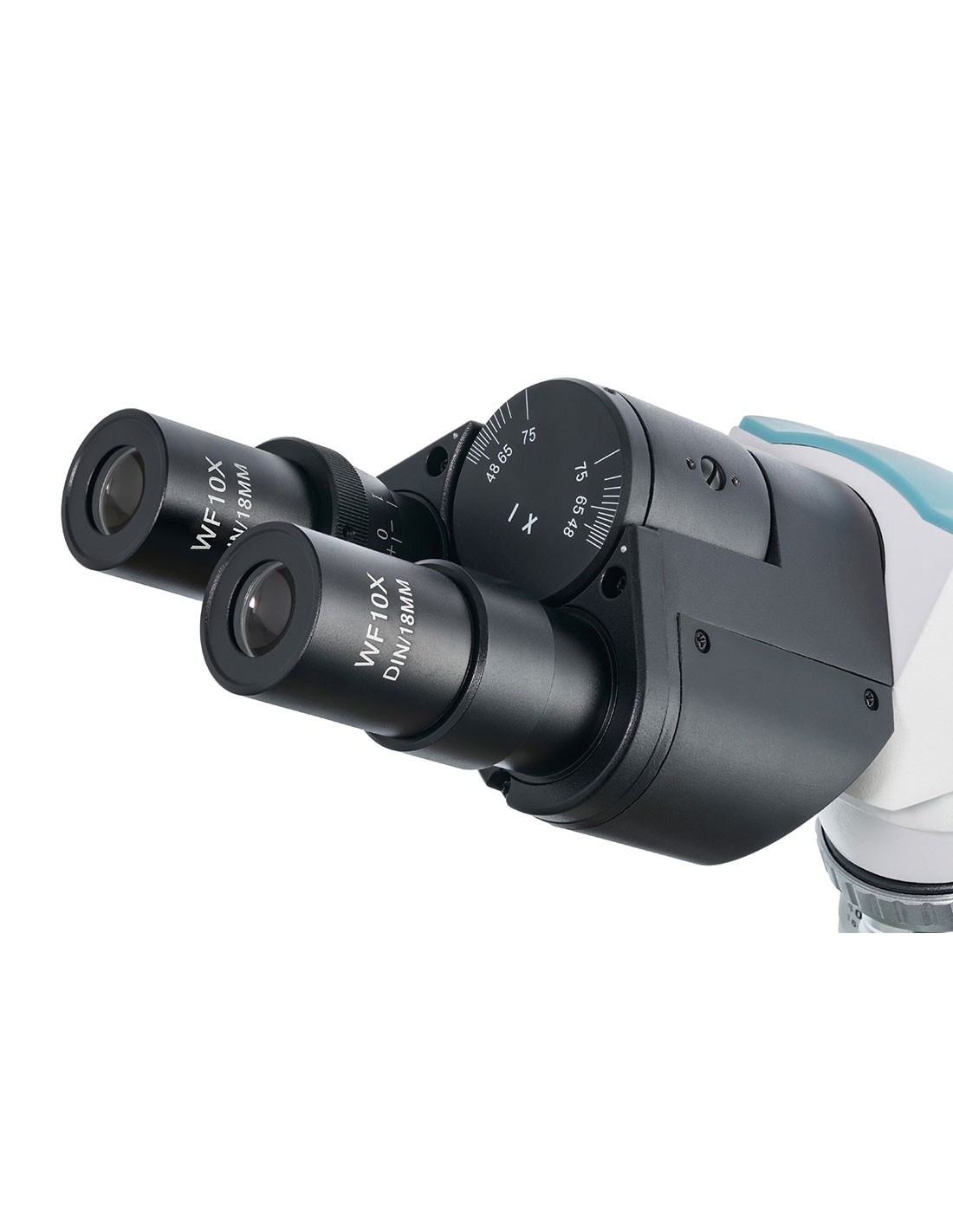

- WF10x/18 mm eyepieces (2 pcs.)
- Abbe condenser with NA 1.25 iris diaphragm and filter holder
- Filters: blue, green, yellow
- Fuse
- Bottle of immersion oil
- Power cord
- Dust cover
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Lifetime Warranty | td> |
| EAN | 5905555005300 |
| Package size (WxDxH) | 42x26x33 cm< /td> |
| Shipping weight | 4.94 kg |
| Type | organic, light/ optical |
| Test | binocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head inclination angle | 30° |
| Magnification, x | 40 — 1000 |
| Magnification range< /td> | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF10x/18 mm (2 pcs.) |
| Achromatic objectives | : 4x, 10x, 40xs, 100xs ( oil immersion) |
| Nosepiece nosepiece | for 4 objectives |
| Interpupillary distance, mm |
| td> | 48 — 75 |
| Stage, mm | 115x125 |
| Range of movement of the table, mm | 70/30 |
| Table characteristics | double mechanical layer |
| Eyepiece diopter adjustment, diopters | ±5 |
| Condenser | Abbe condenser with NA 1.25 with iris diaphragm and filter holder, adjustable height |
| Diaphragm | iris |
| Focus |
| Focus |
| td> | coaxial, coarse (30 mm) and fine (0.002 mm) |
| Body | metal |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power supply | 110–220 V |
| Type of light source | 12 V/20 W halogen lamp, with collector |
| Optical filters | blue, green, yellow |
| Possibility to connect additional equipment |
| Possibility of connecting additional equipment |
| td> | one slot for installing an analyzer filter (the analyzer is not included) |
| User level | expert users |
| td> |
| Assembly and installation level of difficulty | easy |
| Application | laboratory/ medical |
| Lighting position | lower |
| Search method | field clear |
| Set with pencil case/case/bag | dust cover |
