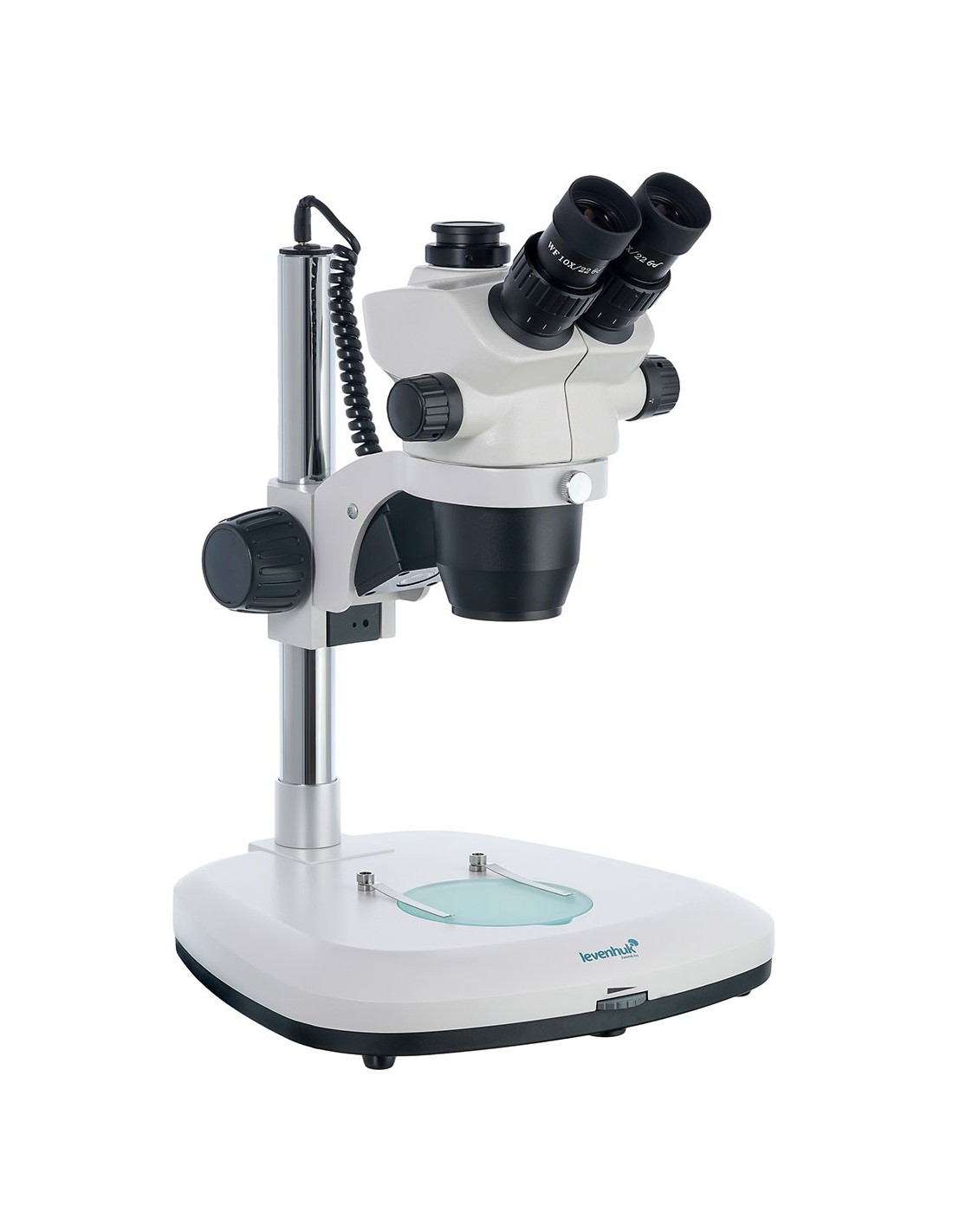

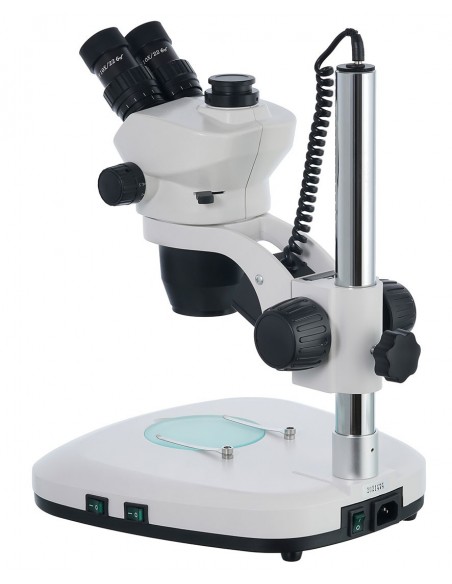

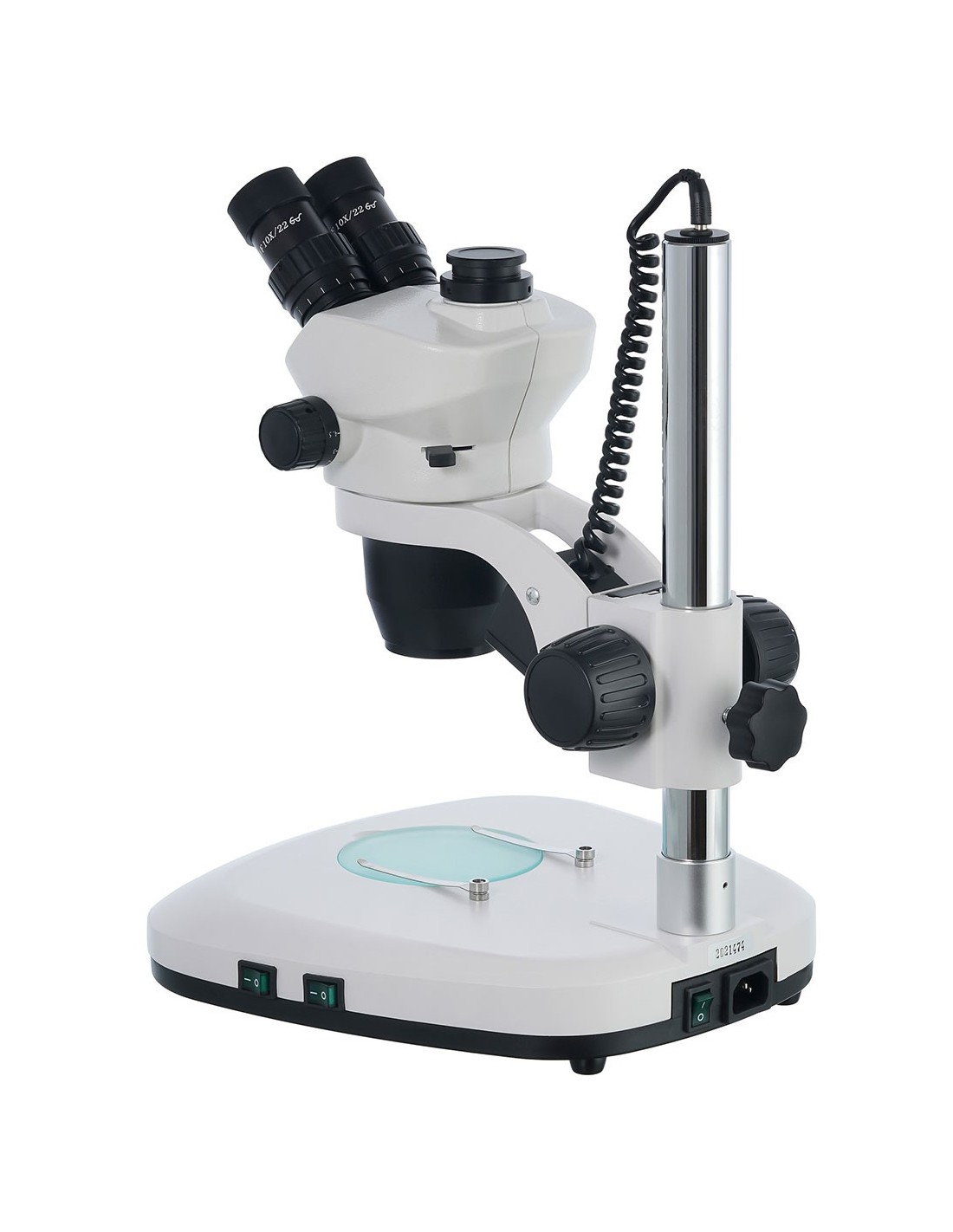

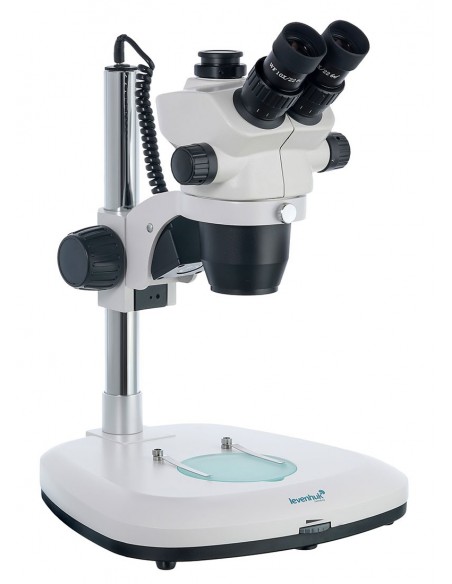

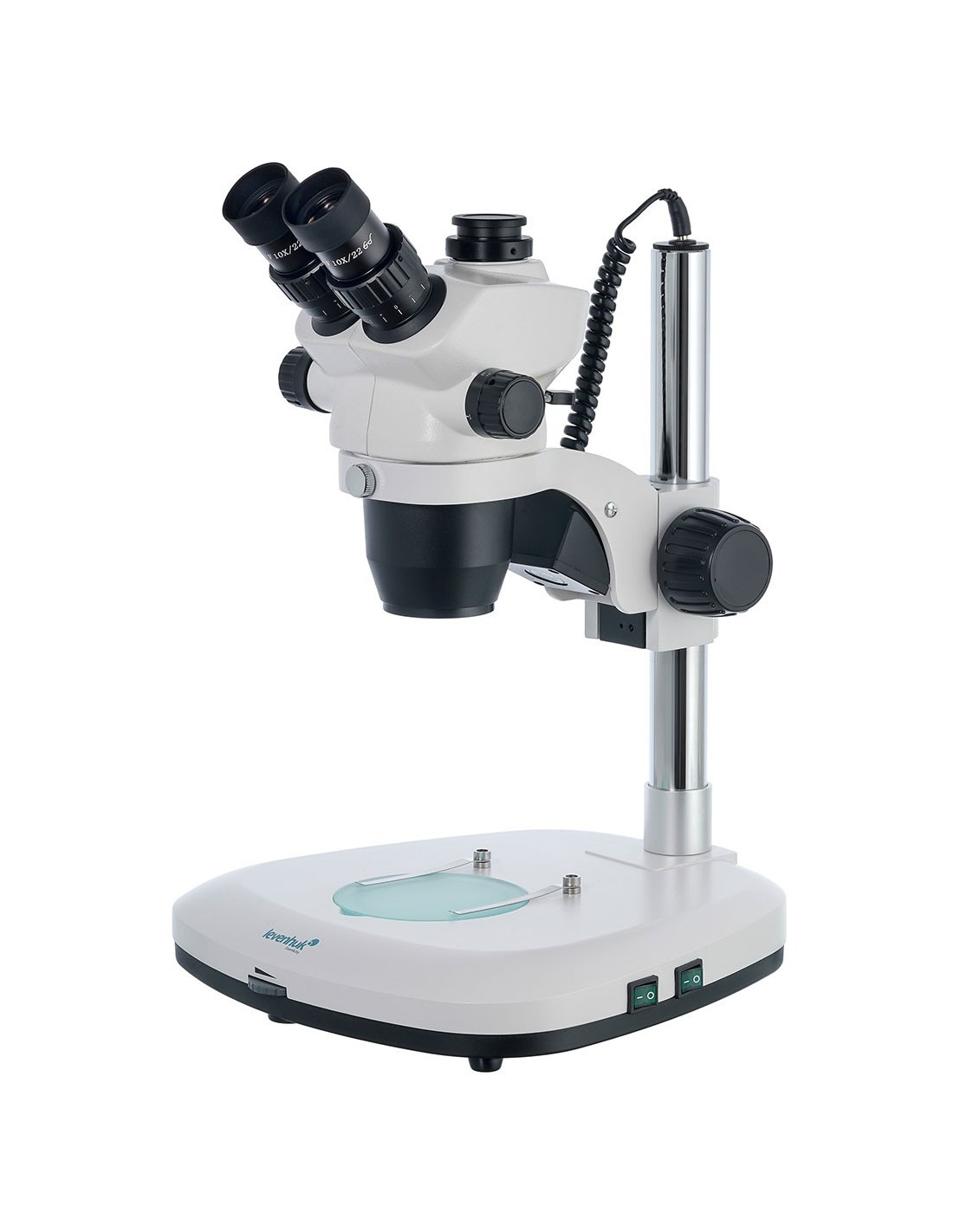

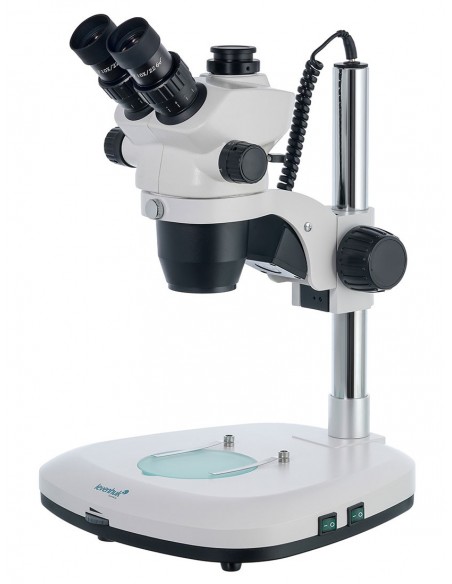

The ZOOM 1T trinocular microscope is designed for the study of three-dimensional specimens: coins, jewelry, minerals, watch mechanisms, fabrics and biological materials. The large working distance even allows the study of very voluminous samples. Continuously variable magnification allows you to choose the most suitable magnification factor over a wide range. The Levenhuk ZOOM 1T microscope is a great choice for professional use, as well as for hobbies.
The microscope is equipped with a trinocular head with a special vertical tube for installing a digital camera . The camera is not included in the kit. In any case, you can purchase one to use this microscope not only for direct observations, but also for capturing photos and videos of your research. The microscope optics allow you to work with samples magnified from 7 to 45 times and provide a good viewing angle. Coarse focus is available.

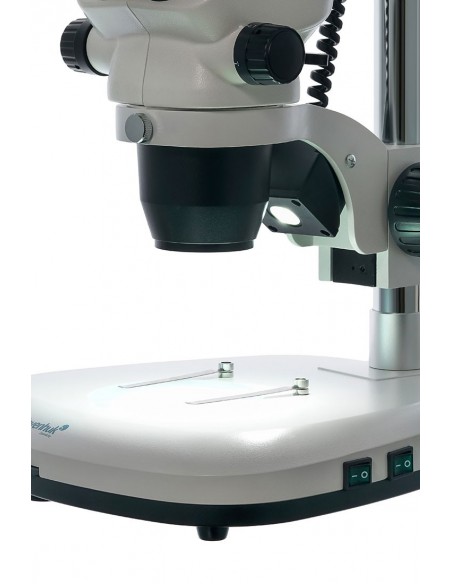

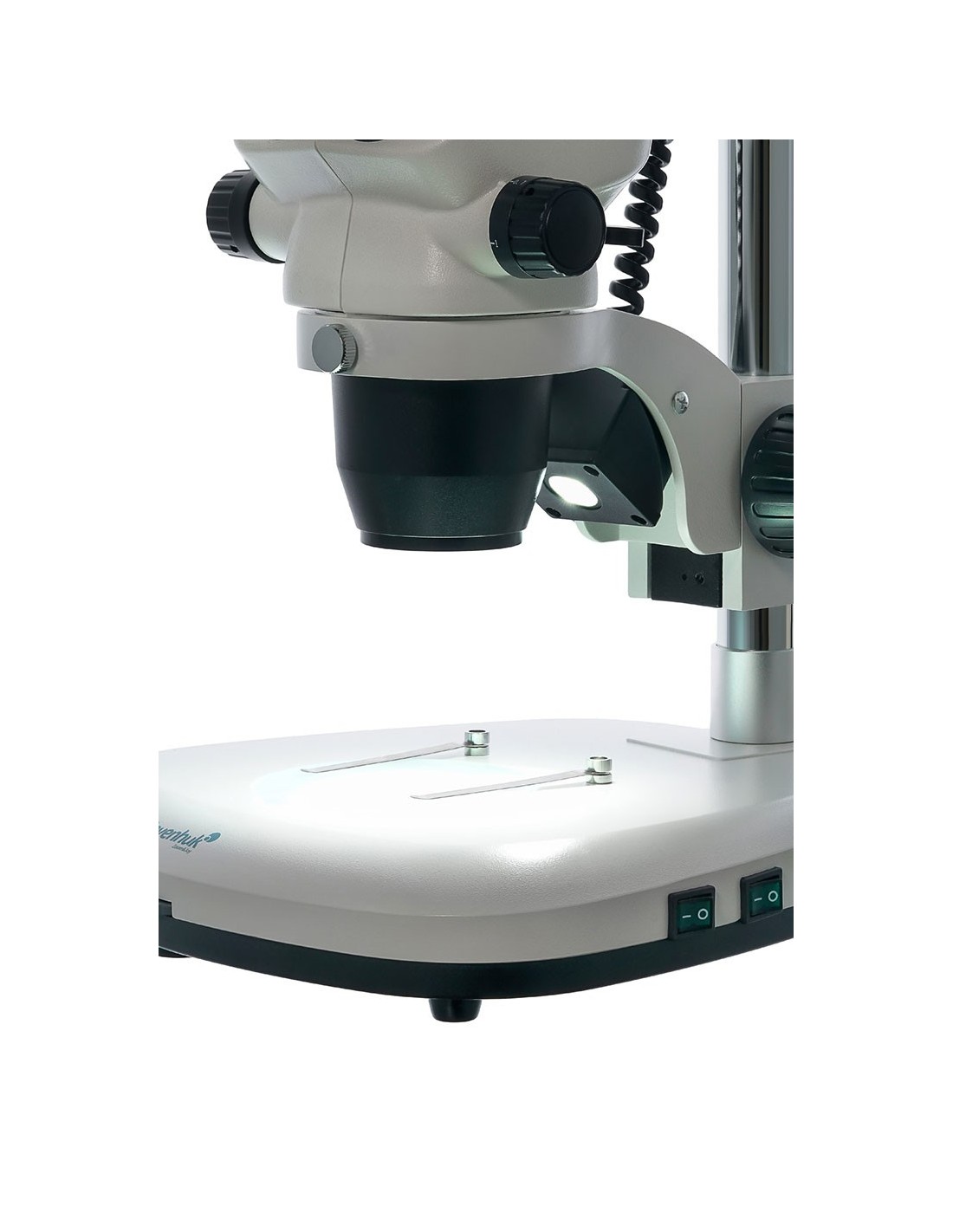

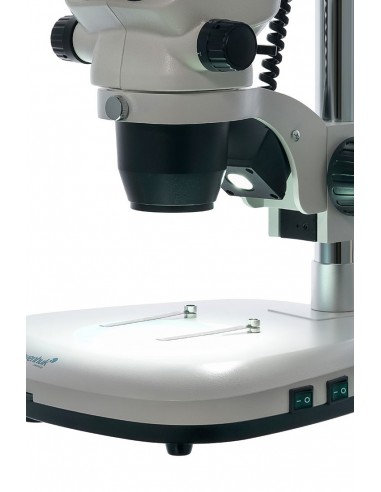

The illumination system consists of two LED lights, lower and upper, with adjustable brightness. The light is powered by the AC mains electricity supply. The microscope body is made of sturdy metal, which makes the Levenhuk ZOOM 1T a strong and durable optical instrument.
Features:
- Stereoscopic image (3D)
- Variable magnification with continuity between a factor of 7 and a factor of 45
- Trinocular head rotatable and inclined at 45°
- Large working distance : 235 mm
- Double LED lighting with brightness adjustment and powered by the AC mains

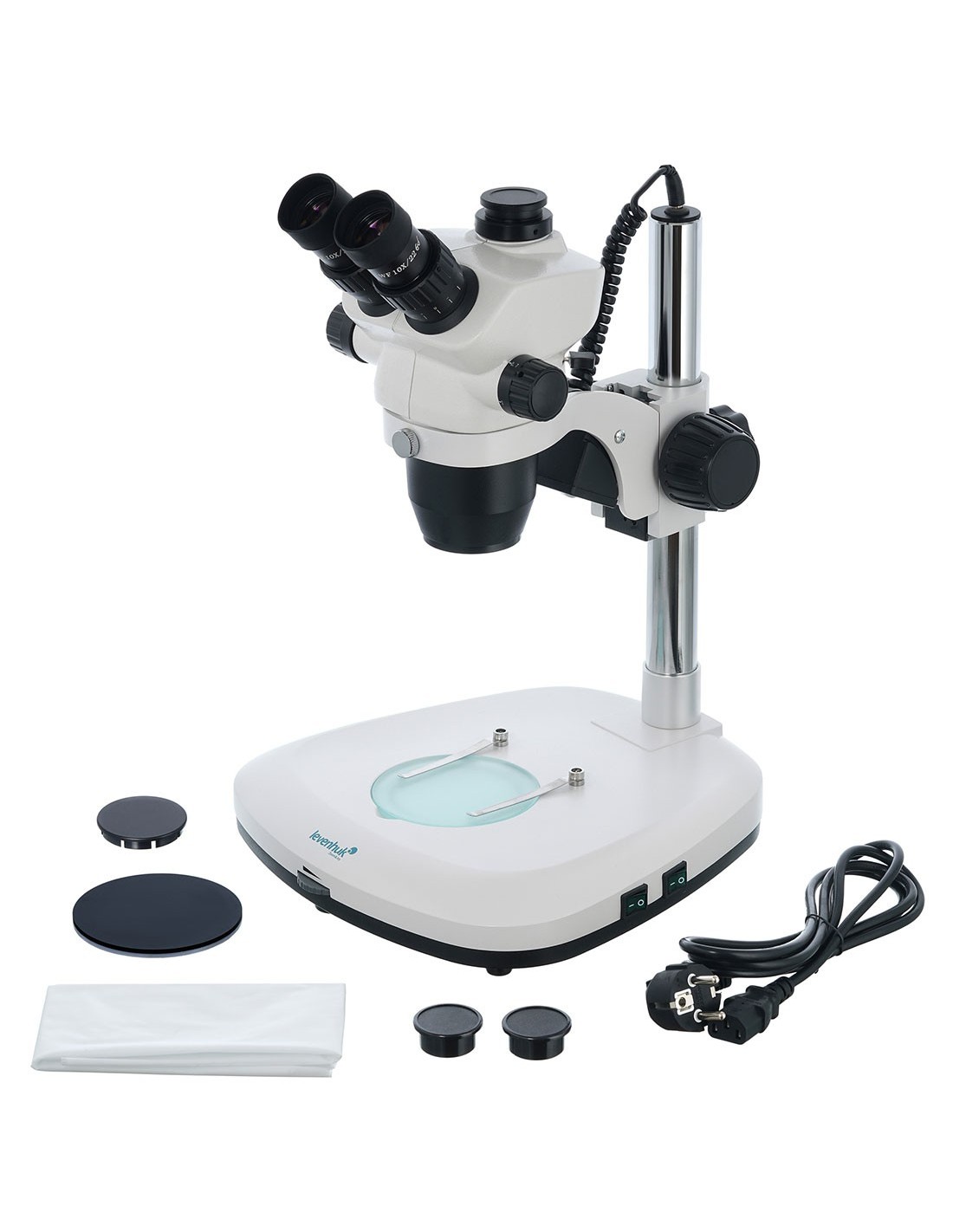

The kit includes:
- Microscope

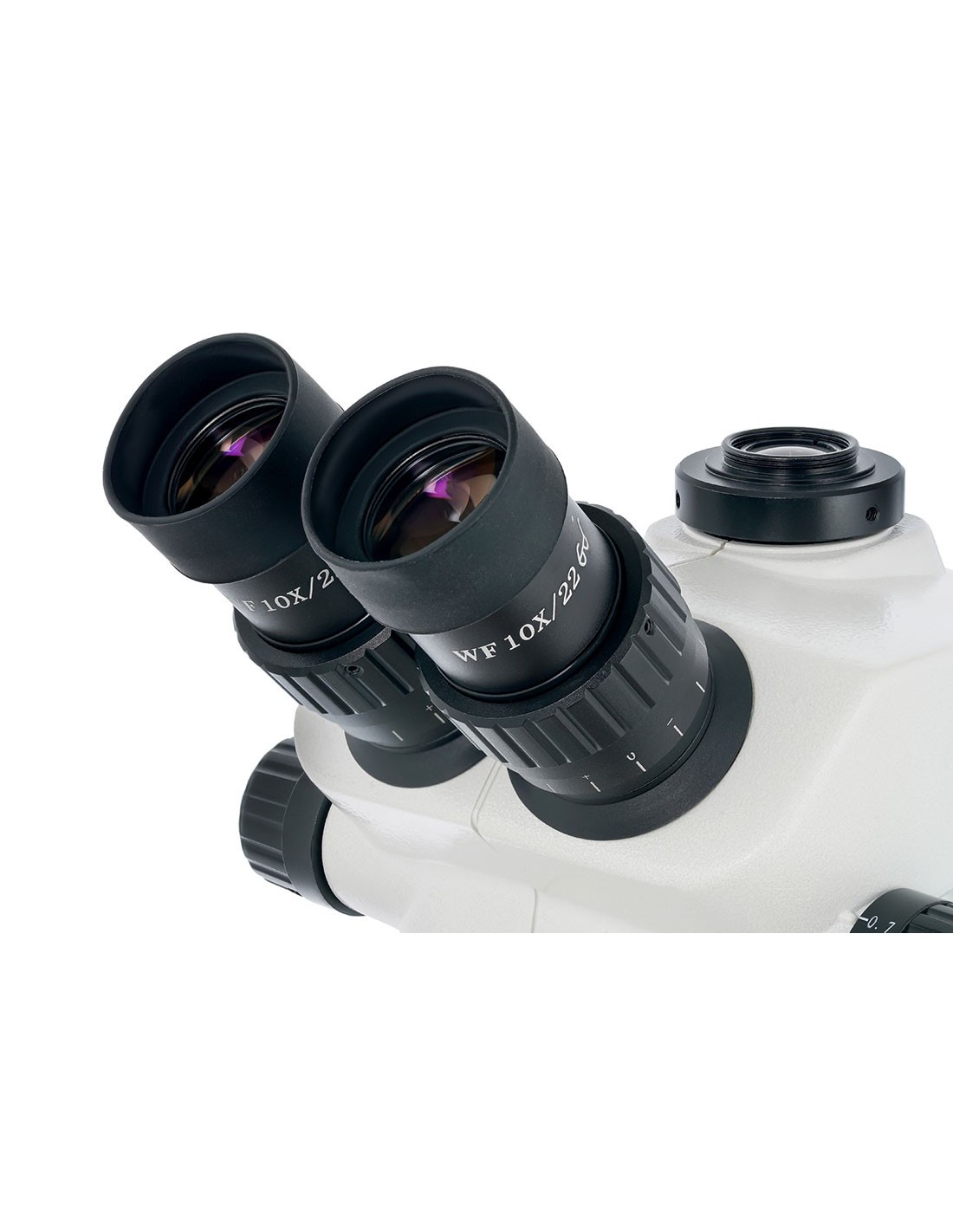

- WF10x eyepieces with eyecups (2 pcs.)
- Zoom objective: 0.7–4.5x
- Wooden stage frosted glass
- Double-sided plate, black and white
- Power cord with AC adapter
- Dust cover
- User manual and warranty lifetime
Attention: For information regarding the correct mains voltage, see the specifications table. Never attempt to connect a 110V device to a 220V power outlet, or vice versa, without using a voltage converter. Please note that the mains voltage in the United States and Canada is 110 V, while in most European countries it is 220–240 V.
The Levenhuk ZOOM 1T microscope is compatible with Levenhuk digital cameras (purchase separately). Levenhuk cameras are installed in the seat tube, in place of an eyepiece.
| Brand | Levenhuk Inc., USA |
| Lifetime | guarantee |
| EAN | 5905555005386 |
| Package size (LxWxH) | 45x34x37 cm |
| Shipping weight | 5.76 kg |
| Type | stereo/instrumental |
| Tensile | trinocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 7 — 45 |
| Magnifying range | up to 200x |
| Eyepiece tube diameter, mm | 30 mm (binocular head), 23.2 mm (third vertical tube) |
| Eyepieces | WF10x/22 mm (2 pcs.) |
| Objectives | 0.7-4.5x (zoom) |
| Working distance, mm | 235 |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | Ø95 |
| Range of movement of stage, mm | fixed |
| Stage table features | with clips, two plates: double sided white and black and frosted glass |
| Diopter adjustment of the eyepiece, diopters< /td> | ±5 |

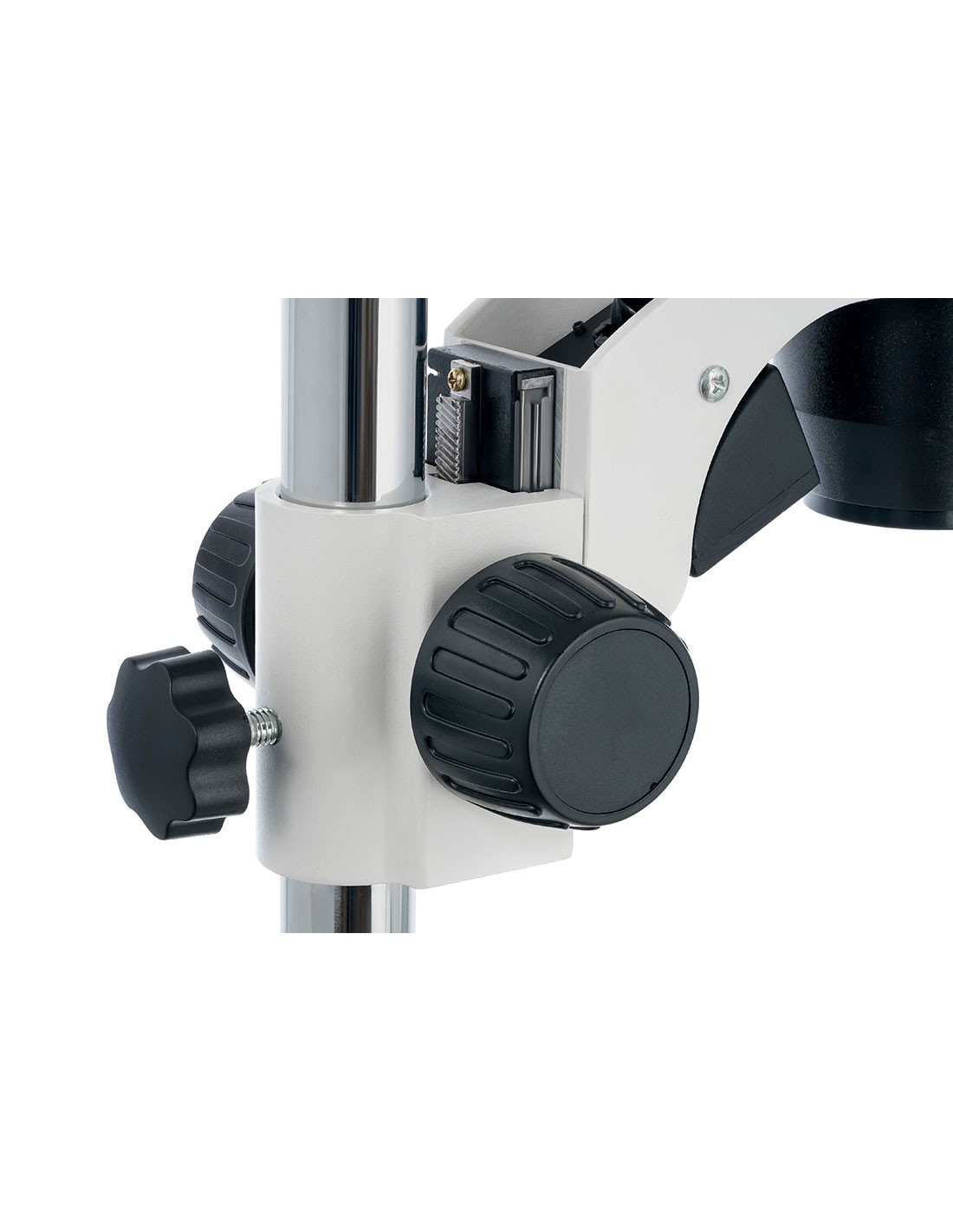

| Focus | coarse (50 mm) |
| Body | metal |
| Lighting | LED |
| Brightness adjustment | td> | yes |
| Power supply | 220 V/50 Hz |
| Type of source bright | top: 3 W LED, bottom: 2 W LED |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment | compatible with any digital microscope camera |
| Level user | beginners, expert users |
| Assembly and installation level of difficulty | easy |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
