The Levenhuk ZOOM 1B microscope is an instrument capable of a large working distance. It is practical for the study of geological samples, jewels, biological finds, fabrics, electronic cards and small mechanisms. This microscope can also be used for both hobbies and professional activities, such as workshops or watchmaking laboratories.

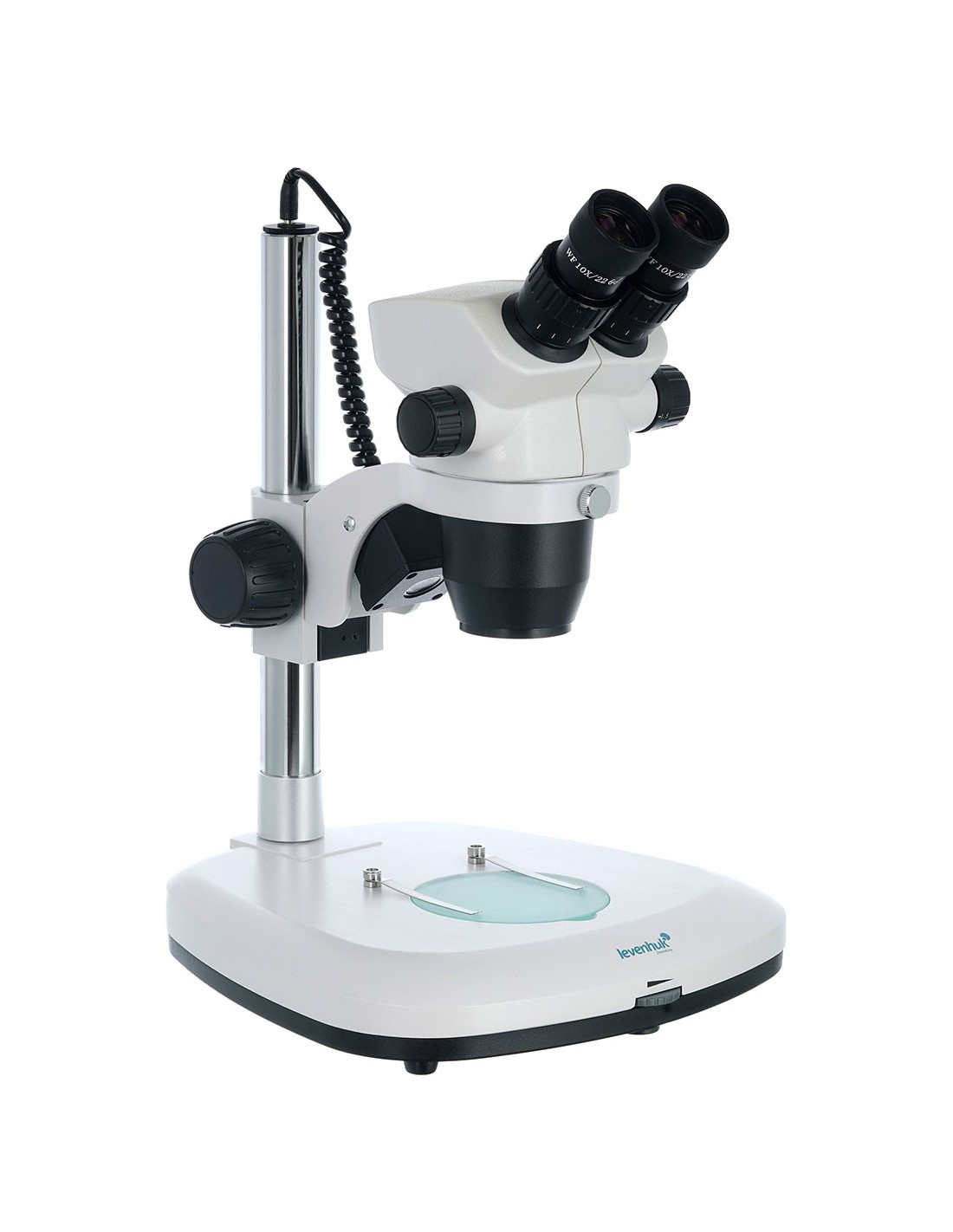

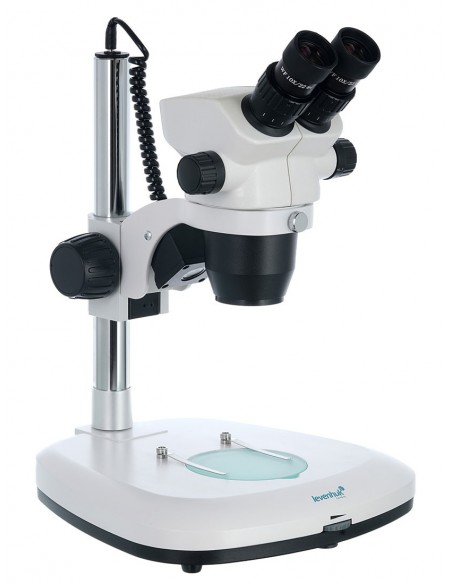

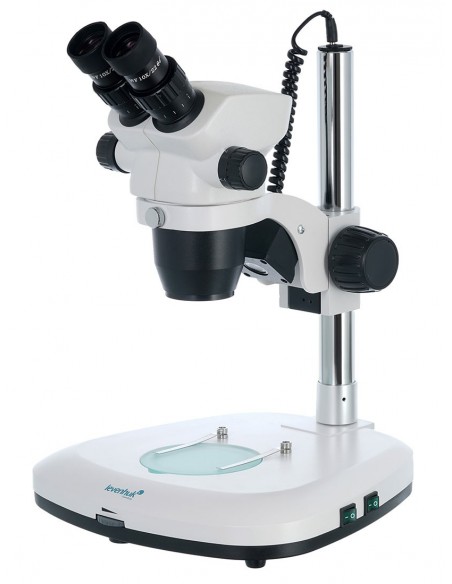

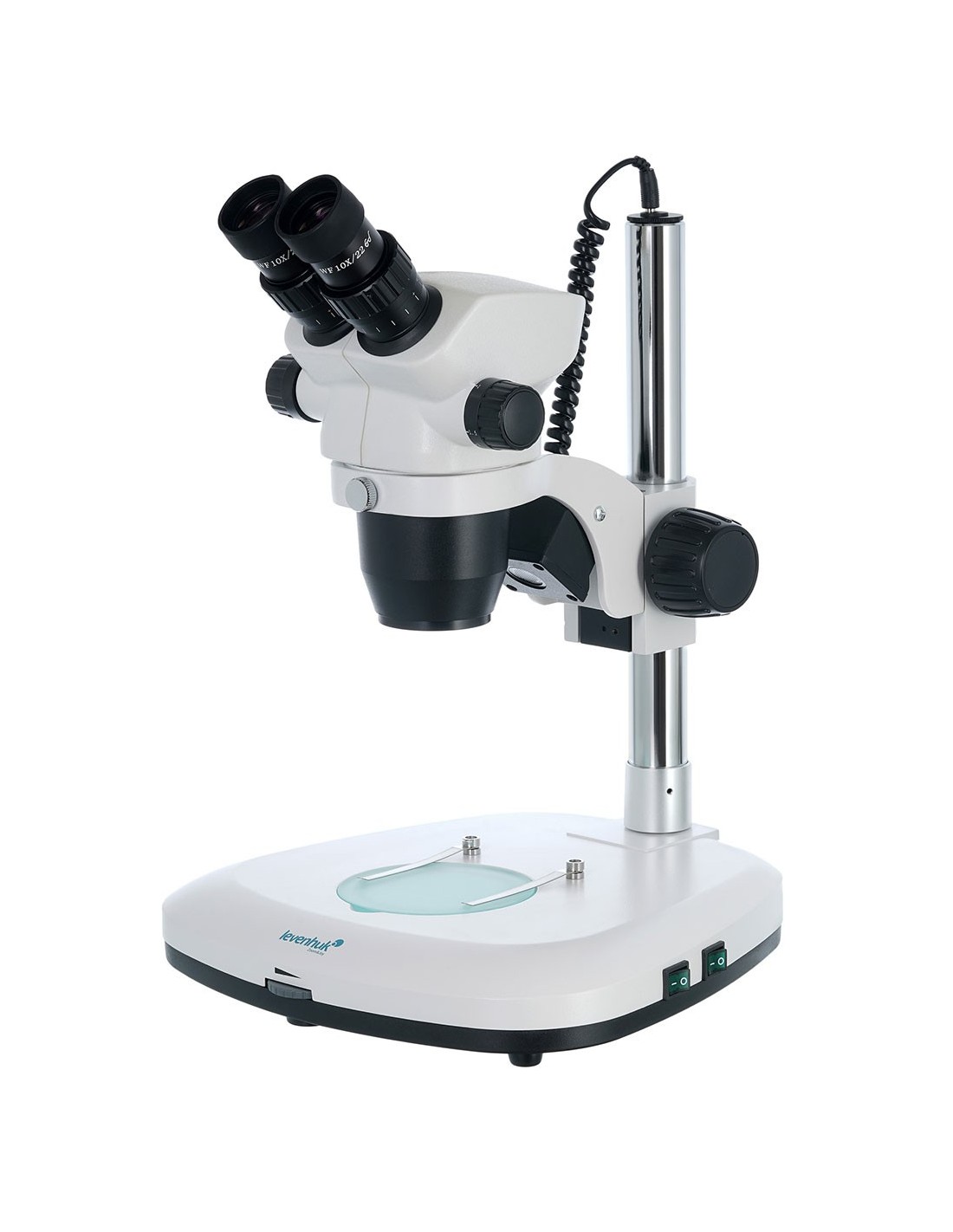

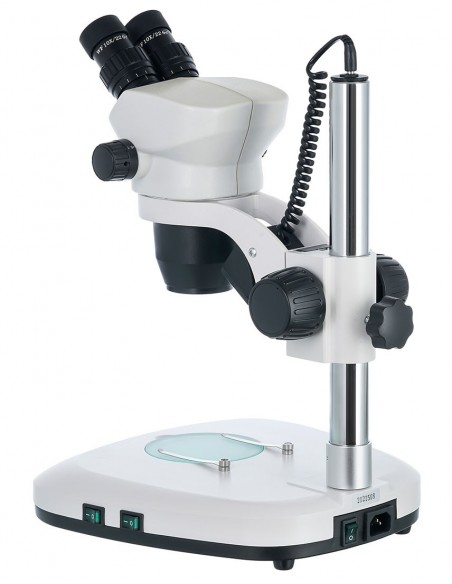

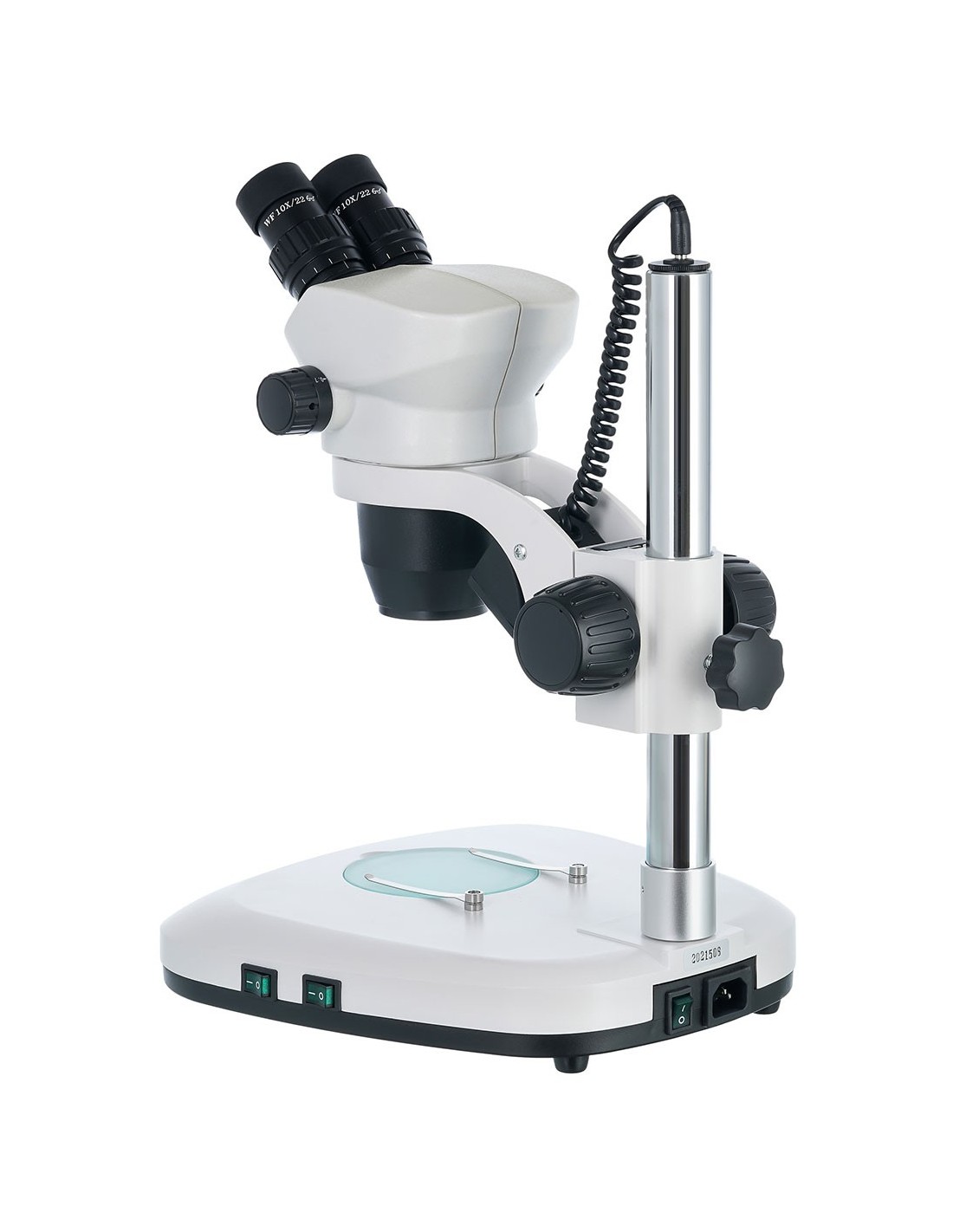

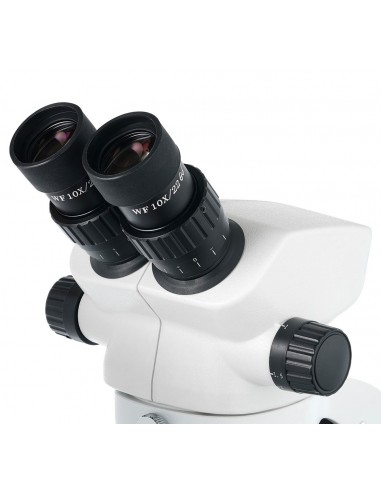

Regarding the design, the microscope is made up of a base, a vertical stand and an optical head. It is possible to carry out observations with both eyes, the head is slightly inclined and can be rotated 360°. The kit includes two wide-field eyepieces with 10x magnification. The optical scheme is completed by a zoom lens, thanks to which it is possible to change the magnification of the microscope continuously and not in discrete steps. The total magnification range varies from a factor of 7 to a factor of 45. Coarse focusing is available.

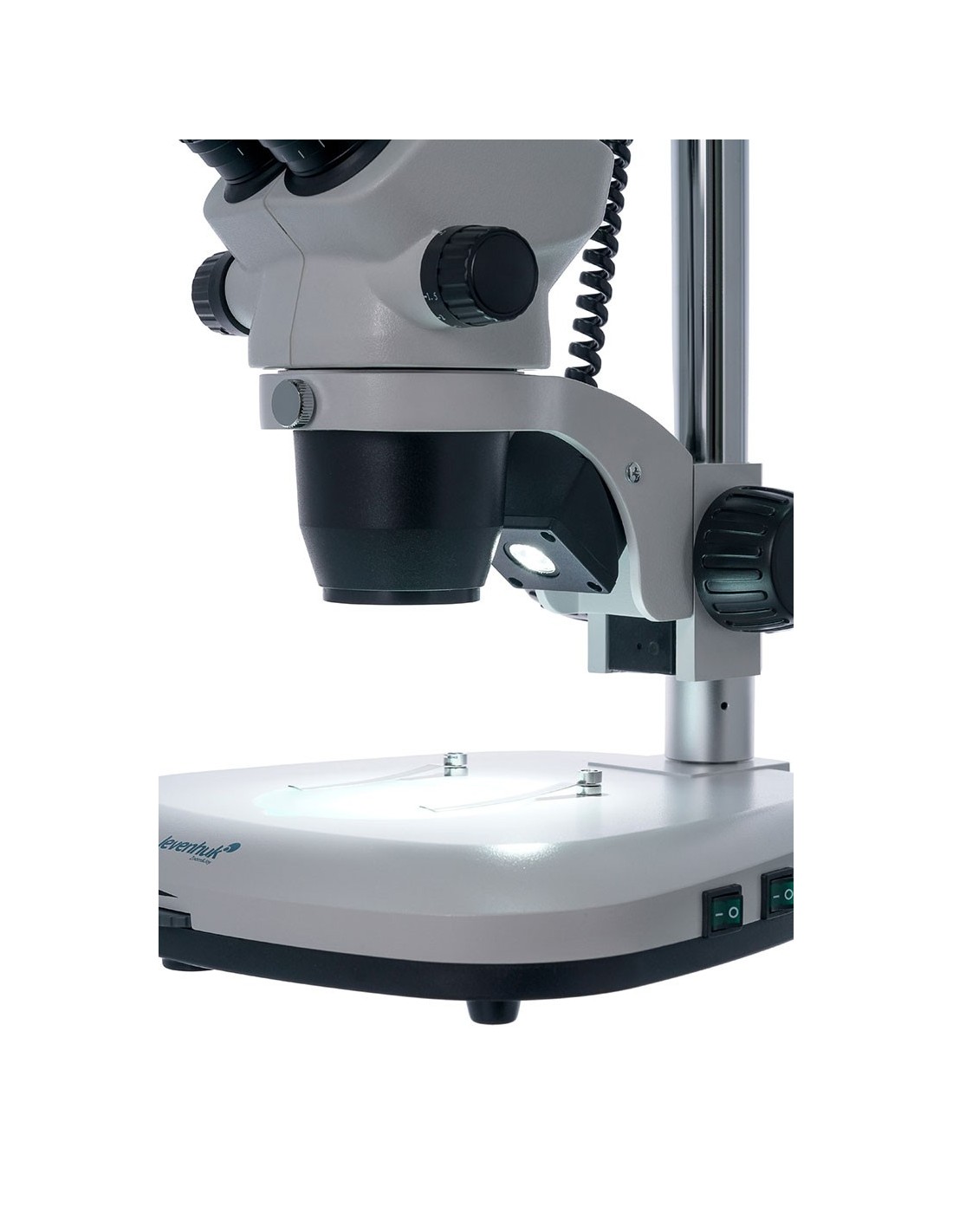

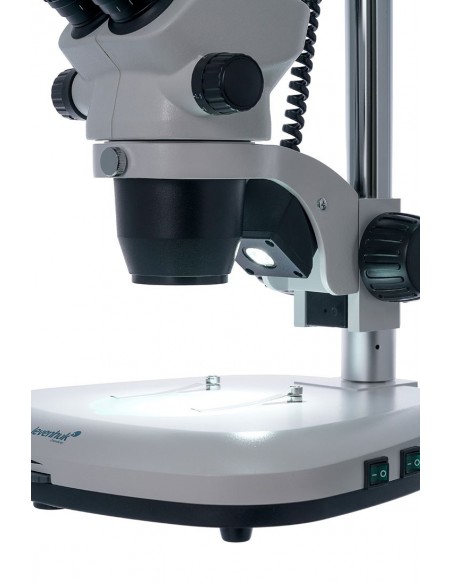

The microscope is equipped with two light sources: two LED lights, upper and lower. This allows the study of samples of any degree of transparency. Brightness adjustment makes it easier to choose the optimal lighting level for studying each sample. The light is powered by AC mains electricity.
The body of the microscope is made of metal, making it durable and resistant.
Features:
- Stereoscopic image (3D)
- Variable magnification with continuity between a factor of 7 and a factor of 45
- Binocular head rotatable and inclined at 45° li>
- Large working distance: 235 mm
- Double LED lighting with brightness adjustment and powered by the AC mains

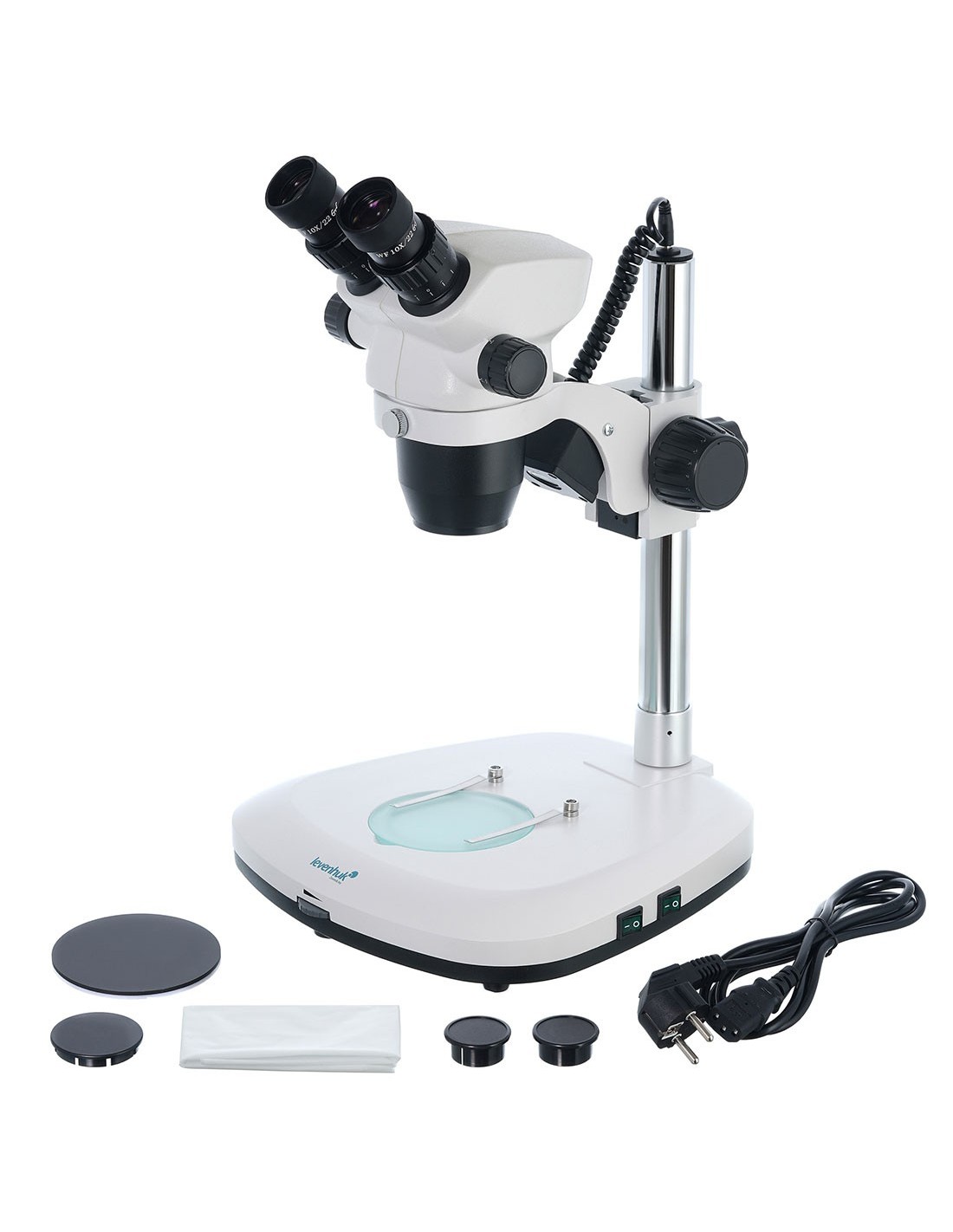

The kit includes :
- Microscope
- WF10x eyepieces with eyecups (2 pcs.)
- Zoom objective: 0.7–4.5x
- Frosted glass coffee table
- Double-sided plate, black and white
- Power cord with AC adapter
- Dust cover li>
- User Manual and Lifetime Warranty
Attention: For information regarding the correct mains voltage, please refer to the specifications table. Never attempt to connect a 110V device to a 220V power outlet, or vice versa, without using a voltage converter. Please note that the mains voltage in the United States and Canada is 110 V, while in most European countries it is 220–240 V.
| Brand | Levenhuk Inc., USA |
| Lifetime Warranty |
| EAN | 5905555005379 |
| Package size (WxDxH) | 45x34x37 cm |
| 5.62 kg |
| Type | stereo/instrumental |
| binocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 7 — 45 |
| Magnification range | up to 200x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | WF10x/22 mm ( 2 pcs.) |
| Lenses | 0.7-4.5x (zoom) |
| Working distance, mm | 235 |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | Ø95 |
| Range of movement of stage, mm | fixed |
| Table features | with pegs, two plates: double sided white and black and frosted glass |
| Diopter adjustment of the eyepiece, diopter | ±5 |

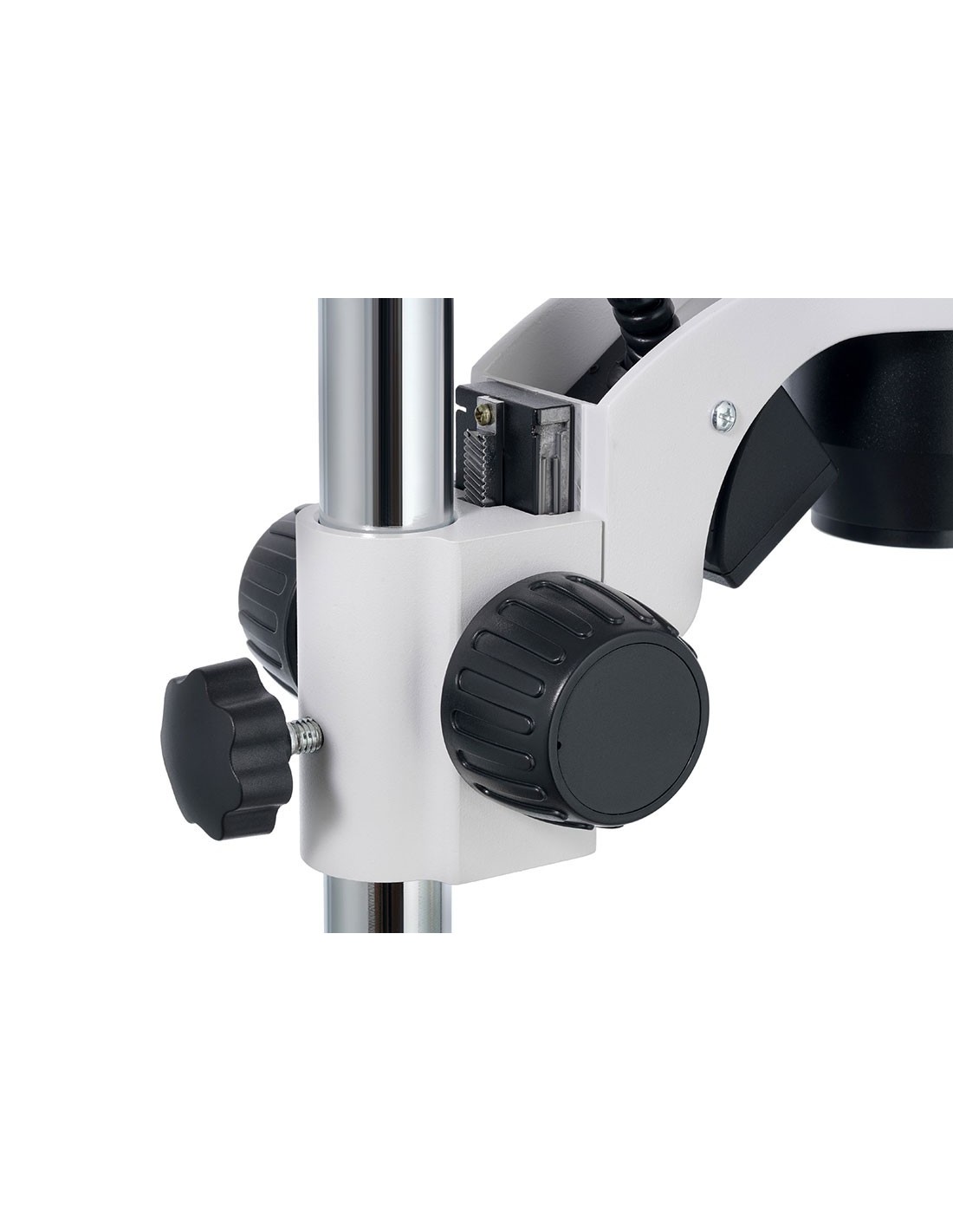

| Focus | coarse (50 mm) |
| Body | metal |
| Lighting | LED |
| Regulation brightness | yes |
| Power supply | 220 V/50 Hz |
| Light source type | top: 3W LED, bottom: 2W LED |
| Operating temperature range, °C | 5 — 35 |
| User level | beginners, expert users |
| Difficulty level assembly and installation | easy |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
