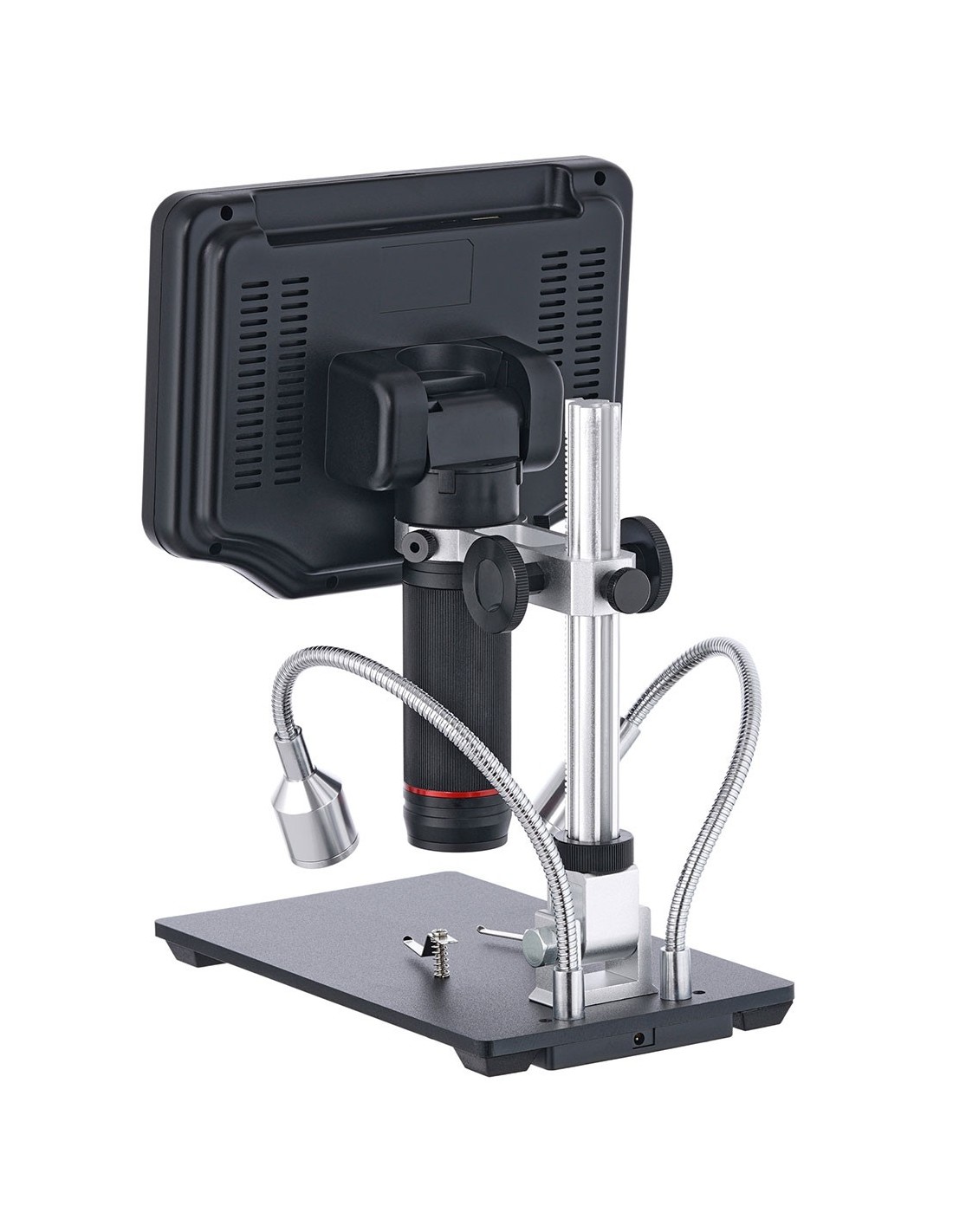

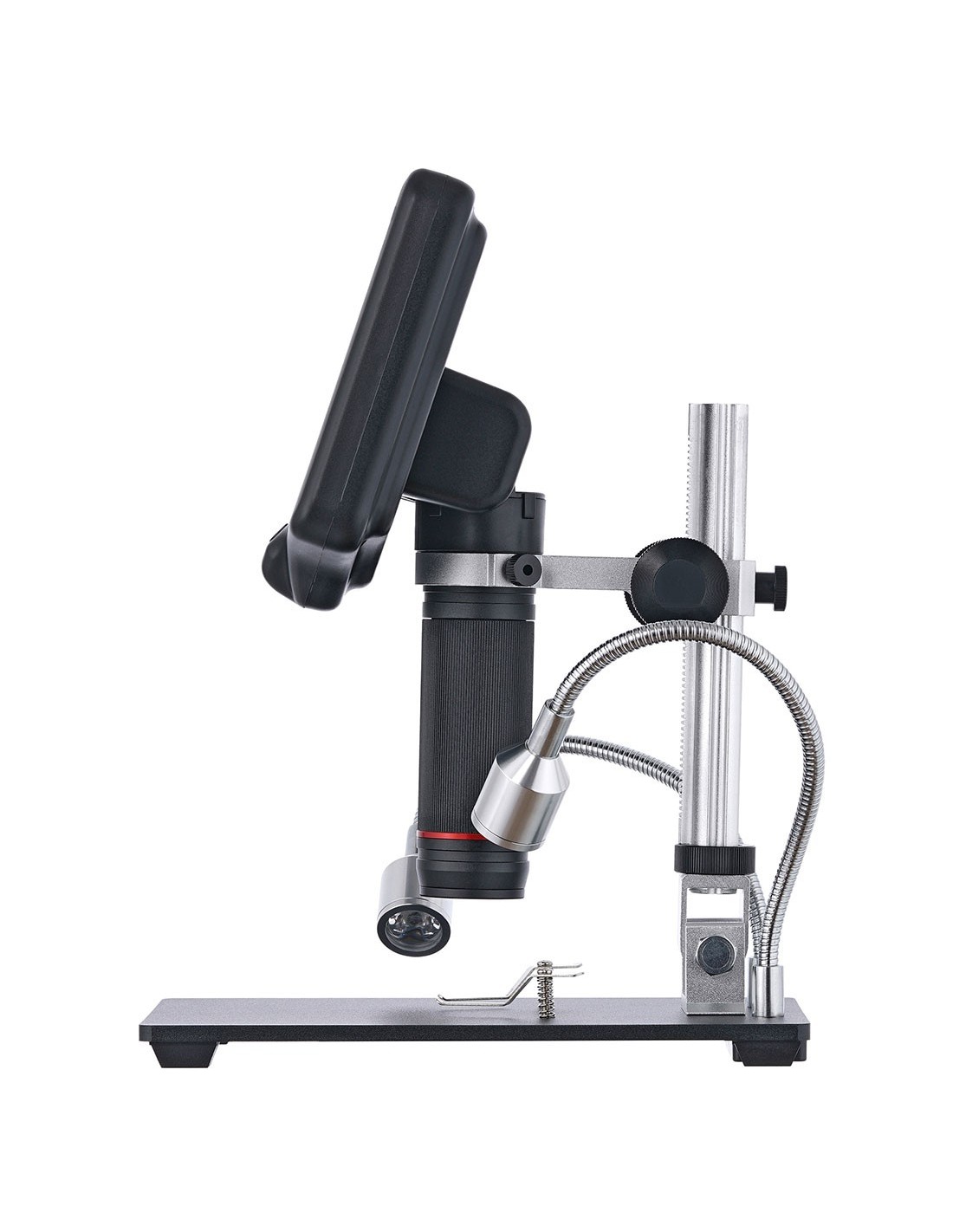

The Levenhuk DTX RC4 Remote Control Microscope allows you to study enlarged specimens and makes it possible to take photos and record videos of your research. The quality is truly excellent: the integrated sensor allows you to capture images and videos in Full HD resolution! These excellent optical and digital properties allow you to capture all the details of the observed object and study its appearance in depth. This microscope is an excellent assistant for repairing electronic components and circuits, evaluating jewelry and studying geological samples.

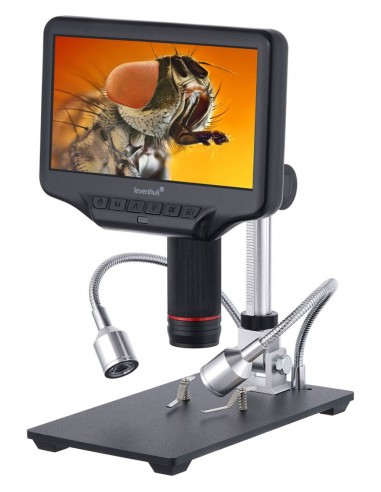

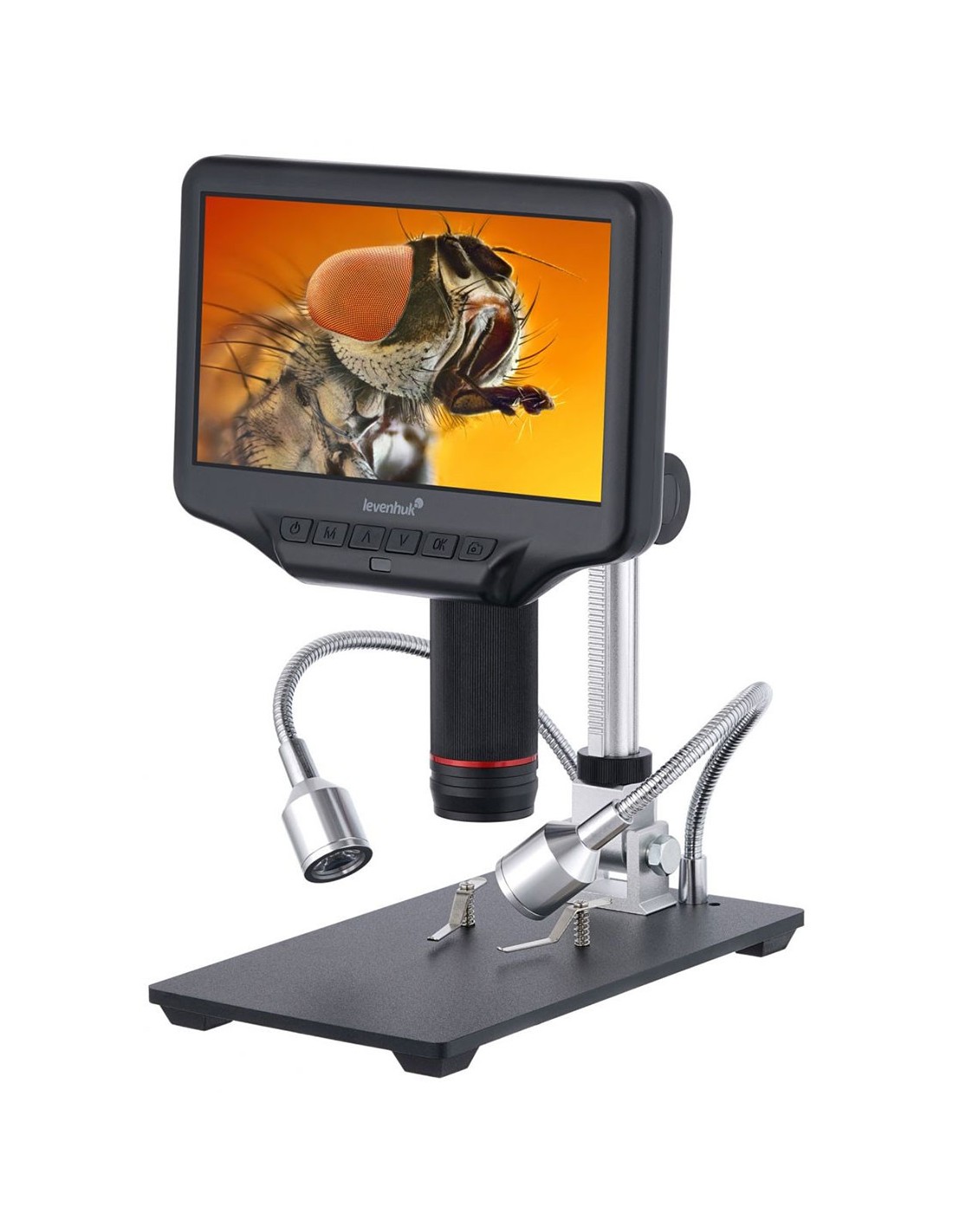

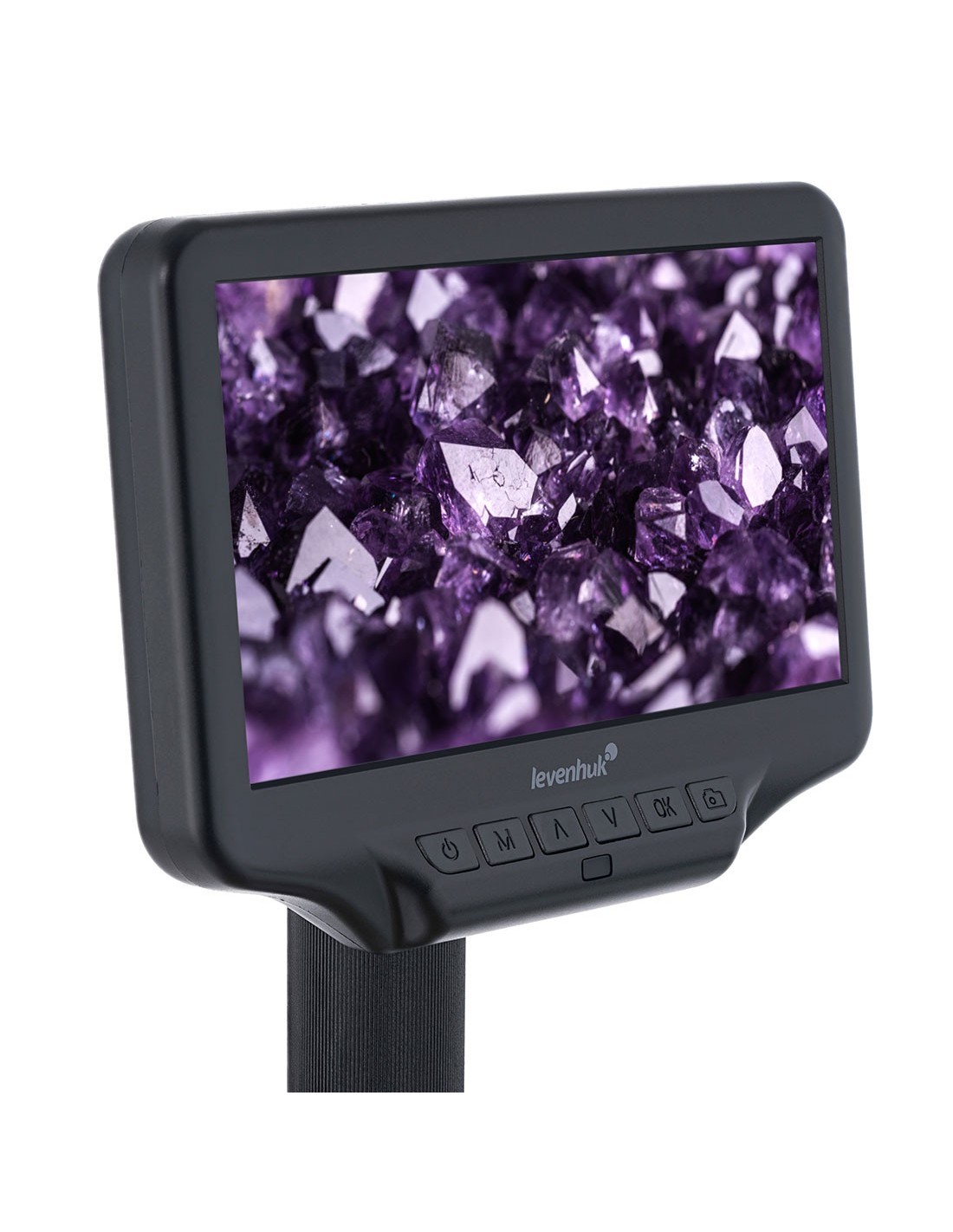

Large rotatable LDC screen
The screen integrated has a diagonal of 7 inches. The image collected by the lens is shown in color, well contrasted and easy to interpret. The screen can be tilted a few degrees for greater ease of use. The overall magnification can be adjusted between 5x and 270x, with optical magnification varying between 5x and 40x. You can also show the image on an external screen with a connection via HDMI port.
High resolution images and videos
The Levenhuk DTX RC4 microscope allows you to save your research in digital format. The image quality is truly impressive: it is possible to take photos with a resolution of 5600x4200 pixels and record videos in Full HD (1920x1080 pixels). Depending on the resolution of the video, the frame rate can vary between 24 and 120 frames per second. The images and videos are saved on a memory card (not included).

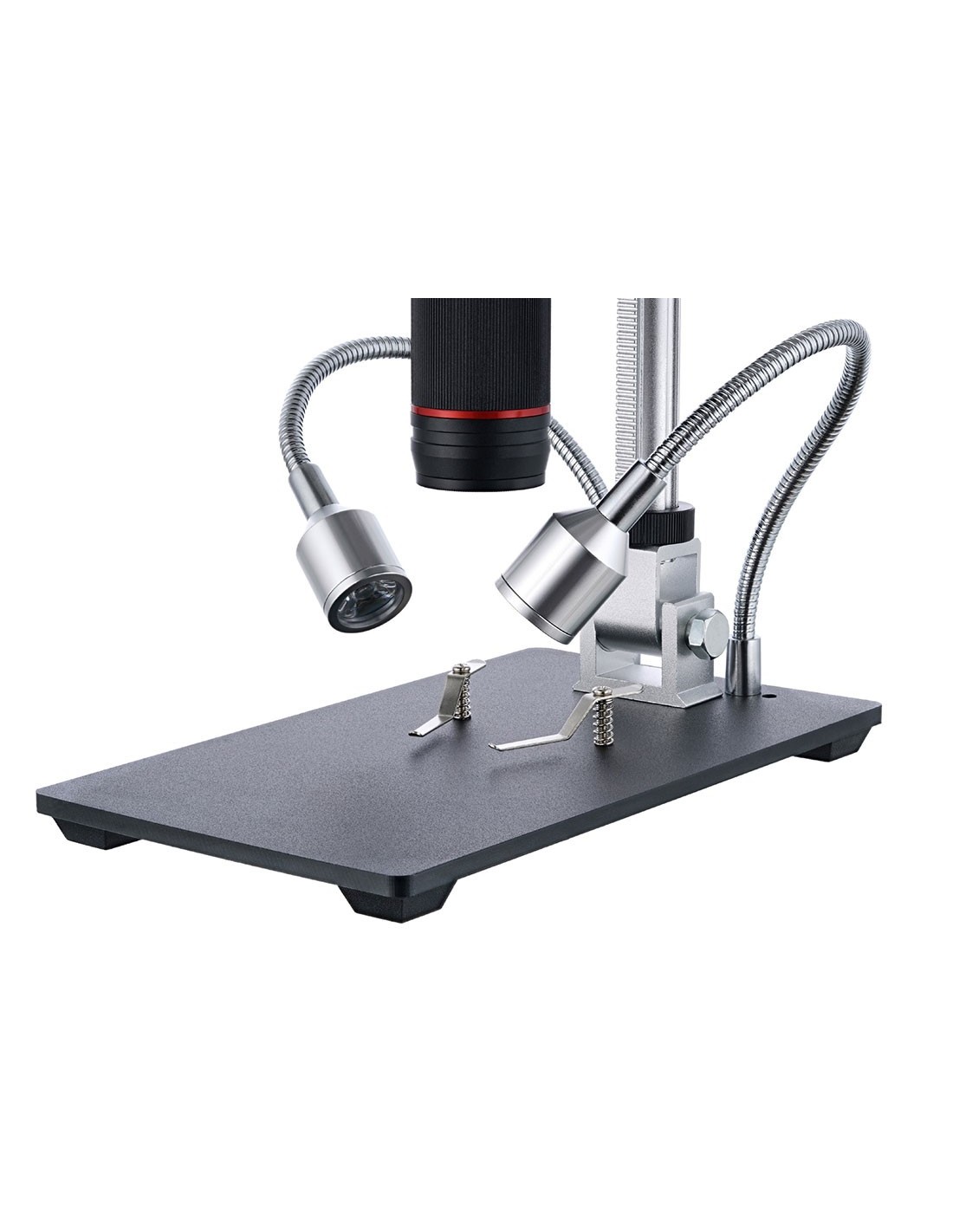

Lighting system on flexible supports
The lighting consists of two brightness LED spotlights variable. They are fixed on flexible supports, which allows the light to be directed onto the sample as precisely as possible. The spotlights are controlled (dimming, turning on) by a small switch on the power cord.

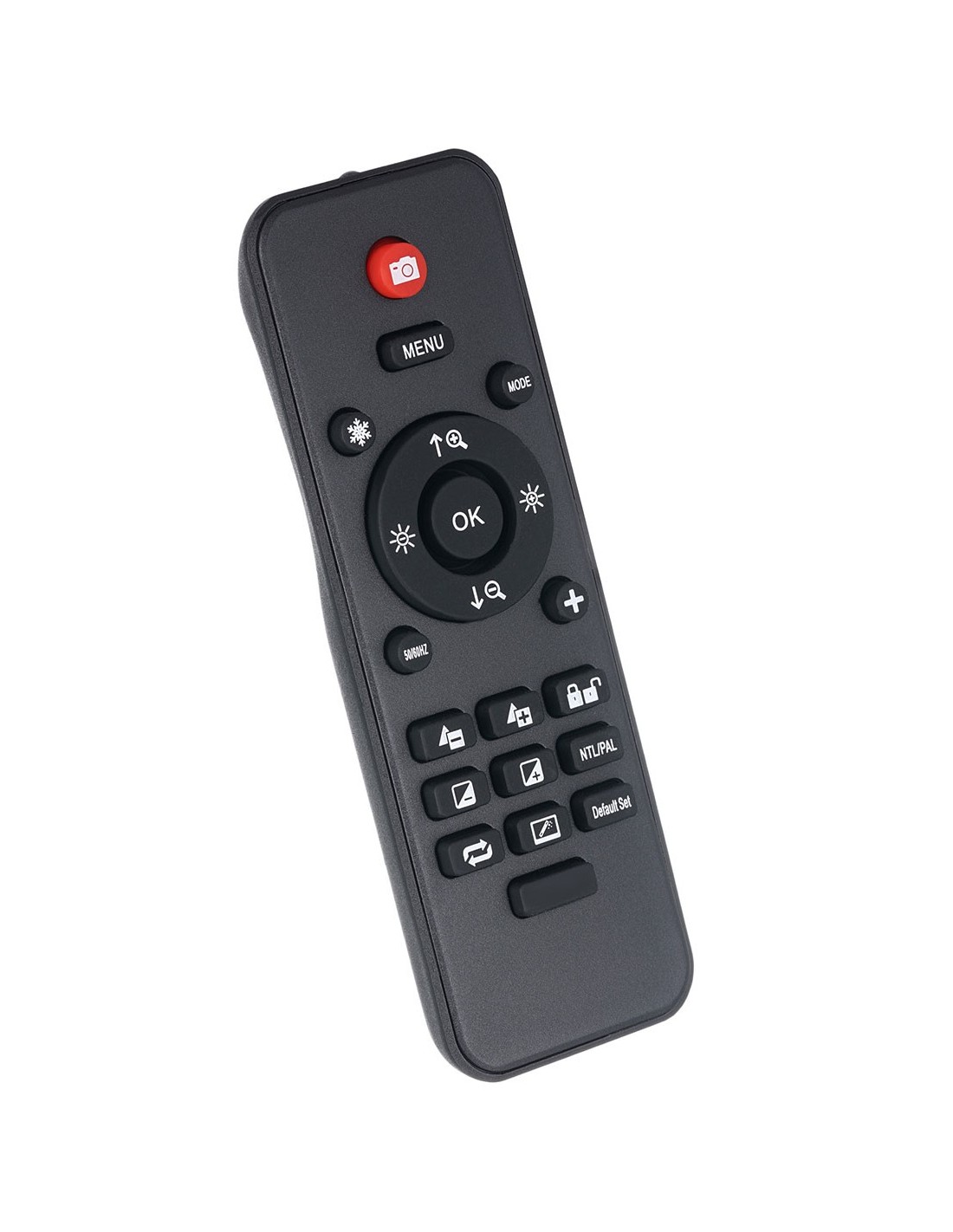

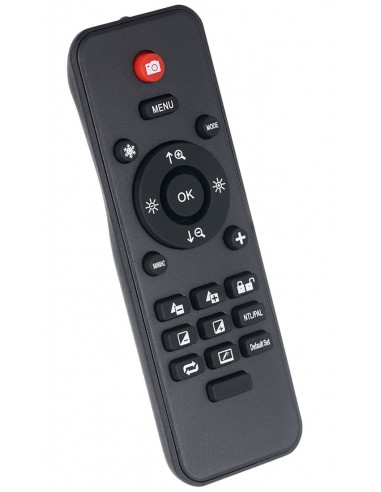

Multifunctional remote control
In conclusion, let's take a look at the wireless remote control . It provides access to a range of options, allowing you to remotely adjust brightness and magnification, take photos and record videos. The remote control is particularly convenient during presentations or group searches.
Features:
- Optical and digital magnification
- Large 7" color LCD screen
- The screen can be tilted to various angles for greater convenience of use
- High quality images and videos
- The image observed through the lens can be shown on an external screen or on the TV
- LED spotlights on flexible supports
- Multifunctional remote control, practical during presentations

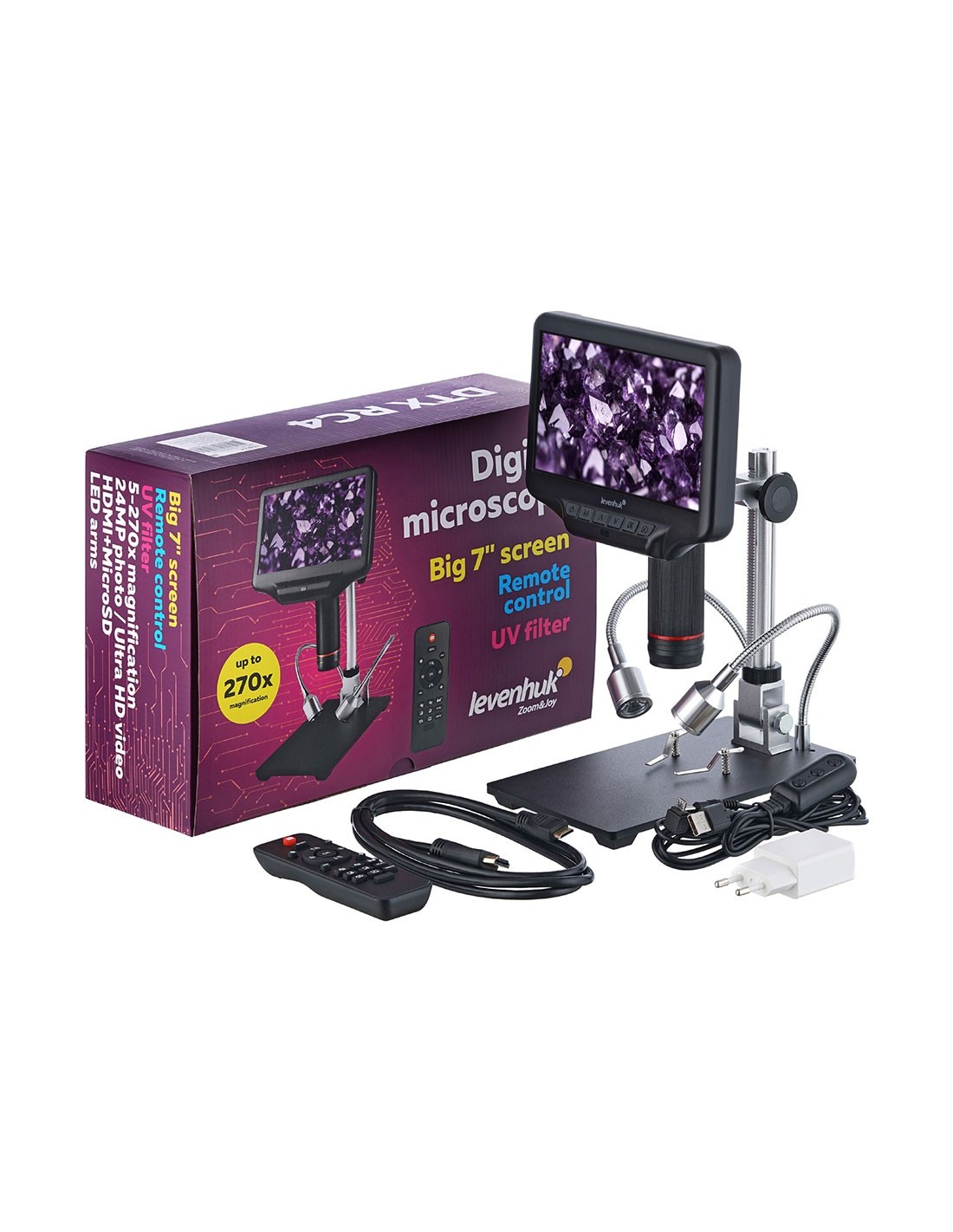

The kit includes:
- LCD screen
- Stand
- Base with clips li>
- Spotlights on flexible supports
- Infrared remote control
- UV filter (pre-mounted on the lens)
- Power cable with switch and knob for brightness adjustment
- HDMI cable
- Network adapter
- Tools and clips
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Warranty | lifetime |
| EAN | 5905555004433 |
| Package size (WxDxH) | 32x21x10 cm |
| Shipping weight | 1.62 kg |
| Type | digital |
| Tested | digital screen/PC monitor |
| Optics material |
| Vertical tube | 7" rotatable color LCD screen |
| Magnification , x | 5 — 270 |
| Magnifying range | 200x to 800x |
| Stage, mm | 120x200 |
| Range of movement of the stage, mm | fixed |
| Table features | with pegs |
| Fire | coarse (77 mm) |
| Body | plastic |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | lighting and LCD screen: 110–220 V; 5V, 2A via USB cable (included); remote control: AAA batteries – 2 pcs. (not included) |
| Type of light source | two spotlights on flexible supports |
| Optical filters | UV filter |
| Operating temperature range, °C | -20 — 70 |
| User level | beginners |
| Assembly and installation level of difficulty | easy |
| Application | for applied research |
| Lighting position | upper |
| Search method | bright field |
| Maximum resolution | photo: 5600x4200 pixels; video: 1920x1080 pixels |
| Megapixel | sensor: 4; image: 24 |
| Sensor element | CMOS 1/3" |
| Pixel size, µm< /td> | 2x2 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.mp4 |
| Spectral range, nm | 410–1100 |
| White balance | manual |
| Exposure control | manual |
| Sensitivity, V/lux-sec@550 nm | 1.9 |
| Frame rate | 24/30/60/120 (depends on resolution) |
| Output | slot microSD card, HDMI, microUSB |
| System requirements | no connection to a computer |
