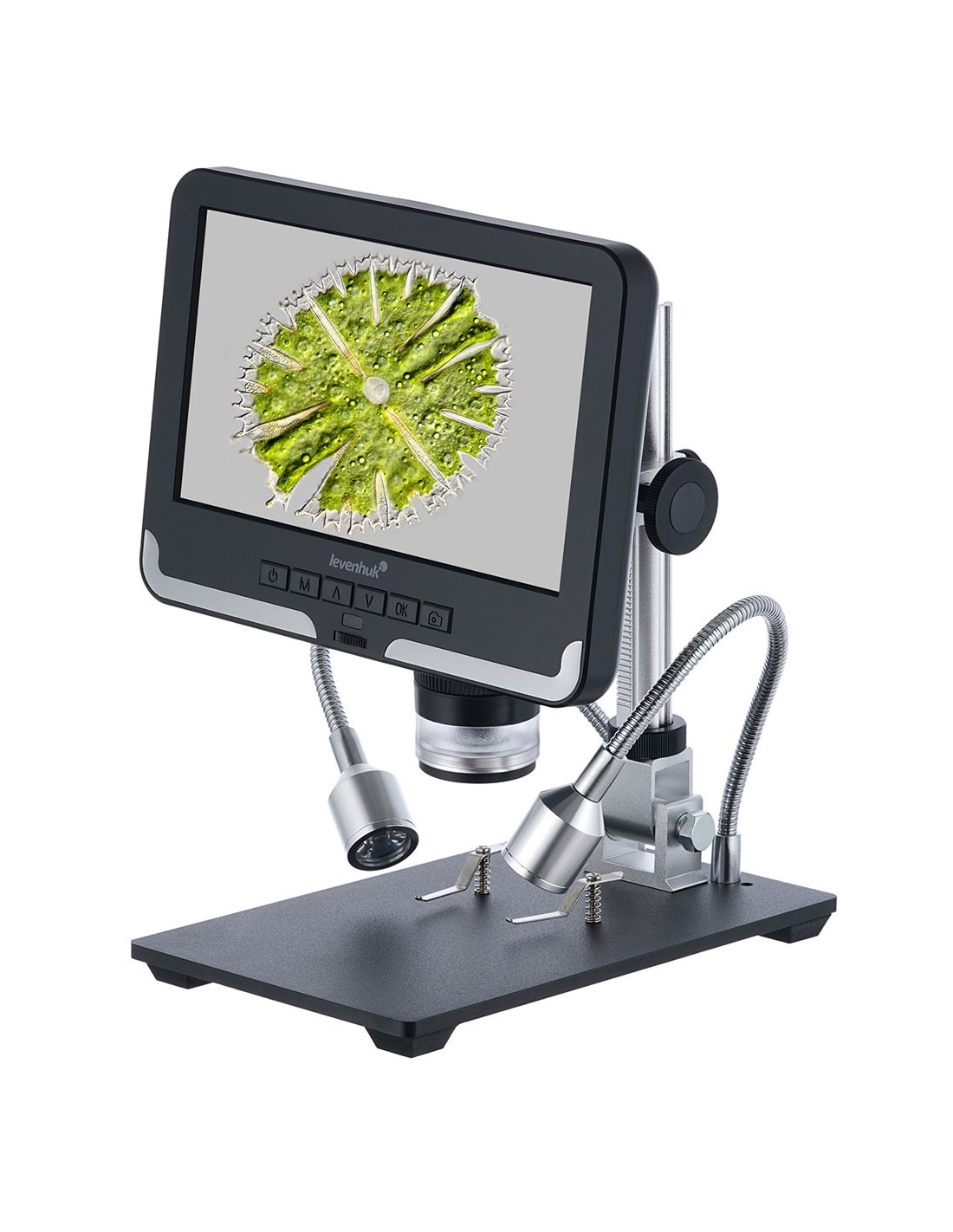

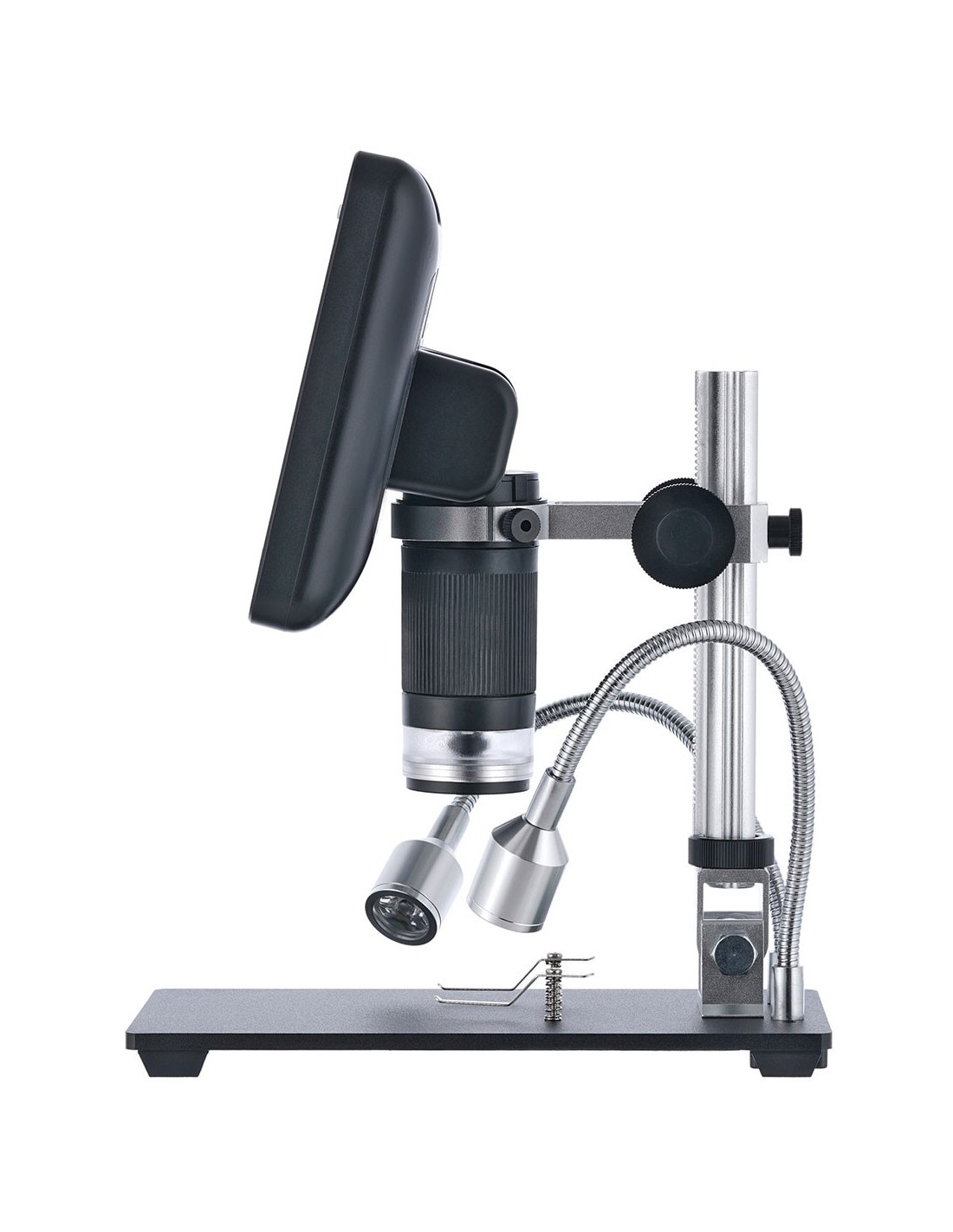

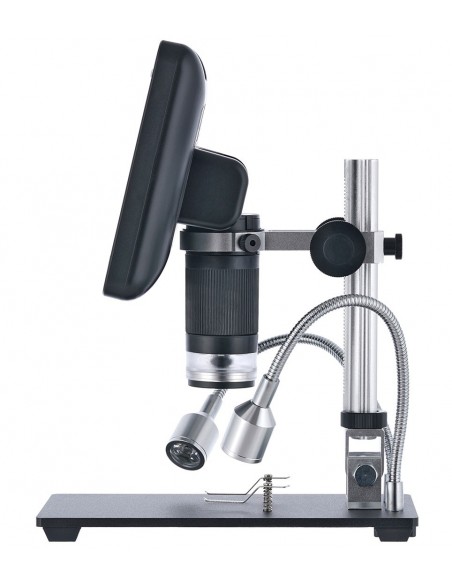

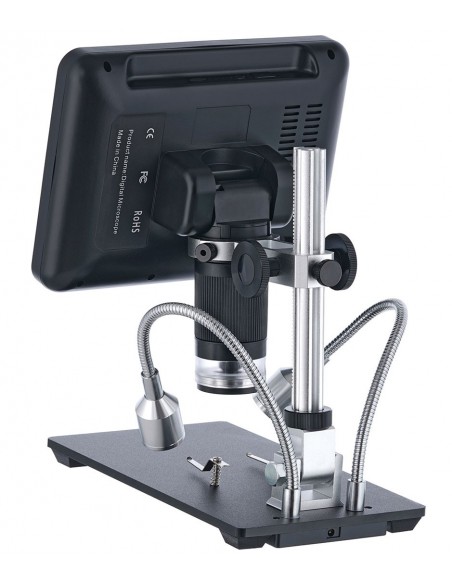

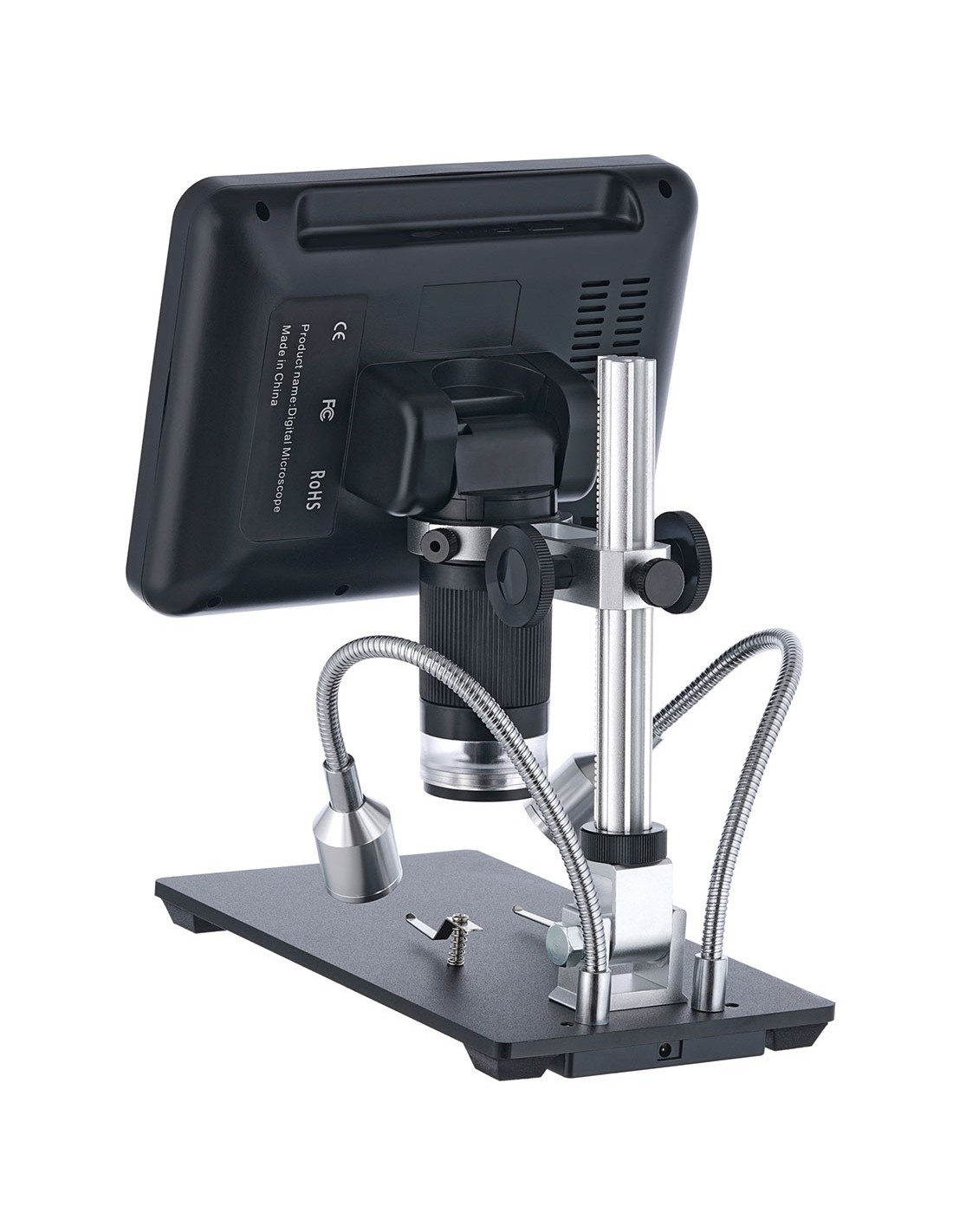

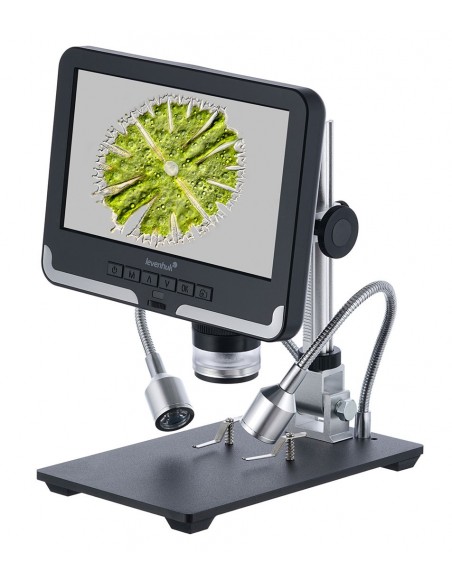

The Levenhuk DTX RC2 Remote Control Microscope is an optical and digital magnification instrument featuring spotlights on flexible stands and a multi-function wireless remote control. This microscope is a great assistant for working on electronic circuits, clockwork mechanisms, geological specimens, jewelry and other large objects. The microscope can be used both professionally and for hobbies.

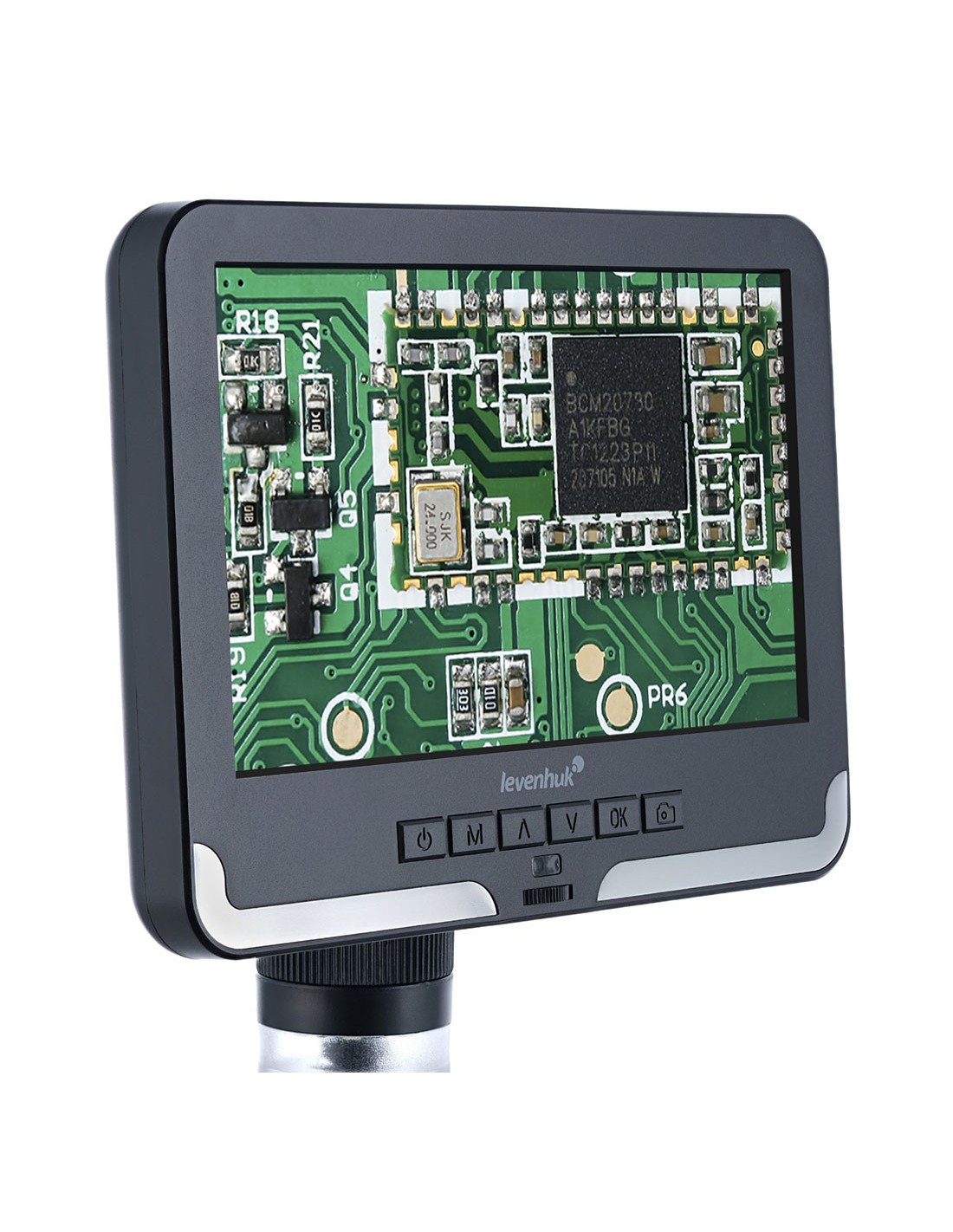

Large rotatable LDC screen
This microscope offers a magnification between a factor of 3 and a factor of 200. This allows you to observe the structure of large objects in detail. The image observed through the objective lens is shown on the built-in LCD screen. The screen is large: it has a 7-inch diagonal and the image is fully colored. The screen can be tilted slightly, making prolonged use of the microscope more comfortable.
High resolution images and videos
In addition to studying objects, this microscope it also allows you to record videos in Full HD quality and take photos with resolution up to 12 Mpx. The data is saved on a memory card (to be purchased separately). The integrated software allows basic image processing operations.

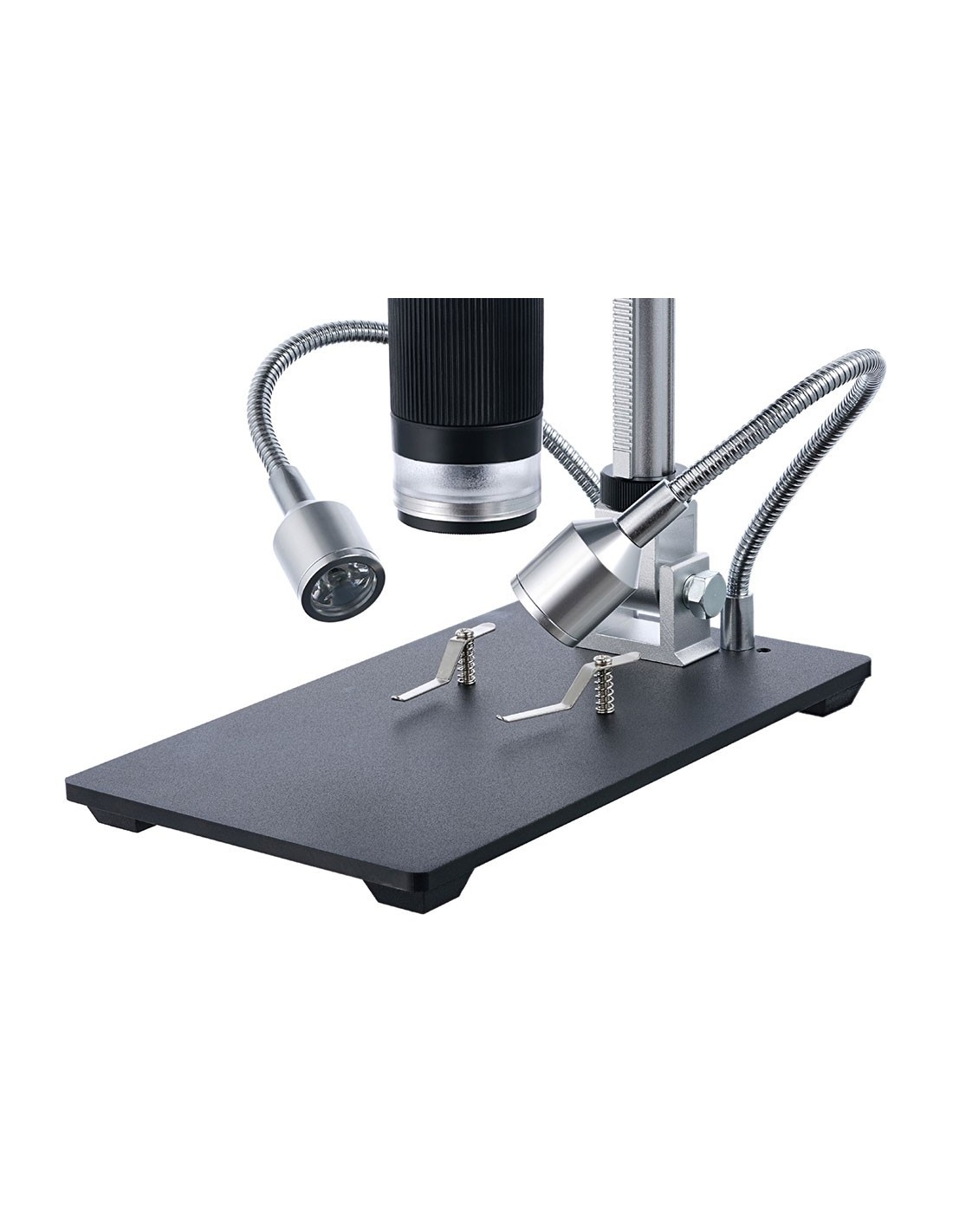

Lighting system on flexible supports

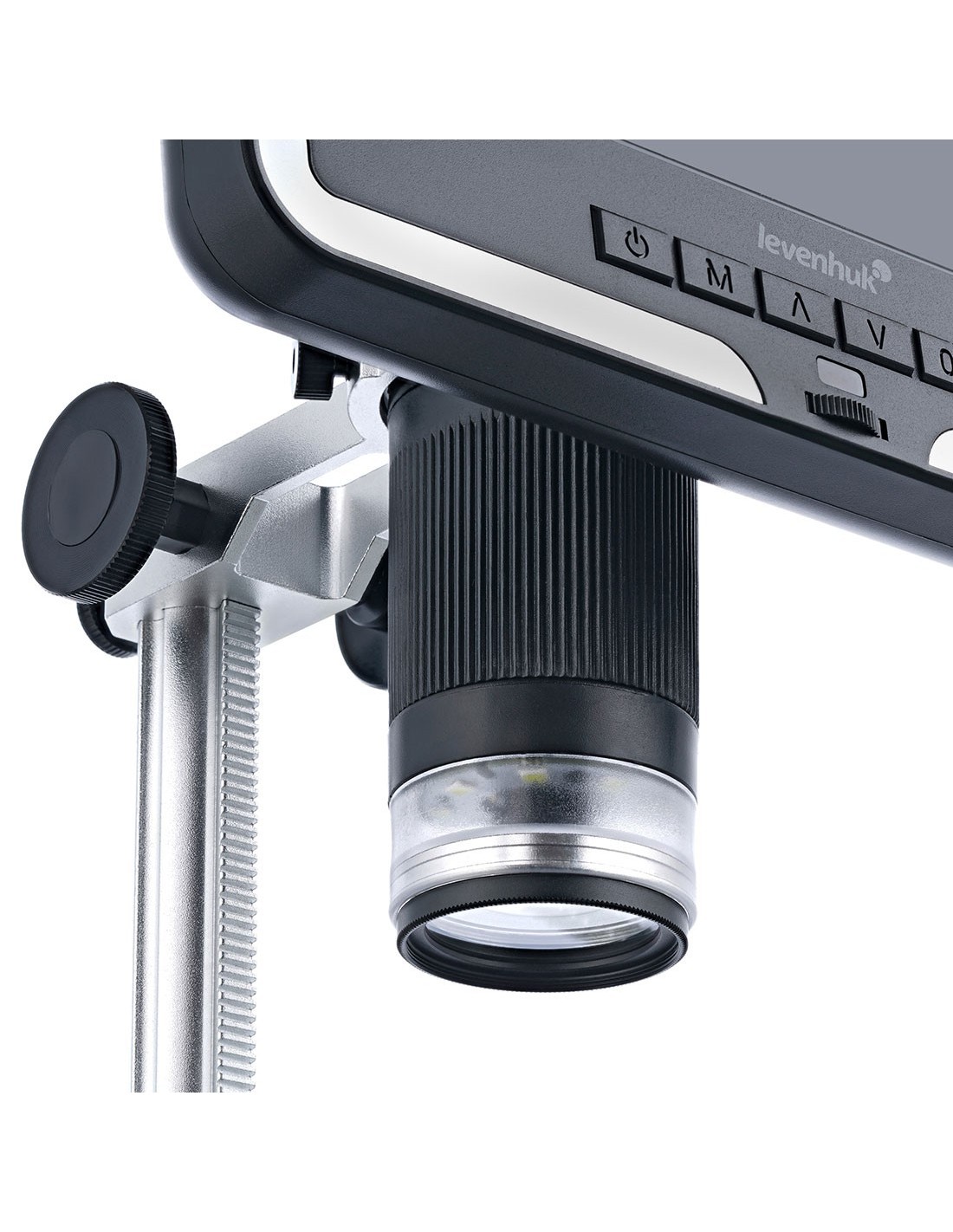

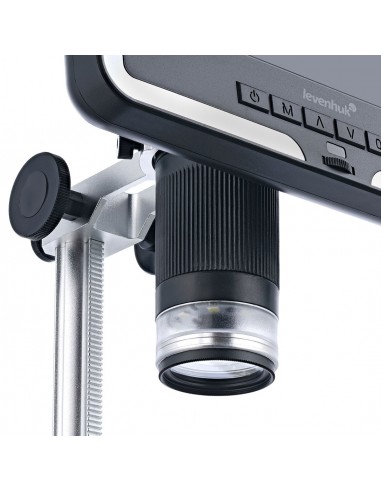

There is an LED system for upper lighting. Some of the LEDs are positioned inside the microscope's objective assembly, while two others are attached to flexible holders. The light system allows you to precisely illuminate the work area, obtaining three-dimensional images. You can adjust the brightness via a small switch on the power cord. On the same cable there is also another button for turning the microscope on and off.

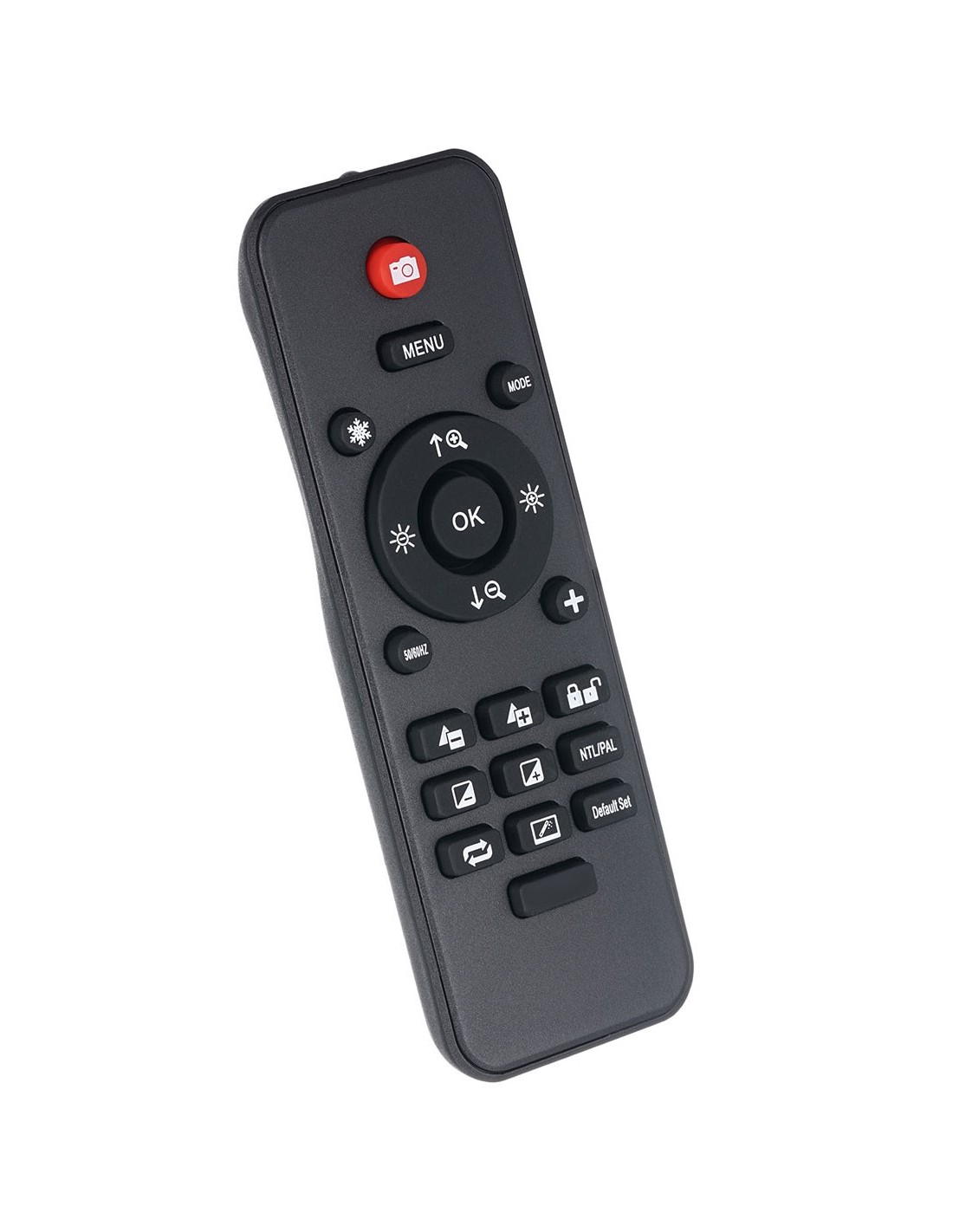

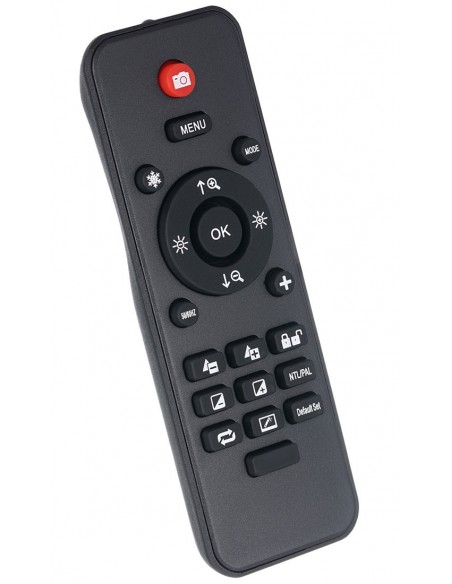

Multifunction remote control
It is possible to control the microscope using the buttons on the base or the wireless remote control. In addition to adjusting the magnification, the remote control allows you to take photos and record videos and offers access to many other options.
Features:
- Optical and digital magnification
- Large 7" color LDC screen
- The screen can be tilted to various angles for greater convenience of use
- Possibility of capture high-quality images and videos
- LED spotlights on flexible stands and built-in top lighting
- Multifunction remote control

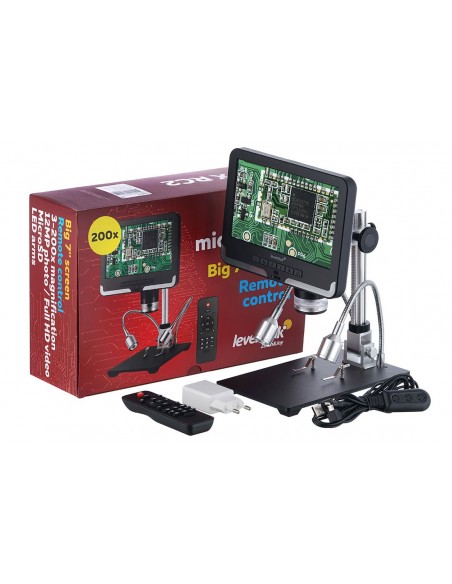

The kit includes:
- LCD screen
- Stand
- Base with clips
- Spotlights on flexible supports
- Infrared remote control
- UV filter
- Power cable with switch and knob for brightness adjustment
- Mains adapter
- Tools and Clips
- User Manual and Lifetime Warranty
| Brand | Levenhuk Inc., USA< /td> |
| Lifetime Warranty |
| EAN | 5905555004419 |
| Package size (LxWxH) | 32x21x10 cm |
| Shipping weight | 1.44 kg< /td> |
| Type | digital |
| Tested | digital screen/PC monitor< /td> |
| Optics material | optical glass |
| Vertical tube | LCD screen 7" color rotatable |
| Magnification, x | 3 — 200 |
| Magnification range | from 200x to 800x |
| Stage, mm | 120x200 |
| Table movement range, mm | fixed |
| Table features | with clips |
| Fire | coarse (150 mm) |
| Body | plastic |
| Lighting | LED |
| Brightness adjustment | yes |
| lighting and LCD screen: 110–220 V; 5V, 2A via USB cable (included); remote control: AAA batteries – 2 pcs. (not included) |
| Type of light source | 2 spotlights on flexible supports and lights inside the lens assembly |
| Optical filters | UV filter |
| Operating temperature range, °C | -20 — 70< /td> |
| User level | beginners |
| Assembly and installation difficulty level | easy |
| Application | for applied research |
| Lighting position | superior |
| Search method | bright field |
| Maximum resolution | images: 4032x3024 pixels; video: 1080 FHD 1920x1080 pixels |
| Megapixel | sensor: 2; image: 12 |
| Sensor element | 1/2.9" CMOS |
| Pixel size , µm | 2.8x2.8 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.avi |
| Spectral range, nm | 410–1100 |
| White balance | manual |
| Exposure control | manual |
| Sensitivity, V/lux-sec@550 nm | 3.8 |
| microUSB | output, microSD card slot (supports microSD memory card up to 32GB) |
| System requirements | no connection to a computer required |
