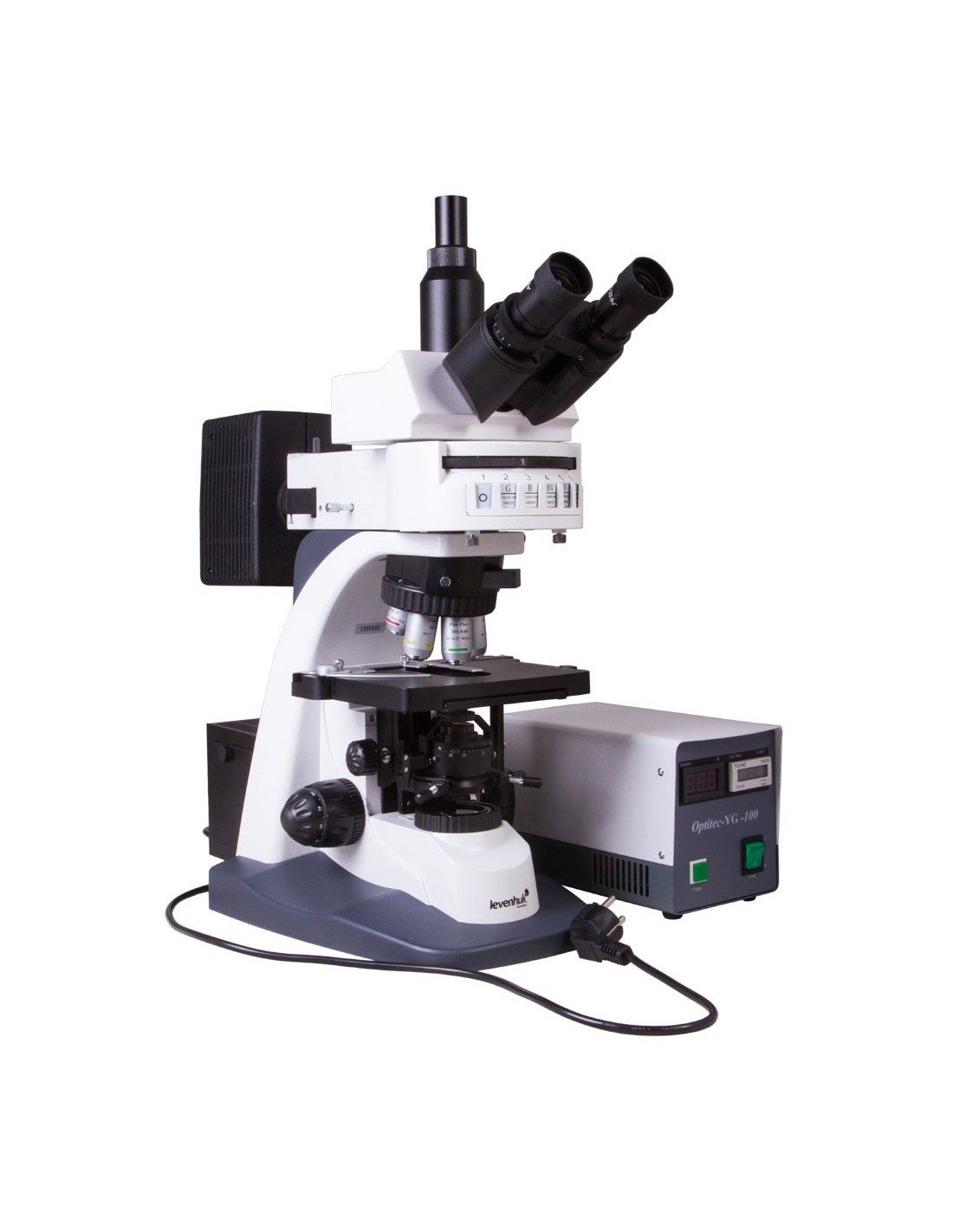

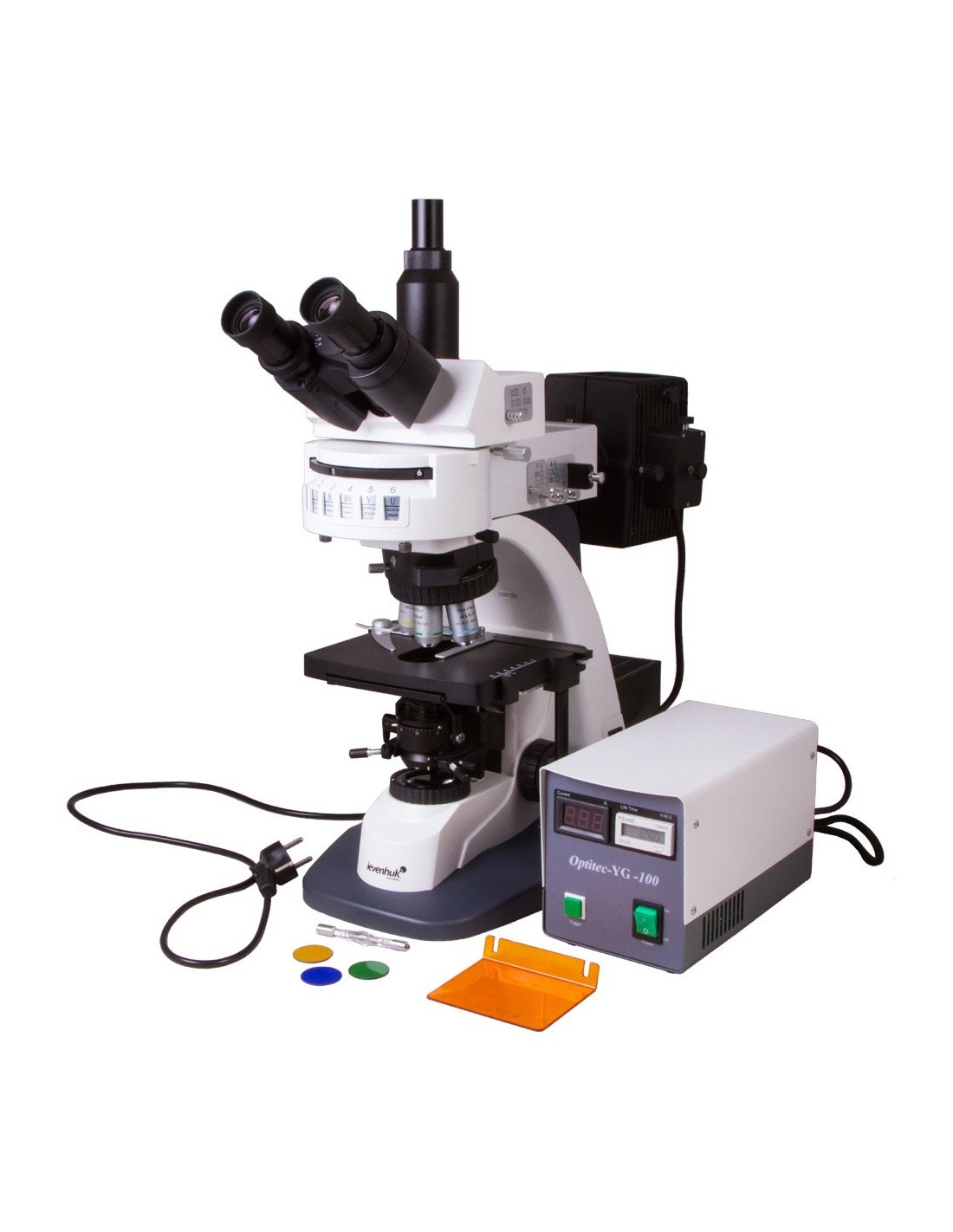

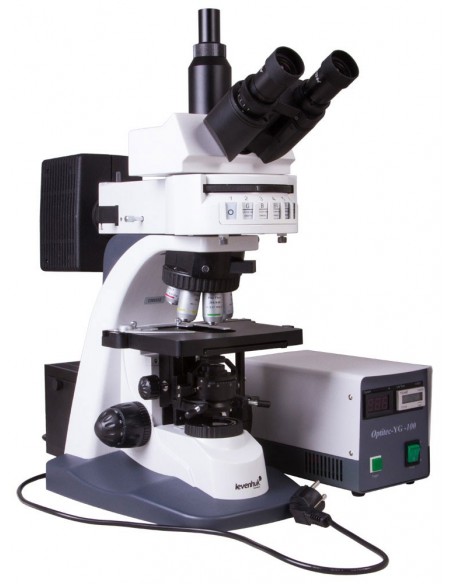

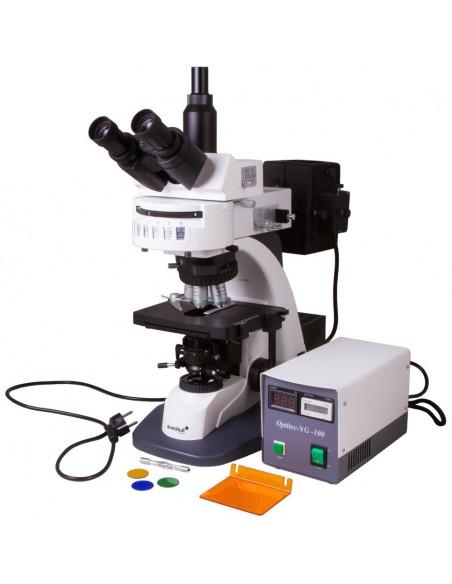

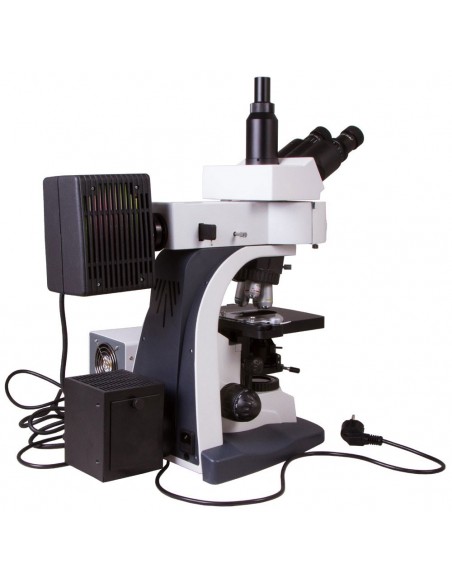

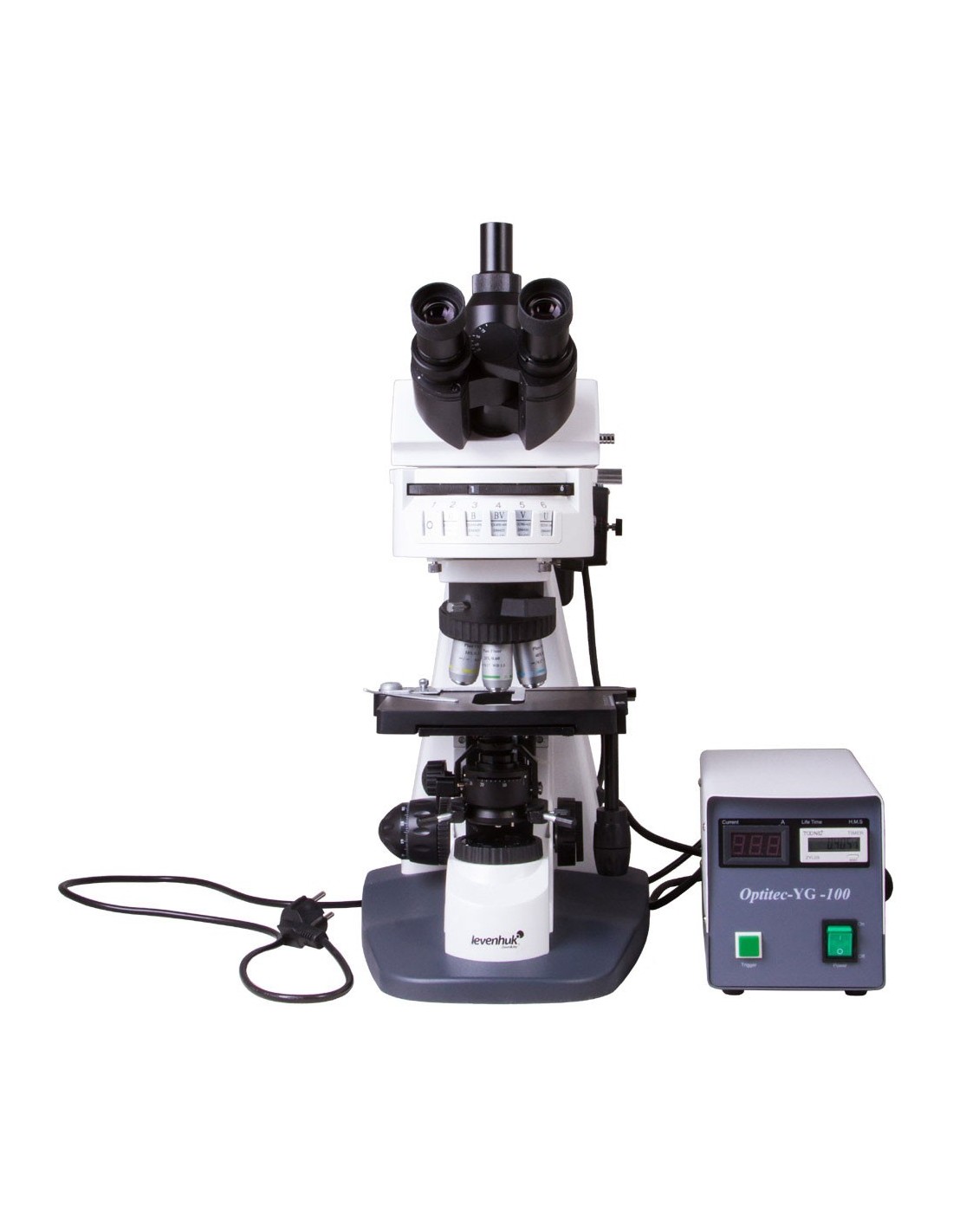

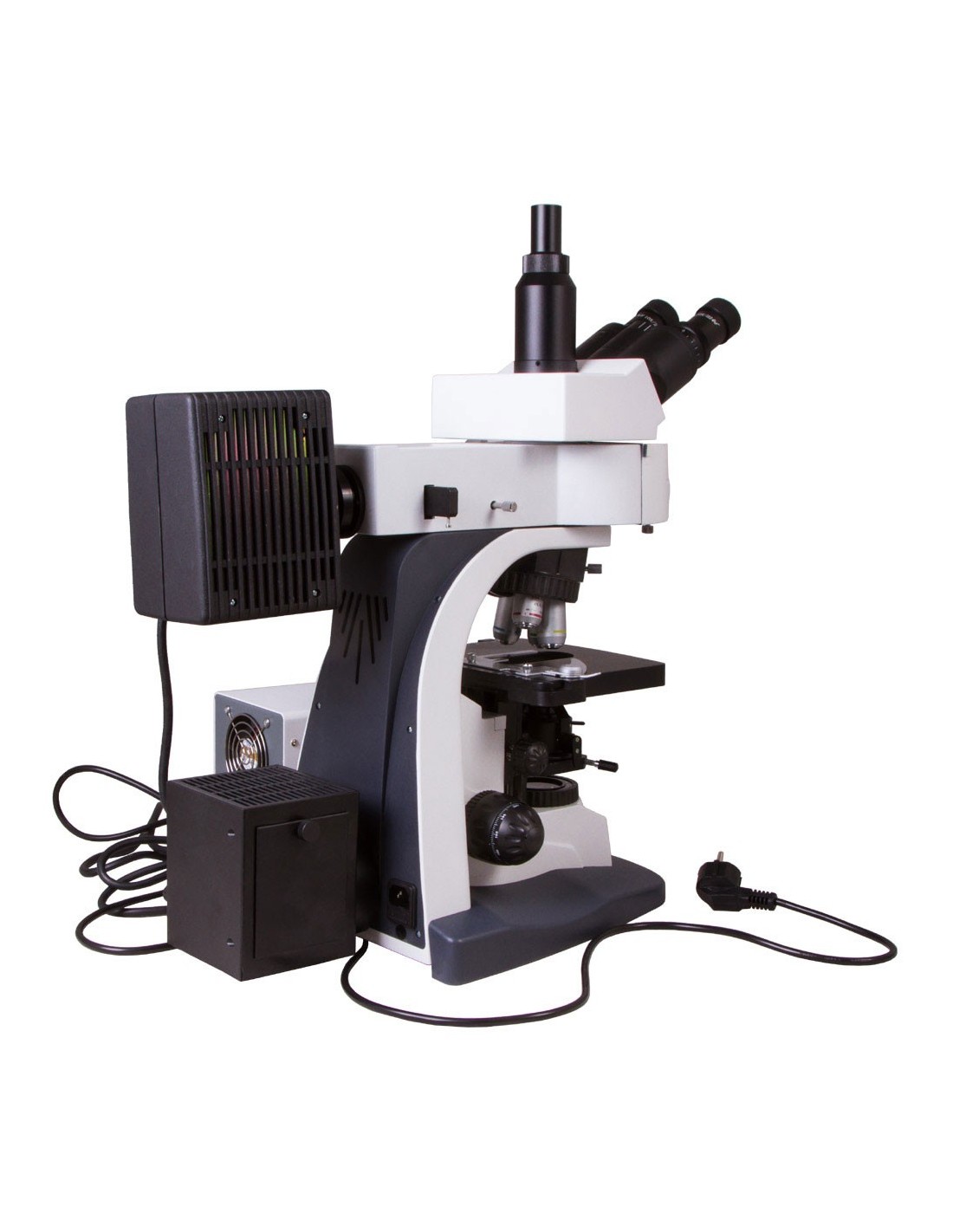

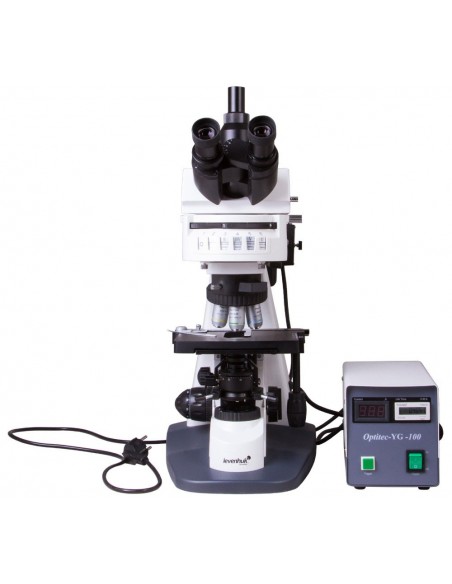

The Levenhuk MED PRO 600 Fluo is a professional laboratory microscope for brightfield observations or the use of fluorescence techniques. It is an excellent tool for studying microorganisms in vivo at the molecular, cellular and subcellular levels. The Levenhuk MED PRO 600 Fluorescence Microscope is a great choice for renovating a medical or research laboratory.

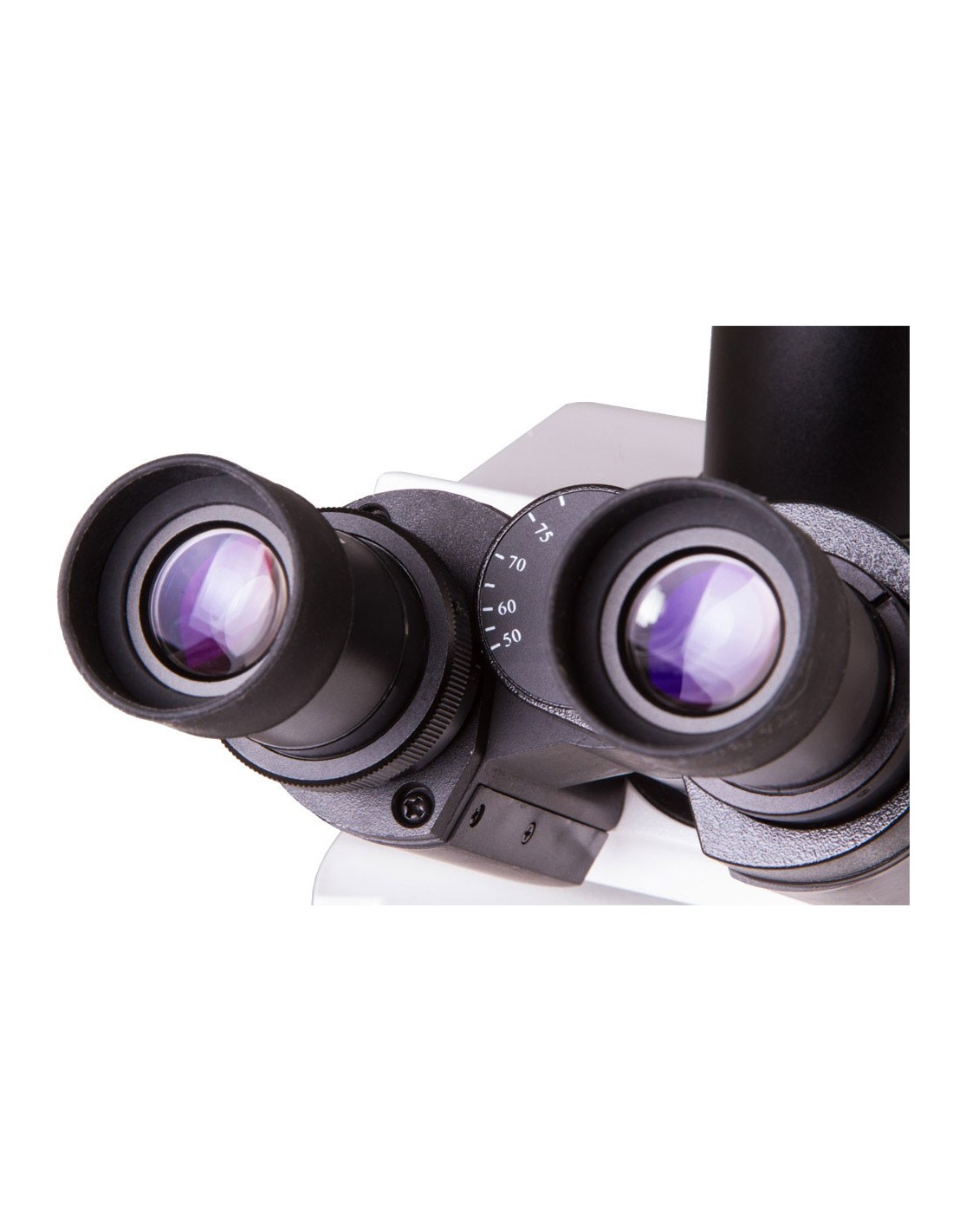

Semi-apochromatic optics and wide-field eyepieces deliver clear, detailed, and bright images. It is possible to use this microscope for classic "dry" observations. In addition, it also allows observations using the immersion technique. To improve image contrast, the use of optical filters is recommended (three filters are already included). The trinocular head is inclined at 30°. The trinocular head consists of a binocular viewer and an optical tube for installing a digital camera (to be purchased separately).

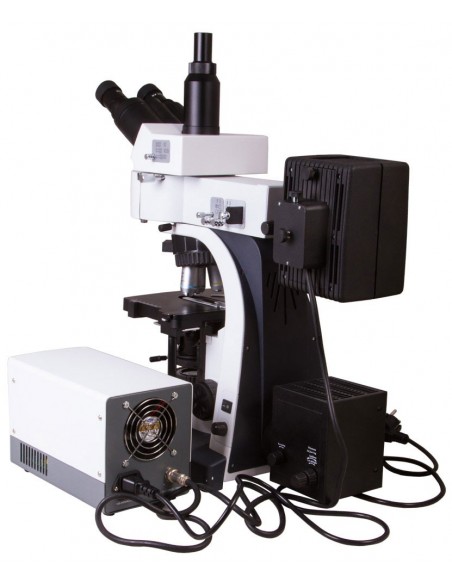

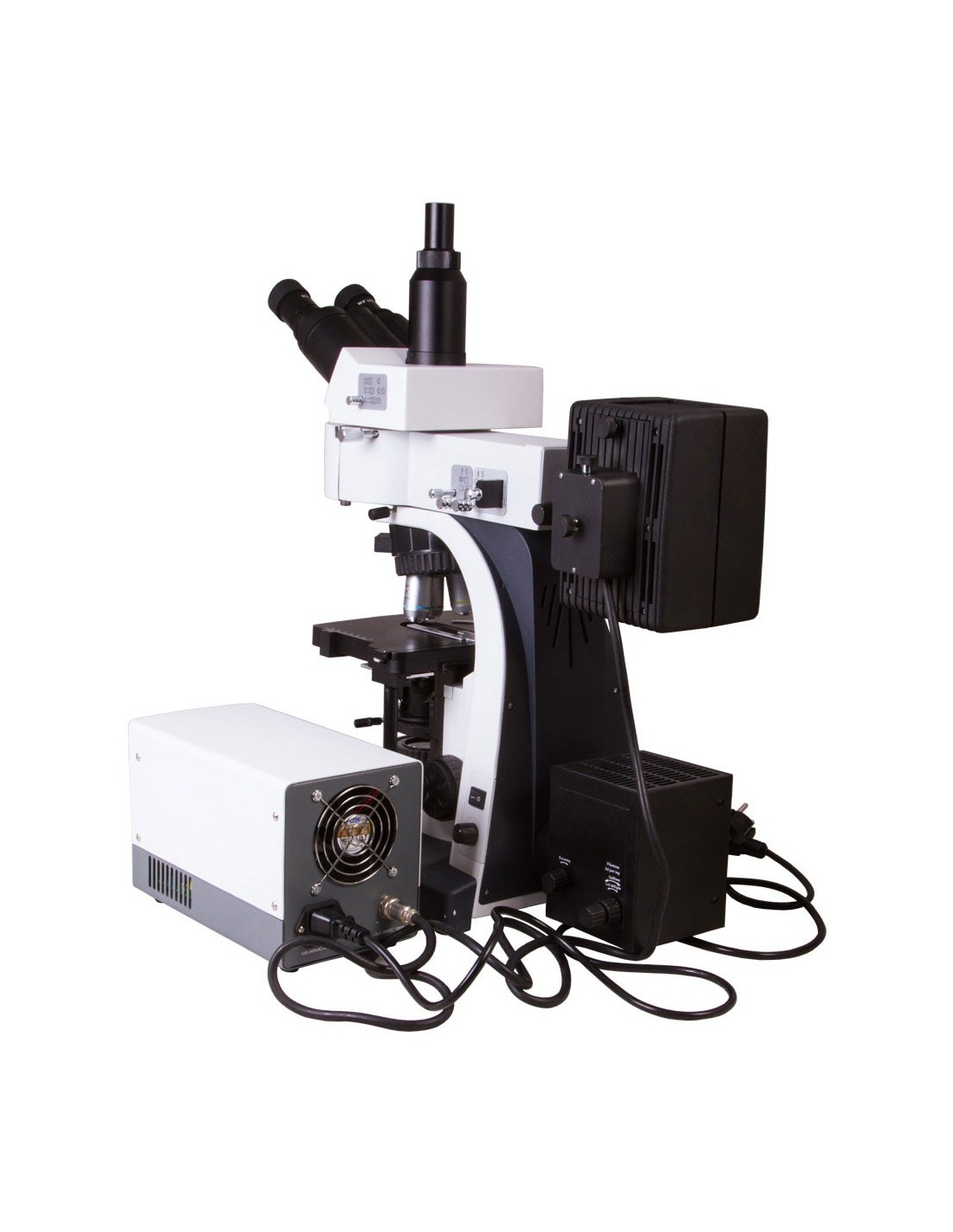

The lighting system consists of a powerful halogen lamp with brightness adjustment and a removable capacitor. The fluorescence module includes filter units, a mercury lamp and a protective shield. The light is powered by the AC mains (adapter included). The microscope has coarse and fine focusing. The table can be moved along two axes and is equipped with a mechanical translator. The interpupillary distance is adjustable.
Features:
- For observations with fluorescence techniques
- Semiapochromatic optics with all-correction 'infinite
- The nosepiece of the microscope is designed for six objectives (with two slots for additional objectives)
- Adjustable illumination system
- Abbe condenser with NA 1.25
- AC power supply
The kit includes:
- Microscope

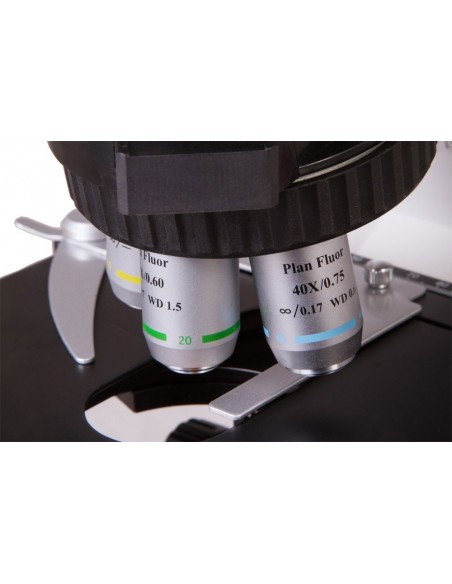

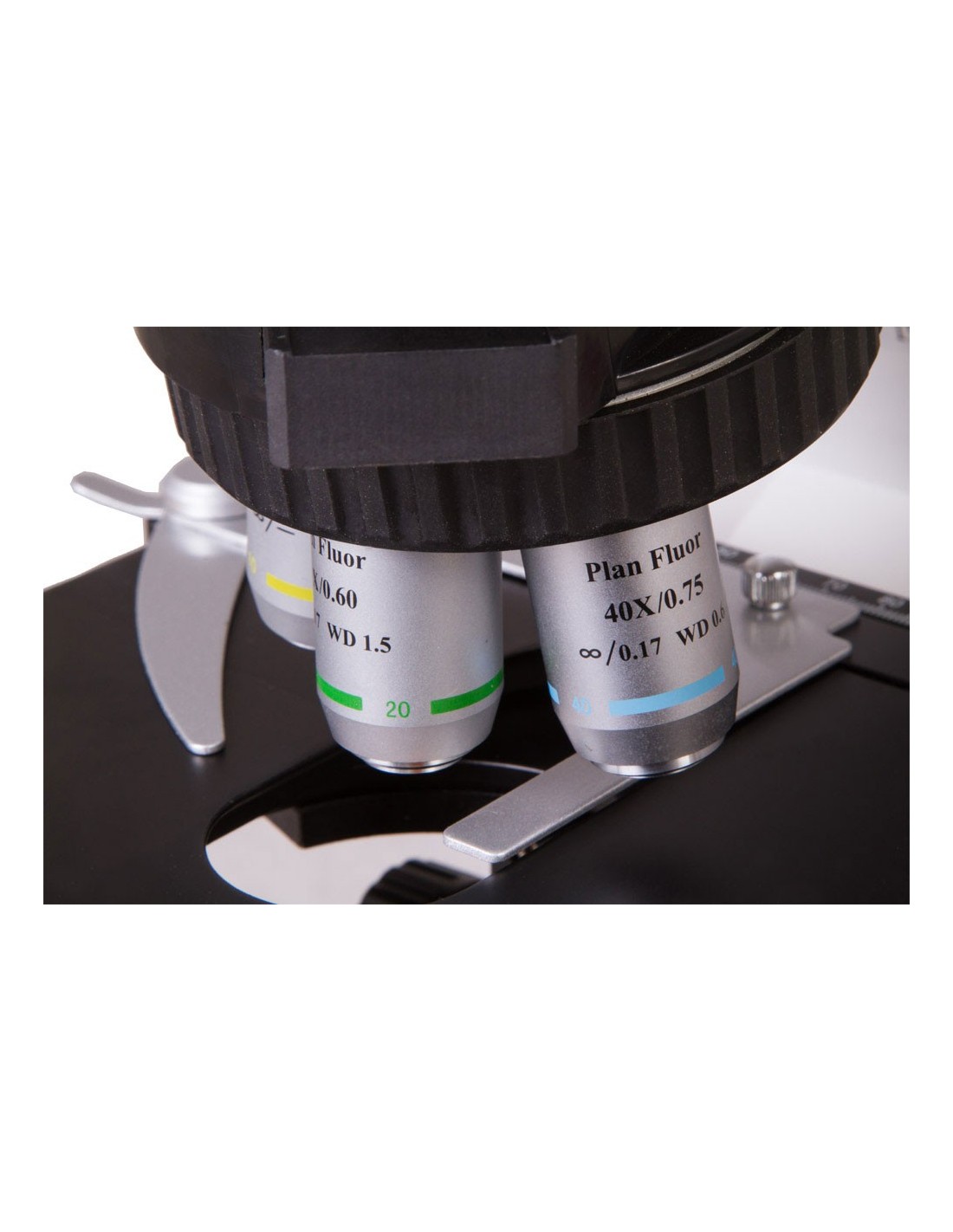

- Semi-apochromatic objectives: 4x, 10x, 20x, 40x

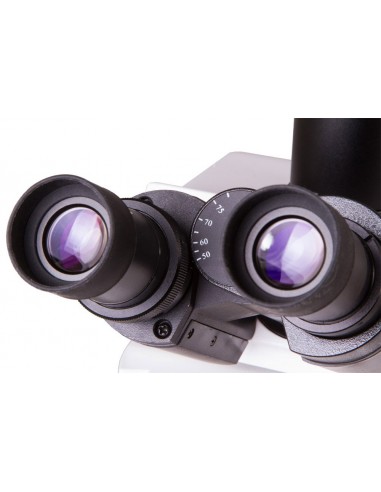

- Wide-field eyepieces: WF 10x/22mm (2 pcs.)
- Filters: blue, green, yellow
- UV reflection unit
- AC adapter
- User manual and lifetime warranty
Attention:
Please note that the electrical grid in the United States and Canada operates at 110V, while in most European countries it is 220–240V. For information regarding the correct voltage, see the specifications table. Never attempt to connect a 110V device to a 220V power outlet, or vice versa, without using a voltage converter.
Some of the things you can observe under a microscope:
| Brand | Levenhuk Inc., USA |
| Lifetime | guarantee |
| EAN | 5905555005102 |
| 70x50x42 cm |
| Shipping weight | 19.22 kg |
| Type | biological, light/optical |
| Tested | trinocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable, with switch (divider) of the light beam |
| Head inclination angle | 30° |
| Magnification, x |
| td> | 40 — 400 |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 mm (binocular head), 23.2 mm (third vertical tube) |
| Eyepieces | WF10x/22 mm (2 pcs.) |
| Objectives | infinity corrected, semiapochromatic objectives for fluorescence: 4x, 10x, 20x, 40x |
| td> |
| Nosepiece nosepiece | for 6 objectives |
| Interpupillary distance, mm | 50 — 75 |
| Stage, mm | 180x160 |
| Range of movement of the stage, mm |
| Range of movement of the stage, mm |
| td> | 85/50 |
| Stage features | double mechanical layer |
| Condenser< /td> | Abbe NA 1.25 with iris diaphragm and filter holder |
| Diaphragm | iris, field |
| Focus | coaxial, coarse and fine (0.002mm) |
| Body | metal |
| Halogen | lighting |
| Brightness adjustment | yes |
| Power supply | 100-240 V, 50/60 Hz |
| Type of light source | halogen lamp: 12V/30W |
| Adapter | AC adapter |
| Optical filters | blue, green, yellow |
| User level | expert users, professionals |
| Level difficult to assemble and install | complicated |

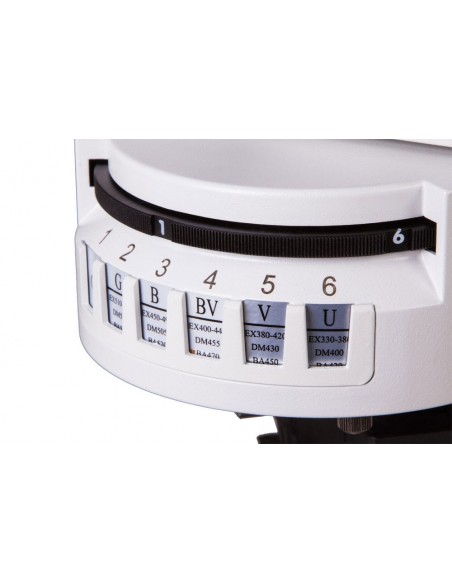

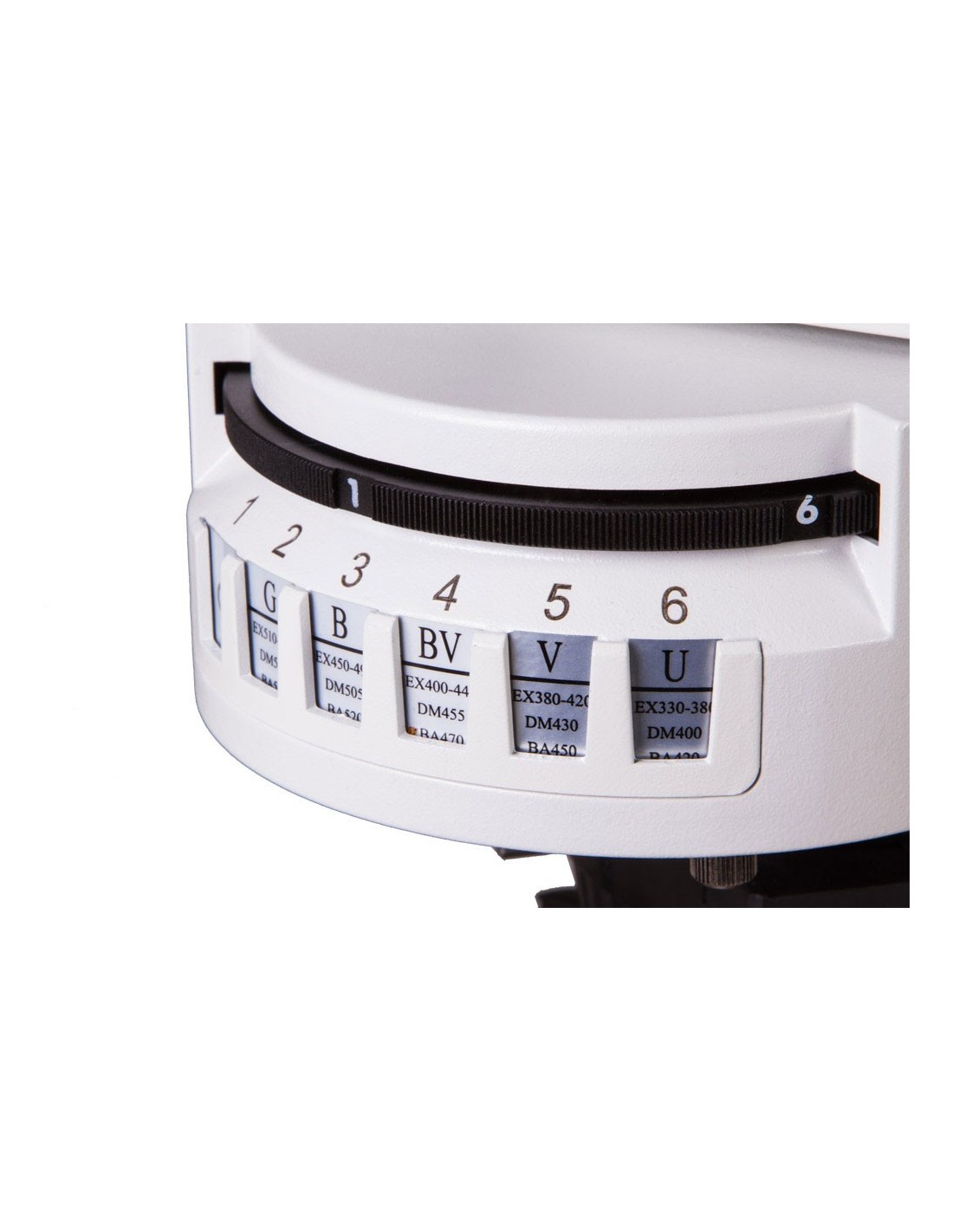

| Fluorescent module | filters “G”, “B”, “BV”, “ V”, “U”; mercury lamp (100W) with external power supply; protective screen against harmful light radiation |
| Application | laboratory/medical |
| Lighting position | lower |
| Research method | bright field, fluorescence |
| Set with case /case/bag | dust cover |
