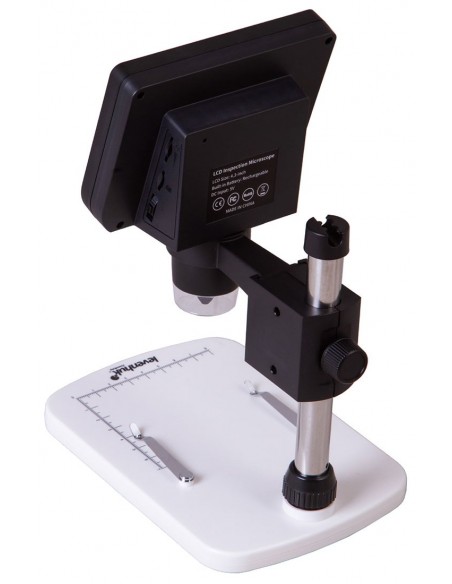

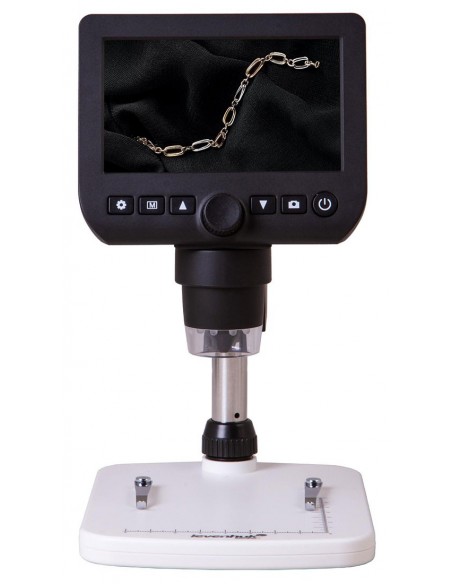

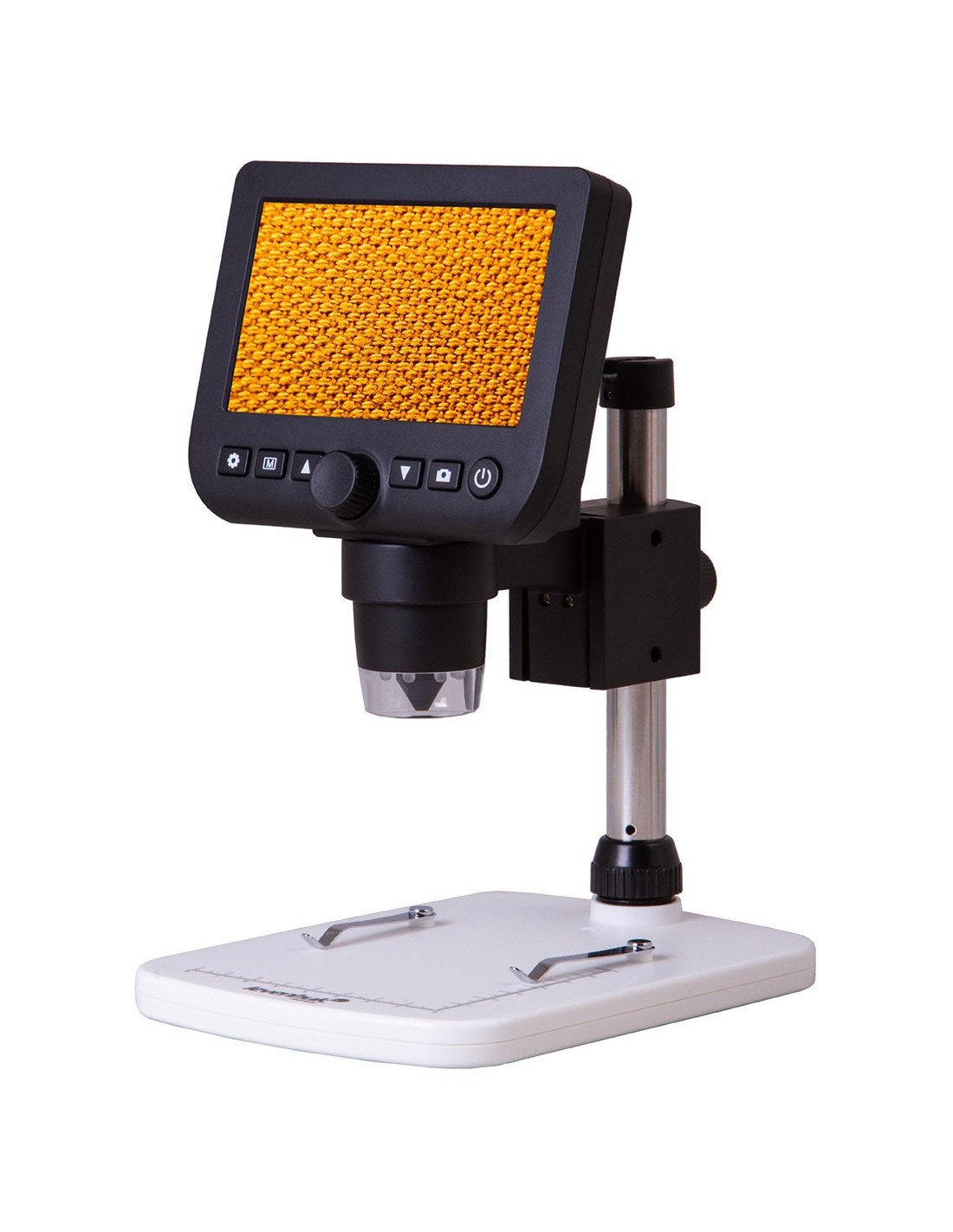

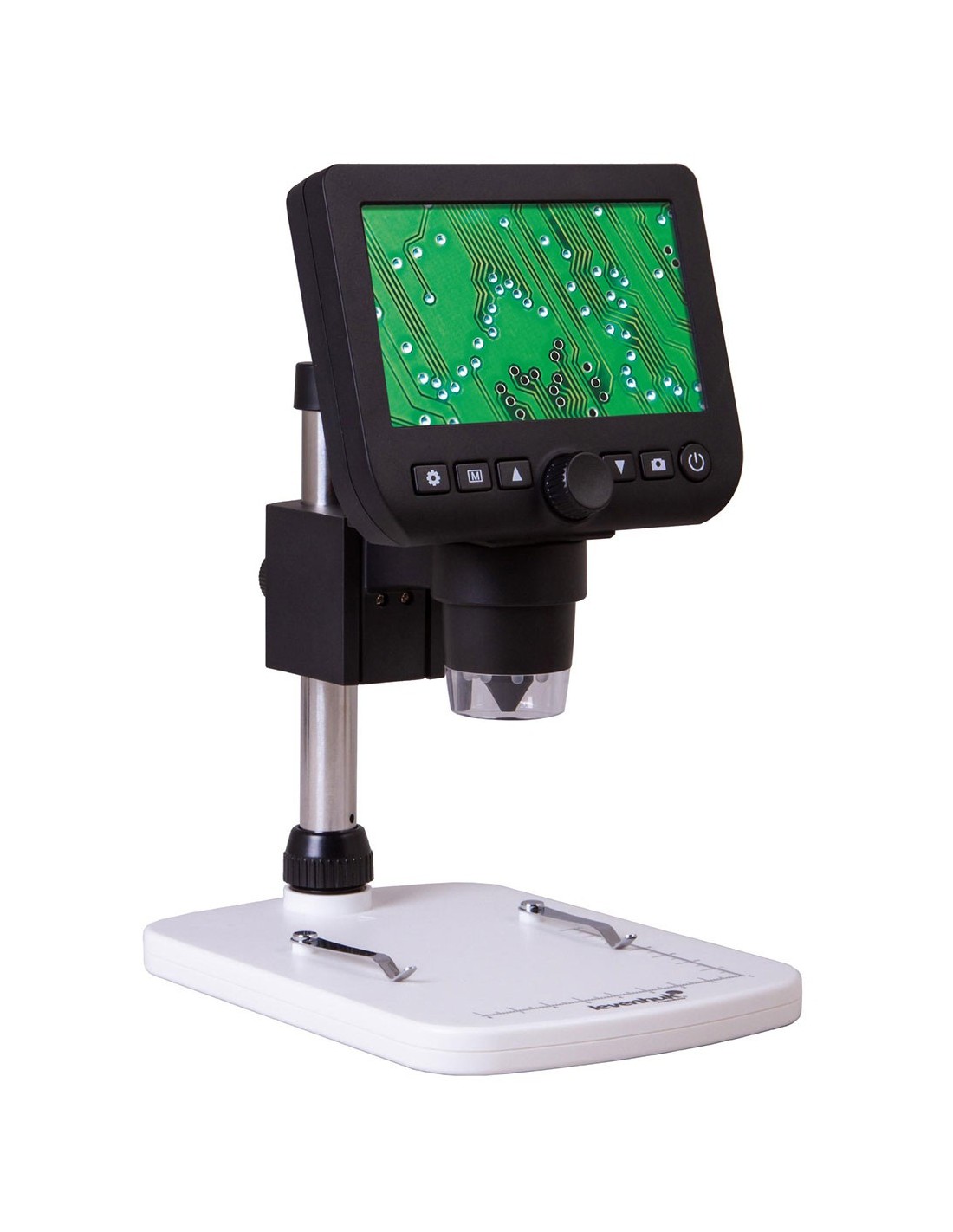

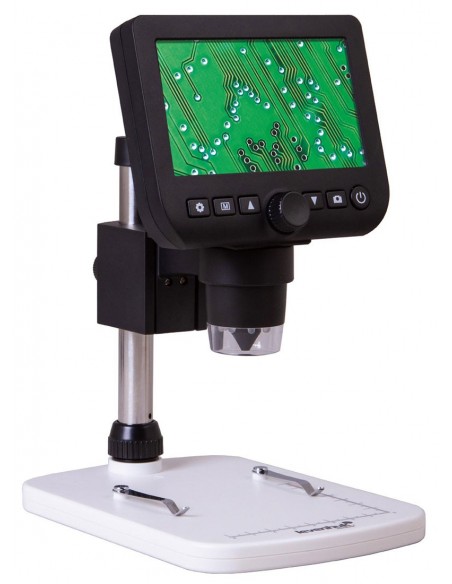

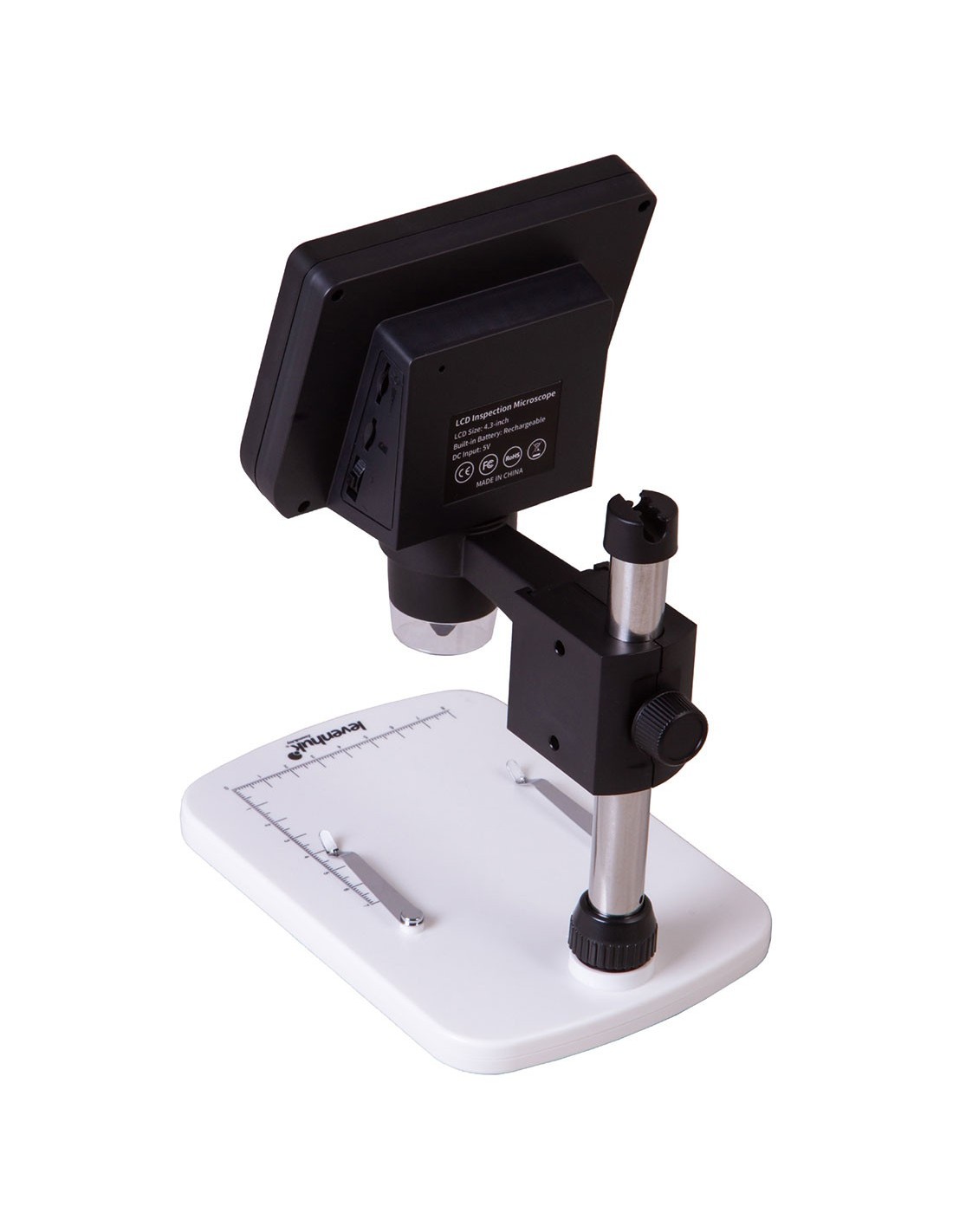

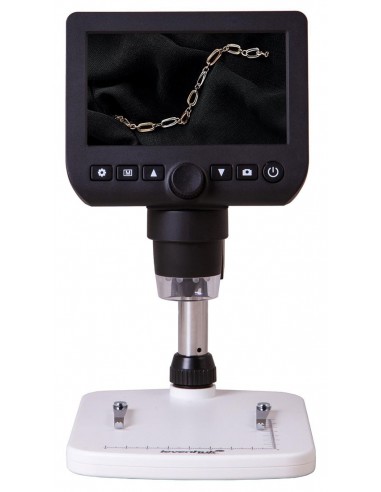

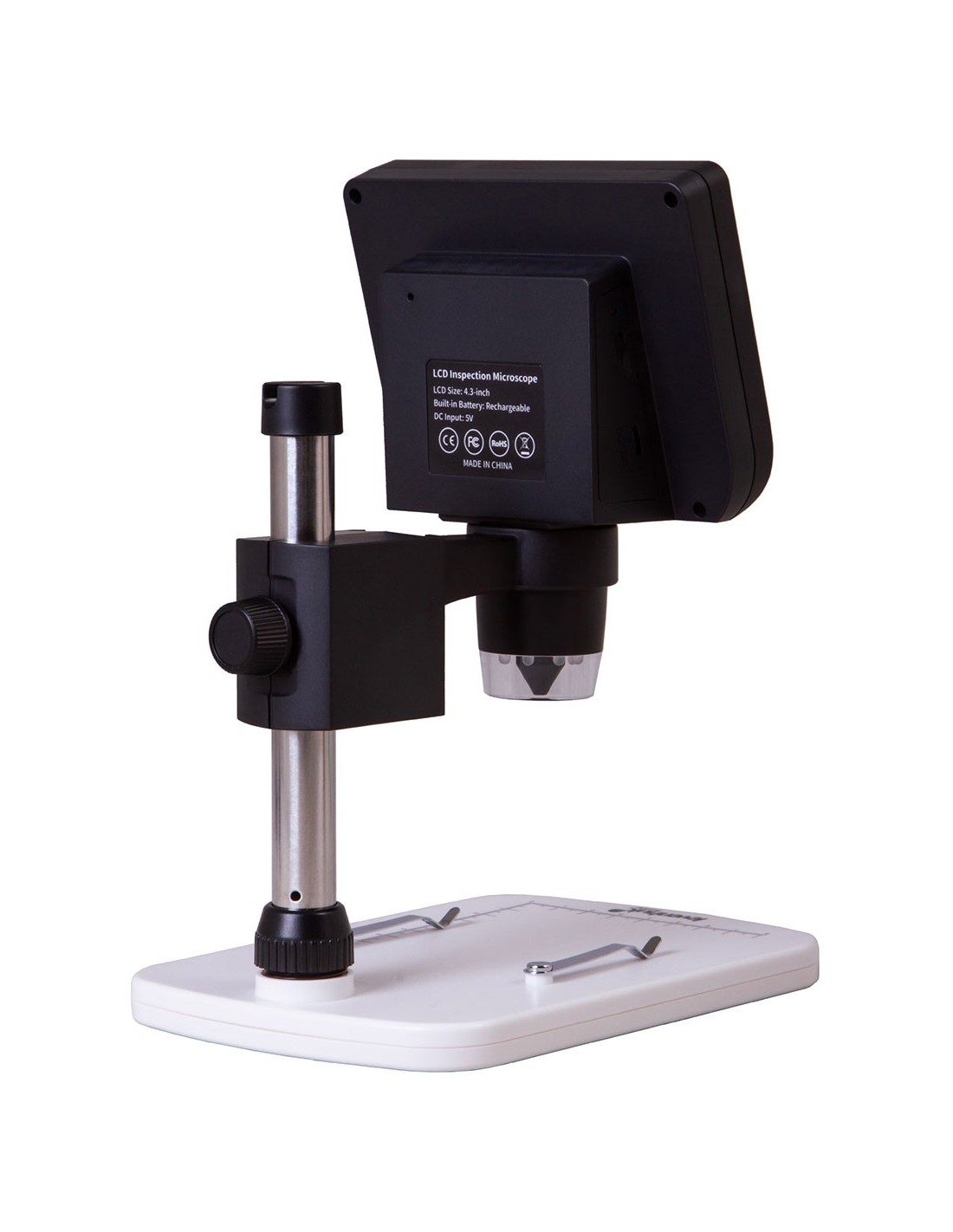

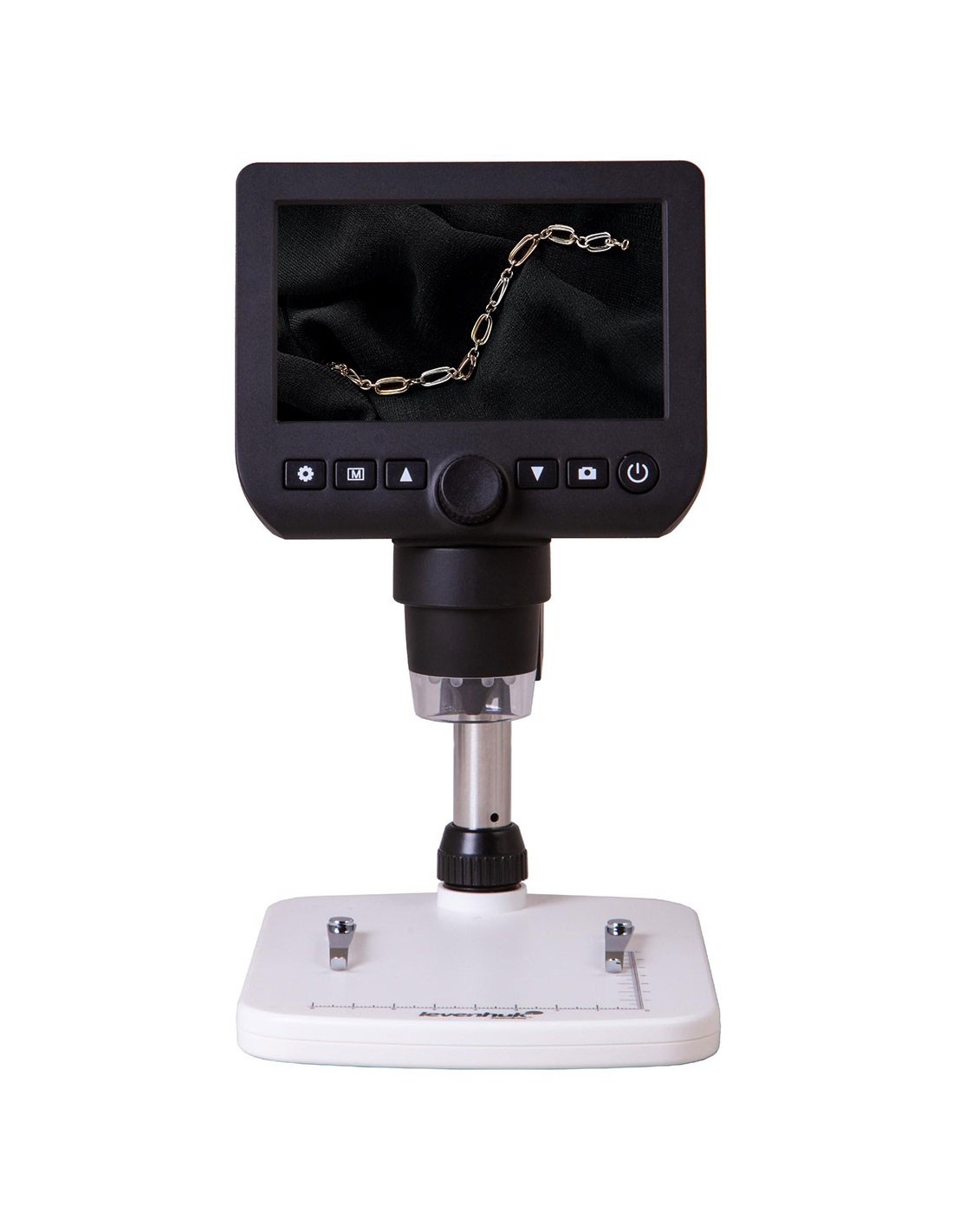

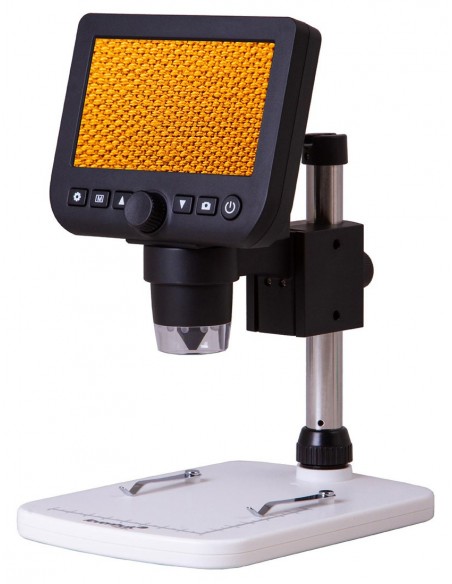

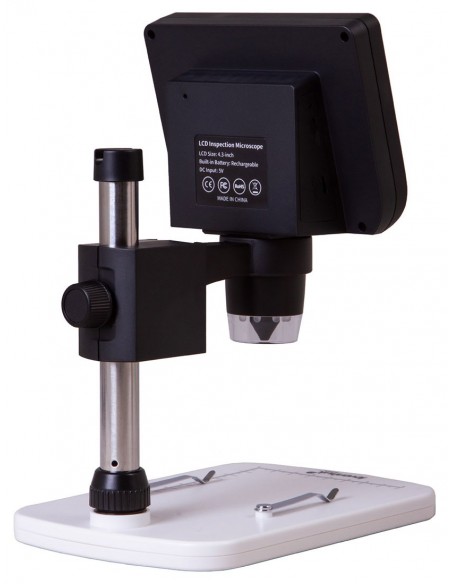

The Levenhuk DTX 350 LCD digital microscope is designed to study opaque objects, for example, coins, electrical circuits, minerals and watch mechanisms. Specialists in service centers, repair shops and research laboratories will appreciate the features of this microscope. You can use the microscope at home to examine devices or as an introduction to the microworld.
All research is conducted under reflected light. The top lighting consists of eight LED lights that illuminate the table. You can adjust the brightness. On the table you will find metal levers to fix the samples and measurement scales to calculate the linear dimensions of the samples. The enlargement is achieved with the help of a built-in 0.3 MP digital camera. Thanks to interpolation, you can improve image quality up to 8 MP. The image is shown on the built-in LCD screen. You can save your research as an image or video on a memory card (included in the kit).
The microscope can be connected to any external device, for example, a computer, a projector. If you install the special software (on CD included in the kit), it will give you access to all image processing options – brightness and contrast adjustment and much more.
This microscope works with a built-in battery or via the computer's USB port. This microscope also works with AC power (the AC adapter must be purchased separately).
Features:
- Digital microscope with 20 – magnification 300x
- 4.3" LCD screen
- Recording photos and videos on a memory card (included in the kit)
- Suitable for transmitting the image to a projector or computer
- Suitable for measuring distance, right angles and radii of the observed objects
- Image processing software is included
- Works with a built-in battery or via the computer's USB port

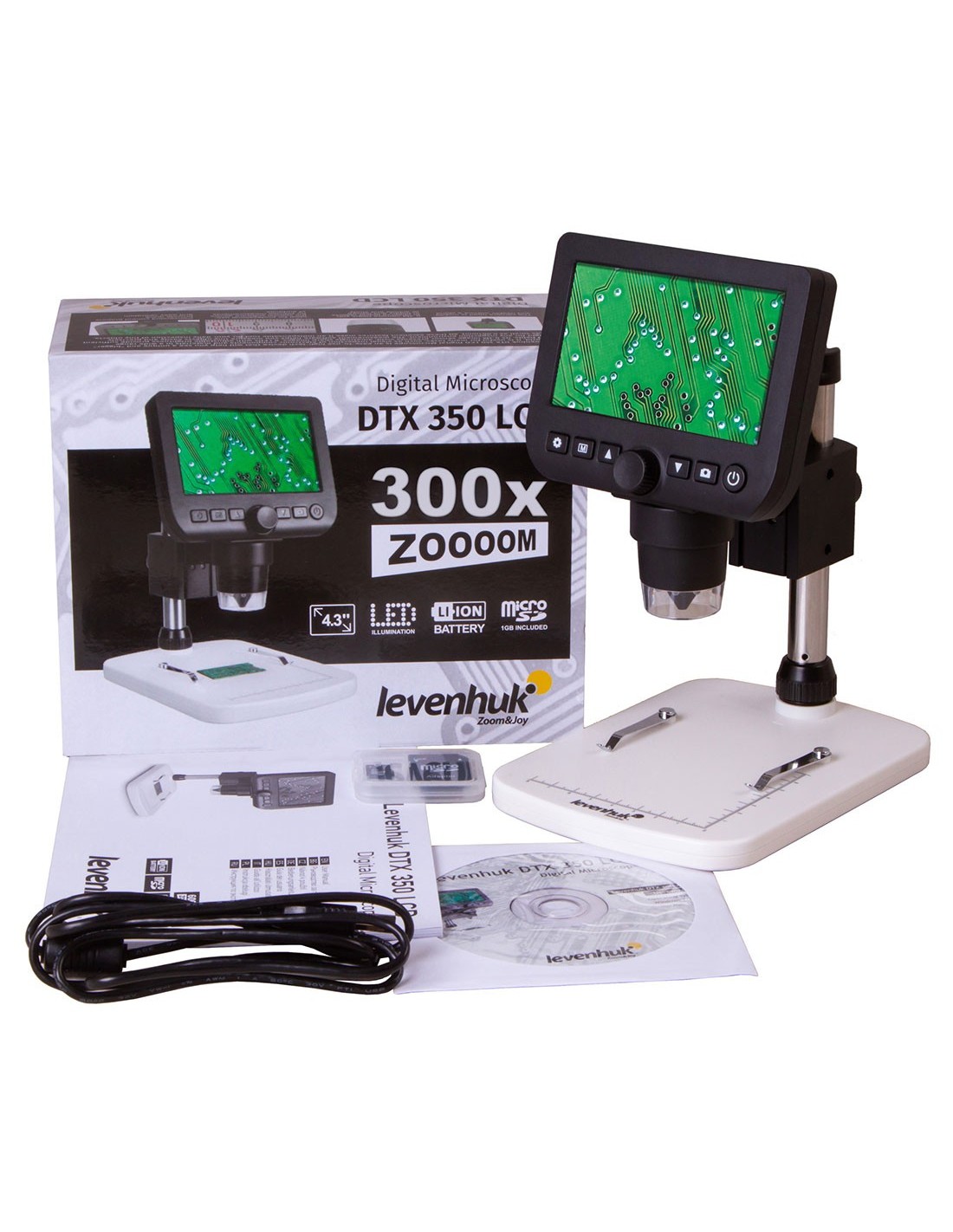

The kit includes:< /b>
- Digital microscope
- Tripod
- USB cable
- 1GB microSD memory card
- Software CD
- User manual and lifetime warranty
Tip for using the software: For the PortableCapture program to function correctly, start the installed application only when the microscope is connected to a PC and you are ready for observations .
The Levenhuk DTX 350 LCD microscope is not compatible with external digital cameras.
Caution: Please refer to the specifications table for the correct voltage mains and never try to connect a 110V device into the 220V socket and vice versa, without using a converter. Remember that the mains voltage in the United States and Canada is 110 V and 220–240 V in most European countries.
| Brand |
| Lifetime Warranty |
| EAN | 5905555004372 |
| Package size (LxWxH) | 21x16x12 cm |
| Shipping weight | 0.7 kg |
| Type | digital |
| Tested |
| Optics material | optical glass |
| Vertical tube< /td> | 4.3" color LDC screen (fixed) |
| Magnification, x | 20 — 300 |
| Magnifying range | 200x to 800x |
| Stage, mm | 120x165 |
| Range of movement of the stage, mm | fixed |
| Stage characteristics | with clips, with measuring scale |
| Focus | manual, 5–80 mm |
| Body | plastic |
| Lighting | LED |
| Brightness adjustment | td> | yes |
| Power supply | 5 V DC via USB cable, built-in 3.7 V/25000 mAh lithium-ion battery | td> |
| Power: batteries/built-in battery | yes |
| Type of light source | superior |
| Ability to connect additional equipment | supports MicroSD memory card up to 32 GB, connection to a computer via USB 2.0 port |
| User level | beginners, expert users |
| Assembly and installation difficulty level | easy |
| Software languages | English, Russian, Spanish, Italian, Portuguese, French, German, Dutch, Polish, Japanese, Chinese, Korean |
| Application | for applied research |
| Research method | bright field< /td> |
| Maximum resolution | 12 Mpx, 9 Mpx, 5 Mpx, 3 Mpx, 1.3 Mpx, VGA |
| Megapixel | 0.3 (interpolated to 2M, 1M, VGA) |
| Video recording | yes |
| Image format | *.jpg |
| Video format | * .avi |
| Frame rate | 30 frames per second |
| Software, drivers | photo and video processing software with object measurement capabilities |

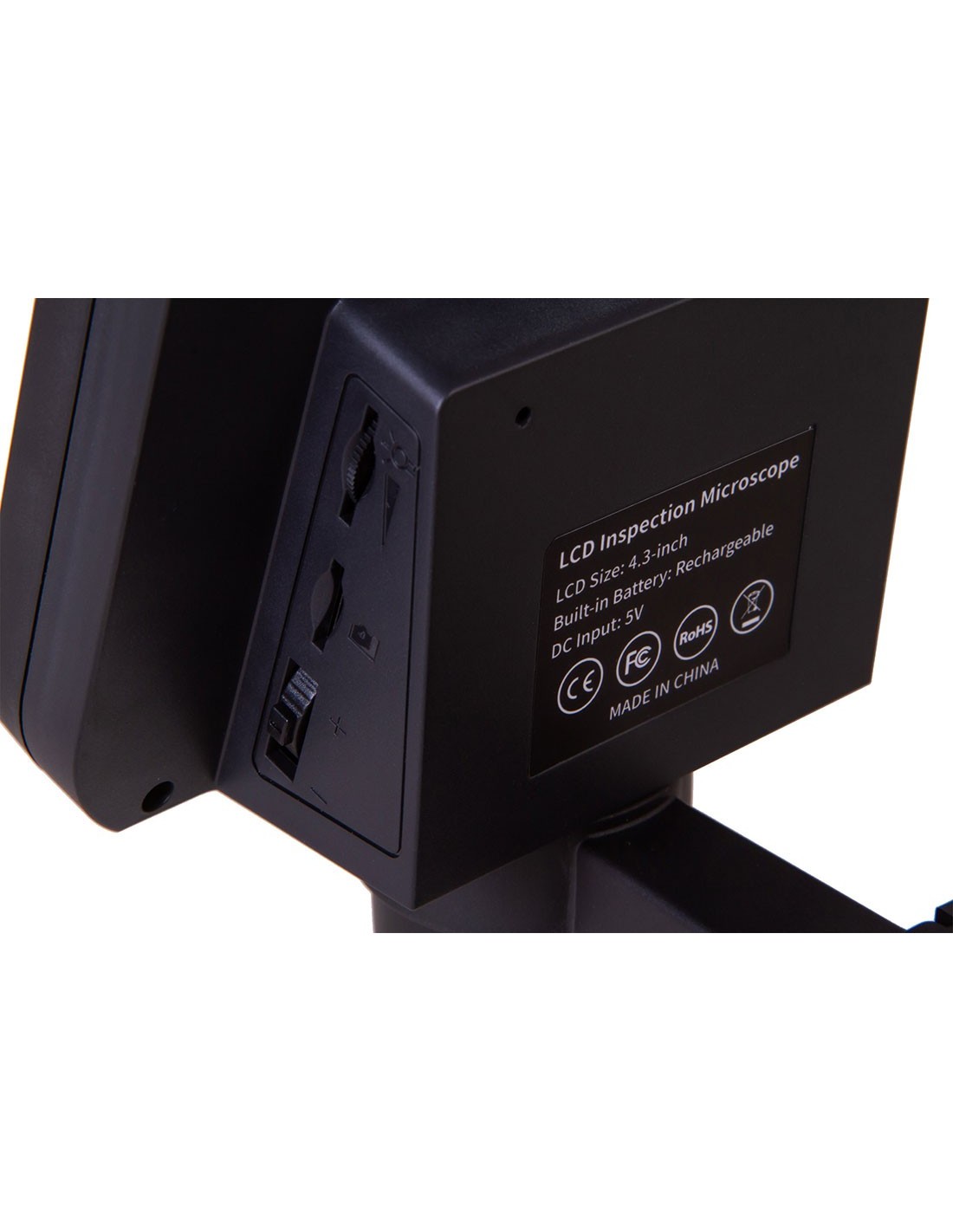

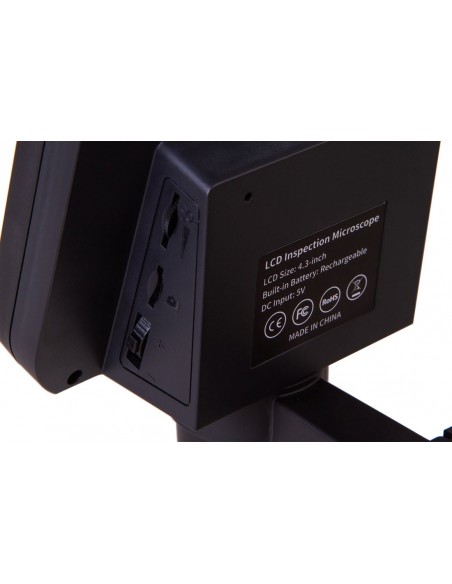

| Output | microSD card slot, power slot |
| System requirements | Windows 7/8/10/11, Mac 10.12 and later, minimum P4 1.8 GHz, 512MB RAM, 64 MB video card, port USB 2.0, CD-ROM |
| Camera operating temperature range, °C | 0 — 45 |
