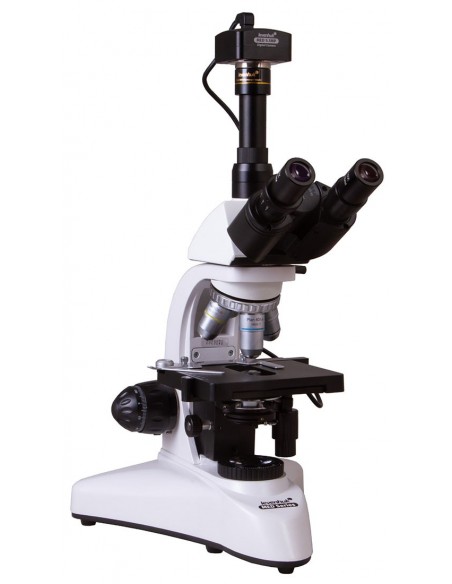

The Levenhuk MED D25T is a trinocular head digital microscope with 5.1 MP camera, planachromatic optics and two condensers (bright field and dark field). It can be used in various scientific fields: medicine, biochemistry, microbiology and more. This microscope is the perfect choice for laboratory workers, university professors and researchers in medical centers or research institutes.
Rotating head with beam splitter

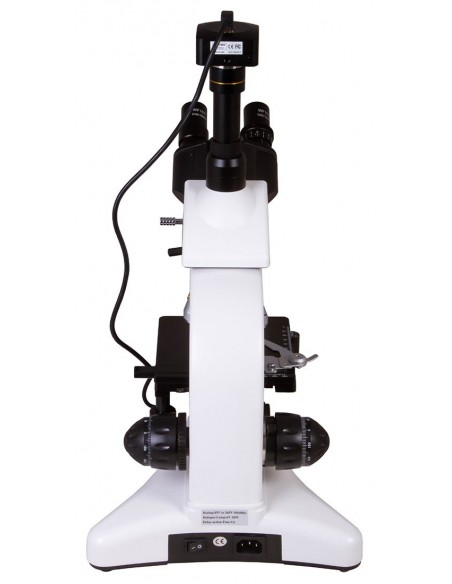

It is equipped with a trinocular head with beam splitter. The binoculars for stereo vision have a practical inclination angle of 30°, while the third eyepiece tube is vertical and houses the digital camera. This design allows you to perform classic observation in parallel with the use of the camera, to transmit images to an external screen and simultaneously capture photos and videos. The head is practical to use also thanks to the possibility of rotating it 360°.
Observations without optical aberrations
This microscope uses planachromatic objective lenses, which they create a very flat field of vision and reduce chromatic aberrations. The objective lenses with 40x and 100x magnification are equipped with a spring mechanism. Furthermore, the 100x objective lens can also be used with oil immersion. The wide-field eyepieces feature diopter adjustment and provide 10x magnification. The objective lenses and eyepieces have received an anti-mold treatment.
Digital capabilities
The sensor in the digital camera is capable of providing sharp, detailed images of observed samples. You can capture videos with high frame rate, which ensures very smooth videos. The software included in the kit allows you to set up the digital camera and process the captured photos and videos. The software allows you to change image size, brightness and contrast, exposure time and white balance, calibrate the camera and objective lenses, as well as measure specimens and structures (various units of measurement available). The included UBS cable is used to connect the camera to the computer. A trinocular microscope with digital camera makes long hours of work in the laboratory easier. The image observed through the objective lens is also transmitted to an external screen. There is therefore no need to continuously observe through the eyepiece, thus avoiding straining your vision and shoulder joints.
Work comfortably with slides
The table is equipped with a mechanical slider. Sharpness adjustment is achieved by rotating the two fine or coarse focus adjustment knobs. An Abbe condenser is positioned below the stage and is equipped with an iris diaphragm and filter holder. The kit includes a condenser suitable for studying samples in dark field. The lighting system consists of a 20W halogen lamp with adjustable brightness. Köhler illumination can be configured. The illumination is powered by AC mains electricity.
The Levenhuk MED 25 series includes microscopes ideal for cytology that allow bright and dark field observations with oil immersion.
Features:
- Trinocular head with beam splitter
- The planachromatic optics offer magnifications from 40x to 1000x
- Anti-mould treatment on all optical surfaces
- The 20 W halogen lamp is powered by the AC mains supply
- Köhler illumination available
- Possibility of brightfield and darkfield observations
- 5.1 MP digital camera included
The kit includes:
- Microscope base with stand
- 360° rotatable trinocular head
- Planachromatic objective lenses: 4x, 10x, 40xs, 100xs (oil immersion) with anti-mold coating
- Wide-field eyepieces : WF10x/18 mm with anti-mold coating (2 pcs.)
- Abbe condenser NA 1.25 with iris diaphragm and filter holder
- Darkfield condenser (oil)
- Filters: blue, green, yellow
- Vial of immersion oil
- Fuses (2 pcs.)
- Power cable for the Microscope
- Dust cover
- 5.1 MP digital camera
- Camera adapter
- Camera mount
- USB cable for connecting the camera to the computer
- CD with software and drivers
- User manual and lifetime warranty
Caution:
Refer to the specification table for the correct mains voltage and never attempt to plug a 110V device into a 220V outlet, or vice versa, without using a transformer. Please note that the mains voltage in the United States and Canada is 110 V and is 220–240 V in most European countries.
Some of the things you may observe under the microscope:
The Levenhuk MED D25T trinocular digital microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube, in place of an eyepiece.
| Brand | Levenhuk Inc., USA |
| Lifetime | guarantee |
| EAN | 5905555004969 |
| Package size (LxWxH) | 58x36x34 cm |
| Shipping weight | 8.48 kg |
| Type | digital, light/optical, biological |
| Tested | trinocular |
| Optics material | optical glass with anti-mold coating |
| Vertical tube | rotatable 360°, with switch (splitter) of the light beam |
| Head inclination angle | 30° |
| Magnification, x | 40 — 1000 |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF10x/18 mm, wide field with diopter adjustment (2 pcs.) |
| Planachromatic objectives | : 4x, 10x, 40xs, 100xs (oil immersion) |
| Nosepiece nosepiece | for 4 objectives |
| Interpupillary distance, mm | 55 — 75 |
| Stage, mm | 140x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | double mechanical layer |
| Diopter adjustment of the eyepiece, diopters | ±5 |
| Condenser | Abbe NA 1.25 with iris diaphragm and filter holder |
| Diaphragm | iris |
| Focus | coaxial, coarse (0.5 mm) and fine ( 0.002 mm), with rack and pinion |
| Body | metal |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power supply | 100–240V |
| Type of light source | 6V/20W, 85–230V AC |
| Optical filters | blue, green, yellow |
| Extra elements | collector, Köhler illumination, dark field condenser (oil) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field, dark field |
| Digital camera included | yes |
| Set with pencil case/case/bag | dust cover |
| Maximum resolution | 2048x1536 |
| Megapixel | 5.1 |
| Sensor element | 1/2.5" |
| Pixel size, µm | 2.2x2.2 |
| Video recording | yes |
| Image format | *.jpg, *.bmp, * .png, *.tif, etc. |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later ), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 |
| manual, automatic |
| Exposure control | 0.294–2000 μs |
| Sensitivity, V/lux-sec@550 nm | 0.53 |
| Frame rate | 7@2592x1944
27@1280x960
90@640x480 |
| Dynamic range, dB | 66 |
| the third 23.2mm microscope eyepiece tube |
| Software, driver | LevenhukLite |
| Programmable options | image size, brightness, shutter speed |
| Output | USB 2.0 |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS .8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 2.0 port, CD-ROM |
| Camera power | via USB cable |
