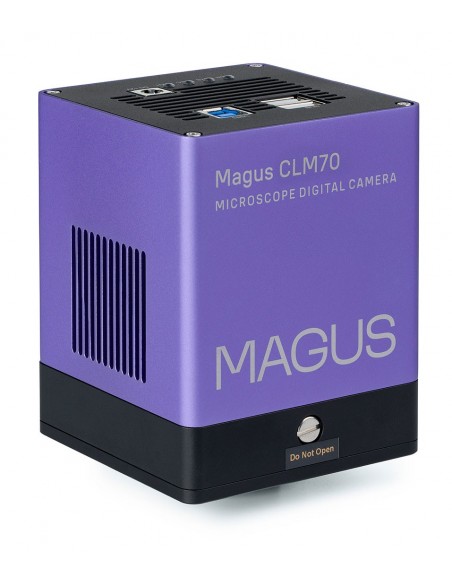

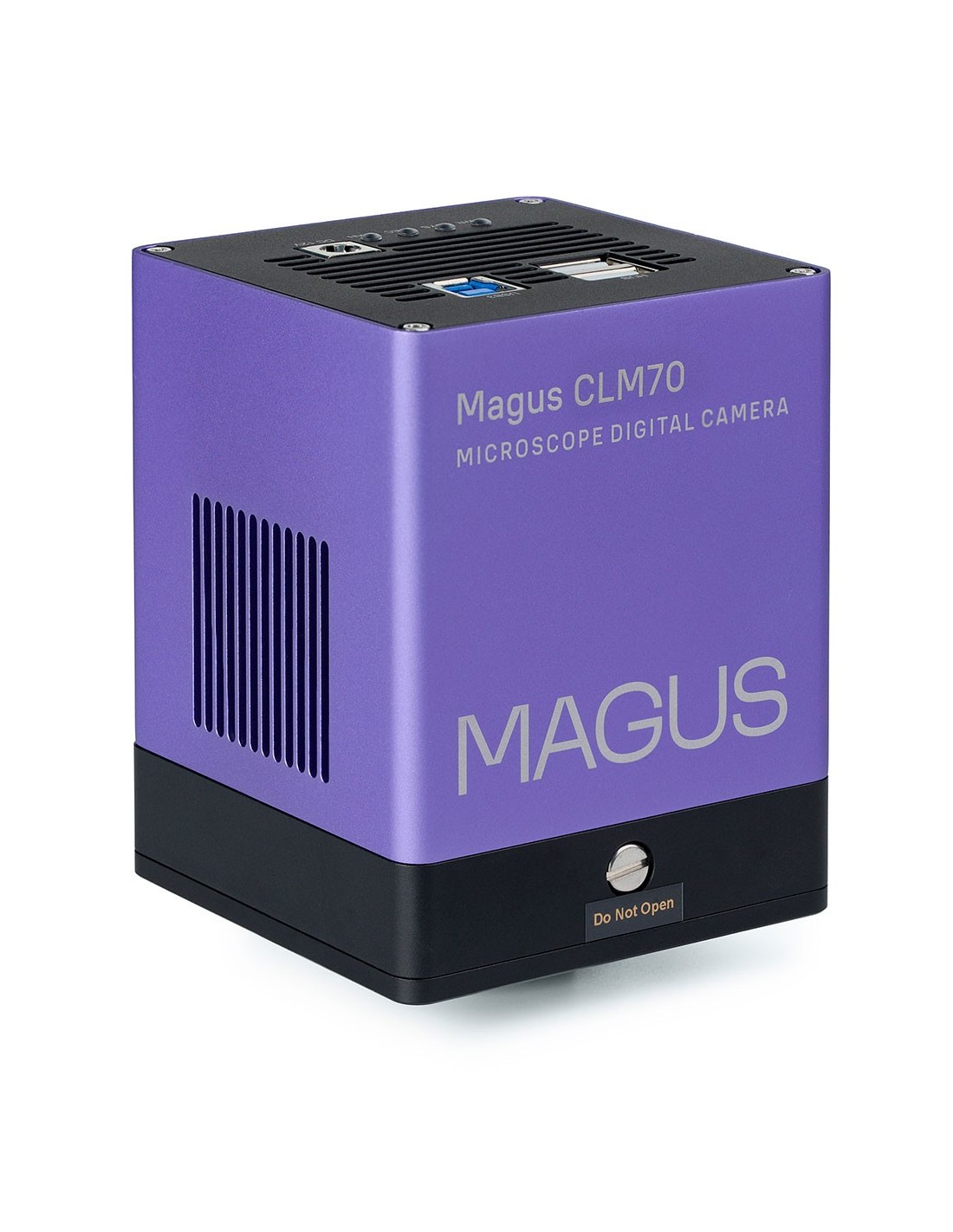

MAGUS CLM cameras are professional devices for installation on a microscope and for recording observations that are carried out using fluorescence and darkfield microscopy techniques. The CLM70 model is a monochrome camera equipped with a 1.7 MP sensor that produces an image with a resolution of 1600x1100 px. The video recording speed is 94 fps at maximum resolution. The device is optimally combined with 40x, 60x and 100x objectives. The camera is equipped with a Peltier element to cool the matrix, which provides a clear image even when shooting at slow shutter speeds. The global shutter produces an authentic image without distortion, regardless of the movement of the object. The built-in USB 3.0 interface transfers data at high speed and does not distort the image when displayed on an external screen. The video transmitted is realistic and without interruptions or spaces between frames. The camera is designed for work in a professional environment and for university education. It is suitable for making presentations and demonstrating observations to the public.
The SONY Exmor CMOS sensor that is installed in the camera, with a diagonal of 1.1'' and pixels of 9x9 μm, is designed with backlight technology . It allows you to obtain superior light sensitivity. In the CLM70 model it is 8100 mV with a shutter speed of 1/30 second. The camera is monochrome, so the user will not be able to distinguish the colors of the sample, but the image will have high contrast, which is important in low light conditions. For the largest and clearest field of view, use the 1x adapter.
The camera is equipped with a special cooling module - a Peltier element. Heating of the sensor during prolonged operation has a negative effect on image quality by causing thermal noise. The Peltier element keeps the temperature 42°C below room temperature. The sensor will be able to operate even at slow shutter speeds without significant heating, and the image quality will remain high.
A global shutter is a type of shutter that reads the signal from all pixels simultaneously. The transmitted image is real, without distortion, even if the object moves.
The camera uses its own software that allows you to take photos and record videos, process them and measure the linear and angular dimensions of objects and their structures. Before measuring, calibrate the software for each objective.

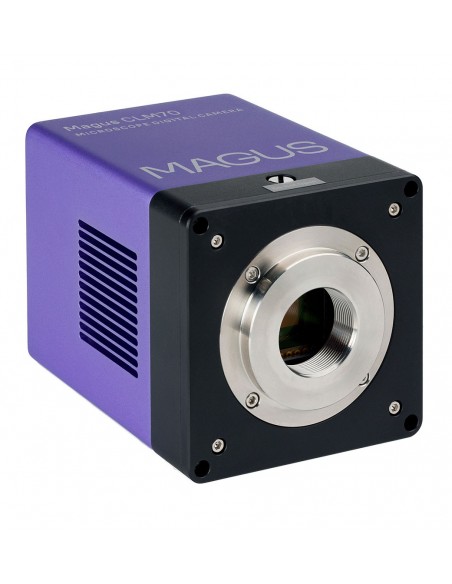

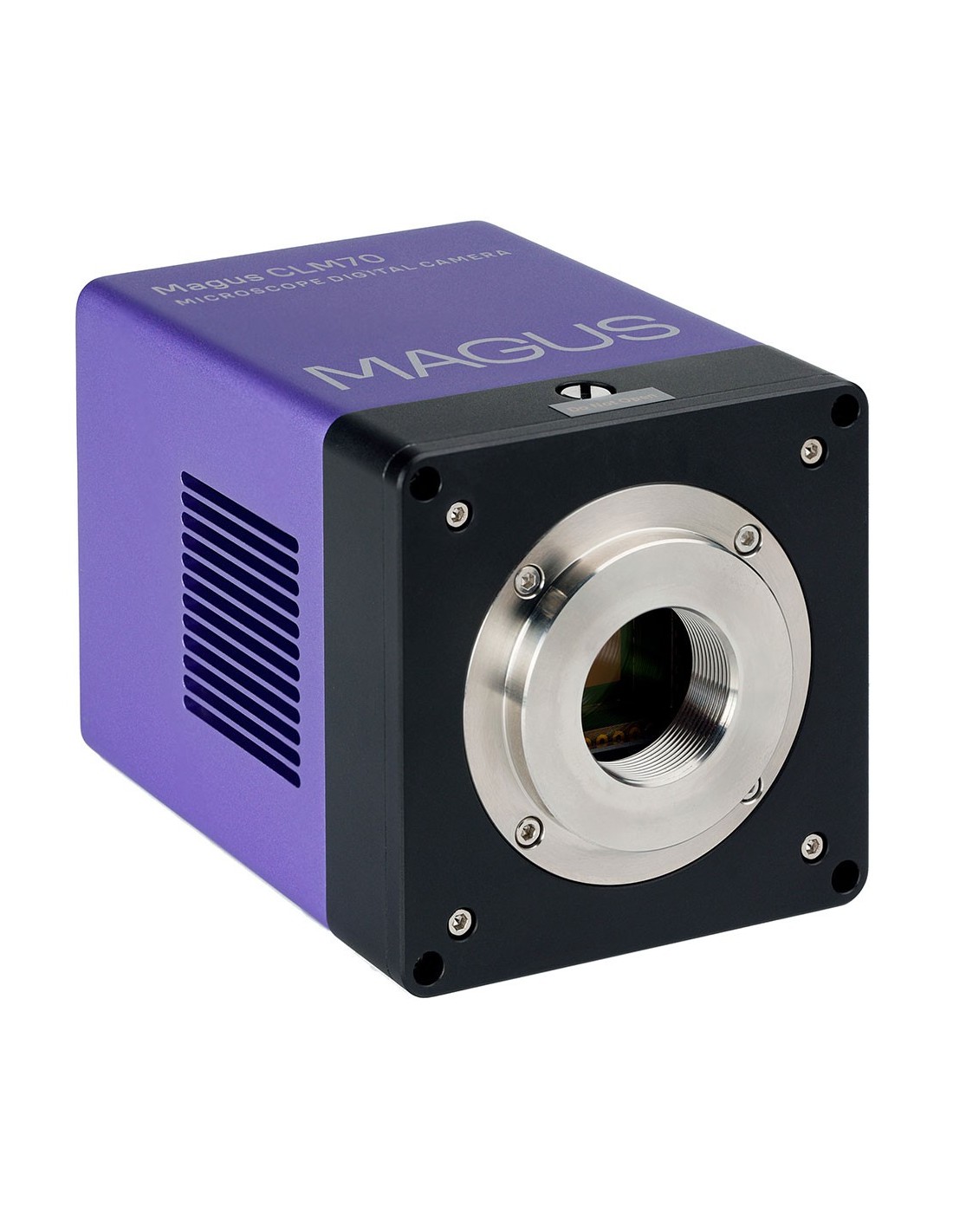

The camera is inserted into the trinocular tube of the microscope and then connected to it via a C-mount adapter.
Key Features :
- Designed to image fluorescence and darkfield microscopy techniques
- Works most effectively with 40x, 60x and 100x objectives
- li>
- Produces a monochrome image with a resolution of 1600x1100 px; 94 fps frame rate
- Equipped with a Peltier element that cools the sensor during long-term operation and maintains high image quality
- Global shutter produces images distortion-free even when the object is moving

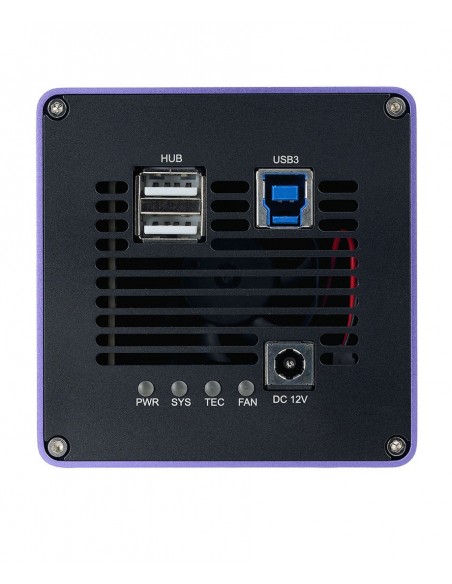

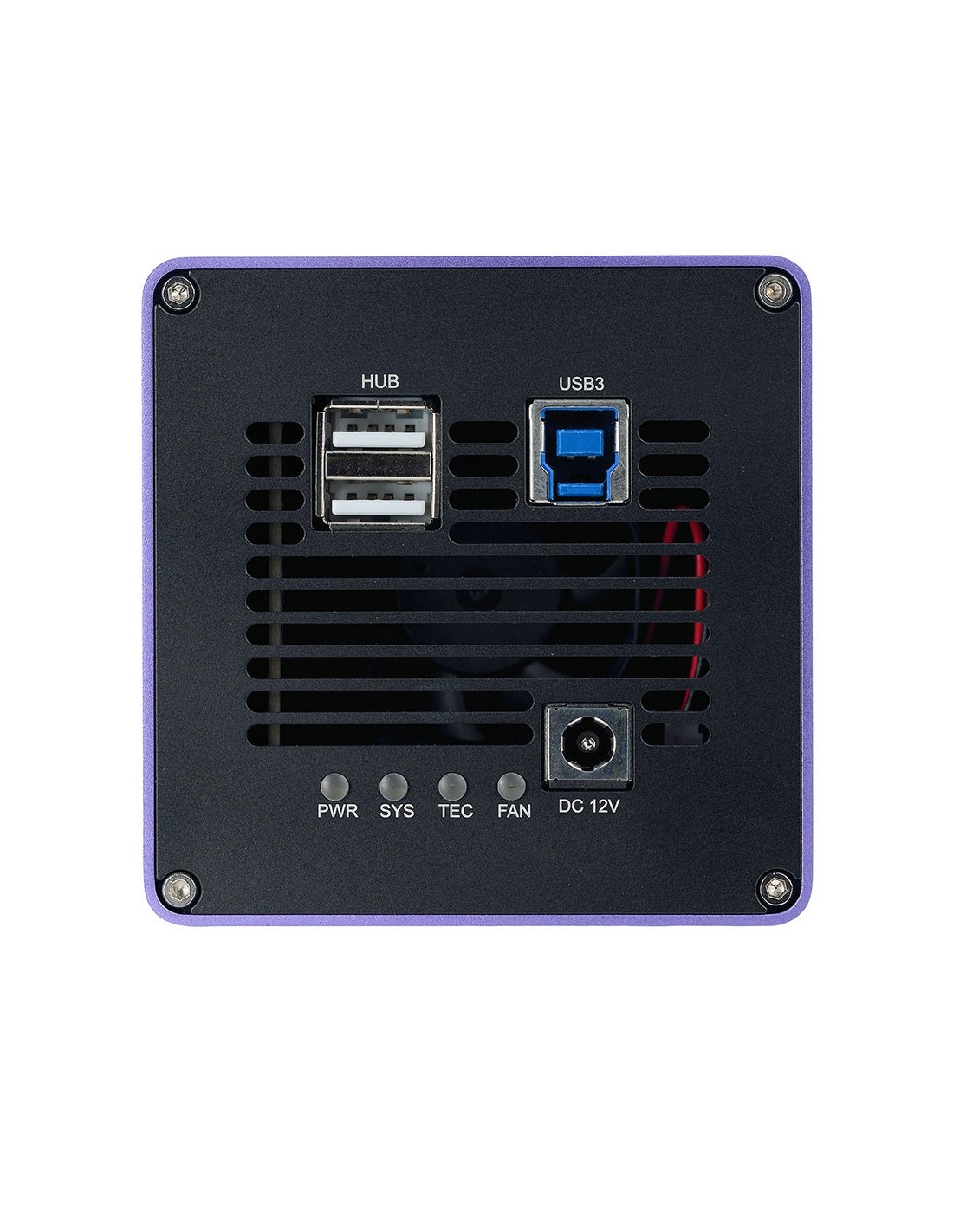

- Works with its own software and connects to a computer via USB 3.0 interface

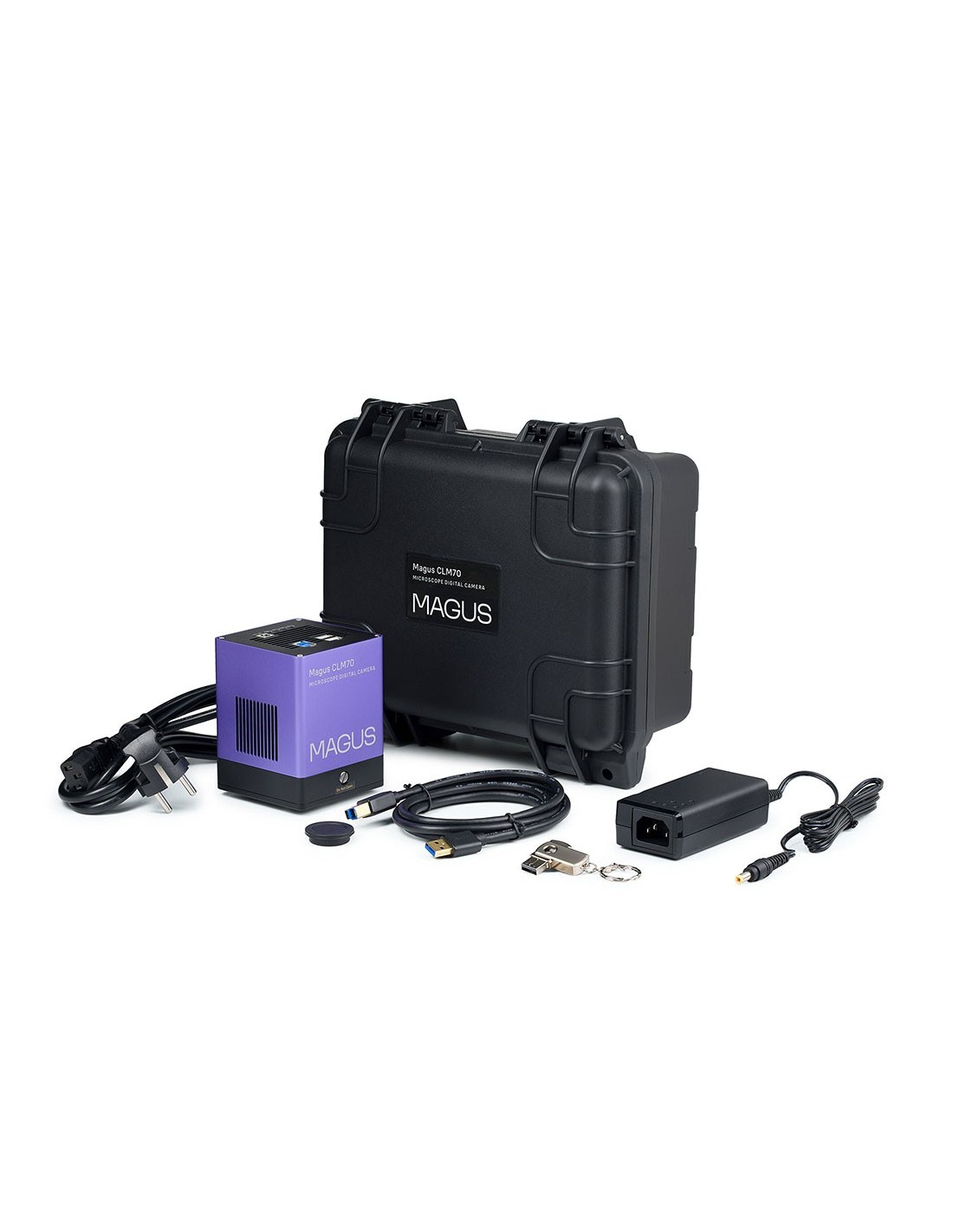

The package contains :
- Digital camera
- USB cable
- 12 V, 3 A adapter
- Case
- Installation CD with drivers and software
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019307 |
| Package size (LxWxH) | 27x25x12 cm |
| Shipping weight | 2.7 kg |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | monochrome |
| Megapixel | 1.7 |
| Maximum resolution, px | 1600x1100 |
| Sensor size | 1.1" (14.4x9.9 mm) |
| Pixel size, µm | 9.0x9.0 |
| Two-phase thermoelectric module (Peltier cell) to set the temperature at 42°C at below ambient temperature | yes |
| Light sensitivity | 8100 mV at 1/30 s |
| Signal-to-noise ratio | 0.3 mV with 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate , fps@resolution | 94@1600x1100 |
| Installation location | trinocular tube |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (with IR filter and anti-reflection filter) |
| Shutter type | Global shutter |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Output | USB 3.0 , 5 Gb/s |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS at 2.8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Software | MAGUS View |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
