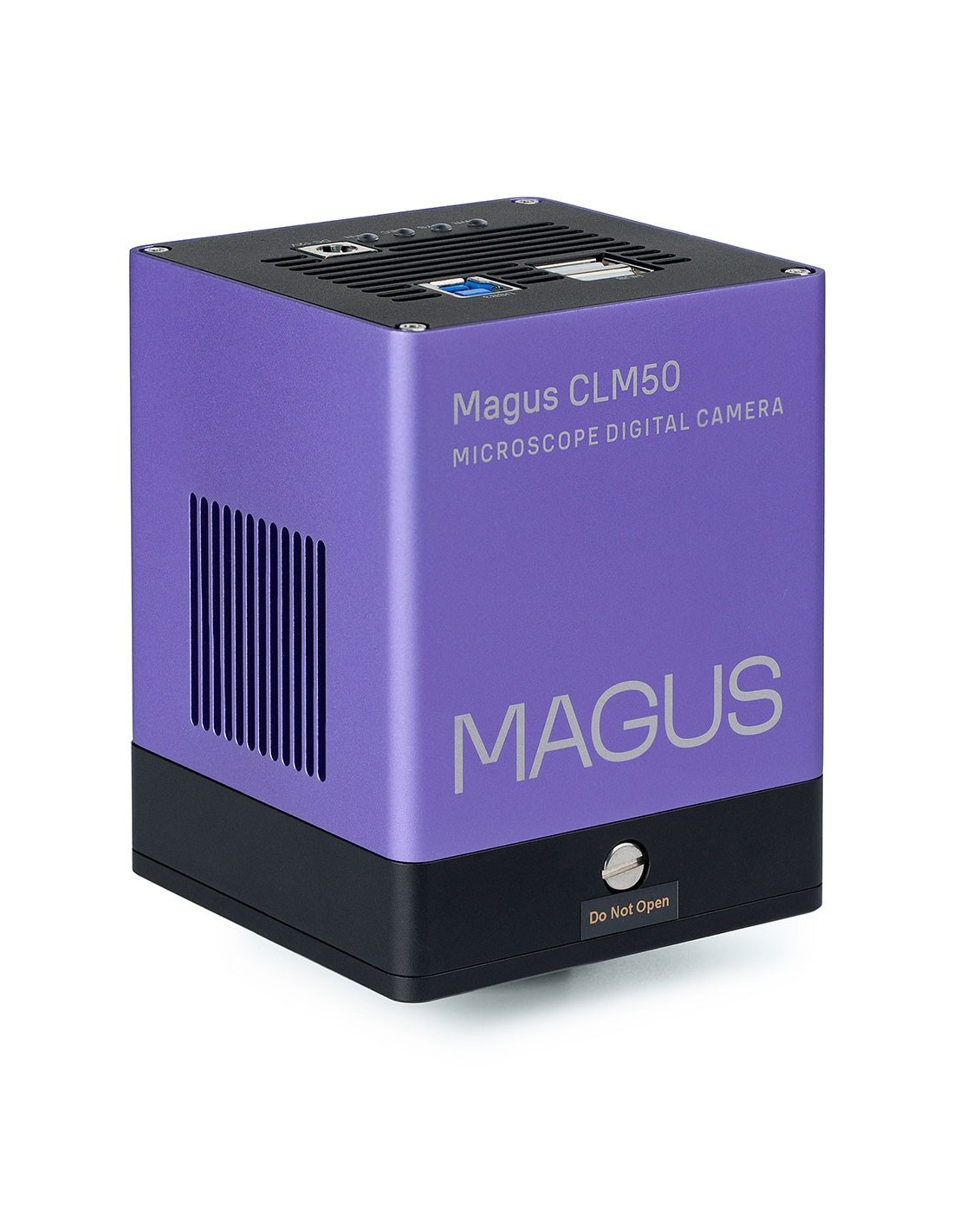

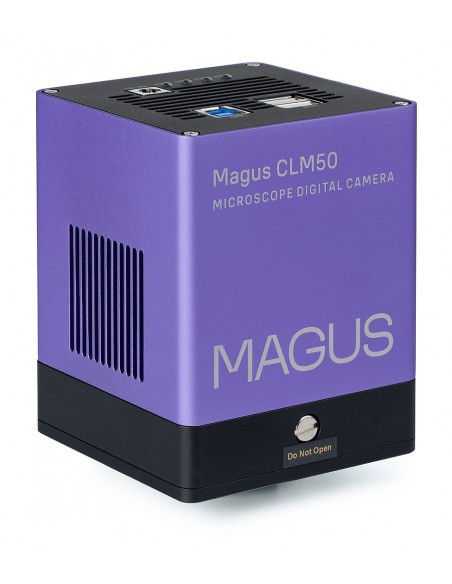

MAGUS CLM cameras are designed for mounting on a microscope and recording with fluorescence and darkfield techniques. The CLM50 model is suitable for working with 60x and 100x objectives. Its 1.7MP sensor produces a 1600x1100px image. The frame rate is 33 fps. The camera is equipped with a special cooling element that prevents the sensor from overheating and maintains high image quality. The global shutter instantly captures and forms an image without distortion or trailing, even if the sample is moving. The camera is equipped with a USB 3.0 interface. It transfers data at high speed to a computer, so the image does not lose quality when viewed on an external screen. The camera is intended for use in a professional environment or for college-level education.
The camera is designed based on the SONY Exmor color CMOS sensor. These sensors use backlight technology to improve light sensitivity. The CLM50 combines a large 1.1'' sensor with a large 9x9 µm pixel to produce a light sensitivity of 4910 mV at 1/30 s. The camera generates a color image, which can be useful when conducting studies related to the color of the sample.
The camera is equipped with a special cooling module: a Peltier element. During prolonged use, the sensor heats up and creates thermal noise in the image. The Peltier element cools the sensor 42°C below ambient temperature. As a result, the image remains sharp and the camera can shoot without interference, even at slow shutter speeds.
Another advantage of this model is the global shutter. It reads the signal from all pixels at once and instantly captures a realistic image without distortion, even if the object is moving.
The camera is equipped with software. It allows you to take photos and record videos, edit the results and measure the linear and angular dimensions of an object and its structures. The camera is mounted to the trinocular tube of the microscope using a C-mount adapter.
Key Features:
- Works effectively in fluorescence and darkfield
- It forms a color image with a resolution of 1600x1100 px, the frame rate is 33 fps
- Equipped with a Peltier element that cools the sensor, it maintains a high image quality and allows you to shoot with slow shutter speeds
- The global shutter instantly captures the image without deformation even when the object moves
- The USB 3.0 interface is equipped with high data transfer speeds and supports high image quality when viewed on an external screen

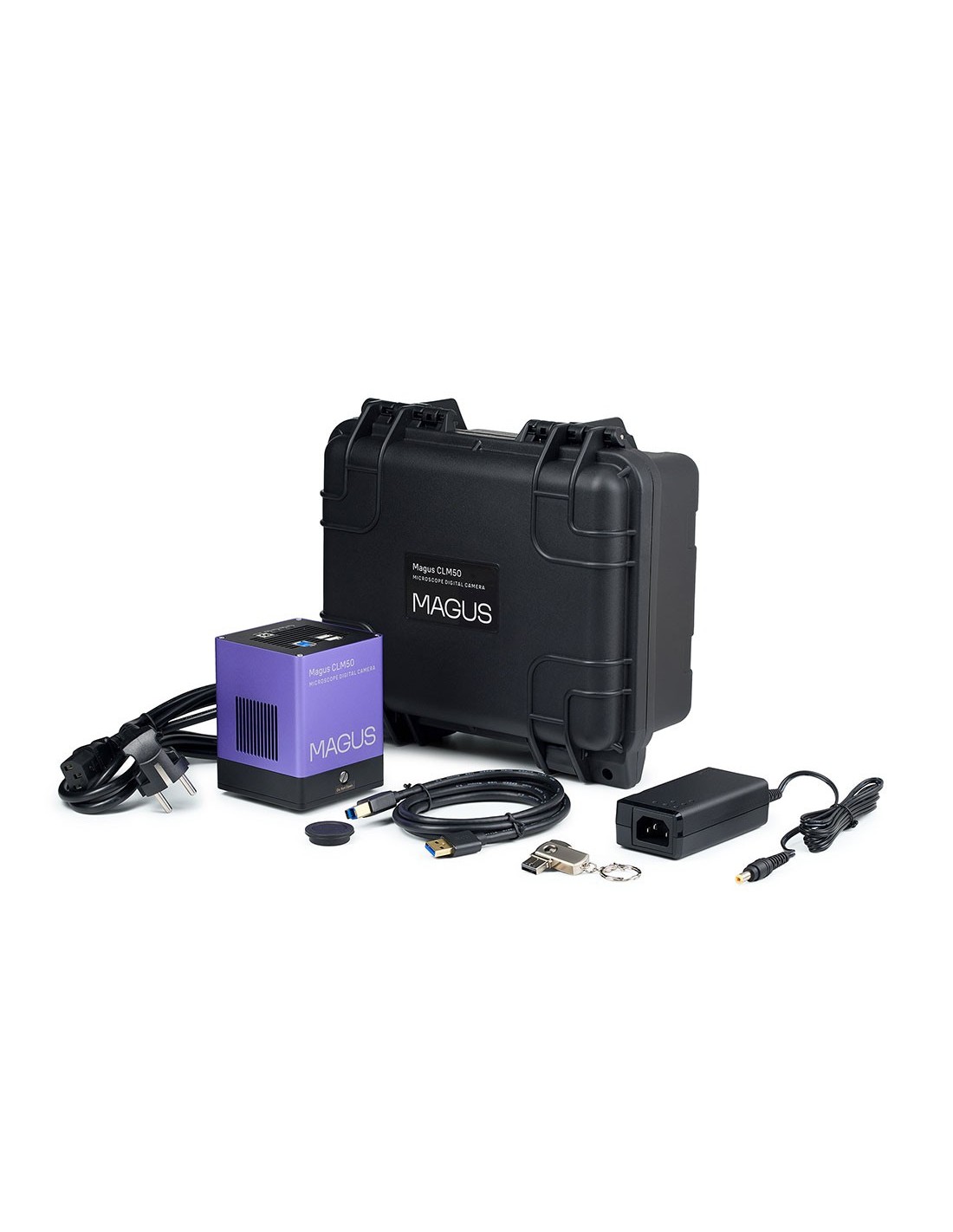

The package contains:
- Digital camera
- USB cable
- 12 V, 3 A adapter
- Case
- Installation CD with drivers and software
- User manual and warranty certificate
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019291 |
| Package size (LxWxH) | 27x25x12 cm |
| Shipping weight | 2.7 kg |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Maximum resolution, px | 1600x1100 |
| Sensor size | 1.1" (14, 4x9.9 mm) |
| Pixel size, µm | 9.0x9.0 |
| Thermoelectric module two-phase (Peltier cell) to set the temperature at 42°C below room temperature | yes |
| Sensitivity to light | 4910 mV with 1/30 s |
| Signal to Noise Ratio | 0.3 mV with 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate, fps@resolution | 33@1600x1100 |
| Installation location |
| td> | trinocular tube |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | Global shutter |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |

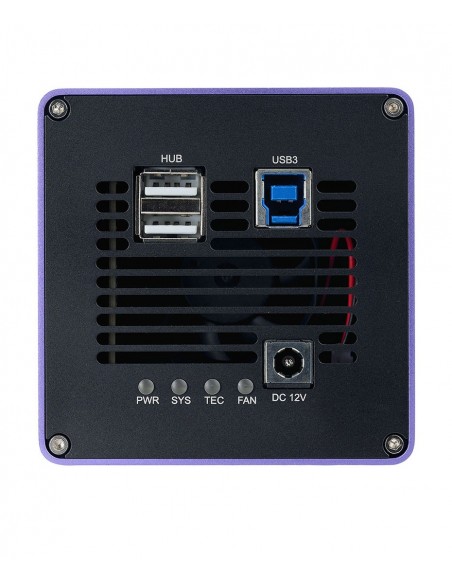

| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 ( 32-bit and 64-bit), Mac OS tr> |
| Software | MAGUS View |

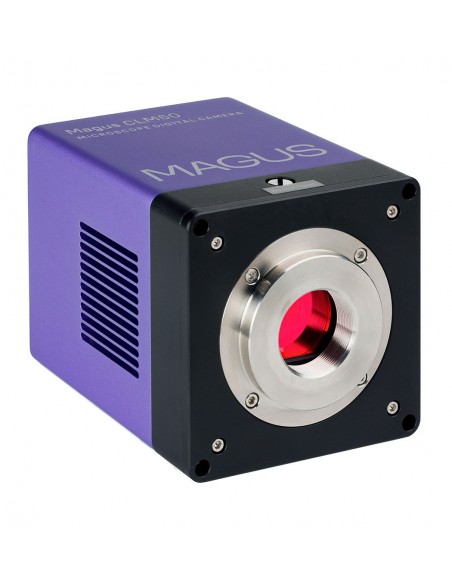

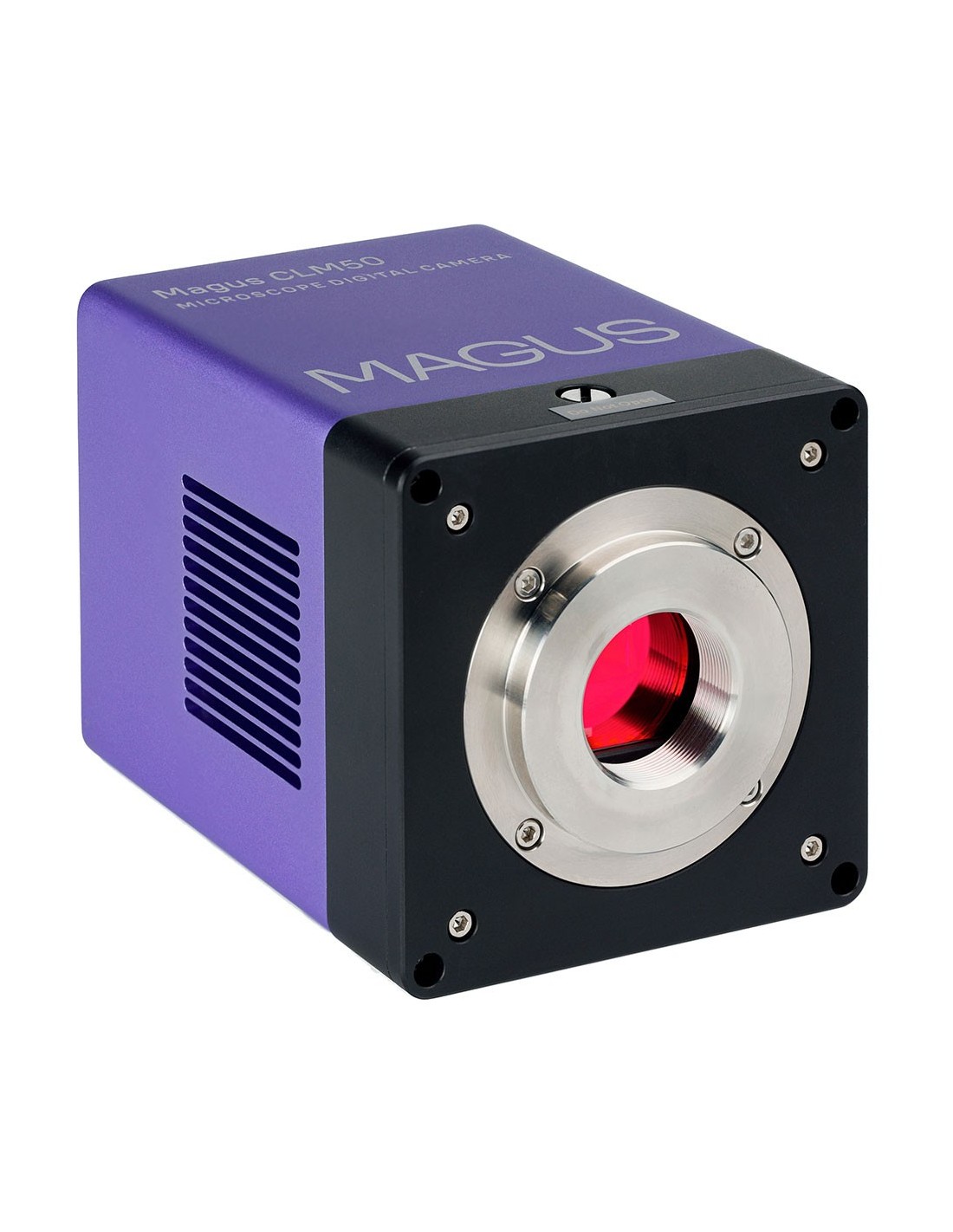

| Mount type | C mount |
| Body | CNC aluminum alloy |
| Power supply | DC, 5 V, port Computer USB; 12 V, 3 A adapter for the Peltier cell |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
