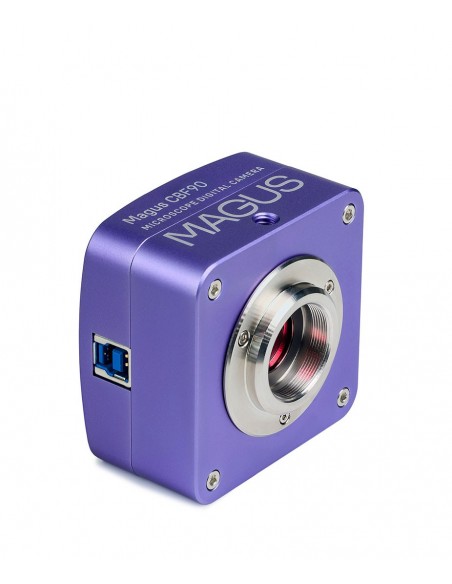

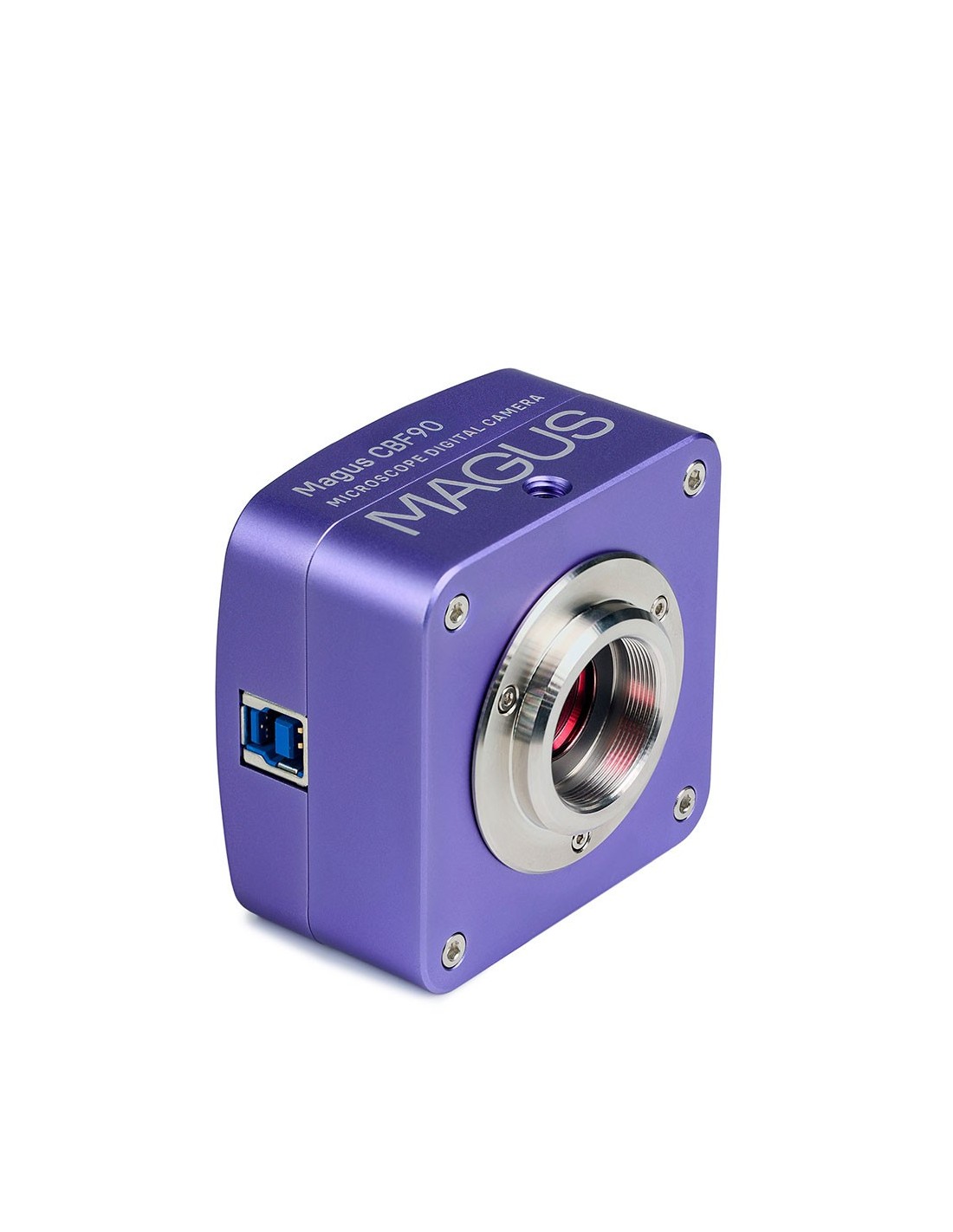

The MAGUS CBF90 digital microscope camera is a professional tool for taking photographs and recording videos, editing, viewing and saving footage, and organizing demonstrations by viewing the image on an external screen.
The device should be used with lenses from 20x, 40x, 60x and 100x, when working using the brightfield method.
Video modes
MAGUS CBF90 has two graphics modes: 2448x2048 px (with a frame rate of 35 fps) and 1224x1024 px (50 fps). This is enough to capture clear informative photographs and smooth videos that accurately record all the movements of the sample and the characteristics of the observed processes.
Sensor

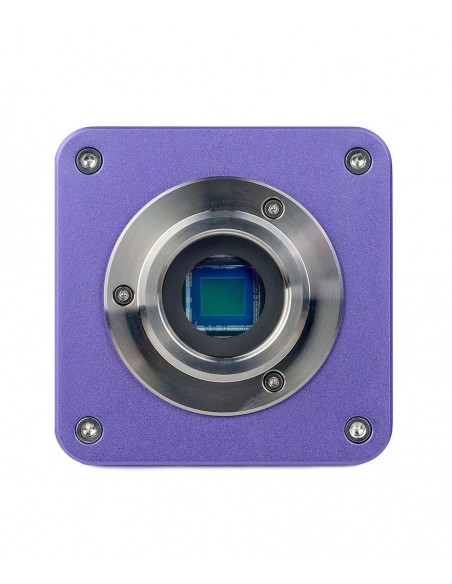

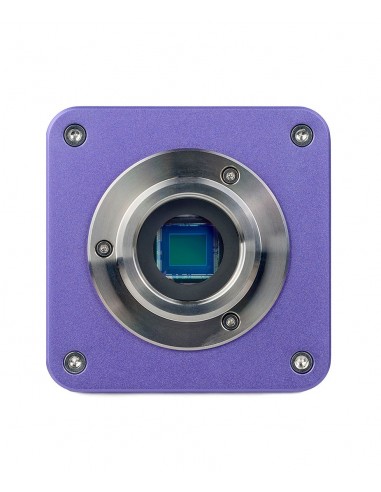

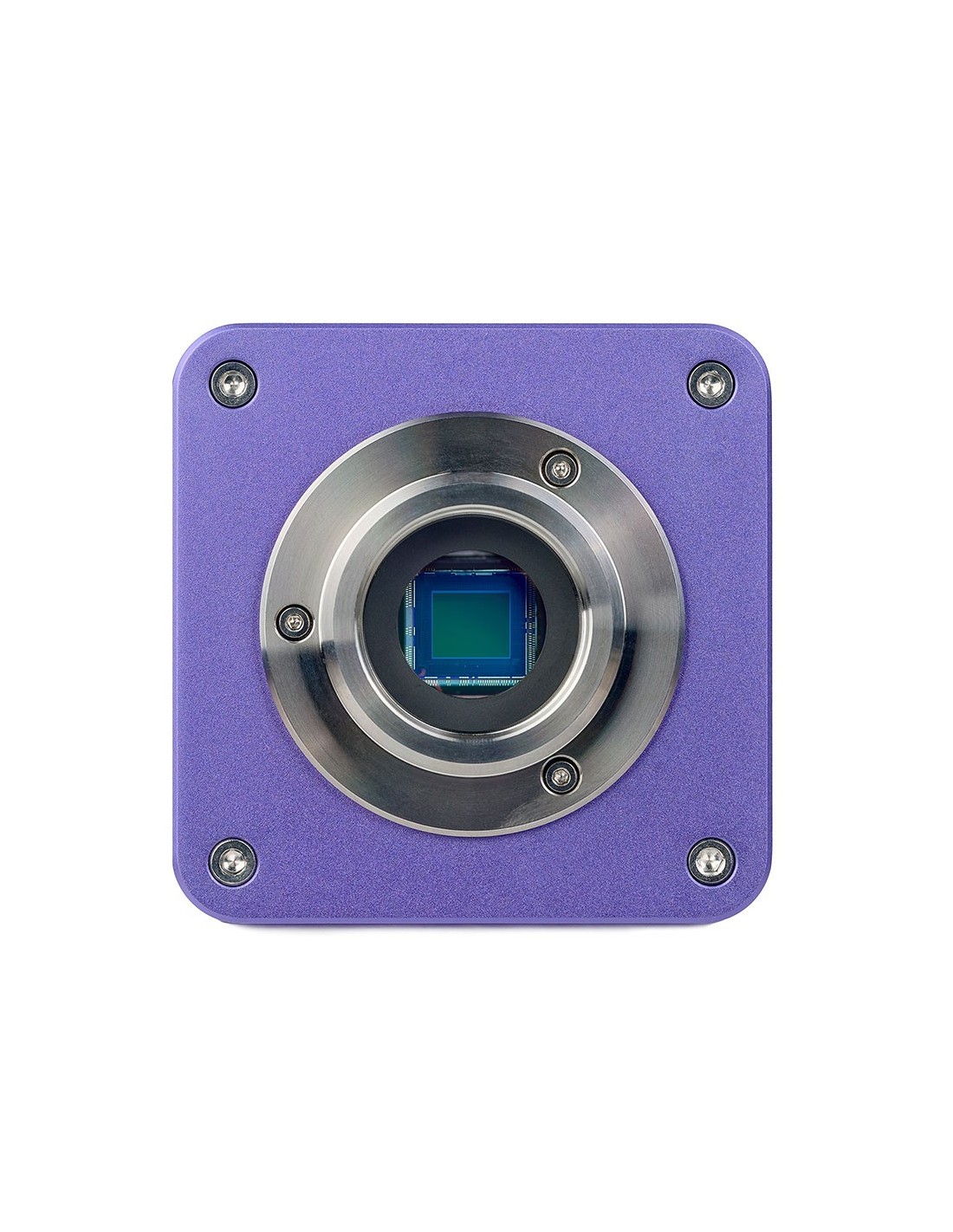

The camera uses a back-illuminated SONY Exmor CMOS sensor for improved low-light performance.
The large physical size of the sensor (2/3”) improves the image: enhances colors, removes distortion and expands the field of view . You can further improve this result by using an adapter with a magnification of 0.7x to 0.9x.
Work faster
The USB 3.0 interface of the camera speeds up data transfer by 10 times compared to the previous generation. This feature is particularly useful when organizing classroom demonstrations: the audience will not miss anything and the videos will be smooth and jerk-free.
Installation
The camera It is installed in the trinocular tube of the microscope (requires a C-mount adapter) or in the eyepiece tube (requires an adapter and an adapter ring of suitable diameter).
Key features:
- Dual resolution and fps mode for clear photos and informative videos

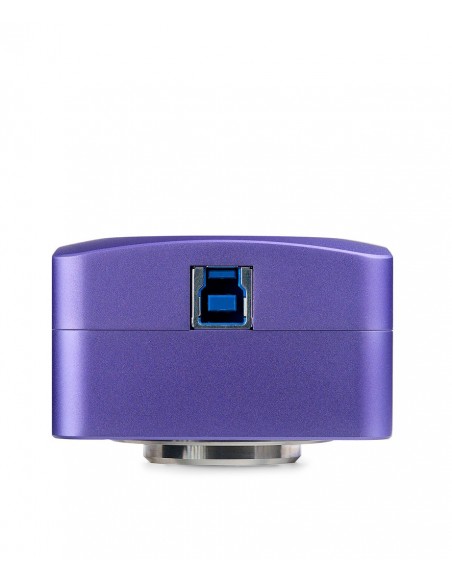

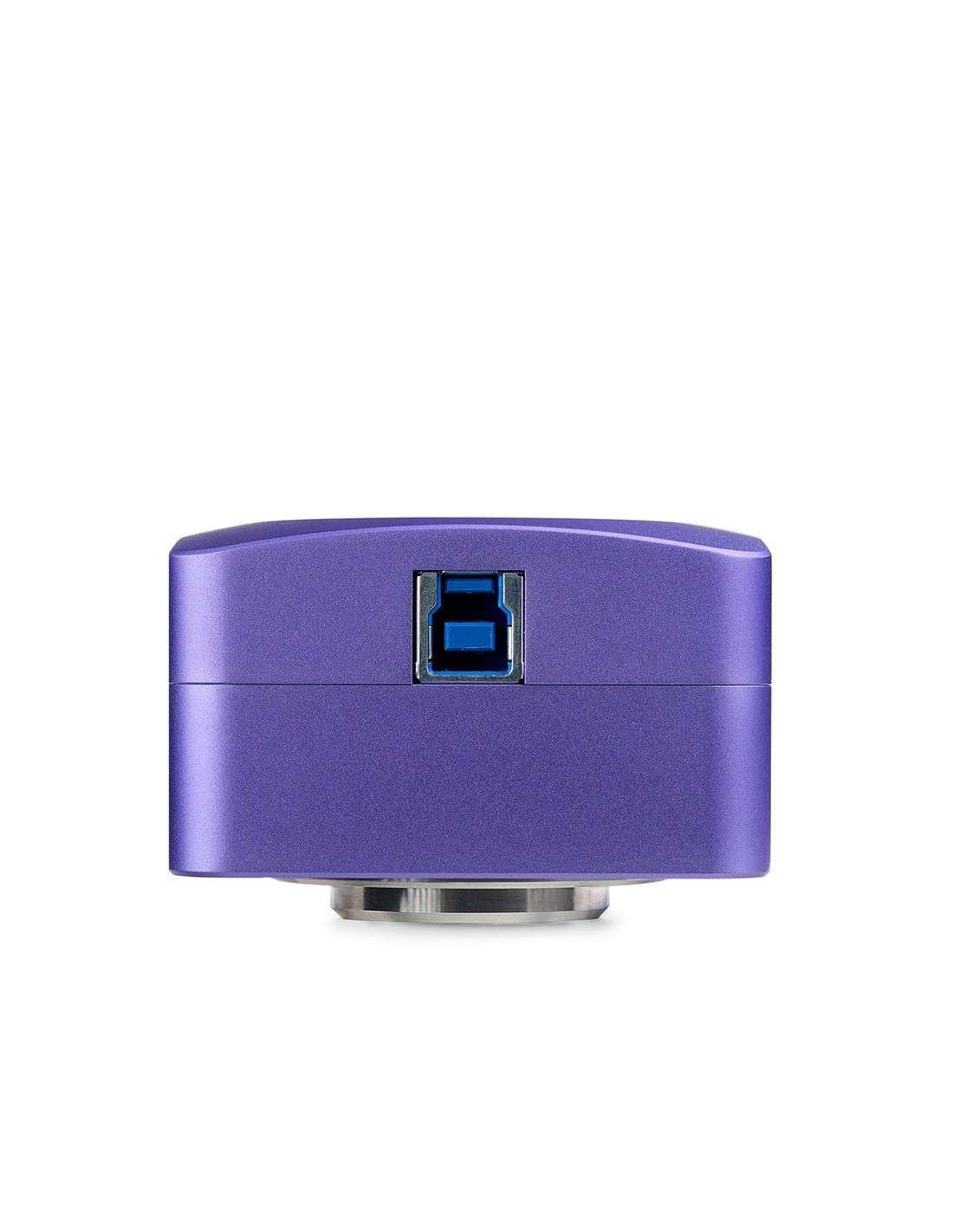

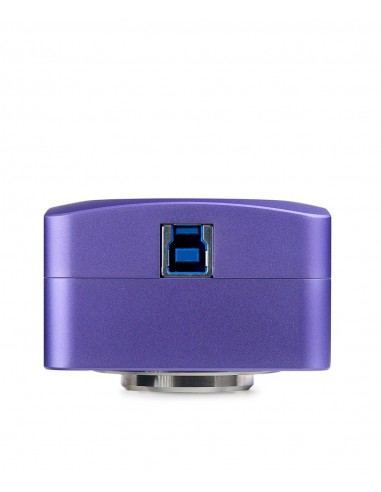

- Quickly transfer data from the device with a USB 3.0 port
- Sensor with sensitivity in light of 1146 mV at 1/30 s for work in normal and low light conditions
- Required camera software is included
- Ability to perform linear and angular measurements of objects of studio (after the software has been calibrated)
The package contains:
- Digital camera
- USB cable
- Installation CD with drivers
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019215 |
| Package size (LxWxH) | 15x15x10 cm |
| Shipping weight | 0.6 kg |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 5 |
| Maximum resolution, px | 2448x2048 |
| Sensor size | 2/3" (8.45x7.07 mm) |
| Pixel size, µm | 3.45x3.45 |
| Light sensitivity | 1146 mV at 1 /30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 35@2448x2048, 50@1224x1024 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS |
| Software | MAGUS View |
| Mount type | C mount |
| Body | robust aluminum |
| Power supply | DC current, 5 V, from the PC USB port |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
