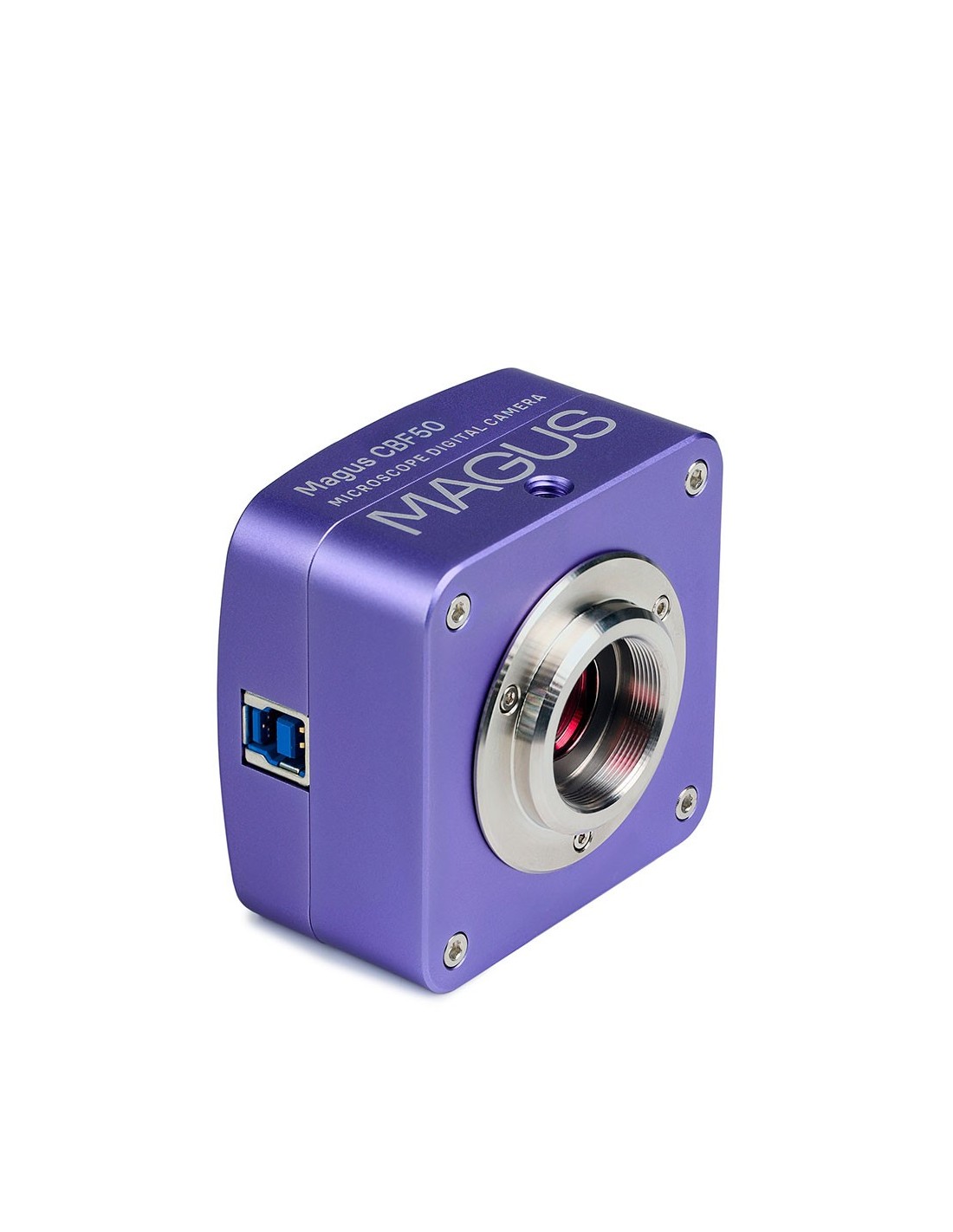

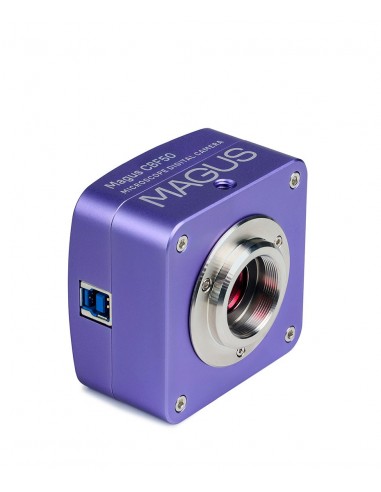

The MAGUS CBF50 digital camera is designed for use with a microscope. It allows you to take photos and record videos, edit the resulting materials and organize demonstrations.
It is recommended to use the camera in the bright field method with 40x, 60x and 100x objectives.
Resolution adjustment
The camera is equipped with a 3.1 MP sensor and has two resolution modes: 2048x1536 px (with the ability to record video at 53 fps) and 1024x768 px ( 85 fps). The frame rate in these modes is sufficient to observe moving objects, rapid processes, and sample motions without delay. Video recording is smooth, without stutter or freezes when frame transitions and photos are clear and easy to read.
Sensor

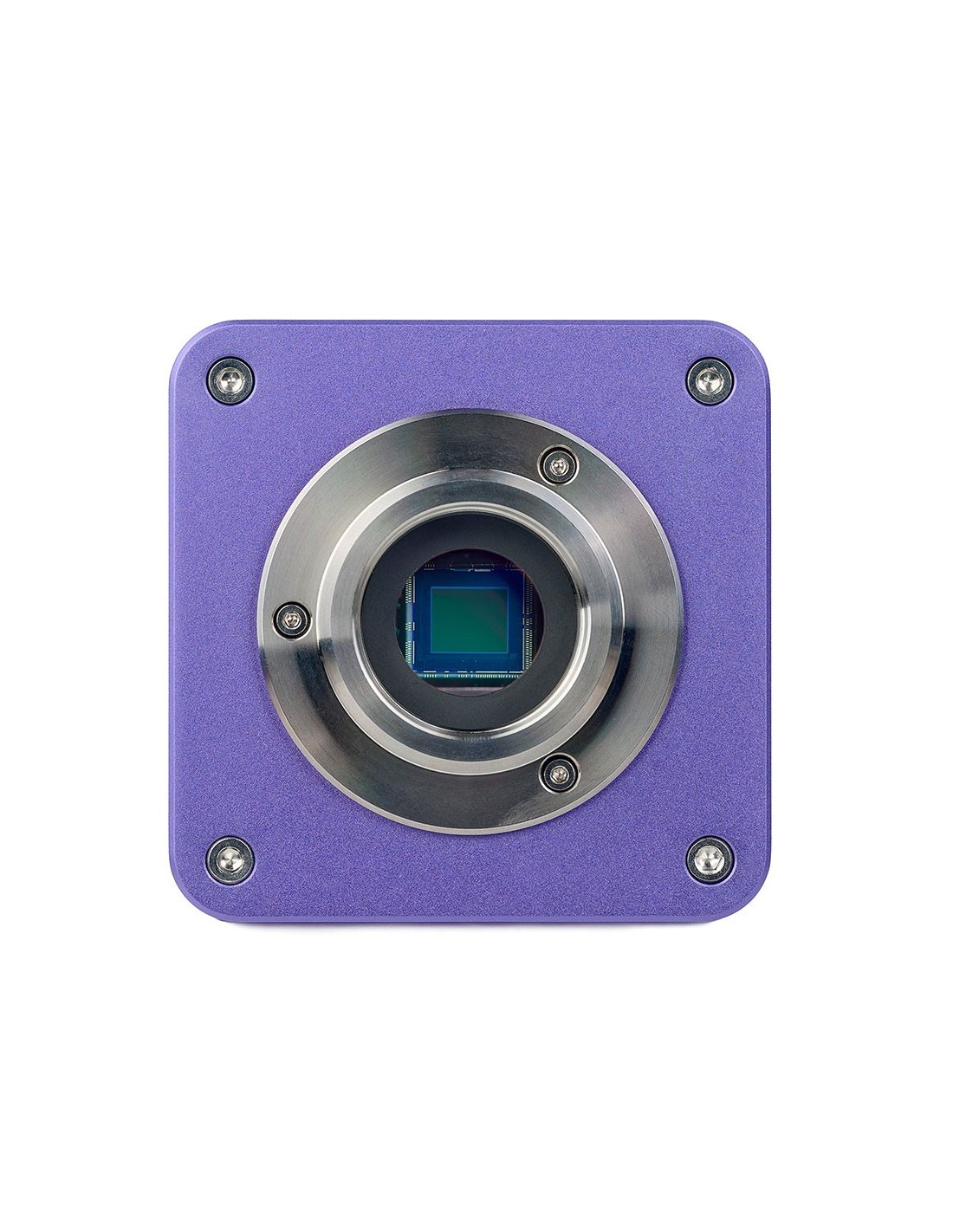

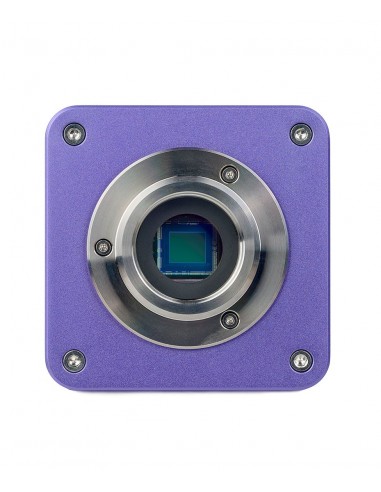

The CMOS sensor Backlit SONY Exmor with a light sensitivity of 1146 mV at 1/30 s will help conduct research and productive shooting even in low light conditions.
Data transfer

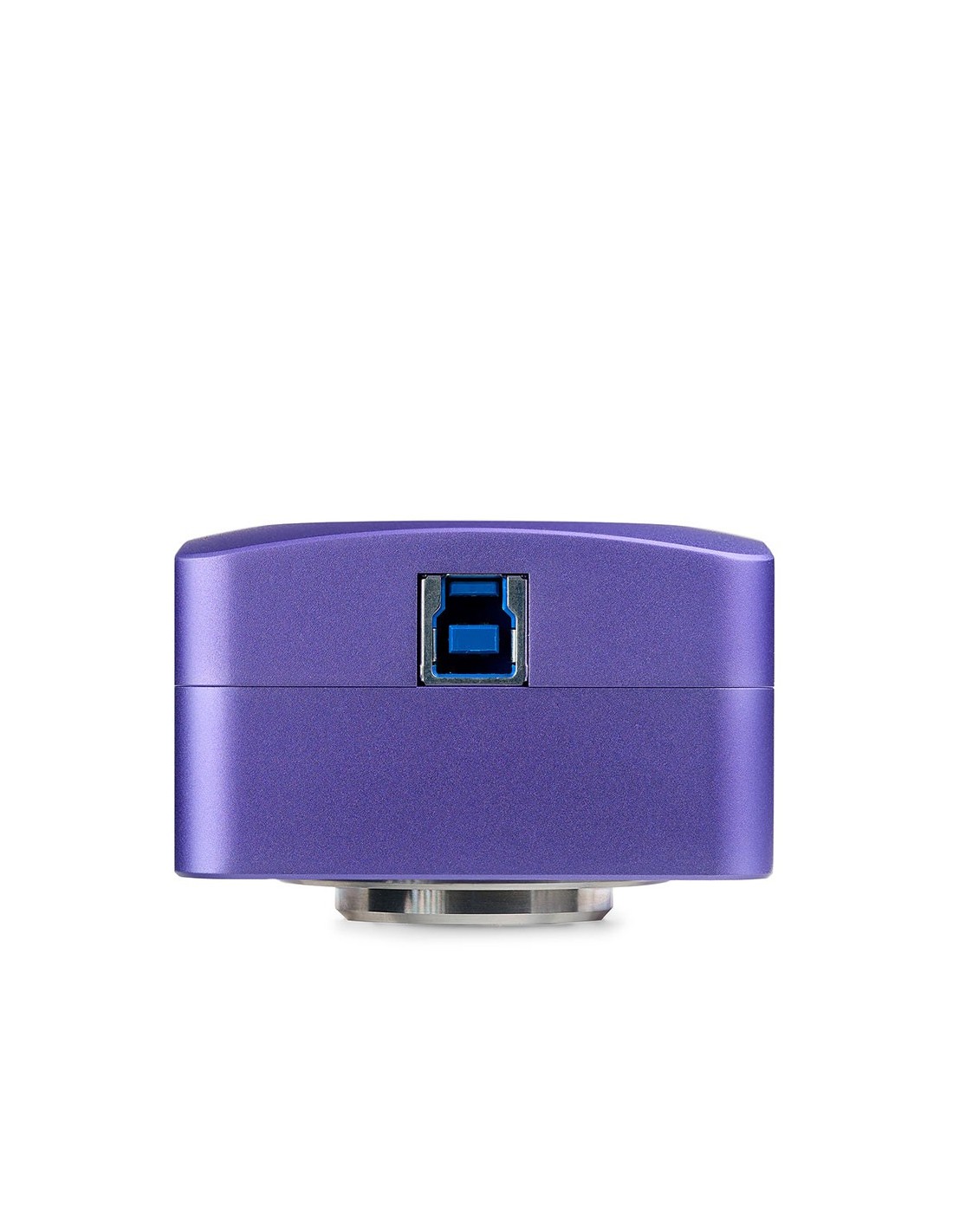

The camera is equipped with a USB 3.0 interface which is 10 times faster than the previous generation interface. Data transfer occurs without blocking or skipping, which helps in organizing demonstrations and instantly viewing images on an external screen.
Getting Started
The camera comes with the necessary software to take photos and videos, edit graphics, conduct demonstrations, and perform linear and angular measurements (the function requires calibration, which must be performed for each lens).
Key Features:
- The camera is installed in the microscope's trinocular tube or eyepiece tube (a C-mount adapter and diameter adapter ring are required adequate)
- Two resolution and fps modes to choose the one best suited to your needs at a given moment
- Possibility of observing and filming even in low light conditions thanks to the sensitive sensor SONY Exmor colors backlit
- Accelerated data transfer via USB 3.0 interface
- To use all the camera functions, you just need to install the software supplied with the device
The package contains:
- Digital camera
- USB cable
- Installation CD with drivers and software
- User manual and warranty certificate
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019277 |
| Package size (LxWxH) | 15x15x10 cm |
| Shipping weight | 0.6 kg |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 3.1 |
| Maximum resolution, px | 2048x1536 |
| Sensor size | 1/1.8" (7.07x5.30 mm) |
| Pixel size, µm | 3.45x3.45 |
| Light sensitivity | 1146 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0. 1 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 53 @2048x1536, 85 @1024x768 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range , nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) | td> |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Output |
| Output |
| td> | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS >Software | MAGUS View |
| Mount type | C mount |
| Body | robust aluminium |
| Power supply | DC current, 5 V, from PC USB port |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
