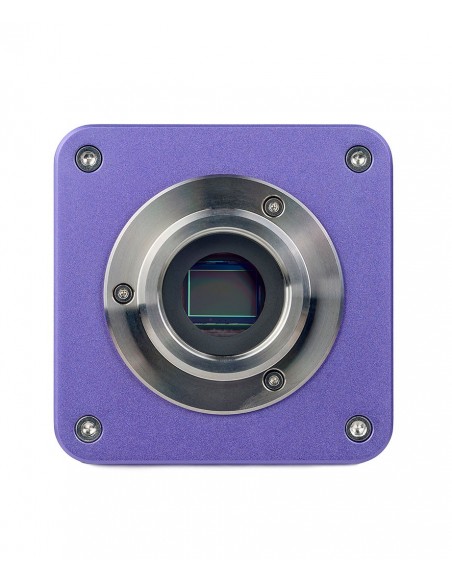

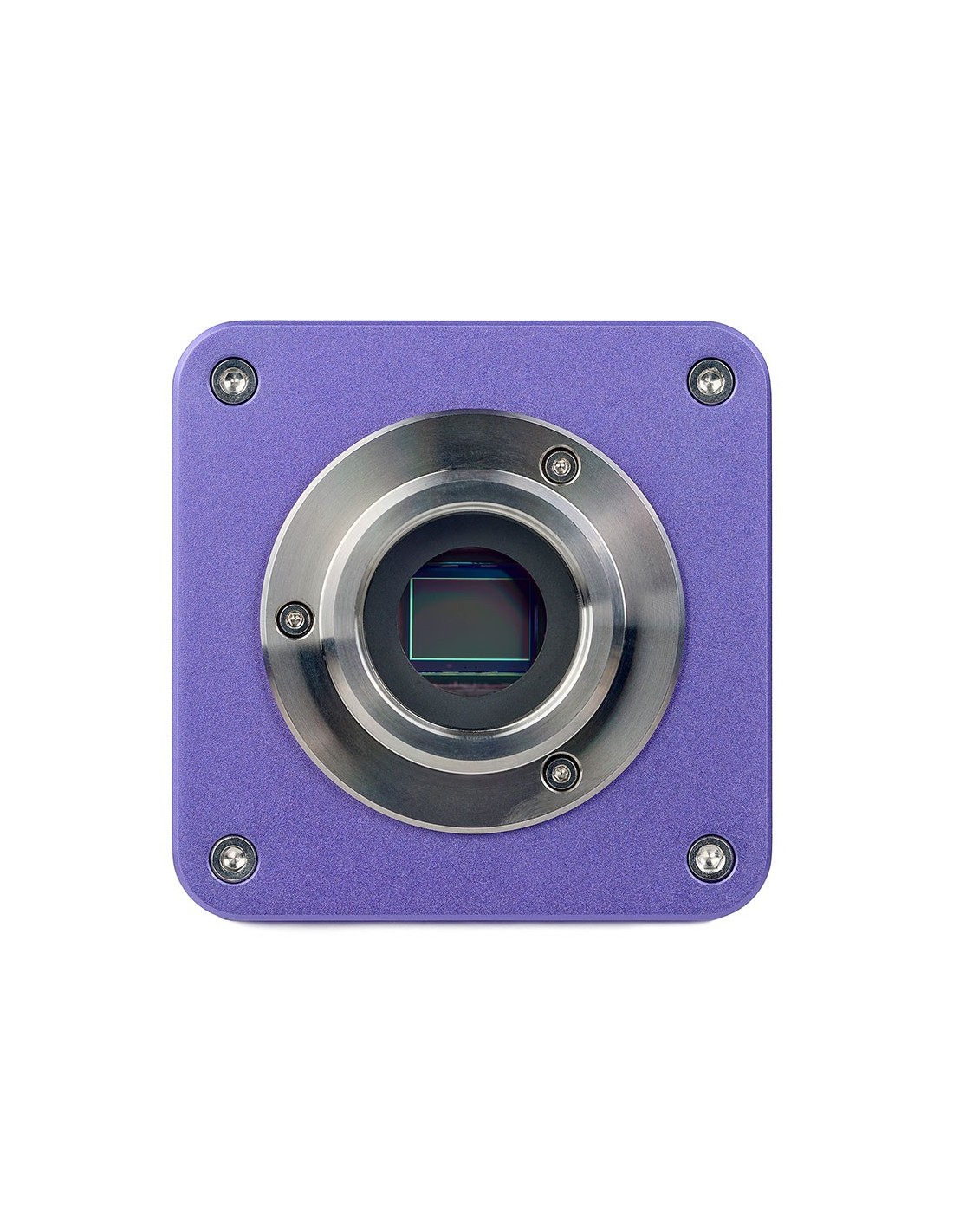

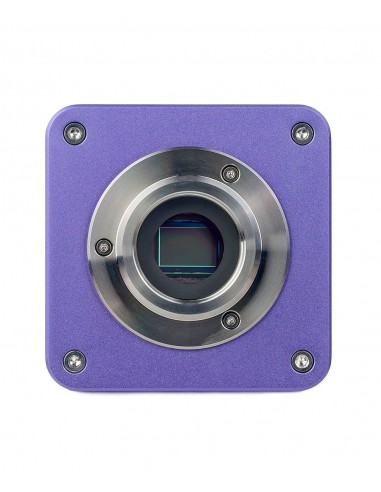

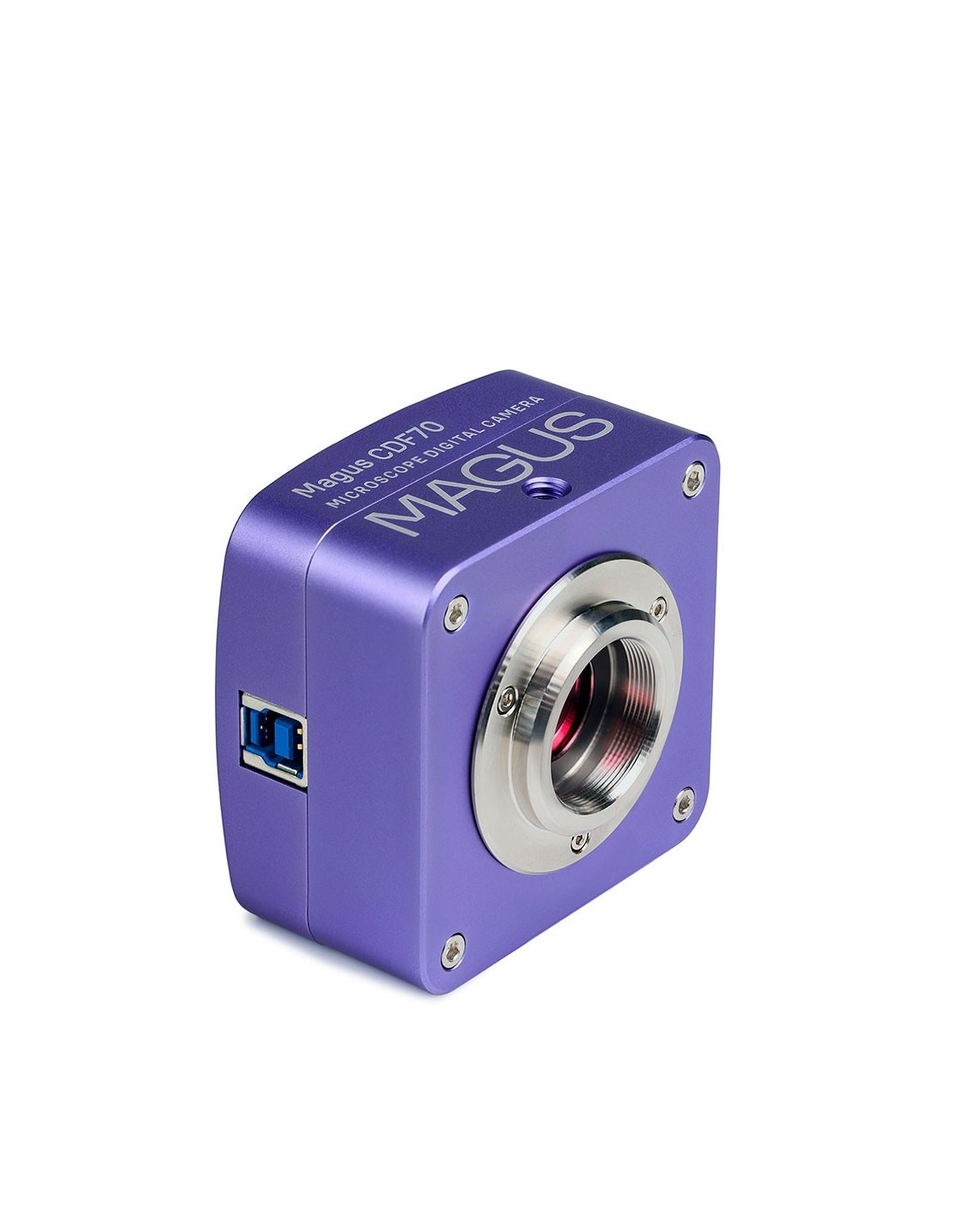

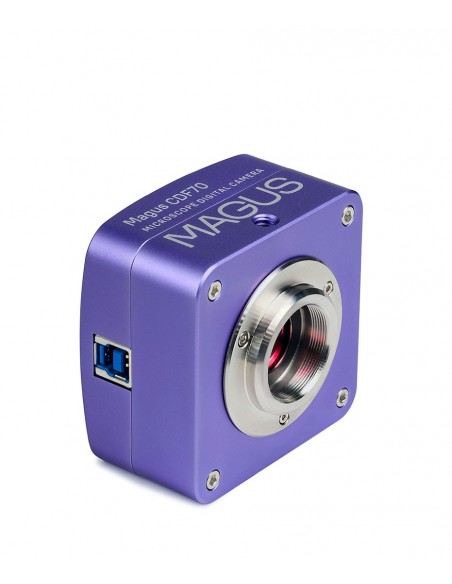

Color backlit digital CMOS camera. The sensor features low noise and increased light sensitivity (462 mV at 1/30 s). The camera produces detailed and bright images even in low light conditions. Used for dark or bright field studies with 4x, 10x and 20x objectives. The MAGUS CDF70 camera helps achieve a high level of detail even when observing moving objects.
The maximum resolution of the camera is 5440x3648 px. At this resolution the frame rate is 20 fps. You can set lower resolutions with higher frame rates: 2736x1824 px (48 fps) or 1824x1216 px (58 fps). With these resolutions and frequencies, the camera is used to observe moving objects. The transition between frames is smooth, without delays, making it easy to observe and display an object to the audience.

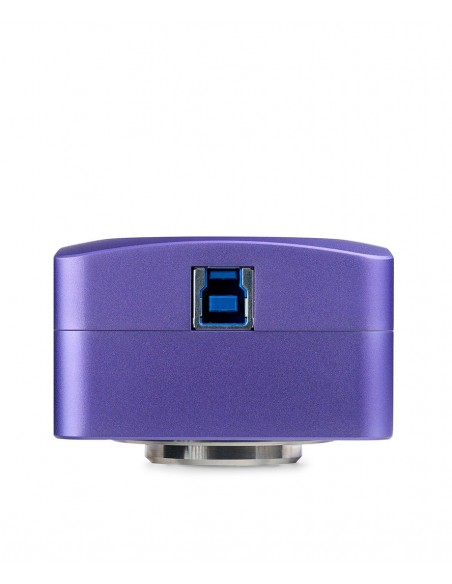

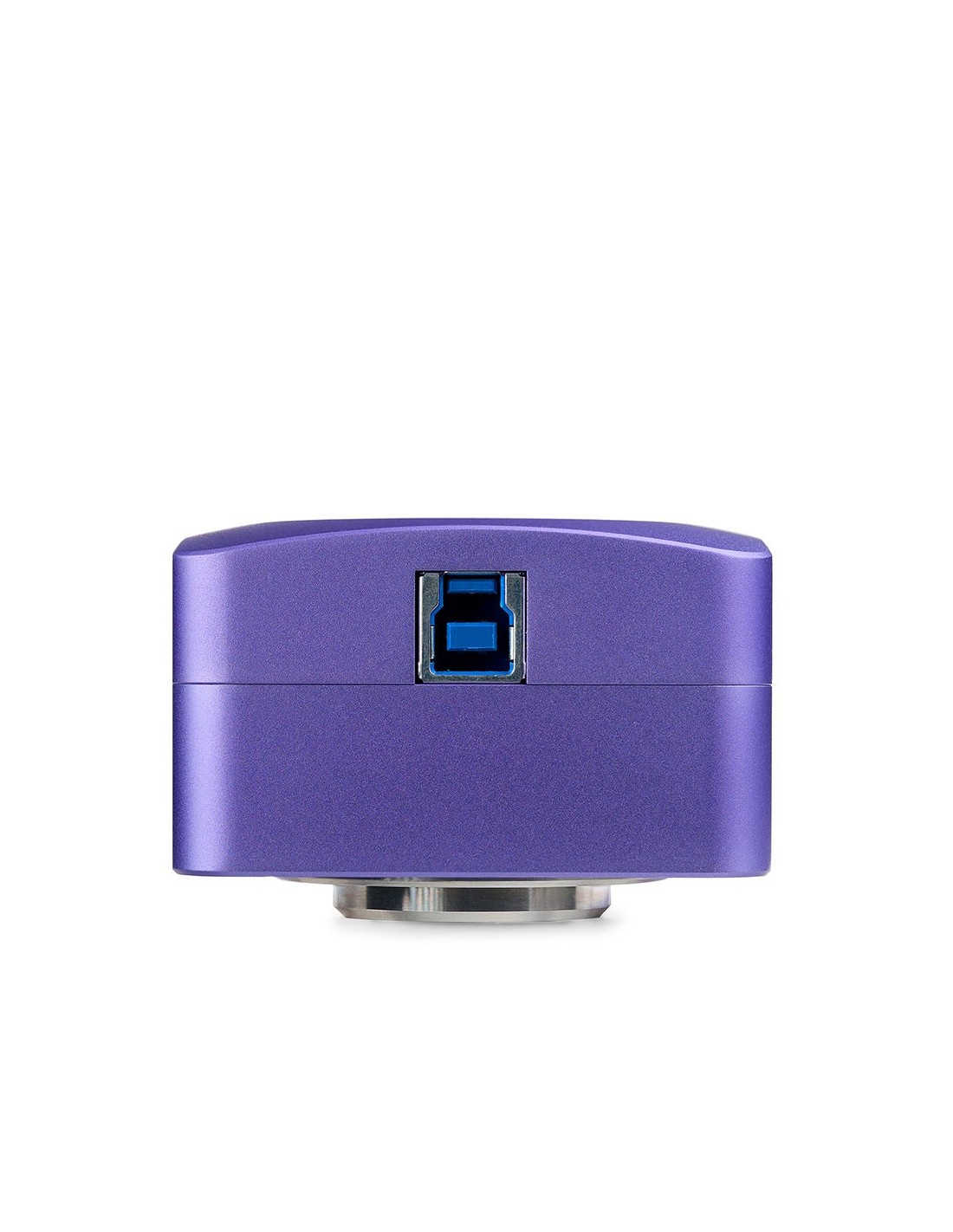

The MAGUS CDF70 camera is installed on the trinocular tube or optical tube of a microscope instead of the eyepiece. In both cases, you need a C-mount adapter of the right diameter, as well as adapter rings for installation on the eyepiece tube. The camera installed on the microscope connects to a computer via a USB 3.0 port with a data transfer rate of 5 Gbps.
Before starting, you need to install the drivers and MAGUS View software on your computer , included in the package. The software is necessary for all camera functions: viewing images on a monitor, capturing photos and videos, processing, etc. You need to calibrate the program for each lens using a calibration slide (optional accessory).
Key Features:
- Back-illuminated CMOS sensor, ratio low signal/noise and high light sensitivity
- Observation in light and dark using objectives with 4x, 10x and 20x magnification
- Installation on the trinocular tube using a C-mount adapter or on a tube eyepiece via an adapter and adapter rings
- USB 3.0 interface, data transfer up to 5 Gbps
- Three resolutions with different frame rates, observation of moving objects in real time, without delays
- Installation CD with software and drivers included
The package contains:
- Digital camera
- USB cable
- Installation CD with drivers and software
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019222 |
| Package size (WxDxH) | 15x15x10 cm |
| Shipping weight | 0.6 kg |
| Sensor | SONY Exmor CMOS |
| Color/Monochrome | Color |
| Megapixel | 20 |
| Maximum resolution, px | 5440x3648 |
| Sensor size | 1'' (13.06x8.76 mm) |
| Pixel size, µm | 2.4x2.4 |
| Light sensitivity | 462mV with 1/30s |
| Signal to Noise Ratio | 0.21mV with 1/30s |
| Exposure time | 0.1 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 20@5440x3648, 48@2736x1824, 58@1824x1216 |
| Place of installation | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, control of display |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS ROM, 17" or larger |
| Software | MAGUS View |
| Mount type |
| Mount type |
| td> | C pitch |
| Body | CNC aluminum alloy |
| Feed | DC current, 5 V, from PC USB port |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
