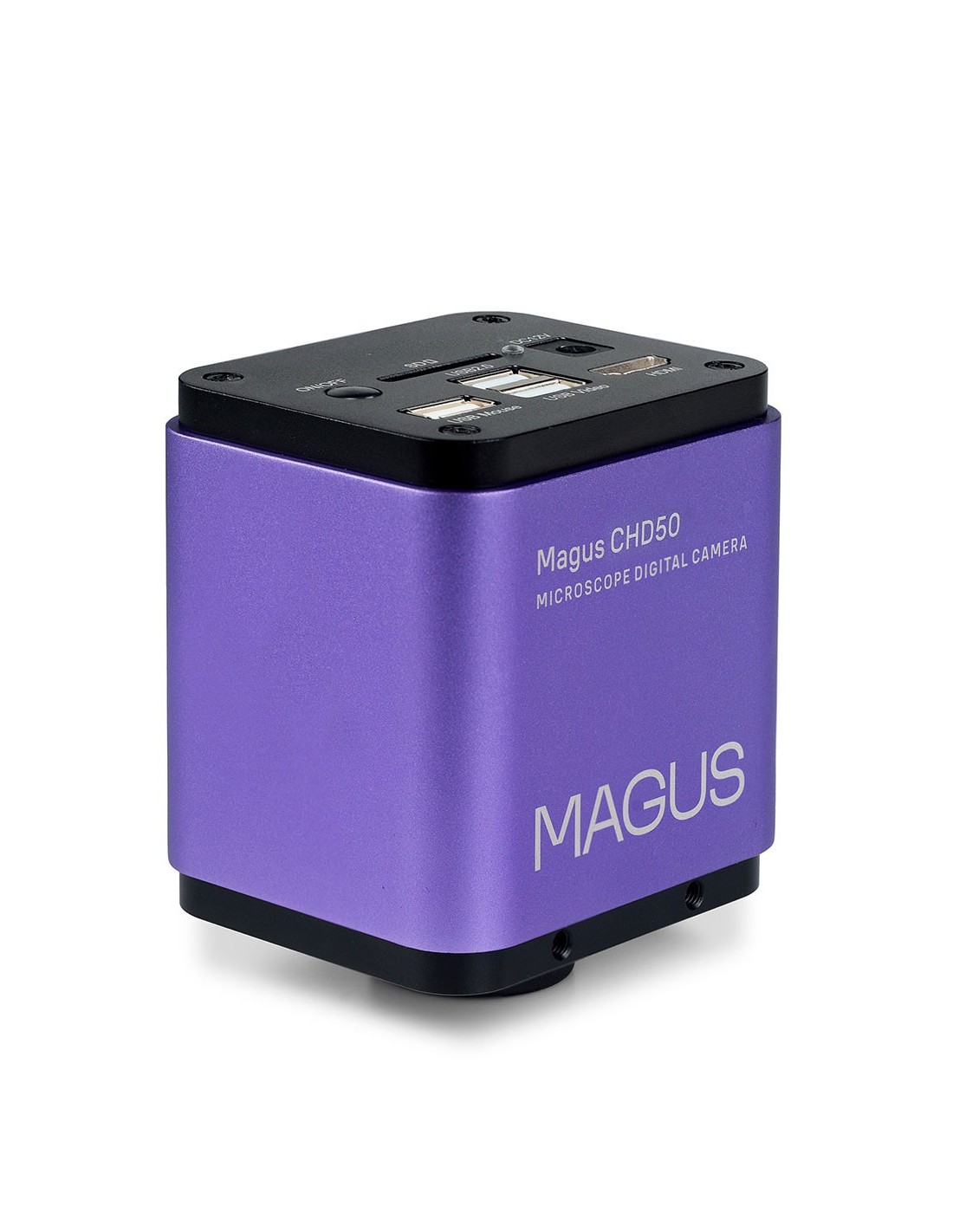

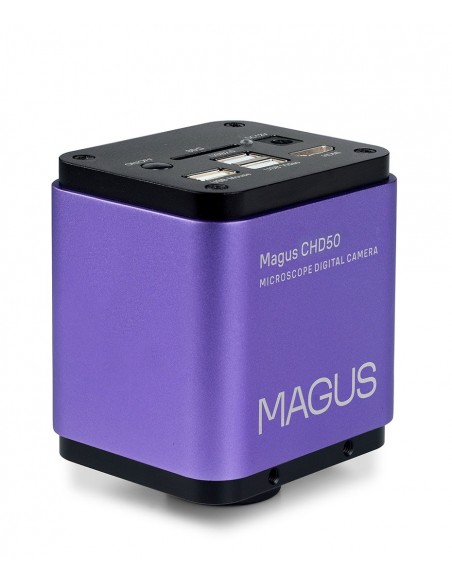

MAGUS CHD50 is a camera designed to be integrated with a microscope. The device has built-in software that can be used to take photos and videos, process the results and take measurements of the subject. Three types of interfaces (HDMI, WLAN and USB 2.0) connect the camera to a computer or other device capable of viewing photos and videos. The 8 MP sensor creates high-quality images in 4K resolution (3840x2160 px) and the camera can automatically switch to Full HD (1920x1080 px) playback if required by the external display. The video frame rate is 30 fps. The device is equipped with an autofocus function. The result is a high-quality, realistic and detailed image without lag, tearing or blurring, even if the subject is moving.
Sensor

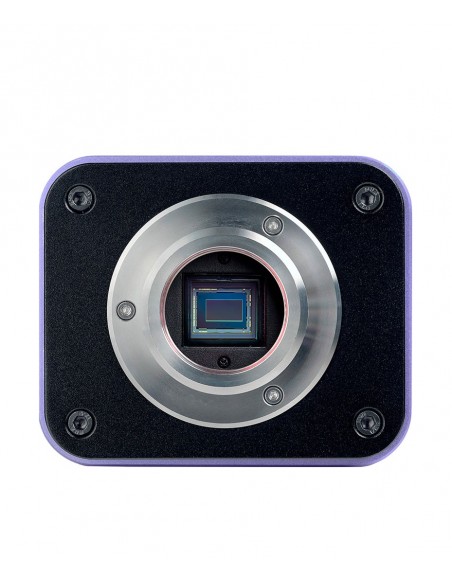

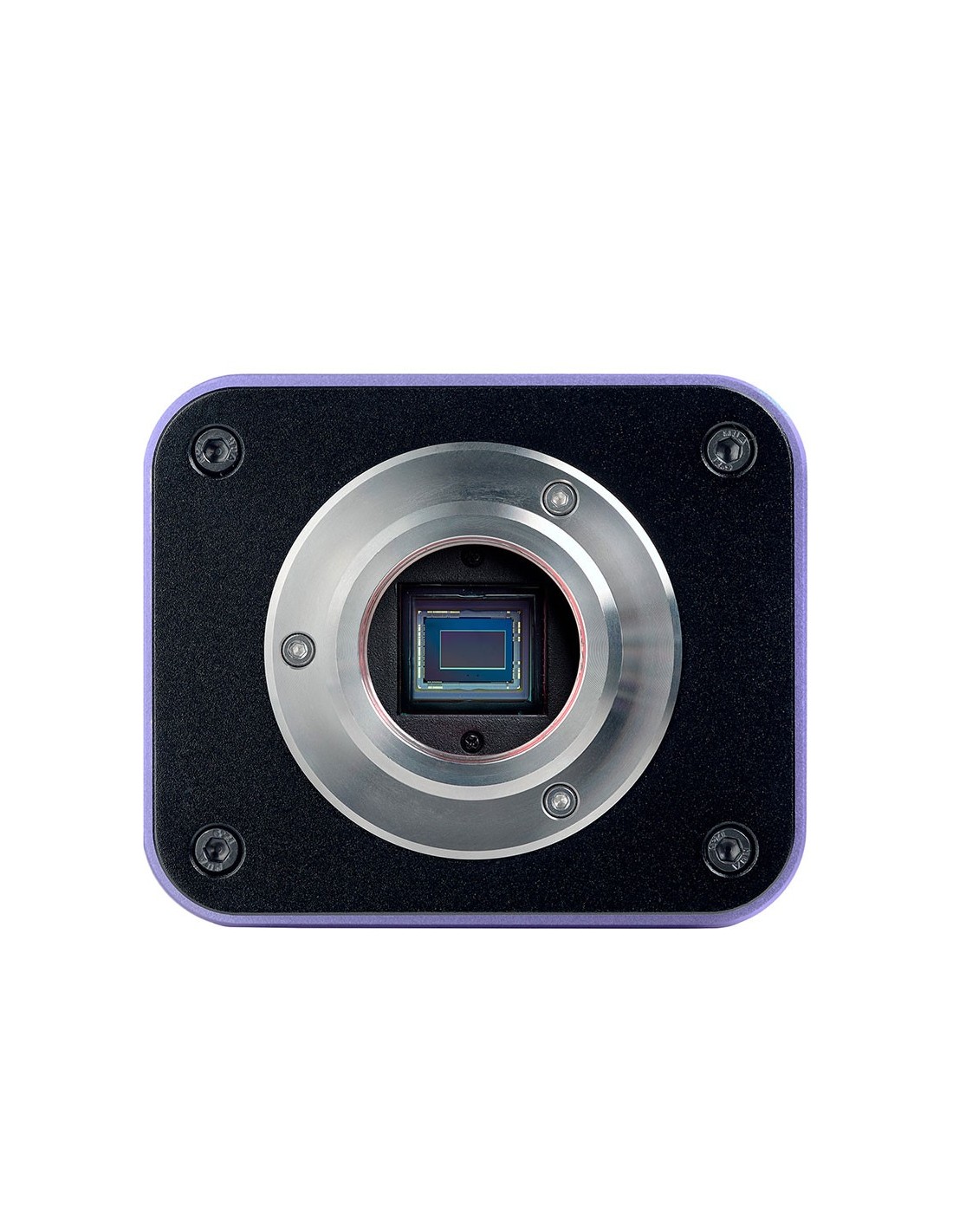

The device is built on an 8MP SONY Starvis CMOS sensor. The backlight method produces a light sensitivity of 505 mV at a shutter speed of 1/30 second. The sensor size is 1/1.8'' with a pixel size of 2.0x2.0 μm. To create the widest field of view without distortion, use an adapter with magnification from 0.5x to 0.75x.
Software
The camera can be connected to a computer via USB 2.0 and WLAN as well as to a TV, monitor or projector via the HDMI connector. With an HDMI connection, the camera automatically focuses on the subject, resulting in sharp photos or videos without any extra effort. The software allows you to edit the resulting image as well as measure the linear and angular dimensions of objects and their structures. To take measurements, calibrate the camera software for each lens using a calibration slide.
Installing the Microscope
You can integrate the camera with the microscope installing it in the trinocular tube or eyepiece tube in place of an eyepiece. In both cases, you will need a C-mount adapter. To connect to the eyepiece tube you will also need an adapter ring that fits its diameter.
Additional devices
For more efficient operation, it is recommended to connect the camera with additional devices. Using a mouse will remove vibrations when making direct contact with the camera (connects via USB port). You can save photos and videos to an SD card or flash drive. To create a complete imaging system you can use special MAGUS monitors. They can be installed directly on the camera and integrated with any MAGUS microscope.
Key features:
- The 8 MP CMOS sensor produces an image with 4K resolution (3840x2160 px). It is automatically converted to Full HD (1920x1080 px) if required by the external display

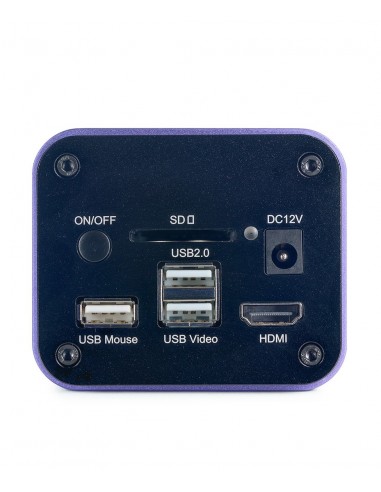

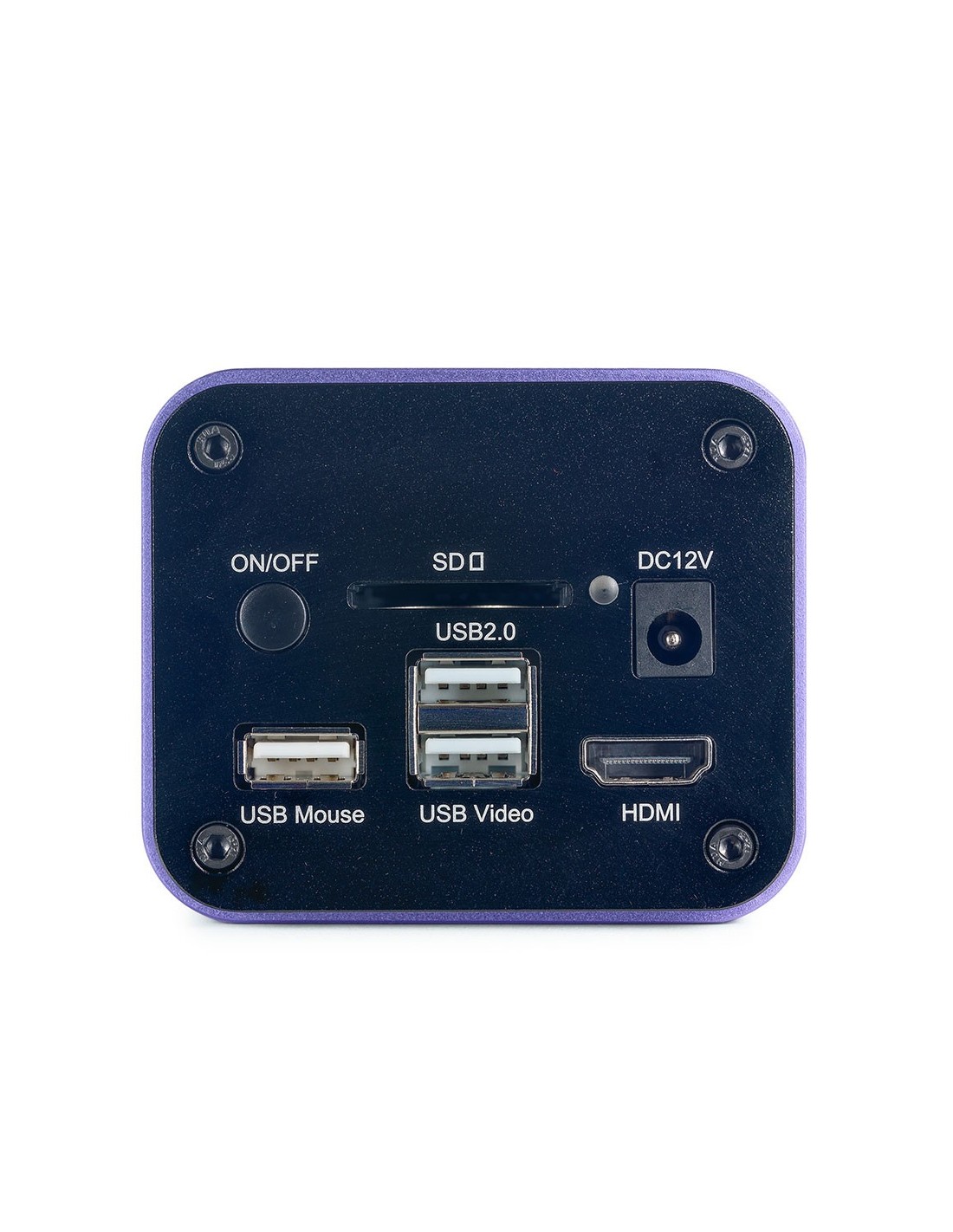

- Three types of interfaces – HDMI, WLAN and USB 2.0 – make it possible to connect the camera to a computer or external display
- The light sensitivity of 505 mV at a shutter speed of 1/30 second allows you to film even in low light conditions
- Autofocus is enabled when connected via HDMI and guarantees sharp image without any additional effort
- The integrated software allows the camera to work without connection to the computer
The package contains:
- Digital camera
- HDMI cable (2 m)
- USB 3.0 cable (1.5 m)
- Mouse with USB
- 32GB SD Memory Card
- Wi-Fi USB Adapter (2pcs)
- 12V/1A AC Power Adapter (Euro)
- Installation CD with drivers and software
- User manual and warranty card
| Trademark | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019178 |
| Package size (WxDxH) | 25x17x9 cm |
| Shipping weight | 1.6 kg |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 8 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.8" (7.68x4.32 mm) |
| Pixel size, µm | 2x2 |
| Autofocus | yes |
| Interface connectors | HDMI 1.4, WLAN, USB2.0 |
| Memory card | SD up to 32 GB |
| Light sensitivity | 505 mV at 1/30 s |
| Signal-to-noise ratio | 0.1 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 30@3840x2160 (USB), 30@3840x2160 (HDMI), 30@3840x2160 (WLAN) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (integrated IR filter ) |
| Shutter type | ERS (electronic curtain shutter) |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS CD-ROM, 19" or larger screen |
| Software | HDMI: Integrated; USB: MAGUS View |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Power supply | DC adapter 12 V, 1 A |
| DC Power Adapter Specifications | input: AC voltage 100–240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
