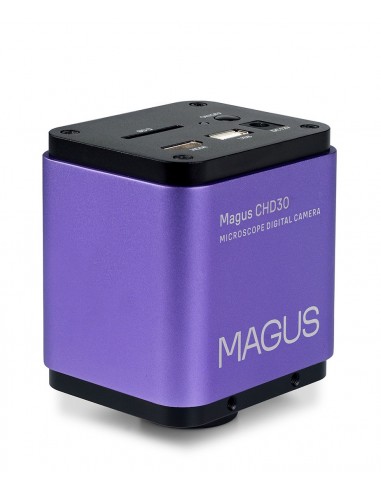

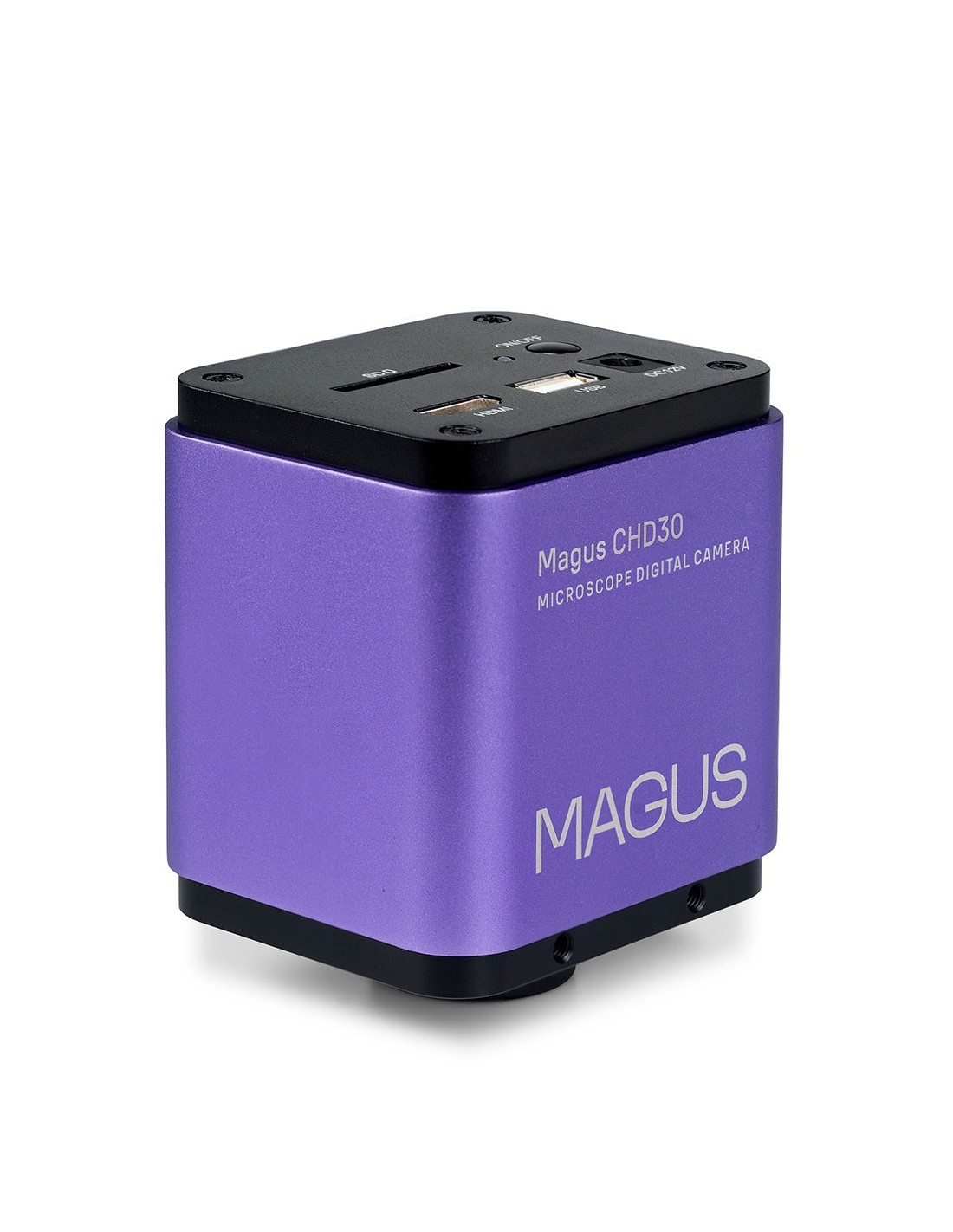

MAGUS CHD30 is a camera designed to work with a microscope. With its help, it is possible to create photographic and video materials of the object under observation as well as edit them and even carry out measurements. The particular function of this camera is the possibility of being associated with a computer via Wi-Fi as well as with an external screen via the HDMI interface. The frame rate is 25 or 60 fps, respectively. When an external display is connected, the camera automatically focuses on the object, making shooting easier and producing better results. The device is able to work autonomously and create a Full HD image (1920x1080 px). The combination of high frame rate and Full HD creates a high-quality image without interference or distortion.
Sensor

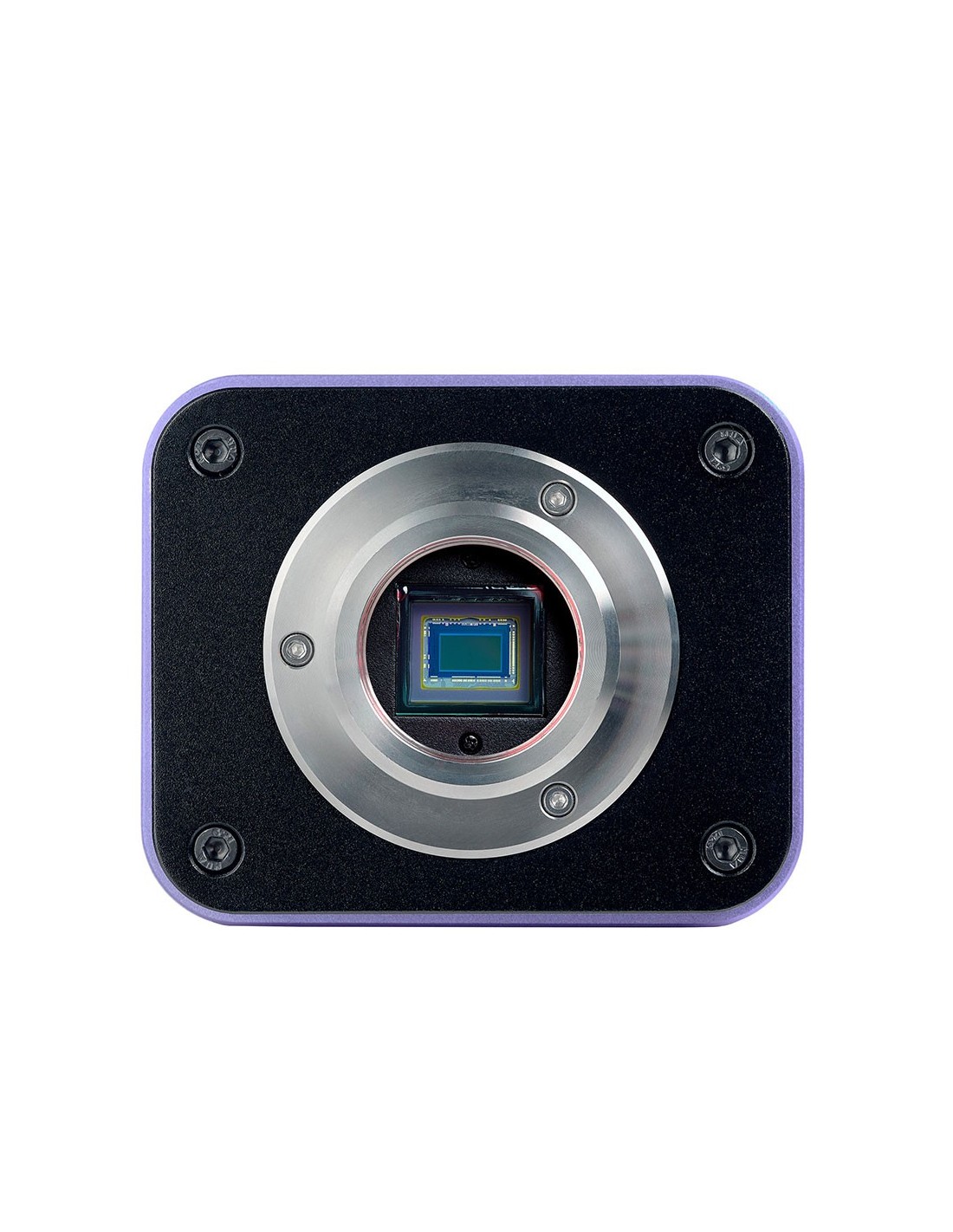

The device is built on a Sony color CMOS sensor. Its size is 1/1.9'' and the pixel size is 3.75x3.75 μm. Despite its small size, the sensor provides a light sensitivity of 1120 mV at 1/30 second. This is possible thanks to the backlight technology used in the design of the matrix. The camera can shoot in low light or fluorescent light. To create the widest possible field of view without distortion, we recommend using an adapter with magnification from 0.5х to 0.75х.
Software
The camera comes with built-in software. It allows you to take photos and record videos without connecting to a computer. The image can be displayed on an external screen via the HDMI interface. The frame rate is 60 fps. The camera software allows you to edit the image and measure the linear and angular dimensions of objects and their structures. Before starting measurement, calibrate the software for each objective using a calibration slide. If you need to pair your device with a computer, you can do so via a Wi-Fi connection. In this case it is also possible to record video at 25 fps.
Installation of the microscope
The device can be installed in a microscope in two ways: in the tube trinocular or in the eyepiece tube instead of the eyepiece. In either case, a C-mount adapter will be required for connection. Installation into an eyepiece tube also requires an adapter ring to match the size of the tube.
Support for additional devices and accessories
You can connect several additional devices to the camera to make your work easier and more fun. Using a mouse will eliminate the vibrations that usually occur when making direct contact with the device. The SD card will allow you to save photographic and video materials directly on the camera. This line of cameras is also compatible with special MAGUS monitors. The monitors are installed directly on the device and thus create a complete viewing system.
Key features:
- The camera is equipped with integrated software
- It can be connected to a computer or an external screen via Wi-Fi or HDMI interface
- The camera produces images in Full HD (1920x1080 px) and the frame rate is 25 or 60 fps depending on the connection type
- Autofocus allows you to obtain clearer and sharper images
- You can connect additional equipment for more comfortable work and better results
The package contains:
- Digital camera
- HDMI cable (1.5 m)
- Mouse with USB
- 32GB SD Memory Card
- USB Wi-Fi Adapter
- 12V/1A AC Power Adapter ( Euro)
- Installation CD with drivers and software
- User manual and warranty certificate
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019154 |
| Package size (LxWxH) | 25x17x9 cm |
| Shipping weight | 1.5 kg |
| Sensor | SONY CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size | 1/1.9" (7.20x4.05 mm) |
| Pixel size, µm | 3.75x3.75 |
| Autofocus | yes |
| Interface connectors | Wi-Fi, HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB, Wi-Fi adapter (USB) |
| Wi-Fi Settings | 802.11n, 150 Mbps, 20 dBm |
| Light Sensitivity | 1120 mV with 1/30 s |
| Signal to noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.06 ms – 918 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 60@1920x1080 (HDMI), 25@1920x1080 (Wi-Fi) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg |
| Video format | *.asf |
| Spectral range, nm | 380 -650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Software | HDMI: integrated; USB: MAGUS View |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Power supply | DC adapter 12 V, 1 A |
| DC Power Adapter Specifications | input: AC voltage 100–240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
