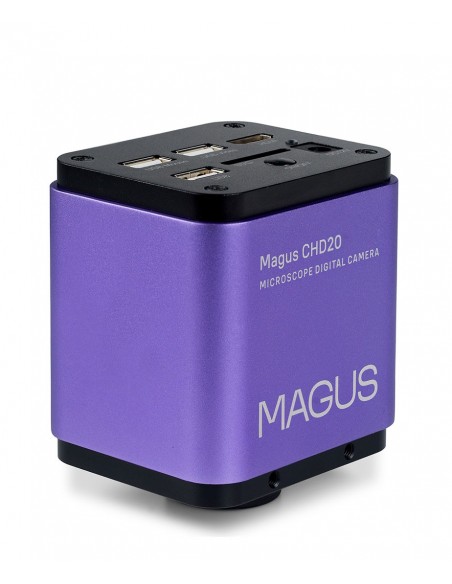

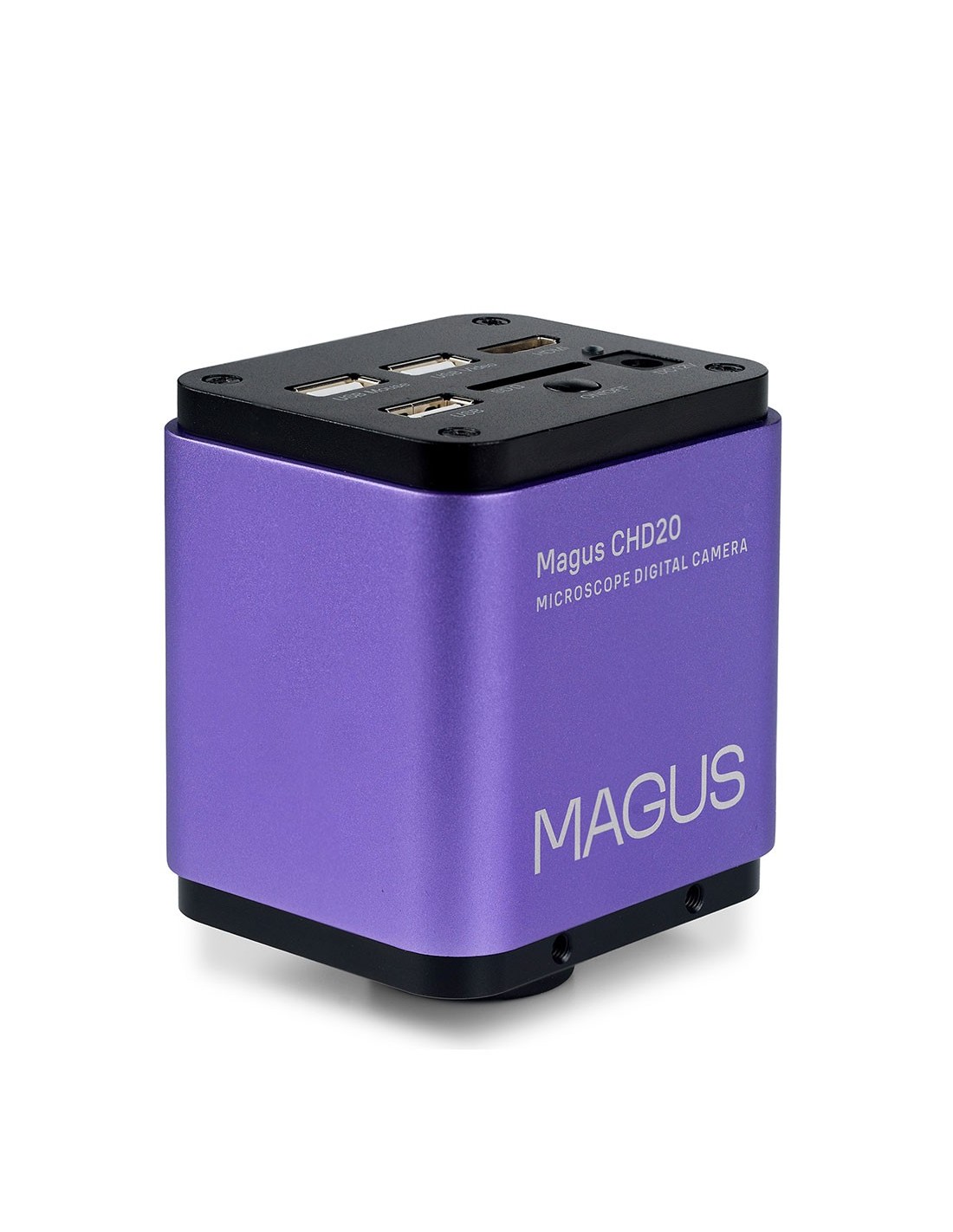

MAGUS CHD20 is a digital camera to be mounted on a microscope. It is designed to take photos and record research videos, edit them and is also capable of measuring the linear and angular dimensions of objects and their structures. The device works with its own software, so it can be connected not only to a computer, but also directly to an external display. For this purpose, the camera is equipped with two types of interfaces: HDMI and USB.
The camera produces a high-quality Full HD image (1920x1080 px) and provides high frame rates and high frame rates. data transfer between devices. It is equipped with a Sony sensor with high light sensitivity that can also work with fluorescent light. Another feature of this camera is the use of RGB mosaic filters. This reduces dark current and provides a sharp image. The entire camera system aims to create a high-quality image without tearing, blocking or distortion, even if the observation subject is moving.
Sensor
The color CMOS sensor of the Starvis series from SONY, with its small size (1/2'', 3.75x3.75 μm pixels), has a high photosensitivity (1175 mV with a shutter speed of 1/30 s) and allows you to shoot even in low light conditions. This is possible thanks to the use of backlight technology. To create the widest possible field of view without distortion, we recommend using an adapter with 0.5x to 0.7x magnification.
Software
The camera comes with an installation disc with software to operate the device. The integrated software allows the MAGUS CHD20 camera to work autonomously to take photos and record videos, process the results directly on the device and even take object measurements. To take measurements, you must first calibrate the software for each lens using a calibration slide.
Connection to external devices

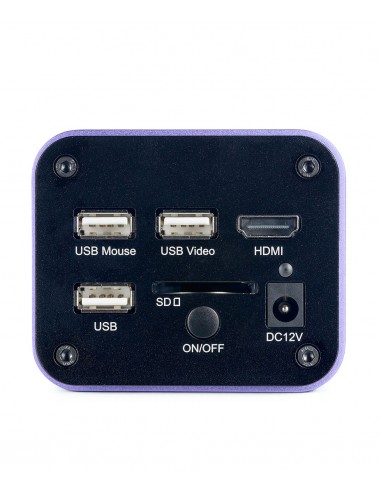

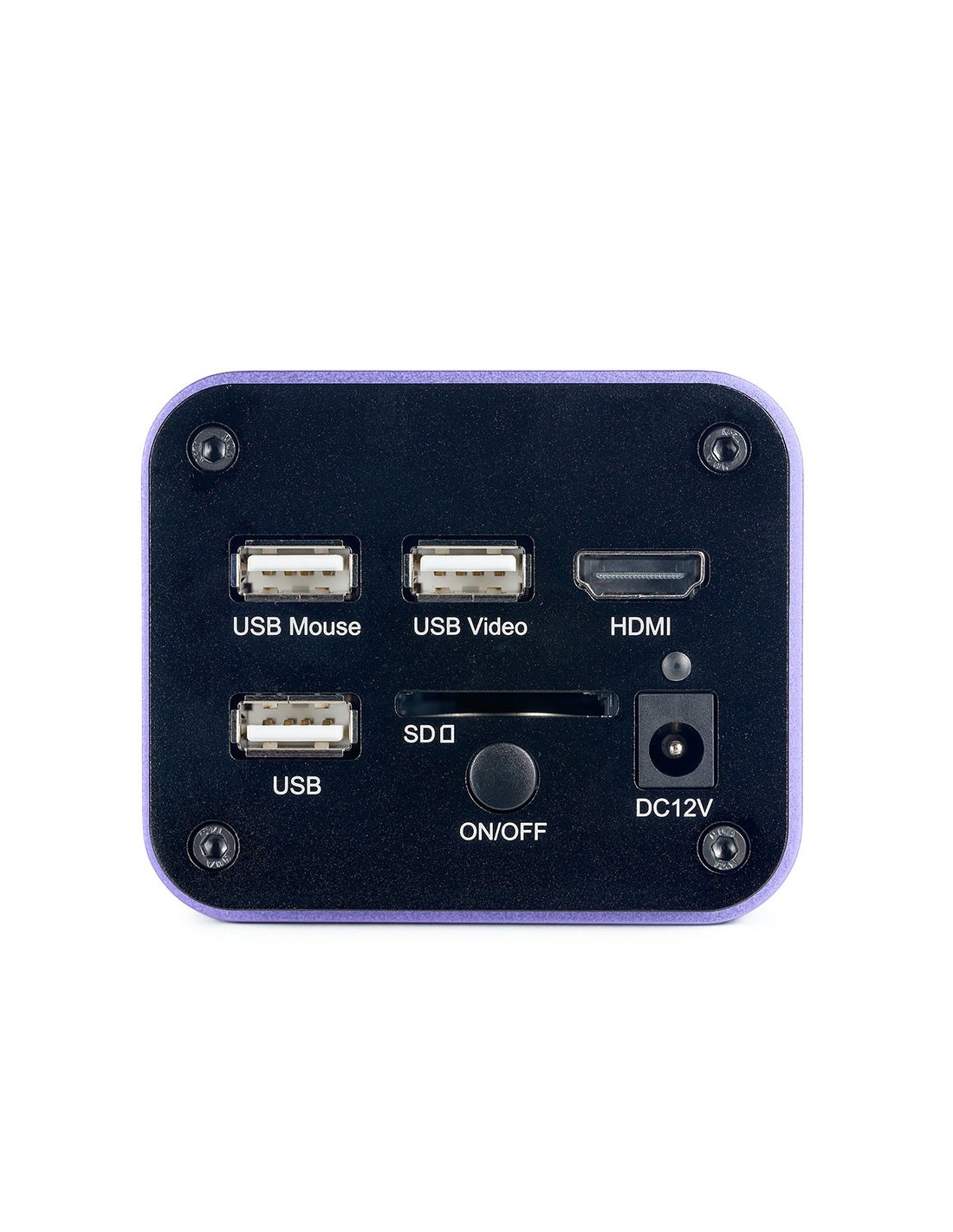

MAGUS CHD20 supports connection to an external screen, a computer as well as the integration of additional devices. Connection to a monitor, TV or projector is via the HDMI interface, at 60 fps. You can connect the camera to a computer via the USB 2.0 interface at 50 fps.
The camera has a 32 GB SD card. On it you can save photos and videos and process them using the integrated software. The USB interface allows you to connect a flash drive.
It is recommended to use a mouse to operate camera applications. It is also included in the package and is designed to level vibrations resulting from direct interaction with the camera.
The device can be combined with special MAGUS monitors, which are installed directly on the camera and create an imaging system at microscope.
Mounting on a microscope

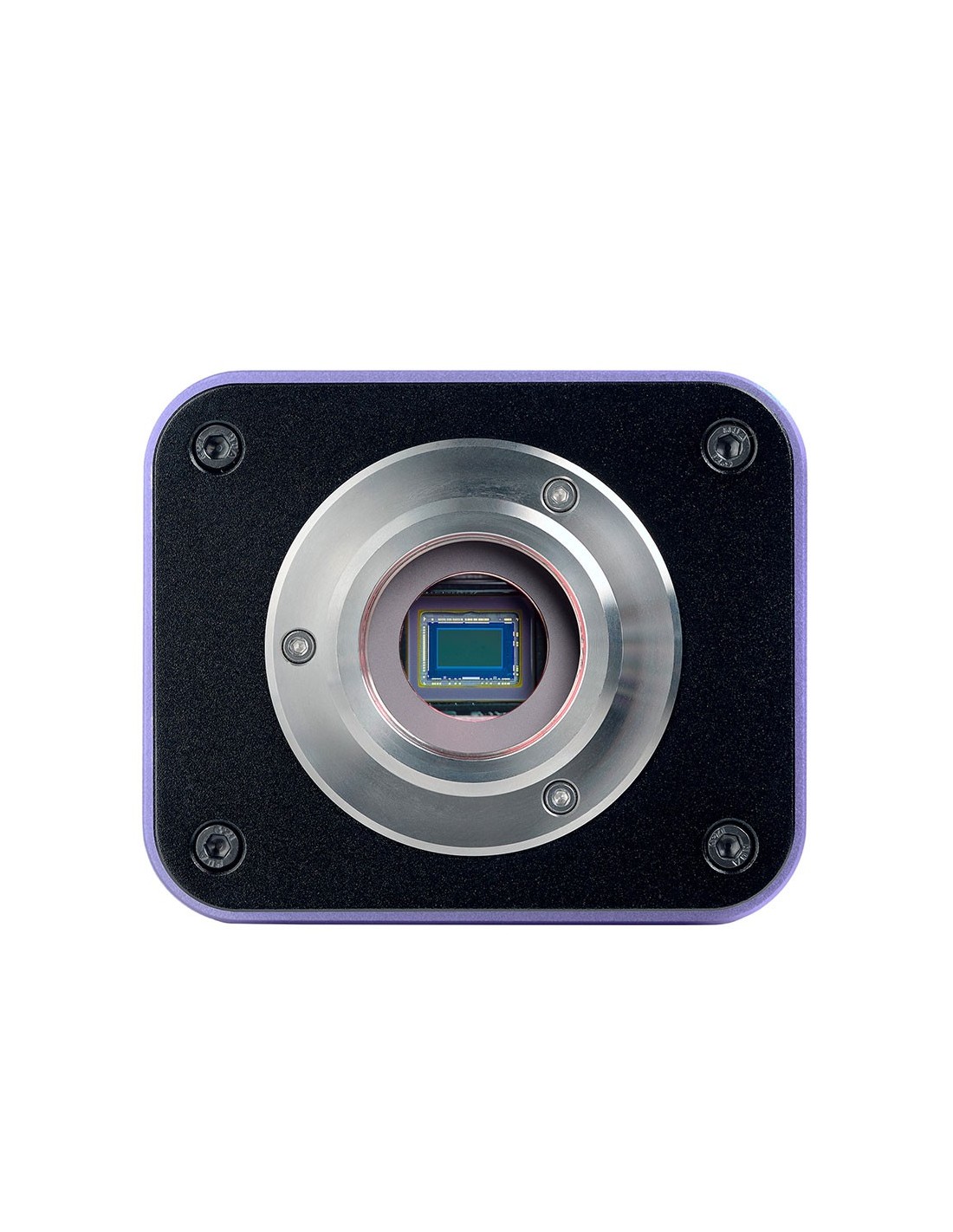

The camera can be inserted into the eyepiece tube of the microscope, connecting to it via a C-mount adapter and a adapter ring for the diameter of the tube (sold separately). A C-mount adapter is used to install the device in the trinocular tube.
Key Features:
- The light sensitivity of 1175 mV at 1 /30 s allows you to shoot even in low light or fluorescent light conditions
- The camera produces high quality Full HD images (1920x1080 px)
- The integrated software provides the ability to create and independently process photographic and video materials and perform measurements of objects
- HDMI and USB interfaces are used to display data on an external monitor or computer; the frame rate is 60 and 50 fps respectively, depending on the connection
- The camera uses RGB mosaic filters, which reduce dark current and produce a sharp image
The package contains:
- Digital camera
- HDMI cable (1.5 m)
- USB cable 2.0 (2 m)
- Mouse with USB
- 32 GB SD memory card
- 12 V/1 A AC power adapter (Euro)
- Installation CD with drivers and software
- User manual and warranty card
| Trademark | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019147 |
| Package size (LxWxH) | 25x17x9 cm |
| Shipping weight | 1.5 kg |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size | 1/2" (7.2x4.05 mm) |
| Pixel size, µm | 3.75x3.75 |
| Interface connectors | USB 2.0, HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Possibility to connect equipment additional | mouse with USB, stick (USB) |
| Light sensitivity | 1175 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 60@1920x1080 (HDMI), 50@1920x1080 (USB) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.tif |
| Video format | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS 2.0, RJ45, CD-ROM, 19" or larger screen |
| Software | HDMI: integrated; USB: MAGUS View |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Power supply | DC adapter 12 V, 1 A |
| DC Power Adapter Specifications | input: AC voltage 100–240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
